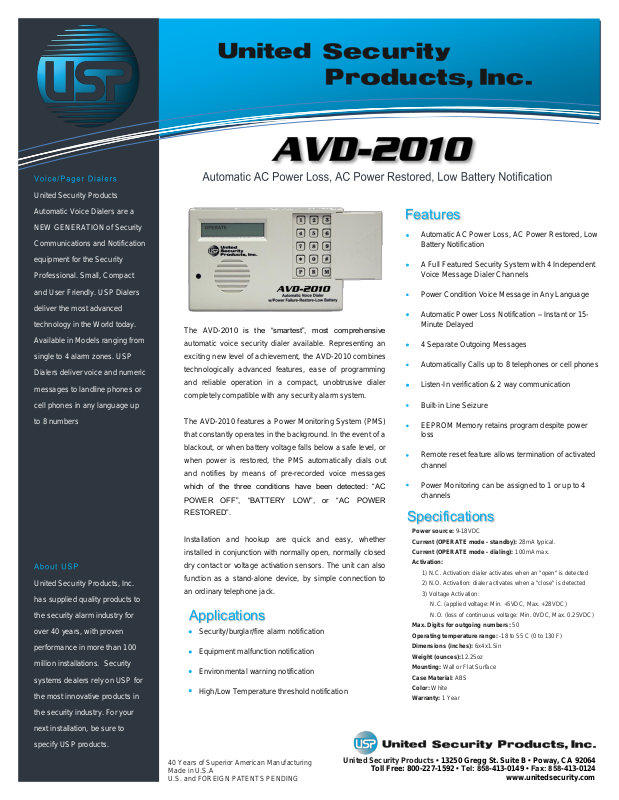

United Security Products AVD-2010 Specsheet

Specifications

Automatic AC Power Loss, AC Power Restored, Low

Battery Notification

A Full Featured Security System with 4 Independent
Voice Message Dialer Channels

Power Condition Voice Message in Any Language

Automatic Power Loss Notification – Instant or 15­Minute Delayed

4 Separate Outgoing Messages

Automatically Calls up to 8 telephones or cell phones

Listen-In verification & 2 way communication

Built-in Line Seizure

EEPROM Memory retains program despite power

loss

Remote reset feature allows termination of activated
channel

Power Monitoring can be assigned to 1 or up to 4
channels

Security/burglar/fire alarm notification

Equipment malfunction notification

Environmental warning notification

High/Low Temperature threshold notification

Power source: 9-18VDC
Current (OPERATE mode - standby): 28mA typical.
Current (OPERATE mode - dialing): 100mA max.
Activation:

1) N.C. Activation: dialer activates when an "open" is detected

2) N.O. Activation: dialer activates when a "close" is detected

3) Voltage Activation:
N.C. (applied voltage: Min. +5VDC, Max. +28VDC)

N.O. (loss of continuous voltage: Min. 0VDC, Max. 0.25VDC)

Max. Digits for outgoing numbers: 50
Operating temperature range: -18 to 55 C (0 to 130 F)
Dimensions (inches): 6x4x1.5in
Weight (ounces):12.25oz
Mounting: Wall or Flat Surface
Case Material: ABS
Color: White
Warranty: 1 Year

United Security Products
Automatic Voice Dialers are a
NEW GENERATION of Security
Communications and Notification
equipment for the Security
Professional. Small, Compact
and User Friendly. USP Dialers
deliver the most advanced
technology in the World today.
Available in Models ranging from
single to 4 alarm zones. USP
Dialers deliver voice and numeric
messages to landline phones or
cell phones in any language up

to 8 numbers

United Security Products, Inc.
has supplied quality products to

the security alarm industry for

over 40 years, with proven
performance in more than 100
million installations. Security
systems dealers rely on USP for
the most innovative products in

the security industry. For your

next installation, be sure to
specify USP products.

The AVD-2010 is the “smartest”, most comprehensive

automatic voice security dialer available. Representing an
exciting new level of achievement, the AVD-2010 combines
technologically advanced features, ease of programming
and reliable operation in a compact, unobtrusive dialer
completely compatible with any security alarm system.

The AVD-2010 features a Power Monitoring System (PMS)

that constantly operates in the background. In the event of a
blackout, or when battery voltage falls below a safe level, or
when power is restored, the PMS automatically dials out
and notifies by means of pre-recorded voice messages

which of the three conditions have been detected: “AC

POWER OFF”, “BATTERY LOW”, or “AC POWER
RESTORED”.

Installation and hookup are quick and easy, whether
installed in conjunction with normally open, normally closed
dry contact or voltage activation sensors. The unit can also
function as a stand-alone device, by simple connection to
an ordinary telephone jack.

Features

Applications

United Security Products • 13250 Gregg St. Suite B • Poway, CA 92064

Toll Free: 800-227-1592 • Tel: [phone] • Fax: [phone]

www.unitedsecurity.com

40 Years of Superior American Manufacturing
U.S. and FOREIGN PATENTS PENDING

Made in U.S.A
