United Security BP33 User Manual

UNITED SECURITY PRODUCTSuunits

800-227-1592 FAX [phone]

www.unitedsecurity.com • [e-mail]

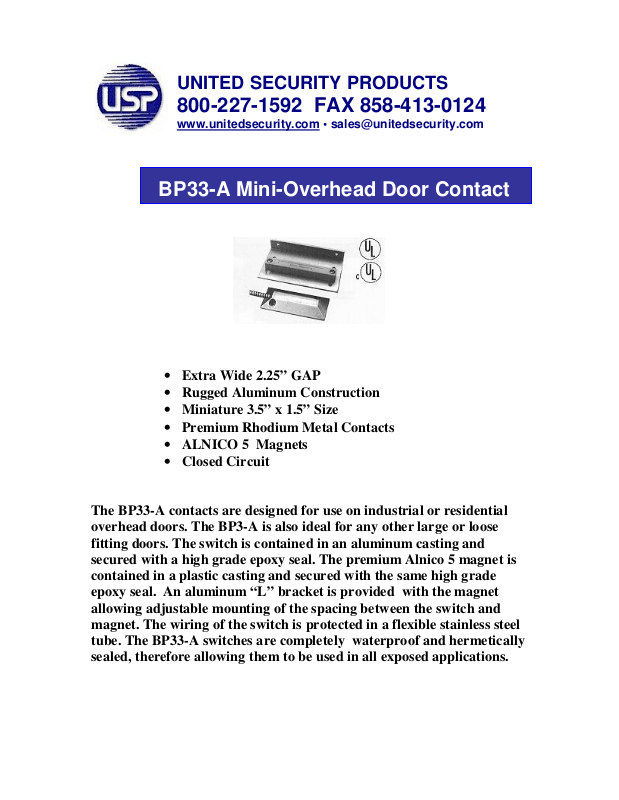

BP33-A Mini-Overhead Door Contact

• Extra Wide 2.25” GAP

• Rugged Aluminum Construction

• Miniature 3.5” x 1.5” Size

• Premium Rhodium Metal Contacts

• ALNICO 5 Magnets

• Closed Circuit

The BP33-A contacts are designed for use on industrial or residential
overhead doors. The BP3-A is also ideal for any other large or loose
fitting doors. The switch is contained in an aluminum casting and
secured with a high grade epoxy seal. The premium Alnico 5 magnet is
contained in a plastic casting and secured with the same high grade
epoxy seal. An aluminum “L” bracket is provided with the magnet
allowing adjustable mounting of the spacing between the switch and
magnet. The wiring of the switch is protected in a flexible stainless steel
tube. The BP33-A switches are completely waterproof and hermetically
sealed, therefore allowing them to be used in all exposed applications.
