United Security AVD-2007 User Manual

MODEL AD

-

2000

w i t h V e r i f i c a t i o n

MODEL AVD-2007

Automatic Voice/Pager

Automatic Voice Dialer

with Low and High Temperature Notification

Dialer System

Not just the next generation…it’s the next millennium!

Not just the next generation…it’s the next millennium !

Versatile * Full-featured * Easy to Program

2-way Listen in Verification

Operates with all alarm systems

Ideal stand-alone dialer

Provides reliable emergency notification 24 hours a day

MODEL AD

-

2000

For Technical Service and Support: Call (858) 413

-

0149 * Fax (858) 413

-

0124

MODEL AVD-2007

Owner’s Manual and Operating Instructions

The Automatic Voice/Pager Dialer System

For The Next Millennium

Congratulations!

Thank you for purchasing United Security Products, Inc.’s Model AVD-2007 - the “smartest”, most compre­hensive automatic voice/pager security dialer available. Representing an exciting new level of achievement, the
AVD-2007 combines technologically advanced features, ease of programming and reliable operation in a com­pact, unobtrusive dialer completely compatible with any security alarm system. Installation and hookup are
quick and easy, whether installed in conjunction with normally open, normally closed dry contact or voltage
activation sensors. The unit can also function as a stand-alone device, by simple connection to an ordinary tele­phone jack. The keypad cover glides on and off for added attractiveness and security.

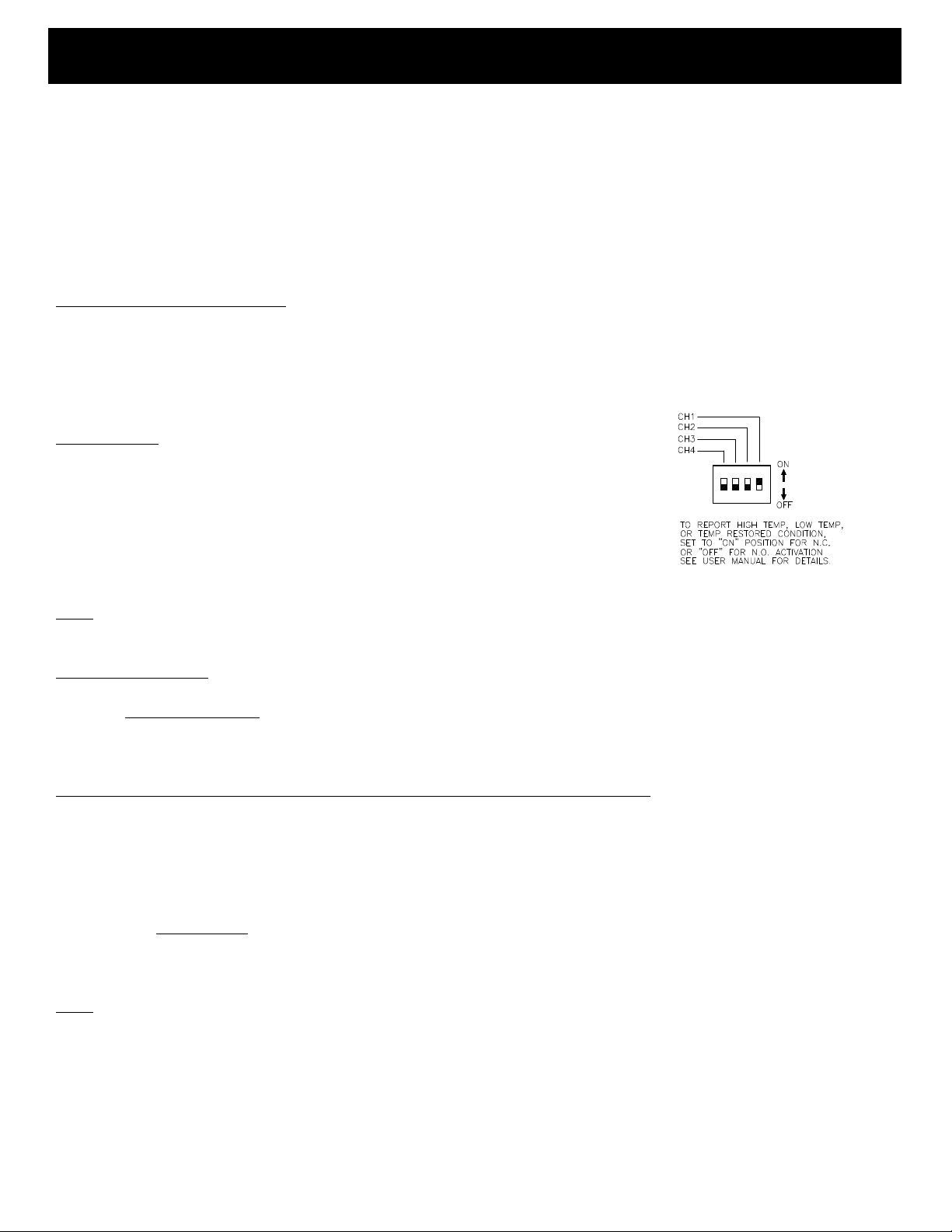

The AVD-2007 features a “smart’ Temperature Monitoring
System (TMS) that constantly operates in the background
without interfering with any of the dialer functions under
normal power conditions. In the event that temperature
drops below 40F, exceeds 120F, or is back at normal ambi­ent the TMS automatically dials out and notifies by means
of pre-recorded voice messages which of the three condi­tions have been detected: “LOW TEMPERATURE
ALERT”, “HIGH TEMPERATURE ALERT”, or
“TEMPERATURE RESTORED”.

The AVD-2007 is extensively programmable, offering per­sonalized customization to fulfill virtually any residential or
business requirement. Plain-English prompts walk the user
through the process in a timely manner.

Programming options abound, allowing the user to:

• Store up to 8 telephone/pager numbers.

• Choose 1- 9 calling efforts for the numbers dialed.

• Select 1-3 message repeats.

• Record a variable combination (maximum: 7) of in-

structional outgoing messages (total elapsed time: 60
seconds).

How It Works

Program up to 4 separate input channels with individually

enable/disable, entry/exit delay and activation options (Nor­mally Open (N.O.), Normally Closed (N.C.)

(dry contact or voltage activation) including momentary and
continuous activation for each).

Further individualize each channel by selecting the delay
times, telephone/pager numbers to be dialed and the specific
outgoing messages to be played.

Please Familiarize Yourself With These Instructions Before
Installation/Operation. This guide describes how to program
and operate the dialer. We strongly recommend that you read
the entire manual before attempting to use the unit.

To enhance ease of programming and operation, this guide
includes:

• A Programming Sample/Quick Setup review on page 13

with a corresponding Program Planner.

• A Blank Program Planner on page 14. One copy of this

Planner should be kept in a safe place by the end user.

A separate copy should also be retained by the installer.

We are happy to provide a full measure of security reassur­ance and peace of mind with the Model AVD-2007. For in­formation about other innovative United Security Products
equipment, call [phone].

Monday – Friday * 6:30 AM – 4:00 PM PST

2

E-mail: [e-mail]

TABLE OF CONTENTS

THIS PACKAGE CONTAINS:

1 ea. MODEL AVD-2007

Section Page number

Package contents…………………………………………………………………
Panel Displays……………………………………………………………………
Installation Hookups: Alarm Panel……………………………………………...
Installation Hookups: Stand Alone………………………………………………
Programming the Dialer………………………………………………………….
Overview………………………………………………………………………
Programming Phone/Pager Numbers………………………………………….
Programming Auxiliary Information………………………………………….
Programming/Recording OGMs………………………………………………
Programming Channels………………………………………………………..
Testing Your System……………………………………………………………..
Operating Your System…………………………………………………………..
Additional Features………………………………………………………………
Low/High Temperature Notification…………………………………………….

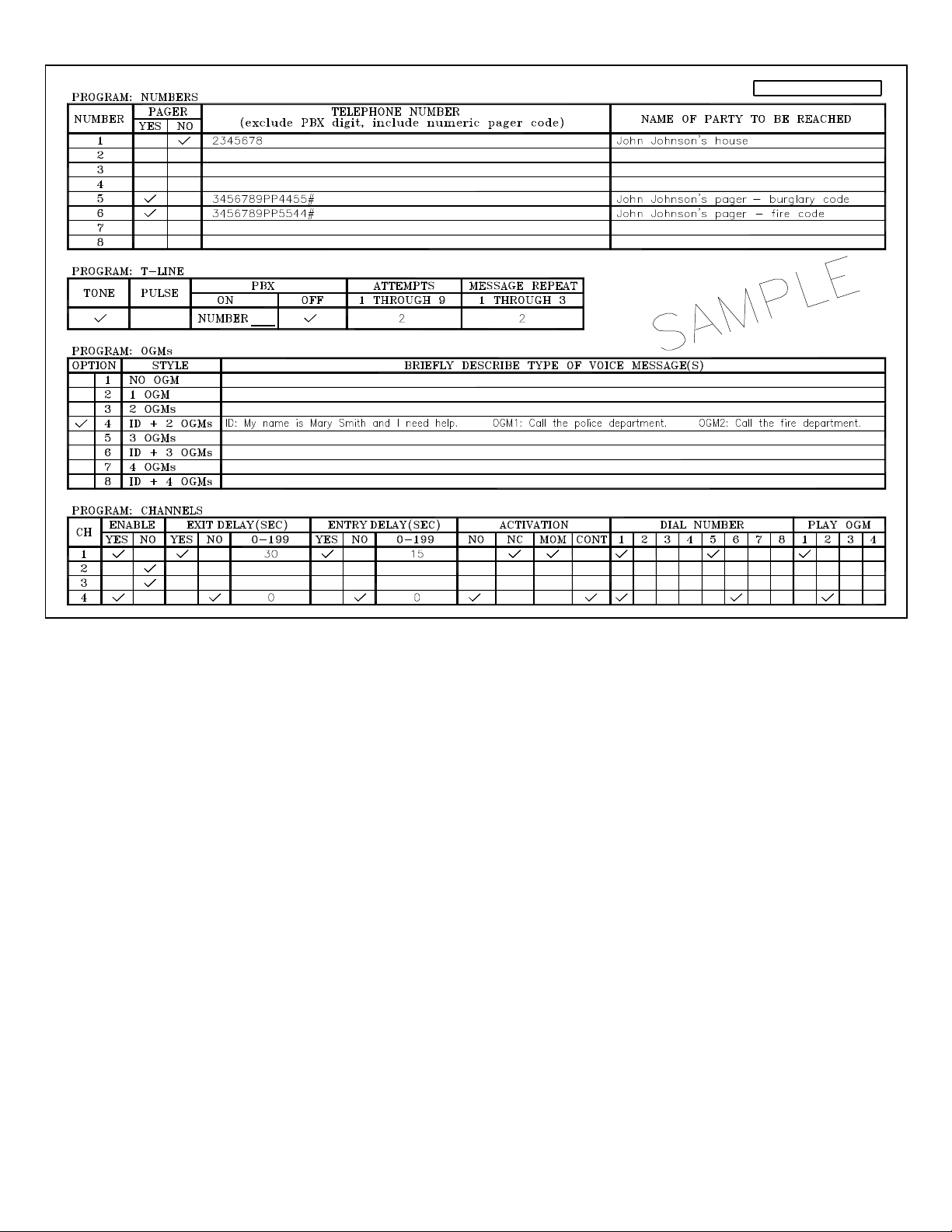

Sample Program Planner…………………………………………………………

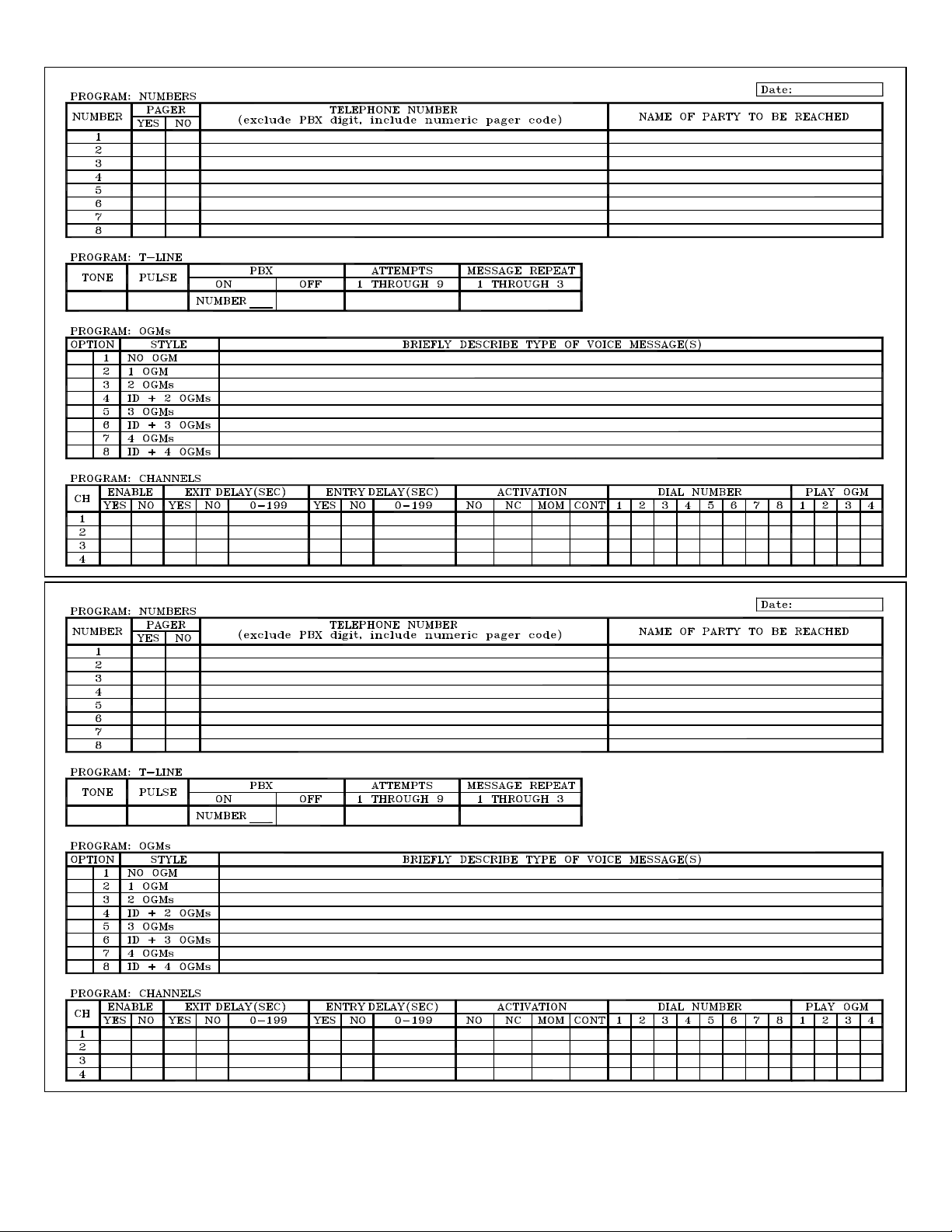

Blank Program Planner………………………………………………………
Specifications…………………………………………………………………….
Dialer Accessories………………………………………………………………..
Important Information……………………………………………………………

1 ea. PHONE CABLE

1 ea. AC-2P ADAPTER

1 ea. PP-1 POWER PACK

1 ea. INSTRUCTION MANUAL

4 ea. 1K RESISTORS

3
4
5
6

7-11

7
8
9

10

10-11

11
12
12
13
14
15
16
16
17

IMPORTANT

AVD-2007 PERFORMS BEST WHEN CONNECTED TO AN ANALOG “LAND
LINE.” DIGITAL CONVERSION OF ANALOG VOICE IN TELEPHONE LINES
MAY RESULT IN A SLIGHT DELAY OF SIGNAL RECEIVED. IF AVD-2007 IS
CONNECTED TO A DIGITAL PHONE LINE, IT MAY BE NECESSARY TO
REPEAT SAYING “HELLO” IN ORDER TO RELEASE THE PRE-RECORDED
MESSAGE.

3

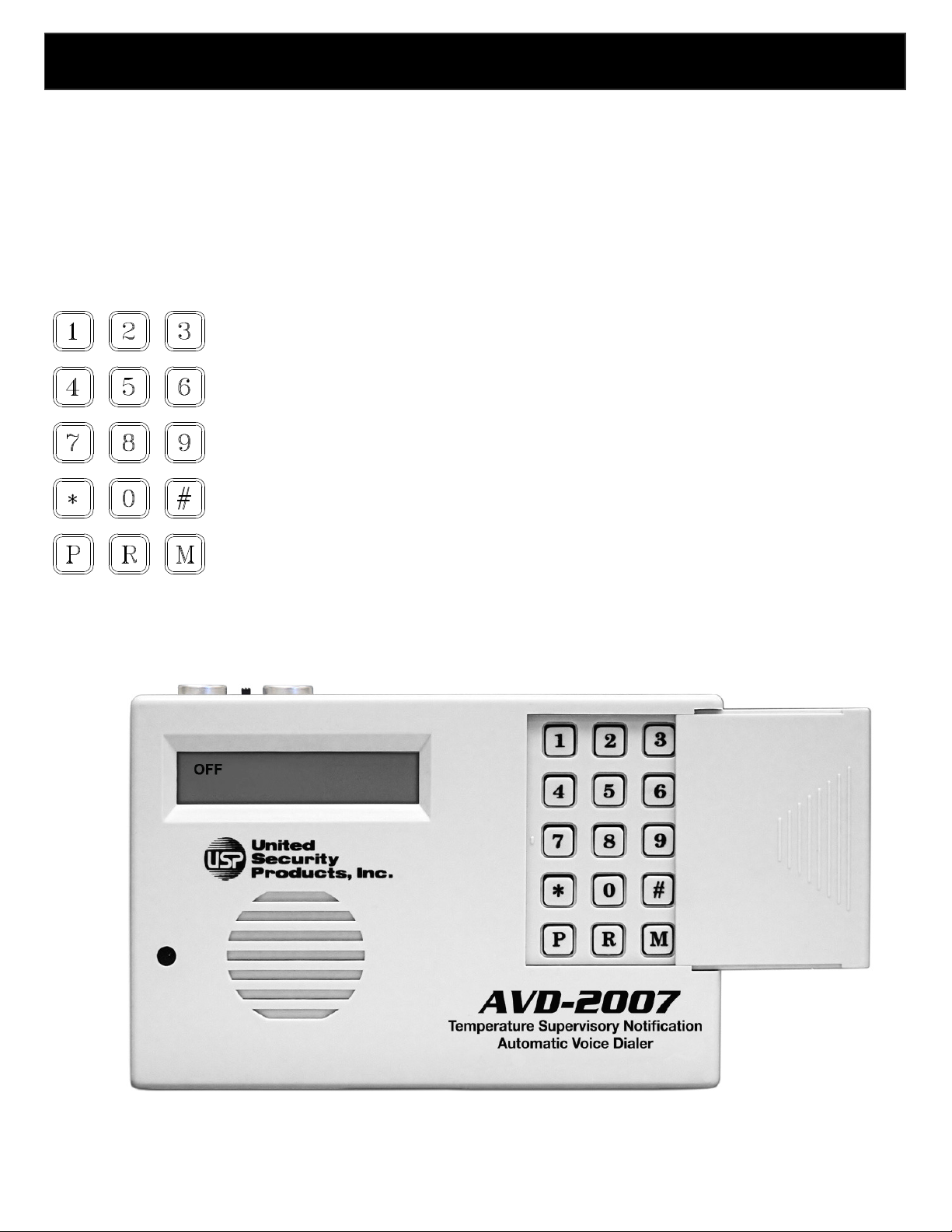

PANEL DISPLAYS
