United Security 900MHz User Manual

WPM

900MHz Wireless Pressure Mat

USER MANUAL/SETUP GUIDE

WPM is a pressure activated security mat with a built­in 900MHz transmitter. When paired to USP 900MHz
Receivers, WPM becomes a convenient and portable
means of detecting unwanted intruders.

WPM is waterproof and may be used outdoors. It
should not be submersed in water or other liquids.

The Mat can be loosely rolled or folded (in one
direction only) for storage.

Setting up your WPM for use with a USP 900MHz
Receiver

1. First, set up the USP 900MHz Receiver that WPM
will be transmitting to. Follow the Receiver
Instructions carefully and, if possible, locate it at a
height five feet above the floor.

2. Open the Velcro seam on the side of the WPM by
gently pulling it apart.

3. Reach inside and carefully pull the Transmitter
from its pocket inside the Mat.

4. Locate the two-part Red Connector and plug it
securely together.

5. Place the Transmitter (and wiring) inside the Mat,

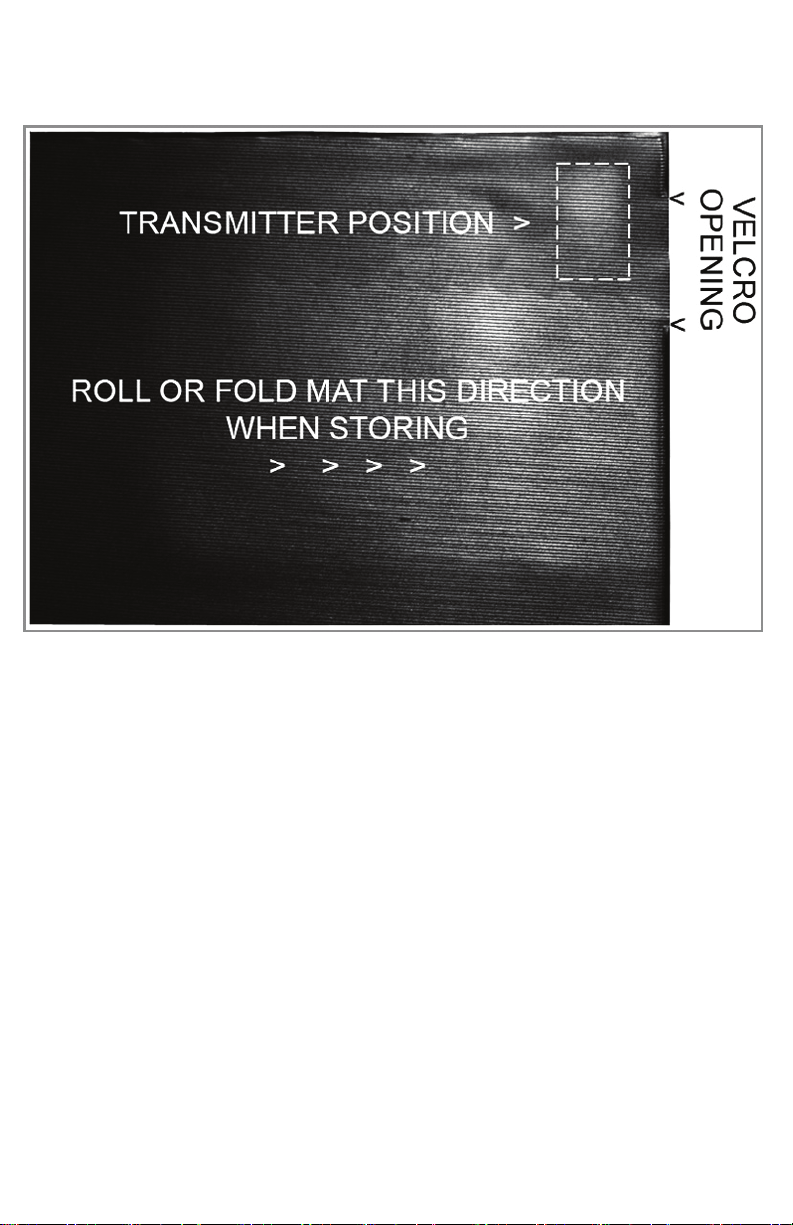

situating the Transmitter as shown in Fig. A,
Page 5

6. Close the Transmitter pocket by pressing the

Velcro seam together.

Note: If you purchased WPM with a USP 900MHz Receiver it
has been programmed (coded) to work with that Receiver.

1

Setting up your WPM for use with an Inovonics FA
Series Receiver, or coding the WPM for use with a
USP 900MHz Receiver if the WPM has not been
programmed (coded) by USP.

1. Complete steps 2 and 3 in “Setting Up”
procedures on Page 1.

2. With the Transmitter outside the Mat, remove the
four small Phillips screws that hold the two
housing sections together and separate the
housings.

3. When prompted by the programming device to
plug in the transmitter, connect the programming
cable to the 3-pin header located next to the
transmitter battery.

4. Press the internal reset button located next to the
battery.

5. Disconnect the programming cable.

6. Fit the housing sections together making sure the
gasket is in place and install the four small Phillips
screws.

7. Locate the two-part Red Connector and plug
securely together.

8. Place the Transmitter (and wiring) inside the Mat,
situating the Transmitter as shown in Fig. A,
Page 5.

9. Close the Transmitter pocket by pressing the
Velcro seam together.
