Page 1
INSTRUCTIONS MANUAL
MODEL: UTF-673
TOWER FAN
Thank you for your purchasing this fan. Please read all instructions carefully
and keep for future use.
Please read these Operating Instructions through carefully before connecting
your device to the mains, in order to avoid damage due to incorrect use.
Please pay particular attention to the safety information. If you pass the
device on to a third party, these Operating Instructions must also be handed
over.
Page 2
IMPORTANT SAFETY INSTRUCTIONS
When using electric devices, basic safety precautions must
be observed. To avoid the risk of burns, electric shocks, fire,
and/or personal injury, please read the instruction manual
carefully before using the device, and observe all of the
instructions during the operation of the device.
GENERAL GUIDELINES
• Electronic devices are not toys! Keep children away from the
device!
• Only use the devices for its intended purpose.
• The device is only suitable for use in private
households and not for commercial use.
• Do not leave the device unsupervised while in use or
connected to the mains.
• Switch off the device if it is not in use, in the event of malfunctions
and for cleaning, and also remove the power plug.
• Do not carry the device by the power cord.
• Keep the device clean and dust-free.
• Never use the device outdoors.
• Check the device regularly for signs of visible damage. Do not use
the device if you have determined damage, if the device has fallen
down or if it does not function properly. Do not attempt to repair the
device yourself.
• Repairs are only allowed to be carried out by qualified specialists.
• The power point must be located near to the device so that the plug
can be removed easily in an emergency.
HAZARDS DUE TO ELECTRIC CURRENT
• The voltage stated on the name plate of the device must agree
with the voltage of your mains electricity network.
• Only connect the device to a power socket that has been installed
properly. Do not use a power strip or an extension cable.
• Never operate the device using a timer or another remote
contract device.
• Never touch the device, the power cable and the plug with damp or
wet hands or if you are standing on wet ground.
Page 3
• Do not place the power cord in the sink.
• Do not immerse in water. Risk to life of electric shock!
• Keep the device, the power cable and plug away from hot surfaces,
naked flames, direct sunlight and sharp edges. When using the
device make sure that the cable is not jammed (e.g. in doors).
• When you pull the plug out of the power socket, always pull
on the plug and never on the cable.
• If the power cable of this device is damaged it has to be replaced
by a correspondingly qualified person to prevent hazards. The
same applies to the plug.
HAZARDS TO PEOPLE
• These devices can be used by children aged 8 years and above and
by people with reduced physical, sensory or mental capabilities or a
lack of experience and/or knowledge, if they are supervised or
instructed in the safe use of the product and understand the hazards
involved. Children must not play with the appliance.
• Cleaning and maintenance of the product must not be performed by
children.
• Children do not recognise the hazards which can arise when
handling electrical devices. Keep children away from the device.
Pay particular attention when using the device if children are in the
vicinity!
• Keep the packaging materials such as plastic bags and polystyrene
parts out of the reach of children. Danger of suffocation!
• When laying the cable make sure that it cannot become a tripping
hazard.
• Make sure that the device itself cannot be tripped over.
ARTICLE-SPECIFIC HAZARDS
• Make sure that the device isn't dirty and that it is assembled
correctly
• Never operate the appliance on uneven surfaces or in the vicinity of
steps. Avoid tipping the device over when it is in use (e.g. if there are
borders on the floor).
The pedestal fan may only be used, if it is fully assembled. Check
all screw / plug connections at regular intervals. Re-tighten loose
screws and ensure that plug connections are properly adjusted.
Page 4

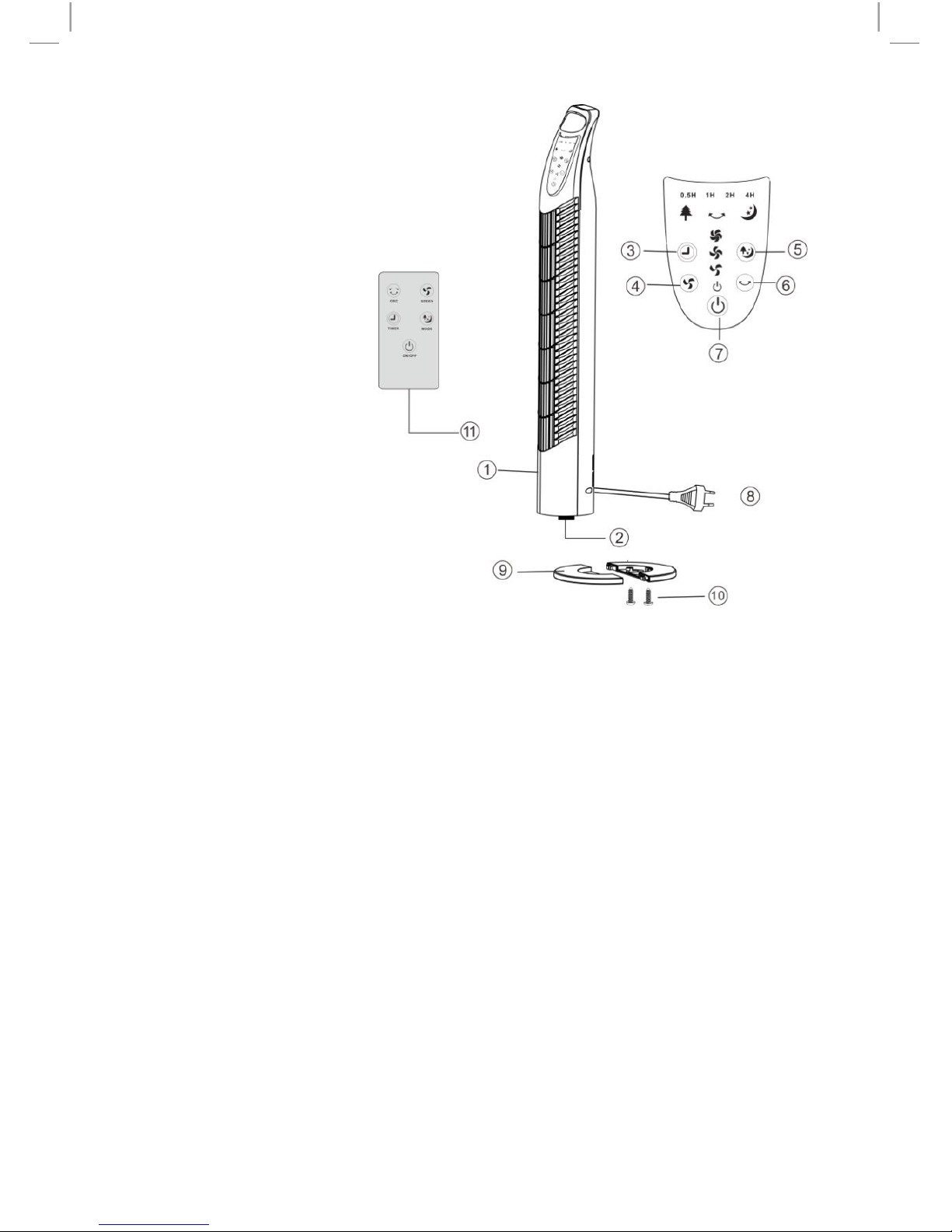

OVERVIEW OF APPLIANCE
1. Air outlet grating
2. Motor
3. Timer
4. Speed
5. Mode
6. Oscillation
7. ON/OFF
8. Power plug
9. Stand
10. Screws
11. Remote control
ASSEMBLING THE STAND
1. Take all of the appliance parts out of the packaging and remove
all packaging materials and inserts.
2. Turn the fan upside down so that you can look at the motor (2). (Fig.
1).
• Put the part of the stand (9) that has no plug connections on the
straight side onto the motor (2). Make sure that the power cord (8) is
not wedged in. (see. Fig. 2)
• Now put the second part of the stand (9) onto the motor (2) and
the part of the stand (9) that has already been mounted. The
power cord (8) must now be threaded through the middle of the
stand (9) and guided through the cord holders. (See Fig. 3).
• Secure the stand (9) with the screws (10). Tighten the screws (10)
with a suitable screwdriver. (See Fig. 4).
Page 5

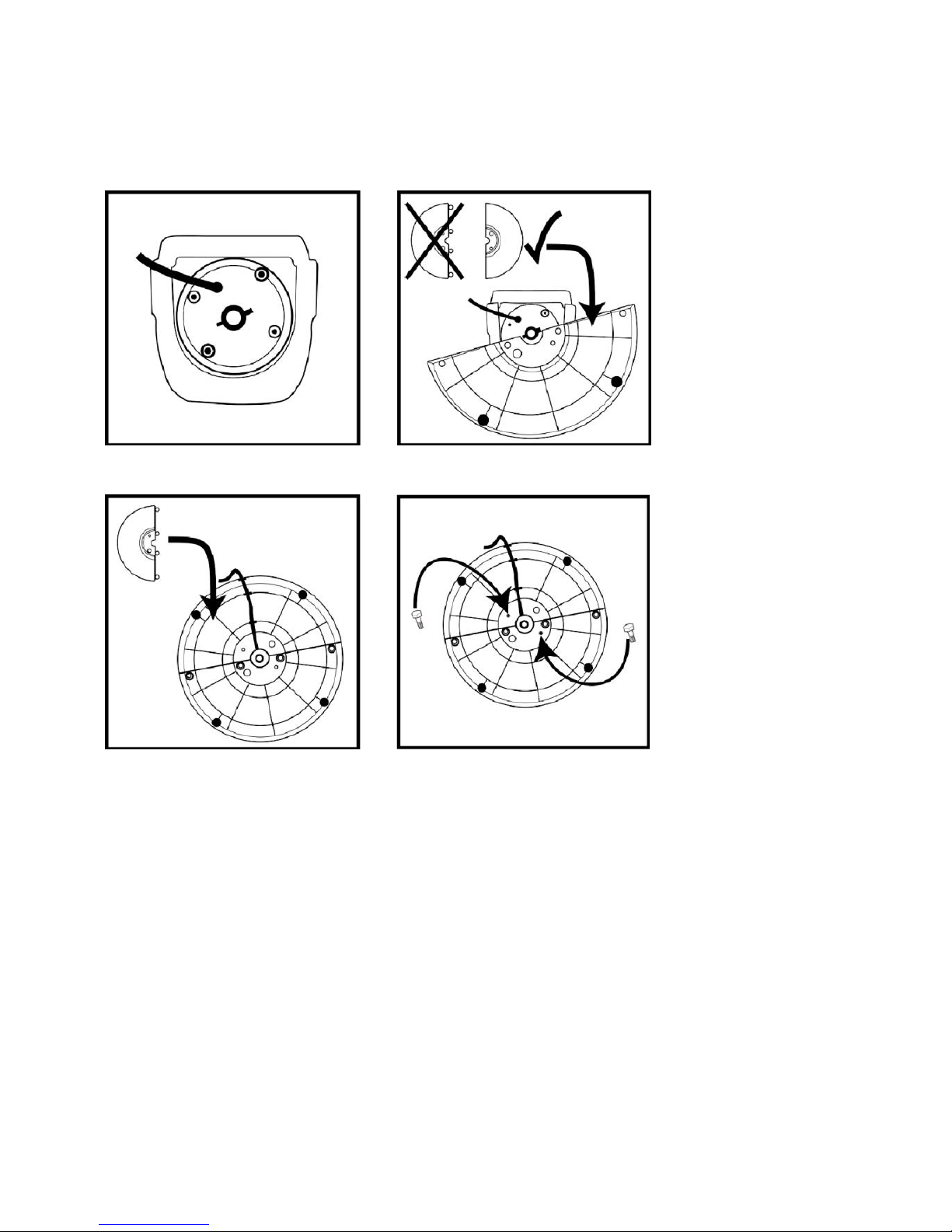

Fig. 1: Fig. 2:
Fig. 3: Fig. 4:
HANDLING THE APPLIANCE
TIMER FUNCTION (0.5 - 7.5 HOURS)
• Turn the timer (3) to the desired time period (0.5-7.5 Hours)
and select the desired fan speed by pressing the appropriate
power setting (4).
• The appliance will turn on.
• It will now remain in operation until the selected period of time runs
out.
• If the timer runs out, the device will turn off.
Page 6
OSCILLATION FUNCTION
• The oscillation function can be used with or without the timer
function.
• By pressing the oscillation button (6) you can start the
oscillation function.
• The oscillation function can only be started if the fan is in
operation. If the oscillation button (6) is pressed, the fan
will swivel from left to right and back again.
• To stop this, press the oscillation button (6) again. The fan
will remain in its current position.
SPEED FUNCTION
• The speed function can be adjusted from Low-Mid-High.
• By pressing the speed button (4) you can choose the fan
speed.
MODE FUNCTION
• The mode function can be choose NORMAL / SLEEP /
NATURE.
• By pressing the speed button (5) you can choose the fan
mode.
• The default mode is NORMAL, and the SLEEP/NATURE
mode with the indicator be light up.
REMOTE CONTROL
• All the function above can be set by remote control
CLEANING AND MAINTENANCE
Before cleaning the appliance always disconnect the power
plug from the receptacle.
• The appliance, the power cord and the power plug should not
be immersed in water or other liquids when you are cleaning
them. Clean them with a dry cloth.
Page 7
• If it is very dirty, the outside of the appliance can be wiped
carefully with a moist cloth and then dried carefully. Make sure
that no moisture penetrates into the interior of the appliance.
• Do not use any harsh cleaners, steel brushes, scouring
powder or other hard objects to clean the appliance as these
can cause scratches on the surfaces.
• Clean the appliance regularly.
• Never use solvents, benzene or oil-based cleaners as these
can damage the housing.
• Re-tighten visible screw connections on the appliance
regularly in order to ensure that the device is functioning
properly.
• Keep the device, the power cable and plug away from hot
surfaces, naked flames, direct sunlight and sharp edges. When
using the device make sure that the cable is not jammed (e.g. in
doors).
• When you pull the plug out of the power socket, always
pull on the plug and never on the cable.
• If the power cable of this device is damaged it has to be
replaced by a correspondingly qualified person to prevent
hazards. The same applies to the plug.
• For additional protection the installation in the bathroom
circuit of a residual current device (RCD) with a rated tripping
current of no more than 30 mA is recommended. Please
consult an authorized electrician in this regard.
SPECIFICATION
MODEL: UTF-673
POWER: 45W
VOLTAGE: 220V-240V / 50Hz
Page 8
NOTICE ABOUT RECYCLING
Your product is designed and manufactured with
high quality materials and components which can be
recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life,
should be disposed of separately from your
household waste. Please dispose of this equipment at
your local community waste collection/ recycling centre.
In the European Union there are separate collection systems for
used electrical and electronic products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Amiridis-Savvidis S.A. states that this product, complies
with the requirements of below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14/ 35 / EU
CE Marking: 93 / 68 / EEC
RoHS Directive: 11 / 65 / EU
The detailed declaration of conformity can
be found at
www.united-electronics.gr
Exclusive importer in Greece:
Amiridis – Savvidis S.A.
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: +302310944944 | F: +302310944940
www.amiridis-savvidis.gr
www.united-electronics.gr
