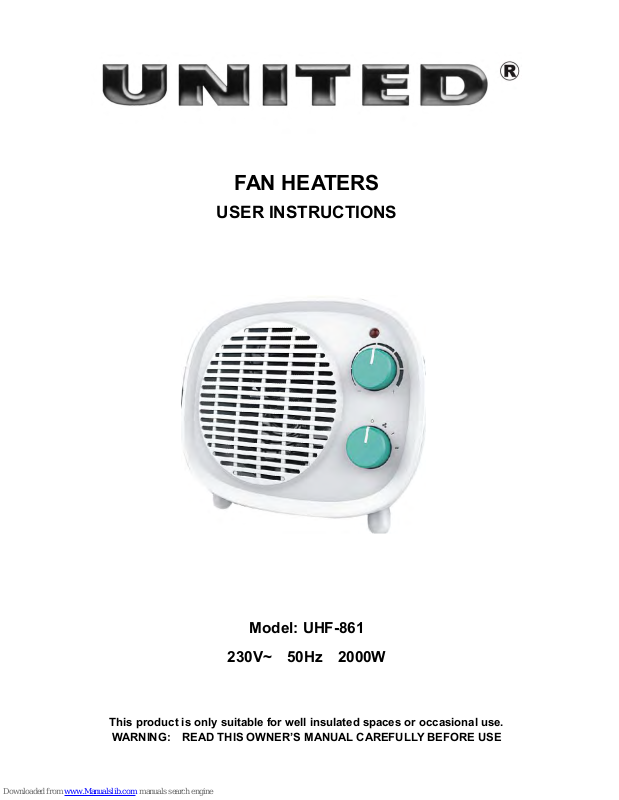

Page 1
FAN HEATERS
USER INSTRUCTIONS
Model: NSB-200CA
Model: UHF-861
230V~ 50Hz 2000W
This product is only suitable for well insulated spaces or occasional use.
WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE
Page 2
INTRODUTION
Thank you for purchasing this product. Read the instructions carefully and keep them
for further reference.
IMPORTANT SAFEGUARDS
When using any electrical appliance basic precautions should be followed.
Please read the following instructions as they are for your benefit and safety:
1. Make sure the power supply used corresponds to the rating label.
2. Never obstruct or block any openings of the heater.
3. Use the heater only on a flat surface.
4. Always disconnect the appliance from the main power supply when not in use and
when cleaning.
5. Do not leave the heater unattended while operation.
6. Never cover the heater as this may lead to risk of fire.
7. Keep the appliance a distance of at least 90 cm from any combustible material
such as furniture, curtains, bedding, clothes or papers.
8. Do not use this heater in the immediate surrounding of a bath, a shower or a
swimming pool.
9. Do not immerse the heater in water or allow water to come into contact with the
plug or control device.
10. Keep this heater clean. Do not allow objects to enter the ventilation opening as this
may cause electric shock, fire of damage to the heater.
11. Close supervision is require when any appliance is used near or by children.
12. Never allow the cord to touch wet or hot surfaces, become twisted or within the
reach of children.
13. Do not use outdoors
14. Do not place on or near a hot gas electric burner.
15. If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
16. Do not use the appliance for other than its intended use as described in this
instruction book.
17. Do not place the heater immediately below a socket outlet.
18. This appliance is intended for household use only.
19. Do not leave the heater turned on overnight.
20. While cleaning, make sure not to use a wet cloth or water on any part of the unit,
as this may cause a short circuit or electrical shock.
21. Do not use this unit in any area where water is present.
22. Make sure the power cord is placed at the back side of the heater.
23. The heater should not be used in a room of which the floor area is less than 5 m².
24. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
Page 3
children without supervision.
25. Children of less than 3 years should be kept away unless they are continuously
supervised. Children aged from 3 years and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children aged
from 3 years and less than 8 years shall not plug in, regulate and clean the appliance
or perform user maintenance.
26. Caution: Do not cover the your heater when in use.
27. The fan-heater must not be placed near a socket.
28. This fan-heater must not be used near a bath, shower or swimming-pool
KEY/PARTS LOCATION
1. Indicator light
2. Thermostat switch
3. Air outlet
4. ON/OFF switch control
HOW TO OPERATE
1. Remove the unit from the box and take off any protective wrapping.
2. Place the heater on a smooth level surface and least 30cm away from any
obstacles.
3. Plug your fan heater into the power supply. Make sure your power supply
corresponds to the power indicated on the rating label.
4. Heat temperature setting can be regulated using the switch located at the bottom
of the heater. This switch is used for both the fan and heat elements. Note the fan
speed cannot be adjusted and will always remain constant.
* Fan- for a lower power air circulation; Turn the dial on the right clockwise, once for
the fan function
* Low- Turn it twice for the Medium heat setting (1000W). This setting is best suited
for smaller, well-insulated areas.
* High- Turn the switch once more for High setting, or full power (2000W). Delivers
rapid warm air to increase the temperature to a given area.
OVERHEATING SAFETY DEVICE
Your heater has a safety device that switches off the heater in the event of
overheating.
Should the heater stop working, turn the heater off and inspect of blockage of inlet or
outlet. Wait at least 5 minutes of the protection system to reset before restarting the
heater.
If the heater fails to operate the safety device switches the heater off again, return the
heater to your nearest service center for examination or repair.
CLEANING YOUR FAN HEATER
1. Always disconnect the appliance from the main supply before cleaning.
Page 4
2. Clean the outside of the heater by wiping with damp cloth and guff with a dry cloth.
3. Do not use Benzine or any other detergents/solvents or chemical agents to clean
the heater.
SERVICE
Hints before returning the appliance:
Is your household socket working properly?
Are all required switches in the “ON” position?
Ensure that the plug is firmly in the socket and switched on.
Ensure the heater if standing on an even surface.
NOTE: If the power cord, or plug is damaged, an Amalgamated Appliance service
center or an official agent must replace it.
NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality materials
and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their
end-of-life,
should be disposed of separately from your household waste. Please
dispose of this equipment at your local community waste collection/
recycling centre.
In the European Union there are separate collection systems for used electrical and
electronic products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Amiridis-Savvidis S.A. states that this product, complies with the
requirements of below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14/ 35 / EU
CE Marking: 93 / 68 / EEC
RoHS Directive: 11 / 65 / EU
The detailed declaration of conformity can be found at www.united-electronics.gr
Exclusive importer in Greece:
Amiridis – Savvidis S.A.
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: +302310944944 | F: +302310944940
www.amiridis-savvidis.gr
