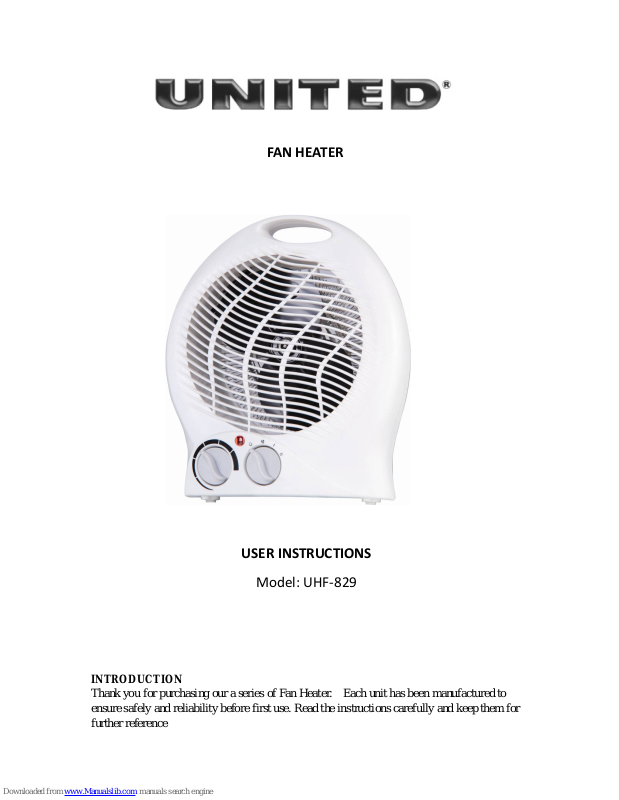

Page 1
FAN HEATER
USER INSTRUCTIONS
Model: UHF-829
INTRODUCTION
Thank you for purchasing our a series of Fan Heater. Each unit has been manufactured to
ensure safely and reliability before first use. Read the instructions carefully and keep them for
further reference
Page 2
IMPORTANT SAFEGUARDS
When using any electrical appliance basic precautions should be followed. Please read the
following instructions as they are for your benefit and safet y:
1. Make sure the power supply used corresponds to the rating label.
2. Never obstruct or block any openings of the heater.
3. Use the heater only on a flat surface.
4. Always disconnect the appliance from the main power supply when not in use and when
cleaning.
5. Do not leave the heater “ON” unattended.
6. Never cover the heater as this may lead to risk of fire.
7. Keep the appliance a distance of at least 90 cm from any combustible material such as
furniture, curtains, bedding, clothes or papers.
8. Do not use this heater in the immediate surrounding of a bath, a shower or a swimming
pool.
9. Do not immerse the heater in water or allow for water to come into contact with the plug
or control device.
10. Keep this heater clean. Do not allow objects to enter the ventilation opening as this may
cause electric shock, fire of damage to the heater.
11. Close supervision is require when any appliance is used near or by children.
12. Never allow the cord to touch wet or hot surfaces, become twisted or be within the reach
of children.
13. Do not use outdoors
14. Do not place on or near a hot gas electric burner.
15. If the supply cord is damaged, it must be replaced the manuf actu re or i ts serv ice a gent or a
similarly qualified person must replace it in order to avoid a hazard.
16. Do not use the appliance for other than its intended use as described in this instruction
book.
17. Do not place the heater immediately below a socket outlet.
18. This appliance is intended for household use only.
19. Do not leave the heater on overnight.
20. While cleaning, make sure not to use a wet cloth or use water on any part of the unit, as
this may cause a short circuit or electrical shock.
21. Do not use this unit in any area where water present.
22. Make sure the power cord is placed at the back away from the front panel of the heater.
23. This appliance is not intended for use by persons(including children)with reduced
physical,sensory or mental capabilities,or lack of experience and knowledge,unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
24. Children should be supervised to ensure that they do not play with the appliance.
25. Caution: Do not cover anything on your heater when in use.
26. The fan-heater must not be placed near a socket and the following hint: This fan-heater
must not be used near a bath, shower or swimming-pool
27. .
NOTE: Should the unit overheat, this heater is fitted with a safet y with overheating device
which will switch the off automatically. (If the air vent is blocked or if the fan function is not
blowing air). If this should happen, all you need to do this:
Disconnect the plug from the electrical socket for a few minutes. Ensure the heater is not
Page 3
covered and nothing is obstructing any of the vents. Plug the heater ba ck into the electrical
socket and switch the heater back ON.
HOW TO OPERATE
1. Remove the unit from the box and take off any protective wrapping.
2. Place the heater on a smooth level surface and least 30cm away from any obstacles.
3. Plug your fan heater into the power supply. Make sure your power supply corresponds to
the power indicated on the rating label.
4. Turn the thermostat knob (right) in a clockwise direction until it reaches the maximum
setting.
- Summer service (ventilation only): turn the knob to setting
- Heating at reduced power: turn the knob (right) to setting I (1000W).
- Heating at full power: turn the (right) to setting II (2000W).
- Switching off: turn the knob (left) to setting O
5. When the room has reached the required temperature turn the ri ght thermostat knob (where
included). In an anti-clockwise direction up to the point where the appliance switches off and
not beyond. The temperature fixed in this way will be automatically regulated and kept at a
constant level by the thermostat.
OVERHEATING SAFETY DEVICE
Your heater is fitted with a safety device that switches off the heater in the event of
overheating.
Should the heater stop working, turn the heater off and inspect of blockage of inlet or outlet.
Wait at least 5 minutes of the protection system to reset before attempting to restart the heater.
If the heater fails to operate the safety device switches the heater off again, return the heater to
your nearest service center for examination or repair.
CLEANING YOUR FAN HEATER
1. Always disconnect the appliance from the main supply before cleaning.
2. Clean the outside of the heater by wiping with damp cloth and guff with a dry cloth.
3. Do not use Benzine or any other detergents/solvents or chemical agents to clean the
heater.
SERVICE
Hints before returning the appliance:
Is your household socket working properly?
Are all required switches in the “ON” position?
Ensure that the plug is firmly in the socket and switched on.
Ensure the heater if standing on an even surface.
NOTE: If the power supply cord, or plug is damaged, an Amalgamated Appliance service
center or an official agent must replace it.
If service becomes n ecessar y with the warr anty peri od the appli ance shoul d be return ed to an
approved service center. Servicing outside the warranty period is still available, however it
will be chargeable.
Page 4
NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality materials and components w hi ch
can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should be
disposed of separately from your household waste. Please dispose of this equipment at your lo cal
community waste collection/ recycling centre.
In the European Union there are separate collection systems for used electrical and electronic
products. Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
This product complies with the requirements of the directives
EMC Directive 04/108/EC
Low Voltage Directive 06/95/EC
RoHS2 Directive 11/65/EU
declare that this product is in compliance with the following norms:
EN55014-1:2006/+A1:2009/+A2:2011
EN55014-2:1997/+A1:2001/+A2:2008
EN61000-3-2:2006/+A1:2009/+A2:2009
EN61000-3-3:2013
EN60335-2-30:2009+A11:2012
EN60335-1:2012+A11:2014
EN62233:2008
EXCLUSIVE IMPORTER IN GREECE:
Amiridis – Savvidis S.A.
33, Vas. Olgas avenue - 54641, Thessal onik i, Greece
Tel: +30 2310850107, Fax: +30 2310854176
45, Posidonos street - 18344, Moschato, Athens, Greece
Tel: +30 210 9402064, Fax: +30 210 9402137
87, 17
th
November street - 55535, Pylaia, Thessaloniki, Greece
Tel: +30 2 310944944, Fax: +30 2310944940
www.united-electronics.gr
