That’s why the TB100 is equipped with a 7” WXGA TFT LCD multi-touch
display of Gorilla™ glass. This type of glass is not only offering excellent
visibility inside as well as outside, it’s also a very durable which increases
the product life time of the device. The combination of this unique glass
with an anti-slipping rubber protection around the main body, an IP65 rating
against moisture and dust and a 1.2M drop threshold, makes this tablet is
THE solution for all your business demands. Don’t settle with a consumer
grade tablet, choose a long term solution!

Features

First built-in 3,75G rugged tablet weighing less than 600 grams
Android™ v3.2 operating system
Gorilla® glass, 7” WXGA multi-touch TFT LCD display
High capacity battery with 6 hours battery life
WLAN 802.11 b/g/n, Bluetooth® 2.1 EDR, 3,75G (optional)
Remote device management: 12Manage
IP65 and 1.2m drop MIL standard

New Versatility
Tablets are increasingly becoming essential tools used in business
environments because of the need for larger viewable screens to
support customer facing activates. Imagine your salespeople being
able to show your customer all the suggested add-on accessories and
service to that product in one easy to view screen, then taking their
order without having to leave the customer’s side. Thanks to the
integrated WWAN 3,75G feature, the TB100 is also a great tool for
field service and route sales automation. Employees working outside
the four walls will benefit from the TB100’s fast speed and durability
to bring your business a new competitive advantage when facing your
customers.

Rugged tablet with Gorilla® glass
For a professional tablet user you need a tablet to be scratch and
drop-resistant. During working hours accidents happen but buying
tablets on a regular basis to replace the old ones doesn’t fit into any
commercial business strategy.

Searching for a tablet durable enough to use in your business? Now you have the perfect match with the TB100. With a great list of unique features for
ultimate flexibility and free software to help you easily manage and support your business tablet, It’s time to choose the high quality, rugged TB100.

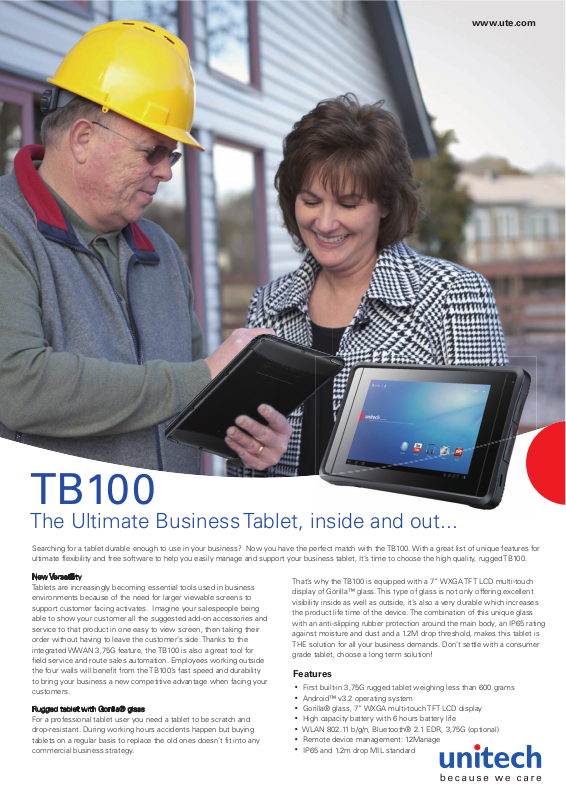

TB100

The Ultimate Business Tablet, inside and out...

www.ute.com

Enclosure

Weight 1.26lb (570g) with 3.75G

Dimension 136.6mm x 218mm x 21mm

1.23lb (560g) without 3.75G

Environmental

Operating temperature

Storage temperature

Relative Humidity

Drop Specification

Sealing

Vibration

ESD

-4°F ~ 140°F (-20°C ~ 60°C)

-67°F ~ 167°F (-55°C ~ 75°C)

10 to 95% @ 40°C, non-condensing

26 drops of 48 inches height to 2”

plywood over concrete with unit off

Mil Std 810G-516.6, Procedure IV

IP65

Meets Mil Std 810G-514.6,

Procedure I Cat. 24, Fig. 514.6E-1 & 514.6E-2

(Unit is non-operating)

ASTM 4169-99 Truck Assurance Level II,

Schedule E (Unit is operating)

Air +/- 8KV, Contact +/- 4KV

Power Source

AC/ DC Adapter AC Power input: 100V-240V, 50Hz-60Hz, 12V/2A, 24W

DC Power output: 12V/ 2A

Battery Li-Polymer high capacity battery (27Whr),

6 Hrs Battery Life

Communication

WLAN IEEE 802.11 b/g/n

PAN Bluetooth 2.1 + EDR

WWAN 3.75G HSPA+:21Mbps(DL)/5.76Mbps(UL)

UMTS/ HSDPA/ HSUPA/ PA+850/ 900/ 1900/ 2100MHz

Regulatory Approvals

CE/ FCC Class B/ UL.RoHS compliance

CPU NVIDIA® Tegra™ 2 1.0 GHz Dual Core Processor

Memory DDR2 1GB SDRAM

OS Android™ v3.2

Storage

Navigation

Other

System Features

16GB eMMC Flash

GPS

Digital compass

Light Sensor

G-Sensor

3-axis digital gyroscope,

Vibration motor

Front 1.2M Pixel camera

Rear 5M Pixel AF camera

Camera

I/O Port

DC-IN Jack x 1

Mini USB Port x 1

Mini HDMI Port x 1

Micro SD Card Slot x 1

3.5-mm stereo headphone jack x 1

Built-in Speaker & Microphone

LCD Display

Display Type
Max. Resolution
Max. Color
Dot Size
Luminance
View Angle

7” 16:10 TFT LCD
1280 x 800
262K

0.117755(H) x 0.117755(V)
400 cd/m
Horizontal 178° (Typical)

Vertical 178° (Typical)

Touch Screen

Type

Light Transmission

Gorilla 7H hardness glass

Projected Capacitive Multi-Touch Panel

87%

>

Accessories

Vehicle Cigarette Charger

Holster

MS910 Pocket Scanner

Power Cord

Specifications

TB100
