Unitech PA700 User Manual

PA700 Rugged Handheld Computer

User’s Manual

Version 1.0

Table of content

Table of content.............................................................................................. 2

1. Package Contents ...................................................................................... 3

2. Getting started ........................................................................................... 4

2.1 Device overview ................................................................................... 4

2.2 Assembly .............................................................................................. 6

Accessing battery, Micro SD card and SIM card ..................................... 6

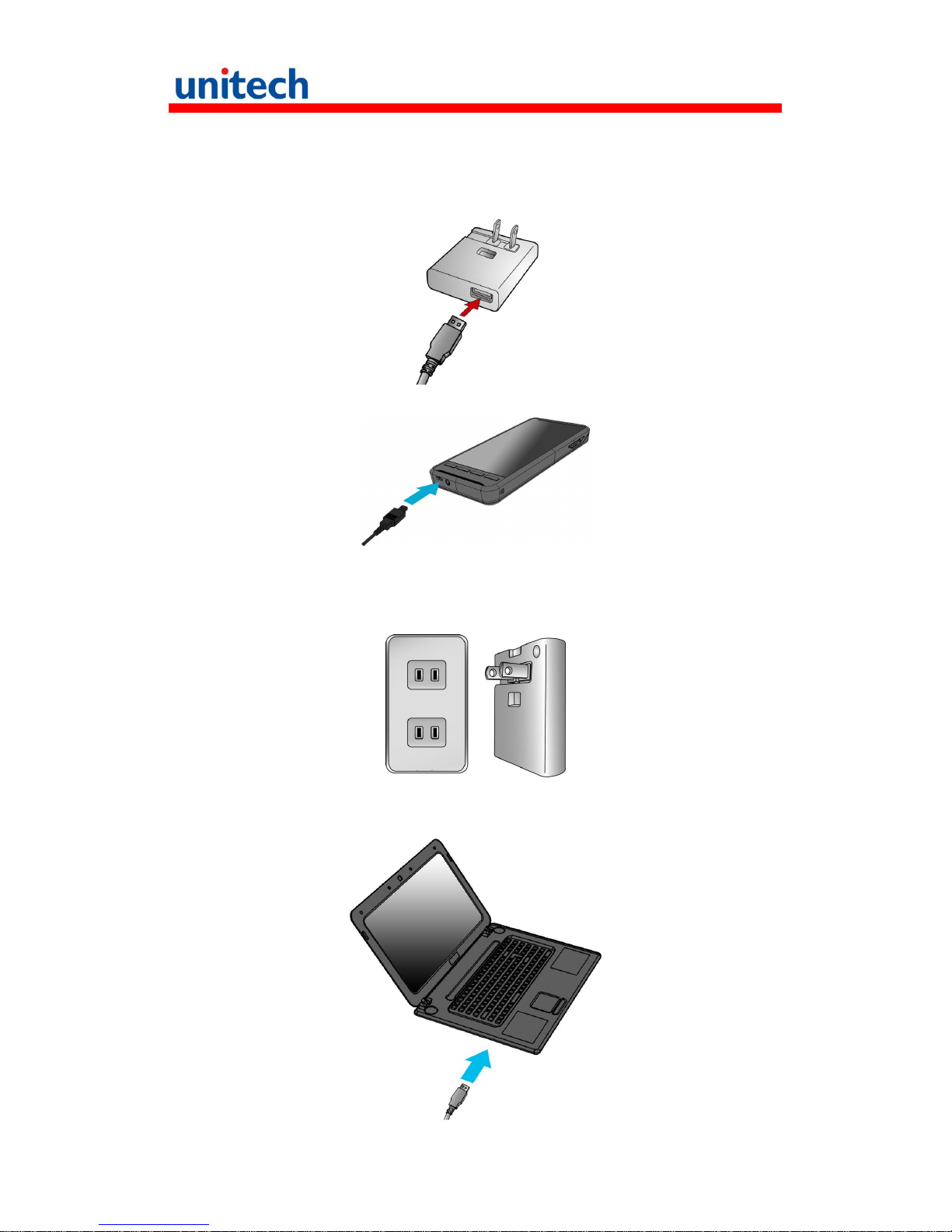

2.3 Charging the battery ............................................................................. 7

2.4 Data Communicating with PC Device ................................................... 7

2.5 LED status ............................................................................................ 8

2.6 To check the battery level and to access the battery usage menu ....... 8

3. Basic Operation ....................................................................................... 10

3.1 Accessing and using applications ....................................................... 10

To open the Application screen ............................................................. 10

To browse the Application screen ......................................................... 10

To create a shortcut to an application on the Home screen .................. 10

To Remove a shortcut of an application on the Home screen ............... 10

Calling ...................................................................................................... 10

Call handling ......................................................................................... 10

To make a call by dialing ....................................................................... 10

To end a call ......................................................................................... 10

3.2 Barcode Scanning (For Imager Version only) ..................................... 11

3.3 RFID Sensing ..................................................................................... 12

4. Specification ............................................................................................. 13

Camera and Flash Light ....................................................................... 13

Appendix Worldwide Support ....................................................................... 15

1. Package Contents

PA700

USB cable

(Standard USB to Micro USB)

Charger

Battery

Power Plug Adapter

Hand Strap

Utility DVD

2. Getting started

Unitech PA700 is an Android platform device. Android platform device has
great flexibility that allows you to make customized configurations and
enhancements by install and remove Apps.

With Android operation system, your device has limitless possibilities to update
to latest features and improvements.

2.1 Device overview

1. Receiver

7. Back button

2. LED indicator

8. Flash LED

3. Search button

9. 5M Camera with AF

4. Microphone.

10. Reset button

5. Menu button

11. RFID antenna

6. Home screen button

12. Mounting screw for battery cover

13. Bar code Scan Engine

15. Volume Down button

14. Scan button

16. Volume Up button

17. Micro USB port

19. Power button

18. Phone jack

20. Scan button
