Unitech MS120 User Manual

Page 1
1
Contents
Setup Procedures …………… 2 Batch Setup …………… 3
Bar Code Setup Menu …………… 4
1 Device Selection and Default
…………… 4 2 Beep and Delay …………… 6 3 Keyboard Wedge …………… 8 4 RS232 Serial Setting …. 10 5 Scanner ………….. 12 6 Data Format ………..… 14 7 Symbologies(I): Code 39/I2 of 5/
S2 of 5/Delta Distance Code/Code 32 ..………… 16
Page 2
2
8 Symbologies(II): Code 128 / MSI / Code 93 / Codabar /Label Code ………….. 18
9 Symbologies(III): UPC/EAN
………….. 20
Function Code for PC .… 22
Function Code for MAC …. 24 Function Code for IBM Terminal
………..… 26 Full ASCII Table ………….. 28 Test Chart …………………... 34
Setup Procedures
1) Locate a group that contains the parameters to be changed.
2) Scan the “Enter Group” label. The Reader will sound 3 beeps to indicate that setup is in progress.
3) Scan the label representing the parameter to be changed.
4) Scan the labels representing the parameter values.
Page 3
3
5) Repeat the above two steps, if necessary, to change the parameters in the same group.
6) Scan the “Exit” label to end the group currently selected. The Reader will sound 2 beeps.
7) Repeat the procedure for other groups, if needed, which include the parameters to be changed.
Batch Setup
Having configured a scanner, you may duplicate the settings of the scanner (master) to the others. You can do this by producing a set of custom setup labels derived from the master scanner and scanning these labels by other scanners. The following label is called “dump settings” label. Scan that label, the settings of a scanner will dump to the screen as one or several ASCII string(s). Printing the string(s) into bar code labels in Code 39, you get the batch setup labels to duplicate other scanner.
Dump Settings
Page 4
4
Bar Code Setup Menu
1 Device Selection and Default
Enter Group 1
Group Default
0
1
2
3
4
5
6
7
8
9
Factory Default
Exit
Page 5
5
Keyboard Wedge Reader
Device
ID
Device Type
00 IBM PC/XT
01 IBM PC/AT, PS/2 mod 40, 60,
80 etc.
02 IBM PS/2 MOD 25, 56, 70, 90 19 IBM 5550-5P 20 IBM 5550-6P 08 IBM 3196/3197 122 Keys 10 IBM 3476/3477 122 Keys 09 IBM 3179/3471/3472 11 IBM 3486/3487 06 Keyboardless Wedge 03 Macintosh ADB bus
RS-232 Reader
Device
ID
Device Type
04 RS232 Serial Decoder
Wand Emulation Reader
Device
ID
Device Type
05 Wand Emulation (Native Mode) 07 Wand Emulation (Code 39 Mode)
Page 6
6
2 Beep and Delay
Enter Group 2
Group Default
0
1
2
3
4
5
6
7
8
9
F5 (%VE)
Exit
Page 7
7
Beep Tone (On Decoding):
A1
0 None 3 High 1 Low 4 Low to High 2 Medium
5 High to Low
Beep Tone (On ACK):
A2
0 None 3 High 1 Low 4 Low to High 2 Medium
5 High to Low
Inter-Character Delay:
A3
0 1 ms
3 20 ms 1 5 ms 4 50 ms 2 10 ms 5 100 ms
Inter-Block Delay:
A4
0 10 ms
3 500 ms 1 50 ms 4 1 second 2 100 ms 5 5 seconds
Page 8
8

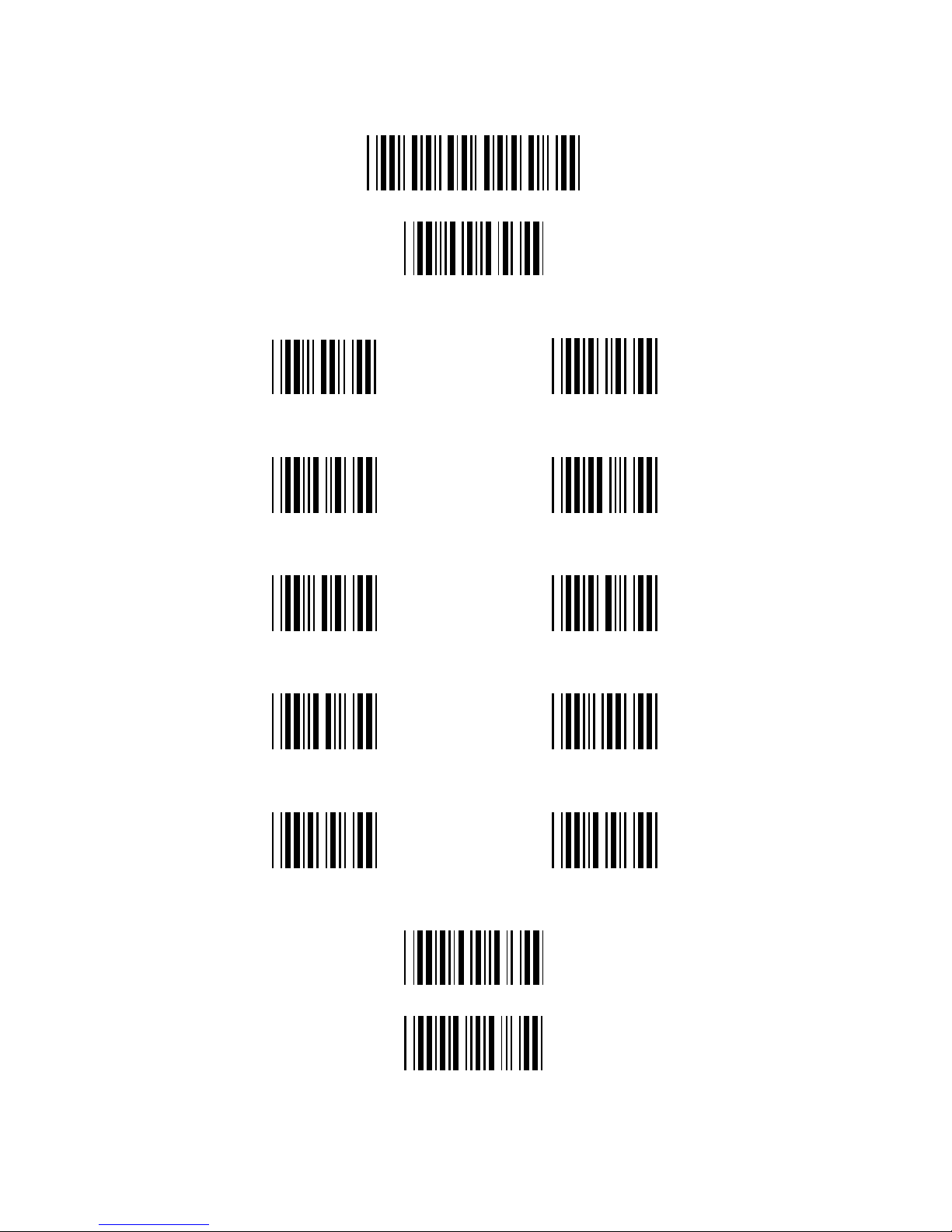

3 Keyboard Wedge
Enter Group 3
Group Default
0
1
2
3
4
5
6
7
8
9
Review
Exit
Page 9
9
Function Code:
B1
0 Off
1 On
Upper/Lower Case:
B2
0 Lower Case
1 Upper Case
Function Code:
B3
0 US 1 UK 2 Swiss 3 Swedish 4 Spanish 5 Norwegian 6 Italian 7 German 8 French 9 Alt Key Mode
Page 10
10
4 RS232 Serial Setting
Enter Group 4
Group Default
0
1
2
3
4
5
6
7
8
9
Review
Exit
Page 11
11
Baud Rate:
C1
0 300 4 4800 1 600
5 9600
2 1200 6 19200 3 2400
Parity:
C2
0 Even 3 Space 1 Odd
4 None
2 Mark
Data Bit:
C3
0 7
1 8
BCC character:
C4
0 Off
1 On
Time Out:
C5
0 1 second 2 10 seconds
1 3 seconds
3 No limit
Page 12
12
5 Scanner
Enter Group 5
Group Default
0
1
2
3
4
5
6
7
8
9
Review
Exit
Page 13
13

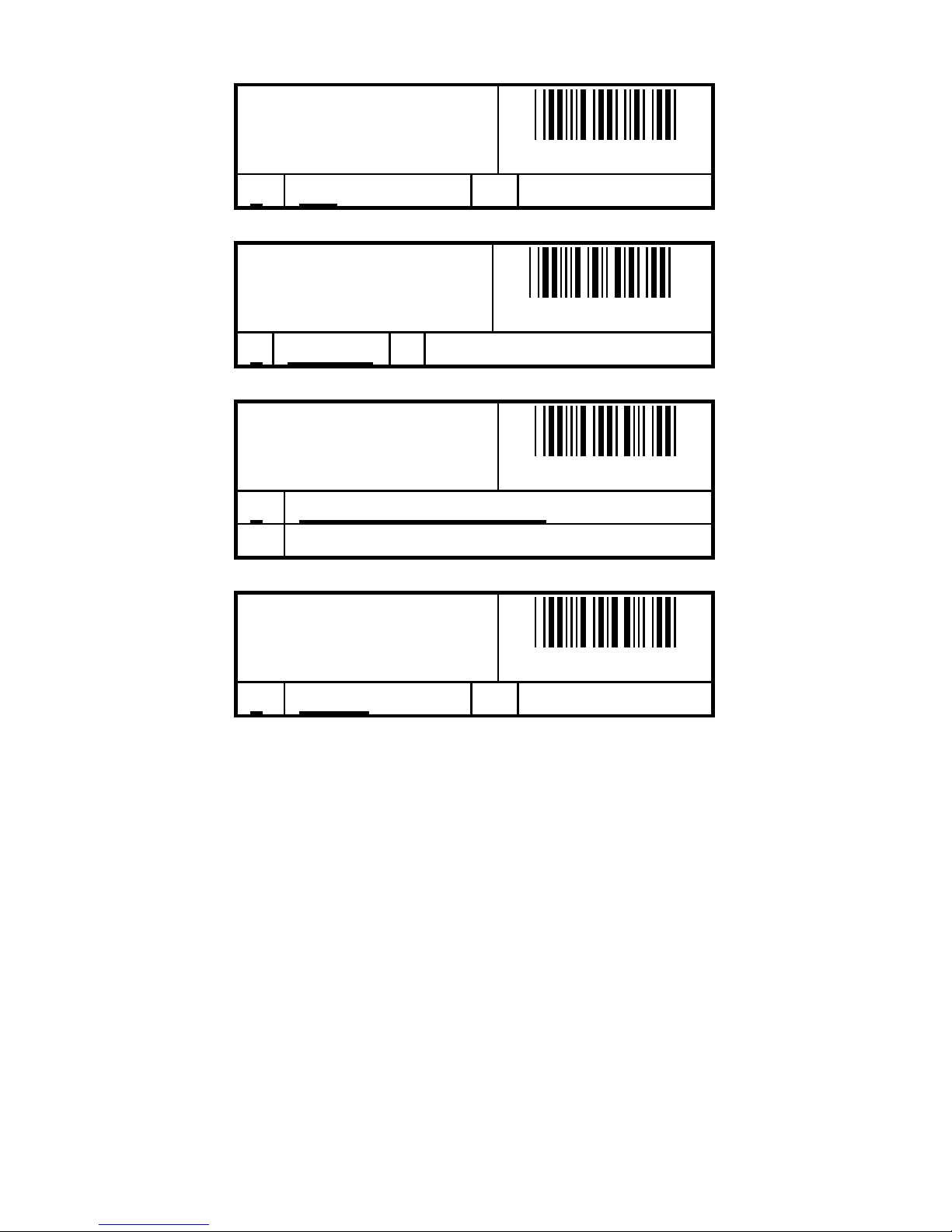

Double verification:
D1
0 Off
1 On
Label Type:
D4
0 Positive
1 Positive and Negative
Output of Wand:
D5
0 Bar High / Space Low
1 Bar Low / Space High
Level Duration:
D6
0 200 us
1 600 us
Page 14
14
6 Data Format
Enter Group 6
0
Group Default
1
Review
2
Exit
3
4
5
6
7
8
9
Preamble Code ID Length Data Terminator Postamble BCC
Default Code ID Table
Sym­bology
Set1 Set2
UPC-A A A UPC-E E C EAN-13 F A EAN-8 FF B I 2 OF 5 I I S 2 OF 5 H H Code 39 M Y Codabar N N Code93 L L Code 128 K K MSI O M Code 11 J J
If the “User Defined” option is selected, the default ID is Set1.
Data Format:
Page 15
15
Terminator:
E1
0
Enter (CR/LF)
2 Return(LF) 1 Field Exit(CR) 3 None
Code ID:
E2
0 None
2 Default Set I 1 User Defined 3 Default Set II
Define Code ID:
E3
00 Code 39 Full ASCII 07 Codabar 01 Code 39 Standard 08 Code128 02 EAN-13 09 Code 93 03 UPC-A 10 S 2 of 5 04 EAN-8 11 MSI 05 UPC-E 12 Code 11 06 I 2 of 5 13
Data Length:
E4
0 Exclude
1 Include
PP
Preamble:
Scan “PP” to program preamble. Scan characters from Full ASCII table to define preamble. Maximum 16 characters. Scan “PP” to end.
OO
Postamble:
Scan “OO” to program preamble. Scan characters from Full ASCII table to define preamble. Maximum 16 characters. Scan “OO” to end.
Page 16
16
7 Symbologies(I): Code 39/I2 of 5/ S2 of 5/Delta Distance Code/Code 32
Enter Group 7
Group Default
0
1
2
3
4
5
6
7
8
9
MM Minimum Length
NN Maximum Length
Review
Exit
Code 32:
F5
0/1 Disable/Enable 2/3
Leading Character Send / No Send
4/5
Trailing Character Send /No Send
Page 17
17
Code 39:
F1
0/1 Disable/Enable 2/3
F
ull ASCII/Standard
4 Check Digit Calculate and Send 5 Check Digit Calculate but Not Send
6 Check Digit Not Calculate
7/8
Send/Not Send Start & Stop
0~48
Min 0 / Max 48
Interleaved 2 of 5:
F2
0/1 Disable/Enable 2/3 Fix Length On/Off (by first three reads) 4 Check Digit Calculate and Send 5 Check Digit Calculate but Not Send
6 Check Digit Not Calculate
7 First Digit Suppressed. 8 Last Digit Not Suppressed.
9 Not Suppressed.
4~64
Min 10 / Max 64
Standard 2 of 5 / Toshiba:
F3
0/1 Disable/Enable 2/3 Fix Length On/Off
4 Check Digit Calculate and Send 5 Check Digit Calculate but Not Send
6 Check Digit Not Calculate
4~48
Min 8 / Max 48
Delta Distance Code:
F4
0/1 Disable/Enable 2/3 Check Digit Not Send / Send 4/5 Check Digit Calculate/Not Calculate
Page 18
18
8 Symbologies(II): Code 128 / MSI / Code 93 / Codabar /Label Code
Enter Group 8
Group Default
0
1
2
3
4
5
6
7
8
9
MM Minimum Length
NN Maximum Length
Review
Exit
Page 19
19
Code 128 / Label Code:
G1
0/1 Disable/Enable
1~64
Min 1 / Max 64
MSI / Plessey Code:
G2
0/1 Disable/Enable 2/3 CD Send / No Send 4 CD Double Module 10
5 CD Double Module 11 Plus 10 6 CD Module 10 or 11 1-16
Min 1 / Max 16
Code 93:
G3
0/1 Disable/Enable
1~48
Min 1 / Max 48
Code 11:
G4
0/1 Disable/Enable
2/3 One/Two CD
4/5 CD Send / No Send 1-48
Min 1 / Max 48
Codabar:
G5
0/1 Disable/Enable
2/3
S & S Send / No Send
4 CD Check & Send 5 CD Check but not Send 6 CD not Check 7/8
CLSI Format On / Off
3-48
Min 3 / Max 48
Page 20
20
9 Symbologies(III): UPC/EAN
Enter Group 9
Group Default
0
1
2
3
4
5
6
7
8
9
Review
Exit
Page 21
21
UPC-A:
H1
0/1 Disable/Enable 2/3
First Digit Send / No Send
4/5
CD Send / No Send
UPC-E:
H2
0/1 Disable/Enable 2/3
First Digit Send / No Send
4/5
CD Send / No Send
6/7
Zero Expansion On / Off
EAN-13:
H3
0/1 Disable/Enable 2/3
First Digit Send / No Send
4/5
CD Send / No Send
6/7
ISBN Enable / Disable
EAN-8:
H4
0/1 Disable/Enable 2/3
First Digit Send / No Send
4/5
CD Send / No Send
Supplement Code:
H5
0/1
2 Add-on Code Off / On
2/3
5 Add-on Code Off / On
4 Transmitted if Present 5
Must Present.
6/7
Space Added / Not Added
Page 22
22
Function Code for PC
F1 (%VA)
F2 (%VB)
F3 (%VC)
F4 (%VD)
F5 (%VE)
F6 (%VF)
F7 (%VG)
F8 (%VH)
F9 (%VI)
F10 (%VJ)
F11 (%VK)
F12 (%VL)
Cursor Right (/FC)
Cursor Left (/FD)
Cursor Up (/FE)
Cursor Down (/FF)
PgUp (/FG)
PgDn (/FH)
TAB (/FI)
Back Tab (/FJ)
ESC (/FK)
Enter (/FL)
Right Ctrl (/FO)
Right Enter(/FM)
Page 23
23
Del (/FX)
Ins (/FW)
Page 24
24
Function Code for MAC
F1 (%VA)
F2 (%VB)
F3 (%VC)
F4 (%VD)
F5 (%VE)
F6 (%VF)
F7 (%VG)
F8 (%VH)
F9 (%VI)
F10 (%VJ)
F11 (%VK)
F12 (%VL)
F13 (%VM)
F14 (%VN)
F15 (%VO)
Cursor Left (/FD)
Cursor Right (/FC)
Cursor Down (/FF)
Cursor Up (/FE)
Page down (/FH)
page up (/FG)
ins (/FJ)
Ttab (/FI)
Enter (/FL)
Page 25
25
Esc (/FK)
return (/FM)
Option Make (%VP)
Option Break (%VQ)
Control Make (%VR)
Control Break (%VS)
Shift Make (%VT)
Shift Break (%VU)
Apple Make (%VV)
Apple Break (%VW)
Page 26
26
Function Code for IBM Terminal
F1 (%VA)
F2 (%VB)
F3 (%VC)
F4 (%VD)
F5 (%VE)
F6 (%VF)
F7 (%VG)
F8 (%VH)
F9 (%VI)
F10 (%VJ)
F11 (%VK)
F12 (%VL)
F13 (%VM)
F14 (%VN)
F15 (%VO)
F16 (%VP)
F17 (%VQ)
F18 (%VR)
F19 (%VS)
F20 (%VT)
F21 (%VU)
F22 (%VV)
F23 (%VW)
F24 (%VX)
Page 27
27

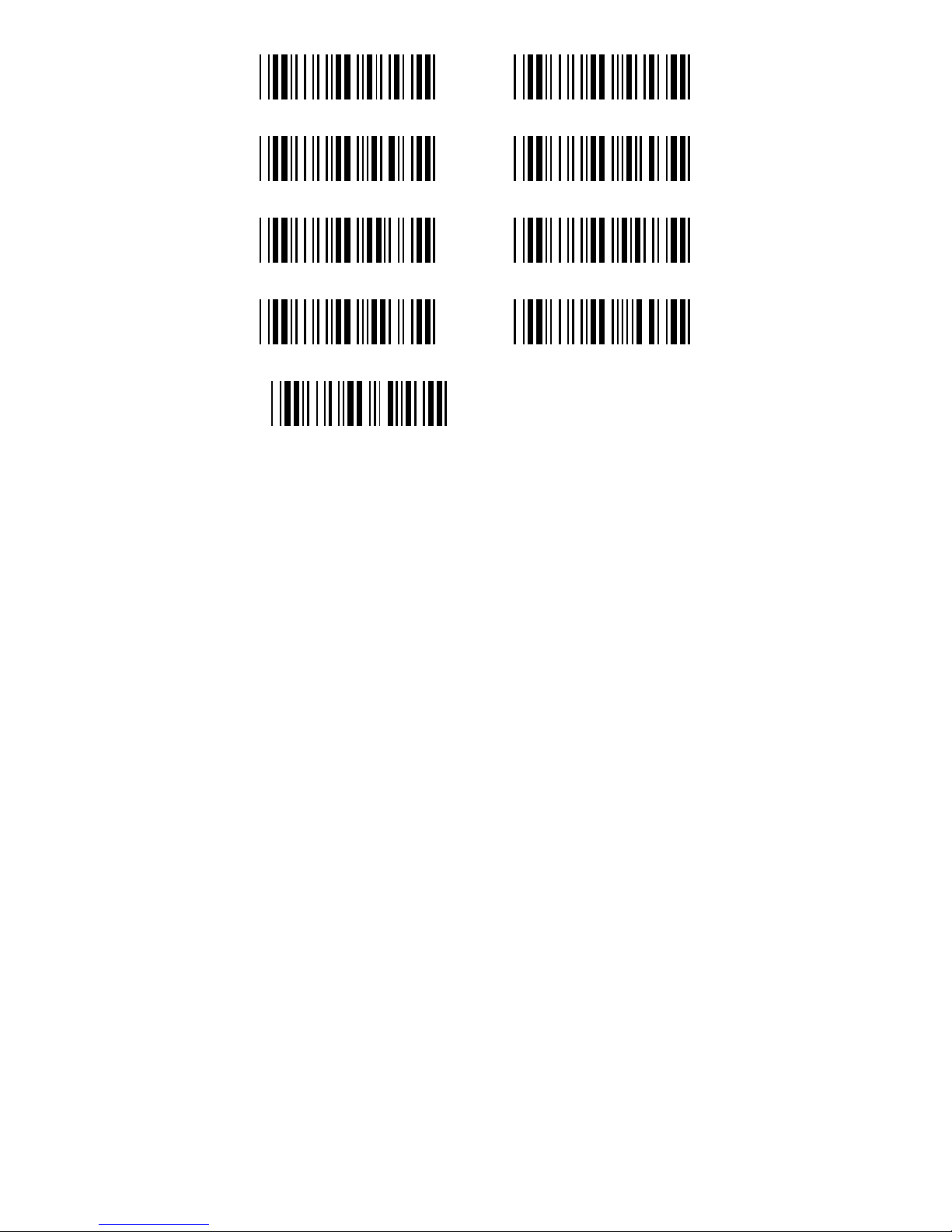

Home (/FA)
End (/FB)
TAB (/FI)
Enter (/FL)
Return (/FM)
Field Exit (/FO)
Field + (/FP)
Field - (/FQ)
RESET (/FV)
Page 28
28

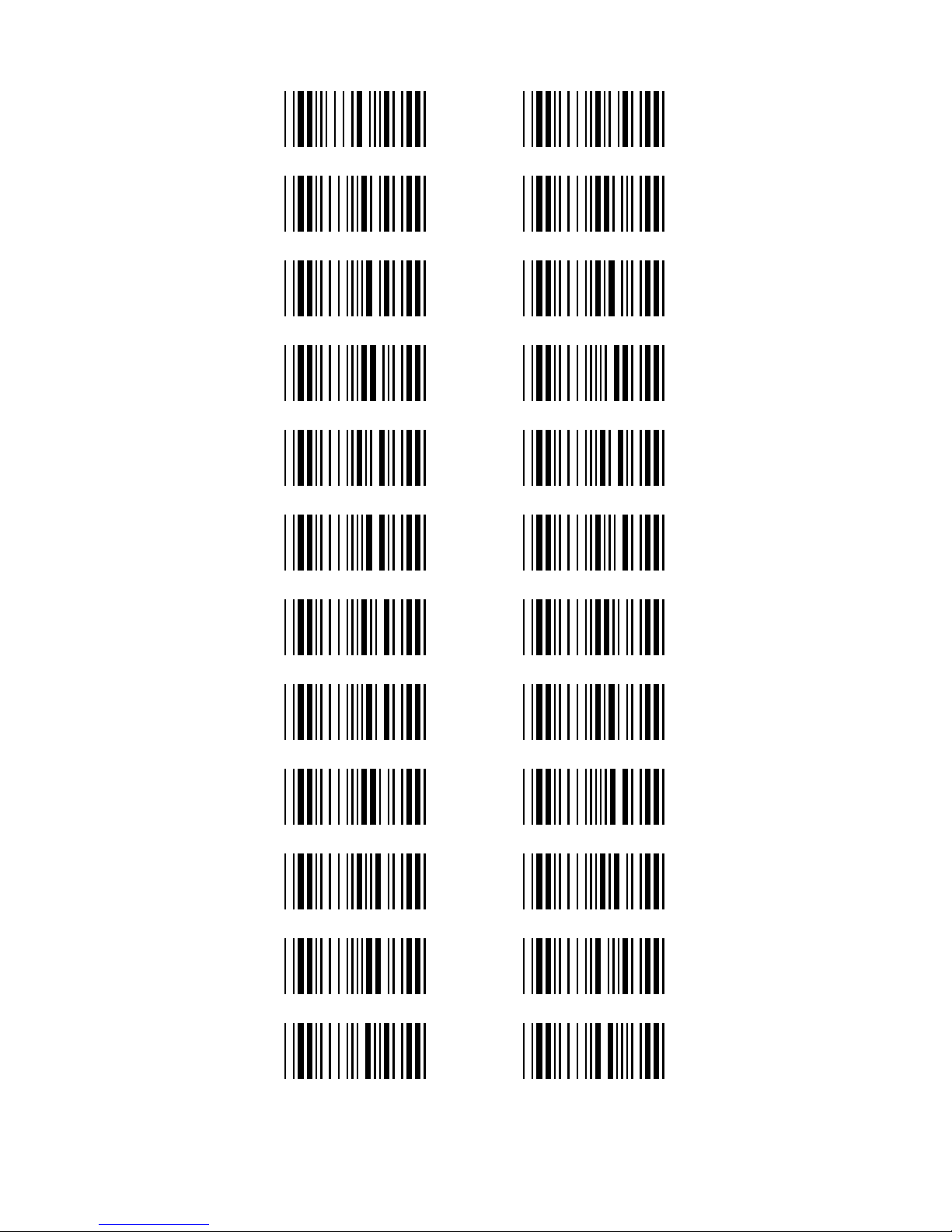

Full ASCII Table
NUL (%U)
STX ($B)
EOT ($D)
ACK ($F)
BS ($H)
LF ($J)
FF ($L)
SO ($N)
DLE ($P)
DC2 ($R)
DC4 ($T)
SYN ($V)
SOH ($A)
ETX ($C)
ENQ ($E)
BEL ($G)
HT ($I)
VT ($K)
CR ($M)
SI ($O)
DC1 ($Q)
DC3 ($S)
NAK ($U)
ETB ($W)
Page 29
29

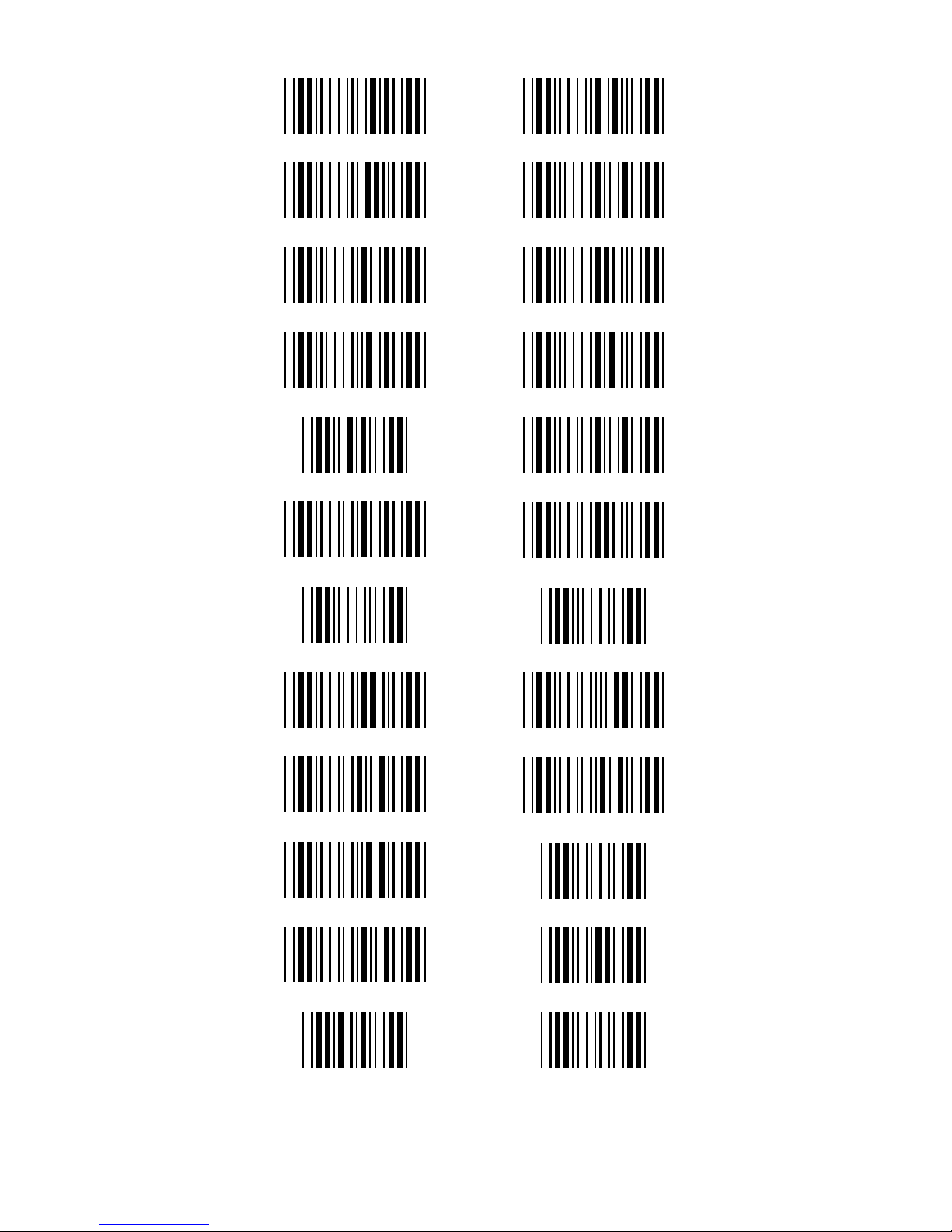

CAN ($X)
SUB ($Z)
FS (%B)
RS (%D)
SP
(/B)
$
& (/F)
( (/H)
* (/J)
, (/L)
.
EM ($Y)
ESC (%A)
GS (%C)
US (%E)
! (/A)
# (/C)
%
’ (/G)
) (/I)
+
-
/
Page 30
30

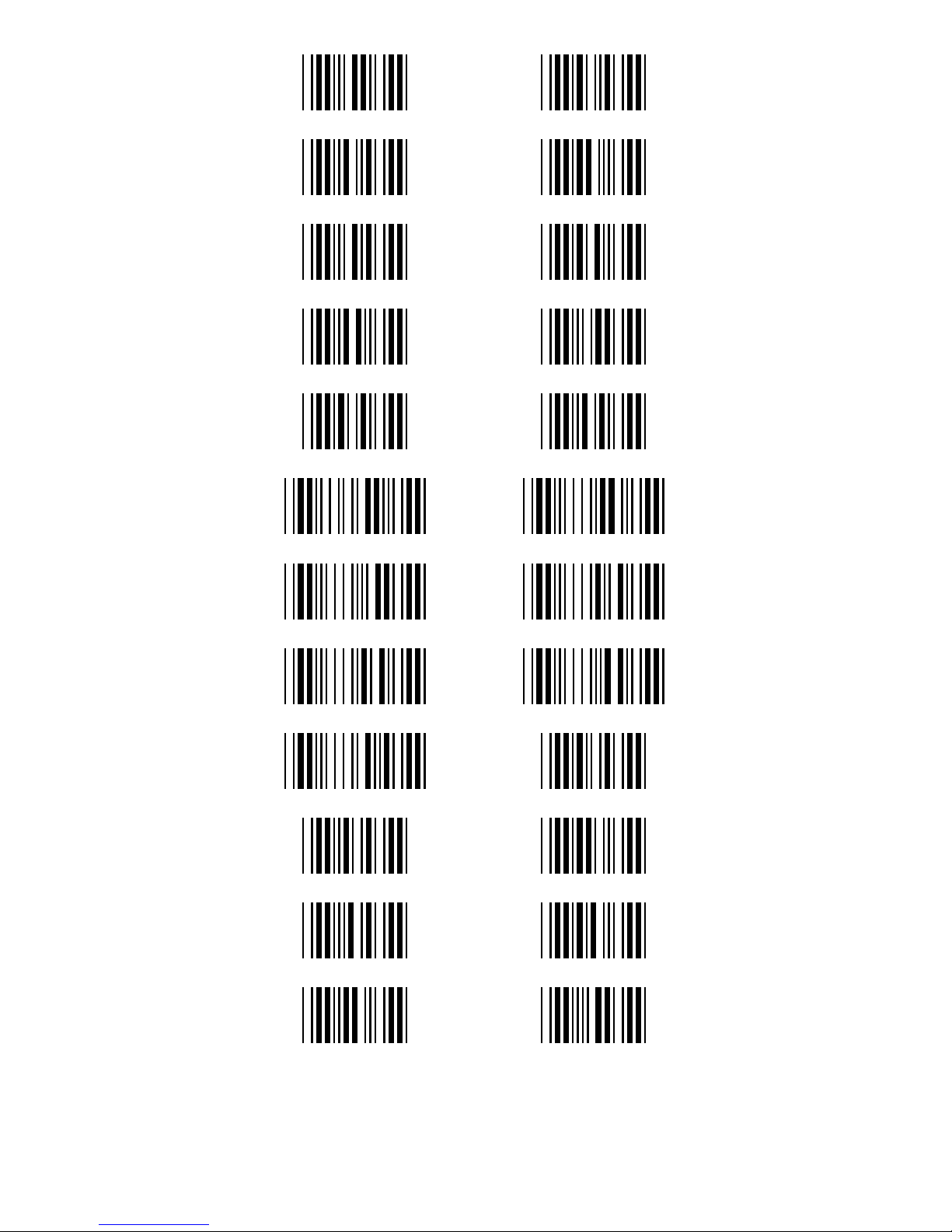

0
2
4
6
8
: (/Z)
< (%G)
> (%I)
@ (%V)
B
D
F
1
3
5
7
9
; (%F)
= (%H)
? (%J)
A
C
E
G
Page 31
31
H
J
L
N
P
R
T
V
X
Z
\ (%L)
^ (%N)
I
K
M
O
Q
S
U
W
Y
[ (%K)
] (%M)
_ (%O)
Page 32
32
` (%W)
b (+B)
d (+D)
f (+F)
h (+H)
j (+J)
l (+L)
n (+N)
p (+P)
r (+R)
t (+T)
v (+V)
a (+A)
c (+C)
e (+E)
g (+G)
i (+I)
k (+K)
m (+M)
o (+O)
q (+Q)
s (+S)
u (+U)
w (+W)
Page 33
33
x (+X)
z (+Z)
| (%Q)
~ (%S)
y (+Y)
{(%P)
} (%R)
DEL (%T)
Page 34
34
Test Chart
EAN-13
3 0 4 5 2 1 4 834123
EAN-8
8 0 1 2 3453
UPC-A
0 6
4 76 69 1 3 7 1 6
UPC-E
0 21 2 3 4 5 7
99
ISBN 957-630-239-0
9 78 95 7 6 30 23 9 8
07200
Page 35
35
W+ E + D + G + E
Code 39 with C/D
UNI T E CH- E
Interleaved 2 of 5
0987654321
Codabar
A2 2 3 5 7 0 0 0 5 9 9 8 7 6 B
MSI
12345-5
