OPERATING MANUAL
Model UT233: OPERATING MANUAL
TABLE OF CONTENTS TITLE PAGE
Overview Unpacking Inspection Safety Information Rules For Safe Operation International Electrical Symbols The Meter Structure A. The Meter Front Structure B. The Meter Back and Bottom Structure Functional Buttons Display Symbols Measurement Operation
A. Active power + AC Voltage + AC Current Measurement B. Apparent Power + AC Voltage + AC Current Measurement
C. Reactive Power + AC Voltage + AC Current Measurement D. Power Factor cos + AC Voltage + AC Current Measurement E. Phase Angle + AC Voltage + AC Current Measurement F. Frequency Hz + AC Voltage + AC Current Measurement G. Active Energy + Active Power + Time Measurement
3 3 4 4 6 7 7 8 9 12 14 14 21 24 26 28 30 32
1
Model UT233: OPERATING MANUAL
TABLE OF CONTENTS TITLE PAGE
H. Phase Sequence Specifications A. General Specifications B. Environmental Requirements Accuracy Specifications A. AC Voltage (True RMS) B. Frequency C. AC Current (True RMS) D. Active Power E. Apparent Power F. Reactive Power G. Power Factor H. Phase Angle I. Active Energy Maintenance A. General Service B. Replacing the Battery
34 37 37 38 39 39 39 40 40 41 42 43 43 44 45 45 45
2
Model UT233: OPERATING MANUAL
Overview Unpacking Inspection
This Operating Manual covers information on safety and cautions. Please read the relevant information carefully and observe all the Warnings and Notes strictly.
Warning
To avoid electric shock or personal injury, read the ìSafety Informationî and ìRules for Safe Operationî carefully before using the Meter.
Model UT233 is a digital power clamp meter (hereafter
referred to as ìthe Meterî) is a handheld intelligent power meter which has both the features of digital current meter and also power measurement meter.
Open the package case and take out the Meter. Check the following items carefully to see any missing or damaged part:
Item
1 2
3
4 5 6 7
Description
English Operating Manual Test Lead (red, black, blue and yellow colour Alligator Clip (red, black, blue and yellow colour) USB Interface Cable Software Tool Box
1.5V Battery (LR6)
Qty
1 piece 1 piece each colour 1 piece each colour 1piece 1 piece 1 piece 4 pieces
The Meter can measure Voltage, Current, Active Power, Apparent Power, Reactive Power , Power Factor, Phase Angle, Frequency, Active Energy and Phase Sequence.
In the event you find any missing or damage, please contact your dealer immediately.
3
Model UT233: OPERATING MANUAL
Safety Information
This Meter complies with the standards IEC61010: in pollution degree 2, overvoltage category (CAT. III 600V, CAT IV 300V) and double insulation.
CAT. III: Distribution level, fixed installation, with smaller transient overvoltages than CAT. IV. CAT IV: Primary supply level, overhead lines, cable systems.
Use the Meter only as specified in this operating manual, otherwise the protection provided by the Meter may be impaired.
In this manual, a Warning identifies conditions and actions that pose hazards to the user, or may damage the Meter or the equipment under test.
A Note identifies the information that user should pay attention to.
International electrical symbols used on the Meter and
4
in this Operating Manual are explained on page 6.
Rules For Safe Operation
Warning
To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules:
l
Before using the Meter inspect the case. Do not use the Meter if it is damaged or the case (or part of the case) is removed. Look for cracks or missing plastic. Pay attention to the insulation around the connectors.
l
Inspect the test leads for damaged insulation or exposed metal. Replace damaged test leads with identical model number or electrical specifications before using the Meter.
l
Do not apply more that the rated voltage, as marked on the Meter.
l
When measurement has been completed, disconnect the connection between the test leads and the circuit under test, remove the
Model UT233: OPERATING MANUAL
testing leads away from the input terminals of the Meter and turn the Meter power off.
l
Do not carry out the measurement when the Meterís back case and / or battery door is opened to avoid electric shock.
l
When the Meter working at an effective voltage over 30V in AC, special care should be taken.
l
Use the proper terminals and function for your measurements.
l
Do not use or store the Meter in an environment of high temperature, humidity, explosive, inflammable and strong magnetic field. The performance of the Meter may deteriorate after dampened.
l
Do not use the Meter if the surface of it is wet or the userís hands are wet.
l
When using the test leads, keep your fingers behind the finger guards.
l
Replace the battery as soon as the battery indicator appears. With a low battery, the Meter might produce false readings that can lead to electric shock and personal injury.
l
When opening the battery door, must make sure the Meter is power off.
l
When servicing the Meter, use only the same model number or identical electrical specifications replacement parts.
l
The internal circuit of the Meter shall not be altered at will to avoid damage of the Meter and any accident.
l
Soft cloth and mild detergent should be used to clean the surface of the Meter when servicing. No abrasive and solvent should be used to prevent the surface of the Meter from corrosion, damage and accident.
l
Turn the Meter off when it is not in use and take out the battery when not using for a long time.
l
Constantly check the battery as it may leak when it has been using for some time, replace the battery as soon as leaking appears. A leaking battery will damage the Meter.
5
International Electrical Symbols
AC (Alternating Current) Grounding Double Insulated Warning. Refer to the Operating Manual Deficiency of Built-In Battery Danger of High Voltage Conforms to Standards of European Union
Model UT232: OPERATING MANUAL
6
Model UT233: OPERATING MANUAL
The Meter Structure
A. The Meter Front Structure (see figure 1)
Black Red Blue Yellow
Figure 1
1
Transformer Jaw: designed to pick up the AC and DC current flowing through the conductor. It could transfer current to voltage. The tested conductor must vertically go through the Jaw center.
2
Hand Guards: to protect userís hand from touching the dangerous area.
3
Power button
4
Max/ button
5
MENU button
6
LOAD button (recall data)
7
SELECT button (press to select alternate function and sum of Watts measurement)
8
MIN/ button
9
V3 Input Terminal (Third phase measurement)
10
V2 Input Terminal (Second phase measurement)
11
V1 Input Terminal (First phase measurement)
12
COM Input Terminal
13
CLEAR button (maximum and minimum)
7
Model UT233: OPERATING MANUAL
14 15 16 17 18 19 20
button (Sum) SAVE button (data store button) USB button LIGHT button (auto display backlight button) HOLD button LCD Display Testing Leads (Red, Black, Blue and Yellow)
8
B. The Meter Back and Bottom Structure (see figure2)
Figure 2
1 Infrared slot 2 USB Interface Cable
Model UT233: OPERATING MANUAL
Functional Buttons
Below table indicated for information about the functional button operations.
Button POWER
HOLD
LIGHT
MENU
Operation Performed
Press and hold POWER for 1 second to turn the Meter on. Press POWER again to turn the Meter off. Press HOLD to enter the Hold mode in any mode,appears and the Meter beeps. Press HOLD again to exit the Hold mode to return to measurement mode, the Meter beeps and disappears.
Press LIGHT to turn the display backlight on. The display backlight will be off automatically after 30 seconds.
Press MENU to display the following functions in sequence:
Button MENU
Operation Performed
Active power (main display) + AC V oltage (left secondary display) + AC Current (right secondary display) Apparent Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display)
Reactive Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Power Factor (main display) + AC Voltage (left secondary display) + AC Current (right secondary display)
Phase Angle (main display) + AC Voltage (left secondary display) + AC Current (right secondary display). Frequency (main display) + AC Voltage (left secondary display) + AC Current (right secondary display).
Active Energy (main display) + Active Power (left secondary display) + Time (right secondary display)
9
Model UT233: OPERATING MANUAL
Button MENU Phase sequence
MAX/
LOAD
SELECT
Operation Performed
Press to start recording of maximum value, it valid at voltage, current, active power, apparent power and reactive power ranges only.
Press once at LOAD mode, MR icon shown, the Meter displays the next stored reading
Press once to enter LOAD mode, MR appears and the Meter beeps. Press again to exit LOAD mode, MR disappears and the Meter beeps.
Press and hold LOAD for 1 second to display the stored data quickly.
At Active power (main display) + AC V oltage (left secondary display) + AC Current (right secondary display) mode, press SELECT button to step through first phase, second phase, third phase and sum of watts.
10
Button
SELECT
SAVE
CLEAR
MIN /
Operation Performed
At other mode except phase sequence, press SELECT to step through first phase, second phase and the third phase.
Press once to store single reading, Press and hold for over 1 second to continuous store reading. Press SAVE again to exit. The maximum number of data store is 99, when it achieves 99, the Meter shows FULL. Press CLEAR to clear the stored reading in order to store next reading.
At active energy range, press to reset time the zero, then restart the timing. At all other ranges, press to clear stored readings.
Press to start recording of minimum value, it valid at voltage, current, active power, apparent power and reactive
power ranges only.
Model UT233: OPERATING MANUAL
Button MIN /
Operation Performed
Press once at LOAD mode, MR icon shown, the Meter displays the previous stored reading. At Active power (main display) + Phase angle (secondary display) mode, press
once button to sum up the current first phase of 3 phase measurement result. Then carry out second phase power measurement. Press again to sum up the second phase power measurement result, then carry out third phase power measurement. Press again to sum up the third phase power measurement result, then press SELECT to enter the measurement of sum of the watts mode, the display shows the 3 phase sum of the watts value (Power factor + Active power + Reactive power).
11
Model UT233: OPERATING MANUAL
1 2 3 4 5 6 7
8
9 10 11 12 13
141516171819
20
21
22
23
24
25
26
Display Symbols (see figure 3)
12
Figure 3
Number
1 2 3
4 5 6 7
8
9 10 11 12
Symbol CAL FUL CLR
USB
RST
W
3
2 1
Meaning
Calibration symbol Indicator for data stored is full Indicator for clear the stored reading Data Output is in progress Data hold is active Phase sequence The battery is low.
Warning: To avoid false
readings, which could lead to possible electric shock or personal injury, replace the battery as soon as the battery indicator appears.
Watt: Sum of Watt Third phase symbol Primary reading unit symbol Second phase symbol First phase symbol
Model UT233: OPERATING MANUAL
Number
13
14 15 16 17 18 19 20 21 22 23 24 25
26
Symbol
S mm h KW MIN MAX Auto Cosφ
MEN MR
Meaning
Right secondary display unit symbol Unit for second Unit for minute Unit for hour Left secondary display unit symbol Minimum reading Maximum reading Auto ranging indicator Cos indicator Indicates negative reading Indicator for AC voltage or current Indicator for data store Indicator for recall the stored reading High voltage symbol
13
Model UT233: OPERATING MANUAL
Measurement Operation
Press and hold ON/OFF button for one second to turn the Meter on. The default range is the last measurement range when you turned off the Meter. Replace the battery as soon as the battery indicator appears on the display.
A. Active power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Measurement (see figure 4)
The active power ranges are: 40A, 100A, 400A and 1000A
The AC Voltage ranges are: 15V, 100V, 300V and 600V
The AC Current ranges are: 40A, 100Am 400A and 1000A
14
Warning To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600 v.r.s. and AC current 1000A v.r.s.
To measure active power + AC voltage + AC current, connect the Meter as follows:
1.
Press the MENU to select Active power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) range.
2.
Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
3.

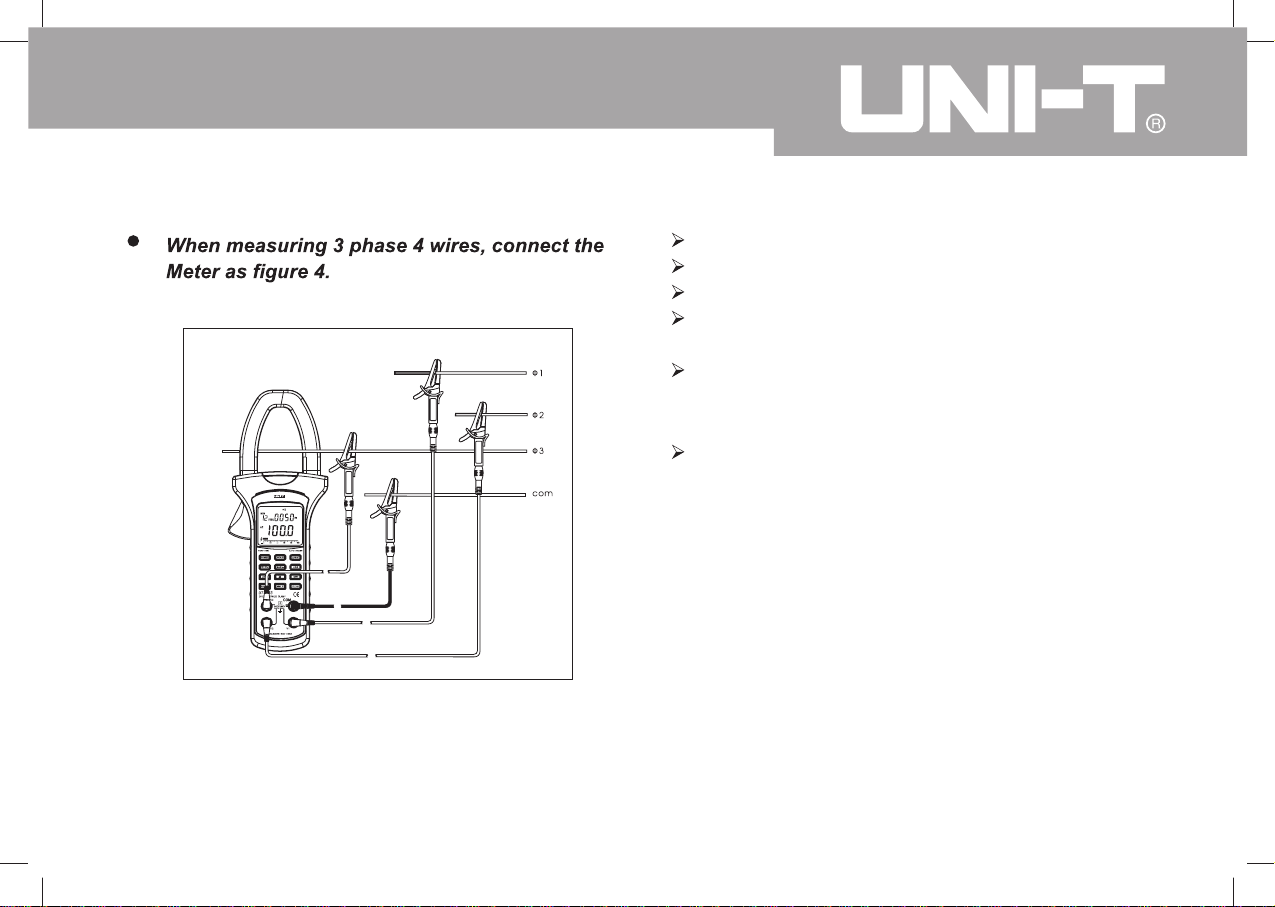

Connecting method (see figure 4, 5, 6).
Model UT233: OPERATING MANUAL
Yellow
Black
Red
Blue
Insert red test leads to V1 input terminal. Insert blue test leads to V2 input terminal Insert yellow test leads to V3 input terminal Connect red blue and yellow test leads to every live wire of the 3 phase. Insert black test leads to COM input terminal and connect it to the neutrual wire of the 3 phase. You must specify that this connection is used when the main transformer have STAR connection.
Figure 4
15
Yellow
Figure 5
Model UT233: OPERATING MANUAL
Insert red test leads to V1 input terminal. Insert blue test leads to V2 input terminal Insert black test leads to V3 input terminal and connecting it to every live wire of the 3 phase.
Red
Blue
16
Model UT233: OPERATING MANUAL
Red
Black
Figure 6
Insert red test lead to V1, V2 or V3 input terminal corresponding to one of, 1, 2 or 3phase Insert black test leads to COM input terminal. Connecting the two test leads to live and neutual wires.
4.
When measuring 3 phases 4 wires or 3 phases 3 wires:(see figure 7, 8, 9, 10, 11, 12, 13).

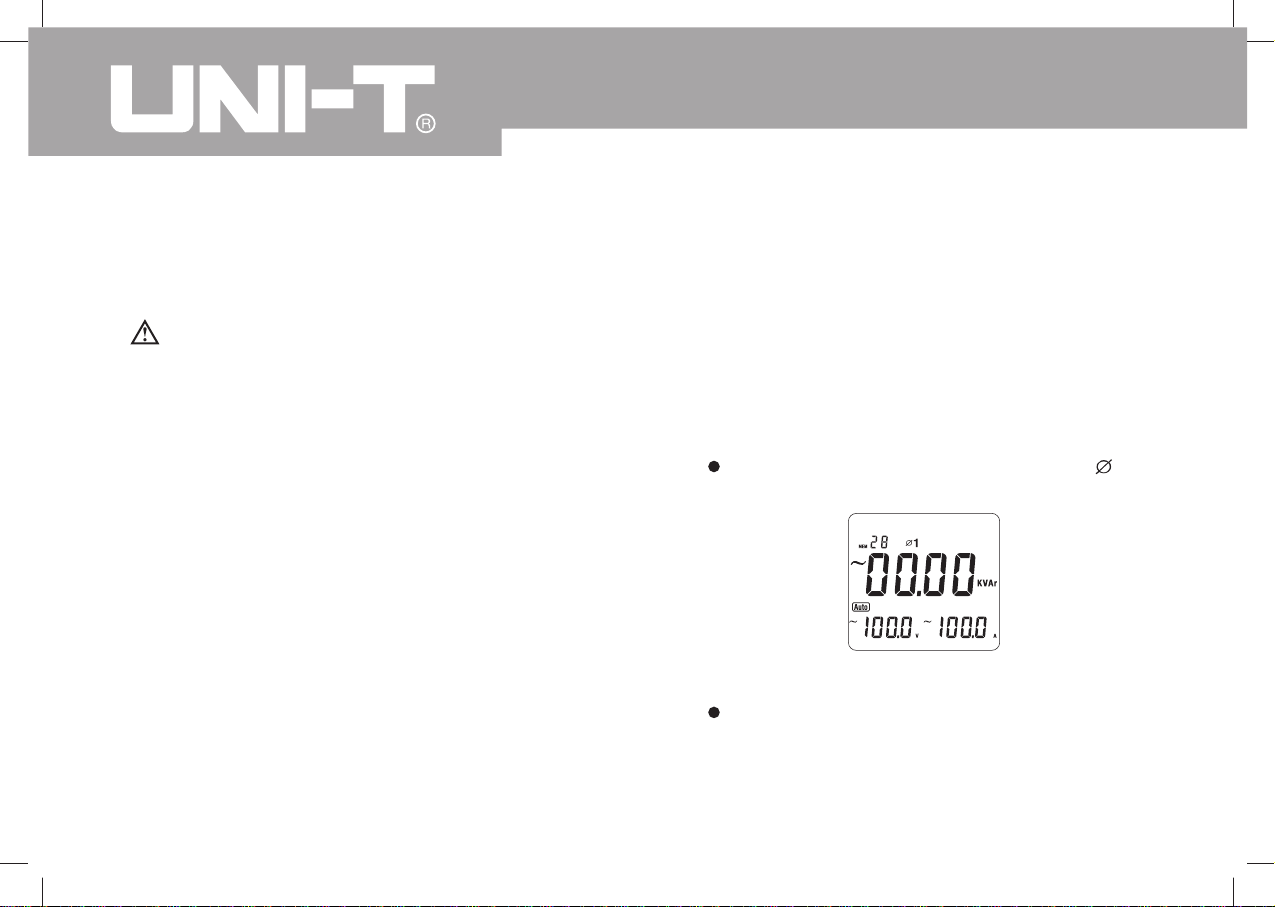

Press SELECT to choose first phase 1, see figure 7. The triple displays show the acitve power kW value, the voltage value and the current value of 1.
Figure 7
If necessary, press to get the sum of watts as figure 8.
Figure 8
17
Model UT233: OPERATING MANUAL

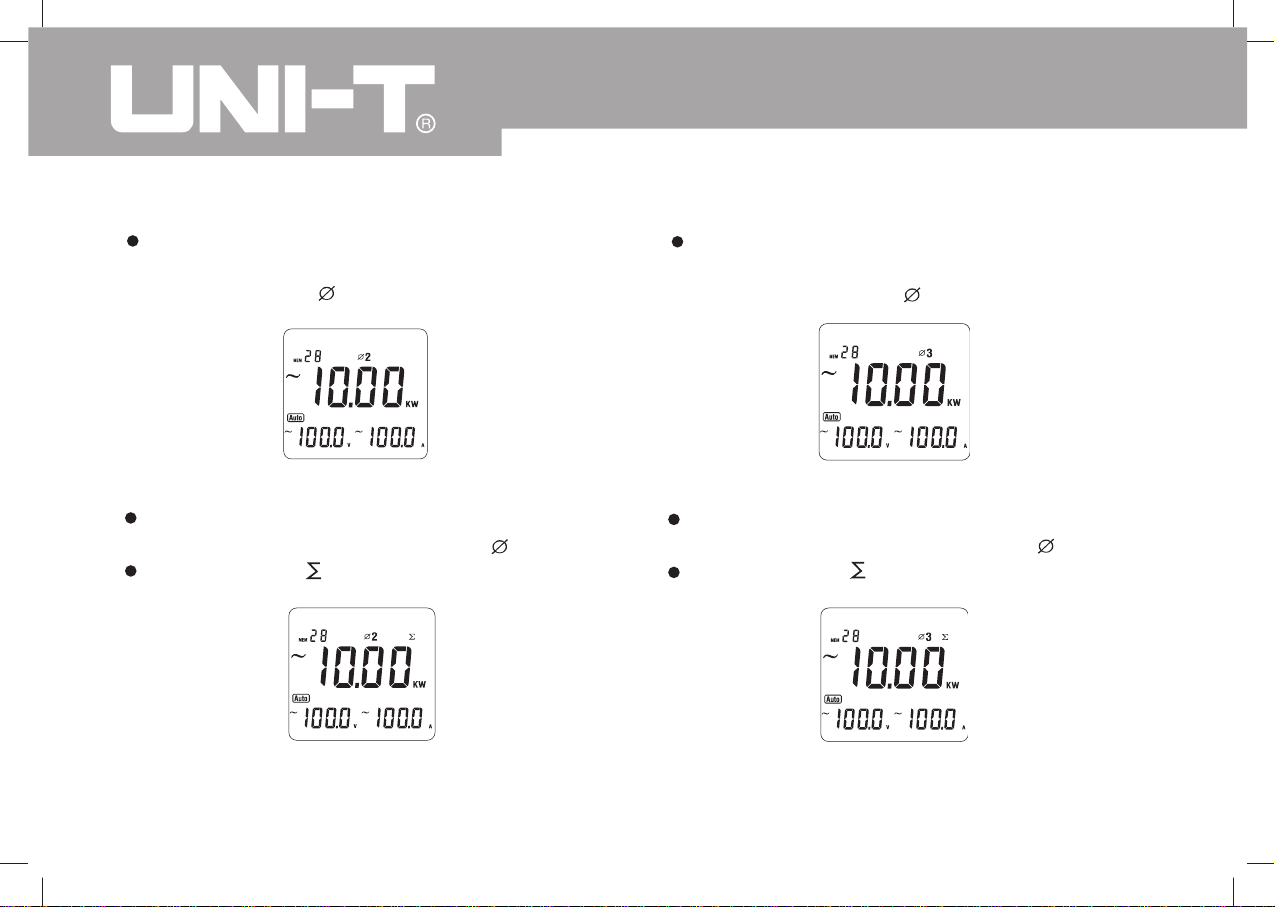

After sum up the current power measurement value of the first phase, then press SELECT to choose the second phase 2, as figure 9.
Figure 9
The triple displays shows the value of acitve power kW, AC voltage V and AC current A of 2. If ncessary, press to get the sum of watts as figure
10.
18
After sum up the current power meaursuremnt value of the second phase, then press SELECT again to choose the third phase 3, as figure 11.
Figure 11
The triple displays shows the value of acitve power KW, AC voltage V and AC current A of 3. If ncessary, press to get the sum of watts as figure
12.
Figure 12 Figure 10
Model UT233: OPERATING MANUAL
After sum up the current power measurement value of the third phase, finally press SELECT again to display the 3 phases sum of waltt value (sum of power factor + sum of active power + sum of reactive power).
Figure 13
The maximum power is 600kW of single phase active
5. power, OL will be displayed when it is over than that. The maximum range is 1800kW of three phase sum of active power and reactive power, OL will be displayed when it is over than that.
6.
Press MAX/ , the display shows MAX, it starts recording the maximum active power value, voltage value and current value. Press again to display the current active power value, voltage value and current value. Press MIN/ , the display shows MIN, it starts
7. recording the minimum active power value, voltage value and current value. Press again to display the current active power value, voltage value and current value.
19
Note
When there is no input or single phase, the Meter displays OL. button is not valid. It can only sum up and save the current measurement value. The maximum and minimum value cannot sum up and save. Only at this range can carry out sum of watts measurement, other ranges cannot carry out this measurement. USB interface connection is invalid when carrying out sum of watt measurement. When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
Model UT233: OPERATING MANUAL
20
Model UT233: OPERATING MANUAL
B.
Apparent Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
To test for Apparent Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display), connect the Meter as follows:
Press the MENU to select Apparent Power (main
1. display) + AC Voltage (left secondary display) + AC Current (right secondary display) range. Press the lever to open the transformer jaw, and
2. clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor. The connecting method of 3 phases 4 wires, 3
3. phases 3 wires or single phase 2 wires, see figure 4, 5 and 6.
When measuring 3 phase 4 wires: (see figure 15,
4. 16, 17).

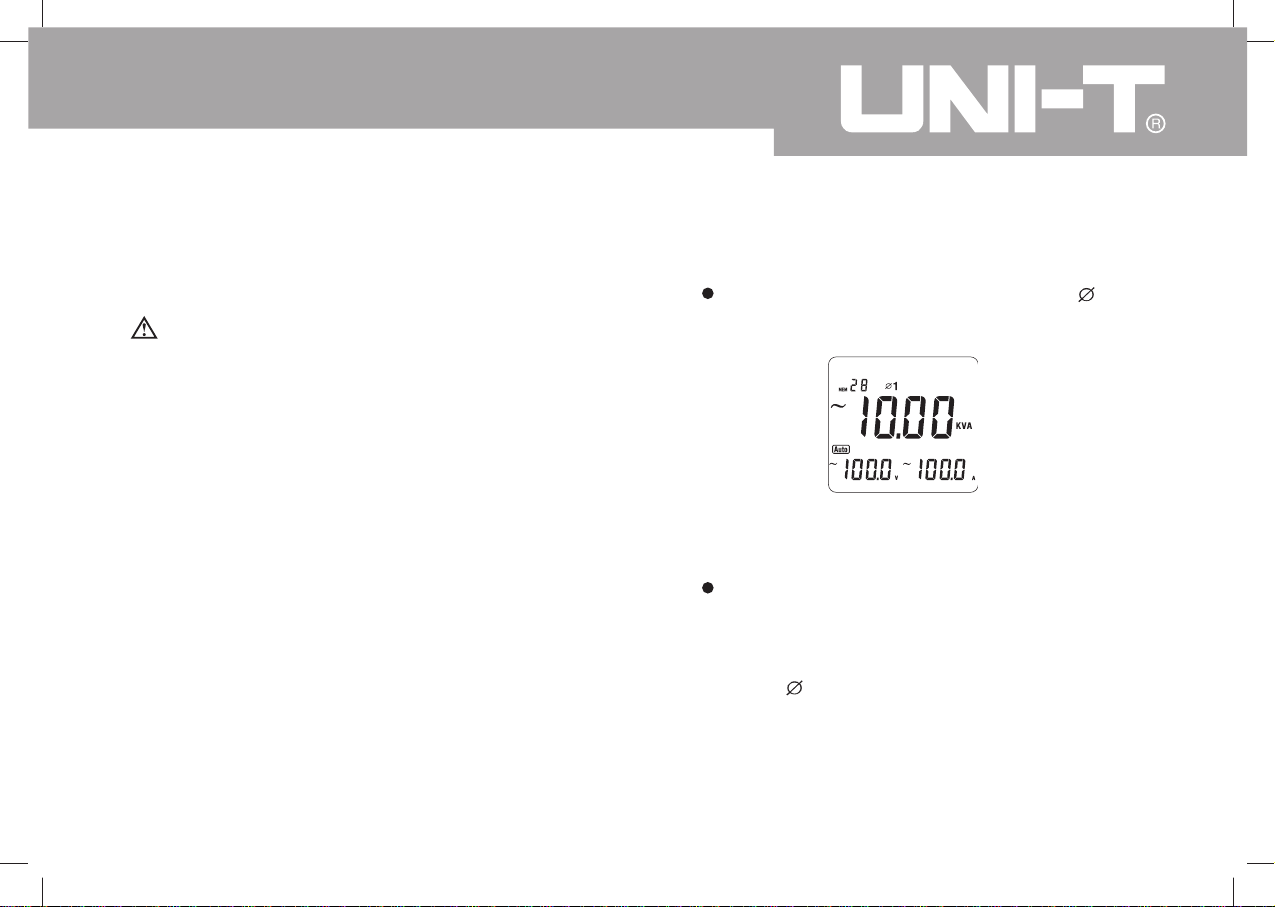

Press SELECT to choose the first phase 1, see figure 15.
Figure 15
The triple displays shows the first phase value of apparent power kVA, AC voltage V and AC current A.. Then press SELECT again to choose the second phase 2, see figure 16.
21
Figure 16
The triple displays shows the second phase value of apparent power kVA, AC voltage V and AC current A. Press SELECT again to choose the third phase 3, see figure 17.
Model UT233: OPERATING MANUAL
The triple displays shows the third phase value of apparent power kVA, AC voltage V and AC current A.
When measuring 3 phase 3 wires:
5. The first phase and second phase operating
method is same as three phase 4 wires. Jump over the third phase measurement.
6.
The maximum measuring range is 600kW when measuring single phase apparent power kVA, OL wil be displayed when it is over than that.
7.
Press MAX/ the display shows MAX, it starts recording the maximum apparent power value, AC voltage value and AC current value. Press again to display the current apparent power value, AC voltage value and AC current value.
8.
Press MIN/ the display shows MIN, it starts recording the minimum apparent power value, AC voltage value and AC current value. Press again to display the current apparent power value, AC voltage value and AC current value.
22
Figure 17
Model UT233: OPERATING MANUAL
Note
When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
23
Model UT233: OPERATING MANUAL
Reactive Power (main display) + AC Voltage (left
C.
secondary display) + AC Current (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
To test for Reactive Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display), connect the Meter as follows:
1.
Press the MENU to select Reactive Power (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) range.
2.
Press the lever to open the transformer jaw, and
24
clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
3.
The connecting method of 3 phases 4 wires, 3 phases 3 wires or single phase 2 wires, see figure 4, 5 and 6.
4.
When measuring 3 phase 4 wires: (see figure 17, 18, 19)
Press SELECT to choose the first phase 1, see figure 18.
Figure 18
The triple displays shows the first phase value of reactive power Kvar, AC voltage V and AC current A.
Model UT233: OPERATING MANUAL
Then press SELECT again to choose the second phase 2, see figure 19.
Figure 19
The triple displays shows the second phase value of reactive power Kvar, AC voltage V and AC current A. Press SELECT again to choose the third phase 3, see figure 20.
Figure 20
The triple displays shows the third phase value of reactive power Kvar, AC voltage V and AC current A.
5. When measuring 3 phase 3 wires: The first phase and second phase operating
method is same as three phase 4 wires. Jump over the third phase measurement.
6. The maximum measuring range is 600kW when
measuring single phase reactive power Kvar, OL wil be displayed when it is over than that.
7. MAX and MIN are not valid at this measurement
mode.
Note
When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
25
Model UT233: OPERATING MANUAL
D. Power Factor cos (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
To test for Power Factor (main display) + AC Voltage (left secondary display) + AC Current (right secondary display), connect the Meter as follows:
1. Press the MENU to select Power Factor (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) range.
2. Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
3. The connecting method of 3 phases 4 wires, 3 phases 3 wires or single phase 2 wires, see figure 4, 5 and
6.
26
4. When measuring 3 phase 4 wires: (see figure 21, 22, 23)
l Press SELECT to choose the first phase 1, see figure 21.
Figure 21
The triple displays shows the first phase value of power factor cos , AC Voltage V and AC Current A. Then press SELECT again to choose the second phase 2, see figure 22.
Model UT233: OPERATING MANUAL

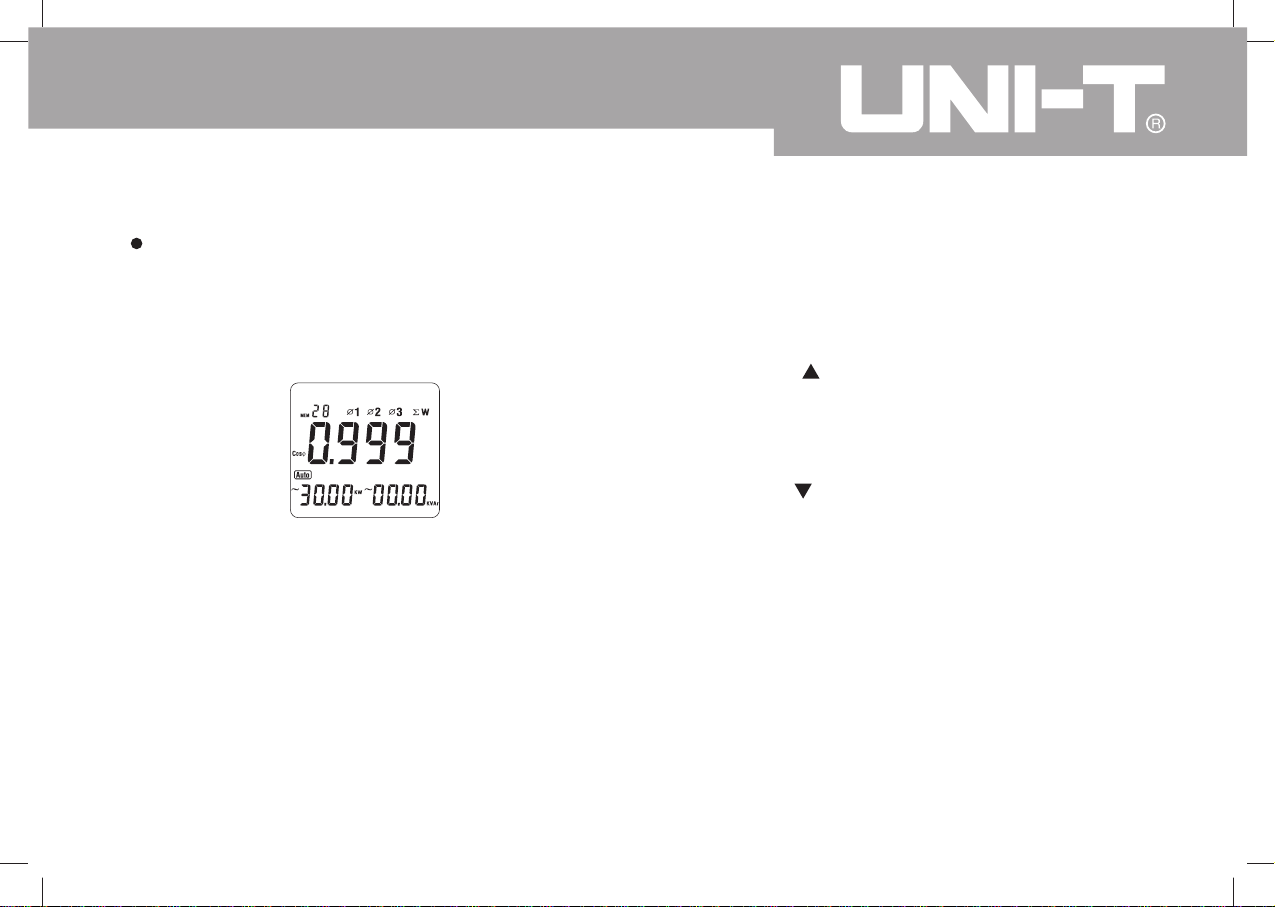

Figure 22
5. When measuring 3 phase 3 wires: The first phase and second phase operating
method is same as three phase 4 wires. Jump over the third phase measurement.
6. MAX/ and MIN/ are not valid at this
measurement mode.
The triple displays shows the second phase value of power factor cos , AC V oltage V and AC Current A. Press SELECT again to choose the third phase
3, see figure 23.
Figure 23
The triple displays shows the third phase value of power factor cos , AC Voltage V and AC Current A.
Note
When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
27
Model UT233: OPERATING MANUAL
E. Phase Angle (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
To test for Phase Angle (main display) + AC Voltage (left secondary display) + AC Current (right secondary display), connect the Meter as follows:
1.
Press the MENU to select Phase Angle (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) range.
2.
Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
3.
The connecting method of 3 phases 4 wires, 3 phases 3 wires or single phase 2 wires, see figure 4, 5 and 6
28
4.
When measuring 3 phase 4 wires: (see figure 24, 25, 26)
Press SELECT to choose the first phase 1, see figure 24.
Figure 24
The triple displays shows the first phase value of phase angle AC Voltage V and AC Current A. Then press SELECT again to choose the second phase 2, see figure 25
Figure 25
Model UT233: OPERATING MANUAL
The triple displays shows the second phase value of phase angle AC Voltage V and AC Current A. Press SELECT again to choose the third phase
3, see figure 26.
Figure 26
The triple displays shows the third phase value of phase angle AC Voltage V and AC Current A.
5.
When measuring 3 phase 3 wires:
The first phase and second phase operating method is same as three phase 4 wires. Jump over the third phase measurement.
6.
MAX/ and MIN/ are not valid at this measurement mode.
Note
When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
29
Model UT233: OPERATING MANUAL
F. Frequency Hz (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
Frequency Measurement only measures the frequency of voltage signal not he frequency of current signal.
To test for Frequency Hz (main display) + AC Voltage (left secondary display) + AC Current (right secondary display), connect the Meter as follows:
1.
Press the MENU to select Frequency Hz (main display) + AC Voltage (left secondary display) + AC Current (right secondary display) range.
2.
Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
30
3.
The connecting method of 3 phases 4 wires, 3 phases 3 wires or single phase 2 wires, see figure 4, 5 and 6
4.
When measuring 3 phase 4 wires: (see figure 27, 28, 29)
Press SELECT to choose the first phase 1, see figure 27.
Figure 27
Model UT233: OPERATING MANUAL

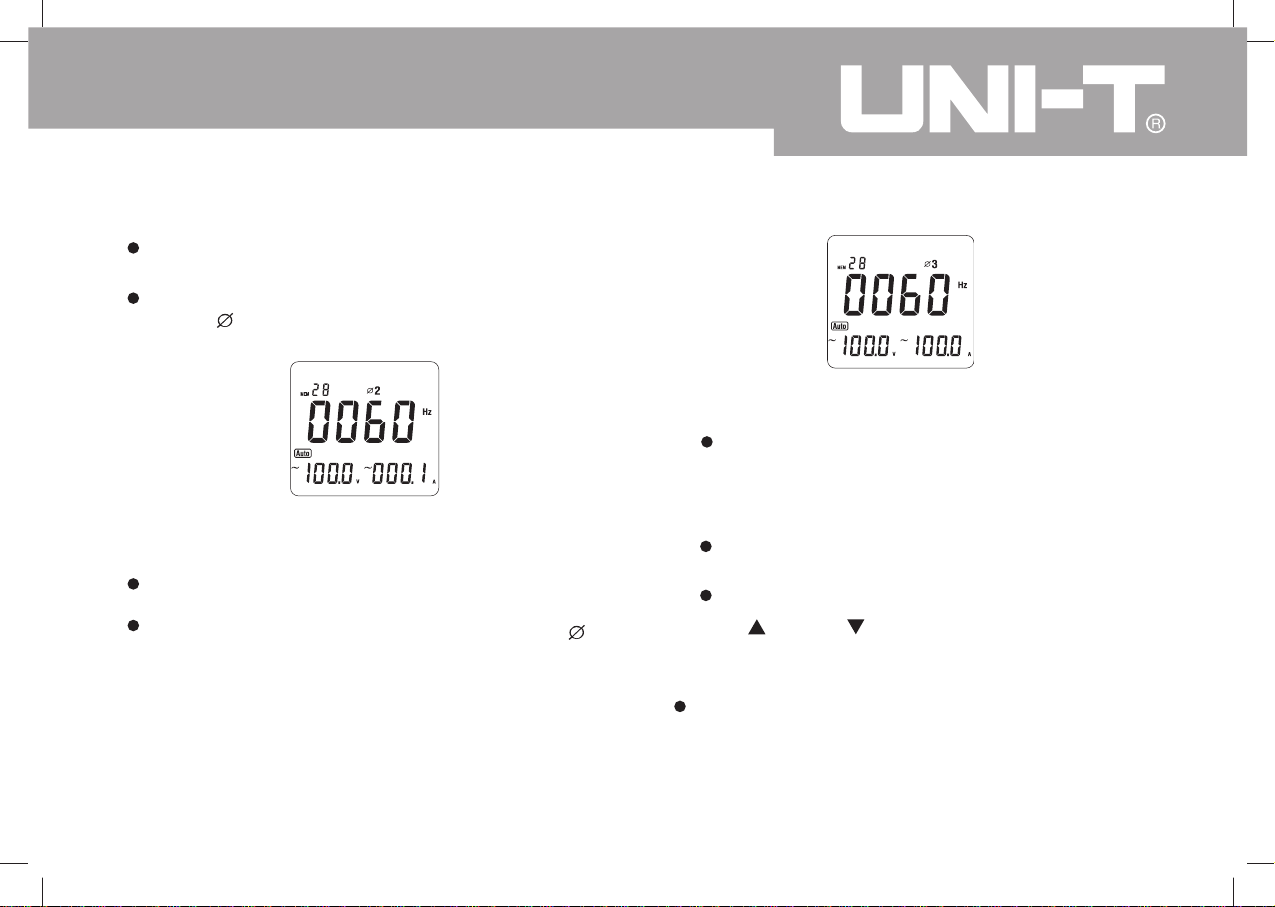

The triple displays shows the first phase value of frequency Hz, AC Voltage V and AC Current A. Then press SELECT again to choose the second phase 2, see figure 28
Figure 28
The triple displays shows the second phase value of Frequency Hz AC Voltage V and AC Current A. Press SELECT again to choose the third phase 3, see figure 29.
Figure 29
The triple displays shows the third phase value of Frequency Hz, AC Voltage V and AC Current A.
When measuring 3 phase 3 wires:
5. The first phase and second phase operating
method is same as three phase 4 wires. Jump over the third phase measurement.
MAX/ and MIN/ are not valid at this measurement
6.
mode.
Note
When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
31
Model UT233: OPERATING MANUAL
G. Active Energy (main display) + Active Power (left secondary display) + Time (right secondary display) Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 600V rms and AC current 1000A rms.
To test for Active Energy (main display) + Active Power (left secondary display) + Time (right secondary display), connect the Meter as follows:
1.
Press the MENU to select Active Energy (main display) + Active Power (left secondary display) + Time (right secondary display) range.
2.
Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor. If user needs to mesaure any phase of the 3 phase, then clamp them to that phaseís conductor.
3.
The connecting method of 3 phases 4 wires, 3 phases 3 wires or single phase 2 wires, see figure 4, 5 and 6.
32
4.
Press SELECT to choose one of the three phases ( 1, 2, 3), see figure 30.
Figure 30
The double display shows the value of tested objectís active engergy kWh value and the measuring time of the corresponding phase. The measuring reading gets increasing along with the time increases. Press HOLD to read a particular time kWh value. Then the reading and time are locked, but still continuous accumulate measuring time. After read the data, press HOLD again to continous measurement. kWh value continous accumulate and the measuring time jumps to the present measuring time.
Model UT233: OPERATING MANUAL
When the measuring time is over 24 hours or the Meter is switched to other measuring ranges, active energy measuring will stop. The maximum readinng of acitve energy is 9999kWh. OL will be displayed when the reading is over than that.
MAX/ and MIN/ are not valid at this measurement
5. mode. Press CLEAR to reset the time.
6. USB interface feature is not valid at this measurement
7. mode.
Note
When there is no input signal, it cannot carry out active energy measurement. When there is input signal, the maximum waiting time is around 10s before timing. When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
33
Model UT233: OPERATING MANUAL
H. Phase Sequence
For Phase Sequence Judging, connect the Meter as follows:
1. Press the MENU to select AC Voltage (main display) + AC Voltage (left secondary display) + AC Voltage (right secondary display) range as figure 31.
Red
Blue
Yellow
Black
Figure 31
34
Insert red test lead into V1 input terminal. Insert blue test lead into V2 input terminal. Insert yellow test lead into V3 input terminal. Insert black test lead into COM input terminal. Connect these four test leads to the circuit under test or the loading of three phases and grounding terminal For the loaded return circuit of 3 phases 4 wires, the Meter shows the phase sequence result as figure 32, 33 and 34:
Figure 32 =phase missing
Figure 33 =negative phase sequence
Figure 34 =positive phase sequence
Model UT233: OPERATING MANUAL
A
BC
2. Positive phase sequence is shown as below figure
35.
V1 input terminal corresponding voltage
V2 input terminal corresponding voltage
V3 input terminal corresponding voltage

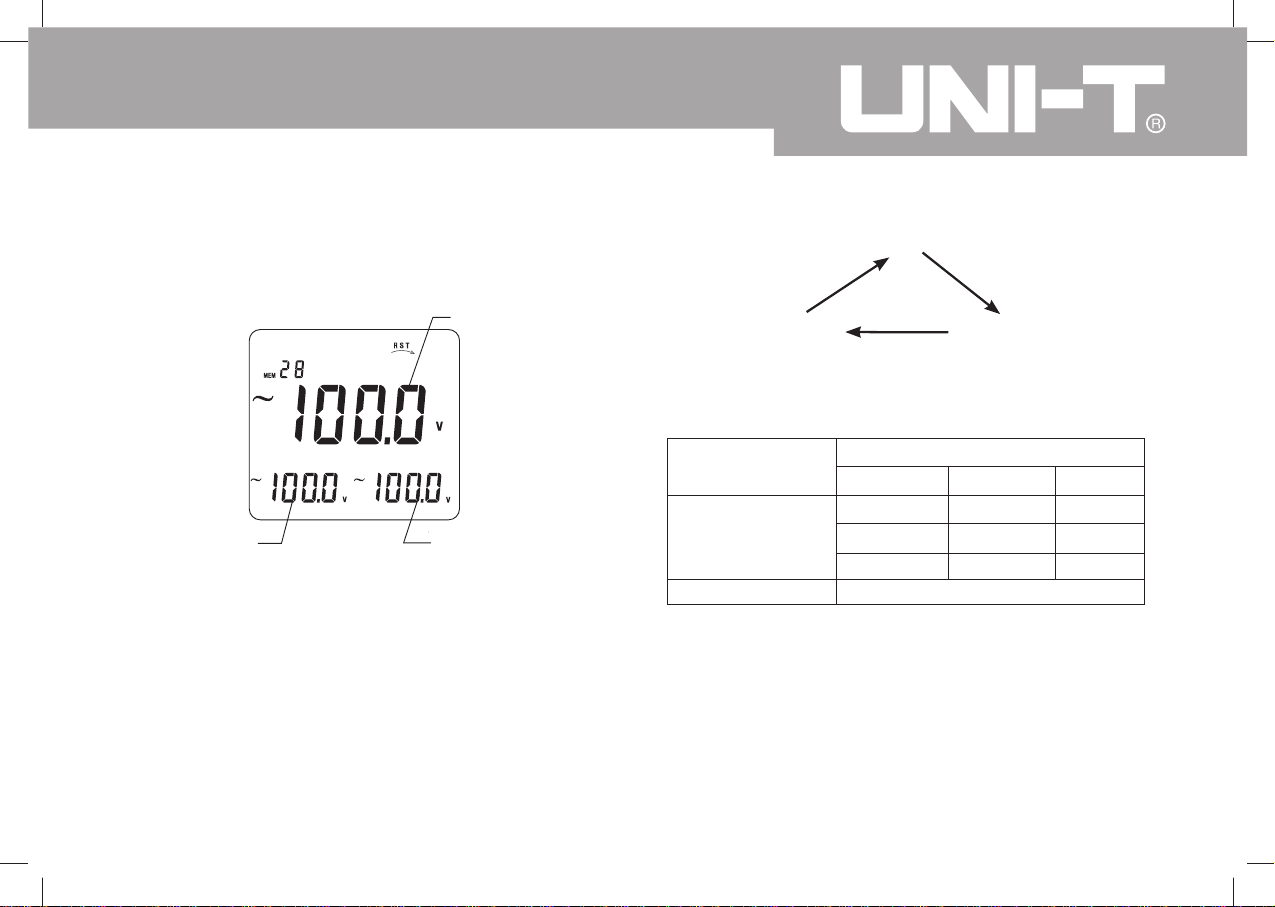

Figure 35
When V1 input terminal, V2 input terminal and V3 input terminal base on the below table connecting A phase, B phase and C phase, all three phases voltage are over 100V, LCD displays positive phase sequence result
Positive phase sequence
Input Terminal
A, B, C phases
V1 A B C
V2 B C A
Checking Result Positve phase sequence
V3 C A B
35
Negative phase sequence is shown as below figure.
A
BC
3. When V1 input terminal, V2 input terminal and V3 input terminal base on the below table connecting A phase, B phase and C phase, all three phases voltage are over 100V , LCD displays negative phase sequence result, as figure 36.
V1 input terminal corresponding voltage.
V2 input terminal corresponding voltage
V3 input terminal corresponding voltage

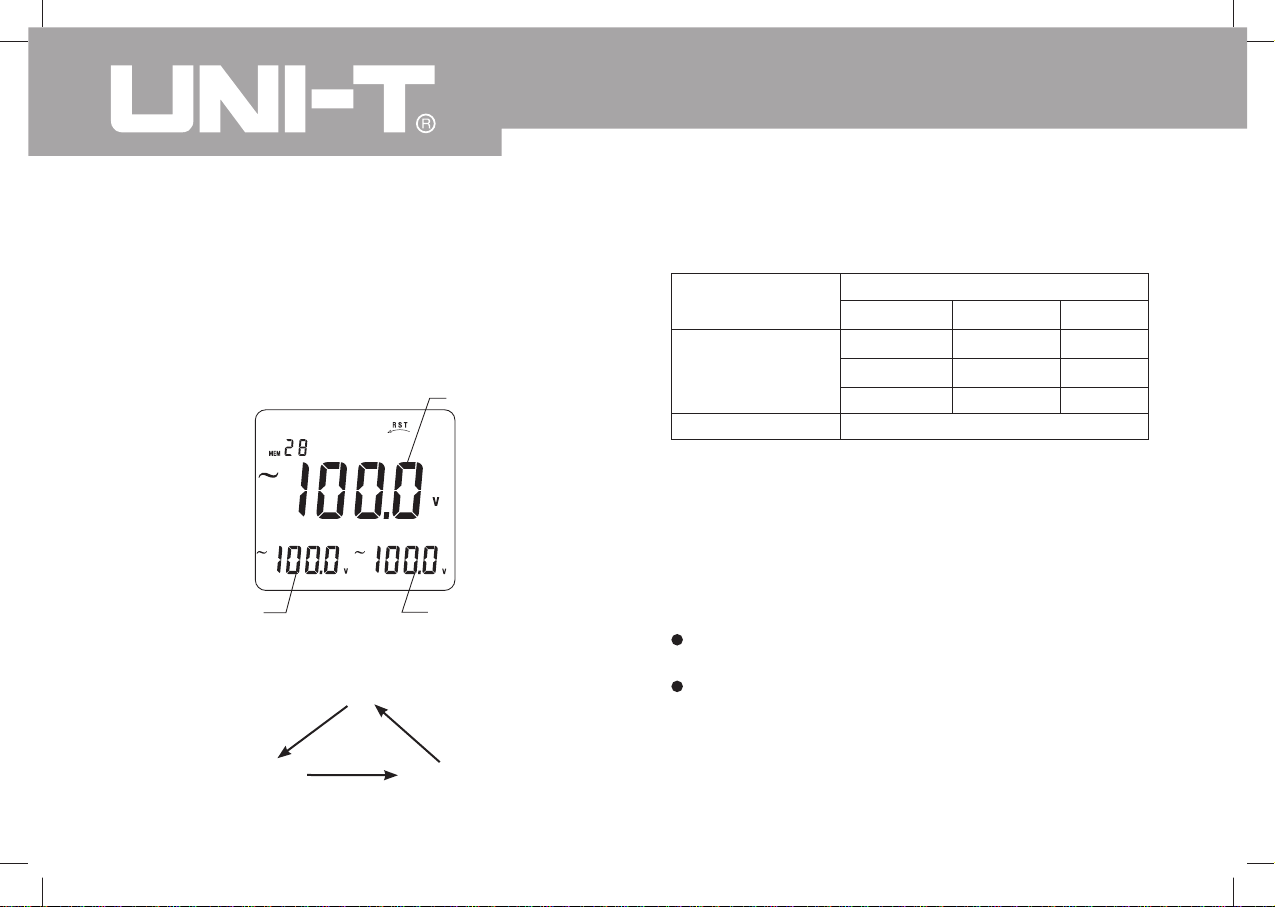

Figure 36
Model UT233: OPERATING MANUAL
Negative phase sequence
Input Terminal
A, B, C phases
V1 A B C
V2 C A B
Checking Result Negative phase sequence
4.
When any one phaseís voltage has no singal or less than 100V at 3 phases 4 wires overload mode, the LCD display missing phase result.
5.
USB interface feature is not valid at this measurement mode.
Note
Postive and negative phase sequence checking voltage range is 100V ~500V. When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.
V3 B C A
36
Model UT233: OPERATING MANUAL
Specifications
A. General Specifications
Maximum Voltage between any Terminals and grounding: Refer to different range input protection voltage. Display: Multi LCD displays, Maximum display 9999. Ranges: Auto Overloading: Display OL. Battery Deficiency: Display . Data Holding: Display . Data Logging: Maximum 99, Single or Continuous record and recall data Maximum and Minimum value display: Voltage, Current, Active Power , Apparent Power and Reactive Power ranges Display Backlight Computer connection: USB Sleep Mode: To preserve battery life, the Meter automatically turns off if you do not turn press any button for around 15 minutes., except at active energy range.
Analogue Bar Graph Sampling: High speed: 2 times per second, Low speed: 1 time per 3 seconds, Mid speed: 1 time per 2 seconds. Max. Jaw Size: 55mm diameter. Power: 4 x 1.5V Alkaline battery (LR6 AA) Dimensions: 303mm x 112mm x 39mm Weight: Approximate 601g
37
B. Environmental Requirements
Model UT233: OPERATING MANUAL
38
Model UT233: OPERATING MANUAL
Accurate Specifications
Accuracy: (a% reading + b digits), guarantee for 1 year. Operating temperature: 23
Operating humidity: 45~75%R.H
A. AC Voltage (True RMS)
5
Range 15V 100V 300V 600V
B. Frequency
Range 20Hz~500Hz
Resolution
0.1V
Resolution 1Hz
Accuracy
(1.2%+5)
Accuracy
Allowable Maximum overload protection voltage
600 RMS
(0.5%+5)
Input Impedance
10M
39
C. AC Current (True RMS)
Range 40A 100A 400A 1000A
D. Active Power ( W=V x A x COS )
Current / Voltage
Current Range
Resolution
0.1A
1A
40A 100A 400A 1000A
15V
0.60kW
1.50kW
6.00kW
15.00kW
Accuracy
(2%+5)
Model UT233: OPERATING MANUAL
Allowable Maximum overload protection current
1000A RMS
Voltages Range
100V
4.00kW
10.00kW
40.00kW
100.0kW
300V
12.00kW
30.00kW
120.0kW
300.0kW
600V
24.00kW
60.00kW
240.0kW
600.0kW
Accuracy Resolution
Remarks:
Allowable maximum overload protection voltage: 600V RMS Allowable maximum overload protection current: 1000A RMS
At 15/1000A range: (3%+10) Others: (3%+5) <100kW: 0.01kW
100kW: 0.1kW
40
Model UT233: OPERATING MANUAL
E. Apparent Power (VA = V x A)
Current / Voltage
40A Current Range
Accuracy Resolution
Remarks:
Allowable maximum overload protection voltage: 600V RMS Allowable maximum overload protection current: 1000A RMS
100A
400A
1000A
15V
0.60kVA
1.50kVA
6.00kVA
15.00kVA
At 15/1000A range: (3%+10) Others: (3%+5) <100kVA: 0.01kVA
100kVA: 0.1kVA
100V
4.00kVA
10.00kVA
40.00kVA
100.0kVA
Voltages Range
300V
12.00kVA
30.00kVA
120.0kVA
300.0kVA
600V
24.00kVA
60.00kVA
240.0kVA
600.0kVA
41
F. Reactive Power (Var = V x A x SIN )
Model UT233: OPERATING MANUAL
Current / Voltage
40A Current Range
Accuracy Resolution
Remarks:
Allowable maximum overload protection voltage: 600V RMS Allowable maximum overload protection current: 1000A RMS
100A
400A
1000A
15V
0.60kVar
1.50kVar
6.00kVar
15.00kVar
15V/1000A Range: (4%+20) Other : (4%+5) <100kVar: 0.01kVar
100kVar: 0.1kVar
100V
4.00kVar
10.00kVar
40.00kVar
100.0kVar
42
Voltages Range
300V
12.00kVar
30.00kVar
120.0kVar
300.0kVar
600V
24.00kVar
60.00kVar
240.0kVar
600.0kVar
Model UT233: OPERATING MANUAL
G. Power Factor (PF = W / VA)
Range
0.3~1 (capacitive or inductive)
0.3~1 (capacitive or inductive)
Remarks:
Allowable maximum overload protection voltage: 600V RMS Allowable maximum overload protection current: 1000A RMS
H. Phase Angle (PG=acos (PF))
Range 0∞ ~360∞
0∞ ~360∞
Remarks:
Allowable maximum overload protection voltage: 600V RMS Allowable maximum overload protection current: 1000A RMS
Accuracy
0.022
For reference only
Accuracy
1∞
For reference only
Resolution
0.001
Resolution 1∞
Measuring Condition The minimum measuring current 10A The minimum measuring voltage 45V Measuring current less than 10A OR Measuring voltage less than 45V
Measuring Condition The minimum measuring current 10A The minimum measuring voltage 45V Measuring current less than 10A OR Measuring voltage less than 45V
43
I. Active Energy (kWh)
Model UT233: OPERATING MANUAL
Range 1~9999kWh
Remarks:
Allowable maximum overload protection voltage:
600V RMS
Allowable maximum overload protection current:
1000A RMS
Accuracy
(3%+2)
Resolution
0.001kWh
44
Model UT233: OPERATING MANUAL
MAINTENANCE
This section provides basic maintenance information including battery replacement instruction.
Warning
Do not attempt to repair or service your Meter unless you are qualified to do so and have the relevant calibration, performance test, and service information.
To avoid electrical shock or damage to the Meter, do not get water inside the case.
A. General Service
Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents. To clean the terminals with cotton bar with detergent, as dirt or moisture in the terminals can affect readings. Turn the Meter power off when it is not in use. Take out the battery when it is not using for a long time. Do not use or store the Meter in a place of humidity,
high temperature, explosive, inflammable and strong magnetic field.
B. Replacing the Battery (see figure 37)
Figure 37
45
Warning
To avoid false readings, which could lead to possible electric shock or personal injury, replace the battery as soon as the battery indicator ì î appears.
Make sure the transformer jaw and the tests leads are disconected from the circuit being tested before opening the case bottom.
To replace the battery:.
1.
Press POWER to turn the Meter off and remove all the connections from the input terminals
2.
Turn the Meterís front case down.
3.
Remove the screw from the battery door, and separate the battery door from the case bottom.
4.
Take out the old battery and replace with 4 x 1.5V battery (LR6).
5.
Rejoin the case bottom and the battery compartment, and reinstall the screw.
Model UT233: OPERATING MANUAL
46
Model UT233: OPERATING MANUAL
*END*
This operating manual is subject to change without notice.
47
Model UT233: OPERATING MANUAL
Copyright 2007 Uni-Trend Group Limited.
All rights reserved. Manufacturer:
Uni-Trend Technology (Dongguan) Limited Dong Fang Da Dao Bei Shan Dong Fang Industrial Development District Hu Men Town, Dongguan City Guang Dong Province China Postal Code: 523 925
Headquarters: Uni-Trend Group Limited Rm901, 9/F, Nanyang Plaza 57 Hung To Road Kwun Tong Kowloon, Hong Kong Tel: (852) 2950 9168 Fax: (852) 2950 9303 Email: info@uni-trend.com http://www.uni-trend.com
48
Loading...
