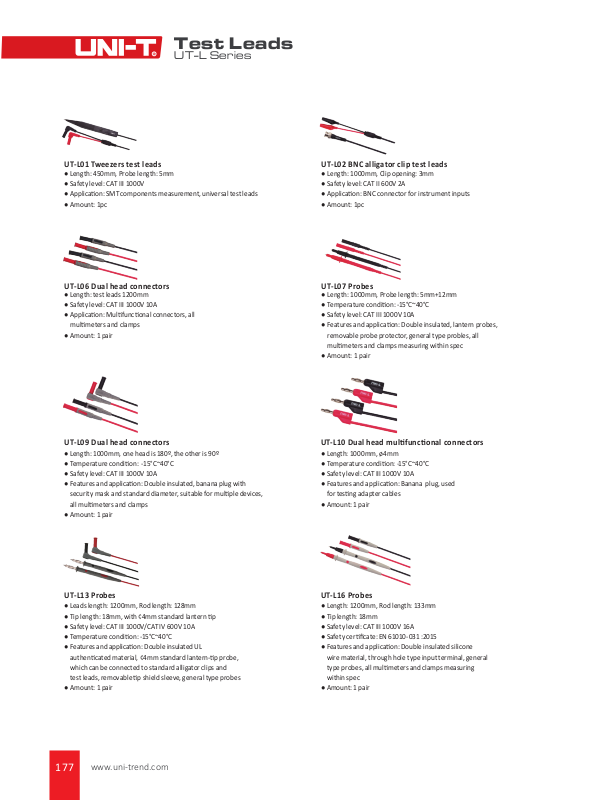

Page 1
Test Leads
UT-L Series
UT-L01 Tweezers test leads
● Length: 450mm, Probe length: 5mm
● Safety level: CAT III 1000V
● Applica�on: SMT components measurement, universal test leads
● Amount: 1pc
UT-L06 Dual head connectors
● Length: test leads 1200mm
● Safety level: CAT III 1000V 10A
● Applica�on: Mul�func�onal connectors, all
mul�meters and clamps
● Amount: 1 pair
UT-L09 Dual head connectors
● Length: 1000mm, one head is 180º, the other is 90º
● Temperature condi�on: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and applica�on: Double insulated, banana plug with
security mask and standard diameter, suitable for mul�ple devices,
all mul�meters and clamps
● Amount: 1 pair
UT-L02 BNC alligator clip test leads
● Length: 1000mm, Clip opening: 3mm
● Safety level: CAT II 600V 2A
● Applica�on: BNC connector for instrument inputs
● Amount: 1pc
UT-L07 Probes
● Length: 1000mm, Probe length: 5mm+12mm
● Temperature condi�on: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and applica�on: Double insulated, lantern probes,
removable probe protector, general type probles, all
mul�meters and clamps measuring within spec
● Amount: 1 pair
UT-L10 Dual head mul�func�onal connectors
● Length: 1000mm, ø4mm
● Temperature condi�on: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and applica�on: Banana plug, used
for tes�ng adapter cables
● Amount: 1 pair
UT-L13 Probes
● Leads length: 1200mm, Rod length: 128mm
● Tip length: 18mm, with ¢4mm standard lantern �p
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Temperature condi�on: -15°C~40°C
● Features and applica�on: Double insulated UL
authen�cated material, ¢4mm standard lantern-�p probe,
which can be connected to standard alligator clips and
test leads, removable �p shield sleeve, general type probes
● Amount: 1 pair
177
www.uni-trend.com
UT-L16 Probes
● Length: 1200mm, Rod length: 133mm
● Tip length: 18mm
● Safety level: CAT III 1000V 16A
● Safety cer�ficate: EN 61010-031 :2015
● Features and applica�on: Double insulated silicone
wire material, through hole type input terminal, general
type probes, all mul�meters and clamps measuring
within spec
● Amount: 1 pair
Page 2
Test Leads
UT-L Series
UT-L17 Probe with LED light
● leads length: 1000mm
● Tip length: 16mm
● Safety level: CAT II 1000V 10A
● Features and applica�on: Controllable LED light source,
all mul�meters and clamps measuring within spec
● Amount: 1pc
UT-L21 Probes
● Leads length: 900mm, Rod length: 133mm
● Tip length: 15.8mm
● Safety level: CAT III 1000V/CAT IV 600V 20A
● Features and applica�on: Cross plug with shield
sleeve, general type probes, all mul�meters and clamps
● Amount: 1 pair
UT-L20 Probes
● Leads length: 900mm, Rod length:101mm
● Tip length: 16.5mm
● Safety level: CAT I 1000V/CAT II 600V 10A
● Features and applica�on: Cross plug with shield sleeve,
general type probes, all mul�meters and clamps
measuring within spec
● Amount: 1 pair
UT-L25 Probes
● Leads length: 900mm, Rod length: 115mm
● Tip length: 18mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety ce�ficate: EN 61010-031 2015
● Features and applica�on: Double insulated wire, removable
�p shield sleeve, general type probes, all mul�meters
and clamps measuring within spec
● Amount: 1 pair
UT-L26 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 20A
● Safety cer�ficate: EN 61010-031 2015
● Features and applica�on: UL 16AWG double insulated
wire, removable �p shield sleeve, cross type input terminal
with full protec�on, general type probes, all mul�meters
and clamps
● Amount: 1 pair
UT-L28 Probes
● Leads length: 900mm, Rod length: 128mm
● Tip length: 16.8mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Features and applica�on: Double insulated wire, removable
�p shield sleeve, banana plug input terminal, general type
probes, all mul�meters and clamps measuring within spec
● Amount: 1 pair
UT-L27 Probes
● Leads length: 900mm, Rod length: 130mm
● Tip length: 16.3mm, threaded
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety cer�ficate: EN 61010-031 2015
● Features and applica�on: Double insulated UL
authen�cated material, removable �p shield sleeve, banana
plug input terminal, general type probes, all mul�meters
and clamps measuring within spec
● Amount: 1 pair
UT-L29 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety cer�ficate: EN 61010-031 2015
● Features and applica�on: Double insulated
UL authen�cated material, through hole crosshead
with full protec�on input, removable �p shield sleeve,
general type probes, all mul�meters and clamps measuring
within spec
● Amount: 1 pair
www.uni-trend.com
178
Page 3
Test Leads
UT-L Series
UT-L30 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety cer�ficate: EN 61010-031 2015
● Features and applica�on: Double insulated UL
authen�cated material, removable �p shield sleeve,
cross input terminal, general type probes, all mul�meters
and clamps measuring within spec
● Amount: 1 pair
UT-L32 Group test leads
● Combina�ons: combined with 2PCS test leads,
(red+black) and (yellow+blue)
● Material: Double insulated leads
● Line length: 1090mm
● Safety level: CAT III 600V/CAT IV 300V
● Applica�on: UT243
● Amount: 1 Group
UT-L31 Probes
● Line length: 1300mm
● Tip length: 18.5mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Features and applica�on: rod with switch, removable
�p shield sleeve, used for UT505B
● Amount: 1pc
UT-L33 Group test leads
● Combina�ons: combined with 1PCS (red+black)
alligator clip test leads and 1PCS double-plug
alligator clip test leads
● Material: Double insulated UL
authen�cated material
● Total length: 1200±20mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Applica�on: UT511
● Amount: 1 Group
UT-L34 Group test leads
● Combina�ons: combined with 1PCS green, 1PCS black
and 1PCS red alligator clip test leads
● Total length: 1500±20mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Applica�on: UT513, UT513A
● Amount: 1 Group
UT-L36 Dual through hole test leads
● Material: 18AWG UL authen�cated material
● Length: 1100mm
● Safety level: CAT III 1000V/CAT IV 600V
● Applica�on: UT505B
● Amount: 1 pair
179
www.uni-trend.com
UT-L35 Group test leads
● Combina�on: (1) 1.6m test lead (green+red) 1pair (2) 5m
green test lead 1PCS (3) 10m yellow test lead 1PCS (4) 20m
red test lead 1PCS
● Material: UL authen�cated material
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Applica�on: UT521, UT522, UT572
● Amount: 1 Group
UT-L37 Dual through hole test leads
● Material: Double insulated wire, 102 cores
● Length: 1090mm
● Safety level: CAT III 1000V/CAT IV 600V
● Applica�on: UT50 0 series
● Amount: 1 pair
Page 4
Test Leads
UT-L Series
UT-L38 Group test leads
● Material: Double insulated wire, 102 cores Leng th: 1090mm
● Safety level: CAT III 600V/CAT IV 300V
● Features and applica�on: with buckle, used for UT261A/B
● Amount: 3pcs
UT-L40 SMD patch clamp
● Leads length: 450mm, probe length: 5mm
● Temperature condi�on: -10°C~40°C
● Safety level: CAT II 1000V 2A
● Features and applica�on: used to SMT components, for UT612
● Amount: 1pc
UT-L39 Alligator clip test leads with shield sleeve
● Material: Double insulated wire
● Length: 1000±50mm
● Features and applica�on: Adapter plug with BNC
● Amount: 1pc
UT-L41 Alligator clip short test leads
● Core: 19/20
● Length: 110-130mm
● Features and applica�on: full protec�on cross input terminal,
used for UT71 series, UT601, UT603
● Amount: 1 pair
UT-C06 Test probes
● Specifica�ons: Rod length 106mm, probe length 19mm
● Safety level: CAT III 1000V 10A
● Features: Fully-insulated, with �p and protector, banana plug probes
● Amount: 1 pair
UT-C08 Test probes
● Specifica�ons: Rod length 99mm, probe length 18mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Features: Fully-insulated, with �p and protector, straight type probes
● Amount: 1 pair
UT-L46 Four-wire test probes
● Leads material: 182-core double shielded wire
● Leads length: 1000mm
● Amount: 1pair
UT-C09 Test probes
● Specifica�ons: Rod length 99mm, probe length 18mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Features: Fully-insulated, with �p and protector, lantern
type probes
● Amount: 1 pair
www.uni-trend.com
180
