UT50 Fully Rugged Windows Tablet Quick Start Guide
Unpacking
1. One UT50 Fully Rugged Windows Tablet Unit
2. Two Battery Packs
3. One AC Adapter
4. Power Cord (US/UK)
5. One Digitizer Pen
6. One Hand Strap
NOTE: This package does not include headset.
Front and Rear Views
A: Double Channel Speakers
B: Light Sensor
C: Front Camera
D: Microphone
E: Front Camera Indicator LED
F: Four Status Indicator LEDs
Power LED
OFF_-------------When UT50 is shutdown or hibernated
Green ON------When UT50 is powered on
Green Blinking----When UT50 is in sleep mode
HDD LED
ON--------------When there is HDD activity
OFF-------------When there is no HDD activity
Battery A LED
OFF--------------No Battery A or not charging
Red ON---------Battery A is charging
Green ON------Battery A is fully charged
Green blinking every 2 seconds-------Battery A is over charged, system will stop
charging.
Green blinking every 4 seconds------- Battery A charging temperature is above
specifications, please unplug the AC adapter and stop charging immediately.
Red blinking every 2 seconds----------Battery A capacity is below 10%
Red blinking every 4 seconds----------Battery A operating temperature is above
specifications, shut down UT50 immediately and wait for the temperature recovery
between -20⁰C and 55⁰C
Battery B LED
OFF--------------No Battery B or not charging
Red ON---------Battery B is charging
Green ON------Battery B is fully charged
Green blink every 2 seconds-------Battery B is over charged, system will stop charging.
Green blink every 4 seconds------- Battery B charging temperature is above
specifications, please unplug the AC adapter and stop charging immediately.
Red blink every 2 seconds----------Battery B capacity is below 10%
Red blink every 4 seconds----------Battery B operating temperature is beyond scope,
please shut down UT50 immediately and wait the temperature recovery between -20⁰C
and 55⁰C.
G: Keys
Power----------------------Power on or Shutdown UT50
Volume Up----------------Increase Volume
Volume Down------------Decrease Volume
Windows------------------Return to desktop
Light Key------------------On or Off back light LED
F1---------------------------Function Key 1, increase brightness (Default setting)
F2---------------------------Function Key 2, decrease brightness (Default setting)
H: 10.1 Display
I: 3.5mm headphone out/Mic-in Combo
J: USB2.0 port
K: HDMI type A
L: Expansion 1, RJ45 LAN default
M: USB3.0 port
N: DC slot
O: Kensington lock
P: Mounting slot
Q: 35pin Expansion Bus Connector
A: Fingerprint
B: Hand Strap Mounting
C: Battery A Locking Latch
D: Ventilation Holes (Intake)
E: Ventilation Holes (Exhaust)
F: Dust Cover
G: Nameplate
H: Nano SIM Card and MicroSD Card Slot
I: Battery A
J: LED Light
K: 12-pin Back Pogo-pin
L: Rear Camera
M: Expansion 2, NFC Antenna (Default)
N: External GNSS Antenna Connector
O: Remote WIFI Antenna Connector
P: Hands Straps Mounting
Q: Battery B
R: Battery B Locking Latch
Installing Nano SIM and MicroSD Cards
●Remove Battery A and you can see two logos in the battery compartment. The left slot is for
MicroSD card and the right slot is for Nano SIM card.
●You can use a T6 screwdriver to remove the two screws below the nameplate.
●Remove the cover to access the card slots.
●Insert MicroSD card to the left slot.
●Insert Nano SIM card to the right slot.
Installing Battery Packs

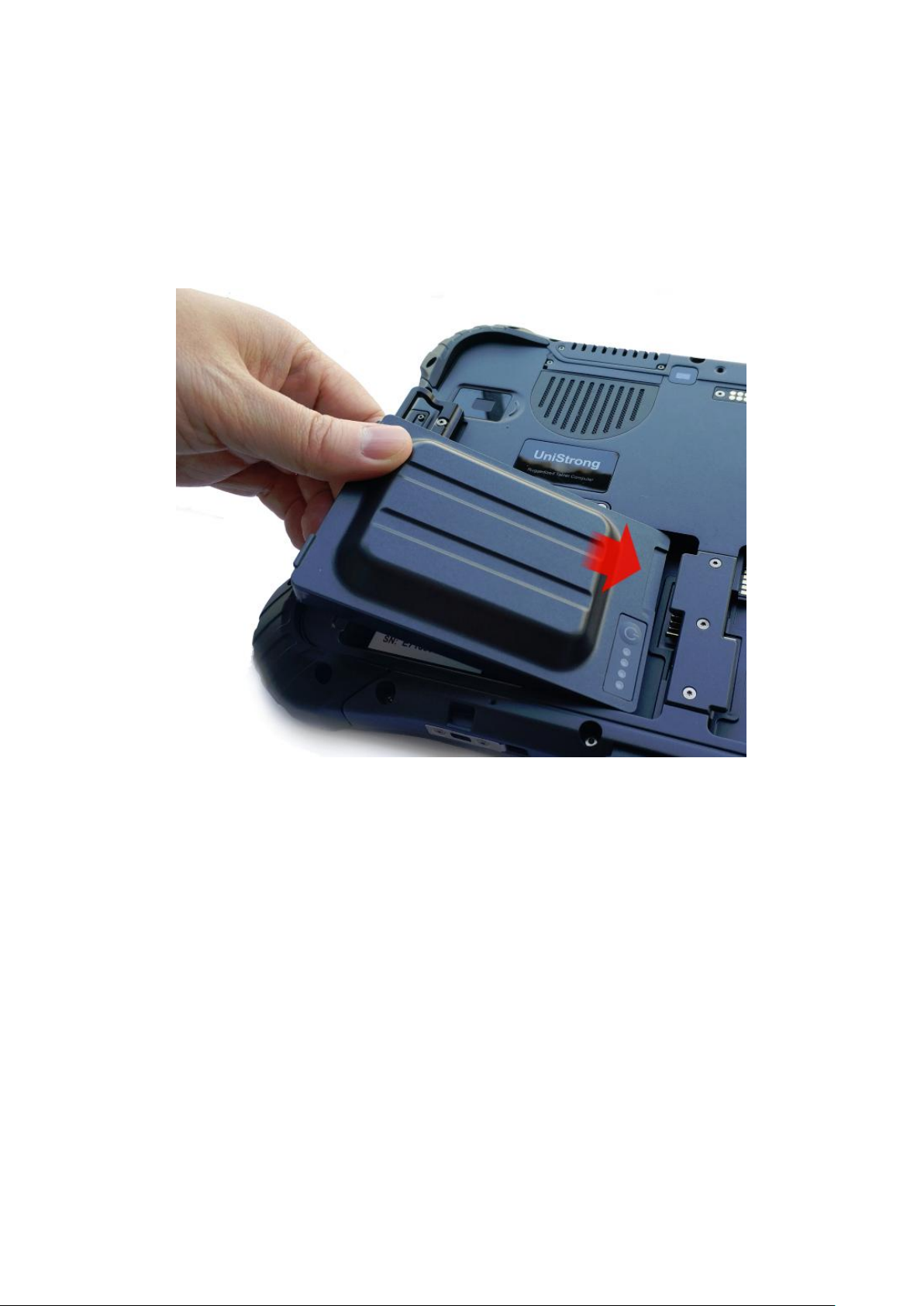

Turn over the computer and insert the battery packs into the battery compartments to a secured
seated position.
●Ensure no foreign objects are under the computer.
●Ensure that the battery locking latch is in locked position. Otherwise, the battery packs may
drop during operation.
●Do not touch the terminals of the battery packs and computer.
Doing so may cause damage or dirty the terminals and result in computer or battery
malfunction.
Note: There is a button and four LEDs on the battery. The LEDs will indicate battery capacity
when you give the button a short press.
If there is no LED light, it indicates no power in battery.
If there is one LED light, it indicates very low power in battery.
If there are two LED lights, it indicates power is below 50%.
If there are three LED lights, it indicates power is more than 50%.
If there are four LED lights, it indicates almost full power in the battery.
Installing Hand Strap

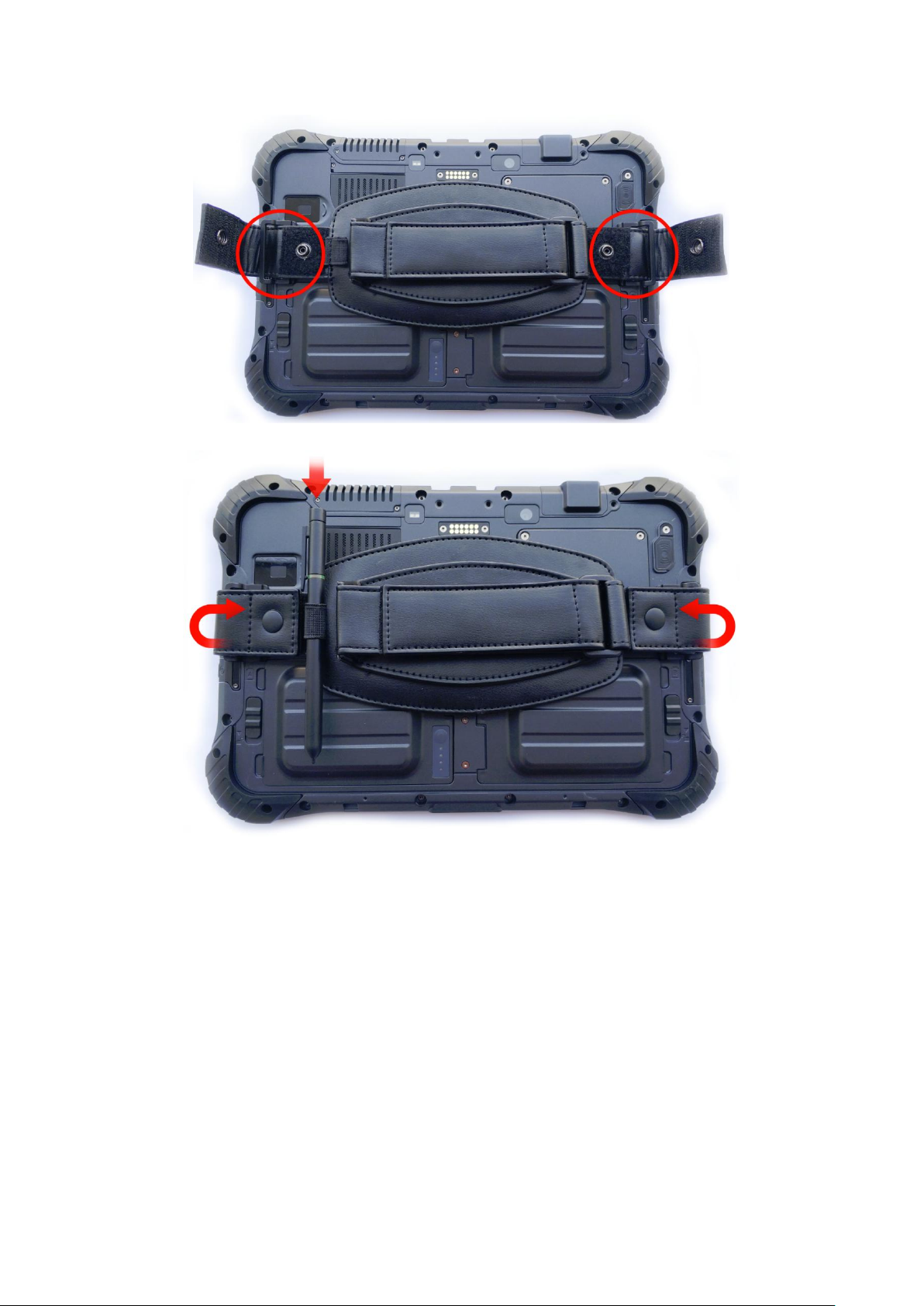

Install hand strap as shown below.
Digitizer Pen
Stylus Indicator Light (Operational)
Red
Low Voltage.
Blue
Normal operational state.
Stylus Indicator Light (Charging)
Red
Charging when connected to power outlet.
Off
Fully Charged.
NOTE：
a. The stylus must be charged using the original charger. DO NOT ATTEMPT to charge using other
third party chargers.
b. Please follow the instructions to ensure that the stylus is plug in the right direction.
c. For safety concerns, the stylus cannot be used during charging.
First-time Power On
①Charging the Batteries before First Use
Connect the AC power adapter to the power connector of UT50. Use the correct power cord to
connect to a power outlet.
②Turning on UT50
Press and hold the power button until the power indicator lights up.
Do not press repeatedly or hold for more than four seconds.
③Entering/Exiting Sleep mode
When UT50 is in power on mode, press the power button once. The display will be off and power
LED will start blinking. The system enters into sleep mode.
When UT50 is in sleep mode, press the power button once. The display will be on and power LED
will be on. The system has exited sleep mode.
④Turning off UT50
You can shut down UT50 using the Start menu of Windows.
[Start]->[Power]->[Shut down]
UT50 will display the power off screen and power LED will be off after a few seconds. The system
will shut down completely.
PRODUCT SAFETY WARNINGS
Use responsibly. Read all instructions and safety information before use to avoid injury. The
maximum operating ambient temperature of the equipment is 55°C .
①Battery safety
Battery works at ambient temperatures ranging from -20°C to 55°C .
(1)CAUTION: Risk of explosion if battery is replaced incorrectly. Replace with the same or
equivalent type of battery as recommended by the manufacturer. Dispose used batteries
according to battery manufacturer’s instructions.
Note: Charging temperature specifications is from 0°C to 45°C .
②Charger safety
Please place the device in an environment that has a normal room temperature with good
ventilation when charging. It is recommended to charge the device in an environment with an
ambient temperature that ranges from 5°C ~40°C
③Wi-Fi Safety
Turn Wi-Fi off in areas where Wi-Fi use is prohibited or when it may cause interference or danger,
such as in airplanes while flying.
④Avoid damage to your hearing
Exposure to loud volumes from earphones and headphones over prolonged periods can cause
hearing loss.
Notice
1. Some special places, such as airports, hospitals, gas stations and other places, do not
allow the use of electronic equipment. Please comply with the rules and do not use this product
in these places.
2. For your safety and the safety of others, please do not use this product while driving
a vehicle.
3. In order to avoid potential safety problems, do not put this product near the vehicle's
airbag.
4. For your safety, please do not use this product during thunderstorms.
5. Although this product is waterproof, do not leave this product for long periods of time in
areas with water or moisture.
6. This product has an operating temperature range of -20°C~+55°C and a storage
temperature range of -40°C~+70°C. Extreme temperatures can affect the device's
performance and service life.
7. Please use an original rechargeable lithium battery. Low-quality batteries will affect the
performance and service life of the device, and may even have the danger of explosion.
8. Although the product has been tested to withstand harsh operating environments, do use
the product in an improper manner.
9. Please do not disassemble this product. In case of failure, please send to our authorized
service centres to proceed with repairs.
10. After the device has reached the end of its service life, please discard in a proper way to
avoid environmental pollution.
11. When replacing the battery or during the use of an external power supply, shut down the
device completely before removing the battery or disconnecting the external power supply to
prevent damage.
12. This product is a Class B product, which may cause radio interference. The user may be
required to take necessary preventive measures.
Battery Instructions
1. This product uses a rechargeable lithium battery as a power source. When the power is
low, please charge the battery. To maintain battery life, it is recommended to deplete the
battery's power before charging.
2. When the battery charger is not in use, please remove it from the power supply. Do not
connect the charger to the battery for more than one week. Excessive charging will shorten the
battery life.
3. Temperature affects the battery charging limit. Therefore, the battery may need to be
cooled or warmed up before charging.
4. Please use the battery for its original intended purpose to prevent short-circuiting the
battery. A short circuit will occur when a conductive material connects the battery’s positive and
negative terminals.
5. Do not use a battery that is damaged.
6. Placing the battery in extremely cold or hot places will lead to shortened battery life.
Exposing the battery to extreme temperatures may cause the phone to malfunction, even if the
battery is fully charged.
7. Do not put the battery in a fire. Please discard the battery in a proper manner or take the
battery to a battery recycling station. Please dispose waste batteries in accordance with local
laws and regulations.
NOTICE:
The SAR limit of Europe is 2.0 W/kg. Device types UT50 has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for use on the
body is 0.675W/kg This device was tested for typical body - worn operations with the back of
the handset kept 0 cm from the body. To maintain compliance with RF exposure requirements,
use accessories that maintain a 0 cm separation distance between the user's body and the back
of the handset. The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with RF exposure requirements, and should be avoided.
Working Temperature: -20℃ ~ +55℃
Storage Temperature: -40℃ ~ +70℃
Charging mode need to operate indoors, please pay attention to the environment temperature
should be 0℃ ~ +45℃
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS
Hereby, [Shenzhen UniStrong Science & Technology Co.,Ltd.] declares that the radio equipment
type [UT50] is in compliance with Directive 2014 / 53 /EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://en.unistrong.com/declaration.html
This device complies with Part 22 & 24 and Part 27 of the FCC Rules.
SAR INFORMATION
The SAR limit of FCC and ISED is 1.6 W/kg averaged over one gram of tissue. Device types UT50
( FCC ID:2AOPD-UT50 and IC: 11546A-UT50 ) has also been tested against this SAR limit. The
highest SAR value reported under this standard during product certification for use on the body is
1.248 W/kg. This device was tested for typical body -worn operations with the back of the
handset kept 0 cm from the body. To maintain compliance with FCC and ISED RF exposure
requirements, use accessories that maintain a 0 cm separation distance between the user's body
and the back of the handset. The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC and ISED RF exposure requirements, and should be
avoided.
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radio é lectrique subi, m ê me si le brouillage est susceptible d'en compromettre le
fonctionnement.
NOTICE:
Changes or modifications made to this equipment not expressly approved by Shenzhen UniStrong
Science & Technology Co.,Ltd. may void the FCC authorization to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installe d and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
This Class [B] digital apparatus complies with Canadian ICES -003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB - 003 du Canada.
RF mode and power tune-up refer to appendix A
UniStrong APAC Pte Ltd
51 Ubi Ave 1 #01-22 Paya Ubi Industrial Park Singapore 408933 +65 62968238
NOTICE:This device is restricted to indoor use where operated in the European
Community and Canada and America using frequency in 5150MHz ~ 5250MHz to reduce the
potential for interference.Restriction in BE, BG, CZ, DK, DE, EE, IE, EL, ES, FR,
HR, IT, CY,LV,LT,LU,HU,MT,NL,AT, PL, PT, RO, SI, SK, FI, SE, UK.
Do not change antenna types ,just only allowed to use Original configuration antenna (PIFA)
Loading...
