Unison Research Unico CD User Manual

HIGH - END ELECTRONICS
BORN IN ITALY
Unico CD
Unison ResearchUnico CD
MANUALE D’ISTRUZIONI
La realizzazione di questo componente audio è non solo il risultato di una lunga esperienza di progettazione e produzione di dispositivi elettronici, ma anche il frutto della nostra passione e della nostra volontà di realizzare pezzi esclusivi, di grande valore, in cui la tradizionale abilità artigiana si unisce e si integra con un’alta tecnologia elettronica.
Ogni nostro prodotto viene realizzato con materiali e componenti accuratamente selezionati ed è sottoposto a test rigorosi che ne assicurano l’affidabilità ed il rispetto dei nostri elevati standard di qualità.
Vi raccomandiamo di leggere attentamente questo manuale e di attenervi alle indicazioni riportate prima di installare l’apparecchio, così da consentire al vostro nuovo Unico CD di operare in condizioni ottimali nel corso degli anni ed offrirvi sempre le migliori prestazioni.
2
Unison ResearchUnico CD
1. SBALLAGGIO
Verificate che l’imballo sia integro e che l’apparecchio non abbia subito danni evidenti durante il trasporto. Nel caso doveste riscontrare anomalie, vi raccomandiamo di consultare il vostro Rivenditore prima di mettere in funzione l’unità.
Rimuovete con cura il lettore CD e tutti gli accessori dall’imballo. Alcune parti, in particolare le valvole, possono essere imballate separatamente per prevenire eventuali danni durante il trasporto. In caso fosse necessario eseguirne il montaggio, vi preghiamo di fare riferimento alle istruzioni riportate nella sezione 4 di questo manuale.
IMPORTANTE ! Una volta che l’apparecchio è stato tolto dall’imballo, vi consigliamo di attendere alcune ore prima di effettuarne la connessione alla rete elettrica per evitare che la presenza eventuale di condensa possa provocare danni all’ apparecchio. Tale condensa potrebbe formarsi anche spostando l’unità da un ambiente freddo ad uno caldo: anche in questo caso occorre attendere alcune ore in modo che l’apparecchio possa adattarsi alla nuova temperaturaprima di metterlo in funzione.
Conservate l’imballo intatto: vi servirà nel caso in cui doveste riutilizzarlo, e contribuirete così alla tutela dell'ambiente.
2. INSTALLAZIONE
L’Unico CD deve sempre essere sistemato in un luogo sicuro, fuori dalla portata dei bambini. E necessario lasciare uno spazio sufficiente sopra ed ai lati del dispositivo al fine di assicurargli un’adeguata ventilazione. Vi raccomandiamo anche di prevedere lo spazio necessario a consentire ai cavi di connessione di curvare senza forzature, e sconsigliamo vivamente di posizionare l’Unico CD direttamente sulla superficie di un amplificatore di potenza o, più in generale, in prossimità di sorgenti di calore.
3
Unison ResearchUnico CD
3. COLLEGAMENTO ALLA RETE
Prima di accendere l’apparecchio, controllate che la tensione di alimentazione indicata sul retro corrisponda a quella locale di rete.
ATTENZIONE! Non collegare mai l’Unico CD ad una tensione di rete diversa da quella indicata!
I fusibili di rete si trovano nel portafusibile incorporato nella presa IEC. Il loro valore corretto è indicato sul retro dell’apparecchio e tra le specifiche tecniche riportate alla fine di questo manuale.
Sostituire i fusibili sempre con altri dello stesso tipo e valore!
4. FUNZIONAMENTO

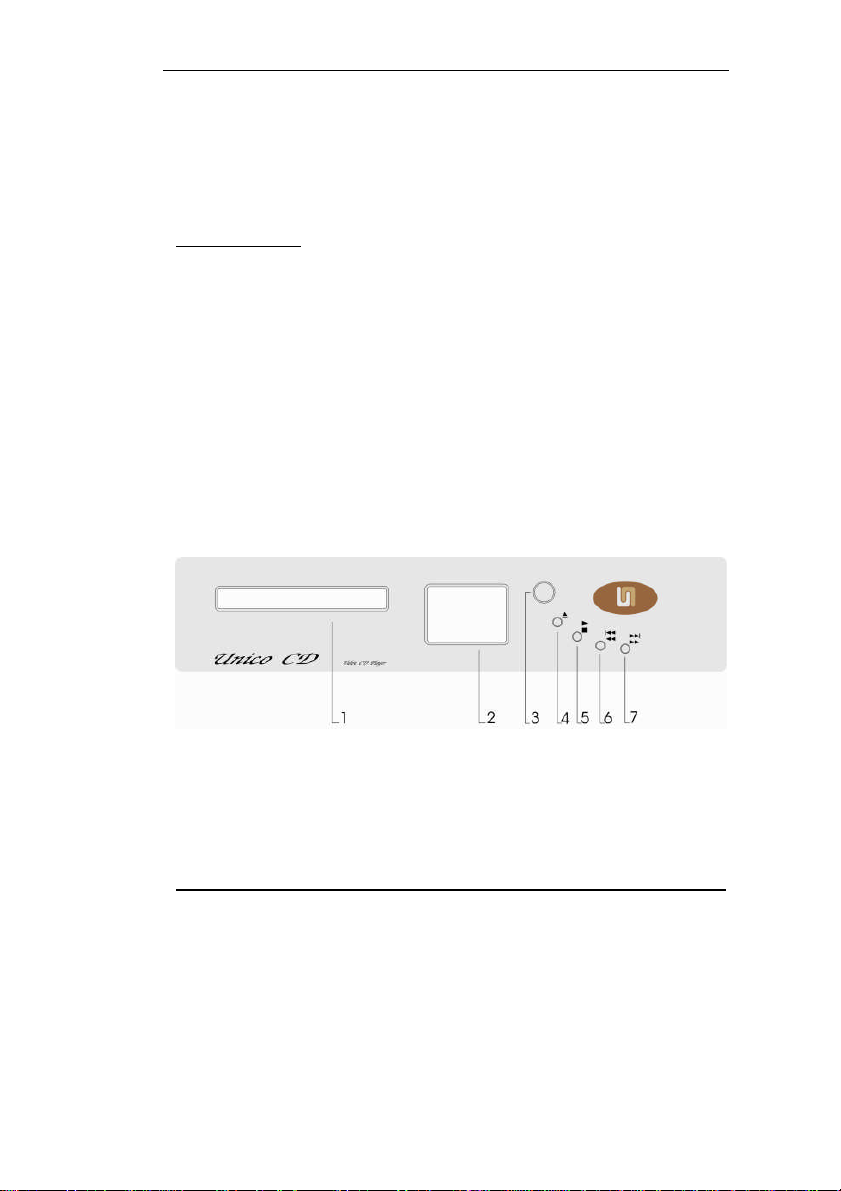

PANNELLO FRONTALE
1) CASSETTO INSERIMENTO CD
2) DISPLAY GRAFICO 128x64
3) SENSORE TELECOMANDO E CONTROLLO CONTRASTO
4) PULSANTE EJECT
5) PULSANTE PLAY/STOP
6) PULSANTE PREVIOUS/RW
7) PULSANTE NEXT/FF
_______________________________________________________________________________
4
Unison ResearchUnico CD

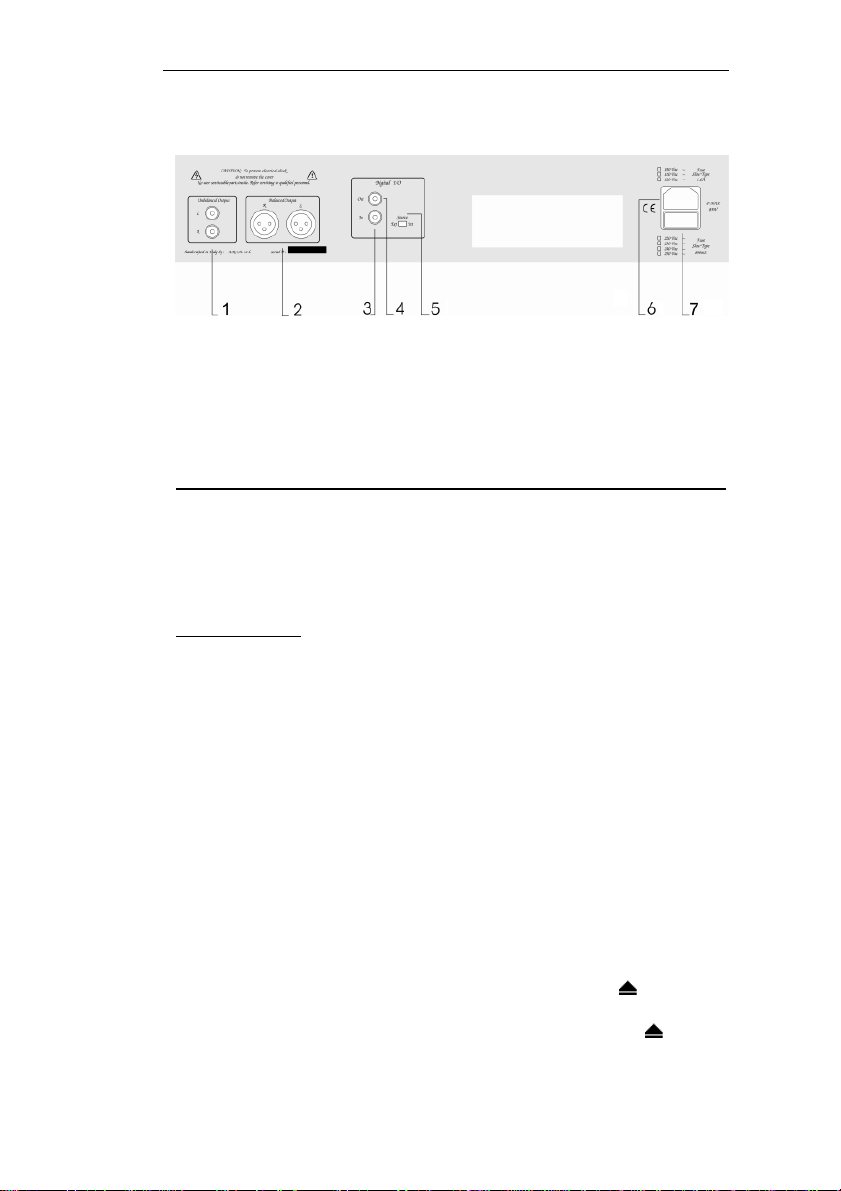

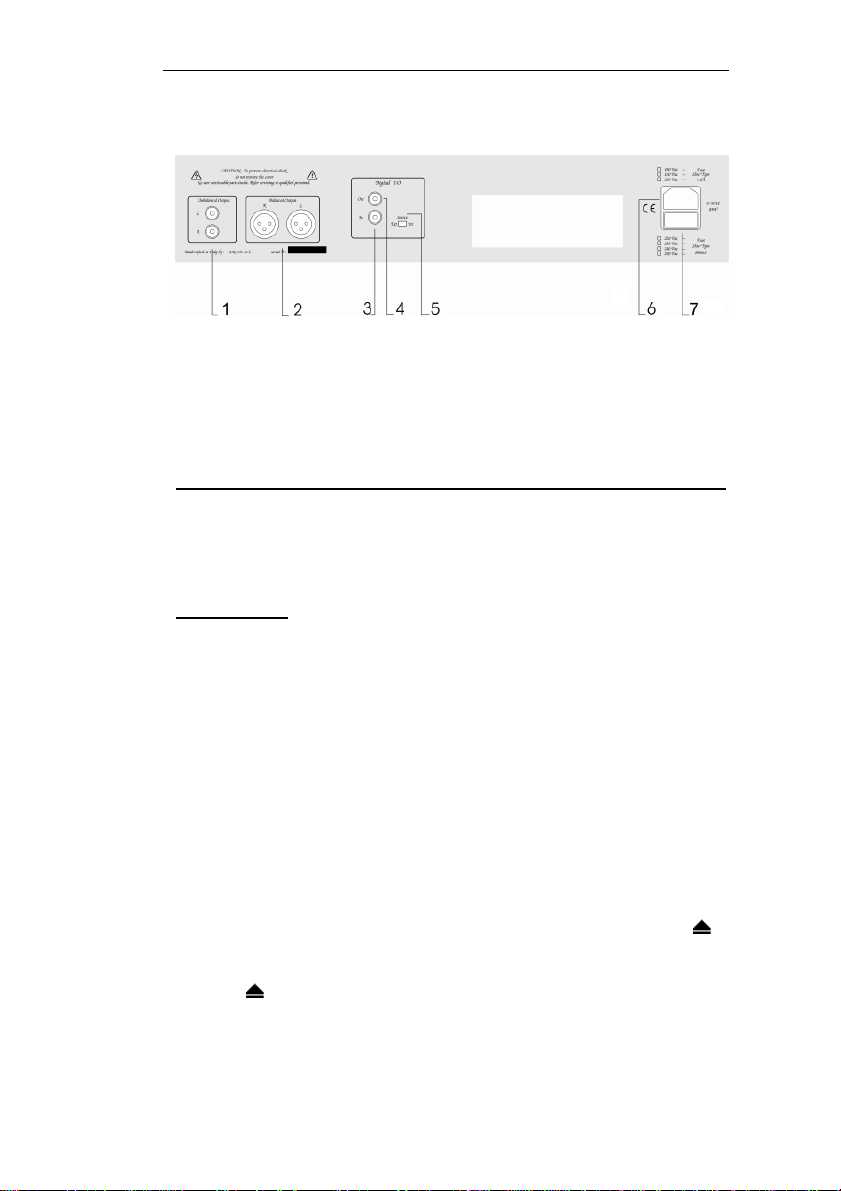

PANNELLO POSTERIORE
1) USCITE SBILANCIATE
2) USCITE BILANCIATE
3) INGRESSO DIGITALE
4) USCITA DIGITALE
5) SELETTORE SORGENTE
6) PRESA DI RETE
7) PORTAFUSIBILE
_______________________________________________________________________________
ACCENSIONE E RISCALDAMENTO
ATTENZIONE! E’ necessario che il lettore CD venga acceso soltanto dopo che tutte le connessioni sono state verificate.
Prima di accendere l’apparecchio, assicuratevi che il volume dell’amplificatore sia al minimo, e che resti in tale stato finché è terminata la fase di preaccensione dell’apparecchio. I migliori risultati sonori si ottengono dopo circa 10 minuti dall’accensione.
Ad ogni accensione, l’Unico CD esegue la procedura di riscaldamento (warm-up) delle valvole. In questa fase le uscite dell’unità vengono disabilitate, al fine di prevenire inutili sollecitazioni all’amplificatore dovute ai fenomeni transitori che normalmente accompagnano il riscaldamento delle valvole. La temperatura di funzionamento viene raggiunta dopo circa 30 secondi dall’accensione: durante questo periodo sul display sono visualizzati la scritta VALVE WARM UP e l’indicatore del conteggio.
Dopo circa dieci secondi dall’inizio del warm-up, il simbolo visualizzato accanto alle cifre del conteggio segnala la possibilità di comandare l’apertura e la chiusura del cassetto utilizzando il pulsante EJECT da telecomando o da pannello frontale.
5
Unison ResearchUnico CD
Al termine del conteggio, il disco eventualmente caricato sarà immediatamente pronto per l’ascolto.
CARICAMENTO DEI CD
Se al termine della fase di riscaldamento nessun disco è presente all’interno dell’unità, allo scadere del conteggio il display visualizza il logo UN della Unison Research®. A questo punto è possibile aprire il cassetto del CD premendo il tasto EJECT posto sul pannello frontale oppure da telecomando, inserire il CD e quindi chiudere il cassetto con una ulteriore pressione del tasto EJECT.
Una volta effettuati il controllo sul contenuto del disco e la lettura della table of contents, durante i quali sul display viene visualizzata la scritta
LOADING, l’unità si predispone alla riproduzione visualizzando la scritta STOP , il numero totale delle tracce e la durata totale della registrazione.
Nel caso il disco inserito non contenga informazioni valide, sul display appare il logo UN della Unison Research®e l’unità rimane in attesa della sostituzione del CD da parte dell’utente.
ATTENZIONE! Nonostante la meccanica dell’Unico CD lo consenta, si sconsiglia vivamente di forzare la chiusura del cassetto spingendolo: a lungo andare, ciò potrebbe causare malfunzionamenti e rotture.
SELEZIONE DELLE TRACCE E CONTROLLO DELLA RIPRODUZIONE
INIZIO RIPRODUZIONE Una volta caricato con successo il cd, è sufficiente
premere il pulsante / PLAY/STOP posto sul pannello frontale o il tasto / PLAY/PAUSE da telecomando per avviare la riproduzione. Sul display viene visualizzata la scritta PLAY , il numero identificativo della traccia corrente ed il tempo trascorso.
TRACCIA SUCCESSIVA Se si vuole passare al brano successivo, è
sufficiente premere il tasto NEXT posto sul pannello frontale: la scritta NEXT appare sul display e l’esecuzione passa alla traccia successiva.
SCANSIONE VELOCE IN AVANTI Tenendo premuto lo stesso tasto il lettore CD
avanza velocemente a partire dalla posizione
6
Unison ResearchUnico CD
corrente e la scritta FF appare sul display. Al rilascio la riproduzione riparte dalla posizione raggiunta.
TRACCIA PRECEDENTE Premendo il tasto PREVIOUS, la scritta PREV
appare sul display e l’esecuzione riparte dall’inizio della traccia corrente. Alla successiva pressione del tasto PREVIOUS, l’esecuzione salta all’inizio della traccia precedente.
SCANSIONE VELOCE ALL’INDIETRO Tenendo invece premuto lo stesso tasto, il lettore
CD si muove all’indietro velocemente a partire dalla posizione corrente e la scritta RW appare sul display. Al rilascio, la riproduzione riparte dalla posizione raggiunta.
Le stesse funzioni per la selezione della traccia ed il controllo della riproduzione sono disponibili da telecomando: in questo caso per selezionare la traccia desiderata occorre utilizzare i pulsanti contraddistinti dai simboli , mentre per l’avanzamento veloce si devono utilizzare i pulsanti contraddistinti dai simboli e , che vanno tenuti premuti fino al raggiungimento della posizione ricercata.
PAUSA La pressione rapida del tasto / PLAY/STOP posto
sul pannello frontale o del tasto / PLAY/PAUSE da telecomando causa l’interruzione temporanea della riproduzione: il display visualizza la scritta PAUSE ed il lettore CD si dispone in attesa nella posizione corrente, che rimane visualizzata sul display. Alla successiva pressione del tasto
/ PLAY/STOP o del tasto / PLAY/PAUSE, l’esecuzione
riparte dalla posizione in cui era stata interrotta.
STOP Una pressione prolungata del tasto / PLAY/STOP
posto sul pannello frontale o del tasto STOP da telecomando causa l’interruzione della riproduzione della traccia corrente: il display visualizza la scritta STOP ed il CD si riposiziona all’inizio della traccia.
Alla successiva pressione rapida del tasto
/ PLAY/STOP o del tasto / PLAY/PAUSE,
l’esecuzione riparte dall’inizio della traccia.
7
Unison ResearchUnico CD
Una successiva pressione prolungata del tasto /
PLAY/STOP o del tasto STOP sul telecomando causa il
ritorno dell’Unico CD nella condizione iniziale: sul display vengono visualizzati la scritta STOP
, il numero totale delle tracce presenti nel disco
ed il tempo totale della registrazione.
VISUALIZZAZIONEDELLA POSIZIONE CORRENTE
L’Unico CD supporta tre differenti modalità di visualizzazione della posizione corrente all’interno del CD:
A) TEMPO TRASCORSO DALL’INIZIO DELLA TRACCIA CORRENTE.
B) TEMPO TRASCORSO DALL’INIZIO DEL CD.
C) TEMPO RIMANENTE ALLA FINE DEL CD.
La selezione della modalità va effettuata utilizzando il pulsante Time presente sul telecomando. Premendo tale pulsante si selezionano le tre modalità in sequenza.
RIPETIZIONE DELLE TRACCE
L’Unico CD consente di impostare la ripetizione della traccia corrente o di tutto il CD. Premendo il pulsante Repeat posizionato sul telecomando è possibile selezionare in sequenza le seguenti modalità di ripetizione:
A) RIPETIZIONE DELLA TRACCIA CORRENTE: la scritta R_TRK viene
visualizzata sul display. Al termine della traccia corrente, la
riproduzione riparte dall’inizio della traccia stessa.
B) RIPETIZIONE DEL CD: la scritta R_ALL viene visualizzata sul display. Al
termine dell’ultima traccia del CD, la riproduzione riparte dall’inizio
della prima traccia.
C) RIPRODUZIONE NORMALE: le tracce del CD vengono riprodotte in
sequenza a partire da quella selezionata. Al termine dell’ultima traccia
del CD, la riproduzione si interrompe e l’Unico CD ritorna nella
condizione iniziale.
8
Unison ResearchUnico CD
ACCESSO DIRETTO ALLE TRACCE
L’Unico CD consente di selezionare direttamente una traccia all’interno del CD digitandone il numero identificativo mediante la apposita tastiera posizionata sul telecomando. Digitando la prima cifra del numero, questa appare sul display seguita dal carattere “_”. A questo punto l’Unico CD attende circa due secondi durante i quali è possibile digitare la seconda cifra del codice, se necessario, prima di avviare la riproduzione della traccia selezionata.
PROCEDURE VELOCI (SHORTCUTS)
Quando il cassetto è aperto ed un CD è inserito, è possibile chiudere il cassetto ed iniziare l’ascolto del primo brano premendo il tasto / PLAY/STOP posto sul pannello frontale o del tasto / PLAY/PAUSE da telecomando.
Durante l’ascolto di un CD, è possibile interromperne l’ascolto e aprire il cassetto premendo il tasto EJECT sul pannello frontale o da telecomando.
INGRESSO ED USCITA DIGITALI
L’Unico CD è provvisto di un ingresso ed un’uscita per segnali digitali S/PDIF posizionati sul pannello posteriore. L’ingresso può essere utilizzato per convertire un segnale digitale in uno analogico utilizzando il DAC ed il circuito di preamplificazione dell’Unico CD. La sorgente digitale esterna deve essere collegata alla presa di ingresso coassiale, e lo switch di selezione sorgente va posizionato su Ext. Per tornare alla normale riproduzione dei CD, è necessario riportare lo switch di selezione nella posizione Int.
9
Unison ResearchUnico CD
5. PRECAUZIONI DI SICUREZZA E
MANUTENZIONE
Non far funzionare il lettore CD con il fondo o la calotta rimossi!
L’unità presenta al suo interno alte tensioni che possono essere causa di danni anche gravi.
Non aprire l’apparecchio!
Nessun ulteriore intervento oltre a quelli descritti in questo manuale deve essere effettuato dall’utilizzatore. Per l’assistenza rivolgersi al proprio rivenditore o ad un centro autorizzato.
Non versare liquidi sull’apparecchio.
Se ciò dovesse accadere, togliete immediatamente la spina dalla presa a muro e portate l’apparecchio ad un centro autorizzato.
Prima di inserire la spina nella presa a muro, assicurateVi che l’interruttore sia nella posizione “OFF”.
Sostituire le valvole esclusivamente con altre dello stesso tipo, selezionate a coppie.
L’apparecchio utilizza due valvole di tipo ECC82 (12AU7-5814A). La progettazione elettronica è stata fatta per assicurare una lunga vita alle valvole; con prove di laboratorio abbiamo superato le 1500 ore di funzionamento.
Importante! Tale operazione va eseguita ad apparecchio spento e con spina di rete staccata. Consigliamo comunque di fare eseguire la sostituzione da un centro assistenza qualificato.
Pulizia dell’apparecchio.
La pulizia dell’apparecchio va eseguita ad apparecchio spento. Utilizzate un panno morbido ed asciutto. Non usate solventi o detergenti a base di alcool. Non strofinare sulle scritte energicamente.
E’ assolutamente vietato far funzionare l’apparecchio coperto!
10
Unison ResearchUnico CD
6. CARATTERISTICHE TECNICHE
Circuito analogico: differenzialea triodi in classe A,
totalmente bilanciato, privo di retroazione
Impedenza di uscita: < 100 Ohm
Convertitore D/A: CRYSTAL CS 4392 (24
bit / 192 kHz DAC)
Interfaccia Digitale: CRYSTAL CS 8414
riduttore del jitter controllo correttezza dati audio
Oversampling (optional): CRYSTAL CS 8420
96 kHz
Display: display grafico LCD Technology
microcontrollore Toshiba risoluzione 128 x 64 pixel controllo automatico luminosità
Meccanica: motore sincrono (no BRUSH)
buffer di memoria di lettura incluso standard dati audio S/P DIF
Optional: oversampling 96kHz
input digitali 44.100kHz output digitali 96kHz
(audio and digital data according to the AES3, IEC60958 – S/PDIF– and EIAJ CP-1201 interface standards)
Dimensioni (mm): 435 x 340 x h 95
Peso netto: Kg. 11
11
Unison ResearchUnico CD
USER MANUAL
Congratulations on your purchase of a Unison Research- A.R.I.A. Advanced Research In Audio S.r.l. audio component.
Every Unison Research product is the result of our extensive electronic design experience and of the deep knowledge of vacuum tubes and the way to obtain the best performances from them we have gained over the years. It also express our passion for building unique and valuable pieces of audio equipment in which traditional craftsmanship and advanced electronics join together in harmony.
Our products are built using the finest components and materials. Each one is carefully inspected at various stages of the production process and finally tested to satisfy our own high reliability and quality standards.
Please read and observe all warnings and instructions in this owner’s manual and all those marked on the unit to get the best performances from your new Unico CD for many years to come.
12
Unison ResearchUnico CD
1. UNPACKING
Please make sure that the packaging is undamaged and the product has not suffered from rough handling during transportation, otherwise we highly recommend to contact your Authorised Dealer for advice before proceeding to install the unit.
Carefully remove your CD player and all the accessories from the carton. Note that some parts, the valves in particular, may be packed separately to ensure safe transportation. Please refer to section 4 of this manual to insert them properly into their sockets.
IMPORTANT! After unpacking please allow some hours before operating the device in order to let it adapt to the room temperature. This time is needed to prevent any possible damage due to the condensation which can eventually form during transportation. Please note, that condensation can form every time the CD player is moved from a cold to a warm place.
Keep all packing materials: every time you will need to transport the Unico CD player, its original purpose-designed carton will provide the safest
packing.
2. INSTALLATION
The CD player should be positioned in a safe place on a plane surface. Adequate clearance must be left above and around the CD player to guarantee a correct ventilation. We also suggest to leave enough free space behind your Unico CD to allow the connecting cables sufficient room to bend without crimping or strain, and we strongly recommend not to place the CD player directly on a power amplifier top surface or, in general, close to a heat source.
3. CONNECTION TO THE MAINS
The Unico CD is set at the factory to the appropriate mains voltage of the country it will be shipped to.
IMPORTANT! The voltage setting may not be changed by the user. Never connect the CD player to AC mains if the local voltage doesn’t match the value indicated on the rear panel!
13
Unison ResearchUnico CD
The mains fuse is located in the fuse-holder integrated in the IEC mains socket. The correct value of the mains fuse is indicated on the rear panel of the Unico CD and in the technical specifications listed at the end of this manual.
IMPORTANT! Always replace fuses with new ones of the same type and value.
4. OPERATION
FRONT PANEL
1) CD DRAWER
2) GRAPHIC DISPLAY 128x64
3) IR SENSOR AND CONTRAST CONTROL
4) EJECT BUTTON
5) PLAY/STOP BUTTON
6) PREVIOUS/RW BUTTON
7) NEXT/FF BUTTON
_______________________________________________________________________________
14
Unison ResearchUnico CD
REAR PANEL
1) UNBALANCED OUTPUTS
2) BALANCED OUTPUTS
3) DIGITAL INPUT
4) DIGITAL OUTPUT
5) SOURCE SELECTOR SWITCH
6) MAINS CONNECTOR
7) FUSEHOLDER
_______________________________________________________________________________
START-UP
IMPORTANT! Switch on the Unico CD only after all the connections have been checked.
Before switching on the Unico CD, make sure the amplifier volume is at the minimum, and leave it in this position until the initial warm up of the device is concluded. The best audio quality is achieved about 10 minutes after the device has been activated.
At the start up, the Unico CD performs a valves warm up procedure. During this stage the outputs are disabled, in order to prevent needless strain to the amplifier due to the transient signals that normally occur before the tubes reach the working temperature. This process takes about 30 seconds: during this time the unit displays the message VALVE WARM UP and the counter digits.
During the warm up, about 10 seconds after switching on, the symbol is displayed on the screen beside the counter digits: from this moment on it is possible to command the opening and closing of the drawer mechanism using the EJECT button on the remote handset or on the front panel. After the warm up process, the CD eventually loaded is immediately ready to be played.
15
Unison ResearchUnico CD
LOADING A DISC
In case no disc is present on the tray after the warm up countdown ends, the Unison Research®UN logo is displayed on the LCD screen. It is possible to open the CD drawer mechanism pushing the EJECT button on the remote handset or on the front panel, insert a CD, and then close the drawer pushing again the EJECT button. Once the control of the CD content has been performed and the table of contents has been read (the display shows the message LOADING), the units is ready: the display shows the message STOP , the total number of the tracks and the total time of the recording. In case the loaded disc doesn’t contain valid audio information, the display shows the Unison Research®UN logo and the CD player stands by until the user changes the disc.
IMPORTANT! Even though the Unico CD drawer mechanismallows to be closed simply pushing it back, we highly recommendnot to force it: if done regularly, this could cause malfunctioning and damages.
TRACK SELECTION
PLAY Once the CD has been loaded successfully, simply
push the / PLAY/STOP button on the front panel or the / PLAY/PAUSE button on the remote handset to start the disc spinning and play the music. On the display are shown the message PLAY , the current track number and the elapsed time.
NEXT TRACK If you want to jump to the next track, push the NEXT
button on the front panel: the message NEXT is displayed and the reproduction starts from the beginning of the next track.
SCAN FWD If you keep the same button pushed for one second,
the player scans the disc forward starting from the current position while providing an audible signal to make it easier to identify the position within the track. The message FF is displayed. When the button is released, the music starts playing from the reached position.
16
Unison ResearchUnico CD
PREVIOUS TRACK Correspondingly, when pushing the PREVIOUS button
on the front panel, the message PREV is displayed and the reproduction starts from the beginning of the current track. Pushing the PREVIOUS button again makes the player jump to the beginning of the previous track.
SCAN REV If you keep the same button pushed for one second,
the player scans the disc reverse starting from the current position while providing an audible signal to make it easier to identify the position within the track. The message RW is displayed. When the button is released, the music starts playing from the reached position.
The same functions are accessible from the remote handset: in this case to select a track use the buttons identified by the symbols and , while to scan the disc use the buttons and , keeping them pressed until the desired position has been found.
PAUSE To pause the reproduction, press rapidly the /
PLAY/STOP button on the front panel or the / PLAY/PAUSE button on the remote handset: the message
PAUSE is displayed and the player stands by in the current position. To resume disc play, push again the buttons / PLAY/STOP or / PLAY/PAUSE.
STOP To stop the reproduction, hold the / PLAY/STOP
button for one second, or use the STOP button on the remote handset: the message STOP is displayed and the player jumps back to the initial position of the current track.
Pushing again the / PLAY/STOP button for one second, or the STOP button on the remote handset, causes the Unico CD to reset to the initial condition, in which the message STOP , the total number of the tracks and the total time are displayed.
17
Unison ResearchUnico CD
TIME DISPLAY MODE
The Unico CD supports three different time display modes:
A) ELAPSED TIME ON CURRENT TRACK.
B) ELAPSED TIME ON DISC.
C) REMAINING TIME ON DISC.
To select the desired modality, use the Time button located on the remote handset: push it repeatedly to go through the three options in sequence as listed above.
REPEAT MODE
The Unico CD allows to set three different play modes:
A) REPEAT CURRENT TRACK:
The message R_TRK is displayed. When the current track ends, the player jumps back to the begin and starts playing.
B) REPEAT DISC:
The mesange R_ALL is displayed. When the CD last track ends, the player jumps back to the begin of the first track and starts playing.
C) NORMAL REPRODUCTION:
CD track are played in sequence starting from the selected one. When the CD last track ends, the reproduction stops and the player reset to the initial condition.
To select the desired modality, use the Repeat button located on the remote handset: push it repeatedly to go through the three options in sequence as listed above.
DIRECT ACCESS TO THE TRACKS
The Unico CD allows to directly access a track within the disc selecting its order number through the dedicate numeric keypad on the remote handset.
When the first digit of the number is selected, it is displayed followed by the character “_”. From this moment on the Unico CD lets about two seconds
18
Unison ResearchUnico CD
during which it is possible to select the second digit of the number, if necessary, before starting to play the chosen track. In case the selected exceeds the maximum number of the CD tracks, the displayed code disappears and the Unico CD stands by.
SHORTCUTS
When the drawer is open and one disc is inserted, it is possible to close the mechanism and start playing the first song simply pushing the / PLAY/STOP button on the front panel or the / PLAY/PAUSE button on the remote handset.
While the CD is playing, it is possible to interrupt the reproduction and open the tray pushing the EJECT on the front panel or on the remote handset.
DIGITAL INPUT AND OUTPUT
The Unico CD is equipped with digital input and output coaxial plugs for S/PDIF signals. The input can be used to convert a digital into an analog signal through the Unico CD DAC and preamplification circuit. The external source has to be connected to the input coaxial plug, and the source selection switch has to be set to Ext.
The digital output can be used in case you prefer to convert the digital signal through an external DAC. Simply connect the converter input to the coaxial digital output plug.
19
Unison ResearchUnico CD
5. SAFETY AND MAINTENANCE PRECAUTIONS
Never operate the player with either the bottom or top covers removed.
Do not open the amplifier !
There are no user serviceable parts inside. For technical assistance or product service please refer to your Authorised Dealer or to a Unison Researchauthorised Service Centre.
Do not spill liquid into the amplifier !
If liquid should be accidentally spilled into the amplifier remove the mains plug from the wall socket immediately and seek assistance from an authorised Service Centre before attempting to operate it again.
Before inserting the mains plug into the wall socket ensure that the switch on the amplifier is in the “OFF” position.
If you do not intend to use the amplifier for a long period of time we strongly recommend you unplug from the mains at the wall socket.
Valve replacement should be carried out using only valves of the same type and matched in pairs.
The Unico CD uses two valves type ECC82 (12AU7-5814A). The amplifier has been designed for maximum valve life: in laboratory tests 1500 hours life have been exceeded.
IMPORTANT! Before attempting valve replacement make sure that the amplifier is switched off and allow sufficient time for the valves to cool. Remove the mains power cord from the amplifier. If in doubt your Authorised Dealer or Service Centre will be able to assist with this operation.
Cleaning the Unico CD.
Cleaning has to be done after switching off the device and allowing the amplifier to cool down. Use a soft dry cloth. Do not use solvents or alcohol-based detergents. Do not rub hard on the screen-printed legends on the top cover.
Never operate the amplifier when covered! Adequate ventilation is essential at all times!
20
Unison ResearchUnico CD
6. TECHNICAL SPECIFICATIONS
Analog Circuit Topology: fully balanced, triode differential stages,
class A, output stages, zero feedback
Output Impedance: < 100 Ohm
D / A Converter: CRYSTAL CS 4392
(24 bit / 192 kHz DAC)
Digital Interface: CRYSTAL CS 8414
reduced clock jitter audio data correction check
Oversampling (optional): CRYSTAL CS 8420
96 kHz
Display: LCD text and graphical display
embedded Toshiba microcontroller 128 x 64 pixel resolution automatic light control
Transport: brushless synchronous motor
incorporates read-memory buffer audio data S/P DIF
Optional: oversampling 96kHz
digital input 44.100kHz digital ouput 96kHz
(audio and digital data according to the AES3, IEC60958 – S/PDIF–, and EIAJ CP-1201 interface standards)
Dimensions(w x d x h): 435 x 340 x 95
Nett weight: 11 kgs.
21
Unison ResearchUnico CD
DECLARATION OF CONFORMITY
A.R.I.A. Advanced Research In Audio srl
36073 Cereda di Cornedo Vic.no (VI)
Based on test results using appropriate standards, the product is in conformity with
Electromagnetic Compatibility Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
Standard used:
EN 55013-1 : 1993 (and subsequent modifications)
EN 61000-3-2 : 1995 (and subsequent modifications)
EN 61000-3-3 : 1995 (and subsequent modifications)
EN 60335; EN 61305-1; EN 61305-3; CEI 84-2; CEI 84-3; CEI 84-8.
Manufacturer
Via Canova, 19/b
ITALY
Statement of Conformity
92/31/EEC 93/68/EEC
93/68/EEC
Sample test
Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment
Electromagnetic compatibility. Part3: Limits – Section 2: Limits for harmonic current emissions (equipment input current 16A per phase)
Electromagnetic compatibility. Part3: Limits – Section 2: Limitation of voltage fluctations and flicker in low-voltage supply systems for equipment with rated current 16A
The tests have been performed in a typical configuration.
This Conformity is indicated by the symbol , i.e. « Conformité européenne ».
22
Unison ResearchUnico CD
INDEX :
Manuale di istruzioni pag.2
1. Sballlaggio pag. 3
2. Installazione pag. 3
3. Collegamento alla rete pag. 4
4. Funzionamento pag. 4
5. Precauzioni di sicurezza
e manutenzione pag. 10
6. Caratteristiche tecniche pag. 11
User Manual pag. 12
1. Unpacking pag. 13
2. Installation pag. 13
3. Connection to the mains pag. 13
4. Operation pag. 14
5. Safety and maintenance precautions pag. 20
6. Technical specifications pag. 21
Declaration of conformity pag. 22
Index pag. 23
Unison Researchis the registered trade mark of A.R.I.A. Advanced
Research In Audio S.r.l..
A.R.I.A. Advanced Research In Audio srl Via E. Barone, 4 31030 Dosso di Casier –TV- italy Phone: +39 0422 633173 / Fax: +39 0422 633550 www.unisonresearch.com
23
Unison ResearchUnico CD
IT INFORMATIVA AGLI UTENTI
Ai sensi dell’art. 13 de Decreto Legislativo 25 luglio 2005, n.151 “Attuazione delle Direttive 2002/95/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettroniche, nonché alla smaltimento dei rifiuti” Il simbolo del cassonetto barrato riportato sull’apparecchiature indicache il prodotto alla finedella propria vita utile deve essere raccolto separatamente daglialtri rifiuti.
L’utente dovrà, pertanto, conferire l’apparecchiatura giunta a fine vita agli idonei centri di raccolta differenziata dei rifiuti elettronici ed elettrotecnici, oppure riconsegnarla al rivenditore al momento dell’acquisto di una nuova apparecchiatura di tipo equivalente, in ragione di uno a uno. L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dimessa al riciclaggio, al trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e favorisce il riciclo dei materiali di cui è composta l’apparecchiatura.
Lo smaltimento abusivo del prodotto da parte dell’utente comporta l’applicazione delle sanzioni amministrative di cui al D.Lgs. n. 22/1997 (articolo 50 e seguenti del D.Lgs. n. 22/1997).
GB USER INFORMATION
In conformity with EC Directives 2002/95/CE, 2002/96/CE and 2003/108/CE regarding reduction of the use of dangerous substances in electricaland electronic equipment, and the disposal of waste products. The crossed binsymbol on products or packages indicates that the product must be disposed of separately from other waste material. The user should either send the product for disposal to a special collection centre for electronic waste, or return it to the retailer from whom the product was originallypurchased if it is to be replaced with a new equivalent product. Provision of special collection facilities for products destined for recycling, treatment and safe disposal is necessary in order to prevent negative effects on health and on the environment. It also enables re-use and/or recyclingof the materialsused in the manufacture of those products. Unauthorised disposal of such products by the owner is an offence whichmay lead to prosecution.
PL INFORMACJA DLA UŻYTKOWNIKA
W zgodności z dyrektywami 2002/95/CE, 2002/96/CE oraz 2003/108/CE Unii Europejskiej dotyczącymi zredukowania użycia niebezpiecznych substancji w sprzęcie elektrycznym oraz elektronicznym, a także utylizacji odpadów: Produkty lub opakowania oznaczone symbolem przekreślonego kosza mają być segregowane i wyrzucane oddzielnie wobec innych odpadów. Użytkownik powinien odesłać zużyty produkt do specjalnego centrum zajmującego się zbieraniem/utylizacją wyżej wymienionych odpadów albo zwrócić do punktu sprzedaży gdzie dany produkt został zakupiony, jeśli ma być on wymienionyna nowy odpowiadającyprodukt. Zapewnienie dostępu do centrów składowania i bezpiecznejutylizacji jest niezbędne dla uniknięcia niebezpiecznych skutków dla zdrowia i w trosce o bezpieczeństwo środowiska naturalnego. Pozwala również na ponowne użycie i wprowadzenie do obrotu użytych materiałów na zasadzie recyklingu. Nieautoryzowane pozbycie się ww. odpadów jest wykroczeniem i może podlegać przewidywanej przez prawo karze administracyjnej.
ES INFORMACIÓN DEL USUARIO
En conformidad con los directorios 2002/95/CE, 2002/96/CE y 2003/108/CE de la EC en relación con a reducción del uso de sustanciaspeligrosas en el equipo eléctrico y electrónico, y la disposiciónde los residuos. El símbolo cruzado del compartimiento en productos o paquetes indica que el producto debe ser colocado por separado de otro material de desecho. El usuario si cualquiera envía el producto para la disposición a un centro especial de la colección para la basura electrónica, o lo vuelve al minorista de quien el producto fue comprado originalmente si él es ser substituido por un producto equivalente nuevo. Disposición de las instalaciones especiales de la colección para los productos destinados para reciclar, el tratamiento y la caja fuerte la disposición es necesaria para prevenir efectos negativos sobre salud y sobre el ambiente. Él tambiénpermite la reutilización y/o el reciclaje de los materiales usados en la fabricación de esos productos. La disposición desautorizada de tales productos del propietario es una ofensa que puede conducir a persecución.
SL INFORMACIJE UPORABNIKU
V skladu z EC predpisi 2002/95/CE, 2002/96/CE in 2003/108/CE, ki zadevajo zmanjšanje uporabe škodljivih substanc v elektronskih in električnih proizvodihin odlaganjeodrabljenih produktov. Simbol prekrižanega koša na proizvodih ali embalaži nakazuje, da mora biti proizvod odvržen ločeno od ostalega odpadnega materiala. Uporabnik naj bi proizvod poslal v center za zbiranje odpadnih elektronskih naprav ali ga vrnil proizvajalcu, od katerega ga je odkupil, če naj bi bil proizvod zamenjan.
24
Unison ResearchUnico CD
Možnost posebnih zbiranj za proizvode namenjene recikliranju, obdelavi ali uničenju, je potrebna za preprečitev negativnih učinkov na zdravje in okolje. Hkrati onemogoča ponovno uporabo in/ali nepravilno oz. nestrokovno recikliranje materialov, uporabljenih za take proizvode. Nepooblaščeno odlaganjetakih proizvodov je prekršek in lahko vodi k sodnemu pregonu.
SW ANVÄNDARINFORMATION
I överensstämmelse med EC direktiven 2002/95/CE, 2002/96/CE och 2003/108/CE angående reducering av användandet av hälsovådligaämnen i elektronikmaterialoch bortskaffande av avfallsprodukter. Den överkryssadesoptunnan indikerar att produkten måste avfallssorteras. Slutanvändaren skall antingen lämna produkten vid särskild återvinningsstation för elektroniskt avfalleller, i de fall produkten skall ersättas av en likvärdig produkt, återlämna produkten till den återförsäljare som ursprungligen sålt den. Ombesörjande av speciella avfallsstationer, ämnade för produkter med särskilda krav för återvinning, skötsel och säkert bortskaffande, är nödvändigt för att förhindra negativa effekter på hälsa och miljön. De möjliggör också återanvändning och återvinning av de material som använtsför att tillverka produkten. Olovligt bortskaffande av sådana produkter av ägaren är en överträdelse som kan leda till åtal.
NL GEBRUIKERSINFORMATIE
Conform de EC richtlijnen2002/95/CE, 2002/96/CE en 2003/108/CE betreffende verminderingvan het gebruik van gevaarlijke stoffenin elektrischeen electronische apparatuur, en het wegwerpen van afvalstoffen. Het symboolvan een doorgekruiste ton op producten of verpakkingen betekent dat het product apart van ander afvalmoet worden weggeworpen. De gebruiker dient ofwel het product naar een speciaalverzamelcentrumvoor electronisch afvalte sturen, of het terug te brengen naar de winkel waar het product is gekocht als het vervangenwordt met een nieuw soortgelijk product. Het verschaffenvan speciale verzamelfaciliteiten voor producten bedoeld voor recylcen, bewerking en veilige afvalverwerking is noodzakelijk om negatieve effectenop de gezondheid en het milieu te voorkomen. Ook maakt het hergebruik en/of het recyclen mogelijk van de materialen die gebruikt zijnbij het maken van deze producten. Ongeoorloofd dumpen van zulke producten door de eigenaar is een overtreding die kan leidentot justitiele vervolging.
NO INFORMASJON TIL FORBRUKER.
I overensstemmelse med EC direktivene 2002/95/CE, 2002/96/CE og 2003/108/CE angående reduksjon av bruken av farlige stoffer i elektrisk og elektronisk utstyr og avskaffelse av defekte produkter. Produkter eller emballasjer merket med et overkrysset produktsymbol skal kastes separat fra annen søppel. Forbrukeren skal enten sende produktet til avfallsortering på egent sted for denne typen spesialavfall, ellerreturnere produktet til forhandleren hvor produktet opprinnelig ble kjøpt hvis det skal erstattes med et nytt tilsvarende produkt. Spesielle oppsamlingsfasiliteter for produkter beregnet for resirkulering, behandling og sikker avskaffelse er nødvendig for å hindre negative effekter på helse og miljø. Dette sikrer også gjenbruk og/eller resirkulering av materialene som er brukt i produksjonen av disse produktene. Uautorisert avskaffelse av slike produkter er straffbart.
FR INSTRUCTIONS A DESTINATION DE L’UTILISATEUR
Conformément aux directivesEuropéennes 2002/95/CE, 2002/96/CE et 2003/108/CE portant sur la réduction de l’utilisation des substances dangereuses présentes dans les équipements électriques et électroniques ainsi que dans les déchets. Le symbole de la poubelle barrée placé sur les produits ou leurs emballages indique que ce produit ne doit pas être mélangéavec d’autres détritus.
L’utilisateur doit soit renvoyer le produit à un centre de traitement des déchets électroniquesspécifique, soit le retourner à son revendeur luiayant vendu le produit en cas de rachat d’un nouveau produit. La miseen place d’un tel dispositif de prise en charge permettant le recyclage et le traitement de ces produits est destiné à éviter leurs effets néfastes sur la santé et l’environnement. Cela permet également la réutilisationou le recyclagede des produits dans les processus de fabrication de nouveaux appareils. Tout contrevenant à ces dispositionsest passible de poursuites pénales.
DE Entsorgung von Elektrogeräten durch Benutzer in privaten
Haushalten in der EU
Dieses Symbol auf dem Produkt oder dessen Verpackung gibt an, dass das Produkt nicht zusammen mit dem Restmüll entsorgt werden darf. Es obliegt daher Ihrer Verantwortung, das Gerät an einer entsprechenden Stelle für die Entsorgung oder Wiederverwertung von Elektrogeräten aller Art abzugeben. (Bsp. Wertstoffhandel) Die eparate Sammlung und das Recyceln Ihrer alten Elektrogeräte zum Zeitpunkt Ihrer Entsorgung trägt zum Schutz der Umwelt bei und gewährleistet, dass sie auf eine Art & Weise recycelt werden, die keine Gefährdung für die Gesundheit des Menschen und der Umwelt darstellt. Weitere Informationendarüber, wo Sie alte Elektrogeräte zum Recyceln abgeben können, erhalten Sie bei den örtlichen Behörden, Wertstoffhöfen oder dort, wo Sie das Gerät erworben haben.
25
Loading...
