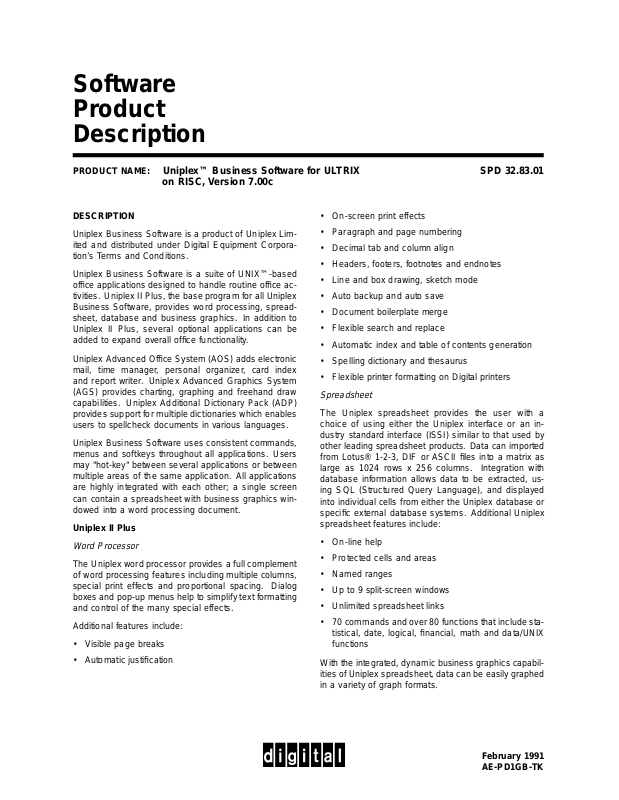

Software
Product
Description
PRODUCT NAME: Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
DESCRIPTION
Uniplex Business Software is a product of Uniplex Limited and distributed under Digital Equipment Corporation’s Terms and Conditions.
Uniplex Business Software is a suite of UNIX™-based
office applications designed to handle routine office activities. Uniplex II Plus, the base program for all Uniplex
Business Software, provides word processing, spreadsheet, database and business graphics. In addition to
Uniplex II Plus, several optional applications can be
added to expand overall office functionality.
Uniplex Advanced Office System (AOS) adds electronic
mail, time manager, personal organizer, card index
and report writer. Uniplex Advanced Graphics System
(AGS) provides charting, graphing and freehand draw
capabilities. Uniplex Additional Dictionary Pack (ADP)
provides support for multiple dictionaries which enables
users to spellcheck documents in various languages.
Uniplex Business Software uses consistent commands,
menus and softkeys throughout all applications. Users
may "hot-key" between several applications or between
multiple areas of the same application. All applications
are highly integrated with each other; a single screen
can contain a spreadsheet with business graphics windowed into a word processing document.
Uniplex II Plus
Word Processor
The Uniplex word processor provides a full complement
of word processing features including multiple columns,
special print effects and proportional spacing. Dialog
boxes and pop-up menus help to simplify text formatting
and control of the many special effects.
Additional features include:
• Visible page breaks
• Automatic justification
• On-screen print effects
• Paragraph and page numbering
• Decimal tab and column align
• Headers, footers, footnotes and endnotes
• Line and box drawing, sketch mode
• Auto backup and auto save
• Document boilerplate merge
• Flexible search and replace
• Automatic index and table of contents generation
• Spelling dictionary and thesaurus
• Flexible printer formatting on Digital printers
Spreadsheet
The Uniplex spreadsheet provides the user with a
choice of using either the Uniplex interface or an industry standard interface (ISSI) similar to that used by
other leading spreadsheet products. Data can imported
from Lotus® 1-2-3, DIF or ASCII files into a matrix as
large as 1024 rows x 256 columns. Integration with
database information allows data to be extracted, using SQL (Structured Query Language), and displayed
into individual cells from either the Uniplex database or
specific external database systems. Additional Uniplex
spreadsheet features include:
• On-line help
• Protected cells and areas
• Named ranges
• Up to 9 split-screen windows
• Unlimited spreadsheet links
• 70 commands and over 80 functions that include statistical, date, logical, financial, math and data/UNIX
functions
With the integrated, dynamic business graphics capabilities of Uniplex spreadsheet, data can be easily graphed
in a variety of graph formats.
dt
February 1991
AE-PD1GB-TK
Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
Database
Uniplex II Plus is available in two variants. The Base I
version includes an integrated relational database management system. Data can be addressed by using either the Uniplex forms interface, or by issuing industry
standard Structured QueryLanguage(SQL)commands.
The Base II option does not include the database management system, but provides transparent linkages to
external databases such as INFORMIX®. Base I and
Base II cannot coexist.
Uniplex II Plus, Base I provides a relational database
where data can be easily accessed through either the
Uniplex database forms interface or industry standard
SQL commands. The size of the database is limited only
by the speed and storage capabilities of the hardware.
Some features of the Base I database are:
• Interactive spreadsheet integration
• Optimized queries
• Transaction processing/rollback
• C-ISAM data structure
• Integrated data dictionary
• Multiple security systems
• Controlled validation
• Audit trails
• Full-screen editing
• Multiple verb definition
• Linked tables
• Full, on-line help
The Uniplex Database Links feature of Uniplex II Plus,
Base II, allows users to access third-party databases
(i.e., INFORMIX) as opposed to the Uniplex-supplied
database. Users can cut and paste data using the Uniplex forms-based interface. Database information can
be selected and merged into memos, reports, or standard letters for mass mailings.
Business Graphics and Sketchpad
Using either low or high resolution terminals and wide
range of dot matrix to laser printers, Uniplex allows
users to present data dynamically tied to spreadsheet
and database information. Graphs can be created and
incorporated into a document, printed or mailed electronically. The sketchpad feature allows for fast and
simple creation of diagrams and sketches.
Uniplex Business Graphics include:
• 2-D and 3-D displays
• Vertical, horizontal, and stacked bars
• Line, scatter, area and stacked area graphs
• Automatic or manual scaling with limits
• Presentation format options
• On-line help
Sketchpad allows fast and simple creation of diagrams
and sketches using many of the functions available in
Business Graphics.
Screen and Menu Builder
The Uniplex Screen Builder provides facilities for customizing menus and screens. Screens and menus can
be implemented across the entire system or selectively
for specific work groups or individuals.
The Screen Builder is a menu-driven utility that allows
complex logical operations to be constructed by using
shell scripts. Custom menus can be developed to call:
additional menus, application areas, a utility through the
UNIX shell, a pop-up menu, or an external application.
Print Composer
The Uniplex Print Composer prints high-quality documentation utilizing proportionally spaced text, boxing,
multiple columns and various shading abilities (dependent upon the type of printer used). The Print Composer
offers support for laser printers, including those running
PostScript®.
System-Wide Features
Uniplex II Plus provides the following system-wide features:
• Calculator
• Clock
• Calendar
• Sketch pad
• Clipboard display
• Function key support
• Keystroke recorder
• File/folder management.
Uniplex Advanced Office System
The Uniplex Advanced Office System (AOS) option is
a companion product to Uniplex II Plus and provides
the functions necessary for group communications and
scheduling. These tools include:
• Electronic mail
• Time management
2
Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
• Card index
• Formfill
• Report writer.
Electronic Mail
Uniplex Electronic Mail is an object-oriented mail facility
that allows any type of Uniplex file, ranging from reports
and memos to spreadsheets and complex graphics, to
be mailed. Additional mail features include:
• Comprehensive reply/forward/archive/delete/save and
print facilities
• Multiple attachments
• Carbon copy/blind copy
• Receipt and mail read verification
• Distribution lists and aliasing
• Mail prioritization
• Automatic forward, reply and notifications
• Mail encryption
• Batch operations
Uniplex mail can work with any underlying mail system.
However, by default, it uses standard UNIX mail. With
the addition of DECnet-ULTRIX, Uniplex can exchange
mail with VMS and ALL-IN-1 users. Layering ULTRIX
Mail Connection on this allows Uniplex to take full advantage of Digital’s NAS facilities via the Mailbus.
Report Writer
The Report Writer provides flexible report creation from
any source. Reports allow data calculations, full control
breaks, repeating data for periodic reports, and step-bystep guidance for report creation.
Personal Organizer
The Personal Organizer of AOS provides a flexible
time manager, calendar and calculator. Calendars can
be viewed monthly, or biweekly with both private and
shared diaries. Alarm reminders, appointment conflict
warnings, time bookings for multiple events and printing
of schedules are some of the scheduling features.
Time Manager
The Time Manager allows users to create one or more
personal calendars which display scheduled and open
times. Calendars can be made available to other users
to make appointment scheduling easier. Calendars can
be organized in day or week formats and printed in regular letter or handy wallet sizes.
Formfill
Formfill allows users to create, or generate from a document, routine forms such as purchase orders, expense
reports, or invoices. Forms can then be completed onscreen. Forms can be printed or distributed using Uniplex mail.
Card Index
The Uniplex Card Index can be used to keep track of
information such as customer names and addresses
when the power of a full relational database is not required. Fixed fields can be established to simplify Card
Index data entry and retrieval. Up to 17 custom fields
can be created, displayed and sorted.
Uniplex Advanced Graphics
Presentation Graphics
The Uniplex Advanced Graphics (AGS) option, like
AOS, is a companion product to Uniplex II Plus. AGS
provides additional graphic features and functions which
allow the creation of presentation quality graphics. With
AGS, users can create a range of graphics, from simple bar graphs to sophisticated 3-D area charts and exploded pie graphs. Fonts can be changed, text size
altered and colors selected. AGS also provides flexible hardcopy capabilities and support for many printers
including PostScript models.
Presentation Editor
The Uniplex Presentation editor provides additional
tools to allow more extensive editing of graphics. Using
the keyboard, standard graphs produced with Presentation Graphics can be translated into illustrations and diagrams. Presentation Editor enables objects or groups
of objects to be scaled, rotated and copied. A zoom
facility allows users to add fine detail to illustrations.
Additional Dictionary Pack
The Additional Dictionary Pack (ADP) provides support for multiple dictionaries which enables users to
spellcheck documents containing words in various languages. This facility is useful to multinational corporations, government bodies and users in countries where
more than one language is commonly in use. The
ADP contains 11 languages: US English, UK English,
French, German, Spanish, Italian, Dutch, Swedish,
Danish, Norwegian, and Canadian French.
Uniplex Documentation
The following documentation is included with the Uniplex Business Software applications:
3
Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
Uniplex II Plus
—
Uniplex II Plus User Guide
Uniplex Administration Guide
—
—
Release/Installation Notes
—
Quick Lookup Guide
—
Uniplex Configuration Guide
(2 volumes)
(2 volumes)
— Keyboard Templates for VT2xx, VT3xx terminals
Uniplex Advanced Office System
Advanced Office System User Guide
—
Uniplex Advanced Graphics System
—
Advanced Graphics System User Guide
Documentation can be purchased separately.
INSTALLATION
Only customers experienced with system management
of UNIX or ULTRIX systems should attempt installation
of these products. Digital recommends that all other
customers purchase Digital’s Installation Services.
HARDWARE REQUIREMENTS
DECstation or DECsystem configurations as specified
in the System Support Addendum (SSA 32.83.01-x).
SOFTWARE REQUIREMENTS*
For Systems Using Terminals:
• ULTRIX Operating System
If Uniplex Advanced Office System (AOS) or Uniplex
Advanced Graphics System (AGS) are to be a companion product with Uniplex II Plus, a license must be
purchased equivalent to the same number of users as
the Uniplex II Plus product.
Uniplex Business Software applications require the entry of a security key for both the initial installation and
subsequent user-tier upgrades. Upgrades do not require the reinstallation of the product, but simply the keying in of a new, unique security key for each application
being upgraded. All Uniplex Business Software applications must be upgraded to the same user-tier level.
* Denotes variant fields. For additional information on
available licenses, services, and media, refer to the
appropriate price book.
User Upgrade Options
To upgrade a Uniplex Business Software application, for
example, from 4-users to 32-users, all intermediate licenses must be purchased (i.e., purchase the 4-8 user,
8-16 user and 16-32 user licenses). This procedure
must be followed precisely, otherwise, the upgrade will
not function properly. All Uniplex Business Software applications must be upgraded to the same user-tier level.
Refer to the
Software Options Chart
at the end of this
document for option numbers for Uniplex Business Software.
SOFTWARE LICENSING
This software is furnished under the licensing provisions
of Digital Equipment Corporation’s Standard Terms and
Conditions. For more information about Digital’s licensing terms and policies, contact your local Digital office.
For Workstations:
• ULTRIX Workstation Software (UWS)
* Refer to the System Support Addendum (SSA
32.83.01-x) for availability and required versions of
prerequisite/optional software.
ORDERING INFORMATION
Uniplex II Plus, Uniplex Advanced Office System (AOS)
and Uniplex Advanced Graphics System (AGS) are licensed by the number of users. Documentation and
media are included with each kit. The quantity of keyboard templates included in each Uniplex II Plus kit is
dependent upon the user-license ordered, up to a maximum of 64 templates. Additional keyboard templates
can be ordered in conjunction with the
4 Pack (QA-***AE-GZ).
Guide
Uniplex Look-up
SOFTWARE PRODUCT SERVICES
A variety of service options are available from Digital.
For more information, contact your local Digital office.
SOFTWARE WARRANTY
Warranty for these software products is provided by Digital with the purchase of a license for the products as defined in the Software Warranty Addendum of this SPD.
™ Uniplex is a trademark of Uniplex Limited.
® PostScript is a registered trademark of Adobe Systems,
Inc.
® UNIX is a trademark of UNIX System Laboratories, Inc.
® LOTUS is a registered trademark of Lotus Develop-
ment Corporation.
4
Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
® INFORMIX is a registered trademark of Informix
Software Corporation.
™ The DIGITAL Logo, ALL-IN-1, ULTRIX, ReGIS, DEC-
station, DECsystem, DECnet, VT, LA, LVP16, LN03,
and LN03 PLUS are trademarks of Digital Equipment
Corporation.
5
Uniplex™ Business Software for ULTRIX SPD 32.83.01
on RISC, Version 7.00c
Software Options Chart
Number of
Users
1 QB-YQDA8-VA QB-YPPA8-VA QB-YPYA8-VA QB-YQ4A8-VA
4 QB-YQDA8-VB QB-YPPA8-VB QB-YPYA8-VB QB-YQ4A8-VB
8 QB-YQDA8-VC QB-YPPA8-VC QB-YPYA8-VC QB-YQ4A8-VC
16 QB-YQDA8-VD QB-YPPA8-VD QB-YPYA8-VD QB-YQ4A8-VD
32 QB-YQDA8-VE QB-YPPA8-VE QB-YPYA8-VE QB-YQ4A8-VE
64 QB-YQDA8-VF QB-YPPA8-VF QB-YPYA8-VF QB-YQ4A8-VF
128 QB-YQDA8-VG QB-YPPA8-VG QB-YPYA8-VG QB-YQ4A8-VG
256 QB-YQDA8-VH QB-YPPA8-VH QB-YPYA8-VH QB-YQ4A8-VH
512 QB-YQDA8-VJ QB-YPPA8-VJ QB-YPYA8-VJ QB-YQ4A8-VJ
1024 QB-YQDA8-VK QB-YPPA8-VK QB-YPYA8-VK QB-YQ4A8-VK
Uniplex Additional Dictionary Pack, ULTRIX for RISC, TK50: QB-YQEA8-T5
Number of
Users
Uniplex II Plus
Base I
Uniplex II Plus
Base I
Uniplex II Plus
Base II
Upgrade Options Chart
Uniplex II Plus
Base II
Advanced Office
Systems
Advanced Office
Systems
Advanced Graphics
Systems
Advanced Graphics
Systems
1-4 QB-YQDA8-VL QB-YPPA8-VL QB-YPYA8-VL QB-YQ4A8-VL
4-8 QB-YQDA8-VM QB-YPPA8-VM QB-YPYA8-VM QB-YQ4A8-VM
8-16 QB-YQDA8-VN QB-YPPA8-VN QB-YPYA8-VN QB-YQ4A8-VN
16-32 QB-YQDA8-VP QB-YPPA8-VP QB-YPYA8-VP QB-YQ4A8-VP
32-62 QB-YQDA8-VQ QB-YPPA8-VQ QB-YPYA8-VQ QB-YQ4A8-VQ
64-128 QB-YQDA8-VR QB-YPPA8-VR QB-YPYA8-VR QB-YQ4A8-VR
128-256 QB-YQDA8-VS QB-YPPA8-VS QB-YPYA8-VS QB-YQ4A8-VS
256-512 QB-YQDA8-VT QB-YPPA8-VT QB-YPYA8-VT QB-YQ4A8-VT
512-1024 QB-YQDA8-VU QB-YPPA8-VU QB-YPYA8-VU QB-YQ4A8-VU
6
System
Support
Addendum
PRODUCT NAME: Uniplex™ Business Software for ULTRIX SSA 32.83.01-A
on RISC, Version 7.00c
HARDWARE REQUIREMENTS
Processors Supported
DECstation: DECstation 2100, DECstation 3100, DEC-
DECsystem: DECsystem 3100, DECsystem 5000 Model
Processors Not Supported
Processors not listed above are not supported.
ULTRIX Mail Connection does not support DECsys-
tem 5810 or DECsystem 5820. Refer to the ULTRIX
Mail Connection Software Product Description (SPD
29.05.xx) for additional support information.
Other Hardware Required
A terminal-interface is required. See the
section for supported devices.
ware
Disk space required for installation:
Uniplex II Plus, Base I 13.3Mb
Uniplex II Plus, Base II 13.0Mb
Advanced Office System 3.7Mb
Advanced Graphics System 3.5Mb
Additional Dictionary Pack 33.0Mb
station 3100s, DECstation 5000 Model 200,
DECstation 5000 Model 200CX, DECstation
5000 Model 200PX, DECstation 5000 Model
200PXG, DECstation 5000 Model 200PXG
TURBO
200, DECsystem 5100, DECsystem 5400,
DECsystem 5500, DECsystem 5810, DECsystem 5820, DECsystem 5830, DECsystem
5840
Optional Hard-
Advanced Graphics System 3.5Mb
Additional Dictionary Pack 33.0Mb
Other file systems: Space required for storage of word
processing, spreadsheet, database, calendar and other
normal data files.
The above sizes are approximate; actual disk space required is dependent upon system environment, configuration and software options.
A TK50 or TK70 device is required for software installation.
OPTIONAL HARDWARE
The following terminals have been tested:
• Character only: VT100, VT220, VT240, VT320,
VT330, VT340, DECterm
• High-resolution and character: VT240, VT330,
VT340
• Uniplex includes support for ReGIS on: VT240,
VT330, VT340
The following printers have been tested:
• Character mode: LA75, LN03 PLUS, LN03R
PostScript®, LPS40
• High-resolution and character: LA75, LN03 PLUS,
LN03R PostScript, LPS40, LJ250
• Plotters (graphics only): LVP16
Note: The LN03 PLUS requires the LN03-IC font car-
tridge.
SOFTWARE REQUIREMENTS
For Systems Using Terminals:
Disk space required for permanent use:
Uniplex II Plus, Base I 13.3Mb
Uniplex II Plus, Base II 13.0Mb
Advanced Office System 3.7Mb
ULTRIX Operating System V4.1 (SPD 26.40.xx)
dt
February 1991
AE-PE3UB-TK
Uniplex™ Business Software for ULTRIX SSA 32.83.01-A
on RISC, Version 7.00c
For Workstations:
ULTRIX Workstation Software (UWS) V4.1
(SPD 28.22.xx)
OPTIONAL SOFTWARE
• DECnet-ULTRIX V4.0
For Connection to VAX Processors Under VMS:
• DECnet-ULTRIX V4.0 (SPD 26.83.xx) or
• VMS/ULTRIX Connection V1.3 (SPD 25.A4.xx) for
TCP/IP.
• ULTRIX Mail Connection V1.1 (SPD 29.05.xx) is
required for correct mail text interchange between
ALL-IN-1 and Uniplex Office Systems.
GROWTH CONSIDERATIONS
The minimum hardware/software requirements for any
future version of this product may be different from the
requirements for the current version.
The total number of users, type of load (e.g., mail, diaries, spreadsheet, databases are all large growth areas) will vary from site to site. Refer to the
Installation Guide
Appendix A for space requirements
Uniplex
planning. It is recommended that Uniplex Business Software be installed on a separate disk with a minimum of
100Mb storage capacity.
DISTRIBUTION MEDIA
Tape: TK50 Streaming Tape
ORDERING INFORMATION
Software License/Media/Documentation:
Uniplex II Plus Base I - RISC: QB-YQDA8-V*
Uniplex II Plus Base II - RISC: QB-YPPA8-V*
Uniplex Advanced Office System (AOS) - RISC:
QB-YPYA8-V*
Uniplex Advanced Graphic System (AGS) - RISC:
QB-YQ4A8-V*
Uniplex Additional Dictionary Pack (ADP) - RISC:
QB-YQEA8-T5
Software Documentation:
Uniplex Base Documentation: QA-YQDAA-GZ
Uniplex Quick Look-up Guide
and Keyboard Template,
4-Pack: QA-YQDAE-GZ
Uniplex Configuration Guide
: QA-YQDAF-GZ
Uniplex Base Documentation: QA-YPPAA-GZ
Uniplex Quick Look-up Guide
and Keyboard Template,
4-Pack: QA-YPPAE-GZ
Uniplex Configuration Guide
: QA-YPPAF-GZ
Uniplex Advanced Office System Documentation:
QA-YPYAA-GZ
Uniplex Advanced Graphic System Documentation:
QA-YQ4AA-GZ
Software Product Services: QT-***A8-**
* Denotes variant fields, For additional information on
available licenses, services, and media, refer to the
appropriate price book.
The above information is valid at the time of release.
Please contact your local Digital office for the most upto-date information.
™ Uniplex is a trademark of Uniplex Limited.
® PostScript is a registered trademark of Adobe Systems,
Inc.
® UNIX is a trademark of UNIX System Laboratories, Inc.
™ LOTUS is a registered trademark of Lotus Develop-
ment Corporation.
® INFORMIX is a registered trademark of Informix
Software Corporation.
™ The DIGITAL Logo, ALL-IN-1, ULTRIX, ReGIS, DEC-
station, DECsystem, DECnet, VT, LA, LVP16, LN03,
and LN03 PLUS are trademarks of Digital Equipment
Corporation.
2
Loading...
