wind
directional
5
/16”
rod
(optional)
Post M

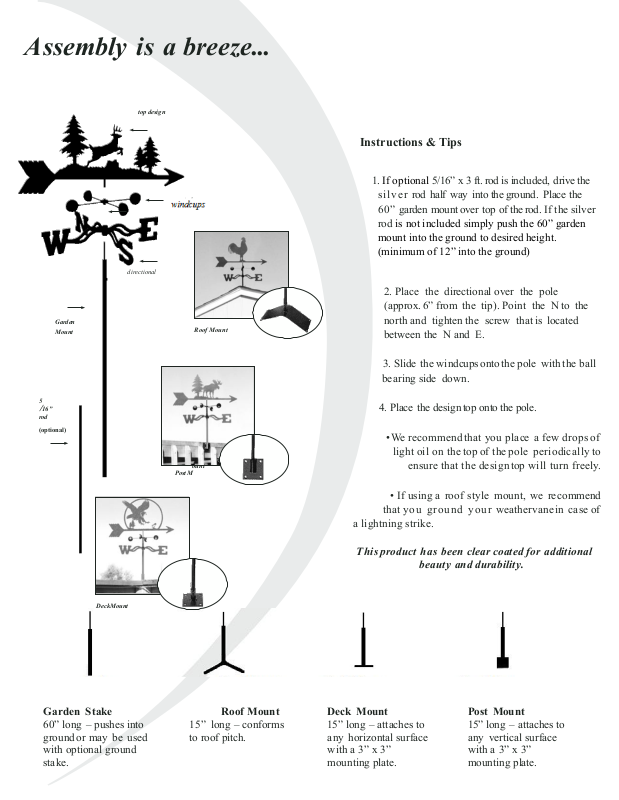

Assembly is a breeze...
top design
Instructions & Tips
1. If optional 5/16” x 3 ft. rod is included, drive the
silver rod half way into the ground. Place the
60” garden mount over top of the rod. If the silver
rod is not included simply push the 60” garden
mount into the ground to desired height.
(minimum of 12” into the ground)
Garden
Mount
DeckMount
Roof Mount
ount
2. Place the directional over the pole
(approx. 6” from the tip). Point the N to the
north and tighten the screw that is located
between the N and E.
3. Slide the windcups onto the pole with the ball
bearing side down.
4. Place the design top onto the pole.
• We recommend that you place a few drops of
light oil on the top of the pole periodically to
ensure that the design top will turn freely.
• If using a roof style mount, we recommend
that y o u g r o u n d y o u r weathervane in case of
a lightning strike.
T his product has been clear coated for additional
beauty and durability.
Garden Stake
60” long – pushes into
ground or may be used
with optional ground
stake.
Roof Mount
15” long – conforms
to roof pitch.
Deck Mount
15” long – attaches to
any horizontal surface
with a 3” x 3”
mounting plate.
Post Mount
15” long – attaches to
any vertical surface
with a 3” x 3”
mounting plate.
