Union Rustic W004337579 Installation & Assembly

Page 1
Find your niche
VERSATILE AND MODERN

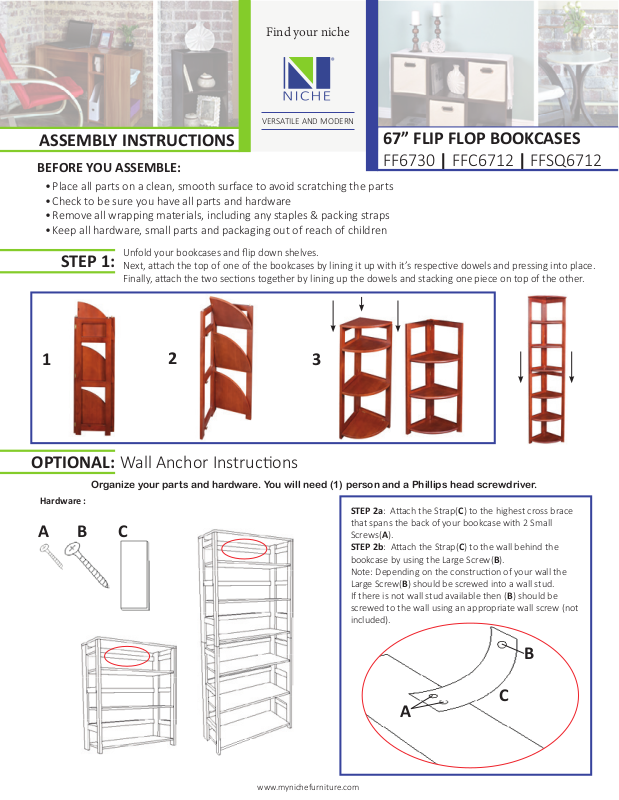

ASSEMBLY INSTRUCTIONS
BEFORE YOU ASSEMBLE:
• Place all parts on a clean, smooth surface to avoid scratching the parts
• Check to be sure you have all parts and hardware
• Remove all wrapping materials, including any staples & packing straps
Unfold your bookcases and ip down shelves.
STEP 1:
1
Next, aach the top of one of the bookcases by lining it up with it’s respecve dowels and pressing into place. Finally, aach the two secons together by lining up the dowels and stacking one piece on top of the other.
2
3
67” FLIP FLOP BOOKCASES FF6730 | FFC6712 | FFSQ6712
OPTIONAL:
Organize your parts and hardware. You will need (1) person and a Phillips head screwdriver.
Hardware :
A
B C
Wall Anchor Instrucons
STEP 2a: Aach the Strap(C) to the highest cross brace that spans the back of your bookcase with 2 Small
Screws(A). STEP 2b: Aach the Strap(C) to the wall behind the
bookcase by using the Large Screw(B). Note: Depending on the construcon of your wall the Large Screw(B) should be screwed into a wall stud. If there is not wall stud available then (B) should be screwed to the wall using an appropriate wall screw (not
included).
B
C
A
www.mynichefurniture.com
