Union Rustic W003791878 Installation & Assembly

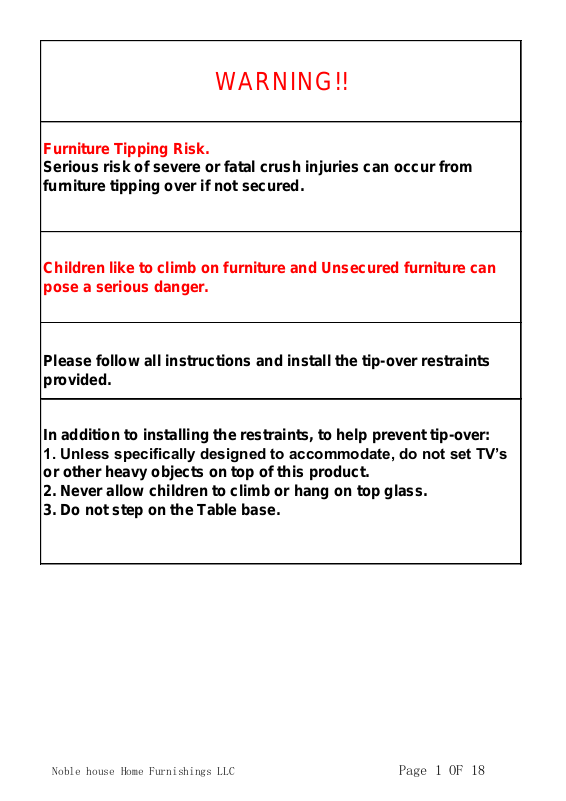

WARNING!!

Furniture Tipping Risk.

Serious risk of severe or fatal crush injuries can occur from
furniture tipping over if not secured.

Children like to climb on furniture and Unsecured furniture can
pose a serious danger.

Please follow all instructions and install the tip-over restraints
provided.

In addition to installing the restraints, to help prevent tip-over:

1. Unless specifically designed to accommodate, do not set TV’s

or other heavy objects on top of this product.

2. Never allow children to climb or hang on top glass.

3. Do not step on the Table base.

Noble house Home Furnishings LLC

Page 1 OF 18

Label Picture QTY

A 1

B 1

C 1

D 1

E 1

Description

Top Panel

Top Center Panel

Caution : You must read this before you proceed

WINE CABINET

Storage Box

Right Side Panel

Left Side Panel

Noble house Home Furnishings LLC

Page 2 OF 18

F 1

G 1

H 2

I 1

J 1

K 1

L 4

M 4

N 1

Bottom Panel

Top Back Panel

Handle

Bottom Back Panel

Middle Panel

Door Panel

Leg

Bottom Center Panel

Middle Leg

Noble house Home Furnishings LLC

Page 3 OF 18

Label Picture QTY

① 13

② 13

③ 13

④ 21

⑤ 9

⑥ 47

⑦ 4

⑧ 1

⑨ 5

⑩ 5

⑪ 5

⑫ 13

⑬ 1

⑭ 1

⑮ 1

Screw (3.5*16mm)

Cap Wood Screw (6*50mm)

Positioning Dowel (8*30mm)

Washer

Spring Washer

Screw (M6*30mm)

Screwdriver (not provided)

Cam Bolt

Screw (M4*32mm)

Allen Key

Connector

Description

Hammer (not provided)

Power Drill (not provided)

Cam Cap

Cam Lock

Noble house Home Furnishings LLC

Page 4 OF 18

⑯ 2

⑰ 2

⑱ 2

⑲ 4

⑳ 2㉑2

㉒

2

㉓

2

Wall Plug

Pan Head Screw

Wall Plug Screw

Ball Connector

Cabinet Restraint Device Hardware

Metal Bracket

Cabinet Restraint Strap

Ball Connector Bracket

Shock Absorber

10" Air Press Pull Rod

Noble house Home Furnishings LLC

Page 5 OF 18

Overview

Before

Beginning

Assembly:

FRONT FACING

Left Side Panel (C)

X 13

X 13

X 13

X 21

X 9

X 47

X 5

X 5

X 5

X 1

X 1

X 2

X 4

X 1

X 4

X 1

X 2

Storage Box (A)

Door Panel (H)

Right Side Panel (D)

Bottom Panel (K)

Top Back Panel (I)

X 2

X 1

Bottom Back Panel (J)

Leg (M)

Middle Leg (N)

Handle (L)

X 13

Middle Panel (F)

Top Center Panel (E)

Bottom Center Panel (G)

Noble house Home Furnishings LLC

Page 6 OF 18

Step 1

Step 2

Unpack and place all parts on a clean, non-marring surface.

1.1) Insert Cam Locks(①) into mounting positions on Top Panel(B) by hand.

1.2) Insert Positioning Dowels(④) into mounting positions on Top Panel(B) by

hand.

1.3) Attach Cam Bolts(②) to mounting positions on Top Panel(B) with
Screwdriver(⑬).

This Wine Cabinet has multiple parts and may require up to 60 minutes to
assemble. To give you an overview of the Wine Cabinet parts, the above picture
is to help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before
assembly.

2.1) Attach Cam Bolts(②) to mounting positions on Left Side Panel(C) with
Screwdriver(⑬).

2.2) Insert Positioning Dowels(④) into mounting positions on Left Side Panel(C)
by hand.

2.3) Attach Ball Connectors(⑯) to mounting positions on Left Side Panel(C)
using Screws(⑥) with Screwdriver(⑬).

C

B

②

②

②

⑬

②

①

①

④

④④④

④

1.2

1.3①1.1

②

⑬⑬②②④

④

②

⑬

2.3

④

2.2

⑬

⑥

2.1

⑥

⑥

①

①

⑯

⑯⑯⑬

Noble house Home Furnishings LLC

Page 7 OF 18

Step 3

Step 4

Step 5

3.1) Attach Cam Bolts(②) to mounting positions on Right Side Panel(D) with
Screwdriver(⑬).

3.2) Insert Positioning Dowels(④) into mounting positions on Right Side
Panel(D) by hand.

4.1) Insert Cam Locks(①) into mounting positions on Top Center Panel(E) by
hand.

4.2) Insert Positioning Dowels(④) into mounting positions on Top Center
Panel(E) by hand.

4.3) Repeat the same assembly process on the Bottom Center Panel(G).

5.1) Insert Cam Locks(①) into mounting positions on Middle Panel(F) by hand.

5.2) Insert Positioning Dowels(④) into mounting positions on Middle Panel(F) by

hand.

5.3) Attach Cam Bolts(②) to mounting positions on Middle Panel(F) with
Screwdriver(⑬).

E

D

F

3.1

②

②

②

②

④

④

⑬

⑬

②

④

3.2

G

④

4.2

④

④

④

④

④

④④④

①

①

①

①

①

4.1

④

5.2

5.3

⑬

①

5.1

①

②

②

⑬④④

①

①

①

④

④

②

Noble house Home Furnishings LLC

Page 8 OF 18

Step 6

Step 7

Attach Top Center Panel(E) to Middle Panel(F) using Cap Wood Screws(⑤)
with Allen Key(⑧).

Tighten the Cap Wood Screws fully in a sequential manner.

7.1) Insert Positioning Dowels(④) from Bottom Center Panel(G) into mounting

positions on Middle Panel(F).

Note: Ensure the arrows on Cam Lock heads point towards the Cam Bolt
mounting positions.

7.2) Insert the Cam Bolts(②) on Middle Panel(F) into mounting positions on

Bottom Center Panel(G).

7.3) Turn the Cam Locks(①) clockwise with the Screwdriver(⑬) until they all
lock into place.

Arrow

NOTE

Cam Bolt

Mounting Position

⑤

⑧

F

E

④

②

①

①

7.1

④

7.2

7.3

①

②

⑬

④

F

E

G

G

F

Noble house Home Furnishings LLC

Page 9 OF 18

Step 8

Step 9

8.1) Insert Positioning Dowels(④) from Top Center Panel(E) into mounting
positions on Top Panel(B).

Note: Ensure the arrows on Cam Lock heads point towards the Cam Bolt
mounting positions.

8.2) Insert the Cam Bolts(②) on Top Panel(B) into mounting positions on Top

Center Panel(E).

8.3) Turn the Cam Locks(①) clockwise with the Screwdriver(⑬) until they all
lock into place.

9.1) Insert Positioning Dowels(④) from Top Panel(B) and Middle Panel(F) into
mounting positions on Left Side Panel(C).

Note: Ensure the arrows on Cam Lock heads point towards the Cam Bolt
mounting positions.

9.2) Insert the Cam Bolts(②) on Left Side Panel(C) into mounting positions on

Top Panel(B) and Middle Panel(F).

9.3) Turn the Cam Locks(①) clockwise with the Screwdriver(⑬) until they all
lock into place.

Arrow

NOTE

Cam Bolt

Mounting Position

Arrow

NOTE

Cam Bolt

Mounting Position

④

②

①

①

8.1

④

F

E

G

B

8.2

8.3

⑬

②

④

①

F

E

G

B

④

②

①

①

C

9.2

9.3

⑬

②④①

9.1

④

E

E

B

B

C

F

B

C

Noble house Home Furnishings LLC

Page 10 OF 18

Step 10

Step 11

Step 12

11.1) Insert Positioning Dowels(④) from Top Panel(B) and Middle Panel(F) into
mounting positions on Right Side Panel(D).

Note: Ensure the arrows on Cam Lock heads point towards the Cam Bolt
mounting positions.

11.2) Insert the Cam Bolts(②) on Right Side Panel(D) into mounting position on

side of Top Panel(B) and Middle Panel(F).

11.3) Turn the Cam Locks(①) clockwise with the Screwdriver(⑬) until they all
lock into place.

Insert the Top Back Panel(I) and Bottom Back Panel(J) along the slots.

Arrow

NOTE

Cam Bolt

Mounting Position

F

EGBCI

J

F

EGB

C

11.2

11.3

⑬

②

④

①

11.1

④

④

②

①

①

J

D

⑤

⑧

12.2

12.1

④

K

C

D

G

B

D

F

D

Noble house Home Furnishings LLC

Page 11 OF 18

Step 13

Step 14

12.1) Insert Positioning Dowels(④) from Left Side Panel(C), Right Side Panel(D)
and Bottom Center Panel(G) into mounting positions on Bottom Panel(K).

12.2) Attach Bottom Panel(K) to Cabinet Assembly using Cap Wood Screws(⑤)
with Allen Key(⑧).

Tighten the Cap Wood Screws fully in a sequential manner.

Attach Storage Box(A) to Top Panel(B) using Screws(⑨), Spring Washers(⑩)
and Washers(⑪) with Allen Key(⑧).

Tighten the Screws fully in a sequential manner.

Attach Legs(M) and Middle Leg(N) to Bottom Panel(K) using Screws(⑥) with
Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.
Caution: Leg(M) should be facing outwards. Misassembly and reassembly
may cause damage and instability to the product.
Note: There are pre-existing mounting positions on the Bottom Panel to
attach the Legs and Middle Leg.

⑬

⑥

⑥

⑥

⑥

M

M

N

⑨⑩⑪

⑧

KBA

Noble house Home Furnishings LLC

Page 12 OF 18

Step 15

Step 16
Step 17

Attach Ball Connector Brackets(⑰) to both Door Panels(H) using Screws(⑥)
with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.
Note: There are pre-existing mounting positions on both Door Panels to fix
the Ball Connector Brackets.
The flat faces of Ball Connector Brackets shall be facing the outer sides of
Door Panels.

Attach Handles(L) to both Door Panels(H) using Screws(⑫) with
Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.
Note: There are pre-existing mounting positions on both Door Panels to
attach the Handles.

H

H

L

L

⑬

⑫

⑬

⑥

⑥

H

H

⑬

⑦

⑥

⑥

⑬

⑬

⑦

⑦

⑦

⑦

H

H

⑰

⑰

⑰

NOTE

⑰

H

Noble house Home Furnishings LLC

Page 13 OF 18

Step 18

Step 19

19.1) Insert Ball Connectors(⑯) from Left Side Panel(C) into Shock
Absorbers(⑱) by hand.

19.2) Insert Ball Connector Brackets(⑰) from Door Panels(H) into Shock
Absorbers(⑱) by hand.

18.1) Attach Connectors(⑦) to Middle Panel(F) and Bottom Panel(K) using
Screws(⑥) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.

18.2) Rotate first screw on Connectors(⑦) to adjust up-down position of Door

Panels(H) when necessary.

18.3) Rotate second screw on Connectors(⑦) to adjust in-out position of Door
Panels(H) when necessary.

Note: There are pre-existing mounting positions on the Middle Panel and
Bottom Panel to attach the Connectors.

Attach Connectors(⑦) to both Door Panels(H) using Screws(⑥) with
Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.
Note: There are pre-existing mounting positions on both Door Panels to fix
Connectors.

⑦

⑦

⑥

⑬

⑦

⑦

⑥⑬⑬

H

HFK

18.1

18.2

18.3

19.1

19.2

⑰

⑱

⑯

⑱

C

H

Noble house Home Furnishings LLC

Page 14 OF 18

Step 20

Step 21

Insert Cam Caps(③) into all Cam Locks(①) by hand.

！ WARNING

Serious or fatal crushing injuries can occur from tipping furniture.

To help prevent tip-over: ALWAYS secure this furniture to the wall using Cabinet Restraint

Device.

See product instructions for more ways to help prevent furniture tip-over.

Usage For Cabinet Restraint Device:

To secure Wine Cabinet against wall, attach two Metal Brackets(⑲) on wall and
product, use Cabinet Restraint Straps(㉓) to connect the Metal Brackets(⑲).

Instructions:

21.1) Turn Wine Cabinet so the back side faces you.

21.2) Attach Metal Brackets(⑲) to Storage Box(A) using Pan Head Screws(㉒)

with Screwdriver(⑬).

①

③

⑲

⑲

21.2

⑬

22

⑲

A

Noble house Home Furnishings LLC

Page 15 OF 18

Step 22

Step 22

Step 23

Attach Metal Brackets(⑲) to Wall Plugs(⑳) using Wall Plug Screws(㉑) with
Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.

22.1) Drill two holes on wall at same height as Metal Brackets(⑲) on Wine

Cabinet with Power Drill(⑮).

You can mark these points in two ways as below:

1) Move the Wine Cabinet back to the wall. Mark two points the same height as
the Wine Cabinet on the wall.

Note: The Metal Brackets need to be secured to a solid, load bearing
surface. Please use a Stud Finder(not supplied) if needed to locate the
Wall Frame.

2) Measure the height of the Metal Brackets(⑲) with ruler/measuring tape and
mark on wall to keep them accurate and same height.

22.2) Insert Wall Plugs(⑳) into drilled holes on wall with Hammer(⑭).

22.2

22.1

⑭

⑳

⑮

⑲

⑳

⑬

⑲

⑲

23

23

⑳

⑳

⑲

⑲

21

23

Noble house Home Furnishings LLC

Page 16 OF 18

Step 24

Your Wine Cabinet is ready for use.

This Wine Cabinet can only be used on a flat, level surface.

Move the Wine Cabinet to the wall.
Pull the Restraint Straps(㉓) through the Metal Brackets(⑲) on the wall and
Wine Cabinet one by one, and pull the Restraint Straps(㉓) tight.

Noble house Home Furnishings LLC

Page 17 OF 18

Noble house Home Furnishings LLC

Page 18 OF 18
