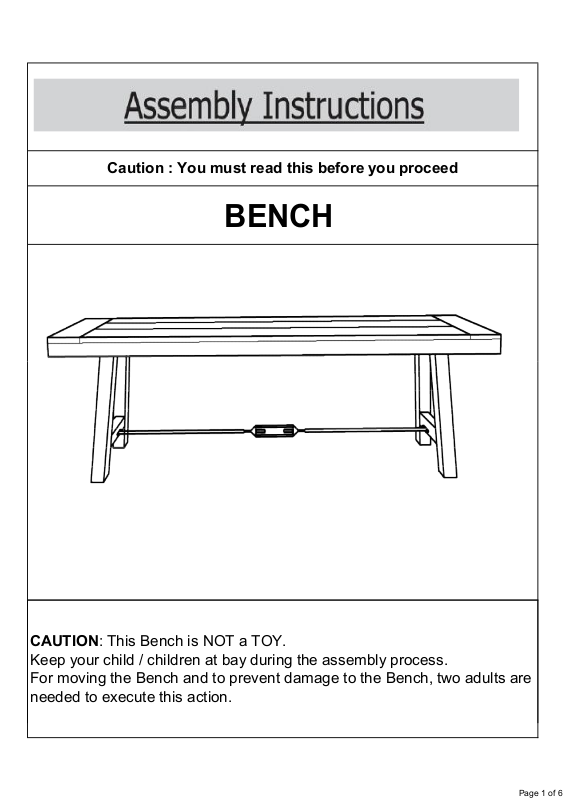

Page 1
Caution : You must read this before you proceed
BENCH
CAUTION: This Bench is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Bench and to prevent damage to the Bench, two adults are
needed to execute this action.
Page 1 of 6
Page 2
Label Picture Description QTY
A Seat 1
B Iron Leg 2
C Turnbuckle Set 1
Label Picture Description QTY
1
2
Bolt (M8x20mm) 13
Washer 13
3
Allen Key 1
Page 2 of 6
Page 3
Before Beginning Assembly:
Seat (A)
help you put the various parts into perspective. Please read through the
OVERVIEW
Iron Leg (B)
Iron Leg (B)
Turnbuckle Set (C)
FRONT FACING
This Bench has multiple parts and may require up to some 30 minutes to
assemble. To give you an overview of the Bench parts, the above picture is to
instructions below to familiarise yourself with the parts and steps before
assembly.
Page 3 of 6
Page 4
Step 1
①
②
Unpack and place all parts on a clean, non-marring surface.
Step 2
3
B
1
2
A
Place the Seat(A) facedown onto a clean, non-marring surface.
Attach Iron Leg (B) to the Seat(A), using Bolt(
) and Washer(
Allen Key(③).
Notice: The leg with hole should be face inside against
Only loosely tighten the Bolts.
Repeat the same process with the other Iron Leg(B)
) with
Page 4 of 6
Page 5
Step 3
Attach the Turnbuckle Set(C) to the Iron Legs(B) using Bolt(①) and
Turnbuckle Set as place as the picture.
2
3
1
Washer(②) with Allen Key(③).
Only loosely tighten the Bolts.
Step 4
Stand the Bench right side up.
In a sequential manner, tighten all Bolts until fully locked into position.
Notice: By hand, turn the Turnbuckle Set(C) to fixed point on Turnbuckle
Set(C) to further secure the Bench and maximize stability and show the
Turnbuckle Set as place as the picture.
Your Bench is ready for use.
This Bench can only be used on a flat, level surface.
Page 5 of 6

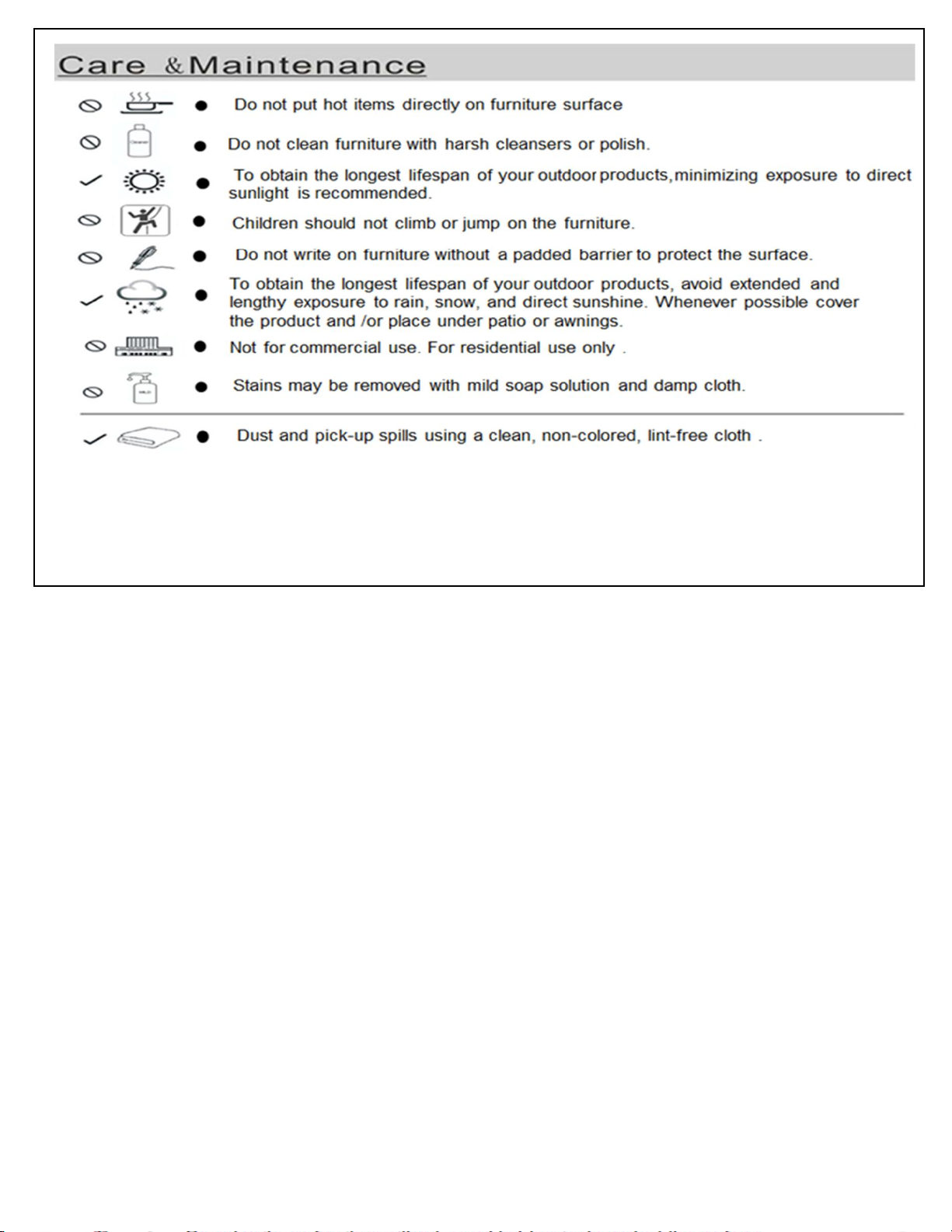

Page 6
Page 6 of 6
