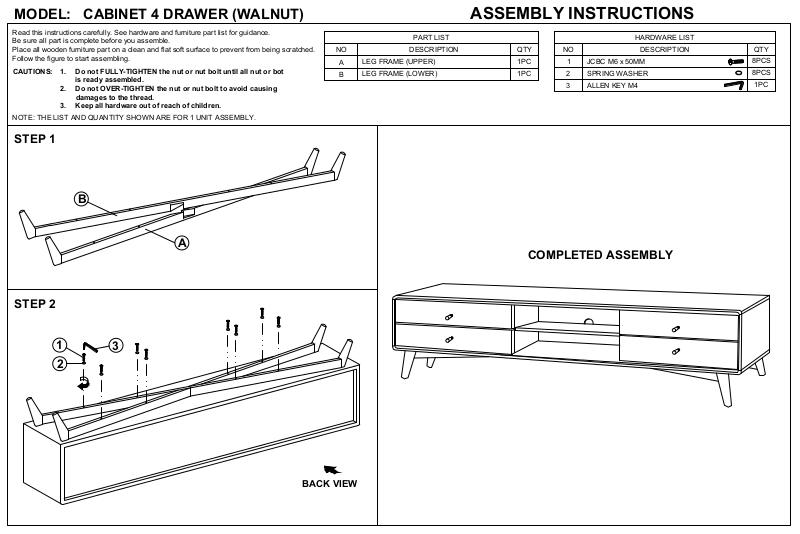

ASSEMBLY INSTRUCTIONS
MODEL: CABINET 4 DRAWER (WALNUT)
Read this instructions carefully. See hardware and furniture part list for guidance.
Be sure all part is complete before you assemble.
Place all wooden furniture part on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS: 1. Do not FULLY-TIGHTEN the nut or nut bolt until all nut or bot
is ready assembled.
2. Do not OVER-TIGHTEN the nut or nut bolt to avoid causing
damages to the thread.
3. Keep all hardware out of reach of children.
NOTE: THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
STEP 1
B
PART LIST
NO DESCRIPTION
A
B
LEG FRAME (UPPER)
LEG FRAME (LOWER)
QTY
1PC
1PC
HARDWARE LIST
NO DESCRIPTION
1 JCBC M6 x 50MM
2 SPRING WASHER
3
ALLEN KEY M4
QTY
8PCS
8PCS
1PC
STEP 2
1
2
A
COMPLETED ASSEMBLY
3
BACK VIEW
