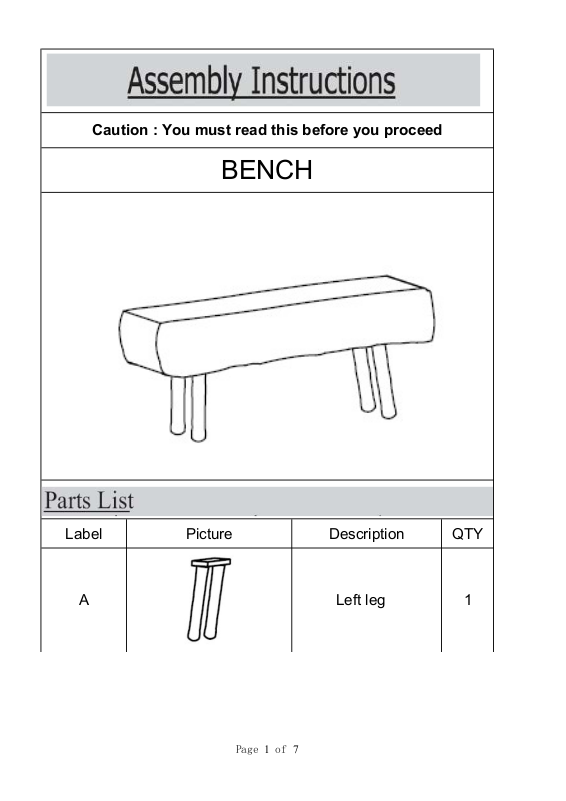

Caution : You must read this before you proceed
BENCH
Label Picture Description QTY
A Left leg 1
Page 1 of 7
Page 2
B Right Leg 1
C Top 1
Label Picture QTY
①
②
Before
Beginning
Assembly:
Bolt( M8*64mm) 9
Allen Key 1
X 9
Page 2 of 8
Page 3
Overview
Top (C)
Right
Leg (B)
FRONT FACING
This bench has multiple parts and may require up to 30 mins to
assemble. To give you an overview of the bench parts, the above
picture is to help you put the various parts into perspective. Please
read through the instructions herebelow to familiarise the parts
and steps before assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 3 of 7
Page 4
Step 2
A
①
NOTE : Each leg numbred.
Please match accroding to respective
markings.
C
①
Place the Top (C) with its one side face skywards onto a clean,
soft surface to avoid any scratches or damages to the product.
Align the tenon of Top (C) into the Mortise of Left Leg (A) as
shown above.
Then, affix the Top (C) with Left Leg (A) by using Short bolt (①)
and Allen Key (②).
DO NOT FULLY TIGHTHEN BOLTS.
Step 3
①
①
B
Page 4 of 7
C
Page 5
Then continue position Top (C) as shown in picture above.
Align the wooden dowel into the positions in the Legs.
Then, affix the Right Leg (B) with Top (C) by using Short blots (①)
and Allen Key (②)
DO NOT FULLY TIGHTHEN BLOTS.
Step 4
With the help from your partner, turn the bench to rest on Top (C)
so that Right Leg (B) is now facing skywards.
Repeat the same process by affixing Blots (①), (②) to designated
points.
LOOSELY TIGHTHEN ALL BLOTS.
Page 5 of 7
Page 6
Step 5
Turn the bench in a synchronised manner.
Turn the bench right side up.
Place the bench on a LEVEL SURFACE.
Inspect it and make sure all parts are adequately connected.
Gently and gracefully, sit into to the bench.
This would help to align all the parts at all the joint areas.
Then get off the bench, and in a sequential manner, proceed to
tighten all blots.
To tighten the blots at the base of Top, do secure assistance from
your adult partner(s).
You may be required to turn the bench, to gain easy access to the
secure points.
CAUTION 1: When tightening these blots, tighten
sequentially.
DO NOT tighten any blots fully and then towards the next
one.This would cause the frame to warp.
If there is still wobbles, loosen the blots and execute
thissame process.
WARNING!! IF BENCH IS NOT STABLE , IT COULD LEAD TO
DAMAGING THE PRODUCT.
Ensure all blots are fully locked into position.
The bench is ready to be used.
Caution 2: This bench can only be used on a flat,
levelsurface.
Page 6 of 7
Page 7
Page 7 of 7
