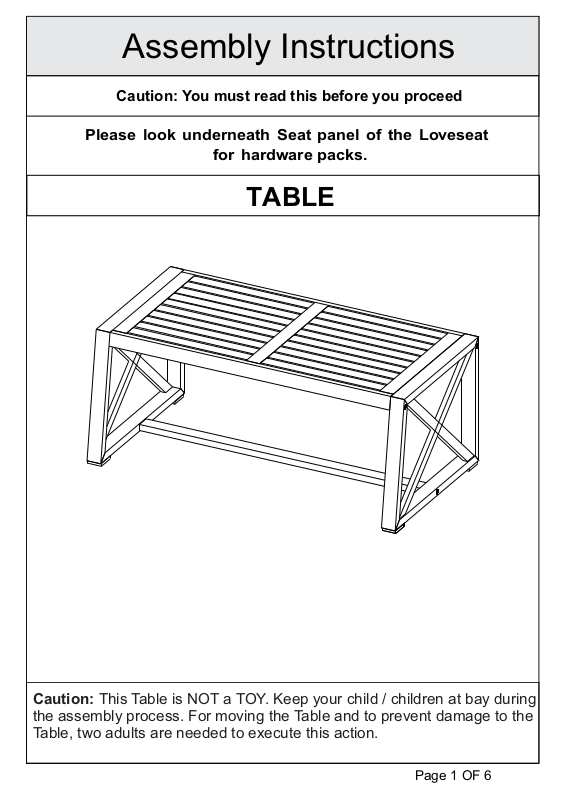

Page 1
Assembly Instructions
Caution: You must read this before you proceed
Please look underneath Seat panel of the Loveseat
for hardware packs.
TABLE
Caution: This Table is NOT a TOY. Keep your child / children at bay during
the assembly process. For moving the Table and to prevent damage to the
Table, two adults are needed to execute this action.
Page 1 OF 6
Page 2
Parts List
Label Picture
B 2
C
Description
Table Top
Leg Panel
Support Bar
QTY
1A
1
Hardware
Label Picture
1
2
Screw ( M7x70mm)
Allen Key
Assembly Preparation
Before Beginning Assembly:
Description
QTY
7
1
Page 2 OF 6
Page 3
Before Beginning Assembly:
OVERVIEW
Table Top (A)
Leg Panel (B)
Support Bar (C)
FRONT FACING
This Table has multiple parts and may require up to 30 minutes to
assemble. To give you an overview of the Table parts, the above picture is
to help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before
assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 3 OF 6
Page 4
Step 2
2.2
2.1
B
A
1
2
2
1
B
A
Lay down the Table Top (A) with its underside facing skywards onto a clean,
soft surface to avoid any scratch or damage to the product.
2.1) Put the tenon of Table Top (A) into the mortise of Leg Panel (B) and then
using Screw (①) with Allen Key (②) to secure these parts as shown in above
picture.
2.2) Repeat the same process with the remained Leg Panel (B).
Do not fully tighten the Screws.
Page 4 OF 6
Page 5
Step 3
B
1
C
2
B
Put the tenon of Support Bar (C) onto the mortise of Leg Panels (B) and then
using Screw (①) with Allen Key (②) to secure these parts as shown in above
picture.
You may need to push the Leg Panels (B), outwards, slightly to attach the
Support Bar (C).
Do not fully tighten the Screws.
Step 4
Stand the Table up, with assistance from your adult partner.
Exert pressure floorwards, onto the Table with both your hands.
This pressure will help the Legs and Table Top reach full alignment status.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten the Screws in a sequential
manner, until evenly secured.
When tightening the Screws tighten sequentially.
Do not tighten any Screw fully and then move on towards the next one.
If there are still wobbles, loosen the Screws and excute the same
above process.
Your Table is ready for use.
This Table can only be used on the flat, level surface.
Page 5 OF 6
Page 6
Care & Maintenance
Page 6 OF 6
