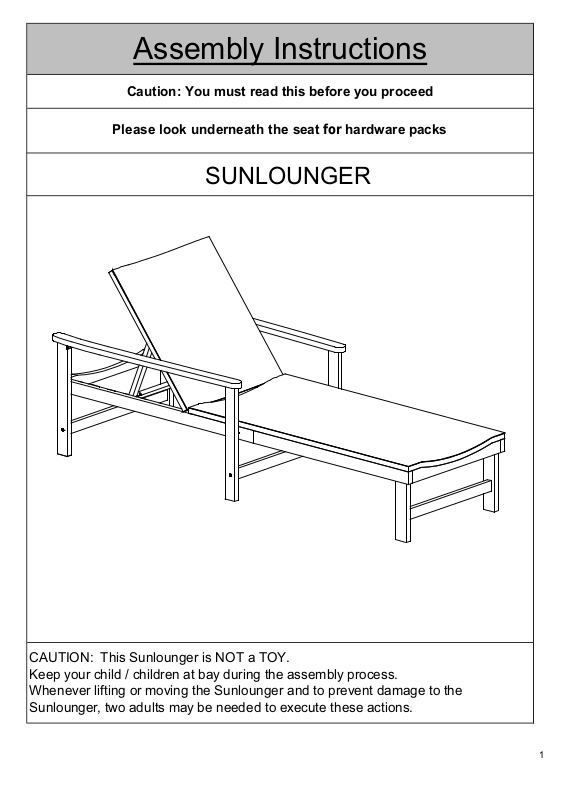

Page 1
Assembly Instructions
Caution: You must read this before you proceed
Please look underneath the seat
for
hardware packs
SUNLOUNGER
CAUTION: This Sunlounger is NOT a TOY.
Keep your child / children at bay during the assembly process.
Whenever lifting or moving the Sunlounger and to prevent damage to the
Sunlounger, two adults may be needed to execute these actions.
1
Page 2
Label Picture Description QTY
A Seat Frame 1
B Seat Panel 1
C Leg Support Frame 1
D Left Armrest Frame 1
E Right Armrest Frame 1
F Leg Support Bar 2
Parts List
2
Page 3
Hardware
Label Picture Description QTY
① Screw (M4*20mm) 9
② Screw (M7*60mm) 5
③ Bolt (M6*50mm) 9
④
⑤ Washer (M6/16*12mm) 9
⑥ Allen Key 2
Bolt (M6*30mm) 5
⑦
Screw driver (not
1
provided)
3
Page 4
Assembly Preparation
Before Beginning Assembly:
Assembly Steps
Overview
Left Armrest
Frame (D)
Leg Support
Bar (F)
Seat Frame (A)
Leg Support
Bar (F)
Right Armrest
Frame (E)
Seat Panel
(B)
Leg Support
Frame (C)
This Sunlounger has multiple parts and may require up to 30 minutes to assemble.
To give you an overview of the Sunlounger, the above picture is to help you put the
various parts into perspective. Please read through the instructions below to
familiarise yourself with the parts and steps before assembly.
4
Page 5
With the help of your adult partner, place Seat Frame(A) on a clean, non-marring
surface.
Then position Leg Support Frame(C) to Seat Frame(A) as shown above.
Secure Leg Support Frame(C) to Seat Frame(A) by using Bolts(④) with Allen
Key(⑥)
DO NOT FULLY TIGHTHEN BOLTS.
Unpack and place all parts on a clean, non-marring surface.
Step 1
Step 2
C
A
5
Page 6
Step 3
Place Right Armrest Frame(E) on a clean, non-marring surface.
With the help of your adult partner, turn the Sunlounger lie on the Right Armrest
Frame(E) as designated point.
Using Bolts(③), Washers(⑤) and Allen Key(⑥) to attach Seat Frame(A) to the
Right Armrest Frame(E) as shown above.
DO NOT FULLY TIGHTHEN BOLTS.
Note: Washers(⑤) is in the middle of Right Armrest Frame(E) and Seat
Frame(A)
E
A
A
E
6
Page 7
Step 4
Align the Tenon of Leg Support Bar(F) into the Mortises of Right Armrest Frame(E).
Then position Mortises of Left Armrest Frame(D) onto Tenon of Leg Support Bar(F)
as shown above.
Secure the Left Armrest Frame (D) to Seat Frame(A) by using Bolts(③) with Allen
Key(⑥)
DO NOT FULLY TIGHTHEN BOLTS.
Note: Washers(⑤) is in the middle of Right Armrest Frame(E) and Seat
Frame(A)
D
E
F
A
7
Page 8
With the help from your adult partner, turn pre-assembled in step 4 right side up
Affix the Left Armrest Frame(D) to Leg Support Bar(F) by using Screws(②) with
Allen Key(⑥) as shown above.
Then, repeat the same process of this step to attach the Right Armrest Frame(E) to
Leg Support Bar(F).
DO NOT FULLY TIGHTHEN SCREWS.
Step 6
6.1: Position the Seat Panel (B) onto Seat Frame (A)
6.2: With helps from your adult partners, turn the pre-assembled in step 6.1 to its
side as shown above. Then secure the Seat Panel (B) to Seat Frame(A) by using
Screws(①) with Screw Driver(⑦)
Step 5
F
Step 6.1
Step 6.2
D
E
A
B
B
A
8
Page 9
Carefully sit onto the Sunlounger.
This pressure will help the Sunlounger reach full alignment at all joints.
In a sequential manner, gradually tighten all Bolts and Screws until evenly secured.
Inspect the Sunlounger and make sure all parts are adequately connected.
Your Sunlounger is ready for use.
This Sunlounger can only be used on a flat, level surface.
Note: Align the Backrest of Sunlounger in position you want
Step 7
