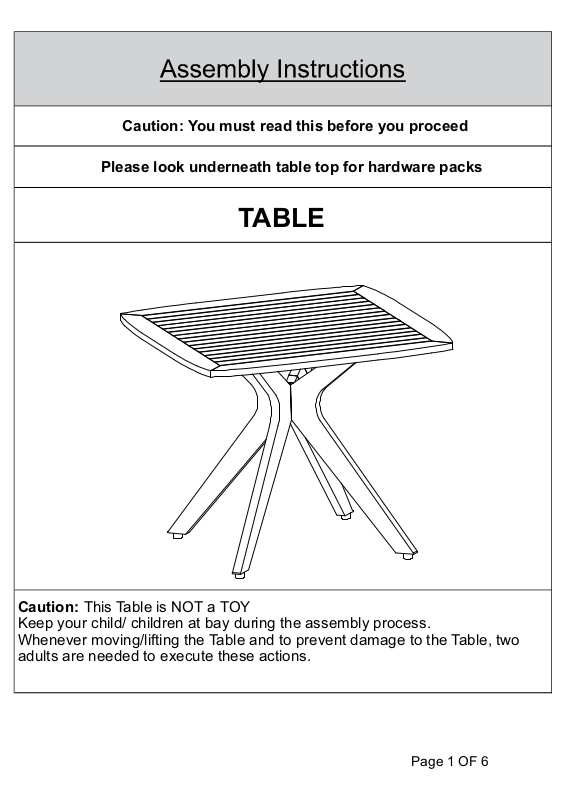

Page 1
Caution: You must read this before you proceed
Please look underneath table top for hardware packs
TABLE
Caution: This Table is NOT a TOY
Keep your child/ children at bay during the assembly process.
Whenever moving/lifting the Table and to prevent damage to the Table, two
adults are needed to execute these actions.
Page 1 OF 6
Page 2
Parts List
Label Picture
A
B
C
Description
Table Top
First Leg Frame
Second Leg Frame
QTY
1
1
1
D
Hardware
Label Picture
1
2
3
4
Third Leg Frame
Description
Long 6 100 mmBolt (M x )
Screw (M x 0mm)6 2
Short 35 mmBolt (M8x )
Allen Key
1
QTY
2
3
5
1
5
Leveler (M8X20mm)
5
Page 2 OF 6
Page 3
Assembly Preparation
Before Beginning Assembly:
Assembly Steps
OVERVIEW
Second Leg
Frame (C)
Third Leg Frame (D)
First Leg Frame (B)
Table Top (A)
FRONT FACING
This Table has multiple parts and may require up to 30 minutes to
assemble. To give you an overview of the Table parts, the above picture is
to help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before
assembly.
Page 3 OF 6
Page 4
Step 1
Unpack and place all parts on a clean, non-marring surface.
Step 2
4
1
C
B
D
2.1
B
2.2
4
D
B
C
D
2
2.1) Insert Third Leg Frame (D) into First Leg Frame (B) as pictured.
Attach Third Leg Frame (D) into First Leg Frame (B) by using Bolt ( ) ①
with Allen Key ( ).④
2.2) Insert Second Leg Frame (C) into First Leg Frame (B) and Third Leg
Frame (D).
Attach Second Leg Frame (C) to First Leg Frame (B) and Third Leg
Frame (D) by using 2 Screws ( ) with Allen Key ( ).② ④
Tighten the Bolt and Screws fully in a sequential manner.
Page 4 OF 6
Page 5
Step 3
3.1
3.2
5
4
3
B
D
B
B
A
Wooden Dowel
C
A
3.1) Place Table Top (A) facedown onto a clean, non-marring surface to
avoid any scratches or damage to the product.
Position the Leg Frame onto Table Top (A) inserting Dowels on Leg Frame
into Housings on Table Top (A).
Attach Leg Frame to Table Top (A) by using Bolts (③) with Allen Key (④).
3.2) Attach Levelers (⑤) with the Legs, use hand rotate direction of the
arrow.
Tighten the Bolts fully in a sequential manner.
Step 4
LEVELER
Turn the Table over, with assistance from your partner.
Adjust Levelers and the bottom of the Legs if the Table wobbles.
Your Table is ready for use.
This Table can only be used on a flat, level surface.
Page 5 OF 6

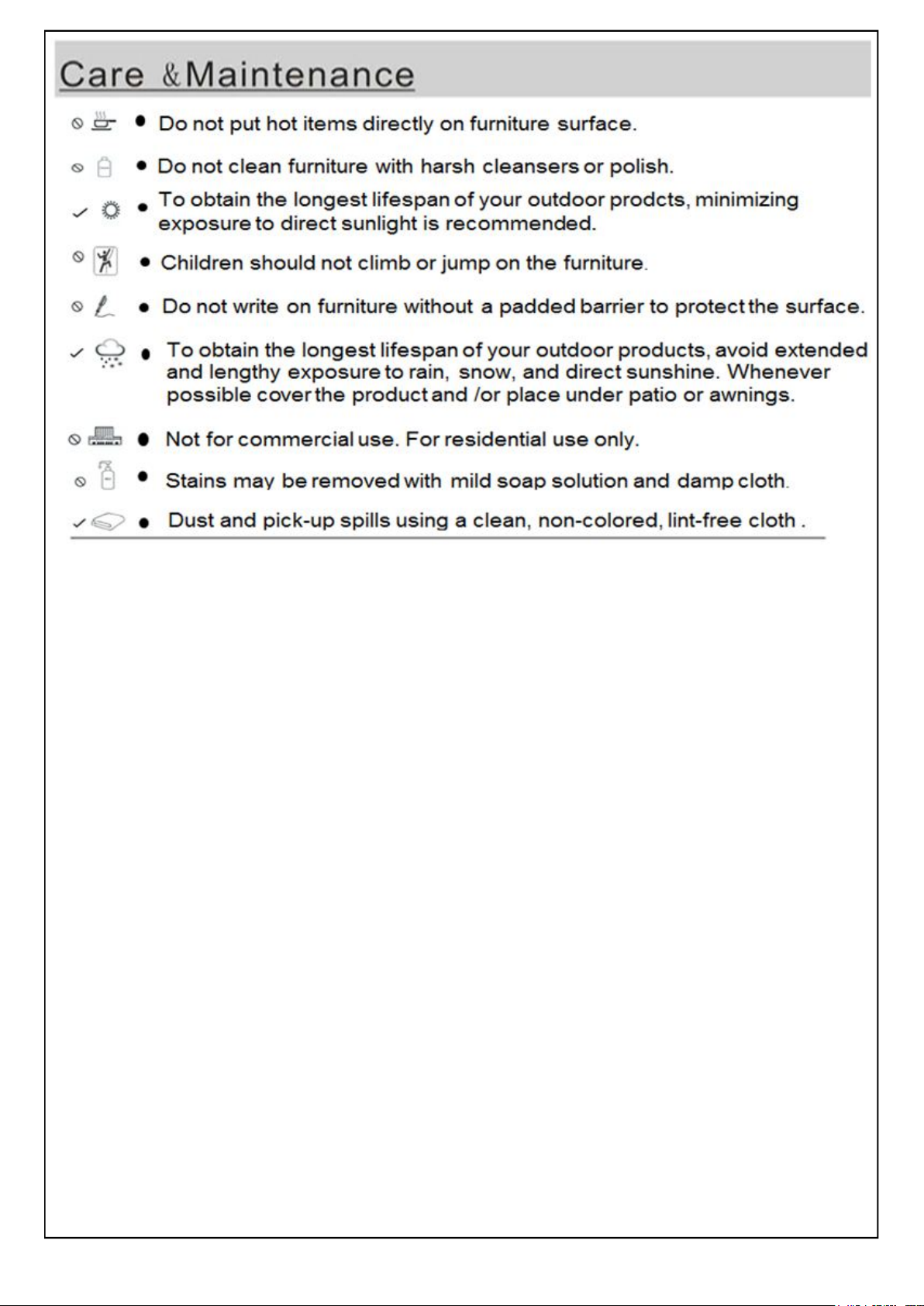

Page 6
Page 6 OF 6
