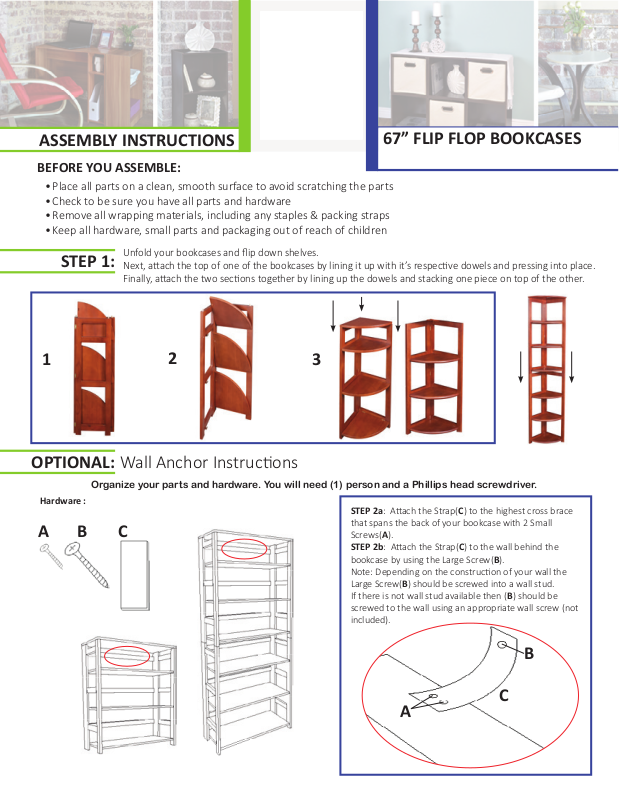

ASSEMBLY INSTRUCTIONS
BEFORE YOU ASSEMBLE:
• Place all parts on a clean, smooth surface to avoid scratching the parts
• Check to be sure you have all parts and hardware
• Remove all wrapping materials, including any staples & packing straps
• Keep all hardware, small parts and packaging out of reach of children
Unfold your bookcases and ip down shelves.
STEP 1:
Next, aach the top of one of the bookcases by lining it up with it’s respecve dowels and pressing into place.
Finally, aach the two secons together by lining up the dowels and stacking one piece on top of the other.
67” FLIP FLOP BOOKCASES
1
OPTIONAL:
Organize your parts and hardware. You will need (1) person and a Phillips head screwdriver.
Hardware :
A
B C
2
Wall Anchor Instrucons
3
STEP 2a: Aach the Strap(C) to the highest cross brace
that spans the back of your bookcase with 2 Small
Screws(A).
STEP 2b: Aach the Strap(C) to the wall behind the
bookcase by using the Large Screw(B).
Note: Depending on the construcon of your wall the
Large Screw(B) should be screwed into a wall stud.
If there is not wall stud available then (B) should be
screwed to the wall using an appropriate wall screw (not
included).
A
B
C
