Page 1

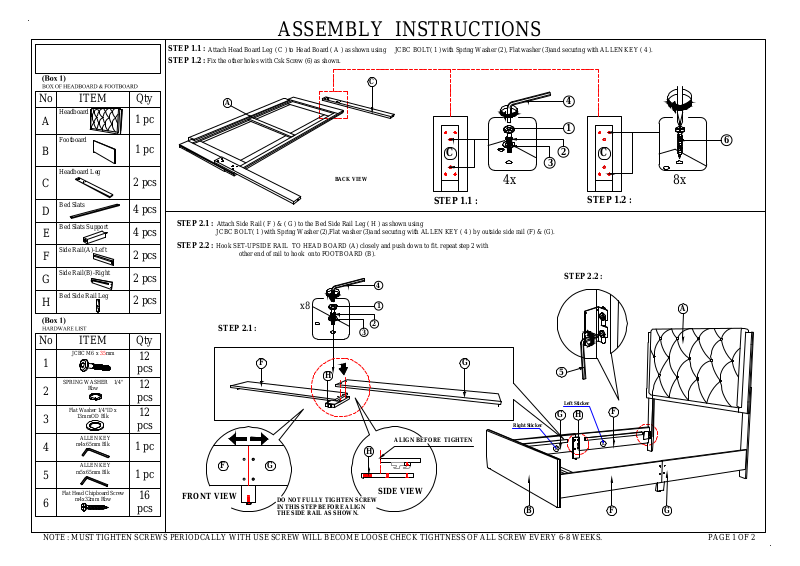

ASSEMBLY INSTRUCTIONS
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS. PAGE 1 OF 2
No ITEM Qty
A
Headboard
1 pc
B
Footboard
1 pc
C
Headboard Leg
2 pcs
D
Bed Slats
4 pcs
E
Bed Slats Support
4 pcs
F
Side Rail(A)-Left
2 pcs
G
Side Rail(B)-Right
2 pcs
H
Bed Side Rail Leg
2 pcs

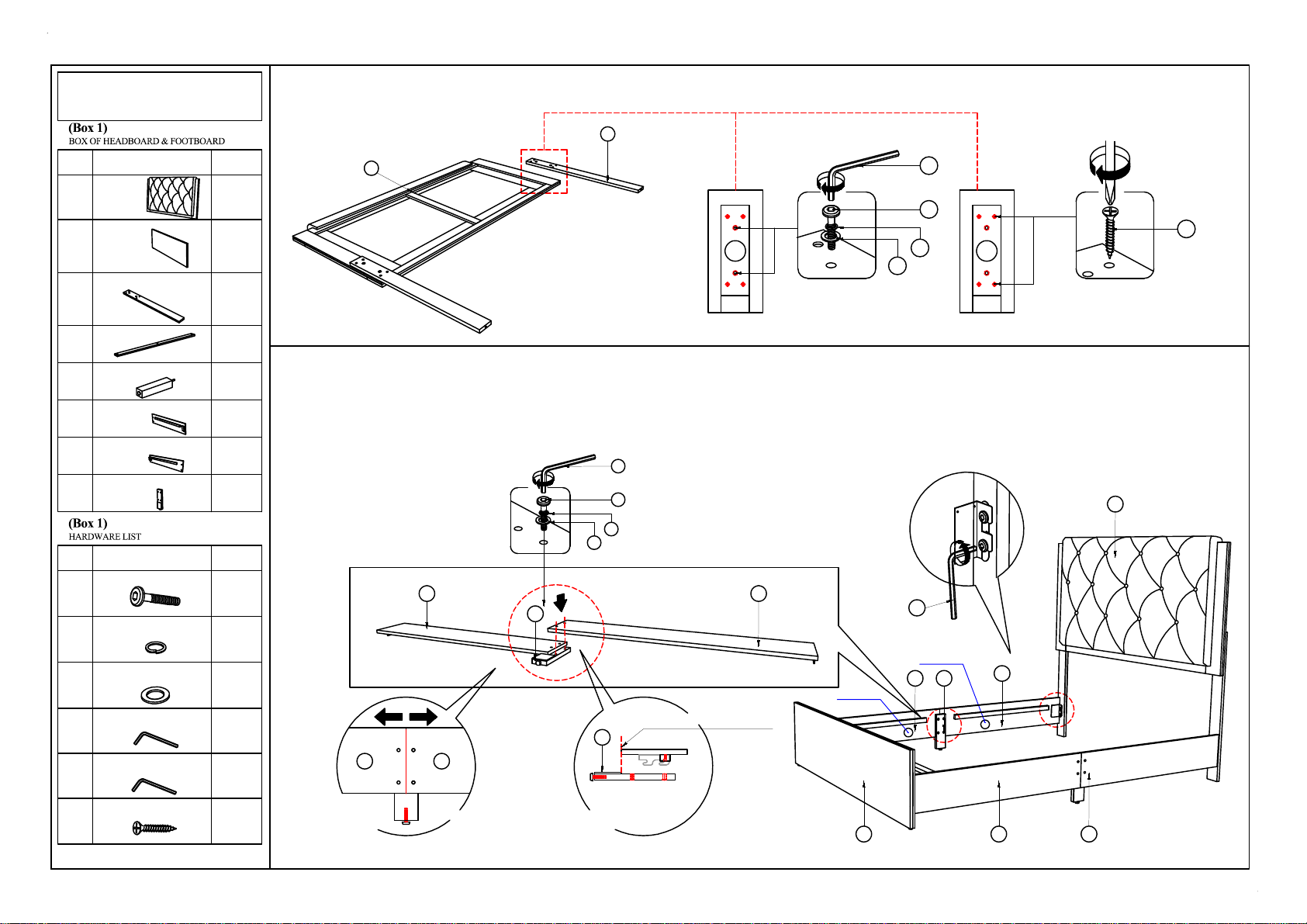

Attach Head Board Leg ( C ) to Head Board ( A ) as shown using JCBC BOLT( 1 )with Spring Washer (2), Flat washer (3)and securing with ALLEN KEY ( 4 ).
STEP 1.1 :
STEP 2.1 :
No ITEM Qty
1
JCBC M6 x 35mm
12
pcs
2
SPRING WASHER 1/4"
Rbw
12
pcs
3
Flat Washer 1/4"ID x
13mmOD Blk
12
pcs
4
ALLEN KEY
m4x65mm Blk
1 pc
5
ALLEN KEY
m5x65mm Blk
1 pc
6
Flat Head Chipboard Screw
m4x32mm Rbw
16
pcs
STEP 1.1 :
4
1
2
3
4x
STEP 1.2 :
6
BACK VIEW
A
C
C C
8x
4
1
2
3
x8
5
STEP 2.2 :
STEP 2.1 :
Attach Side Rail ( F ) & ( G ) to the Bed Side Rail Leg ( H ) as shown using
JCBC BOLT( 1 )with Spring Washer (2),Flat washer (3)and securing with ALLEN KEY ( 4 ) by outside side rail (F) & (G).
STEP 2.2 :
Hook SET-UPSIDE RAIL TO HEAD BOARD (A) closely and push down to fit. repeat step 2 with
other end of rail to hook onto FOOTBOARD (B).
A
DO NOT FULLY TIGHTEN SCREW
IN THIS STEP BEFORE ALIGN
THE SIDE RAIL AS SHOWN.
Fix the other holes with Csk Screw (6) as shown.
STEP 1.2 :
G
F
F G
SIDE VIEW
ALIGN BEFORE TIGHTEN
FRONT VIEW
GF
H
F G
B
H
H
R
L
Right Sticker
Left Sticker
Page 2

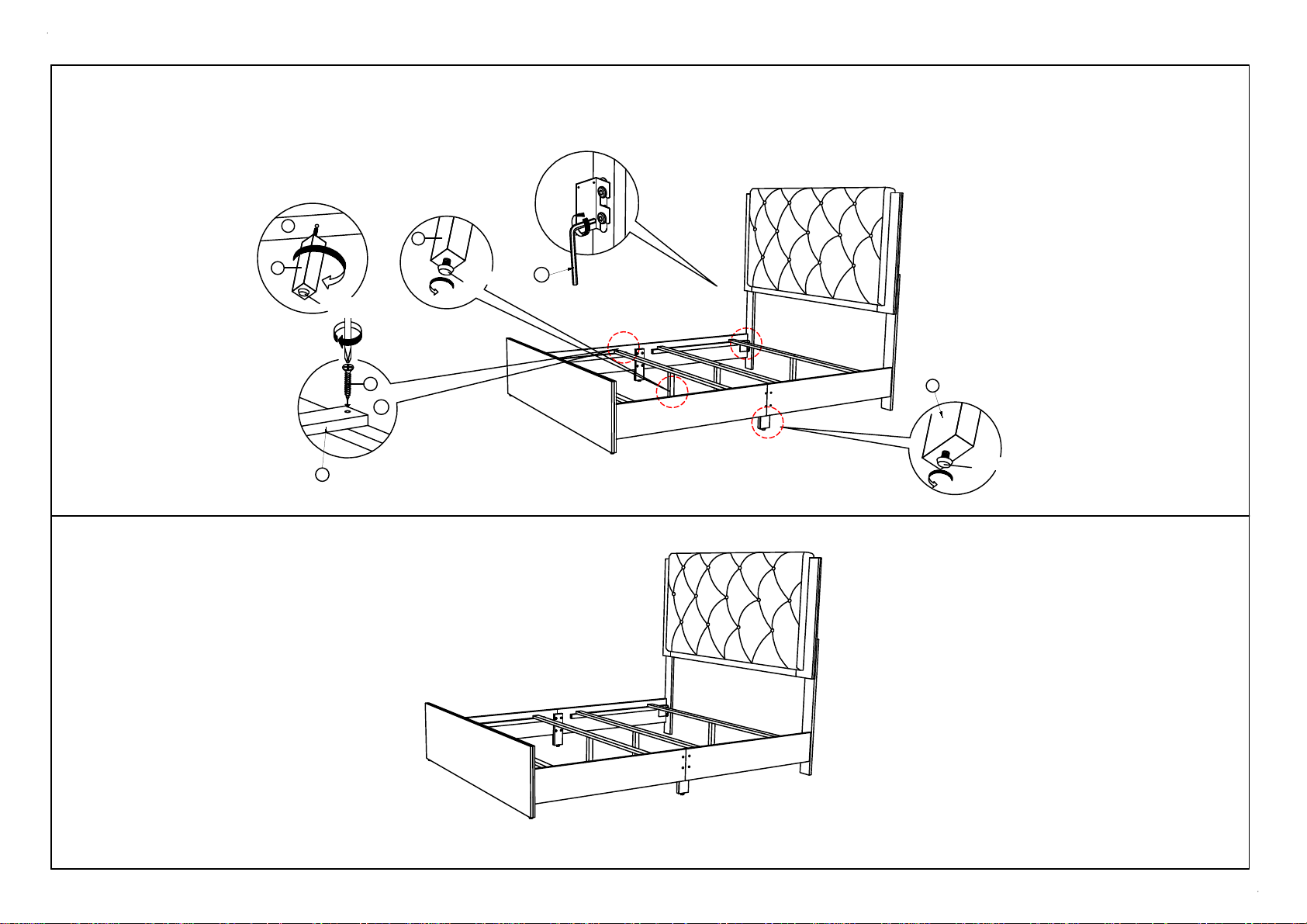

STEP 3 :
Tighten the 4 Corner with Allen Key (5).Fix the Bed Slat Support Leg (E ), to Bed Slat (D) as shown . Install the bed slat ( D ) to side
rail ( F ) & ( G ) and tighten with Csk Screw ( 6 ) as per diagram shown. (NOTE: THE SETUP MUST DONE AT THE DECIDED
LOCATION FOR THE BED TO OBTAIN PERFECT STABILITY)
5
STEP 3.1 :
STEP 3.3 :
E
leveler
D
E
leveler
STEP 3.2 :
Push the side rail(F) & (G) meet with wooden
slat(D) and fix the CSK screw (6)
by using the Screw Driver.
6
D
8x
F
STEP 3.4 :
ASSEMBLY INSTRUCTIONS
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS. PAGE 2 OF 2
COMPLETE ASSEMBLY
H
leveler
