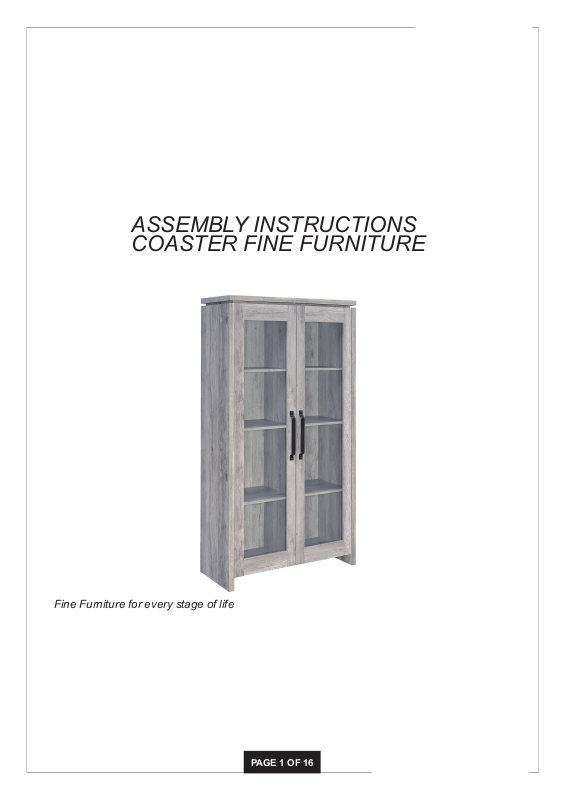

Page 1
Fine Furniture for every stage of life
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
PAGE 1 OF 16
Page 2
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIME
PARTS IDENTIFICATION
60 MINUTES
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
(A) LEFT SIDE PANEL (G) LOWER CROSS BRACE
(B) RIGHT SIDE PANEL (H) BOTTOM PANEL
(C) LEFT CROSS BRACE (I) MIDDLE CROSS PANEL
(D) RIGHT CROSS BRACE (J) TOP PANEL
1 PC 1 PC
1 PC 1 PC
1 PC 1 PC
1 PC 1 PC
(E) UPPER DIVIDER PANEL (K) UPPER CROSS BRACE
(F) LOWER DIVIDER PANEL
1 PC 1 PC
1 PC 2 PCS
PAGE 2 OF 16
(L) GLASS DOOR
Page 3
(M) ADJUSTABLE SHELF (0) UPPER RIGHT BACK PANEL
4 PCS
1 PC
(N) UPPER LEFT BACK PANEL
Z
NO NO
DESCRIPTION DESCRIPTION
GLUE 40g HANDLE
1 10
WOODEN DOWEL
2 11
Ø 8x30mm
WOODEN DOWEL
3 12
Ø 8x50mm
CA M BOLT
4 13
Ø 7x35.5mm
HARDWARE IDENTIFICATION
FIGURE FIGUREQ’TY Q’TY
1 PC
1 PC 2 PCS
21 PCS 4 PCS
2 PCS 4 PCS
19 PCS 6 PCS
(P) LOWER BACK PANEL
HANDLE BOLT
M5x25mm
NUT M5
HINGE
2 PCS
CAM LOCK
5 14
Ø 15x12mm
SCREW
6 15
Ø4.5x42mm
PLASTIC FEET
7 16
Ø 15m m
PIN
8 17
Ø 4.9x8mm
SCREW
9
Ø 4x28mm
19 PCS 24 PCS
4 PCS 6 PCS
5 PCS 6 PCS
16 PCS 4 PCS
6 PCS
HINGE SCREW
Ø 4x15mm
FIXER
FIXER SCREW
Ø 3x19mm
STICKER
Ø 20mm
Z10,Z11,Z12,Z13 not included in blister packaging.
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
PAGE 3 OF 16
Page 4
STEP 1
B
2
4
x 4 x 10
7
x 4
4
D
INCORRECT
7
A
C
CORRECT
2
Apply glue on all wooden dowels to
ensure integrity of the structure.
PAGE 4 OF 16
Page 5
STEP 2
2
x 17
3
x 2
H
E
4
x 9
7
x 1
F
2
3
J
Apply glue on all wooden dowels to
ensure integrity of the structure.
7
2
4
I
G
PAGE 5 OF 16
Page 6
9
C
x 6
9
A
D
B
STEP 4
5
17
x 2x 2
5
I
5
B
1
PAGE 6 OF 16
Apply glue on all wooden dowels to
ensure integrity of the structure.
17
Page 7
STEP 5
O
I
STEP 6
6
x 2
E
I
6
1
Apply glue on all wooden dowels to
ensure integrity of the structure.
PAGE 7 OF 16
Page 8
STEP 7
I
P
B
STEP 8
Apply glue on all wooden dowels to
ensure integrity of the structure.
F
5
x 2
1
17
x 2
I
5
PAGE 8 OF 16
Page 9
STEP 9
H
F
B
STEP 10
6
H
1
Apply glue on all wooden dowels to
ensure integrity of the structure.
5
6
x 2 x 2
17
x 2
PAGE 9 OF 16
5
Page 10
STEP 11
G
H
STEP 12
P
1
Apply glue on all wooden dowels to
ensure integrity of the structure.
5
x 1
N
K
17
x 1
PAGE 10 OF 16
5
Page 11
STEP 13
A
5
x 5
17
x 5
K
1
Apply glue on all wooden dowels to
ensure integrity of the structure.
STEP 14
H
A
I
5
5
x 7
17
J
x 7
PAGE 11 OF 16
5
Page 12
STEP 15
8
x 16
M
M
8
M
M
STEP 16
L
x2
13
x 6 x 12
14
13
14
PAGE 12 OF 16
Page 13
STEP 17
14
x 12
14
L
L
(B)
(C)
(A)
(A)
(B)
(C)
STEP 18
12
10
11
L
L
10
11
x 2 x 4
12
x 4
PAGE 13 OF 16
Page 14
STEP 19
P
P
15
x 6 x 6
15
15
16 16
16
STEP 20
COMPLETE
PAGE 14 OF 16
Page 15
407mm(16")
412mm(16")
765mm(30")
895mm(35")
395mm(15.5")
337mm(13.25")
432mm(17")
397mm(15.5")
845mm(33.25")
407mm(16")
1752mm(68.75")
81mm(3")
Note : Dimension tolerance ±5%
PAGE 15 OF 16
Page 16
ANTI-TIPPING INSTALLMENT INSTRUCTIONS
FURNITURE TIPPING RESTRAINT
WARNING
Injury may result from tipping furniture.
This restraint may protect against tipping furniture.
Do not allow children to climb on furniture.
This restraint is not a substitute for proper adult supervision.
Failure to detach this restraint before moving the furniture
may result in injury and damage.
1. To attach the anti-tip strap, securely mount one end to the top of the case piece with
the 5/8” screw.
2. Position the case piece against the wall in the desired location.
3. Pull the anti-tip strap taut and mark the position of where you will secure the other end
on the wall.
4. Drill a 1-1/4” hole in the spot you marked.
5. Tap in plastic wall plug.
6. Fasten anti-tip strap with wall screw provided.
(Please install the anti-tiping kit in the middle of the case piece if only have one set of anti-tipping kit.)
WALL
PAGE 16 OF 16
