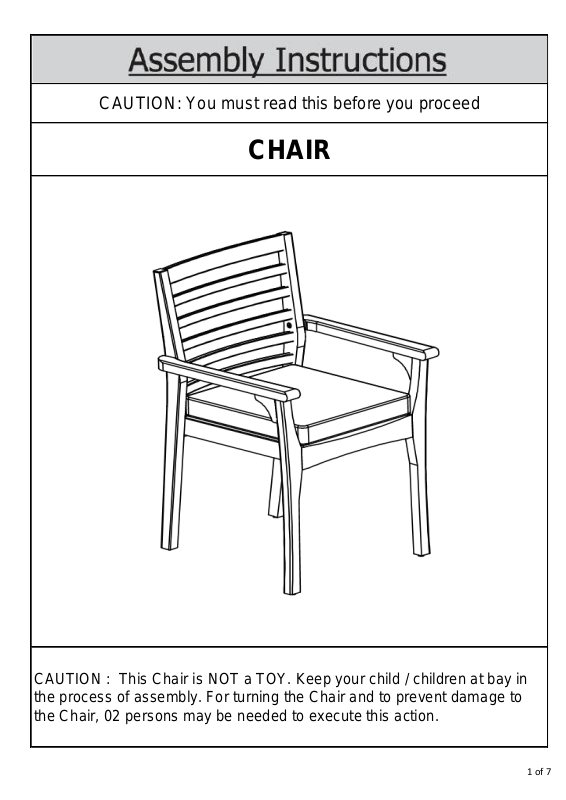

CAUTION: You must read this before you proceed
CAUTION : This Chair is NOT a TOY. Keep your child / children at bay in
the process of assembly. For turning the Chair and to prevent damage to
the Chair, 02 persons may be needed to execute this action.
CHAIR
1 of 7
Label Picture Description Qty
A
Backrest Panel 1
B
Front Leg Panel 1
C
Seat Panel 1
D
Right Arm Panel 1
E Left Arm Panel 1
F
Seat Cushion 1
No. Picture Description Qty
① Allen Key 2
② Screw (M6*35mm) 3
③ Bolt (M6*45mm) 9
2 of 7
Before Beginning Assembly:
This Chair has multiple parts and may require up to some 30 minutes to
assemble. To give you an overview of the Chair the above picture to
assemble to help you put the various parts into perspective. Please read
through the instructions here below to familiarise the parts and steps before
assembly.
OVERVIEW
Backrest
Panel (A)
Left Arm Panel
(E)
Seat Cushion (F)
Right Arm (D)
Panel
Seat Panel (C)
Front Leg
Panel (B)
FRONT FACING
3 of 7
Place Backrest Panel (A) with its underside facing skywards onto a clean,
soft surface to avoid any scratch or damage to the product.
Position Seat Panel (C) with Front Leg Panel (B) to Backrest Panel (A) as
the picture above, then using 3 Bolts (③) and Allen Key (①) to secure
these parts.
Do not fully tighten the Bolts.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Step 2
Place Front Leg Panel (B) with its underside facing skywards onto a clean,
soft surface to avoid any scratch or damage to the product.
Attach Seat Panel (C) to Front Leg Panel (B) using 3 Bolts (③) and Allen
Key (①).
Do not fully tighten the Bolts.
Step 3
4 of 7
With assistance from your adult partners, turn the chair in right side up.
Position Right Arm Panel (D) and Left Arm Panel (E) onto the tenon of Front
Leg Panel (B).
4.1) Secure Right Arm Panel (D) and Left Arm Panel (E) to Front Leg Panel
(B) using 2 Screws (②) and Allen Key (①).
4.2) Attach Right Arm Panel (D) and Left Arm Panel (E) to Backrest Panel
(A) using 2 Bolts (③) and Allen Key (①).
Do not fully tighten Screws and Bolts.
Step 4
4.1
4.2
B
5 of 7
Step 6
Place Seat Cushion (F) on to the Chair and lay down the Chair, then tie the
velcro straps of Seat Cushion (F) to Seat Panel (C) as shown above.
Your Chair is ready for use.
This Chair can only be used on a flat, level surface.
Step 5
Stand the Chair up, with assistance from your adult partner.
Exert pressure floorwards, onto the Chair with both your hands.
This pressure will help the Legs and Chair reach full alignment status.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten Bolts and Screws in a sequential
manner, until evenly secured.
When tightening Bolts and Screws tighten sequentially.
Do not tighten any Bolt and Screw fully and then move on towards the
next one.
If there are still wobbles, loosen Bolts and Screws and excute the
same above process.
6 of 7
