Union Rustic W000121183 Installation & Assembly

Product Name:

Wood 8ft x 2ft Raised Garden Bed

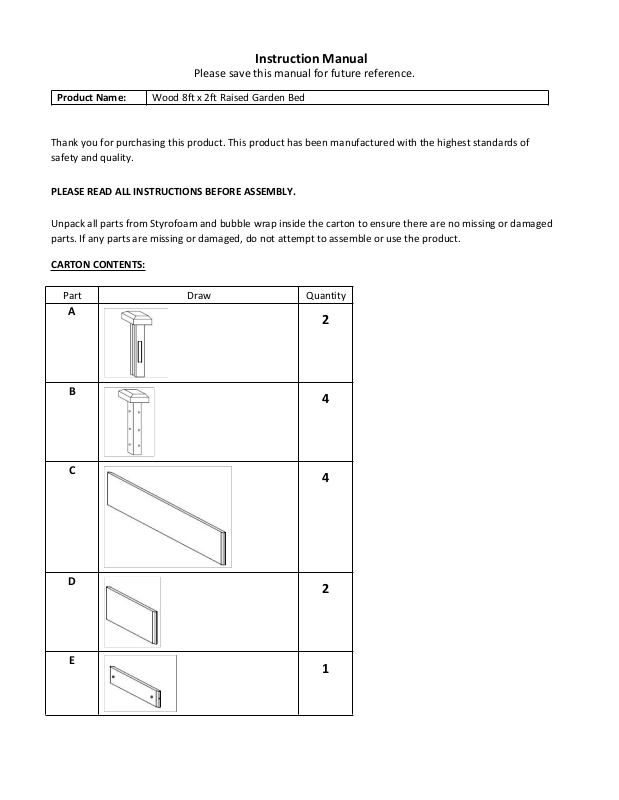

Instruction Manual

Part

Draw

Quantity

A

2

B

4

C

4

D

2

E

1

Please save this manual for future reference.

Thank you for purchasing this product. This product has been manufactured with the highest standards of

safety and quality.

PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.

Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged

parts. If any parts are missing or damaged, do not attempt to assemble or use the product.

CARTON CONTENTS:

a

Screw

36

b

Bolt and

Nut

2

Tools required for assembly: Philips screwdriver (if using power tools, use with care)

Do not completely tighten any bolts until the unit is fully assembled and sitting on a level surface. Tighten each

bolt nuts firmly. Do not over tighten any bolt nuts as this may cause stripping.

Assembly Instructions:

Step 1 Insert each (A) on both ends of (E). Align and screw in (b) bolt and secure with nut.

Step 2 Insert 2 (C) to (A) ends. Align (a) screws, insert, and drill. Insert (B) to both ends of D and insert to (C) on

each side. Align (a) screws, insert, and drill.

Step 3 On the opposite side, insert 2 (C) to (A) ends. Align (a) screws, insert, and drill. Insert (B) to both ends of D

and insert to (C) on each side. Align (a) screws, insert, and drill.

Final
