TOOLS REQUIRED:
1. Check the hardware against the hardware list
to make sure all items are present.
2. Assemble your furniture on a soft, flat surface
to avoid scratching the finish.
3. CAUTION: Do not over tighten screws, nuts
or bolts during assembly.
4. Your furniture may require occasional
tightening.

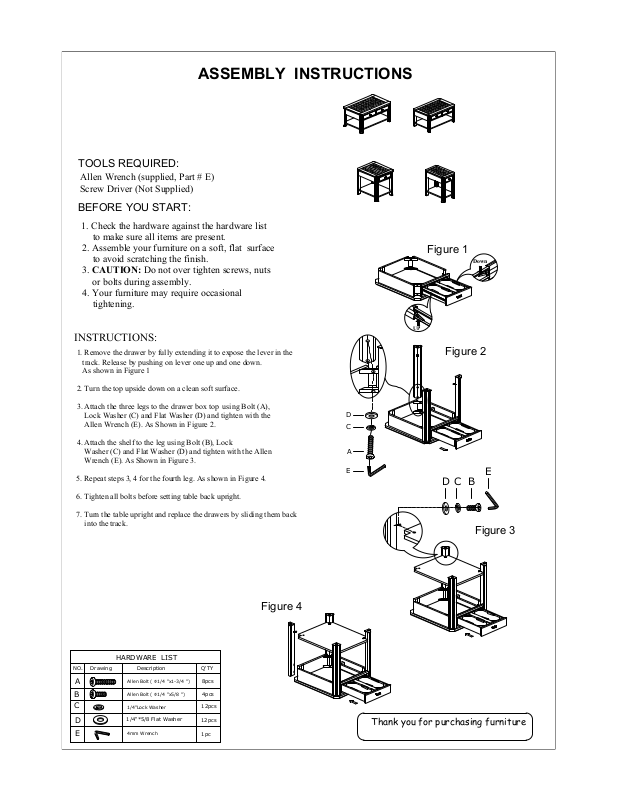

ASSEMBLY INSTRUCTIONS
BEFORE YOU START:
Allen Wrench (supplied, Part # E)
8pcs
A
12pcs
1/4"Lock Washer
Allen Bolt ( ∅1/4 "x1-3/4 ")
C
1/4"*5/8 Flat Washer
D
E
4mm Wrench
12pcs
1pc
B
Figure 1
Figure 3
Screw Driver (Not Supplied)
HARDWARE LIST
DrawingNO. Description Q'TY
D
C
A
E
4pcs
Allen Bolt ( ∅1/4 "x5/8 ")
UP
Down
DCB
E
1. Remove the drawer by fully extending it to expose the lever in the
track. Release by pushing on lever one up and one down.
As shown in Figure 1
2. Turn the top upside down on a clean soft surface.
3. Attach the three legs to the drawer box top using Bolt (A),
Lock Washer (C) and Flat Washer (D) and tighten with the
Allen Wrench (E). As Shown in Figure 2.
4. Attach the shelf to the leg using Bolt (B), Lock
Washer (C) and Flat Washer (D) and tighten with the Allen
Wrench (E). As Shown in Figure 3.
5. Repeat steps 3, 4 for the fourth leg. As shown in Figure 4.
6. Tighten all bolts before setting table back upright.
7. Turn the table upright and replace the drawers by sliding them back
into the track.
INSTRUCTIONS:
Figure 2
Figure 4
