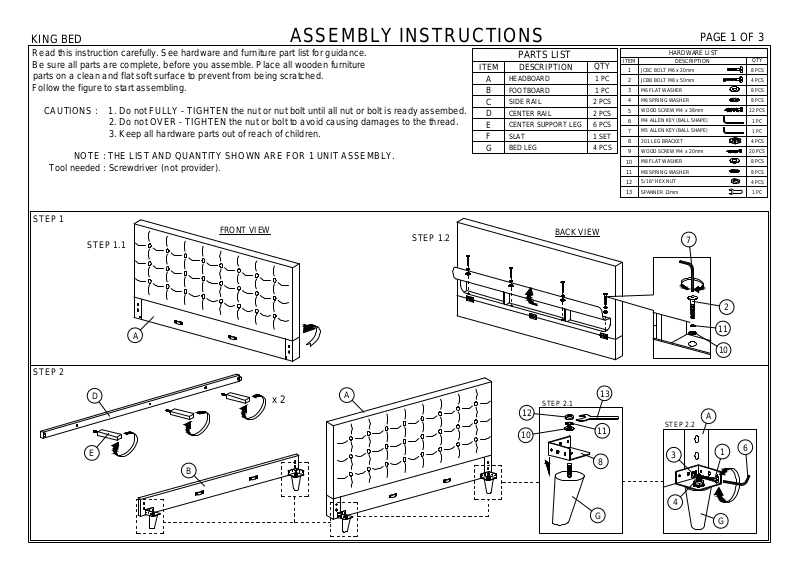

Page 1
PARTS LIST
ITEM DESCRIPTION
QTY
A
HEADBOARD 1 PC
B
FOOTBOARD 1 PC
C
SIDE RAIL 2 PCS
D
CENTER RAIL 2 PCS
E
CENTER SUPPORT LEG 6 PCS
HARDWARE LIST
ITEM DESCRIPTION
QTY
1
JCBC BOLT M6 x 20mm 8 PCS
2
JCBB BOLT M8 x 50mm 4 PCS
3
M6 FLAT WASHER 8 PCS
4
M6 SPRING WASHER 8 PCS
5
WOOD SCREW M4 x 38mm 12 PCS
6
M4 ALLEN KEY (BALL SHAPE)
1 PC
7
M5 ALLEN KEY (BALL SHAPE)
1 PC
8
201 LEG BRACKET 4 PCS
9
WOOD SCREW M4 x 20mm 20 PCS
10
M8 FLAT WASHER 8 PCS
11
M8 SPRING WASHER 8 PCS
12
5/16" HEX NUT
4 PCS
13
SPANNER 13mm 1 PC
F
SLAT 1 SET
G
BED LEG 4 PCS
STEP 2.1
STEP 1
STEP 2
PAGE 1 OF 3
B
E
D
A
12
10
13
11
8
G
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver (not provider).
STEP 2.2
6
G
1
A
3
4
x 2
BACK VIEW
FRONT VIEW
STEP 1.1
STEP 1.2
A
2
7
11
10
KING BED
ASSEMBLY INSTRUCTIONS
Page 2
ASSEMBLY INSTRUCTIONS
STEP 3
STEP 4
PAGE 2 OF 3
C
A
7
G
1
6
4
A
G
3
C
B
7
G
1
6
4
B
G
3
STEP 3.1
STEP 3.2
Don't screw tied.
STEP 4.1
STEP 3.2
Don't screw tied.
STEP 4.2
Don't screw tied.
STEP 4.2
Don't screw tied.
Page 3
ASSEMBLY INSTRUCTIONS
* When moving the bed position, the center support legs
must be adjust to be straight to avoid any broken problem.
STEP 5
STEP 7
5
PAGE 3 OF 3
F
A
D
A
D
9
STEP 5.1
STEP 5.2
9
9
STEP 5.1
STEP 5.2
STEP 6
STEP 8
**Finish step 5,
Please screw tied the step 3,4 bolt.
