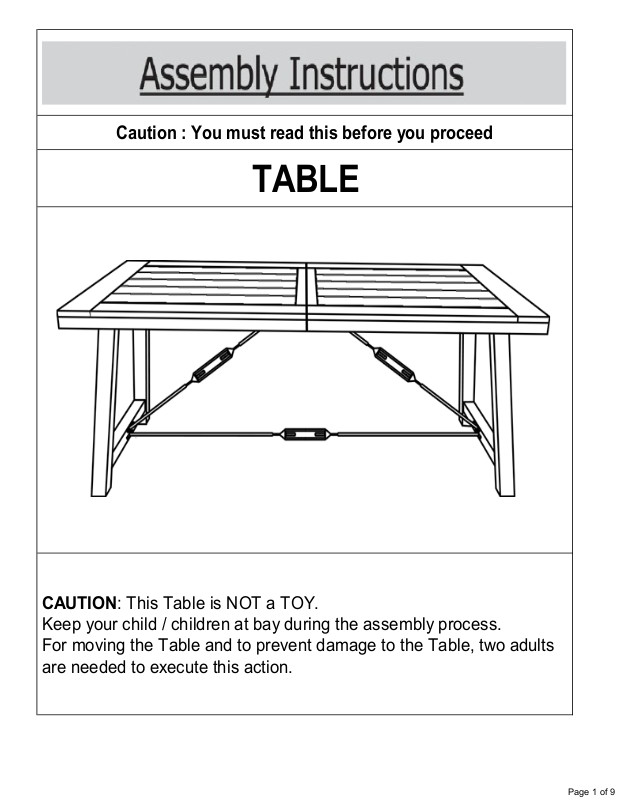

Caution : You must read this before you proceed
Page 1 of 9
TABLE
CAUTION: This Table is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Table and to prevent damage to the Table, two adults
are needed to execute this action.
Label Picture Description QTY
Page 2 of 9
A Table Top 1
B Iron Leg 2
C Support Bar 2
D Side Turnbuckle Set 2
E Bottom Turnbuckle Set 1
Label Picture Description QTY
1 Short Bolt (M8x20mm) 17
1
2 Washer 17
2
3
4
Long Bolt (M6x45mm) 3
Screw (M6x50mm) 13
5
6
Sleeve Nut (M6x20mm) 3
Allen Key 2
Before Beginning Assembly:
Page 3 of 9
OVERVIEW
Iron Leg (B)
Iron Leg (B)
Table Top (A)
Side Turrnbuckle
Set (D)
Bottom
Turnbuckle Set (E)
Side Turnbuckle
Set (D)
Iron Leg (B)
FRONT FACING
This Table has multiple parts and may require up to some 30 minutes to
assemble. To give you an overview of the Table parts, the above picture
is to help you put the various parts into perspective. Please read
through the instructions below to familiarise yourself with the parts and
steps before assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 4 of 9
Step 2
D
D
E
E
E
Step 3.1
A
3.2) Then lay the Table Top (A) facedown onto a clean, flat surface to
Step 2.1
Step 2.2
2.1) Connect the Side Turnbuckle Sets(D) together as shown in the
arrow above
2.2) Connect the Bottom Turnbuckle Set(E) together as shown in the
arrows above
Step 3
Step 3.2
3.1) With the assistance of an adult helper, unfold the Table Top(A) as
shown.
avoid any scratches or damage to the product.
Page 5 of 9Page 5 of 9Page 5 of 9
Step 4
Only loosely tighten the Screws.
A
B
① ②
⑥
Notice: The leg with hole should be face inside against
6
4
housings
C
A
Align Support Bar(C) to the housings on Table Top(A) and secure using
Screws(④) with Allen Key(⑥).
Repeat the same process with the other Support Bar(C).
Step 5
6
1
2
Attach Iron Leg(B) to Table Top(A) using Short Bolt(①) and Washer(②) with
Allen Key(⑥).
Only loosely tighten the Bolts.
Repeat the same process with the other Iron Leg(B)
Page 6 of 9
Step 6
Washer(②) with Allen Key(⑥)
①
Washer(②) with Allen Key(⑥)
③
Nut(⑤) with Allen Key(⑥).
B
D
2
1
6
A
Place Side Turnbuckle Set(D) between housing of Table Top(A) and Iron Leg(B).
Attach Side Turnbuckle Set(D) to Iron Leg(B) using Short Bolt(①) and
Only loosely tighten the Bolts.
Repeat the same process with the other Side Turnbuckle Set(D).
Step 7
6
5
3
D
6
A
Affix Side Turnbuckle Set(D) to Table Top(A) using Long Bolt(③) and Sleeve
Only loosely tighten the Bolts.
Page 7 of 9
Step 8
Attach the Bottom Turnbuckle Set(E) to Iron Legs(B) using Short Bolt(①) and
maximize stability and show the Turnbuckle Sets as place as the picture.
2
1
6
Washer(②) with Allen Key(⑥).
Only loosely tighten the Bolts.
E
Step 9
Stand the Table right side up.
Inspect it and make sure all parts are adequately connected.
In a sequential manner, tighten all Bolts and Screws until fully locked into position.
Notice: By hand, turn the Side Turnbuckle Sets (D) and Bottom Turnbuckle Set(E)
to fixed point on Turnbuckle Sets (D), (E) to further secure the Table and
Your Table is ready for use.
This Table can only be used on a flat, level surface.
Page 8 of 9

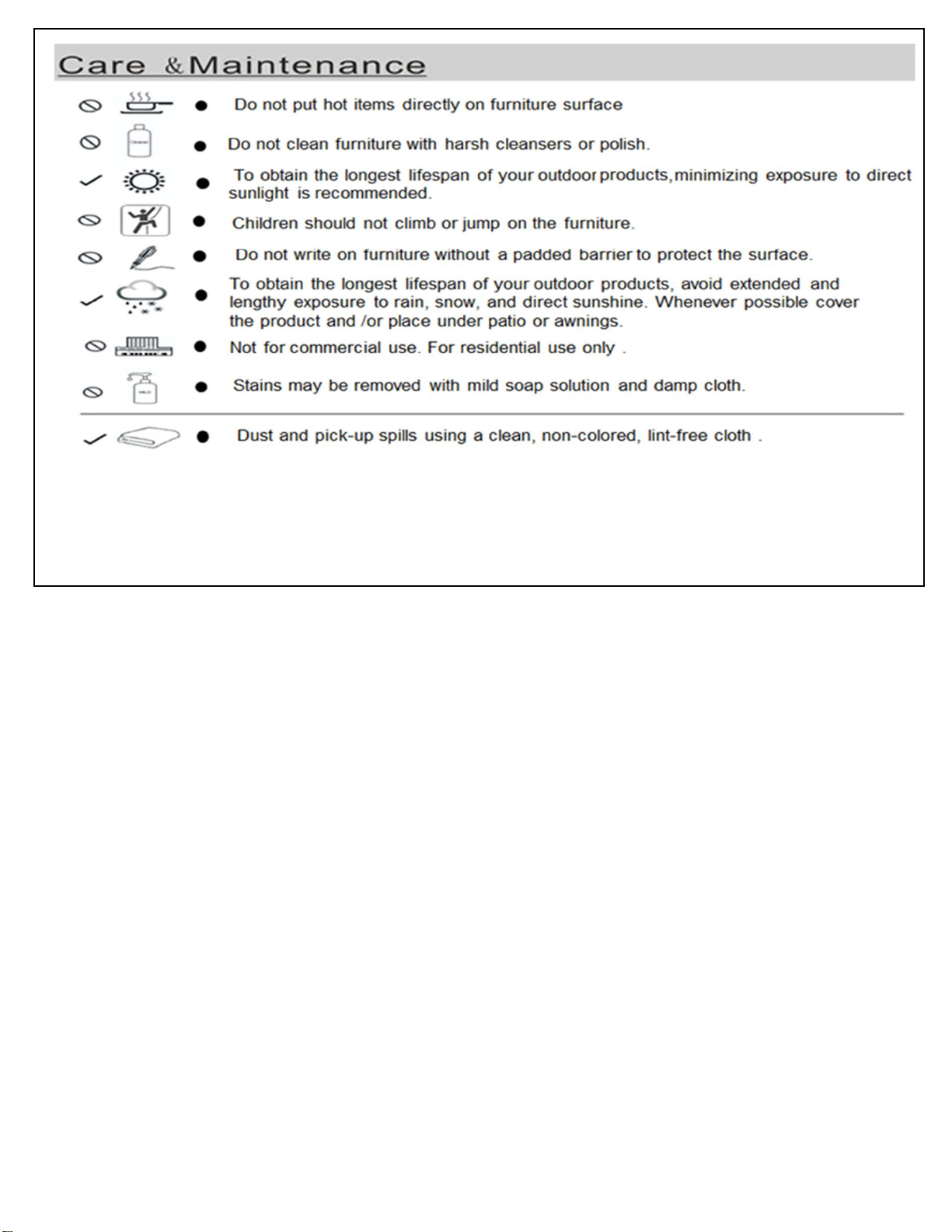

Page 9 of 9
