VIRDI 6000 TM Configuration Manual

Draft version eng-1.01

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

Disclaimers

Information in this document is provided in connection with UNION COMMUNITY
products. No license, express or implied, by estoppels or otherwise, to any
intellectual property rights is granted by this document. Except as provided in UNION
COMMUNITY’s Terms and Conditions of Sale for such products, UNION
COMMUNITY assumes no liability whatsoever, and UNION COMMUNITY disclaims
any express or implied warranty, relating to sale and/or use of UNION COMMUNITY
products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright or other intellectual property
right.

UNION COMMUNITY products are not intended for use in medical, life saving, life
sustaining applications, or other applications in which the failure of the UNION
COMMUNITY product could create a situation where personal injury or death may
occur. Should Buyer purchase or use UNION COMMUNITY products for any such
unintended or unauthorized application, Buyer shall indemnify and hold UNION
COMMUNITY and its officers, employees, subsidiaries, affiliates, and distributors
harmless against all claims, costs, damages, and expenses, and reasonable
attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that
UNION COMMUNITY was negligent regarding the design or manufacture of the part.

UNION COMMUNITY reserves the right to make changes to specifications and
product descriptions at any time without notice to improve reliability, function, or
design. Designers must not rely on the absence or characteristics of any features or
instructions marked "reserved" or "undefined." UNION COMMUNITY reserves these
for future definition and shall have no responsibility whatsoever for conflicts or
incompatibilities arising from future changes to them.

Please contact UNION COMMUNITY, local UNION COMMUNITY sales
representatives or local distributors to obtain the latest specifications and before
placing your product order.

About UNION COMMUNITY

With regard to any fingerprint-related issues, UNION COMMUNITY is always in
readiness to find out well fitted solutions, depending on customers’ requirements and
needs.

As a leading provider of fingerprint core technology, UNION COMMUNITY has set up
wide variety of fingerprint product lines from fingerprint OEM modules to several
choices of fingerprint finished products including access control, time & attendance,
door lock, PC peripherals, safety box, etc, that incorporate UNION COMMUNITY’s
groundbreaking biometrics technology. Based on its proprietary algorithm, its own

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

sensor and in-house one-stop processing capability regarding hardware, software,
product design, etc., our services to government sector and various commercial
sectors like security, construction and enterprise are in full swing through fast
problem-solving approach to meet market trends or demands. As a result, UNION
COMMUNITY exports its market-proven fingerprint products to over 40 countries
including Japan, USA, Europe and China.

As the biggest and the most promising company in the commercial sector of
biometrics industry in Korea, UNION COMMUNITY was awarded “Korean World­class Product Award” for its excellent performance by Minister of Commerce,
Industry and Energy in December 2005.

To be the world-class company in biometrics field, UNION COMMUNITY and all the
members continue to do all-out efforts for the world-best quality product, creation of
new paradigm and customers’ satisfaction through accumulated expertise and
working experience from various reference sites and versatile hardware & software
development.

About This Manual

This is an introduction to operation of VIRDI 6000 series supplied by UNION
COMMUNITY. This manual describes how to do user registration in local terminal,
terminal settings, network settings, etc. The purpose of this manual is to provide
instructions on using VIRDI 6000 series and troubleshooting minor problems.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

< Glossary>

l Admin, Administrator

- As a user who can enter into the terminal menu mode, he can

register/modify/delete terminal users and change the operating environment
by changing settings.

- If there is no administrator for a terminal, anyone can change the settings. In

this regard, it is recommended to register at least one administrator.

- Caution is required with registration and operation because an administrator

has the right to change critical environmental settings of the terminal.

l 1 to 1 Verification

- A user’s verification fingerprint (template) is compared to the user’s enrollment

fingerprint (template) previously registered. The terminal performs 1:1
matches against the user’s enrolled template until a match is found.

- It is called 1 to 1 Verification because only the fingerprint registered in the

user’s ID or card is used for comparison.

l 1 to N Identification

- The terminal performs matches against multiple fingerprints (templates) based

solely on fingerprint information.

- Without the user’s ID or card, the user’s fingerprint is compared to fingerprints

previously registered.

l I-Capture (Intelligent Capture)

- Reinforces detection capability for residual fingerprints (fingerprints left on a

sensor window due to sweat or contaminants on a finger) and automatically
adjusts sensor settings to detect good-quality fingerprints regardless of the
conditions (dry or wet) of the fingerprints.

l Authentication level

- Depending on the fingerprint match rate, it is displayed from 1 to 9.

Authentication is successful only if the match rate is higher than the set level.

- The higher the Authentication level, the higher the security. However, it

requires a relatively high match rate, so Authentication is vulnerable to failure.

- 1:1 Level: Authentication level used for 1:1 verification

- 1:N Level: Authentication level used for 1:N identification

l Authentication Method

- Various kinds of authentication including FP (fingerprint) authentication, PW

(password) authentication, RF (card) authentication, or a combination of these
methods

- Ex) FP|PW: fingerprint or password authentication; password is used for

authentication if fingerprint authentication fails

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

l Function keys
[F1], [F2], [F3], [F4], [ENTER] are used, and they are used for direct authentication
and each key represents each authentication mode.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

Table of Contents

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

.....................................................................................................................................

< Glossary>................................................................................................................ 4

Table of Contents....................................................................................................... 6

1. Before use............................................................................................................ 11

1.1.0. Safety precautions ................................................................................. 11

1.1.1. Terminal description .............................................................................. 12

1.1.2. List of Icons ............................................................................................ 13

1.1.3. Voice Operation ...................................................................................... 16

1.1.4. Sound Operation .................................................................................... 16

1.1.5. LED operation......................................................................................... 16

1.1.6. Touchscreen Usage................................................................................ 16

1.1.7. Correct fingerprint registration and input methods ............................ 18

2. Introduction .......................................................................................................... 20

2.1. Features ..................................................................................................... 20

2.2. Configuration............................................................................................. 23

2.2.1. Network configuration ........................................................................... 23

2.2.2. Standalone configuration ...................................................................... 23

2.3. Specifications ............................................................................................ 24

3. Device configuration settings ............................................................................... 25

3.1. Terminal Setup........................................................................................... 25

3.1.1. Entering Administrator Programming .................................................. 25

3.1.2. Administrator Main Screen.................................................................... 26

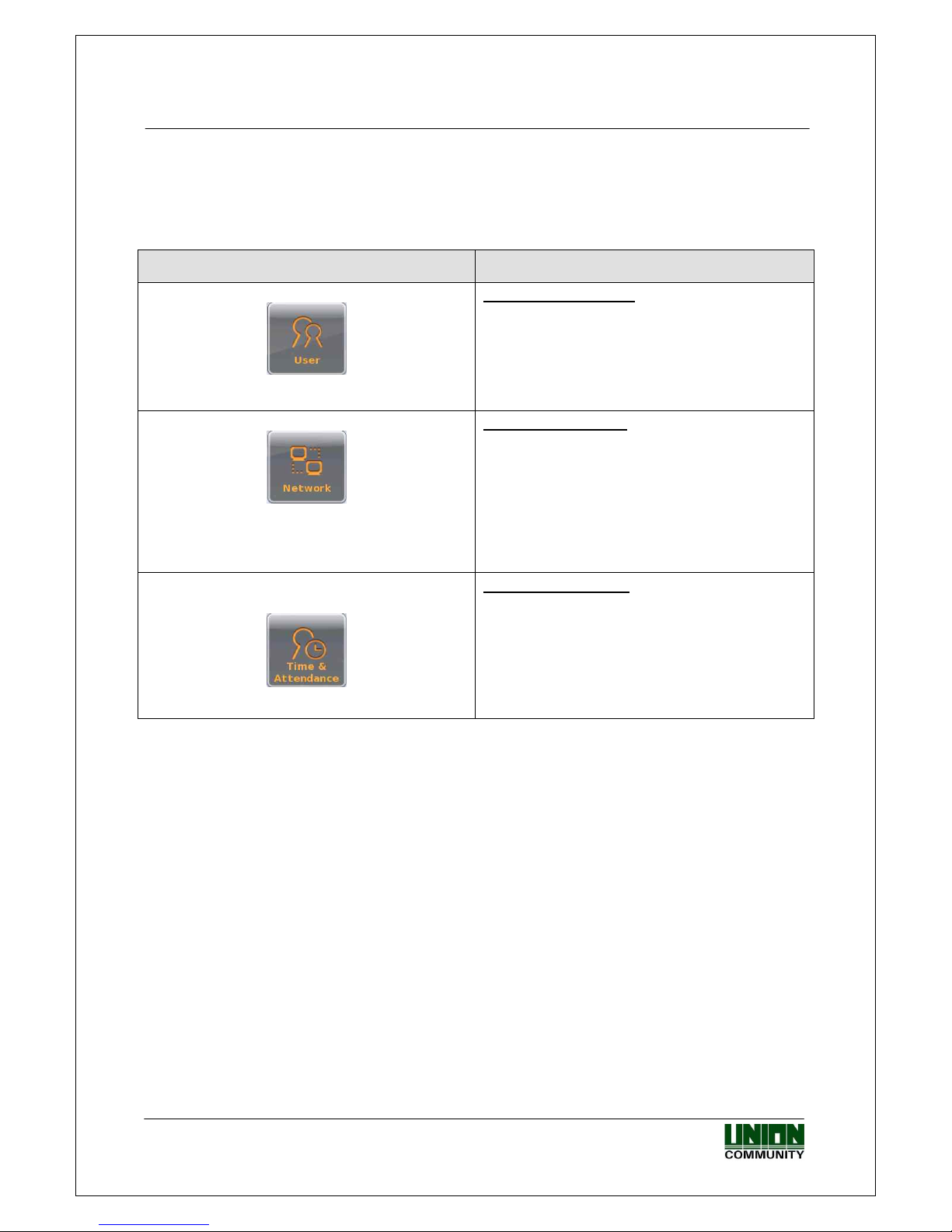

3.1.3. Programming Reference Chart ............................................................. 27

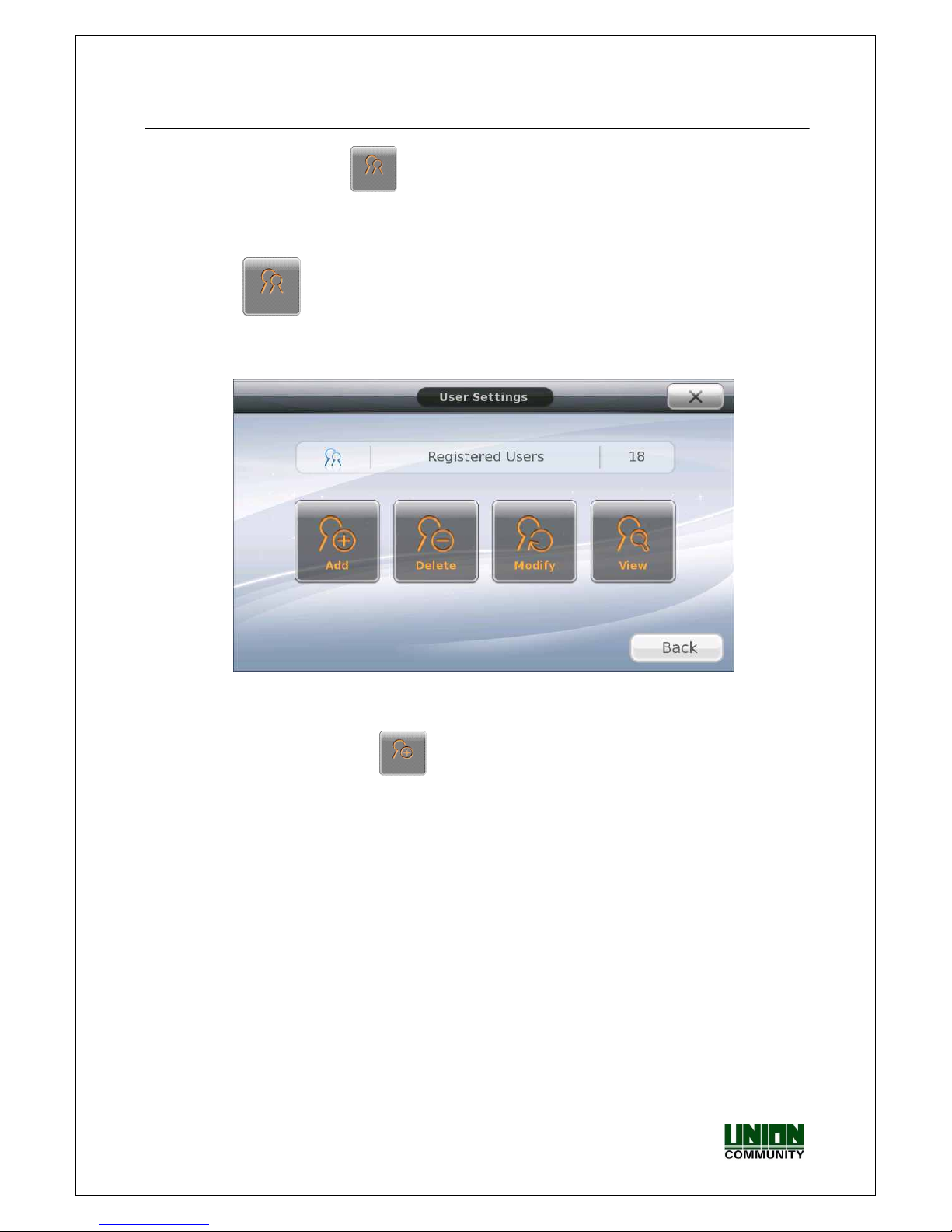

3.2. User Management ..................................................................... 30

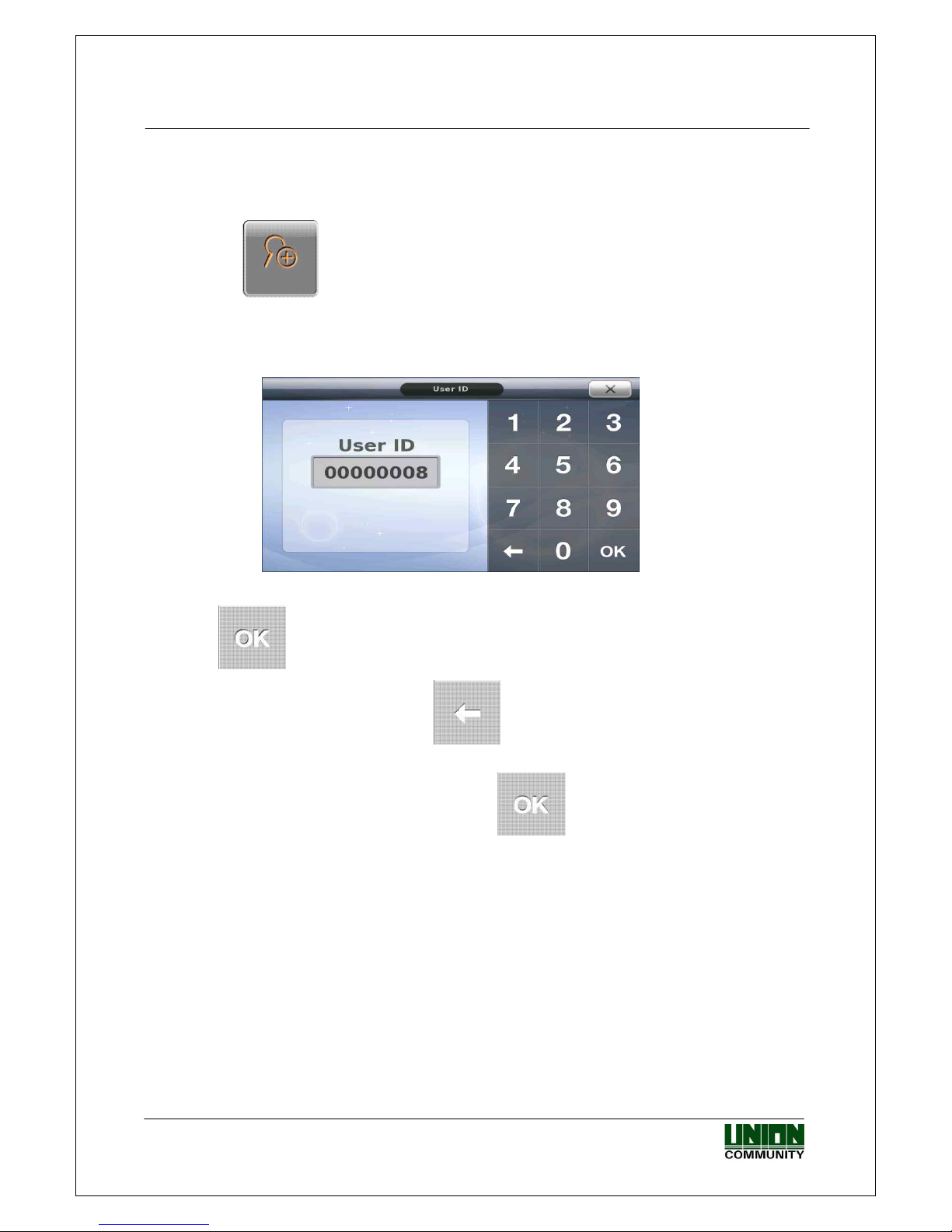

3.2.1. Registering a User .................................................................. 30

3.2.1.0. User Registration Window.................................................................. 32

3.2.1.1. Registering a Fingerprint .................................................... 33

3.2.1.2. Registering a Card ............................................................... 34

3.2.1.3. Registering a Password ...................................................... 35

3.2.1.4. Authentication Type ............................................................ 36

3.2.1.5. User Fingerprint Options .................................................... 38

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

3.2.1.6. User Picture Registration ................................................... 39

3.2.1.7. User Type (Normal/Administrator) ..................................................... 39

3.2.2. Deleting a User ................................................................... 40

3.2.3. Modifying a User ..................................................................... 41

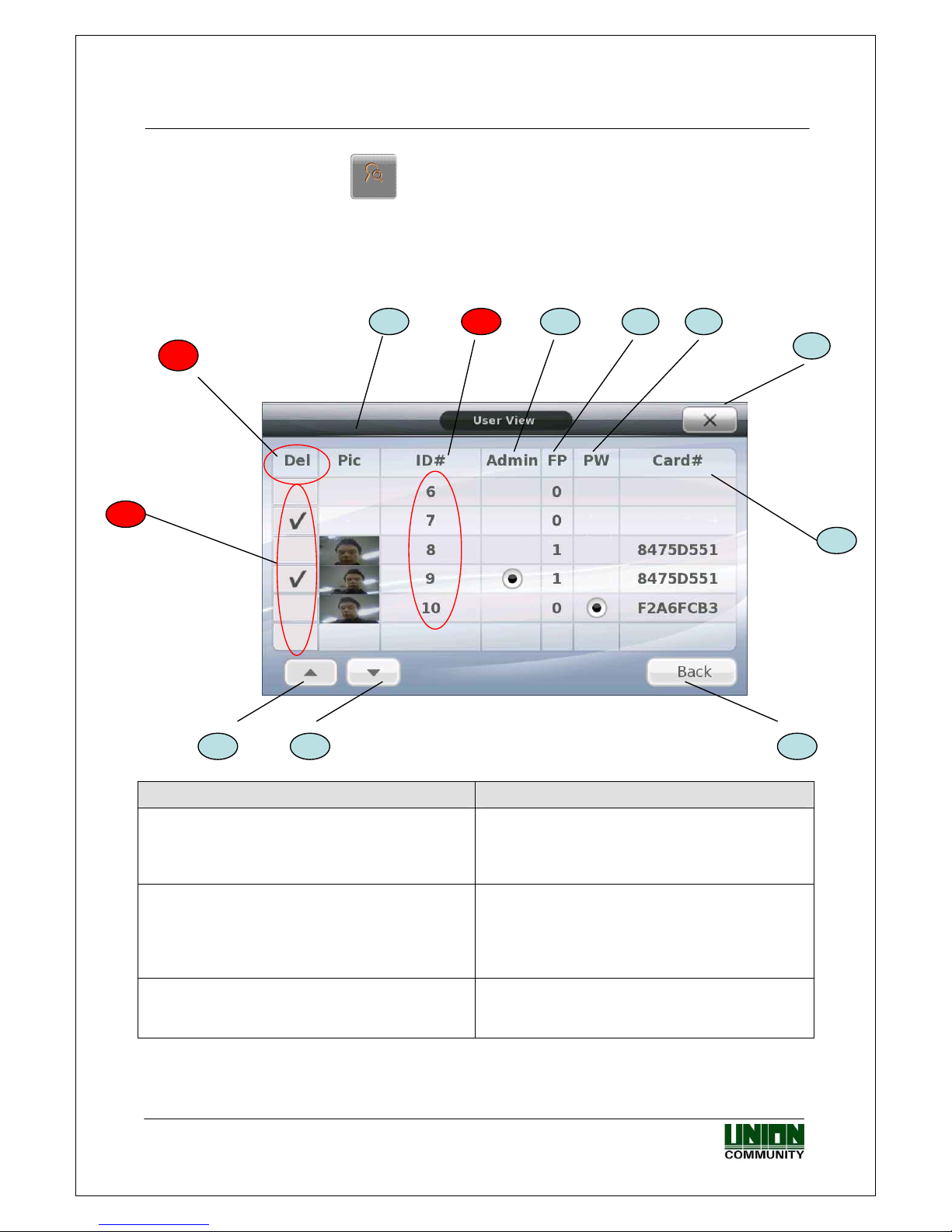

3.2.4. Viewing Users ................................................................... 42

3.3. Network Settings ..................................................................... 44

3.4. Time/Attendance Settings .......................................................... 45

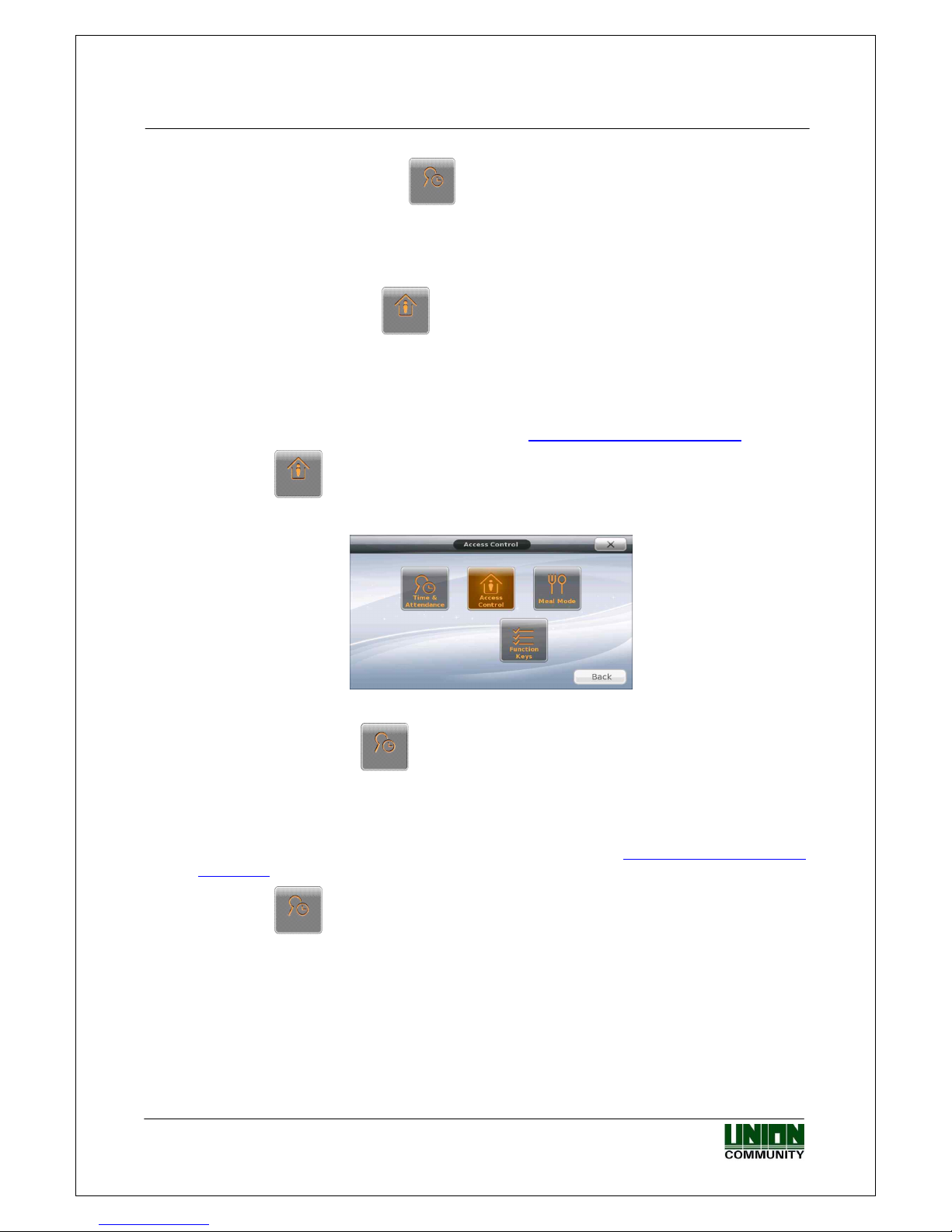

3.4.1. Access Control Mode ................................................................. 45

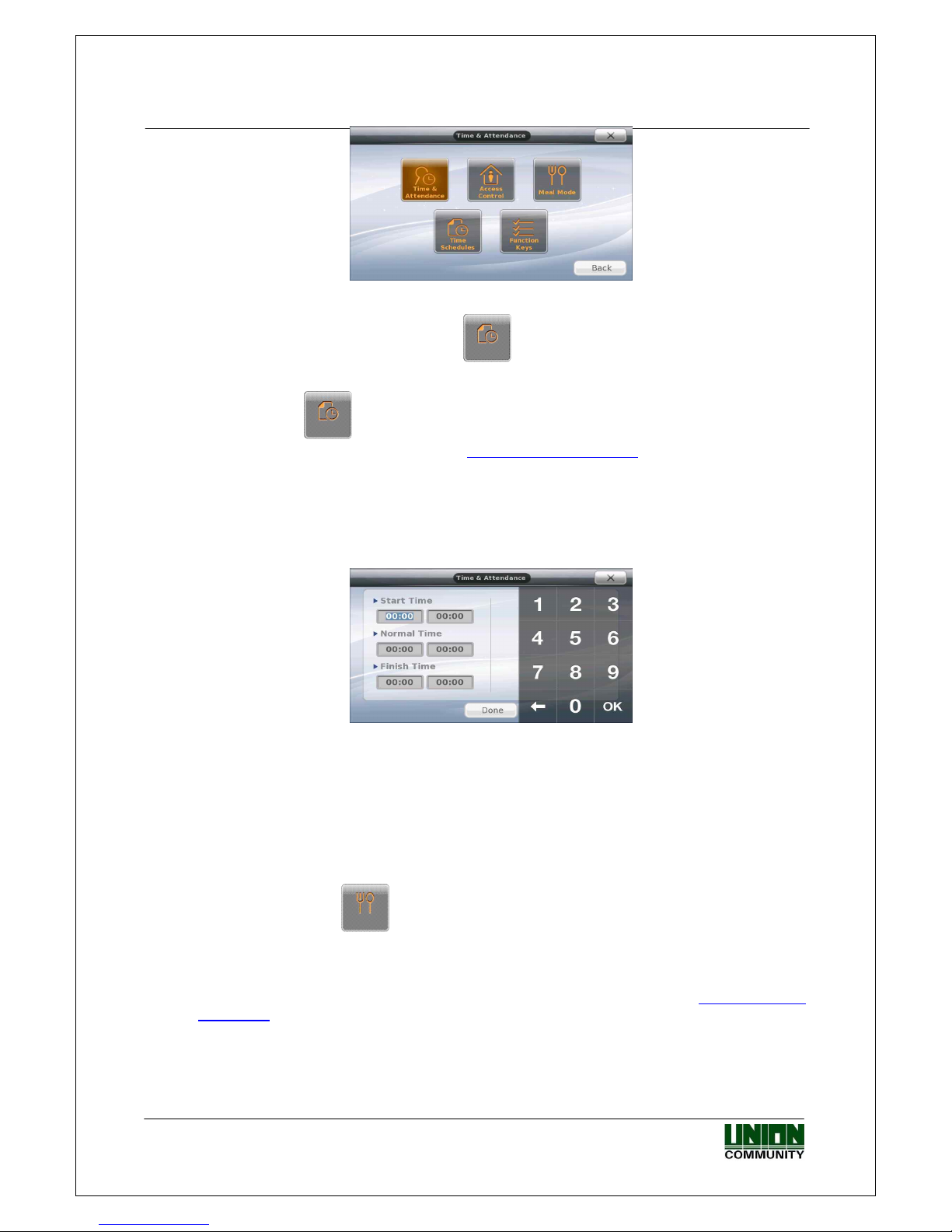

3.4.2. Time & Attendance ...................................................................... 45

3.4.2.1 Time & Attendance Schedules ................................................. 46

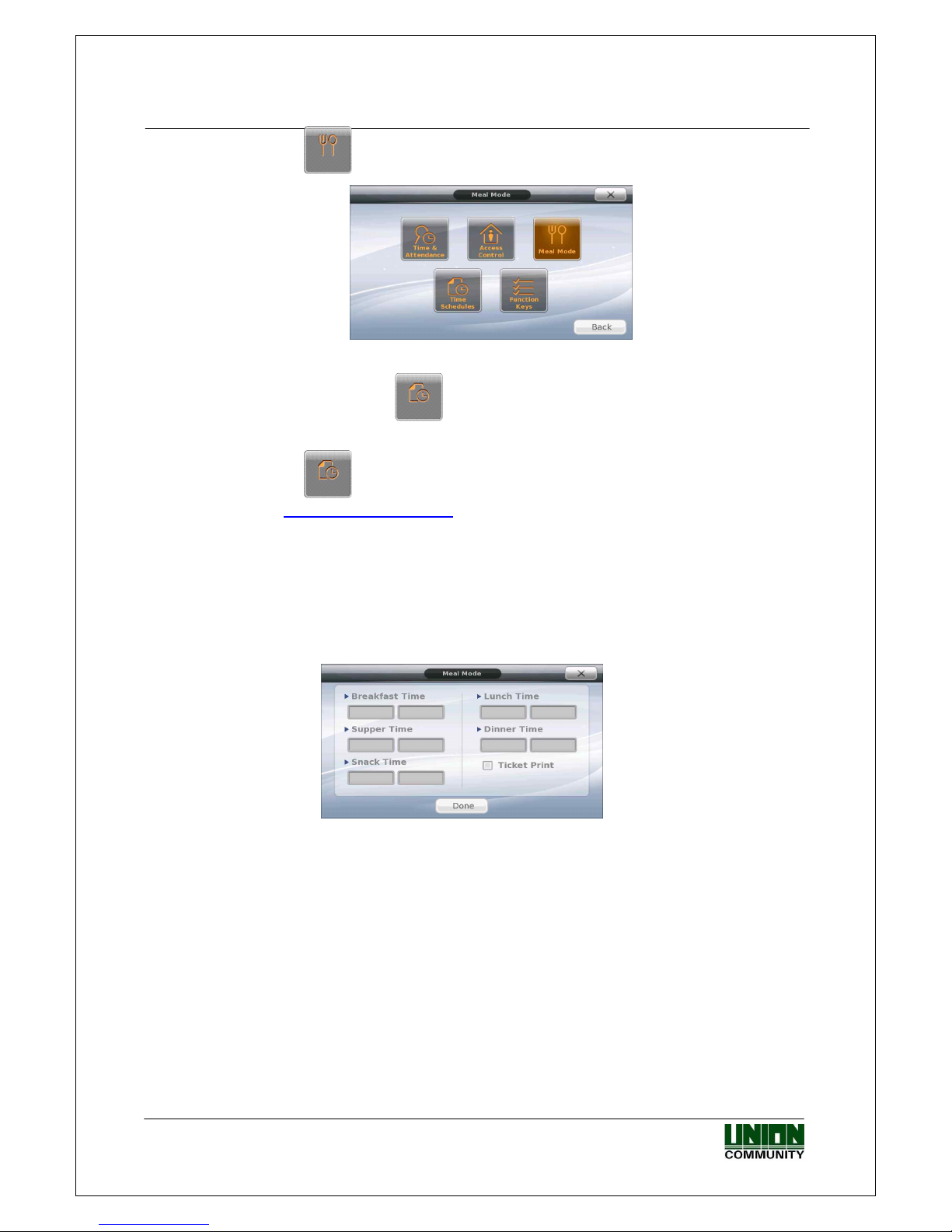

3.4.3. Meal Application .......................................................................... 46

3.4.3.1 Meal Mode Schedules ............................................................... 47

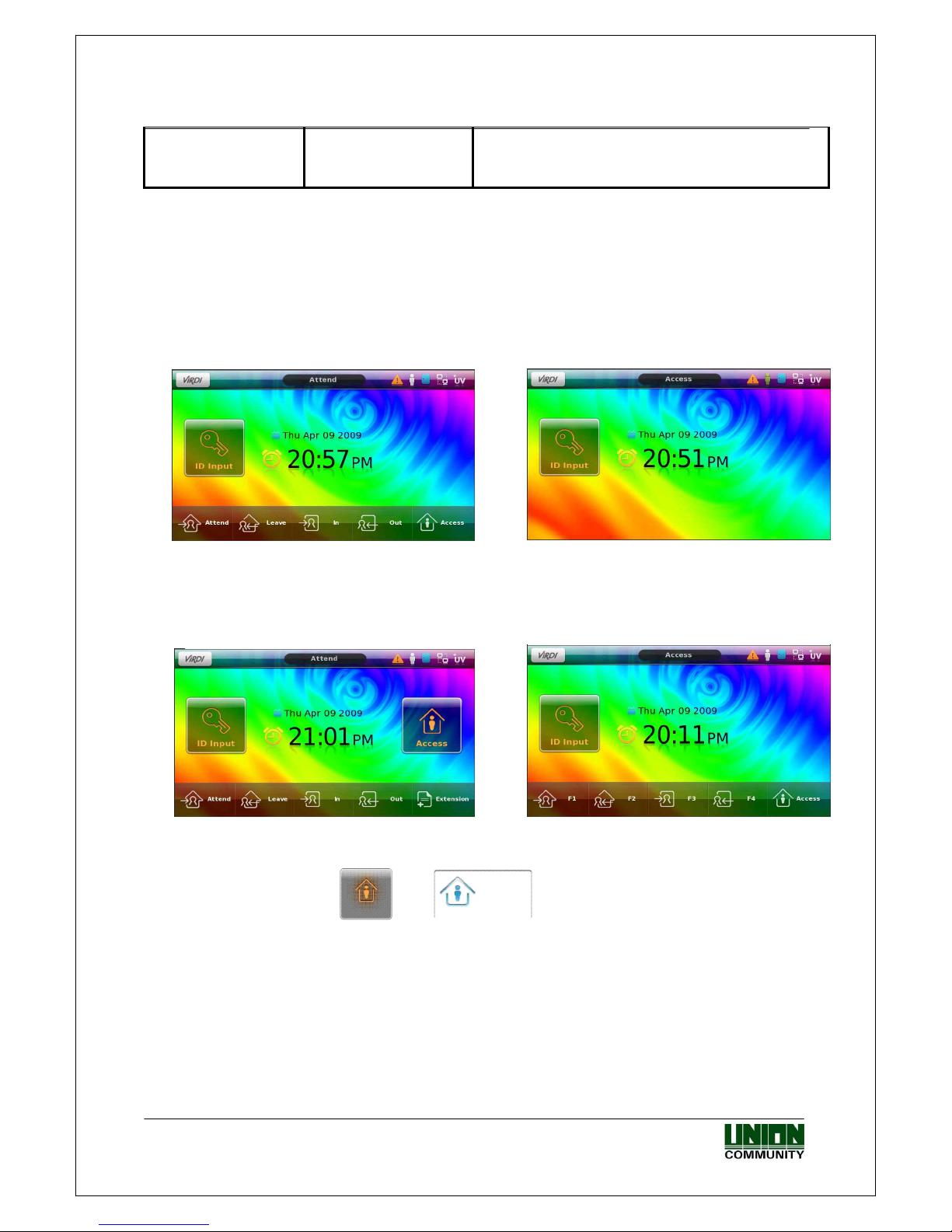

3.4.4. Function Key Programming .................................................. 48

3.4.4.1. Extended Function Keys.................................................................. 48

3.5. Terminal Settings ................................................................... 50

3.5.1. System Settings ...................................... 51

3.5.1.1. User ID Length..................................................................................... 51

3.5.1.2. Terminal ID Number............................................................................. 51

3.5.1.3. Authentication Mode ........................................................................... 51

3.5.1.4. Case Tamper ........................................................................................ 52

3.5.2. Display Settings ...................................... 52

3.5.2.1. Language ............................................................................................. 52

3.5.2.2. Screen Saver........................................................................................ 52

3.5.3. Sound Settings ............................................. 53

3.5.3.1. Voice Volume ....................................................................................... 53

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

3.5.3.2. Sound Volume ..................................................................................... 53

3.5.4. Date/Time Settings .................................... 54

3.5.3.2. Display Format .................................................................................... 54

3.5.3.2. Set Current Date .................................................................................. 55

3.5.3.3. Set Current Time ................................................................................. 56

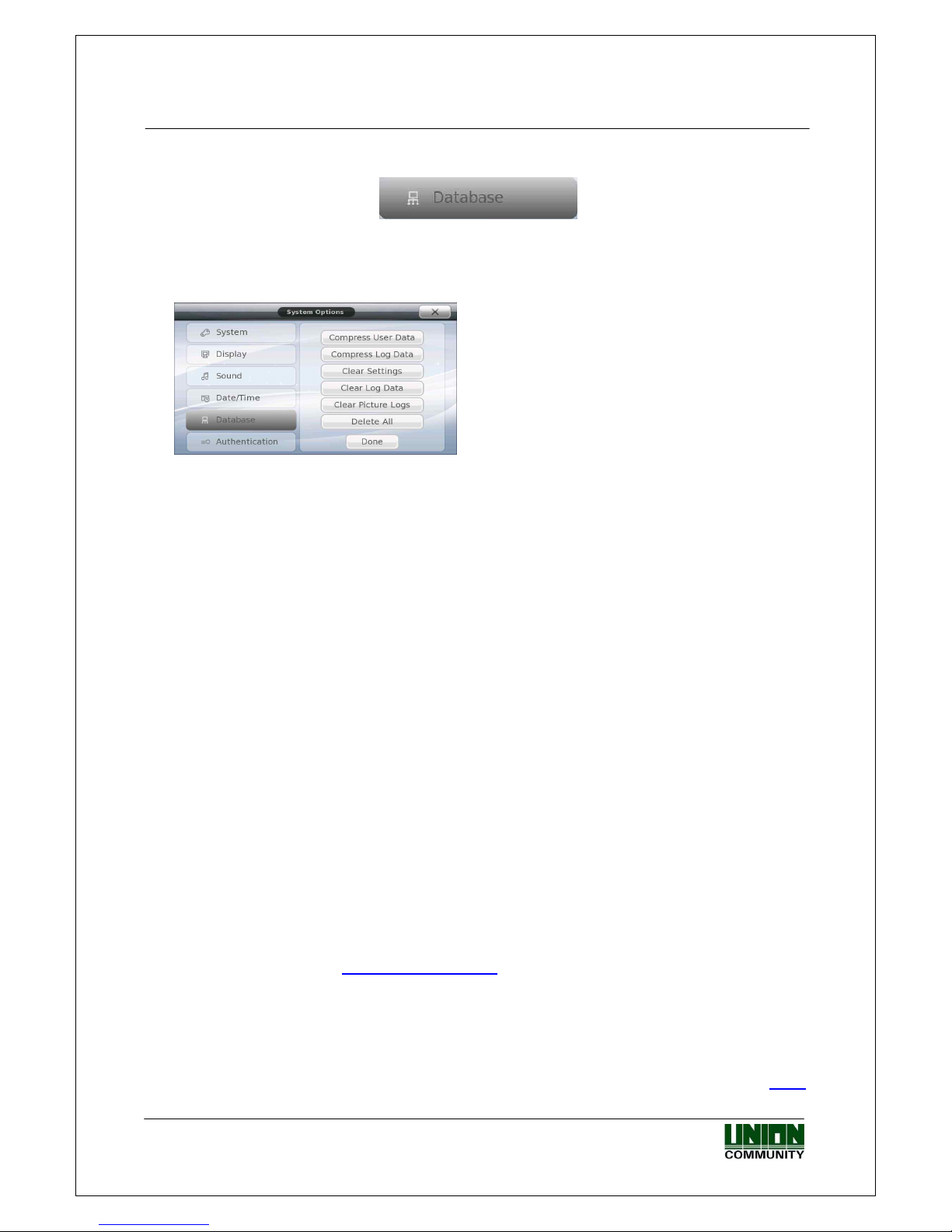

3.5.5. Database Options .................................... 57

3.5.5.1. Compress User Data ........................................................................... 57

3.5.5.2. Compress Log Data............................................................................. 57

3.5.5.3. Clear Settings ...................................................................................... 57

3.5.5.4. Clear Log Data ..................................................................................... 57

3.5.5.5. Clear Picture Logs............................................................................... 57

3.5.5.6. Delete All .............................................................................................. 58

3.5.6. Authentication Settings ........................... 59

3.5.6.1. User Group ID ...................................................................................... 59

3.5.6.2. User Display Option ............................................................................ 59

3.5.6.3. 1:N Matching........................................................................................ 60

3.5.6.4. Card Only ............................................................................................. 60

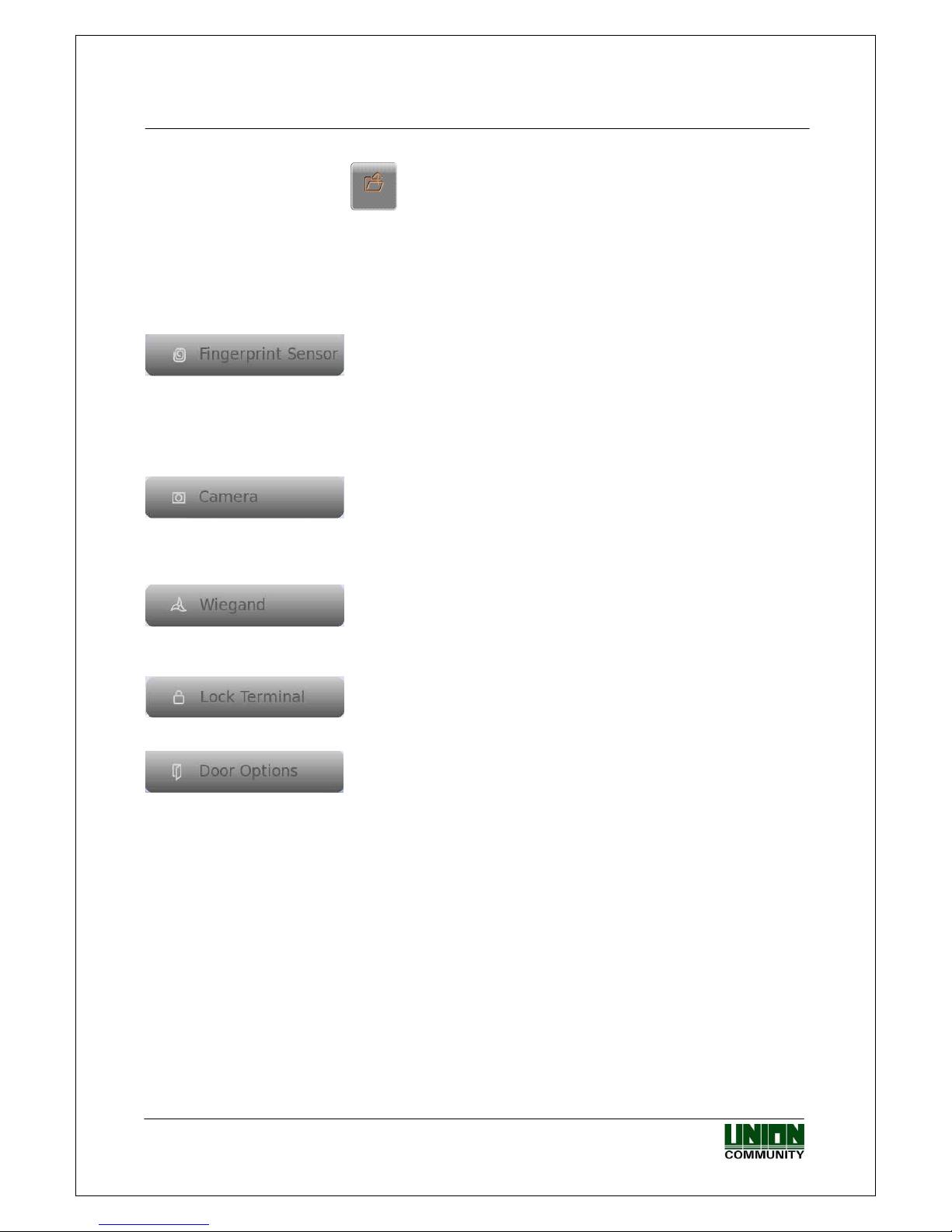

3.6. External Devices ................................................................... 61

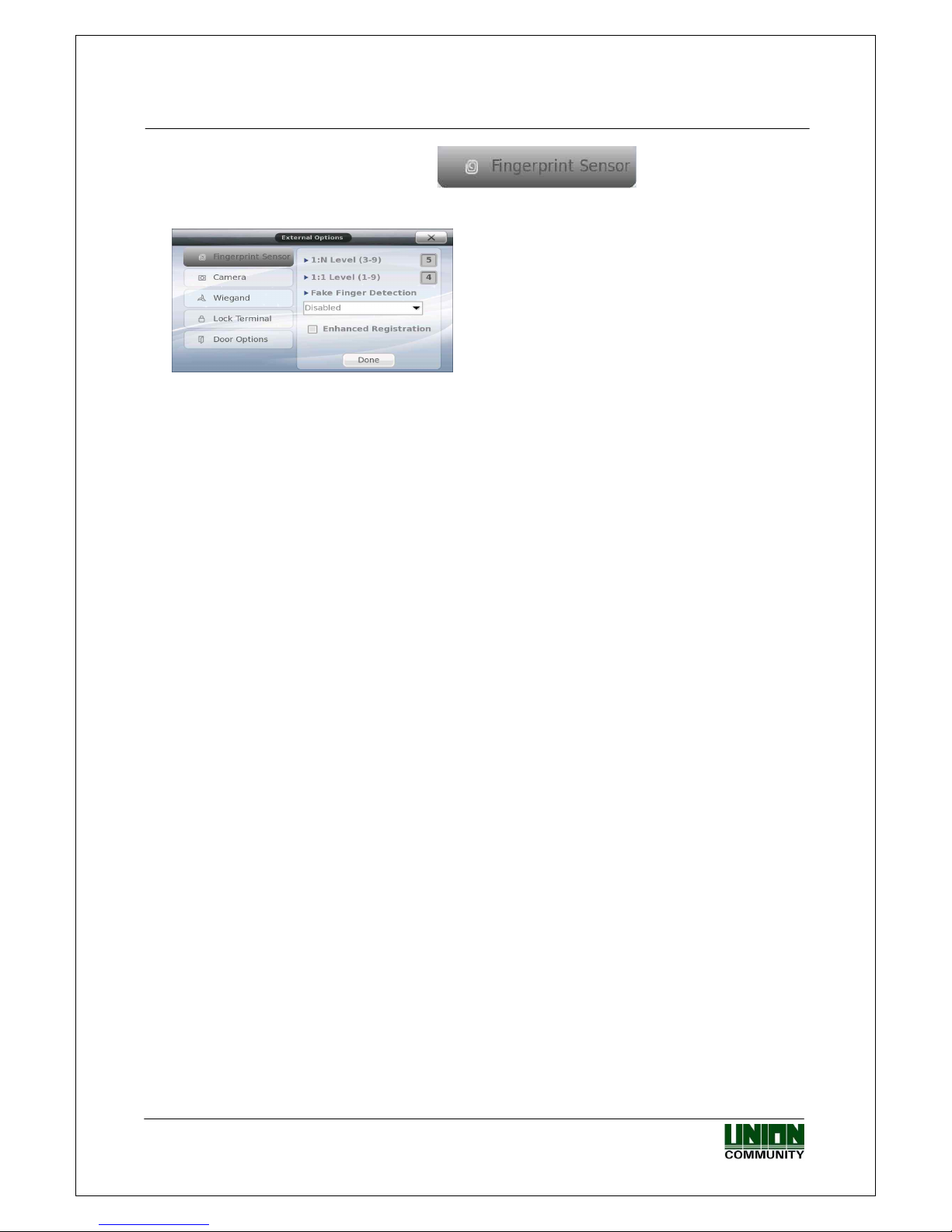

3.6.1. Fingerprint Sensor Settings ..................... 62

3.6.1.1. 1:N Level .............................................................................................. 62

3.6.1.2. 1:1 Level ............................................................................................... 62

3.6.1.3. Fake Finger Detection ......................................................................... 62

3.6.1.4. Enhanced Registration ....................................................................... 63

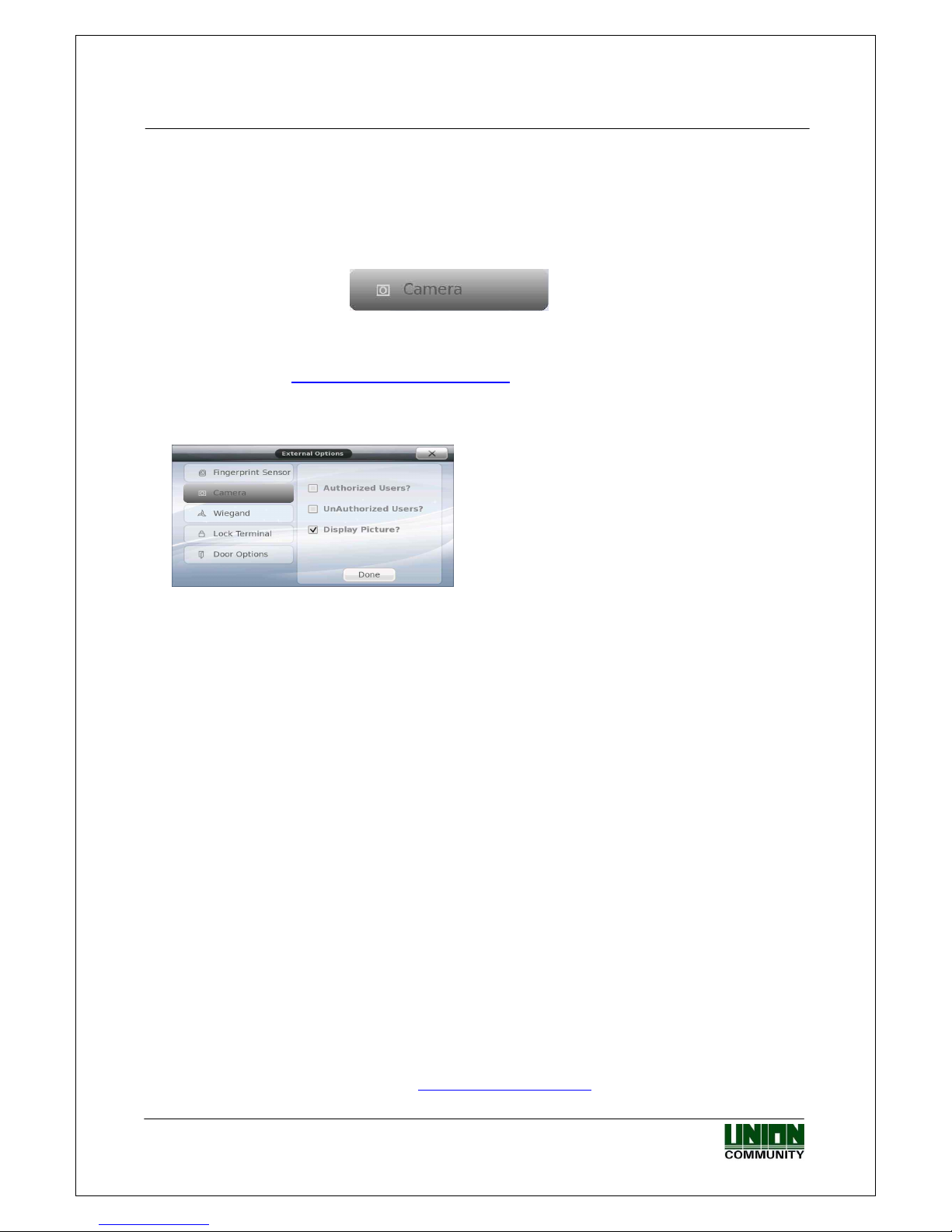

3.6.2. Camera Settings ...................................... 63

3.6.2.1. Camera Authorized Users................................................................... 63

3.6.2.2. Camera Unauthorized Users .............................................................. 63

3.6.2.3. Camera Display Picture ...................................................................... 63

3.6.3. Wiegand Settings ...................................... 64

3.6.3.1. Site Code.............................................................................................. 64

3.6.3.2. Format .................................................................................................. 64

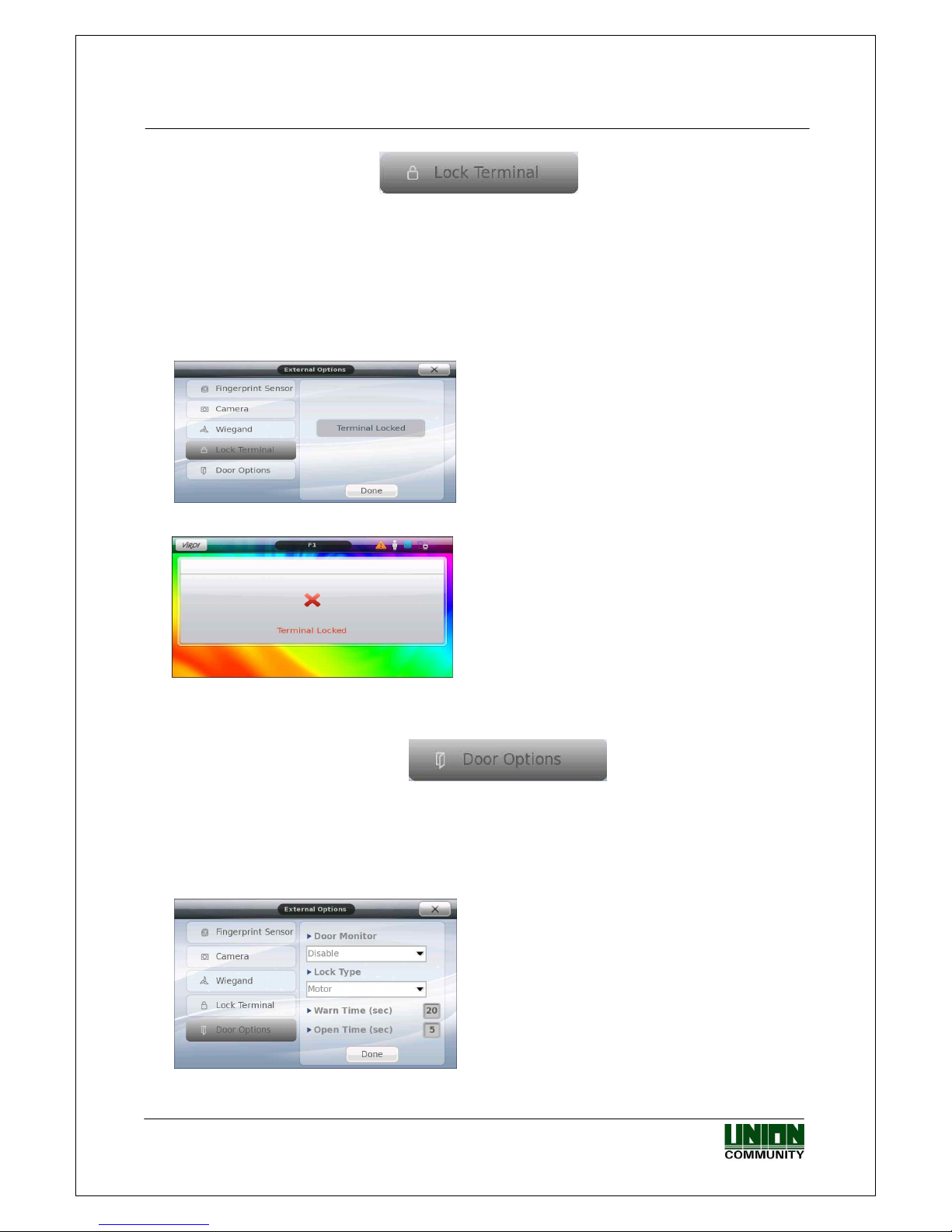

3.6.4. Terminal Locking .................................... 65

3.6.4. Door Option Settings ............................... 65

3.6.4.1. Door Monitor........................................................................................ 66

3.6.4.2. Lock Type ............................................................................................. 66

3.6.4.3. Warn Time ............................................................................................ 66

3.6.4.4. Open Time............................................................................................ 66

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

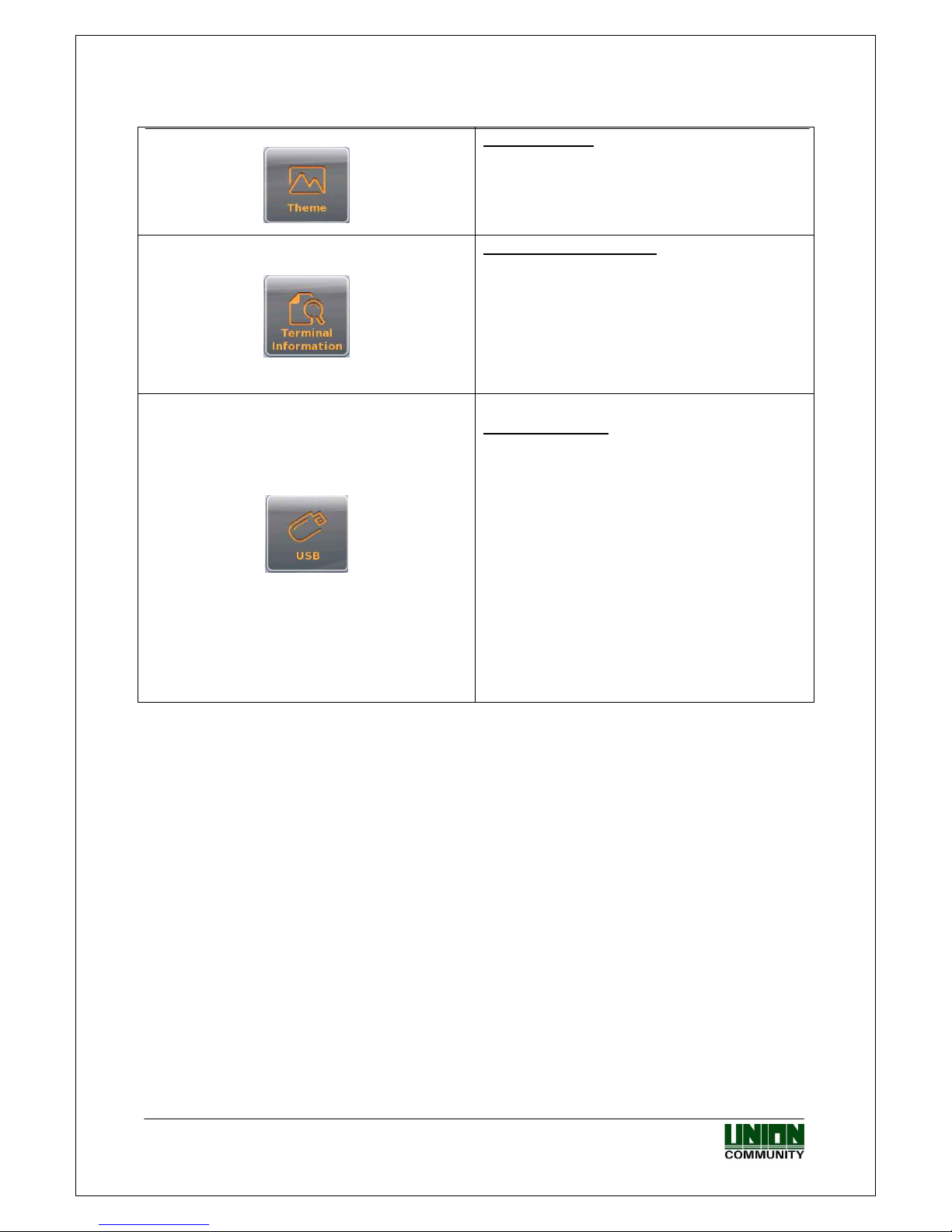

3.7. Theme Settings .......................................................................... 67

3.7.1. Main Background ................................................................................... 67

3.7.2. Daily Background Update...................................................................... 67

3.7.3. Arrange Icons ......................................................................................... 68

3.8. Terminal Information ................................................................. 69

3.8.1. System Information ...................................... 69

3.8.2. Terminal Information .................................... 70

3.8.3. Ethernet Information .................................... 70

3.8.4. User Information ........................................... 71

3.8.5. Log Data Information ................................... 71

3.8.6. View Log Information ................................... 72

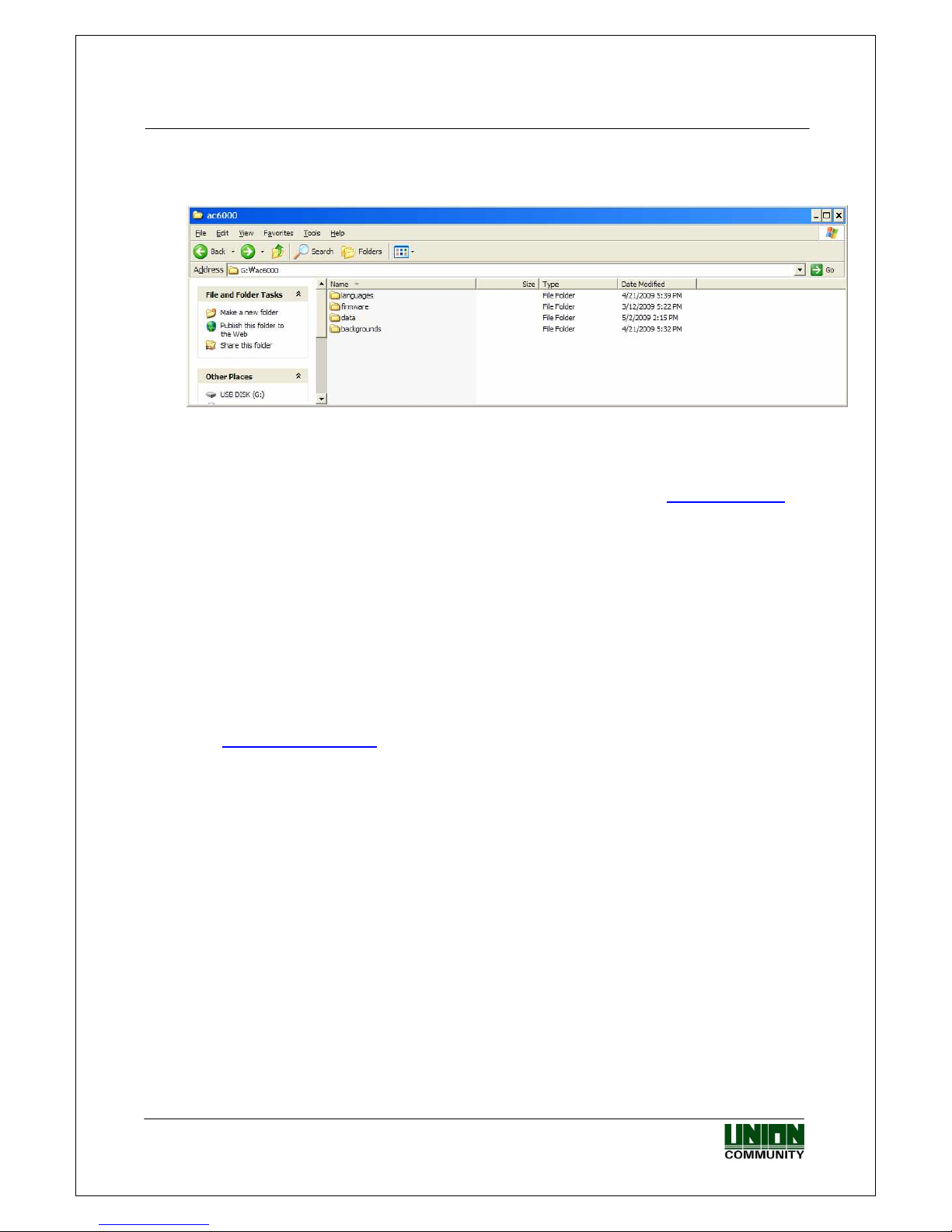

3.9. USB Options .......................................................................... 73

3.9.1. Database Export ..................................................................................... 74

3.9.1. Database Import ..................................................................................... 75

3.9.2. Firmware Upgrading .............................................................................. 75

4. How to use the terminal........................................................................................ 76

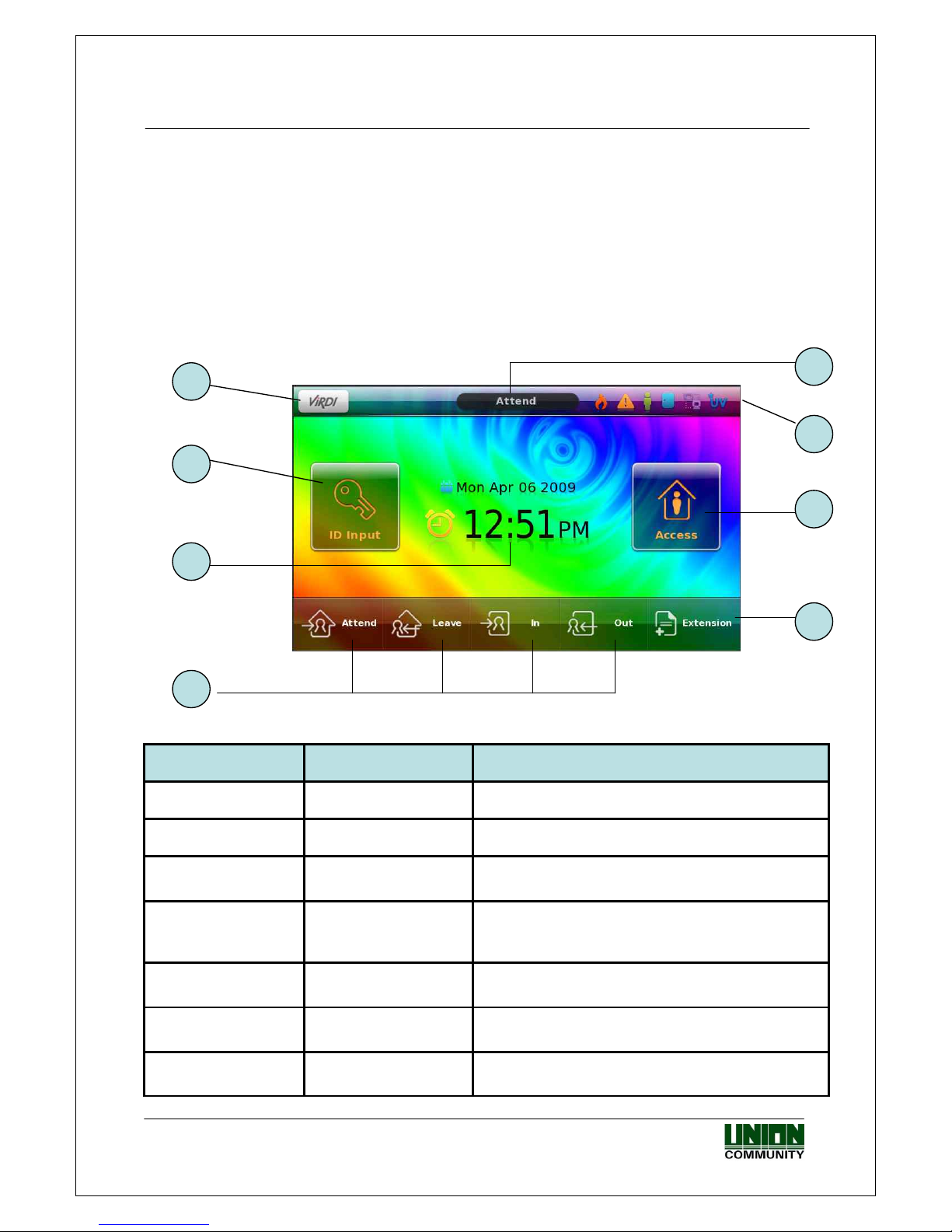

4.1. Main Screen ............................................................................................... 76

4.2. ID Entry Screen.......................................................................................... 78

4.3. Authentication Result Display.................................................................. 79

4.4. Application Modes..................................................................................... 81

4.4.1. Access Control Application ................................................................... 81

4.4.2. Time & Attendance Application............................................................. 82

4.4.3. Cafeteria Application.............................................................................. 83

5. Troubleshooting Guide ......................................................................................... 84

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

1. Before use

1.1.0. Safety precautions

l Warning

Handling with wet hands or
allowing liquid to flow into it
is prohibited.

-> It may cause an

electric shock or damage.

Do not place a fire source

near the terminal.

-> It may cause a fire.

Do not disassemble, repair,
or modify the terminal at
discretion.

-> It may cause an electric
shock, fire or damage.

Keep out of reach of
children.

-> It may cause an
accident or damage.

- If the above warning is ignored, it may result in death or serious injury.

l Cautions

Keep away from direct
sunlight

-> It may cause
deformation or color
change.

Avoid high humidity or
dust

-> The terminal may be
damaged.

Avoid using water,

benzene, thinner, or
alcohol for cleaning

-> It may cause an electric
shock or fire.

Do not place a magnet
close to the terminal.

-> The terminal may
break down or
malfunction.

Do not contaminate the
fingerprint input area.

-> Fingerprints may not be
well recognized.

Avoid using insecticide or
flammable spray near the
terminal.

-> It may result in
deformation or color
change.

Avoid impacts or using
sharp objects on the
terminal.

-> The terminal may be
damaged and broken.

Avoid severe temperature
changes

-> The terminal may be
broken.

- If the above cautions are ignored, it may result in property loss or human injury.

※ Under no circumstances will UNION COMMUNITY be responsible for
accidents or damages caused by inappropriate use of the product without
referring to the user manual.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

1.1.1. Terminal description

No. item description

1 Camera Sensor Picture image taken during authentication
2 Touchscreen LCD Color LCD with Touchscreen
3 LED indicator LED Power(RED), Card(Blue), Door(Green)
4 Approach Sensor User approach turns on the LCD

IRED sensor

Person's approach makes it automatically turn
on button LED and LCD window with ID input
screen.

5 Function Keys Function Keys (see function key section)
6 USB USB for memory stick, or computer (mini)
7 Call Button Used for applications with a door phone.
8 Speaker Speaker for voice or sound output.
9 Card Sensor Card Sensor area, scan card in this area.

10 Finger Sliding Door

Door for finger sensor for environmental
protection

11 Finger Sensor Window

Finger input area, place finger here during
fingerprint entry.

12 UV Sensor

UV Sensor used for cleaning bacteria from
sensor window

1

3

2

11

4

5 6 7

9

12

8

10

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

1.1.2. List of Icons

During normal operation or when a new event occurs an icon will appear on the current display.
Each icon is a symbol representing the event that has just occurred. Below is a list of possible
icons that can appear on the display.

Icon

Description

ID Icon – displayed when an id number is used to

access the terminal.

Password Icon – displayed when a password is used to

access the terminal.

Card Icon – displayed when a card is used to access the

terminal.

Fingerprint – when a fingerprint is used to access the
terminal the user’s fingerprint will be displayed on the

lcd. This can assist the user when entering their

fingerprint.

Picture – depending on the configuration options when

any user accesses the terminal a picture will be taken

and displayed on the lcd.

Fail Icon – displayed when authentication is invalid from

an unregistered user

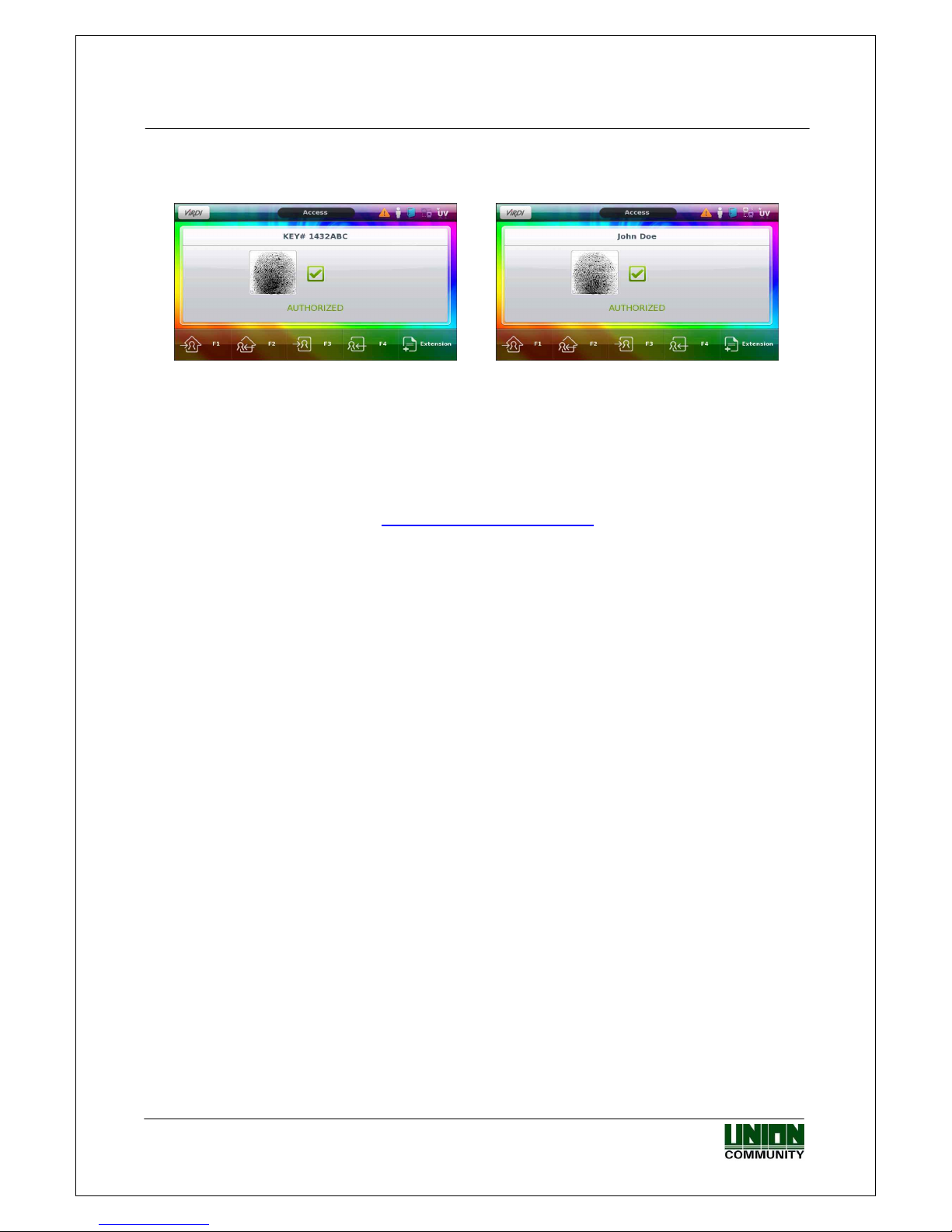

Success Icon – displayed when a registered user is

successfully authenticated.

UV Status Icon ON – when the UV protection is ON an

animation picture will appear.

UV Status Icon OFF – when the UV protection is OFF a

grayed out picture will appear.

Network Status Icon SERVER ON – when the server is

actively communicating with the terminal an animation

picture will appear.

Network Status Icon NO LINK – when the server

program is not communicating with the terminal and an

Ethernet link is not present a grayed out network picture

will appear.

Network Status Icon LINK PRESENT – when the

Ethernet link is active and the server program is not

communicating with the terminal a white network picture

will appear.

Trouble Status Icon ON – when there is a terminal
trouble, case tamper, this picture will appear. If no

trouble is present i.e. case tamper, this icon will

disappear.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

Fire Status Icon ON – when the terminal is notified of an

external fire event this picture will appear. If there is no

fire trouble no icon will appear.

Door Status Icon OPEN – when the door connected to

the terminal is opened this picture will appear.

Door Status Icon CLOSE – when the door connected to
the terminal is closed and normal status this picture will

appear.

Proximity Status Icon ON – when a person is near the

terminal this picture will appear

Proximity Status Icon OFF – when there is no activity in

the area of the terminal a grayed out picture will appear.

Access Buttons – these buttons are used to reset the

current mode of operation. This button is used with

Function keys, Time/Attendance or Cafeteria Mode. If

the current mode is attend, leave, in, or out touching this

button will return to normal access mode. Both of these

icons perform the same function.

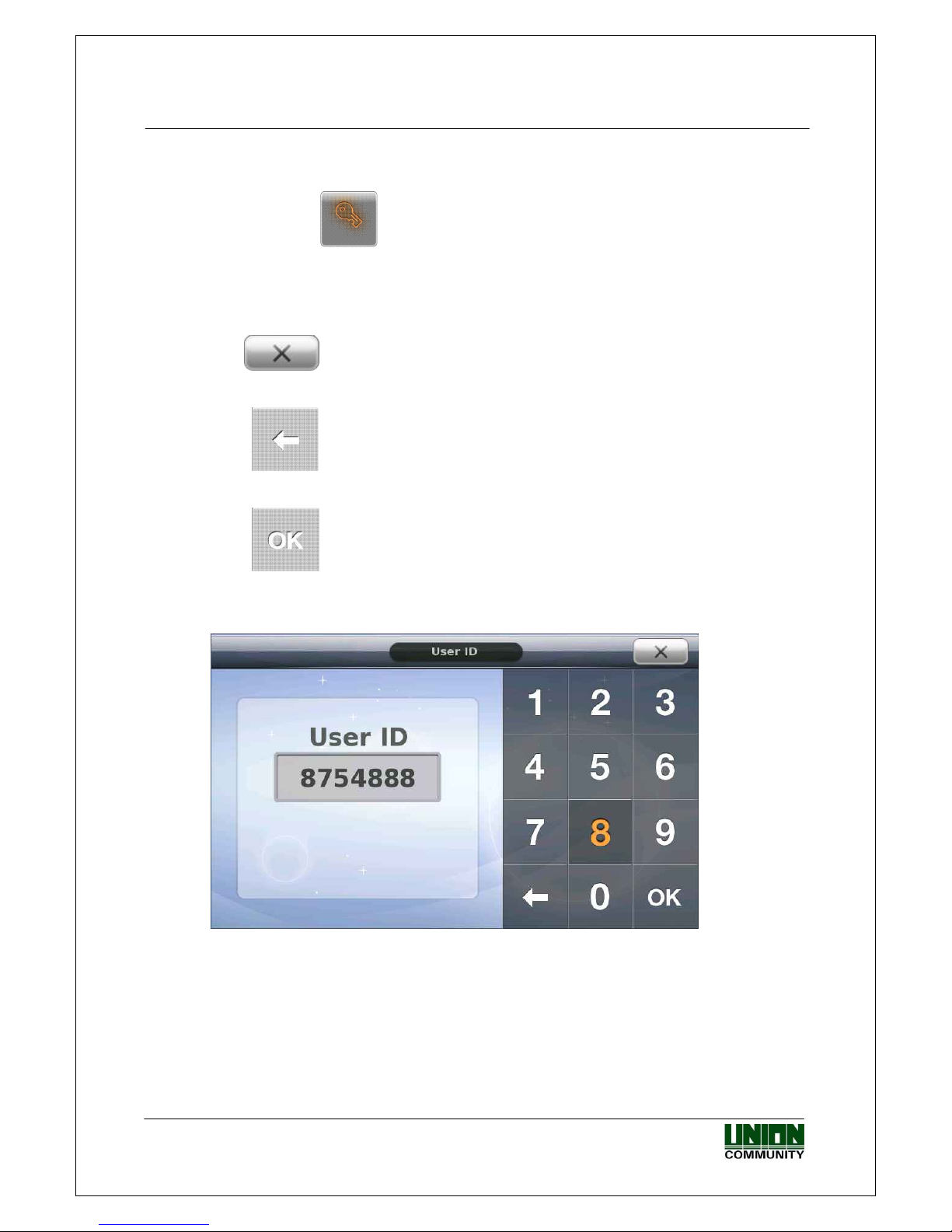

ID Button – this button is used when the user needs to

input their ID number for authentication. When this

button is touched a number pad window will appear.

Function Key Attend – this button is used for time &

attendance mode. It will change the current mode to

Attend Mode. If the user is arriving at the office that day

they will touch this button.

Function Key Leave – this button is used for Time &
attendance mode. It will change the current mode to

Leaving mode. If the user is leaving the office for the

day they will touch this button.

Function Key In – this button is used for Time &
Attendance mode. It will change the current mode to IN
mode. If the user is arriving to the office from lunch or a

break they will touch this button.

Function Key Out – this button is used for Time &

Attendance mode. It will change the current mode to

OUT mode. If the user is leaving the office for lunch or a

break they will touch this button.

Function Key Extension – this button is mainly used in

Time & Attendance mode. If the four function keys

(Attend, Leave, In, Out) are not enough for the

application this button can be used to extend the

amount of function keys. A new window will appear with

a selection of function keys.

Function Key Meal – this button is used in Cafeteria

meal mode. When the meal is breakfast, lunch, snack or

dinner the user will touch this button.

Close/Cancel Button – this button will close the current

window without saving any changes

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

Configuration Button – when terminal setup and

configuration is needed touching this button will enter

terminal configuration mode. See configuration manual

for setup details.

Status Bar – all status items will appear in this bar. The

text item in the center will show the current status of the

terminal. Access; Attend, Leave, In, Out, Meal etc.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

1.1.3. Voice Operation

Voices are played during certain events. Below is a list of possible voices that will be played.
Voice volume can be controlled separately from the sound volume. The voice feedback can be
turned off if needed.

“Please enter your fingerprint”

Enter fingerprint using the fingerprint input
window

“You are authorized” Successful authentication

“Please try again” Authentication failed

“Input your ID” When a user ID is required

1.1.4. Sound Operation

Sounds are played during events or interaction with the Touchscreen. Button presses, message
popup, correct and incorrect entries, failed or success authentication will produce a single sound
tone. Sound volume can be controlled separately from the voice volume. Sounds can be turned
off if needed.

1.1.5. LED operation

On the front of the terminal on the bottom left corner there is a Virdi logo. When power is applied
to the unit and during normal operation this will light up as red When a card is used to access
the terminal the color will turn green for half a second then back to red.

When the door is opened the color will turn green for the duration of the door open period, then
turn back to red when the door is closed.

1.1.6. Touchscreen Usage

To use the Touchscreen correctly it is recommended to use your finger only. For cleaning use a
dry cloth to wipe the surface. You can use a stylus pen if you wish. Do not use sharp objects.
Almost anywhere on the screen is touch interactive. For example, if a popup window is displayed,
touching the window will make the window disappear. Firmly touch the icon that you wish to use.
The icon color will change and a sound should be heard.

In the administrator programming area, if a number entry is needed just touch the number field or
text you wish to change, a number pad will appear for you to enter the data.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

The example windows show the red areas that are interactive. When touching the number field
entry area a number pad will appear for you to enter data. When touching a button the image will
change. When touching a combo box, a list of items will appear, while your finger is down slide
your finger to the selection and release. For Dialog Buttons and Check Boxes just touch the area
and the option will change to a new icon.

Number

Field
Area

Dialog

Buttons

Standard

Icon

Buttons

Number

Field
Area

Combo

Boxes

Check
Boxes

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

1.1.7. Correct fingerprint registration and input methods

The AC6000 makes it easy for scanning fingerprints. The color LCD will show a picture of the
fingerprint on the display, this picture is not saved, only displayed. This can be used as a guide when
scanning your finger. When registering or scanning a fingerprint, the user should see their fingerprint
on the LCD; they should check the alignment and placement of their finger on the sensor window.
Below are examples of fingerprints during various conditions. If the user’s finger is too dry or too wet
the image will not appear properly.

Good Bad (fingertip) Good OK OK
(Dry) (wet/moist)

l Correct fingerprint registration methods

Place your index finger on the window just as you do with a finger stamp.
Do not use the tip of the finger.
Make sure the center of your finger touches the window.

l Use your index finger if possible, it is the easiest for orientation and

guarantees a stable input method. Using the thumb or baby finger can be
awkward and may result in a bad image.

l Check if your fingerprint is unclear or damaged.

It is tricky to recognize fingerprints on dry, wet, unclear, or injured fingers.

Use another finger in this case.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

l Be aware of certain fingerprint conditions

Depending on the user’s fingerprint condition, some fingerprints may not be
used or may cause an inconvenience.

Ø If the fingerprint is damaged or very unclear, then it cannot be recognized.

Please use a password instead in this case.

Ø When a finger is dry, breathe on the finger for smooth operation.

Ø For kids, it may be tricky or impossible to use the terminal because their

fingerprints are too small or very unclear. It is recommended to register
their fingerprints every six months.

Ø For the elderly, it may not be possible to register their fingerprints if there

are too many fine lines on the fingerprints.

Ø If fingerprints are very unclear, it may be convenient if you register 2~3

fingerprints.

Ø It is recommended that you register more than 2 fingerprints.

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

2. Introduction

2.1. Features

l Access control system using LAN

- Communication between the unit and the authentication server

is done through a UTP cable and TCP/IP protocol, so an
existing LAN can be used. This guarantees network-based
administration and monitoring as well as easy expansion, high
reliability, and higher speed. The AC6000 can work on 10 or
100mb LAN.

l Convenient Auto Sensing function

- Simple authentication process without any key input; simple

fingerprint touching is sufficient.

l Camera Sensor

- Camera options are available to take a picture of authorized or

unauthorized users. Capable of 12,500 pictures used for user
pictures and/or log data pictures.

l USB Operation

- USB 2.0 Host (memory stick) or USB Client (to computer). The USB
operation allows import of firmware upgrading, user background images,
languages, pictures or information from another terminal. The USB can
export log data, picture data or terminal information to be transferred
from terminal to terminal or terminal to computer.

l Simple authentication using fingerprints

- Fingerprint authentication technology prevents users from

forgetting passwords, cards or stolen keys or cards, etc. This is
a good way to improve security level.

l High processing capacity of terminal and server

- When a server is used there is no limitation on user information.

Even in standalone operation by using local terminal, it is
possible to manage fingerprint authentication of more than
8,000 users (in optional case).

l Color LCD Touchscreen

- A colorful 16bit LCD ensures easy operation for the user. The

display will show various windows during the authentication
process and registration to ensure the user of correct operation.
In order to conserve the life of the LCD, the LCD will turn off
during no operation conditions. When any message or popup
window is displayed touching anywhere will close or cancel the

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

window.

l Touchless Buttons

- The function keys and call button are specially designed for

easy operation. The buttons will sense the finger before the
finger touches, which does not require the button to be touched.

l Customized Look

- The main screen can be customized by adding any background
(customer logo), and also can be programmed to automatically
change everyday at midnight. The time and date can also be
moved anywhere on the screen.

l Door phone

- Easy visitor identification and convenient response.

l Various and flexible access controls

- No risk of rent, forgery, or loss of keys or cards

- Perfect control by assigning different security clearances to

each user or group

- Flexibility provided by allowing limited time for entry/exit

- Low maintenance

- No need to issue visitor card for visitor

l Various applications

- Time & Attendance

- Meal/Cafeteria

- Access Control

- Various operation modes depending on the terminal menu

settings

l Enhanced security with detection of fake finger

- Adopted detection technology of fake finger enhances security
level

l Various registration and authentication methods

- There are a total of 11 registration and authentication methods

(4 methods if the card reader is not installed), so you are
required to select one method before registering users and an
administrator.

FP Fingerprint registration

Fingerprint authentication

ID&PW Password registration

Password authentication after ID input

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

FP|PW Fingerprint and password registration

Fingerprint or password authentication

FP&PW Fingerprint and password registration

Password authentication after fingerprint authentication

RF Card registration

Card authentication

RF|FP Card or fingerprint authentication

RF&FP Card and fingerprint registration

Fingerprint authentication after card authentication

RF|PW Card and password registration

Card or password authentication

RF&PW Card and password registration

Password authentication after card authentication

ID&FP|RF&FP Card and fingerprint registration

Fingerprint authentication after ID input or fingerprint
authentication after card authentication

ID&PW|RF&PW Card and password registration

Password authentication after ID input or password
authentication after card authentication

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

2.2. Configuration

2.2.1. Network configuration

2.2.2. Standalone configuration

UTP

LET

UTP

WAN

TCP/IP

UTP

Switch Hub

43562

643

2

21345

6

8
7910111

2

2

643

1 2

2

6423

51234678910111 2

TxR

x1TxR

x

2

TxR

x1TxR

x

2

123

TxR

x1TxR

x2641

3

4
T

xRx

1

T
x

R

x
2

1

6410

3

4

T

x

R
x

1

T
x

R

x

2

1

641

UTP

UTP

Network Server

(authentication server)

doorphone

door lock system

VIRDI 6000

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

2.3. Specifications

ITEM SPEC REMARK

CPU 32Bit RISC CPU

128M DDRAM

256M FLASH (Default)

100,000

fingerprints

MEMORY

512M FLASH (Option)

200,000

fingerprints

Fingerprint sensor Optical

Authentication speed <1 sec.

Scan Area / Resolution 12.9 * 15.2mm / 500 DPI

FRR / FAR 0.1% / 0.001%

TCP/IP, RS-232, Wiegand

Communication Port

RS-485 (Option)

Temperature / Humidity

-10 ~ 50 /

Lower than 90% RH

LCD 800x480 TFT LCD

Display Area

103.8 x 62.28 mm

INPUT : Universal AC 100 ~ 250V

OUTPUT : DC 12V (Option : DC

24V)

AC / DC Adapter

UL, CSA, CE Approved

RF Card Reader

EM Card,

125kHz

Smart Card Reader

A-type,

13.56MHz

Door phone

Option

UV

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

3. Device configuration settings

3.1. Terminal Setup

The terminal should be setup by the administrator prior to using. The terminal configurations
allow different setup options for the fingerprint sensor, card reader, add/delete modify users, view
log information, set time/date, change languages etc. It is important the administrator setup the
terminal to the desired settings before using. This section will describe each setting and show a
picture of the required window when setting the option(s).

3.1.1. Entering Administrator Programming

From the Main Screen touch the icon to enter administrator mode. If there is an
administrator programmed they will be required to authenticate with a fingerprint, card or
password. Before starting the administration programming it is recommend you read section 1.1.6.

Touchscreen Usage

VIRDI 6000 TM Administrator Manual

UNION COMMUNITY Co., Ltd. 44-3 Hyundai Topics Building, Bangi-dong,
Songpa-gu, Seoul, Korea 138-050, Tel: [phone], Fax: [phone],
E-Mail:[e-mail], http://www.unioncomm.co.kr/eng

3.1.2. Administrator Main Screen
