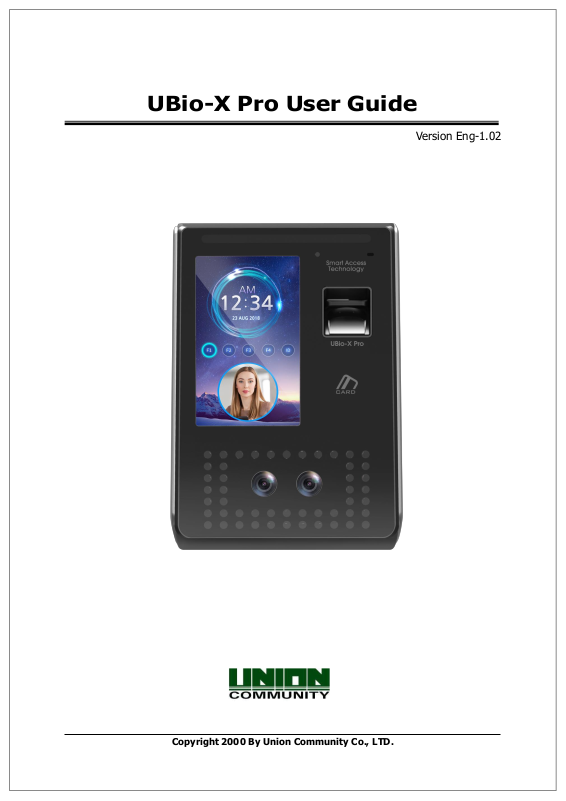

UBio-X Pro User Guide

Version Eng-1.02

Copyright 2000 By Union Community Co., LTD.

UBio-X Pro User Guide 2

Version

Date

Description

Firmware Version

1.00

2018-12-27

Initial Release

1.01

2019-02-07

Modification for issues from RQA

1.02

2019-03-07

Change the screen shot for Terminal Info

1.03

2019-03-15

Remove the enrollment auto sensitivity
Change the screen shots for Meal Management

<Revison History>

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 3

< Glossary>

 Admin, Administrator

- A user who can enter into the terminal menu mode, he/she can register/modify/delete
terminal users and change the operating environment by changing settings.

- If there is no administrator for a terminal, anyone can change the settings. In this regard,
it is recommended to register at least one administrator.

- Caution is required with registration and operation because an administrator has the
right to change critical environmental settings of the terminal.

 1 to 1 Verification

- A user’s verification fingerprint (template) is compared to the user’s enrollment
fingerprint (template) previously registered. The terminal performs 1:1 matches against
the user’s enrolled template until a match is found.

- It is called 1 to 1 Verification because only the fingerprint registered in the user’s ID or
card is used for comparison.

 1 to N Identification

- The terminal performs matches against multiple fingerprints (templates) based solely
on fingerprint information.

- Without the user’s ID or card, the user’s fingerprint is compared to fingerprints
previously registered.

 Authentication level

- Depending on the fingerprint match rate, it is displayed from 1 to 9. Authentication is
successful only if the match rate is higher than the set level.

- The higher the Authentication level, the higher the security. However, it requires a
relatively high match rate, so Authentication is vulnerable to failure.

- 1:1 Level: Authentication level used for 1:1 verification

- 1:N Level: Authentication level used for 1:N identification

 Authentication Method

- This represents the various types of authentication, including Face authentication, FP
(fingerprint) authentication, RF (card) authentication or a combination of these methods.
Example: Face or FP: Authentication with face or fingerprint

 LFD (Live Finger Detection)

- This function allows the input of only real fingerprints and blocks the input of imitation
fingerprints produced using rubber, paper, film, and silicone.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 4

Contents

<Revison History> .................................................................................................... 2

< Glossary> ............................................................................................................... 3

Contents ................................................................................................................... 4

1. Before use ............................................................................................................. 7

1.1. Safety Precautions ................................................................................................. 7

1.2. Specific names of the terminal ............................................................................. 8

1.3. Windows after operation ....................................................................................... 9

1.3.1. Icon ................................................................................................................ 9

1.3.2. Message ....................................................................................................... 10

1.4. Voice sounds in operation ................................................................................... 14

1.5. Beep sound in operation ..................................................................................... 14

1.6. How to register and authorize the face properly ............................................... 14

1.7. Proper fingerprint registration and input methods ............................................ 15

2. Product introduction .......................................................................................... 17

2.1. Product characteristics ....................................................................................... 17

2.2. Product components ........................................................................................... 19

2.2.1. Standalone use (Access) .............................................................................. 19

2.2.2. Connected with Server (Access, Attendance, Meal management) ................ 19

2.3. Product specification ........................................................................................... 20

3. Environment setting ........................................................................................... 21

3.1. Checks before setting the environment ............................................................. 21

3.1.1. Entering the menu ........................................................................................ 21

3.1.2. Administrator authorization ........................................................................... 21

3.1.3. How to enter the menu without administrator authorization ........................... 22

3.1.4. How to save the set values ........................................................................... 22

3.2. Menu composition ............................................................................................... 24

3.3. User Management ................................................................................................ 27

3.3.1. Add ............................................................................................................... 27

3.3.1.1. Photo registration .................................................................................. 29

3.3.1.2. Name registration .................................................................................. 29

3.3.1.3. Fingerprint registration .......................................................................... 30

3.3.1.4. Face registration ................................................................................... 33

3.3.1.5. Password registration ............................................................................ 35

3.3.1.6. Card registration .................................................................................... 35

3.3.1.7. Options for authorization ....................................................................... 36

3.3.1.8. How to set ‘AuthType’ ............................................................................ 36

3.3.1.9. Save ...................................................................................................... 37

3.3.2. Delete ........................................................................................................... 38

3.3.3. Modify ........................................................................................................... 39

3.3.4. Delete all ...................................................................................................... 40

3.3.5. View.............................................................................................................. 41

3.4. Network setting .................................................................................................... 42

3.5. Application mode ................................................................................................. 44

3.5.1. Application .................................................................................................... 44

3.5.1.1. Access or TnA setting ............................................................................ 44

3.5.1.2. Meal setting ........................................................................................... 45

3.5.2. Function key ................................................................................................. 45

3.6. System .................................................................................................................. 46

3.6.1. System ......................................................................................................... 46

3.6.2. Finger ........................................................................................................... 47

3.6.3. Face ............................................................................................................. 50

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 5

3.6.4. Auth .............................................................................................................. 50

3.6.5. Date/Time ..................................................................................................... 52

3.6.6. Database ...................................................................................................... 53

3.6.6.1. Delete all the users ................................................................................ 53

3.6.6.2. Delete setting ........................................................................................ 54

3.6.6.3. Delete Log ............................................................................................. 54

3.6.6.4. Delete image log ................................................................................... 54

3.6.6.5. Factory init ............................................................................................ 55

3.7. Terminal ................................................................................................................ 56

3.7.1. Sound ........................................................................................................... 56

3.7.2. Option ........................................................................................................... 56

3.7.3. Input ............................................................................................................. 58

3.7.4. Lock .............................................................................................................. 59

3.7.5. External Device ............................................................................................ 61

3.8. Display .................................................................................................................. 63

3.8.1. Theme ................................................................ .......................................... 63

3.8.2. Camera ......................................................................................................... 63

3.8.3. Language ..................................................................................................... 64

3.8.4. Option ........................................................................................................... 65

- User Name: Representing user ID if it is not registered.( In this case,

added “ID” in order to differentiate with name) ............................................ 65

3.8.5. Message display time ................................................................................... 65

3.9. Terminal Info ......................................................................................................... 66

3.9.1. System ......................................................................................................... 66

3.9.2. Terminal ........................................................................................................ 67

3.9.3. Network ........................................................................................................ 67

3.9.4. User .............................................................................................................. 68

3.9.5. Log ............................................................................................................... 69

3.9.6. About ................................................................ ............................................ 70

3.10. SD Card ............................................................................................................... 71

3.11. User’s file download .......................................................................................... 73

3.11.1. How to change background screen ............................................................. 73

3.11.2. How to change voice sound ........................................................................ 74

3.12. Connect your BT module with your app ........................................................... 74

3.12.1. BT module activation .................................................................................. 74

3.12.2. BT module connection wait status .............................................................. 75

3.12.3. Search and access your app’s BT module .................................................. 75

............................................... 75

3.12.4. Connected app and BT module .................................................................. 76

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 6

3.12.5. Disconnect from app and BT module in recognizer ..................................... 76

4. How to use terminal ........................................................................................... 77

4.1. How to change Auth mode .................................................................................. 77

4.2. How to input user ID ............................................................................................ 78

4.3. How to authorize .................................................................................................. 78

4.3.1. Face authorization ........................................................................................ 78

4.3.2. Fingerprint authorization ............................................................................... 79

4.3.3. Card authorization ........................................................................................ 80

4.3.4. Password authorization ................................................................................ 80

4.3.5. Multi-mode authorization .............................................................................. 81

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 7

Handling with wet hands or
allowing liquid to flow into it
is prohibited.

-> It may cause an

electric shock or damage.

Do not place a fire source

near the terminal.

-> It may cause a fire.

Do not disassemble, repair,
or modify the terminal at
discretion.

-> It may cause an electric
shock, fire or damage.

Keep out of reach of
children.

-> It may cause an
accident or damage.

Keep away from direct
sunlight

-> It may cause
deformation or color
change.

Avoid high humidity or
dust

-> The terminal may be
damaged.

Avoid using water,

benzene, thinner, or
alcohol for cleaning

-> It may cause an electric
shock or fire.

Do not place a magnet
close to the terminal.

-> The terminal may
break down or
malfunction.

Do not contaminate the
fingerprint input area.

-> Fingerprints may not be
well recognized.

Avoid using insecticide or
flammable spray near the
terminal.

-> It may result in

deformation or color
change.

Avoid impacts or using
sharp objects on the
terminal.

-> The terminal may be
damaged and broken.

Avoid severe temperature
changes

-> The terminal may be
broken.

1. Before use

1.1. Safety Precautions

 Warning

- If the above warning is ignored, it may result in death or serious injury.

 Cautions

- If the above cautions are ignored, it may result in property loss or human injury.

※ Under no circumstances will UNION COMMUNITY be responsible for accidents or
damages caused by inappropriate use of the product without referring to the user
manual.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 8

Touch LCD

Dual Camera

IR LED

SD card input

Speaker

Michrophone

IR LED

Card Sensing Area

Fingerprint sensor

1.2. Specific names of the terminal

Illumination

sensor

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

Seoul, Korea (zip code : 05836)

UBio-X Pro User Guide 9

① Motion

Detection

None

: There is not detected any motion

: Detect the motion

② Illumination

Status

None

: Detect the high illumination status

: Detect the low illumination status

③ Fire Alarm

: Fire Alarm is activated (on connecting Fire detection
sensor)

④ Tamper

Switch

None

: Normal status

: Tamper switch is activated (Terminal is disassembled)

⑤ Door Status

: Door status is not sensed

⑥ Icon for network status

Time & Date

button

ID input button

Camera movie display

Guide for face recognition

⑤ Icon for door status

④ Warning icon for tamper switch

Function Keys

② Icon for illumination status

③ Warning icon for Fire alarm

① Icon for motion detection

1.3. Windows after operation

Menu

1.3.1. Icon

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 10

: Door is closed

: Door is opened

: Door is opened abnormally

⑥ Network

Status

: There is not connected LAN cable

: Disconnected to the server even LAN cable is connected

: Connected to the server (On line)

- Basic Window

- When authorization is successful

- When authorization is failed

1.3.2. Message

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 11

- When unregistered user ID is entered

- When unregistered card is entered

- Passback error when using anti-passback function

- When a user tried the authorization more than twice in

one meal time when using as meal management

- When the server does not respond during the authorization
attempt to the server

- When the network is disconnected during the authorization
attempt to the server

Failed!

Unregistered!

Unregistered

Card!

Passback error!

Duplicated!

Network Error!

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 12

- Registration without authorization right or authorization

attempt when the entrance is not permitted

- When the user is designated in the blacklist

- When the terminal is set locked

- When it is not the meal time when set in the meal
personnel management

No permission!

Restricted!

Locked !

No Meals

Available

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 13

- The state waiting for the input of the user ID

- The state waiting for the input of password

- The state waiting for the input of fingerprint

Place finger on sensor

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 14

- The state waiting for the input of the card

- When the terminal program is being upgraded
(In this state, you should not turn off the terminal)

Operation type

Voice sound

Success to authorize

You are authorized

Fail to authorize

Please try again

Pick

Notice for
reading the
card or
fingerprint

When the card was read
When the fingerprint was entered in the fingerprint
window

Pi-pick

Notice for fail

When the authorization was failed (at Voice off)

Peek

Notice for
Success

When the authorization was successful (at Voice off)

Verify Card

Place your card

Upgrading...
Do not power off !

1.4. Voice sounds in operation

1.5. Beep sound in operation

1.6. How to register and authorize the face properly

 Face registration method

- Maintain the distance between the terminal and face in about 50 cm.
(Locate the face in the guide line of LCD window)

- Register the face pose along with the guidance. During the shooting, please

maintain the attention.

- When registering the face, register after sweeping your hair up not to hide the

eyebrow or lower face with your hair or hat (Passport picture standard).

- If you wear the glasses, you should register both pictures with and without glasses.

But, if you change your glasses, you should repeat the registration procedures.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 15

 Face authorization method

You can select two modes as the face authorization method.

- Normal mode: When the user gets close within 1.5m, the tilting function of the
camera is operated by recognizing the face of user. When the user is within
50~70cm, the face authorization is fulfilled.

- Fixed mode: It has the fastest authorization speed, but because it does not include

the tilting function, please locate the user face at the LCD guideline by maintaining
the distance between the terminal and user in 50 cm.

 Notes

- It is recommended to register and authorize at the location where the terminal is
installed.

- If you pose differently with the registered face, the recognition rate of face can
decrease. It is good to locate the full face as much as possible

- The thick glasses frame or sun-glasses can decrease the recognition rate of face

 Cautions in the installation

- Be sure to install the terminal indoor.

- Do not install under the light bulb.

- Not recommended in the circumstance of backlight or direct light.

1.7. Proper fingerprint registration and input methods

 Correct fingerprint registration methods

Place your index finger on the window just as you do with a finger stamp.
Do not use the tip of the finger.
Make sure the center of your finger touches the window.

(Please be cautious that you may result in low temperature burns when inserting
finger.)

 Use your index finger if possible, it is the easiest for orientation and

guarantees a stable input method. Using the thumb or baby finger can be
awkward and may result in a bad image.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 16

 Check if your fingerprint is unclear or damaged.

It is tricky to recognize fingerprints on dry, wet, unclear, or injured fingers. Use
another finger in this case

 Be aware of certain fingerprint conditions

Depending on the user’s fingerprint condition, some fingerprints may not be

used or may cause an inconvenience.
 If the fingerprint is damaged or very unclear, then it cannot be recognized.

Please use a password instead in this case.

 When a finger is dry, breathe on the finger for smooth operation.
 For kids, it may be tricky or impossible to use the terminal because their

fingerprints are too small or very unclear. It is recommended to register
their fingerprints every six months.

 For the elderly, it may not be possible to register their fingerprints if there

are too many fine lines on the fingerprints.

 If fingerprints are very unclear, it may be convenient if you register 2~3

fingerprints.

 It is recommended that you register more than 2 fingerprints.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 17

Face

Face registration
Face authorization

Fingerprint

Fingerprint registration
Fingerprint authorization

Card

Card registration
Card authorization

Password

Password registration
Password authorization

Card or
fingerprint

Card, fingerprint registration
Card or fingerprint authorization

Card & fingerprint

Card, fingerprint registration
Fingerprint authorization after card authorization

Card or password

Card, password registration
Card or password authorization

Card and
password

Card, password registration
Password authorization after card authorization

2. Product introduction

2.1. Product characteristics

 Multi-Modal product with which the user can use both face and fingerprint authorization

functions together.

 Superior ability for the face recognition under external light condition (30,000 lux)

.

 FHD(2M) Display resolution is adapted.
 The face recognition is possible even in the dark place with the illumination sensor and

dual camera (color & IR) and saving the discriminable log images.

 RF(125kHz) and Smart Card(13.56MHz) can be used at the same time.
 Easy authorization with the face or fingerprint

- Can prevent the hazard factors such as forgetting password, losing the card or key,

or stealing with the biometrics such as face and fingerprint recognition and
increasing the safety with using the person’s own bionic information

 Entrance management system with using LAN

- Easy expansion by direct applying to the previous network because it

communicates with using TCP/IP protocol between the fingerprint recognition
terminal and authorization server. High speed with 10/100 Mbps Auto Detect and
easy management and monitoring with network.

 Various registration and authorization methods

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 18

Fingerprint or
password

Fingerprint, password registration
Password authorization when fingerprint authorization was failed

Fingerprint&
Password

Fingerprint, password registration
Password authorization after fingerprint authorization

Card or face

Card, face registration
Card or face authorization

Card & face

Card, face registration
Face authorization after the card authorization

Face or password

Face, password registration
Face authorization or password authorization when the face
authorization was failed after ID input

Face & password

Face, password registration
Password authorization after face authorization

Fingerprint or
face

Fingerprint, face registration
Fingerprint or face Authorization, face authorization when

fingerprint authorization was failed after ID input

Fingerprint & face

Fingerprint, face registration
Face authorization after fingerprint authorization or fingerprint
authorization after face authorization

Card, fingerprint,
or face

Card, fingerprint, face registration
Face authorization when the fingerprint authorization was failed
after the input of card, fingerprint, face authorization, or ID.

(ID or card) &
Fingerprint

Card, fingerprint registration
Fingerprint authorization after ID input or fingerprint
authorization after card authorization

(ID or card) &
password

Card, password registration
Password authorization after ID input or password authorization
after card.

(ID or card) &
face

Card, face registration
Face authorization after ID input or face authorization after card
authorization

Card & fingerprint
& password

Card, fingerprint, and password registration
Fingerprint and password authorization after the card
authorization

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 19

TCP/IP

Meal management

program

Attendance

management program

Internet /
WAN / LAN

TCP/IP

Fingerprint authorization
server (static IP)
UDB server
database (MDB or MSSQL)

TCP/IP

Remote management
program
(user and terminal setting
management)

TCP/IP

TCP/IP

TCP/IP

DC15V Adapter

Electric lock
(Lock+, Lock-, Monitor)

2.2. Product components

2.2.1. Standalone use (Access)

2.2.2. Connected with Server (Access, Attendance, Meal management)

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 20

Types

SPEC

REMARK

CPU

1GHz Quad Core CPU

LCD

5.0 inch Touch LCD(480*800)

MEMORY

16G Bytes Flash

2GBytes RAM

External SD Card

support

Backup data / Upgrade firmware

Camera

Dual Camera (Color & IR)

Auth speed 1:1

< 0.2 Sec

Auth speed 1:N(1,000)

< 0.7 Sec

Capacity

500,000 User / 500,000 Card

500,000 Finger (1:N1:100,000)

200,000 Face (1:N1:20,000)

10,000,000 Log / 20,000 Image Log

Fingerprint sensor

Optical

Scan Area / Resolution

20 * 20mm / 500 DPI

Temperature /

Humidity

-10 ~ 60℃ /

Lower than 90% RH

AC / DC Adapter

INPUT : Universal AC 100 ~ 250 V

OUTPUT : DC 15 V

UL, CSA, CE Approved

Lock Control

EM, Strike, Motor Lock, Auto Door

I/O

4 In (1 Exit, 3 Monitor)

2 Out (Also for Lock Control)

Communication Port

TCP/IP (10/100Mbps)

Communication with

Auth Server

RS-232

Ticket Printer

RS-485

Communication with

Controller

Wiegand In/Out

Communication with

Card reader or

Controller

Card Reader

125KHz RF / 13.56MHz Smart

simultaneous use

(1 Sam socket)

HID 125K Prox card (option)

HID iClass Card (option)

option

SIZE

88.0mm * 175.0mm * 43.4mm

2.3. Product specification

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 21

You can enter the subdivision menu by clicking
each button.

▶ Administrator authorization

If you enter the administrator ID, the administrator
authorization is fulfilled along with the authorization
method of the administrator such as card,
fingerprint, face, or password.

The administrator authorization only appears when
the registered administrator exists. The
authorization is fulfilled only once when entering the
menu mode and you can access to all the menu
until you quit the main menu.

<Fig. 3-2>

Input Admin ID

Admin ID

3. Environment setting

3.1. Checks before setting the environment

3.1.1. Entering the menu

If you click the [ ]icon at the basic window, you can enter the main menu window as
follows.

3.1.2. Administrator authorization

If the administrator is registered, the following administrator authorization window
appears first.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 22

Set OK!

3.1.3. How to enter the menu without administrator authorization

It is how to enter the menu when the fingerprint or face authorization is impossible
because the administrator card registered in the terminal was lost or there is no
administrator.

① Open the cover by removing the bracket at the backside of the terminal

② With the opened cover, connect the 5pin connector number 1 with 3, and 2 with 4 at

the bottom of the backside of the terminal.

<Fig3-3>

③ Click the icon at the basic window to enter the administrator authorization

window in <Fig. 3-2>, and fill the administrator ID with ‘0’ and click [ ]button,
then you can enter the menu window.

▶ Be sure to remove the connection pin of the connector after modifying the setting
value.

3.1.4. How to save the set values

If you click the [Complete] button at each menu to save the changed value after the
change of settings, the set value of the window is saved and the following message box
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 23

▶ If there is no changed value, the window is moved to the previous menu.

▶ If there is no signal for 30 seconds while changing the set value in the menu, the

window is moved to the previous menu.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 24

1.User

1. Add

2. Modify

3. Delete

4. Delete All

5. View

2.Network

Terminal IP address

Static IP / DHCP

▶IP address
▶Subnet Mask
▶Gateway

DNS

▶DNS server 1
▶DNS server 2

Server IP address

▶Server IP
▶Port

Terminal ID

▶Terminal ID

3. Application

1. Application

▶Access / TnA / Meal

1. Select Access or TnA

▶Schedule

F1 (Attend) time
F2 (Leave) time
F3 (Out) time
F4 (In) time
Access time

▶Blocking Time

2. Select Meal

▶Schedule

Breakfast time
Lunch time
Dinner time
Supper time
Snack time

□ Allow duplicate

2. Function key

□ Enable F1
□ Enable F2
□ Enable F3
□ Enable F4
□ ID input

4. System

1. System

▶User ID length [2~8]
▶Authentication: Terminal Only
▶Mandatory Registration

□ Face
□ Fingerprint
□ Card

3.2. Menu composition

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 25

□ Password
□ Name

Number of Fingers [1~10]

2. Finger

▶1:N Level [3~9]
▶1:1 Level [1~9]
▶Fake Finger Detection
▶FP template format

□ Check similar FP
□ Multi FP
□ Enable 1:N

3. Face

▶Matching Level [1~4]
▶Face Recognition
▶Enrollment Sensitivity [1~10]
▶Authentication trial limit [1~10]

4. Auth

▶Auth Type

□ FP Template Card
□ FACE 1:1 Only

5. Date/Time

▶Time synchronization
▶Display Format
▶Set Date
▶Set Time

6. Database

1. Delete all users

2. Delete setting

3. Delete Log

4. Delete Image log

5. Factory init

5. Terminal

1. Sound

▶Voice Volumn
▶Beep Volumn
▶Sound Option

2. Option

▶Read Card number
▶Card format

□ Lock terminal

▶Card reader

3. Input

▶M0
▶M1
▶M2
▶IO
▶Warn door open (sec)

□ Tamper alarm

4. Lock

▶Lock 1 Option
▶Lock 2 Option

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 26

▶Lock 1 duration (ms)
▶Lock 2 duration (ms)

5. External Device

▶RS232
▶RS485
▶Wiegand

Site Code
Wiegand Output
Wiegand Input

6. Display

1. Theme

▶Background

2. Camera

▶Display Option
▶Save Option

□ Save success log
□ Save failed log

3. Language

▶Language

4. Option

▶Power saving mode

▶Display Option
▶Touch Calibration

5. Message display
time

▶Message Display

Time (ms)

7. Terminal Info

1. System

▶System Info
▶Disk
▶Ram

2. Terminal

▶Terminal Info

Terminal ID
Application
Language

3. Network

▶Network Info

MAC
<Ethernet>
IP

4. User

▶User

5. Log

▶Log

6. About

▶About

8. SD Card

1. Export

1. User Data

2. Event Log

3. System Option

4. Export All

5. Picture

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 27

2. Import

1. User Data

2. System Option

3. Others

1. Theme

2. F/W Upgrade

The number of all the users is shown at the top of screen
including administrator.

Click [Add] button to add the new user, [Modify] button to
modify the user, [Delete] button to delete the specific user,
[Delete All] button to delete all the users, and [View]
button to inquire the registered user list..

3.3. User Management

When you select the [User] at the main menu, the following window appears.

3.3.1. Add

If you select [User]->[Add] in the main menu, the following screen appears

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 28

Input the user ID to be registered and click [OK]
button.

In this case, the ID which can be registered is shown
on the screen automatically, so you can register
conveniently. If you want to change ID, delete the

previous value by clicking [ ] button and input the
new value.

Click [Back] button to cancel and go back.
.

The icons in the left side mean as follows

: The number of registered faces
: The number of registered fingerprints (X,1~10)
: Existence of password registration (X : none, O :

registered)

: The number of registered cards (X,1~10)

: User ID to be registered

: User

: Administrator

button: Registration with taking a picture of the

user.

If you enter ID which is already registered, the failure message appears, and if the ID is
not registered, the following screen appears.
.

You can register the name with [Name], employee ID with [Employee ID], fingerprint
with [Fingerprint], face with [Face], duress finger with [Duress FP], card with [Card], and
password with [Password] button. The registration is basically set to be user, and it is
can be changed to administrator if you click [Admin] button. Click [Save] button to
save the registration, and click [Cancel] or [Back] button to cancel the registration
and return.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 29

Register by clicking [ ] button at the [Add User] screen

Click the [Save] button to register with the present
camera image.

Click [Cancel] or [BACK] button to cancel the registration
and return.

Register by clicking [Name] button in the [Add User]
screen.

After entering name with the under keyboard, click OK
button.

Click the [ ] button to cancel the registration and return

※ Only user who is registered as administrator can change the operating method of the
terminal and can register/modify/delete the information of all the saved users, so be
careful to register the administrator

3.3.1.1. Photo registration

3.3.1.2. Name registration

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 30

① Register by clicking [Fingerprint] button at the [Add
user] screen.
Click [ ] button to cancel the registration and return.
Choose the finger to be registered when the left screen
appears.

※ If you register the multiple fingers, the fingers

already registered are represented by blue circle

( ). And if the duress fingerprints are represented

by violet circle ( ). If you select the finger already
registered, the following message appears, and if you
select the re-registration, you can register again with
deleting previously registered fingerprint.

※When you authenticated with duress FP, the alarm

message for Duress can be transferred to the server
and you can output the dry contact signal if you set
the duress FP alarm from the setting of Lock on the
terminal menu (Refer to 3.7.4.Lock).

3.3.1.3. Fingerprint registration

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 31

② Enter the fingerprint with referring ‘1.7 Proper
fingerprint registration and input methods’. Enter the

fingerprint twice according to the screen instruction as
follows.

When the light is turned on at the fingerprint sensor
with the message ‘Register FP’, put your finger on the
input screen and wait for 2~3 seconds until the light is
turned off.

③ When the message ‘Enter the same fingerprint
again’ appears, enter the same fingerprint again.

※ In the second fingerprint input after the first
fingerprint, you should take off your finger from the
screen once and input again.

④ The message of the left side appears when the input
is completed. If you click [OK] button, the registration
is completed and the screen is returned to the upper
menu.

If you want to register again, you can click [Retry]
button and then go through the registration process
from ②.
But if you want to cancel the registration, you can click
[ ] button.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 32

If it is similar with the fingerprint already registered, the
message “Already registered finger!” appears like the
left side, and you can start again from the procedure of
② if you click the [Retry] button.

You can click [ ] button to cancel and return to the
upper menu.

※ You can register 10 fingerprints at most for one ID, and you cannot register more than

10 IDs.

If the registration was failed 2~3 times despite the proper fingerprint registration method,
it is recommended to use face, password, or card..

※ The similar fingerprint check on registration should be verified for the registered
fingerprints on the terminal side only.

If the same fingerprint was registered from both terminal and server with the different

User ID, server does not check the similarity for the retrieved fingerprint from the
terminal.
In this case, same fingerprint can be authenticated with the different user ID so you have
to watch out this.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 33

① Press the [Start] button to register the face.
Locate your face to be fitted to the face lines like the left
picture, and look directly at the screen according to the
guidance of the screen.

② If the face was recognized properly like the left picture,
the guide is turned green and the face registration begins.
At this point, you should maintain the stopped state
without moving face for the better registration.

3.3.1.4. Face registration

Register with referring ‘1.6. How to register and authorize the face properly‘.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 34

③ When the registration is ended, the message
[Completed!] is appeared like the left screen, and if you
click the [OK] button, the face registration is completed
and the screen is moved to the previous screen.

If you want to register again, click the [Start] button to
start from the procedure of ②

※ Basically the feature “similar face check” is done at the registration of face but this feature
is applied only for the users have the registered face including the Multi Auth users who the
option “1:N face use” are activated. So you have to watch out the face users without above
condition cannot be verified by the similar face check. (This condition is applied for the
feature “similar fingerprint check”, too.)

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 35

If you enter the password in 1~8 characters into the
password input window and click [OK] button, the input
focus is moved to the ‘password confirm’ window at
below. Enter the same password again and click [OK]
button.

Click [ ] button to cancel and return.

※If you enter the different password in the confirm

window, the message “Wrong input!” appears as
follows

Register with clicking [card] button in the [Add user]

button. Click [ ] button to cancel and return.
※If you entered the card already registered, the

following message appears

※If a user tried over than 10 registrations, the

following message appears.

3.3.1.5. Password registration

3.3.1.6. Card registration

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 36

▶’FP Level’ (basic setting:’0’)
It decides the fingerprint authorization level of each

user, and the registered users can have different
authorization level by modifying this value. If you set

‘0’, the authorization uses the level of fingerprint

authorization.

For example, if you select the “1” for FP Level, this

user will applied with “1” on 1:1 FP Level.

But you select “0”for this level, the user will be

applied with the configured 1:1 FP Level on the

“System > Finger”.

▶’Enable FP 1:N’ (basic setting: Registered FP user exist.

[v])
If this option is checked, you can authorize only with
fingerprint without user ID or card

▶’Enable Face 1:N’ (basic setting: Registered Face user
exist. [v])
If this option is checked, you can authorize only with
face without user ID or card.

Set by clicking [Auth type] at the [Add user] window.
(But, it can be set when there are more than 2
authorization methods registered)
Click [BACK] button to cancel and return.
.

This shows all the authorization methods already
registered, and the buttons at the lower side shows the
buttons [OR]/[AND] which can be selected. Present
authorization method is distinguished with blue color as
different as gray color is not selected.
If you click the button [Finish], the authorization method
is changed and the screen moves to the previous window.
The authorization method icons are represented as
follows.

: Fingerprin : Face

: Card : Password

3.3.1.7. Options for authorization

3.3.1.8. How to set ‘AuthType’

※In case of authorization method, if it is not set, the authorization methods are set to

[OR] automatically with the current registered authorization methods. (But, there are
registerable for 3 authorization methods at maximum and if they are used with

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 37

When you clicked the [Save] button,

the case registration was successful

When you clicked the [Save] button,

the case registration was failed

: The case none of authorization methods such as

fingerprint, face, card, and password is registered.

When you clicked the [Auth method] button,

the case none of the authorization method was
registered.

Set OK!

Failed!

Auth method

is not registered

Password, it will be limited 2 authorization methods)

※(ID or Card) & FP  Card & FP, (ID or Card) & PW  Card & PW,

(ID or Card) & Face  Card & Face, Card & FP & Face & PW  Card & FP & Face will
be changed automatically.

3.3.1.9. Save

Click the [Save] button to save when all the registration procedure is finished. At this
point, if you click [Cancel] or [BACK] button to return, the user is not saved.

Next is the LCD messages which can appear at the registration procedure.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 38

In [Register FP],

the case you input the different fingerprint at the
fingerprint registration.

In [Register FP],

The case you tried to registered the fingerprint already
registered. (But, you can input the same fingerprint
with the same user ID).

※ If you want to register the same fingerprint in the
different ID, you should uncheck the ‘System 
Fingerprint recognition  preventing the similar

fingerprint registration’. But, in this case, because
the same fingerprint can be authorized as different ID,
it is not suitable for the attendance management.

3.3.2. Delete

The following window appears if you click [User]  [Delete] at the main menu.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 39

Input the user ID to be deleted and click [OK]
button.
Click [BACK] button to cancel and return.

If you input the unregistered ID, the failure message
“Unregistered user” appears, and if you input the
registered ID, success message “Deleted” appears

When it is deleted normally.

When unregistered ID was entered

Deleted!

Unregistered!

But, the deletion in the terminal is not led to the deletion in the server, so if you want to
delete completely, you should delete it also in the server.
The deletion delete both user and admin, so you should be cautious, and the user
registered only in the terminal is cannot be recovered.

The followings are LCD guidance which can appear at the deletion procedure.

3.3.3. Modify

The following window appears if you click the [User]  [Modification] in the main menu.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 40

Input the user ID to be modified and click [OK]
button.
Click [BACK] button to cancel and return.

The icons at the left side means as follows.

: The number of registered faces
: The number of registered fingerprints (X,1~10)

: Existence of password registration (1:Registered /

X:Not registered)

: The number of registered cards (X,1~10)

: User ID to be registered

: User

: Administrator

If you touch the picture, you can register with re-taken

The failure message appears if you input the unregistered ID, and if you input the
registered ID, the information of registered user is represented as follows

The modification method of each item is the same with the user addition, so refer to the
‘3.3.1. Add’.

3.3.4. Delete all

If you click the [User]  [Delete all] in the main menu, the following window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 41

If you want to delete all the users, click [YES], and

if you want to cancel, click [NO].

※If you click [YES], the users and admin are

deleted, and the restoration is impossible once
they are deleted, so be careful.

The user list appears by the order of ID, and if you
slide the screen upward, you can search the
additional user list.
The list appears in the unit of 100 people and if the
list is more than 100 people, you can see the
previous or next list by clicking [BACK] or [NEXT]
button.

▶[ID] : If you click the ID of specific user, you can

directly move to the modification window of the
user.

▶[Delete] : If you check the box of the right side

and click the [Delete] button, you can delete all
the checked users at once

If you click [BACK] button on the top, you can move
to the previous ‘3.3 User management’ menu.

3.3.5. View

If you click the [User]->[View] in the main menu, all the users registered can be
searched as follows.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 42

▶If you input the User ID by clicking [ID] button,

the user is searched like in the left picture.
If you click [BACK] button in this window, you can
move to the ‘3.3. User management’ menu.

▶[Name] : If you input the user name by clicking

[Name] button, the registered user list including
the characters is shown.

If you click [BACK] button in this window, you can

move to the ‘3.3. User management’ menu.

For example, if you searched with “ma”, all the
users who contain “ma” in their name are searched

3.4. Network setting

If you select [Network] in the main menu, the following window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 43

▶Basic setting : Same with the window at the left

side.

Select the method [Static IP] if the static IP is
allocated from the connected network, and select
[DHCP] if the IP is allocated from the DHCP server in
the connected network.
.

If you selected [Static IP], set the IP address, subnet
mask, and gateway. And if you selected [DHCP], you
don’t have to set them.

DNS entry is possible instead of IP in the [Server IP],
and if you use specific DNS server, input the IP
address of [DNS] server together. Check “DDNS □”
when typing DNS in order to type in English.

If you touch the item you want to change, the keypad
appears at the bottom.

If the input is finished with the keypad, continue the
input by touching [ ] button or the next input

window. If you touch the background window which
is not the input window, the keypad disappears.

If you want to apply the changes, click [Save] button,
and return to the previous menu by clicking [BACK]
button.

▶[Port] : The basic port value of the authorization server (UNIS server) is ‘9870’, and if

you change the value, you should change the server program with the same value, so
be cautious.

▶[Terminal ID] : It is unique ID used by the terminal to distinguish the terminals and

the default value is ‘1’. It should be the same with the ID of the terminal registered,
and the characters can be up to 9 digits.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 44

It is the screen appearing when you select the Access.

Click [OK] button to apply the changes, and click
[BACK] button to cancel and return.

▶ Basic setting : Same with the window at the left side

It is the screen appearing when you select the [TnA].

Click the [OK] button to apply the changes, and click
[BACK] button to cancel and return..

3.5. Application mode

3.5.1. Application

If you select the [Application] in the main menu, the following window appears.
In the application mode, you can select the [Access / TnA / Meal] according to the
purpose.

3.5.1.1. Access or TnA setting

▶Schedule (00:00~23:59) : You can set the time for each authorization mode and if you

do not need the function, set ’00:00-00:00’.

During the set time, the set mode is always shown unless clicking another function

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 45

It is the screen appearing when selecting the meal
management.

You can set the time period of each meal type.
And if the setting is not needed, set ‘00:00-00:00’.

▶Allow duplicate : If it is unchecked ( ),each user

can authorize once in the one meal, but if it is

checked( ), the multiple authorization is possible
regardless of the previous authorizations.

Click the [OK] button to apply the changes, and click
[BACK] button to cancel and return.

button, and it is convenient for the TnA management because the indication mode is
changed to the set authorization mode automatically though another mode was
authorized by clicking another function key. The time periods should not be overlapped,
but if they are overlapped, the application order is
Attend(F1)Leave(F2)Out(F3)In(F4)Access. If the time is set between
23:00~01:00, it means from 23:00 to the 01:00 the following day.

▶Blocking time (0~86400) : This function prevents the same user to authorize again in

the set time. There is no restriction if it is set 0, but if it is set bigger than 0, the user
can authorize again when the set time (sec) is passed from the previous authorization.
It can be set up to 86,400 seconds (24 hours).

3.5.1.2. Meal setting

3.5.2. Function key

The following window appears if you select the [Application]  [Function key] in the
main menu.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 46

▶Basic setting : Same with the window at the left side.

▶Fn key

It means the [F1]~[F4], Access button used to
change the authorization mode such as attendance
and leaving, and if you click the Fn key, the
authorization mode is changed to the mode. Because
only the checked buttons are represented on the basic
window, you can use with unchecking other function
keys when using as device only for the attendance or
leaving

▶Basic setting : Same with the window at the left
side

▶User ID Length

It sets the length of the user ID, and it can be 2~9
characters and should be the same with the length
of the registered ID of the server program. If the
ID registered in the server program uses ‘000075’
as a 6 digits ID, set 6.
.

▶Authentication

It determines the priority of the authorization
between the terminal and network server and there
are 4 modes “Terminal Only”, “Server Only”,
“Terminal/Server” , “Server/Terminal”.

[Terminal Only] : It only authorizes the user

Click [OK] to apply the set value, and click [BACK] button to move to the previous menu.

3.6. System

3.6.1. System

The following window appears if you select the [System]  [System] in the main
menu

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 47

registered in the terminal.
[Server Only] : It only authorizes the user
registered in the server.
[Terminal/Server] : It authorizes the user
registered in the terminal as 1:N identification but it
authorizes the user in the server as 1:1 verification.
[Server/Terminal] : 서It authorizes the user
registered in server as 1:N identification but if the
network between server to terminal was
disconnected, it authorizes the user registered in
terminal as 1:N identification.

▶Basic setting : Same with the window at the left side

▶1:N Level (3~9)

It is the authorization level used in the 1:N
Fingerprint authorization. In case of 1:N
authorization, the authorization level is not set for
each user, so the authorization level of the terminal is
always the standard..

▶1:1 Level (1~9)

It is the authorization level used in the 1:1 Fingerprint
authorization. But, in case of the user whose 1:1
authorization level is not set ‘0’ (using the
authorization level of the terminal), it follows the 1:1
authorization level of the user.

▶Mandatory Registration

It determines the items which should be entered in the user registration, and the user

can be registered when all the checked items are entered. The number of registered

fingerprints is only valid when the [Fingerprint] is checked.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

If you click the OK button without changing the set value, it is moved to the upper

menu directly. Click the menu button at the left side to set additionally.

3.6.2. Finger

The following screen appears if you select the [System]->[Finger] in the main menu..

▶Fake Finger Detection

It sets the LFD level to prevent the fake fingerprint input. The higher level of the LFD

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 48

level, the preventing function of the fake fingerprint input such as rubber, paper, film,
or silicon is strengthened, but the fingerprint also can be hard to enter if the finger is
dry too much.

▶FP template format

It determines the format of fingerprint template. When some applications using SDK
need another format of the fingerprint, the fingerprint template format of the terminal
can be changed. But, if using UNIS server, it should be set the same with the
template format of the server.

- Union: It is the default setting and the volume is 400 bytes for each template. It is
the most optimized format related with all the functions using fingerprint (1:1
level, 1:N level, authorization speed, and fake fingerprint detection), and the
authorization can be fulfilled rapidly and correctly

- ISO Standard: Fingerprint data is saved as ISO template which is 500 bytes for each
template.

- ISO Extended: Fingerprint data is saved as ISO template which is 600 bytes for each
template.

If you change the template format of the fingerprint, the following message box
appears.

If you click the [OK] button, the new format is applied, and if you click the [Cancel]
button, the format value before the change is maintained.

※ Notes

If you change the fingerprint template format, all the registered fingerprints are
deleted, so be cautions.

▶Check similar FP

If it is checked( ), the re-recognition as another user ID is prevented by checking if
the fingerprint is already registered. Similar fingerprints are checked against users who
ticked the 1:N option. (100,000 fingerprints limit)

▶Multi FP

If it is checked( ), all the registered fingerprints should be authorized after the ID
(or card) input. If it is checked, the user should input the user ID or card, the option

[Enable 1:N] will be unchecked( ) automatically.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 49

It is the function used when managing the access control of the special area strictly.
For example, if the user with ID ‘0001’ has three fingerprints registered, the user
should be authorized with all three fingerprints after entering ID.
In this case, the order of three fingerprints is not important, but if one of the
fingerprints is failed to be authorized, the authorization is failed.

▶Enable 1:N

If it is checked( ), the user can be authorized only with the fingerprint without user
ID or card. Though the user is registered by enabling 1:N authorization, in the terminal
where the option is not checked, only the 1:1 authorization is possible.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return. If
you click [OK] button without changing the set value, it is moved to the upper menu
automatically.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 50

▶ Basic setting : Same with the window at the left
side

▶Matching level

It is the level used in face authorization, and it can
be set 1~4 levels according to the accordance
degree with the registered face. And the
authorization is successful when the accordance
degree is higher than set authorization level.
If the authorization level is higher, the security level
will be higher, but you also can fail to authorize
easily due to the high requirement for the
accordance level.

3.6.3. Face

▶Face Recognition

It determines the face authorization method, and you can set along with the using
condition. The specific explanation about each set method can be referred in ‘1.6.
How to register and certify the face properly’.

▶Enrollment Sensitivity [1~10]

It is the level used in Live Finger Detection technology which determines the real face
or not, more precisely for each practical environment. So you can set this level from ‘1’
to ‘10’ but if it was higher, the real face is apt to be more denied to be recognized.

▶Authentication trial limit [1~10]

It displays the face authentication result after done trial limit. And you can set this
level from ‘1’ to ‘10’ and generally default level is ‘5’, so it displays the face
authentication result after done trial 5 counts.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
If you click [OK] button without changing the set value, it is moved to the upper menu
automatically.

3.6.4. Auth

If you select the [System]  [Auth] in the main menu, the following window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 51

▶Basic setting : Same with the window at the left
side

▶Auth Type: Select the authorization method of the terminal.

- Card: Though the user is registered with the authorization method requiring the

face, fingerprint, or password in addition to the card, the terminal with the checking
of the item, the card can authorize by itself. For fingerprint, face or password users,
follow the same authentication procedure as per normal to authenticate.

- Fingerprint: Though the user is registered with the authorization method requiring

the card, face, or password in addition to the fingerprint, the terminal with the
checking of the item, the fingerprint can authorize by itself. For fingerprint, face or
password users, follow the same authentication procedure as per normal to
authenticate.

- Face: Though the user is registered with the authorization method requiring the

card, fingerprint, or password in addition to the face, the terminal with the checking
of the item, the face can authorize by itself. For fingerprint, face or password users,
follow the same authentication procedure as per normal to authenticate.

▶FP Template card

If this option is checked( ), the option enables the authorization only with the user
information in the card and the fingerprint without downloading the user in the
terminal. To run this option, the SC card reader must be equipped, and the fingerprint
card layout should be set in the server and applied to the terminal.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 52

▶Basic setting : Same with the window at the left side

▶Face 1:1 Only

If this option is checked( ), face authentication will be worked for 1:1 verification only.

3.6.5. Date/Time

If you select the [System]  [Date/Time] in the main menu, the following window
appears.

▶Time synchronization

It determines the synchronization method between the present time of terminal and
server. If you want automatic synchronization, set [Auto], and if you want manual
synchronization, set [Manual].
.

▶Display format
The present time indicating method of the terminal

- yyyy-mm-dd: Order of year, month, and date.

- dd-mmm-yyyy: Order of date, month (English), and year

▶Set Date / Set Time
It changes the present time of the terminal. If the server is connected and the [Time

synchronization] is set [Auto], you don’t have to change because it is synchronized
with the server time.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 53

If you want to delete all the users, click [Delete all
users] button.
If you want to initialize the settings, click [Delete
setting] button.
If you want to initialize the authorization record, click
[Delete Log] button.
If you want to delete image log only, click [Delete
image log] button.
If you want to delete all the data and initialize with the
factory setting, click [Factory init] button.

If you want to move to the upper menu, click [Close] or
[BACK] button.

If you want to delete all users, click [YES] button,
and if you want to cancel, click [NO] or [X] button.

If there is no signal for 5 seconds in this state, the
message box disappears without deletion.

3.6.6. Database

If you select the [System]  [Database] in the main menu, the following window appears.

3.6.6.1. Delete all the users

If you select the [System  [Database]  [Delete all users] in the main menu, the
following window appears.

If deletion is successful by click [YES], the following success message box appears.

In this case, both the users and administrator are deleted, and the restoration is

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

<Fig. 3-5>

UBio-X Pro User Guide 54

Click [YES] button to initialize all the set values, and click
[NO] or [ ] button to cancel.

If there is no signal for 5 seconds in this state, the
message box disappears without initialization.

If you want to delete all the authorization record in the
terminal, click [YES] button, and if you want to cancel,

click the [NO] or [ ] button.

If there is no signal for five seconds in this state, the
message box disappears without deletion.

impossible once the data is deleted.

3.6.6.2. Delete setting

If you select the [System]  [Database]  [Delete setting] in the main menu, the
following screen appears.

If the deletion is successful by clicking [YES], the success message in <Fig. 3-5> is
displayed and the display language and voice is changed to the default value English.
All the set value of the terminal besides the MAC address, but the record of the users
and authorizations is not deleted.

3.6.6.3. Delete Log

If you select the [System]  [Database]  [Delete log] in the main menu, the
following window appears.

If it is deleted successfully by clicking [YES], the success message in [Fig. 3-5] is
displayed. All the authorization log is deleted including image log, and the restoration
after the deletion is impossible.

3.6.6.4. Delete image log

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 55

If you want to delete all the authorization record in the
terminal, click [YES] button, and if you want to cancel,

click the [NO] or [ ] button.

If there is no signal for five seconds in this state, the
message box disappears without deletion.

If you want to initialize the terminal in the factory setting,
click [YES] button, and if you want to cancel, click [NO] or
[ ] button.

If there is no signal for five seconds in this state, the
message box disappears without initialization.

If you select the [System]  [Database]  [Delete image log] in the main menu,
the following window appears.

If it is deleted successfully by clicking [YES], the success message in [Fig. 3-5] is
displayed. All the authorization log is deleted including image log, and the restoration
after the deletion is impossible.
.

3.6.6.5. Factory init

If you select the [System]  [Database]  [Fatory init] in the main menu, the
following window appears.

If it is deleted successfully by clicking [YES], the success message in <Fig. 3-5> appears,

and the display language and voice is changed to the default value English.
All the set value, users and log information besides the MAC address in the terminal to
make the terminal in the factory setting. The restoration after the deletion is

impossible, so be careful.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 56

▶ Basic setting: Same with the window at the left
side.

▶ Voice volume

Scroll from side to side in 0~15 degrees to set the

voice volume. If you click the [ ] button at the
right side, the voice is played to check the volume.

▶ Beep volume

Scroll from side to side in 0~3 degrees to set the

beep volume. If you click the [ ] button at the
right side, the beep sound is played to check the
volume.

3.7. Terminal

3.7.1. Sound

If you select the [Terminal]  [Sound] in the main menu, the following window
appears.

▶Sound Option

- Sound effect: The sound effect can be output on authorization success or failed.

- User voice: If the user wants to change the voice played when the authorization is

successful or failed, the user voice can be played if the user copy the sound into
terminal and check the option. The method to copy the sound into the terminal
can be referred in [3.10. SD card]  [Theme] or [3.11.2 How to change voice
sound].

- Saved Voice: The saved voice can be output for authorization success or failed.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return. If
you want to set another items, click the menu you want to change at the left side.

3.7.2. Option

If you select the [Terminal]  [Option] in the main menu, the following window
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 57

▶ Basic setting : Same with the window at the left
side.

▶ Read Card number: If the user put the card on the
screen, the card number is displayed on the LCD.
you can change the [Card format] to check the card
number according to the set value.

▶ Lock terminal: This function enables the
administrator to lock or unlock the terminal directly on
the terminal, not on the server program. If it is

checked ( ), none can access due to the lock until
the administrator unlock the setting.

▶ Card reader: Standard와 HID iClass로 설정 할 수
있으며 설정된 타입의 카드만 인식하게 됩니다.

Card format

Card number

Expression

Standard

02207638

(3+5)digits decimal
[022(16h)+07638(1DD6h)]

Hexadecimal

0801161DD6

10digits hexadecimal

10 Digit Decimal

0018226646

Posterior 4byte: 10digits decimal
(01161DD6h)

3,5 Digit Decimal

02207638

Same with [Standard]

6 Digit Hexadecimal

161DD6

Posterior 3byte: 6digits hexadecimal

Card format

Card number

Expression

Standard

529D06E3

8 digits hexadecimal

Hexadecimal

E3069D52

8 digits hexadecimal with changing the order of
byte

10 Digit Decimal

1386022627

hexadecimal 529D06E3: 10 digits decimal

3,5 Digit Decimal

3808861522

hexadecimal E3069D52: 10 digits decimal

6 Digit Hexadecimal

069D52

Locate the foremost 3bytes backwards.

▶ Card format

It determines the representation method of the card number. The card number is

changed according to the following settings. So if you have to change the card
expression method, you should register the card again.

[RF card example] Card number(5byte): 08h 01h 16h 1Dh D6h

[SC card example] Card number(4byte): 52h 9Dh 06h E3h

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 58

▶ Basic setting : Same with the window at the left
side.

3.7.3. Input

If you select the [Terminal]  [Input] in the main menu, the following window
appears.

▶M0: It is set when connecting the external access point to the DM0

(When using motor lock, set [Door open NO] or [Door open NC].)

-None: When nothing is connected.

-Door open NO or Door open NC: When the door open monitoring pin was
connected.

-Fire detection NO or Fire detection NC: When the fire detection sensor is
connected.

-Panic detection NO or panic detection NC’: When the panic situation detection
sensor is connected.

-Emergency detection NO or emergency detection NC’: When the emergency
situation detection sensor is connected.
 Set NO/NC according to the state of pin input in detection.

▶M1/M2: Set when connecting the external access point to DM1/DM2

(When using motor lock, set [Lock NO] or [Lock NC].)

- None: When nothing is connected.

- Lock NO or Lock NC: When the lock monitoring pin was connected.

- Fire detection NO or Fire detection NC: When the fire detection sensor is
connected.

- Panic detection NO or panic detection NC’: When the panic situation detection
sensor is connected.

- Emergency detection NO or emergency detection NC’: When the emergency
situation detection sensor is connected.
 Set NO/NC according to the state of pin input in detection.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 59

▶IO: Set when connecting the external access point to the Exit pin.

- None: When nothing is connected

- Inside Open NO or Inside Open NC: When the exit button was connected

- Fire detection NO or Fire detection NC: When the fire detection sensor is
connected.

- Panic detection NO or panic detection NC’: When the panic situation detection
sensor is connected.

- Emergency detection NO or emergency detection NC’: When the emergency
situation detection sensor is connected.

 Set NO/NC according to the state of pin input in detection

▶Warn door open (sec)
This function alarms when set time for door open (5~30 seconds) is passed with the
opened door.
If it is set [0], no alarm is ringing, and though you set [01~04], the alarm will ring after 5
seconds.

This function enables the appropriate action to close the door when someone could know
that the door is not closed properly by alarming when the door is not closed for specific
time.

To use the function, the lock must be able to be monitored if it is opened or closed, and
the monitoring pin of the lock also should be connected with M0. In addition, the
previous M0 also should be set [Door open NO] or [Door open NC].

.

▶Tamper alarm

If it is checked( ), a warning sound will be played when the terminal is disassembled.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

3.7.4. Lock

If you select the [Terminal]->[Lock] in the main menu, the following windows appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 60

▶ Basic setting : Same with the window at the left side.

▶Lock 1 Option

- None: When it is not used

- Strike/Auto/OK: When the warning light is connected to indicate the strike type,

auto door, or authorization success/failure on Lock1.

- Motor lock 1: When the motor lock is connected.

- Regular notification: When the siren setting of the terminal option was sent to the

terminal, it sends the operating signal about it.

- Duress alarm: When the fingerprint registered as a duress FP is authenticated

▶Lock 2 Option

- None: When it is not used

- Strike/Auto/OK: When the warning light is connected to indicate the strike type,

auto door, or authorization success/failure on Lock2.

- Motor lock 2: When the motor lock is connected.

- Regular notification: When the siren setting of the terminal option was sent to the

terminal, it sends the operating signal about it.

- Duress alarm: When the fingerprint registered as a duress FP is authenticated

▶Lock 1 duration (ms)

When Lock 1 is set ‘Strike/Auto/OK’, it determines the signaling time. Because it is set

in ms unit, if you want to set 3 seconds, you should set 3000. The strike type means
the time until the door is locked again when opening the door after authorization.

▶Lock 2 duration (ms)

It sets the signaling time when Lock 2 is set ‘Authorization failure notification’.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
Because it is set in ms unit, if you want to set 3 seconds, you should set 3000.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 61

▶ Basic setting : Same with the window at the left
side

3.7.5. External Device

If you select the [Terminal]  [External device] in the main menu, the following
window appears.

.

▶RS232: It sets the device connected to RS232 port

-None: When there is no device connected to the RS232 port

-Ticket Format1/ Ticket Format2: The authorization result is printed when the
authorization is successful. The terminal ID, user ID, authorization time, and

authorization mode are printed by the printer connected to the RS232 port.
The printing format differs as per the setting, and when setting as [Ticket Format2]
the “text for meal printer” which was set from the terminal option, becomes the title
on the top side. The printer used to print ticket is “SRP-350” serial type model.

▶RS485: It sets the connecting device to RS485 port.

- None: When there is no device connected to RS485.

- LC010: When LC010 is connected.

- LC015: When LC015 is connected

▶Site code

It sets the sitecode value sent in Wiegand output below.

▶Wiegand Output

It is used only when the special controller is equipped running by the Wiegand input.
When the authorization is finished, the data of the following format is sent to the
Wiegand port of the terminal.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 62

None

General case. It does not use Wiegand out port.

26bit

Because it sends “Sitecode[1byte] + User ID[2 byte]”, set the user ID
less or equal than 4 digits.
Send example) In case of SiteCode:045(2Dh), UID:6543(198Fh)
 1 00101101 0001 1001 10001111 0

34bit

Because it sends “Sitecode[1 byte] + User ID[3 byte]”, set the user ID
less or equal than 7 digits.
But, if the user ID is 8 digits, ignore sitecode and send only the “User
ID[4byte]”.
Send example) SiteCode:001(1h), UID:123456(1E240h)
 0 00000001 00000001 11100010 01000000 0

Custom

It is set by the user definition, which only can be set in the server, and
the setting type only can be inquired in the terminal.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 63

▶ Basic setting : Same with the window at the left
side.

▶Background

It sets the background of the basic window. You

can inquire the next image by clicking [ ] button.

3.8. Display

3.8.1. Theme

If you select [Display]  [Theme] in the main menu, the following window appears.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return. If
you want to set another items, click the menu you want to change at the left side.

3.8.2. Camera

If you select the [Display]  [Camera] in the main menu, the following window
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 64

▶ Basic setting : Same with the window at the left
side.

▶ Display Option

Choose the image displayed in the message window
of authorization success

- None

- Registered user’s picture.

- AuthType: Image stands for each AuthType

▶ Save success log

If it is checked ( ), the camera image is captured

as image log when the authorization was
successful.

▶ Save failed log

When it is checked ( ), the camera image is
captured as image log when the authorization was
failed.

▶ Basic setting: ‘English’

▶ Language

If you change the language and click ‘OK’ button,
the voice message and language are changed to
the set language.

If you want to cancel and move to the upper menu,
click [BACK] button.

※ Supporting languages

English, Korean, Japanese, Portuguese,
Chinese(Traditional), French, Chinese(Simplified),
Spanish, Polish, Persian, German

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

3.8.3. Language

If you select the [Display]  [Language] in the main menu, the following window
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 65

▶ Basic setting : Same with the window at the left
side.

▶Power saving mode (5sec ~ 10min)

If there is no input for set duration, the LCD screen
is turned off automatically. But, if you set ‘None’
the LCD is always turned on.

▶Display Option

It sets what will be shown at the LCD screen when

the authorization is successful.

- None: The authorization result [Success/Failure] is

only represented.

- User ID

- User Name: Representing user ID if it is not
registered.( In this case, added “ID” in order to
differentiate with name)

- Social No: Representing user ID if it is not
registered. (In this case, added “ID” in order to
differentiate with employee’s number)

▶Touch Calibration

This feature is to calibrate the coordinates of the

touch screen.

3.8.4. Option

If you select [Display]  [Option] in the main menu, the following window appears.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

3.8.5. Message display time

If you select the [Display]  [Message display time] in the main menu, the following
window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 66

▶ Basic setting : Same with the window at the left
side.

▶Message Display (ms)

It sets the time for which the authorization result
window to be displayed.
0~5000 is available for the value, and the
authorization result window appeared and
disappear for the duration.
Because it is set in millisecond, if you want to set 2
seconds, you should set 2000.

▶System info

The hardware and firmware version of the terminal

is shown.

▶Disk (using size / Total size)

It shows the using size of the hard disk.
If the using size is high, it is represented in red.

▶Ram (using size / Total size)

The using size of RAM among the all size
is represented.
If the using size is high, it is represented in red.

Click [OK] button to apply the set value, and click [BACK] button to cancel and return.

3.9. Terminal Info

3.9.1. System

If you select the [Terminal info]  [System] in the main menu, the following window
appears.
.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 67

▶ Terminal info

It represents the option setting value of the

terminal.

Click [BACK] button to finish the inquiry and move to the upper menu. Click the menu
on the left side to inquire additional item.

3.9.2. Terminal

If you click the [Terminal info]  [Terminal] in the main menu, the following window
appears.

Click [Close] or [BACK] button to finish the inquiry and move to the upper menu.

3.9.3. Network

If you select the [Terminal info]  [Network] in the main menu, the following
window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 68

▶ Network info

It shows the network setting value of the terminal.

▶User

- User: The number of users registered (including

administrator)

- Admin: The number of the administrators

registered.

- FP: The number of all the fingerprints registered.

- FP 1toN: The number of fingerprints which can be

authorized by 1:N.

- Face: The number of the users who registered the

face

- Face 1toN: The number of users who can be
authorized by 1:N

- Card: The number of cards registered

- Photo: The number of users who registered the

(Max means the maximum number of registrations
for each item.)

If you want to finish the inquiry and move to the upper menu, click [CLOSE] or [BACK] button.

3.9.4. User

If you select the [Terminal info]->[User] in the main menu, the following window
appears.

.

Click the [Close] or [BACK] button to finish the inquiry and move to the upper menu.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 69

▶Log

Log: The number of logs saved in the terminal
Image Log: The number of image logs saved in the
terminal.

(Max means the maximum number of items which

can be saved in each item.)

▶View Log
Displays log time and authentication result

▶Log Search
To search log, follow the following steps,
[Terminal Info]  [Log]  [View Log]  [Log

Search]

And then set the Start Date, End Date and Event

criteria and click [OK].

3.9.5. Log

If you select the [Terminal info]  [Log] in the main menu, the following window
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 70

▶View Log
Log search result shows the information such as the
date, time, ID and access result (success or failure).

Click [BACK] or [NEXT] button to see the search

information.

▶About

It shows the license information of the Korean font
applied to the terminal.

If you want to finish the inquiry and move to the upper menu, click [Close] or [BACK]
button.

3.9.6. About

If you select the [Terminal info] -> [About] in the main menu, the following window
appears.

If you want to finish the inquiry and move to the upper menu, click [Close] or [BACK]
button.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 71

< When the SD Card

was inserted >

< When the SD Card

was not inserted >

< When the SD Card

was locked >

3.10. SD Card

If you select the [SD Card] at the main menu, the following screen appears.

※ It works only if the SD Card is inserted, and it should be inserted with the back side

face forward like the figure. (The side of the SD Card should not exceed 32G.)

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 72

It is the function used for data backup of the terminal
by [Export], and you can copy the backup data from
the [Export] into the terminal again.

▶ Export

It copies the data from the terminal to the external SD Card.

- User data: It copies the user DB to the folder ‘unisuser’ on the SD Card.

- System option: The option setting value of the terminal is copied to the folder
‘UbioXpro / config’.

- Event log: It copies the authorization log DB to the folder ‘UbioXpro / Terminal ID (8
digit) / log’ on the SDcard.
Basically, log image couldn’t be exported in this option and Period logs can be
exported after selecting duration.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 73

- Picture: The image log data is saved in the folder ‘UbioXpro / Terminal ID (8digit) /
log / pictures’ on the SD Card as jpg file.

- Export all: It can export all things User Data, Event Log, System Option, Picture to the

SD Card.

▶Import

It copies the data from the SD Card to the terminal.

- User Data: It copies the user DB from the SD Card to the folder ‘unisuser’ in the

terminal.

- System Option: The option setting value of the terminal is copied to the folder

‘UbioXpro / config’ in the terminal.

After importing the data, the UBio-X Pro terminal should be rebooted to apply new data
& options.

▶Others

- Theme: The voice file in the ‘UbioXpro /audio’ folder in the SDcard is copied to the
terminal.

If you want to replace the authorization success (user_ok.mp3) and the authorization
fail (user_fail.mp3) message with the user voice, set the name of the user voice file as
(user_ok.mp3), (user_fail.mp3) respectively which the user voice will play.

And also the checkbox “User Voice” on [3.7.1. Sound] should be checked.

- F/W upgrade: It upgrades the firmware by the SD Card.
(The firmware should be in the ‘UbioXpro’ folder on the SD Card.)

If you want to finish working and move to the upper menu, click the [OK] or [BACK]
button.

3.11. User’s file download

If necessary, the user can change the background screen or voice message with this
function. It can be fulfilled by copy with SD Card or downloading the user file from the
UNIS server program.

3.11.1. How to change background screen

If you select the ‘Download customized file’ in the UNIS program, the following window
appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 74

If you select the file type as ‘Background image file(.jpg)’, select the image file (.jpg), and
click the ‘Send’ button, the terminal selection window appears. If you select the terminal
in the terminal list window and click the ‘Send’ button again, the file is sent and the

download result is represented.

At this point, the file name should not exceed 15 letters (English, 15byte), and the jpg file
whose size is jpg file only (size: 480*800) is only can be sent. If the data with different
format is downloaded, the “Version error” will be shown in the send result.

If you want to change the background screen to the basic screen, you can select it by
yourself in the [3.8.1. Display]  [Theme].

3.11.2. How to change voice sound

If you select the ‘Download customized file’ in the UNIS program, the following window
appears.

If you select ‘Sound file in success (.wav)’ as the file type and click ‘Send’ button after
selecting the sound file (.wav or mp3), the terminal selecting window appears. If you select
the terminal in the terminal list window and click the ‘Send’ button again, the file is sent and
the result of download appears.

In this time, the file name should be less than 15 letters (English, 15byte)including
extension and mp3 format.

In case of sound in failure also can be changed by selecting ‘Sound file in failure(.wav)’ with

the same manner..

If you want to change back to the basic sound from the user’s sound, uncheck the
checkbox “User Voice” at the [3.7.1 Terminal]  [Sound].

3.12. Connect your BT module with your app

3.12.1. BT module activation

In order for BT module to be detected in the app, the BT module must be detected in the app, the BT
module must be activated and activated by briefly touching the BT icon on the recognizer as shown
below.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 75

3.12.2. BT module connection wait status

In the active state, it is displayed as below.
Displays the model name, master ID, and BT module MAC address of the recognizer.

3.12.3. Search and access your app’s BT module

If you click Bluetooth search after login the app, BT module information will be searched as shown
below.
Select the BT module and try to connect.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 76

3.12.4. Connected app and BT module

When the app BT module is connected, it will be displayed as the following figure.
The app will say “Bluetooth connected” and the BT icon will turn on the recognizer screen as shown
below.

3.12.5. Disconnect from app and BT module in recognizer

If the BT module is connected to the app (the BT icon is displayed in blue), or you briefly touch the BT
icon while BT is active, you will see “BT Disconnecting …”Will be Disconnected from the app.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 77

Card Sensing Area

4. How to use terminal

The background image and composition of the basic window can be changed according
to the administrator’s setting. In addition, if the administrator set the screen saver time,
the LCD screen is turned off automatically if there is no action for set time, and when the
user accessed to the terminal, tried the authorization with fingerprint/card, or touched
the main screen, the LCD screen is turned on automatically.

4.1. How to change Auth mode

<Fig. 4-1>

Select the function key button among Attend [F1], Leave [F2], Out[F3], In[F4] on the
screen for choosing the function mode before authentication.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 78

Enter the user ID to be certified and click [OK] button,
then the input screen of fingerprint, face, card, or
password according to the authorization method of
the user.

4.2. How to input user ID

If you click the button [ID] on the basic window, following the window “Input User ID”
as below.

4.3. How to authorize

4.3.1. Face authorization

▶1:N Authorization (Identification)

Set the location of your face at the LCD guideline until the guideline is changed blue,
and gaze the camera and stop moving to try authorization.

▶1:1 Authorization (Verification)

As shown in the following figure, enter your ID first by clicking [Input ID] button, and
when the face input message appears, locate your face until the LCD guideline is
turned blue, and gaze the camera and stop moving.
If the terminal cannot detect the face properly, the 1:1 Authorization will be canceled

with the message box is changed to gray after 20 seconds.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 79





4.3.2. Fingerprint authorization

▶1:N Authorization (Identification)

If you put your fingerprint on the fingerprint sensor at the basic window, the fingerprint
is entered with the light on the sensor with beeping. Do not take off your finger until
the light of the sensor turns off completely.

▶1:1 Authorization (Verification)

As shown in the following figure, enter your ID first by clicking the [Input ID] button,
and input your fingerprint when the fingerprint entering window appears and the light
is turned on at the fingerprint sensor.
Do not take off your finger until the light of the sensor turns off completely.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 80









4.3.3. Card authorization

Put the card on the card picture in <Fig. 4-1>

4.3.4. Password authorization

Input your ID by clicking [ID input] button as follows and input password when the
password input window appears.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 81

4.3.5. Multi-mode authorization

For user who needs to authenticate via more than 2 methods such as –card & fingerprint
OR card & fingerprint & face,
The preferential precedence of the authentication after the ID is typed is as follows:
cardfingerprintfacepassword
It activates even face or fingerprint authenticates firstly.

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr

UBio-X Pro User Guide 82

FCC Information

This device complies with part 15 of the FCC Results. Operation is subject to the following

two conditions :

(1) This Device may not cause harmful interface, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for CLASS B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try correct the interference by one or

more of the following measures:

1.1. Reorient or relocate the receiving antenna.

1.2. Increase the separation between the equipment and receiver.

1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is

connected.

1.4. Consult the dealer or experienced radio/TV technician for help.

WARNING

Changes or modifications not expressly approved by the manufacturer could void the

user’s authority to operate the equipment.

“CAUTION : Exposure to Radio Frequency Radiation.

Antenna shall be mounted in such a manner to minimize the potential for human contact

during normal operation. The antenna should not be contacted during operation to avoid

the possibility of exceeding the FCC radio frequency exposure limit.

Contains FCC ID: 2AEEY-PBLN51822M

UNIONCOMMUNITY Co., Ltd.
Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,

Seoul, Korea (zip code : 05836)
Tel : [phone] , Fax : [phone],
E-Mail :[e-mail]; http://www.unioncomm.co.kr
