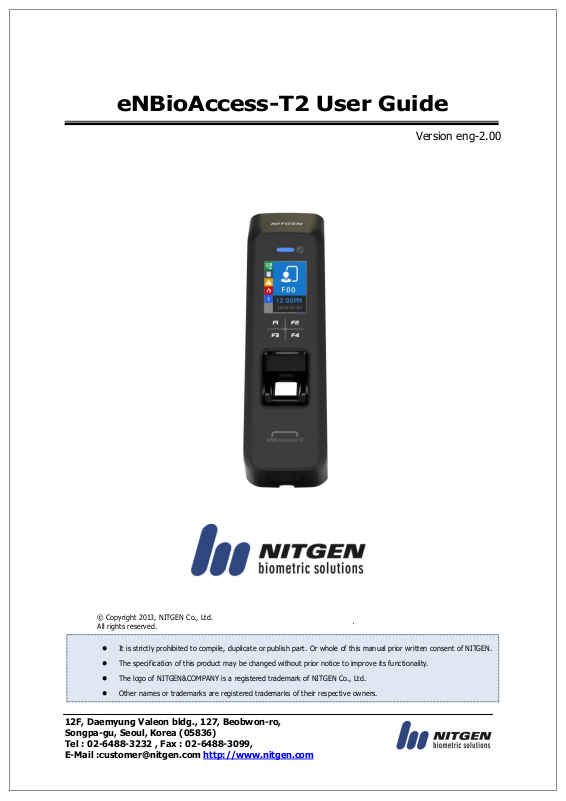

Union Community T2 User Manual

eNBioAccess-T2 User Guide

Version eng-2.00



It is strictly prohibited to compile, duplicate or publish part. Or whole of this manual prior written consent of NITGEN.



The specification of this product may be changed without prior notice to improve its functionality.



The logo of NITGEN&COMPANY is a registered trademark of NITGEN Co., Ltd.



Other names or trademarks are registered trademarks of their respective owners.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 2

Version

Date

Description

Firmware Version

1.00

2016-07-15

Initial Release

1000-01

1.10

2016-08-17

Modified the description for icon information.

1000-02

1.20

2016-09-01

EMC Open function Deletion LOCK1/LOCK2 Result Output Menu Deletion

1000-04

1.30

2016-09-19

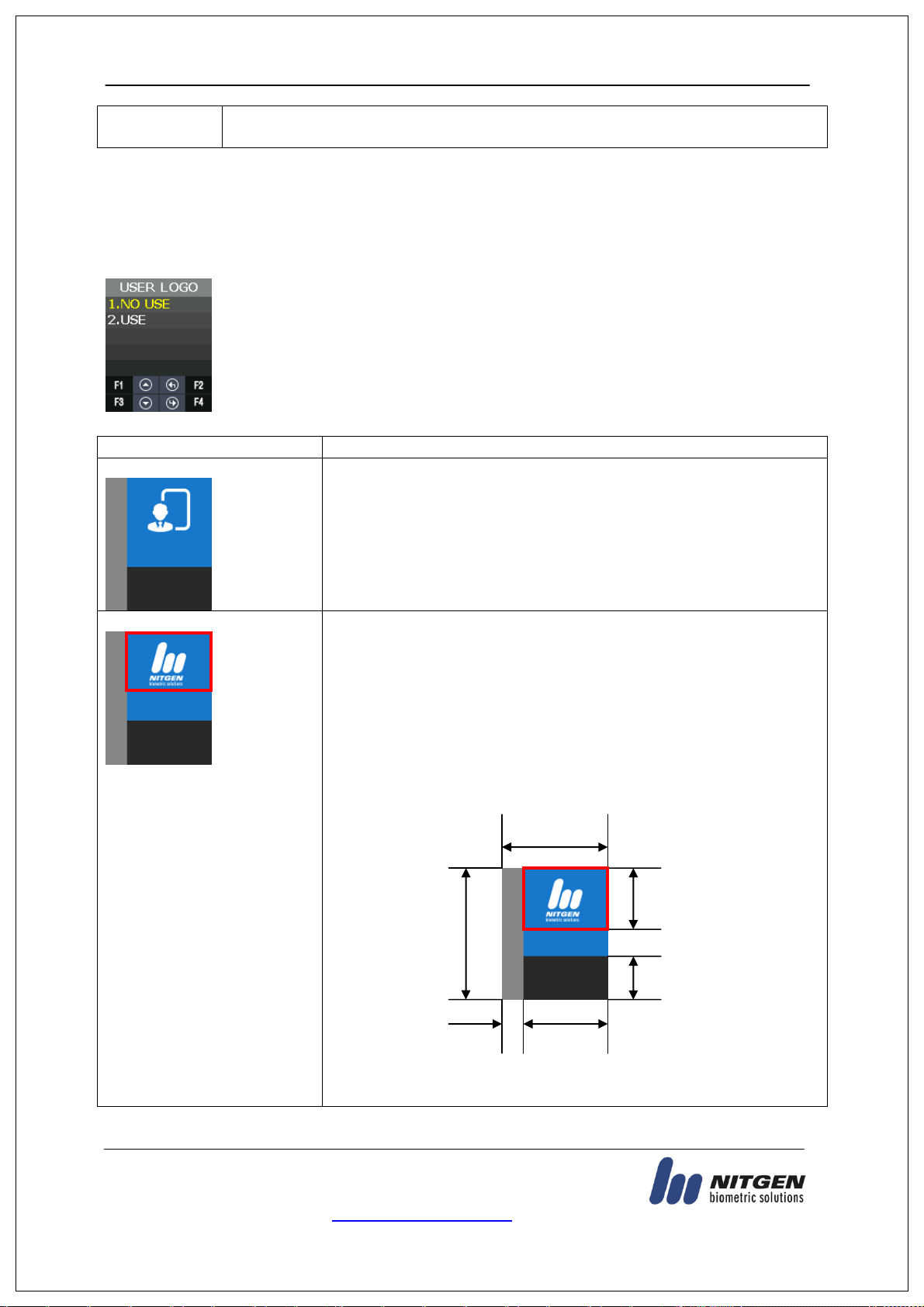

User Logo Description Addition Terminal <-> LC015B Interface modification Added the some description for User Input in Backup Menu

1000-05

1.40

2016-09-29

Added the picture for Backup Error

1000-06

1.50

2016-11-18

Modified the range for Door open time Modified the type of card module (0=NONE,1=SC,2=EM,3=HID)

1000-14

1.60

2016-12-01

Modified the range for open alarm time

1000-16

1.70

2017-01-20

Fix similar fingerprint check part when registering fingerprint (Check when there are 200 fingerprint templates or less) Added the description for authentication time in FP Sensor menu.

1000-23

1.80

2017-08-09

Added default setting for DM2.

1000-27

1.90

2017-08-28

Added the screen for Upgrading firmware

1000-28

2.00

2017-09-12

Added the description for 1.4 section

- LOCK OPEN STATE LED Changed the description for 3.1.4 section

- the level value for matching FP 1:N

1000-29

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 3

 Administrator (Admin)

- The administrator can access the terminal menu mode. He/she has the authority to

add/modify/delete terminal users and to change the operating environment by changing settings.

- If there is no registered administrator in the terminal, anybody can access to the terminal

menu and change settings. It is recommended that more than one administrator will be necessarily registered in the terminal.

- The administrator has the authority to change critical environmental settings of the

fingerprint reader. So, special attention is required to its registration and operation.

 1:1 Authentication

- The user fingerprint is verified after entering User ID or Card.

- Only User ID or the user fingerprint registered to the card is compared. This is called

One-to-One Authentication.

 1: N Identification

- The user is searched only by the fingerprint.

- The same fingerprint as the input fingerprint is identified among the registered

fingerprints without User ID or Card entered. This is called One-to-N Identification.

 Authentication Level

- As a level used for fingerprint authentication, it is displayed in Step 1 to 9.

Authentication cannot be allowed before the degree of match between two fingerprints is higher than the set authorization level.

- The higher authentication level may ensure the higher security. But it requires the

relatively high concordance rate. When authenticating User ID, it high likely to deny authentication.

- 1:1 Level: Authentication level applied when 1:1 authentication

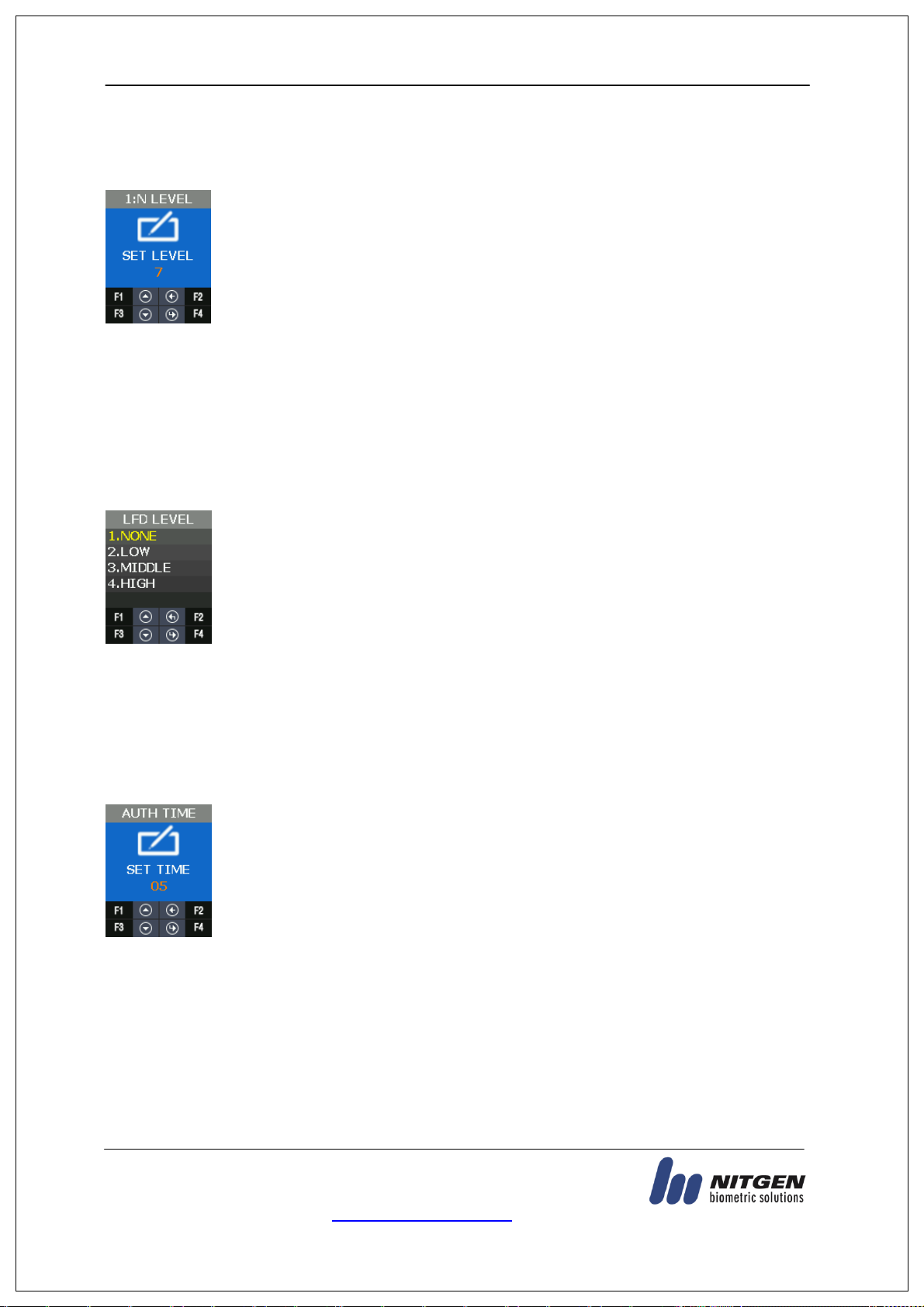

- 1: N Level: Authentication level applied when 1: n authentication

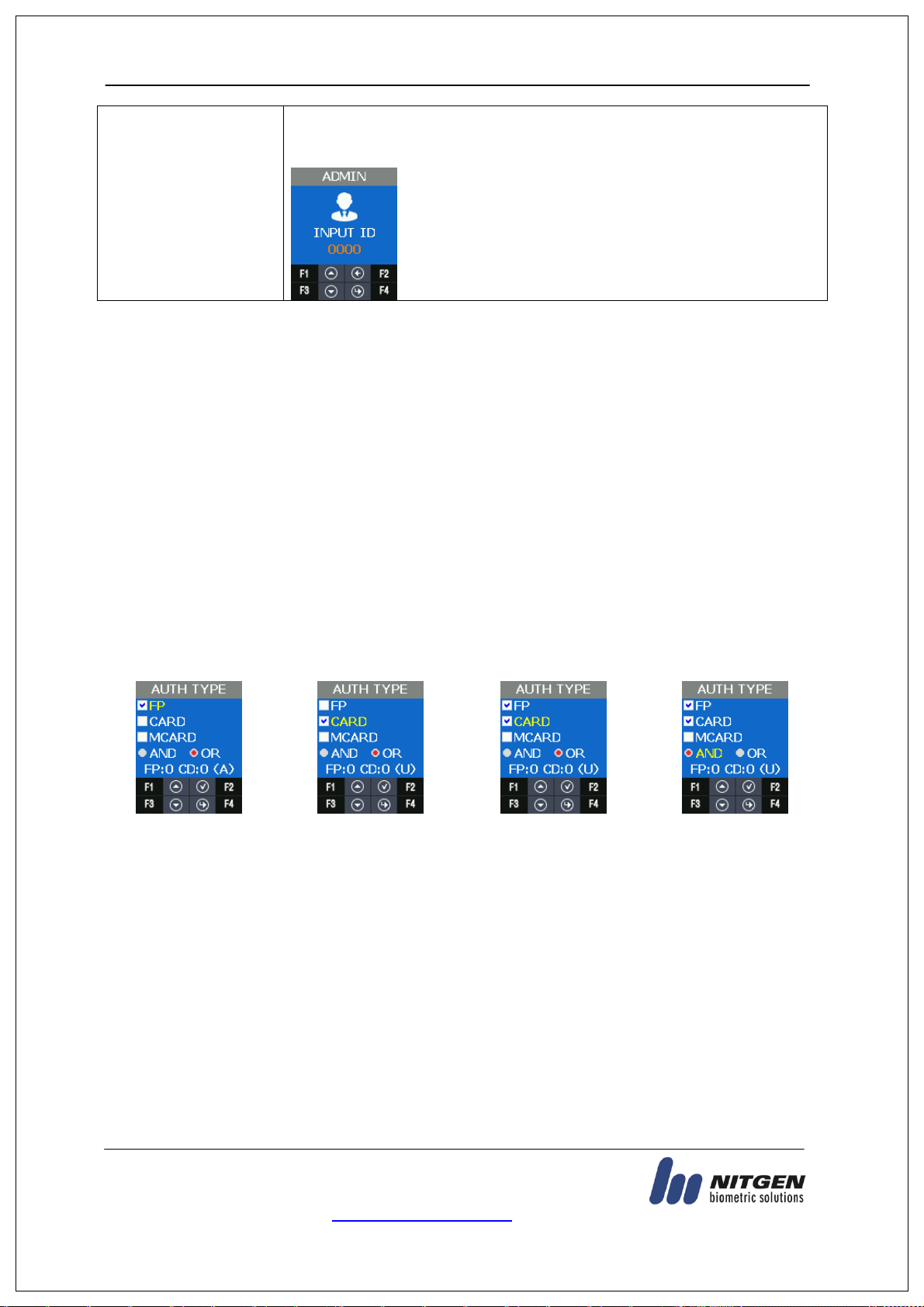

 Authentication Method

- It refers FP(Fingerprint)Authentication, RF(Card)Authentication and a various types of

authentication methods made by each of a combination.

 LFD (Live Finger Detection): Fake fingerprint prevention function

- The LFD allows only actual fingerprints to be entered, except for any fake fingerprints made of rubber, paper, film, and silicon and the like.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 4

Table of Contents

1. Before Getting Started ................................................................................. 6

1.1. Safety Notes ........................................................................................................ 6

1.2. Product Details ................................................................................................... 7

1.2.1. FRONT ...................................................................................................... 7

1.2.2. REAR ......................................................................................................... 8

1.2.3. Input / Output ............................................................................................. 9

1.3. Screen information during operation .............................................................. 12

1.3.1. Initial Screen ............................................................................................ 12

1.3.2. Icons ........................................................................................................ 12

1.3.3. Function KEY ........................................................................................... 13

1.3.4. Main Screen ............................................................................................. 13

1.4. LED information during operation ................................................................... 15

1.5. Voice information during operation ................................................................. 15

1.6. Buzzer guide announced during operation .................................................... 15

1.7. How to register and enter the correct fingerprint ........................................... 16

2. Product Descriptions ................................................................................. 17

2.1. Product Features .............................................................................................. 17

2.2. Diagram ............................................................................................................. 18

2.2.1. Single Type (Door Lock) ........................................................................... 18

2.2.2. Single Type (Lock Controller) ................................................................... 18

2.2.3. Dummy Type (MCP040) ........................................................................... 18

2.2.4. Network Type (Door Lock) ........................................................................ 19

2.2.5. Network Type (Lock Controller) ................................................................ 19

2.3. Product Specification ....................................................................................... 20

3. Environment Setting .................................................................................. 21

3.1. Checkpoints before Environment Setting ....................................................... 21

3.1.1. Menu ................................................................................................ ........ 21

3.1.2. Administration authentication ................................................................... 21

3.1.3. How to access the menu without administrator authentication ................. 22

3.1.4. Save Settings ................................ ................................ ........................... 22

3.1.5. Default Setting ......................................................................................... 23

3.1.6. Setting guide for Network Configuration ................................................... 24

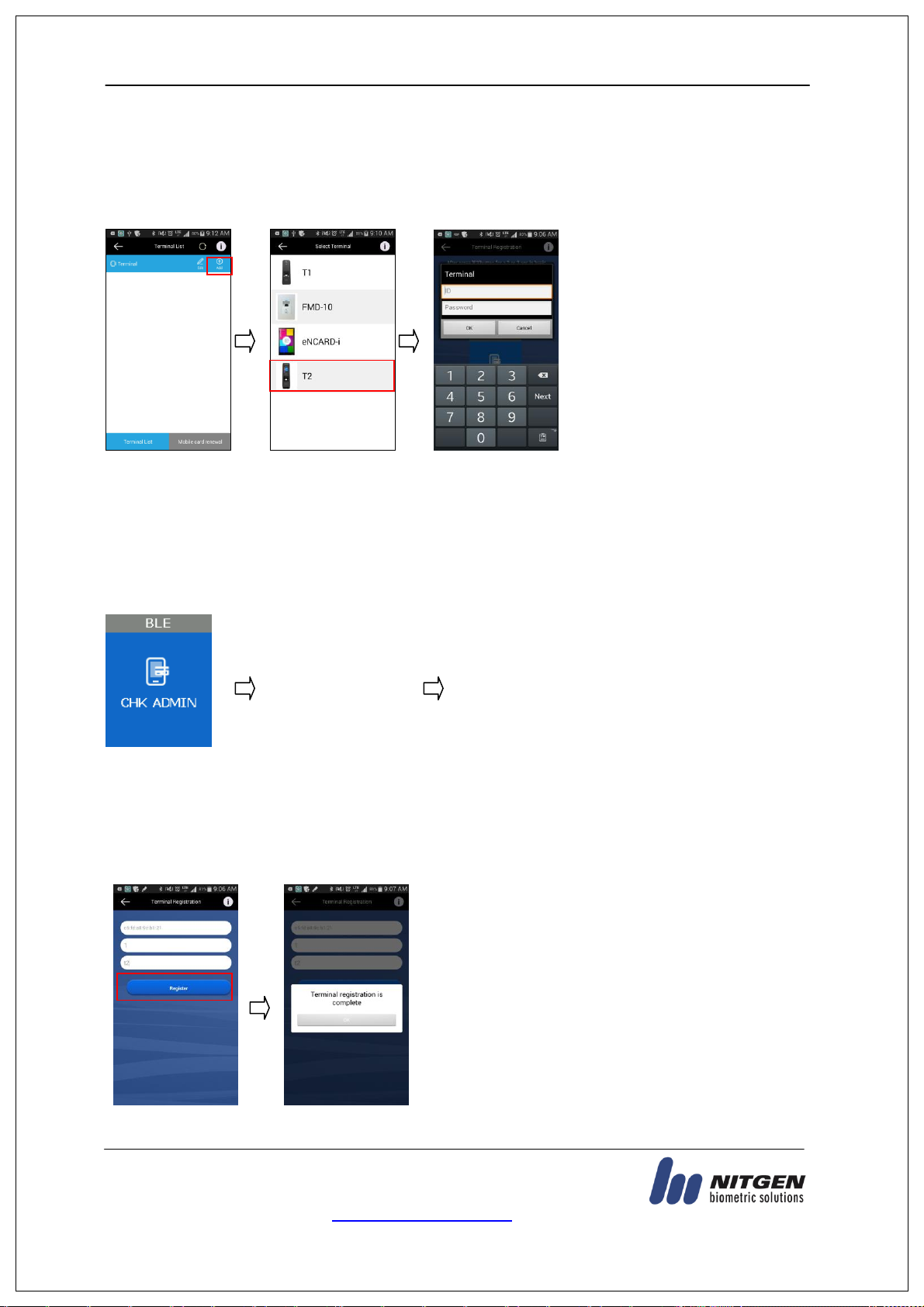

3.2. How to register the terminal in Admin App ..................................................... 27

3.2.1. Install iAccess M Plus................................................................................ 27

3.2.2. Execute and Log in iAccess M Plus ........................................................... 27

3.2.3. Access to Terminal BLE REDAY ................................................................. 27

3.2.4. Terminal login Admin App ................................................................ ......... 28

3.2.5. Administrator authentication of the terminal ............................................ 28

3.2.6. Terminal registration ................................................................................. 28

3.3. Access Device with Admin App ....................................................................... 29

3.4. Access and Registration between ACM Pro and terminal ............................. 30

3.4.1. Install ACM Pro ......................................................................................... 30

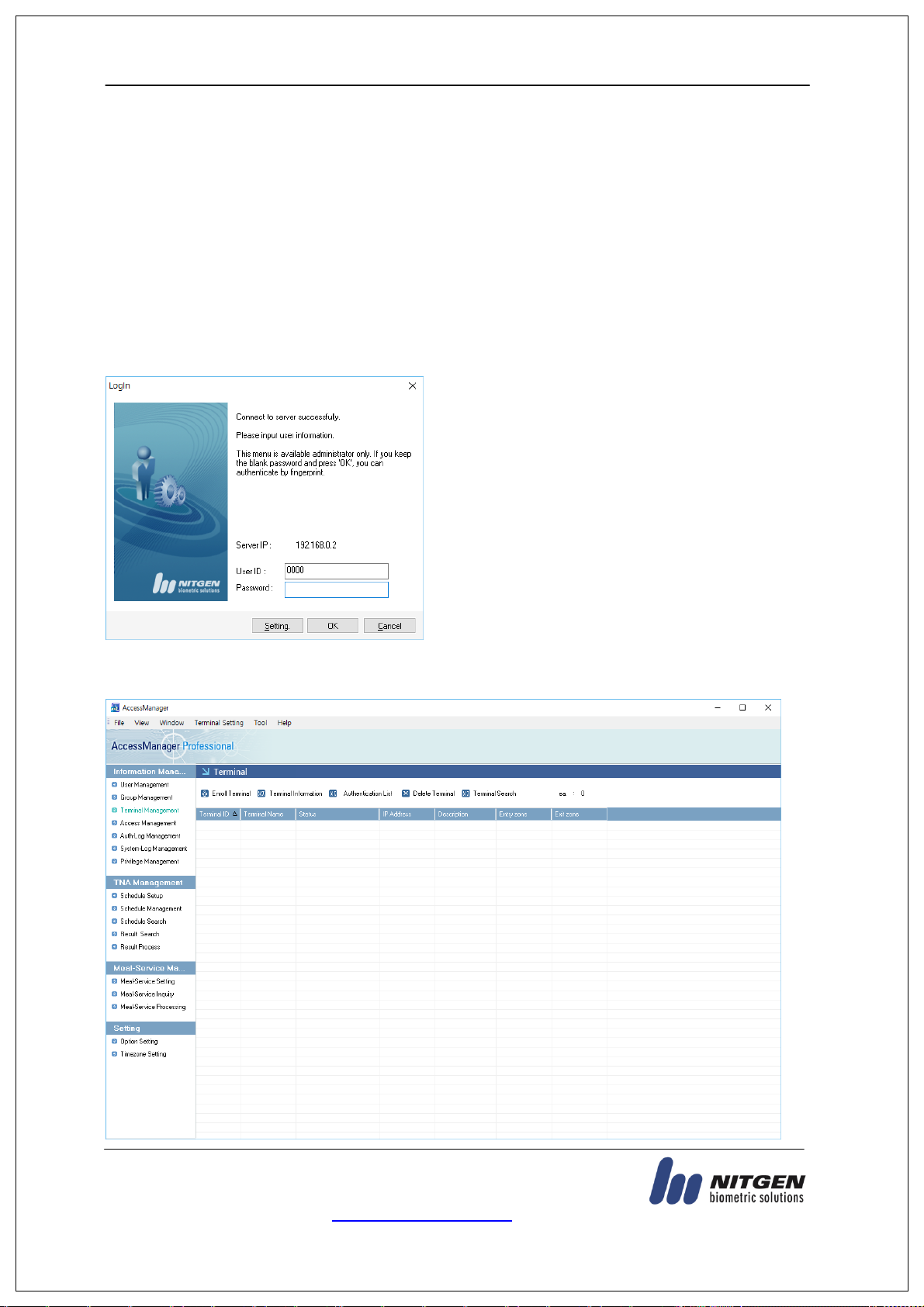

3.4.2. Execute ACM Pro ...................................................................................... 30

3.4.3. Set in terminal .......................................................................................... 31

3.4.4. LAN connection in terminal ....................................................................... 31

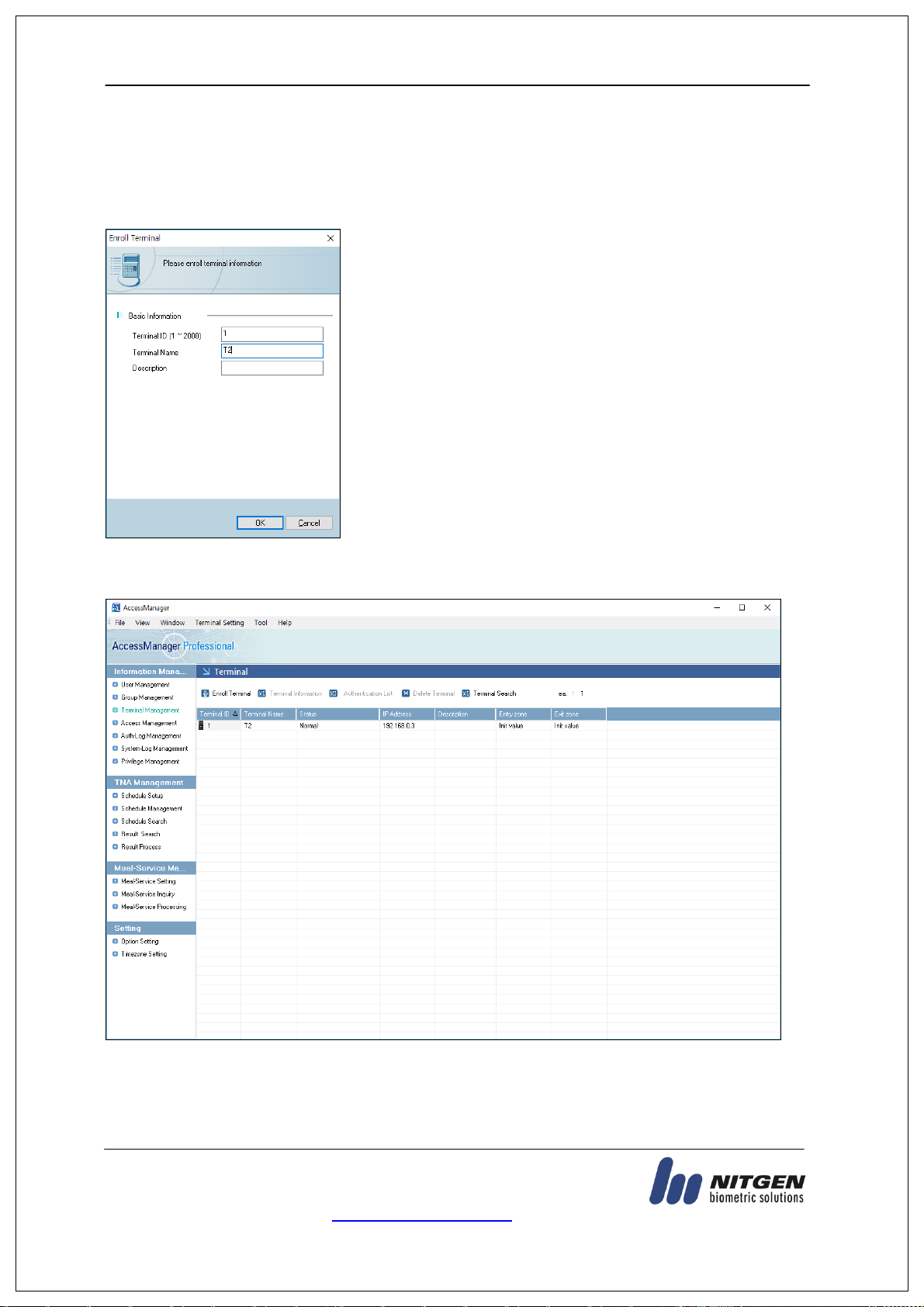

3.4.5. Register the terminal in ACM Pro .............................................................. 32

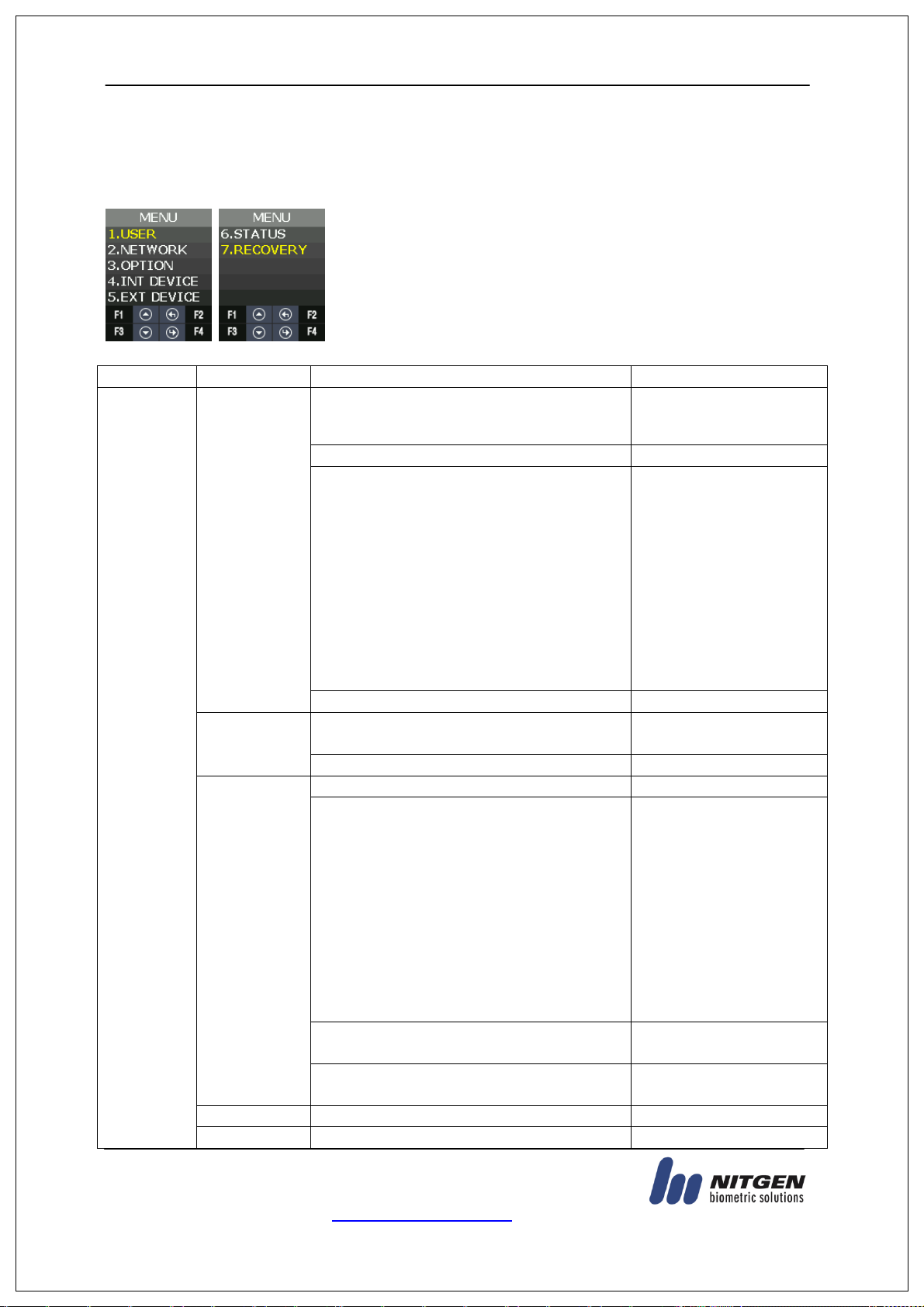

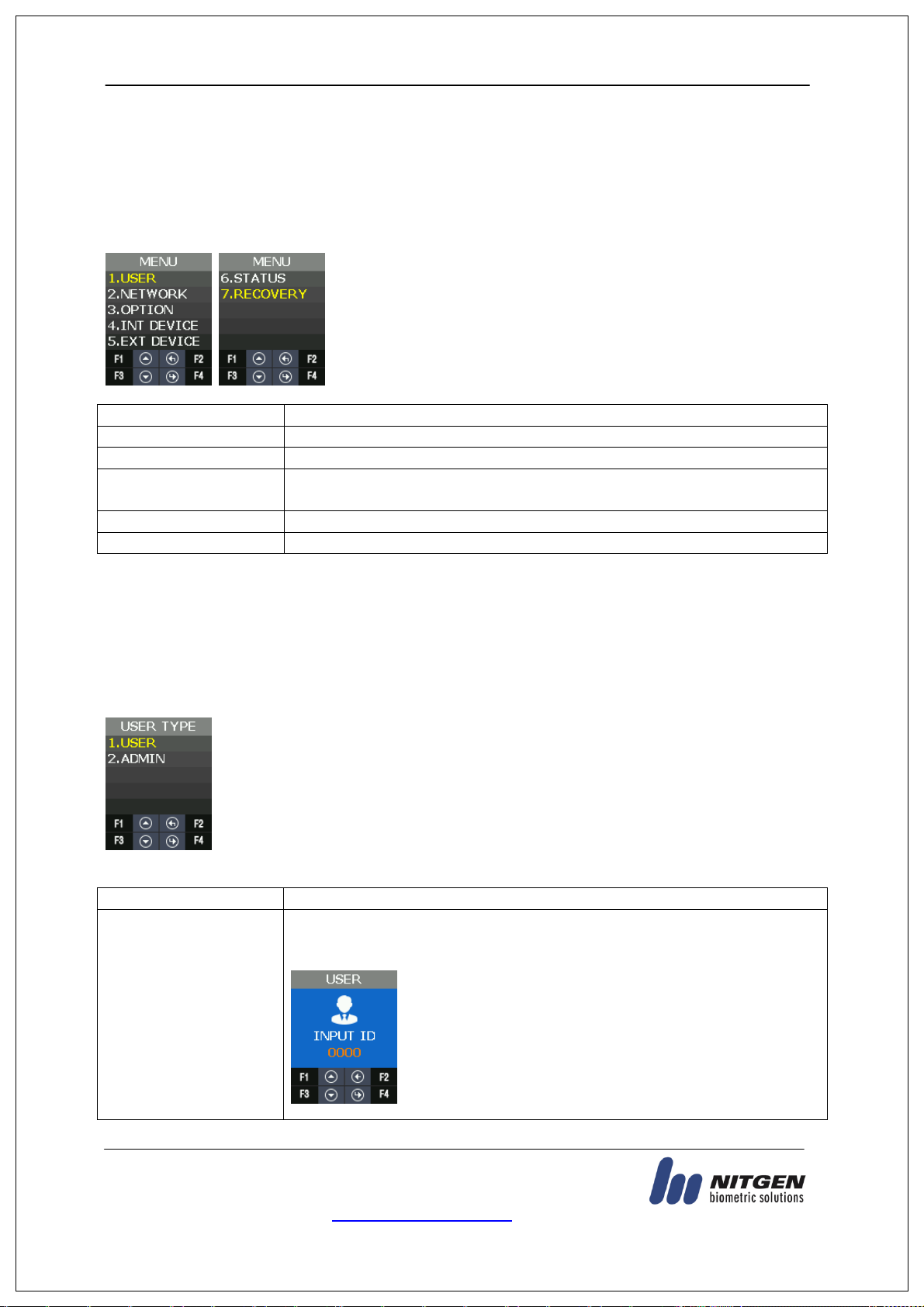

3.5. Menu Configuration .......................................................................................... 33

3.6. USER ................................................................................................................. 39

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 5

3.6.1. Menu Configuration .................................................................................. 39

3.6.2. ADD.......................................................................................................... 39

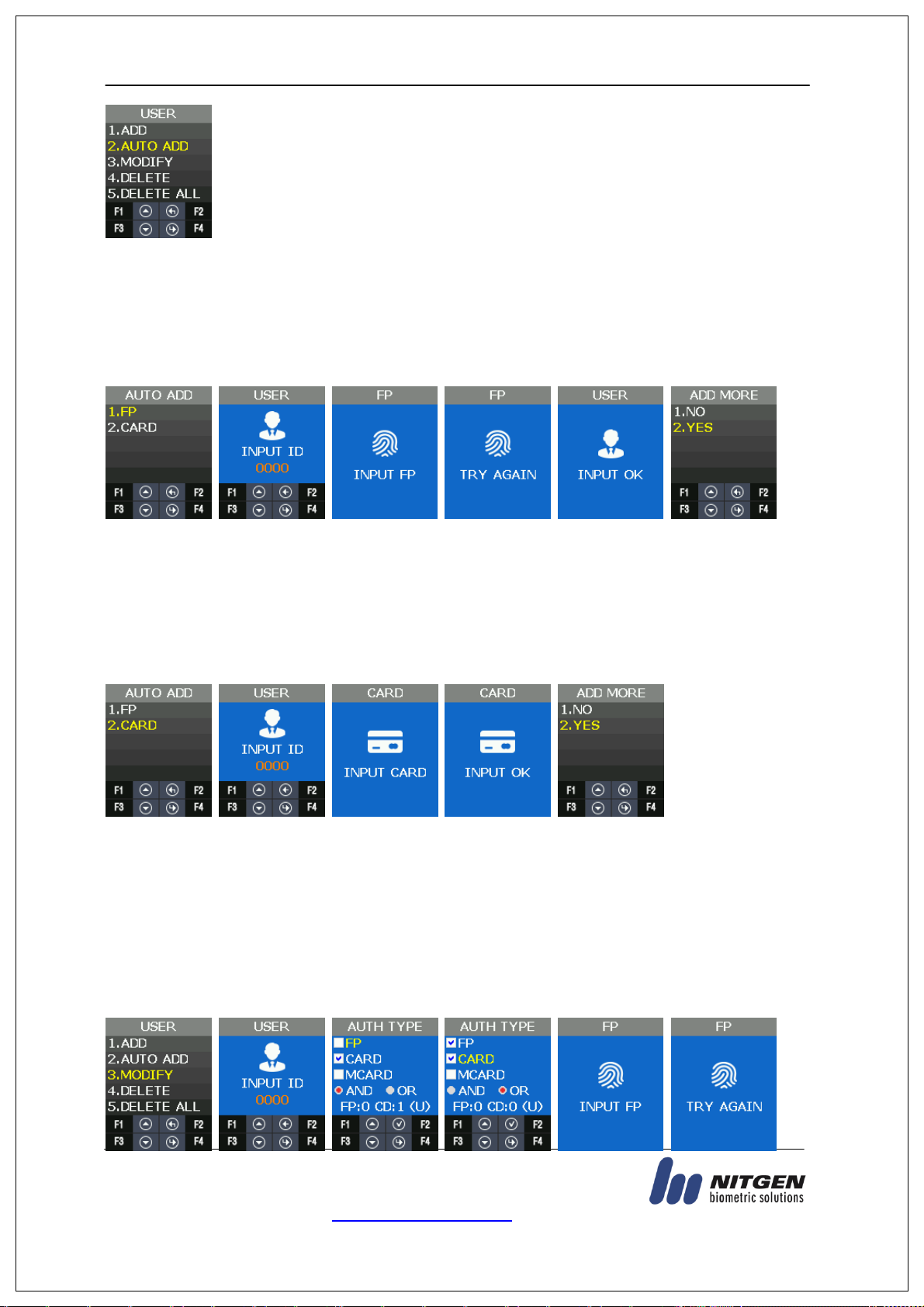

3.6.3. AUTO ADD ................................................................................................ 41

3.6.4. MODIFY .................................................................................................... 42

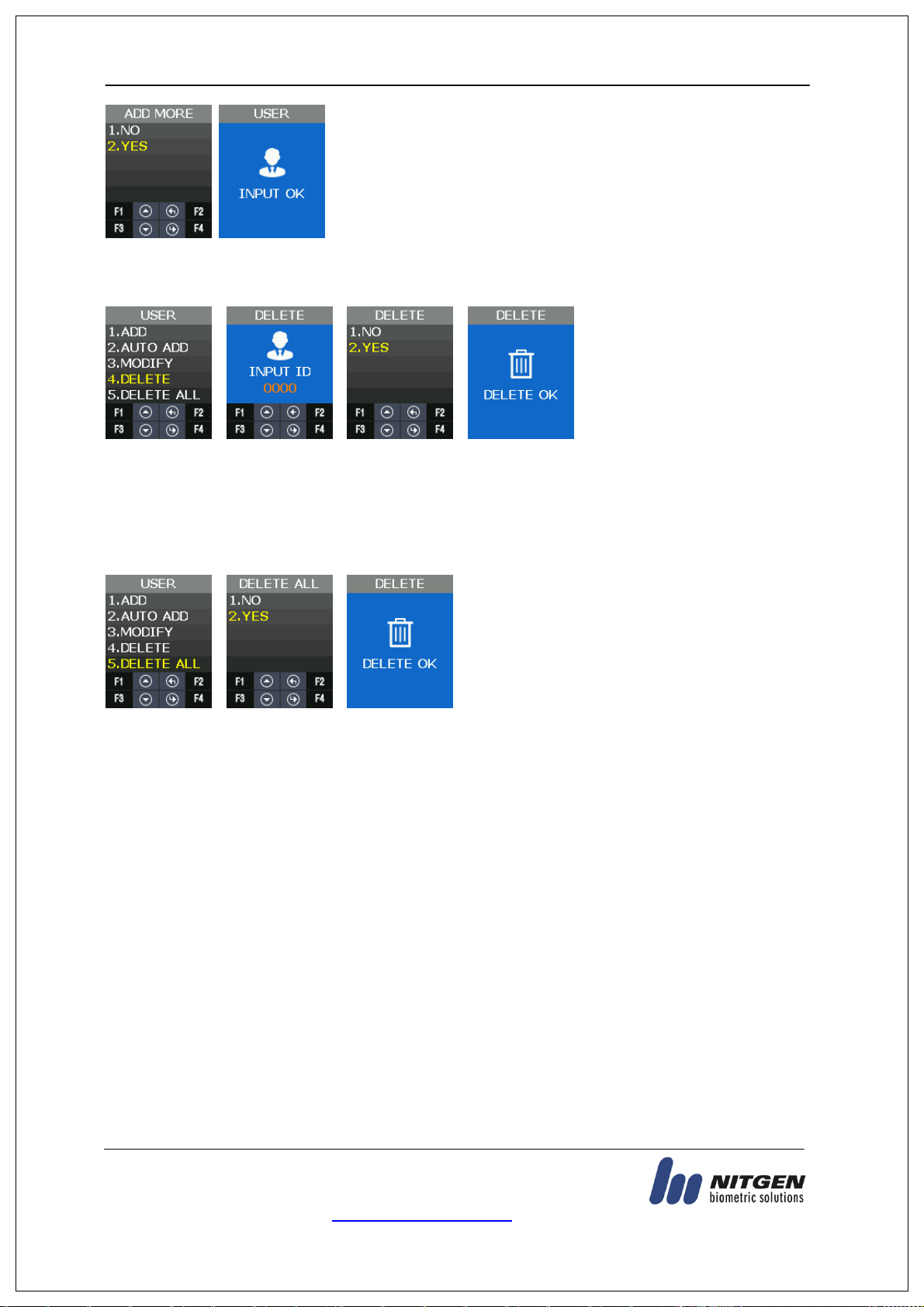

3.6.5. DELETE ................................ ................................................................ .... 43

3.6.6. DELETE ALL .............................................................................................. 43

3.7. Network Menu ................................................................................................... 44

3.7.1. Menu Configuration .................................................................................. 44

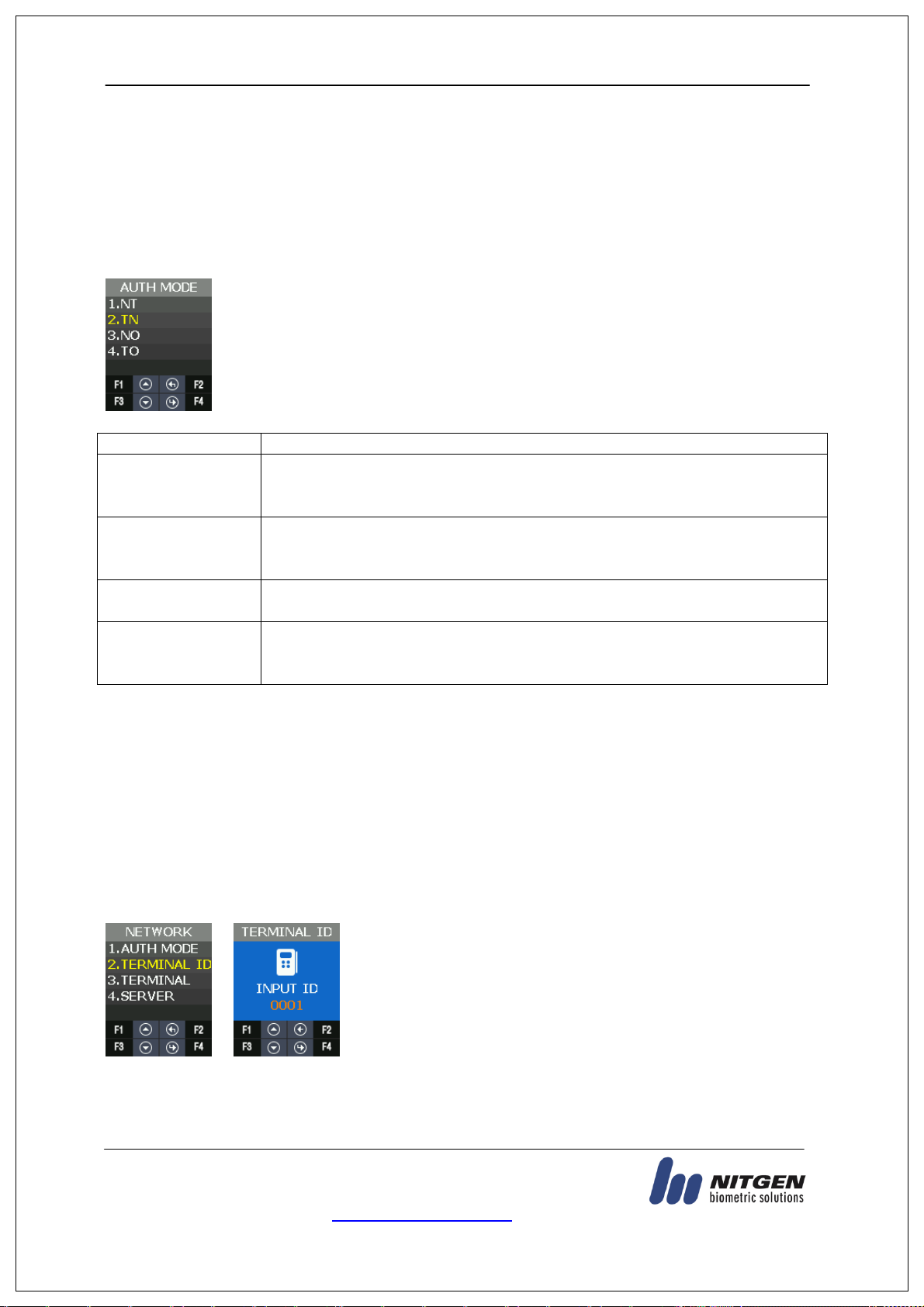

3.7.2. AUTH Mode .............................................................................................. 45

3.7.3. Terminal ID .............................................................................................. 45

3.7.4. Terminal ................................................................................................... 46

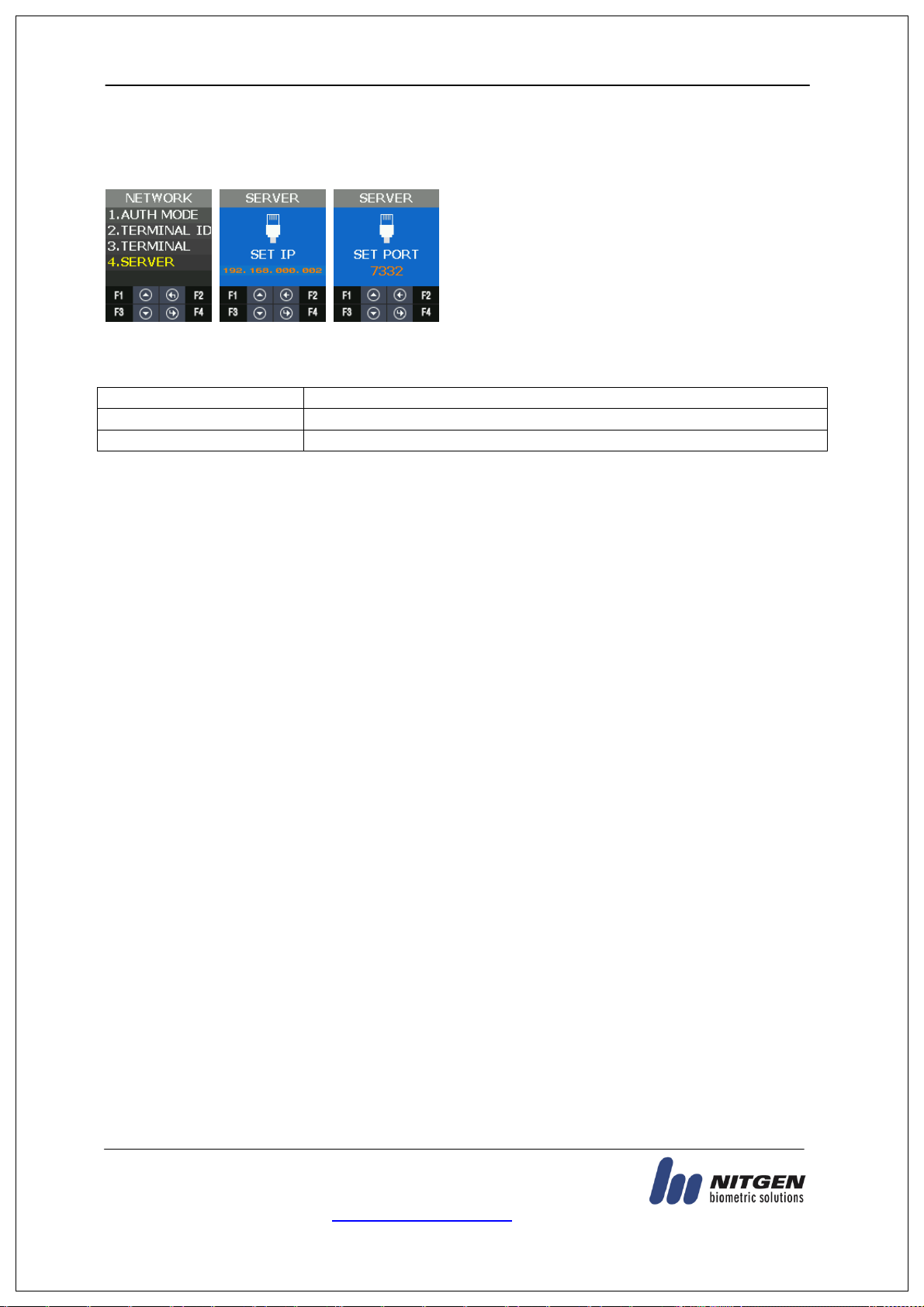

3.7.5. Server....................................................................................................... 47

3.8. Option Menu...................................................................................................... 48

3.8.1. Menu configuration .................................................................................. 48

3.8.2. ATTEND .................................................................................................... 48

3.8.3. Screen ...................................................................................................... 50

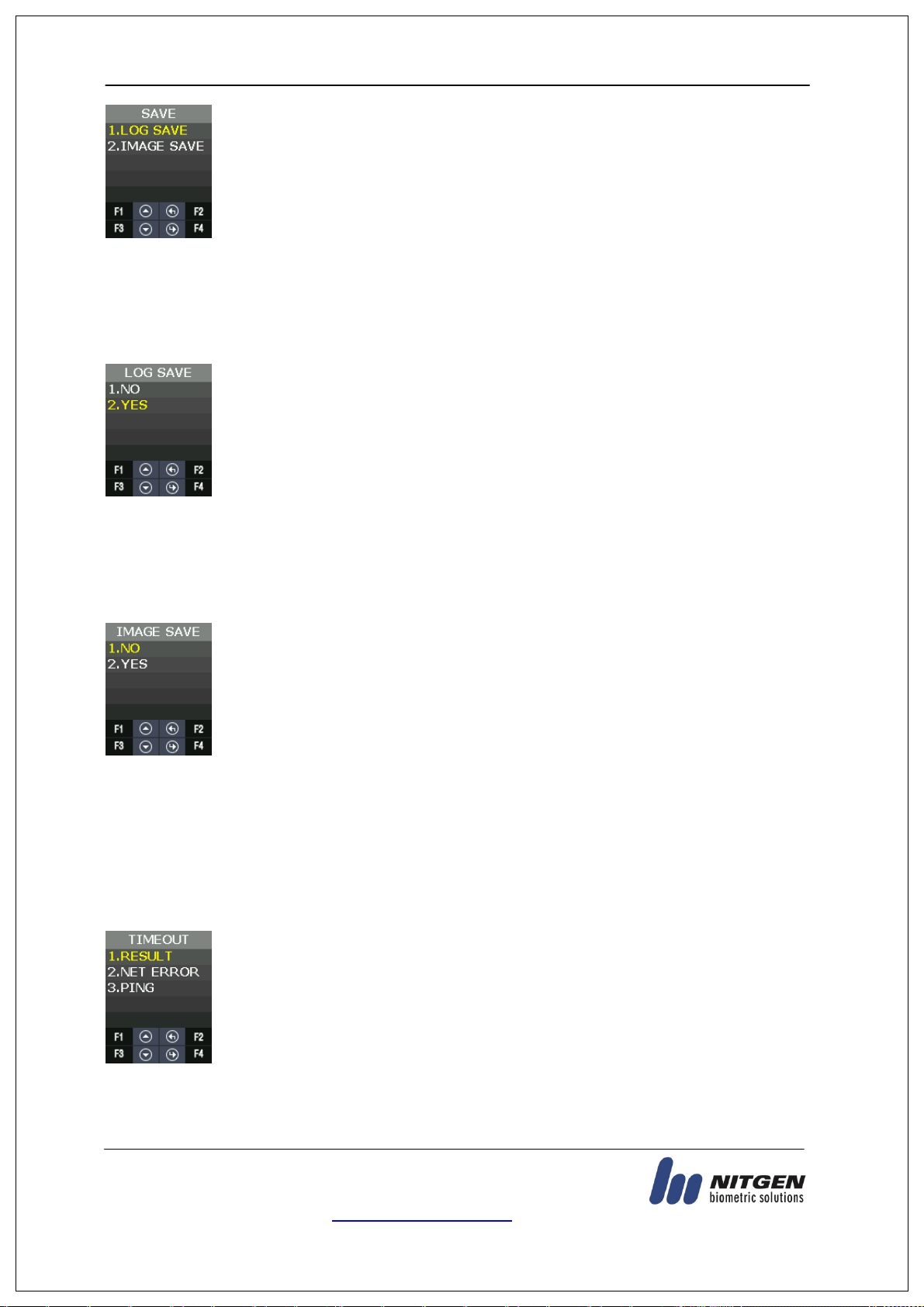

3.8.4. SAVE ........................................................................................................ 52

3.8.5. TIMEOUT.................................................................................................. 53

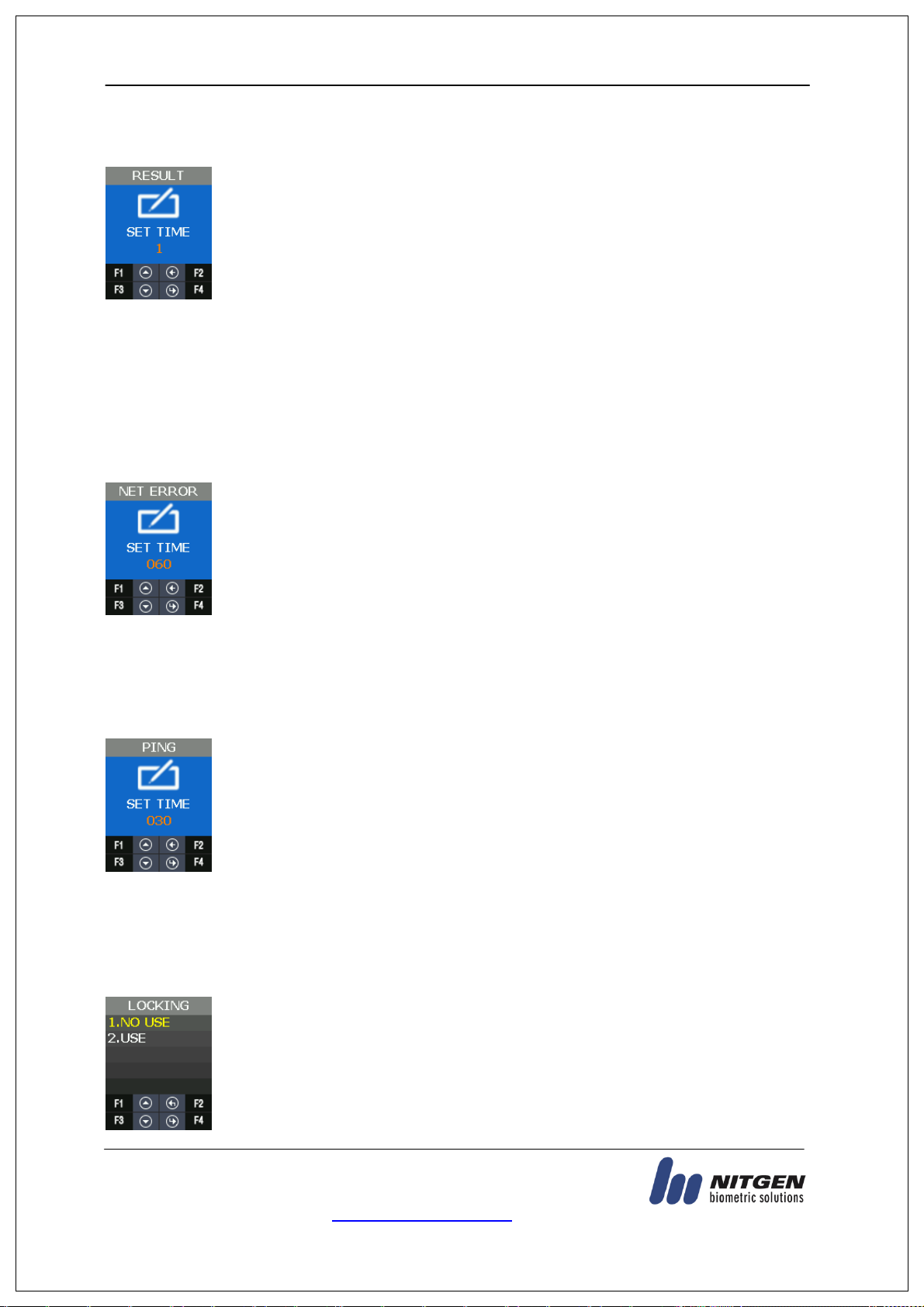

3.8.6. LOCKING .................................................................................................. 54

3.9. INT DEVICE ....................................................................................................... 56

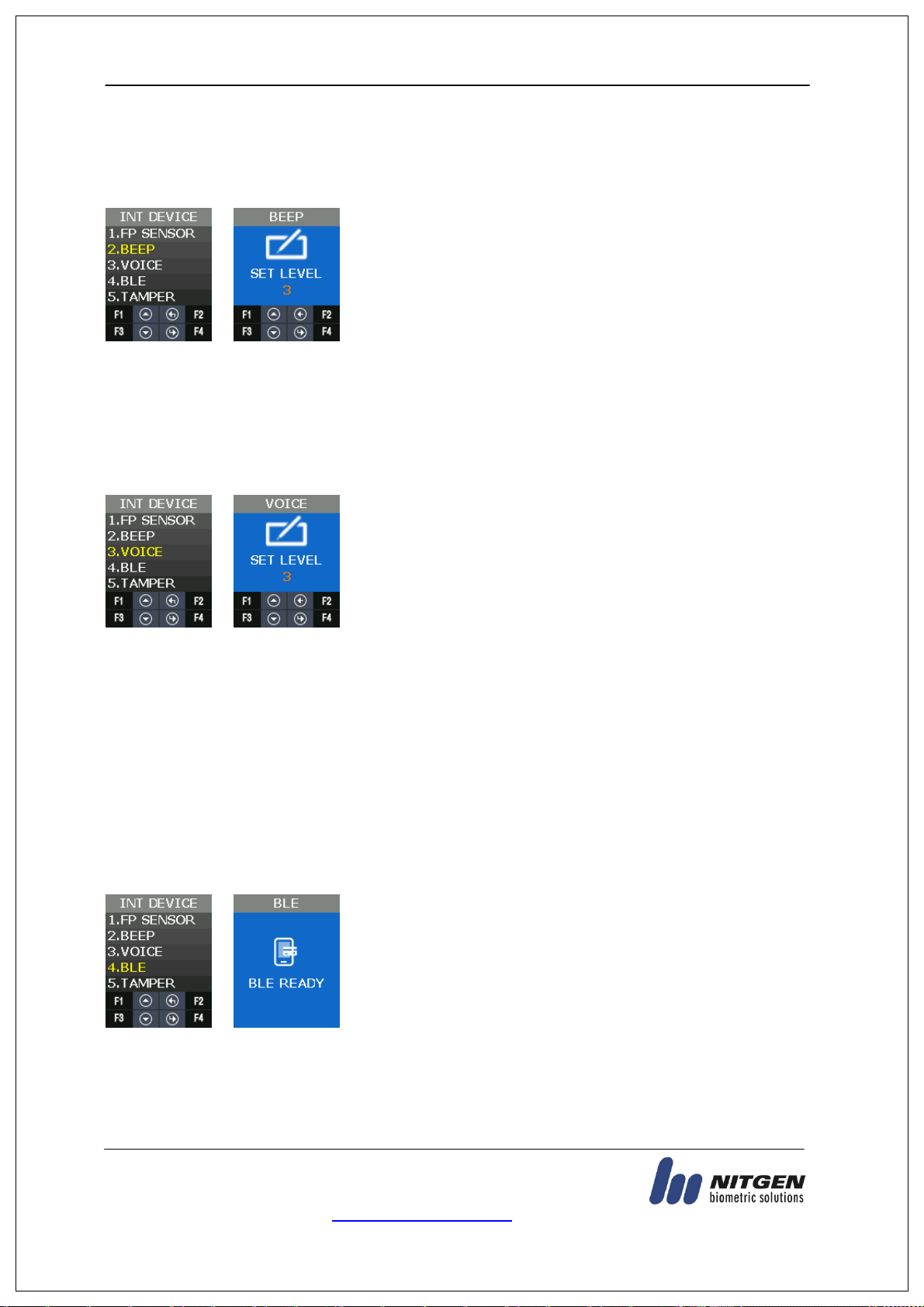

3.9.1. Menu Configuration .................................................................................. 56

3.9.2. FP SENSOR ............................................................................................... 56

3.9.3. BEEP ........................................................................................................ 58

3.9.4. VOICE ...................................................................................................... 58

3.9.5. BLE ........................................................................................................... 58

3.9.6. TAMPER .................................................................................................... 59

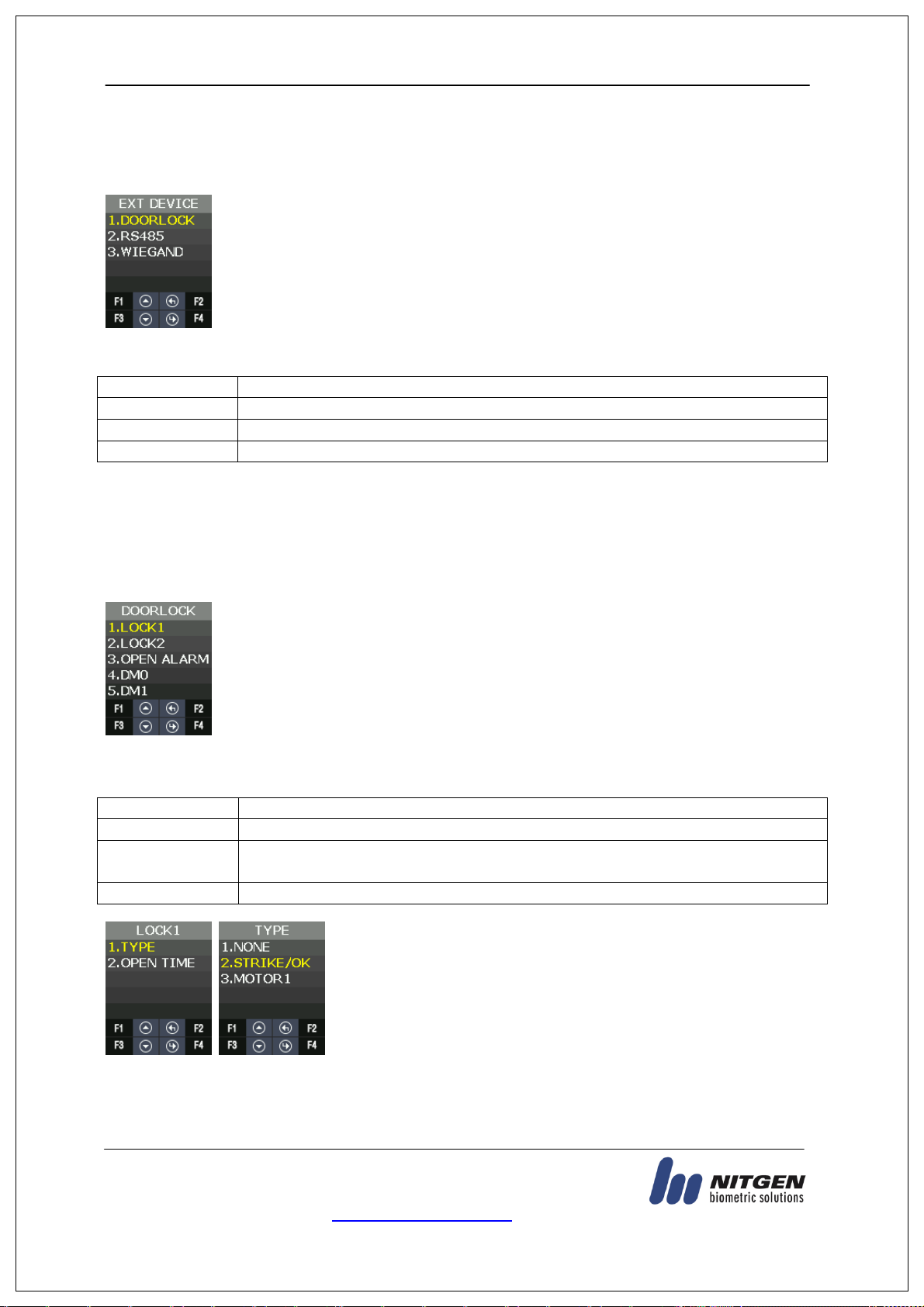

3.10. EXT DEVICE ...................................................................................................... 60

3.10.1. Menu Configuration .................................................................................. 60

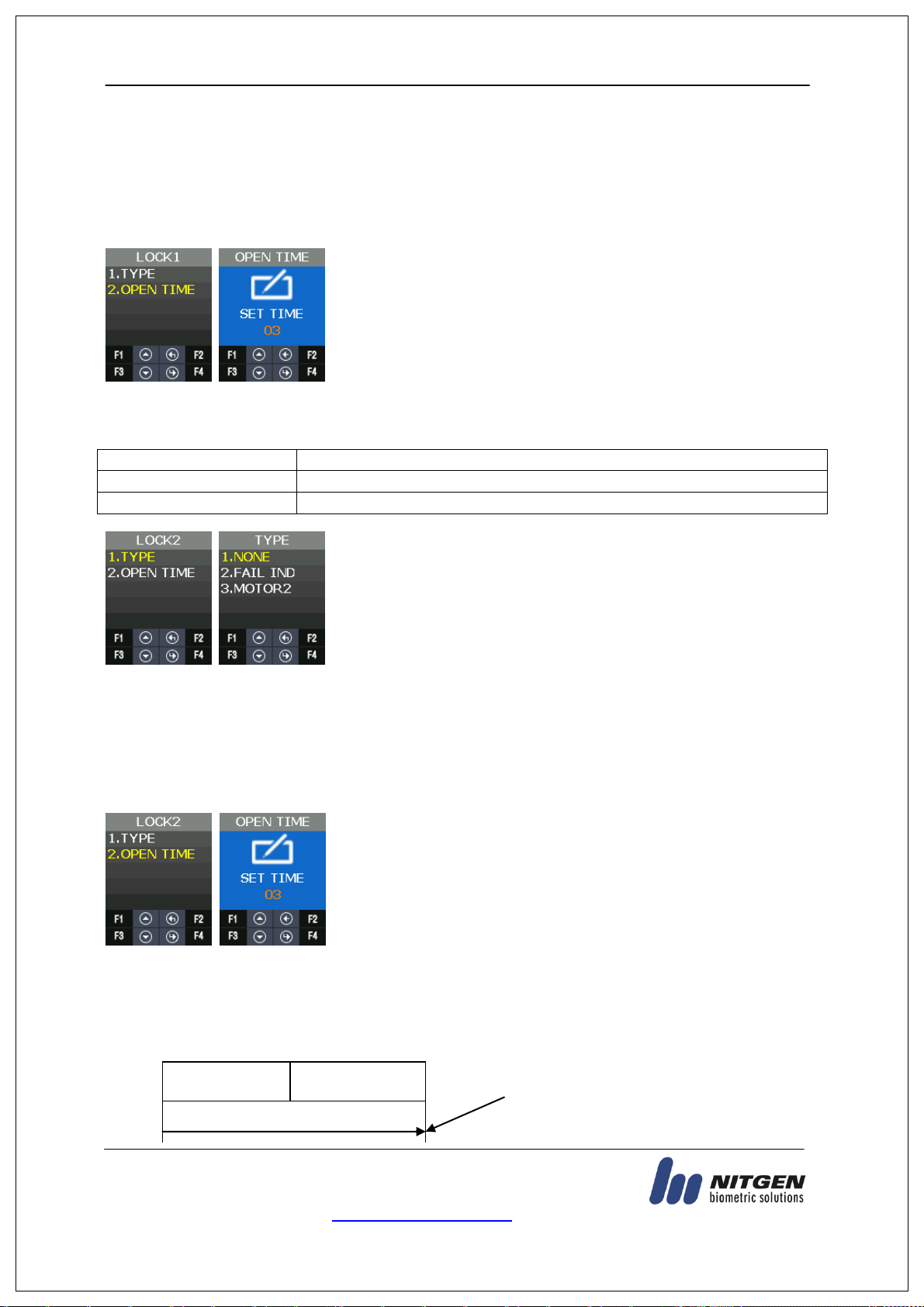

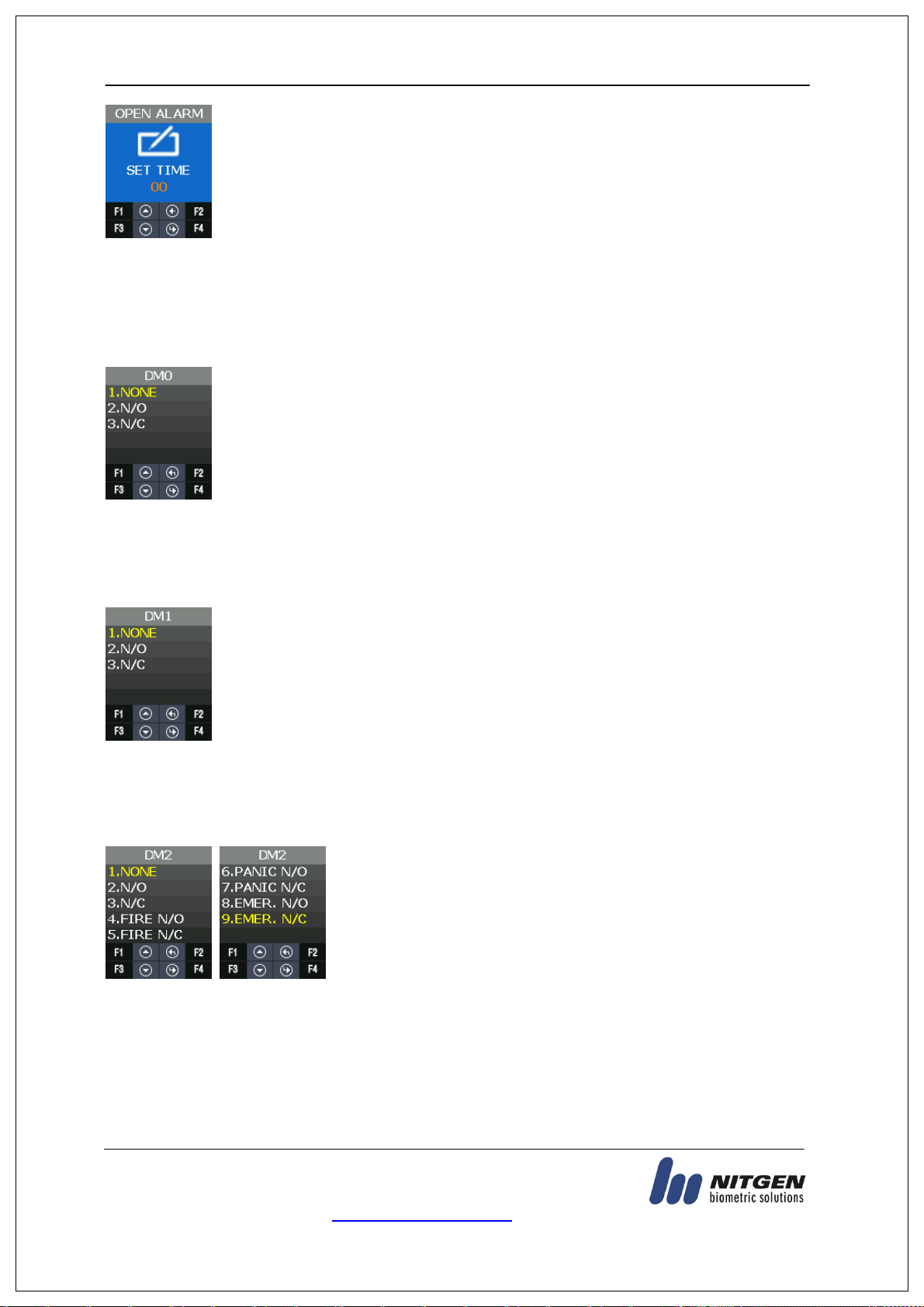

3.10.2. DOORLOCK .............................................................................................. 60

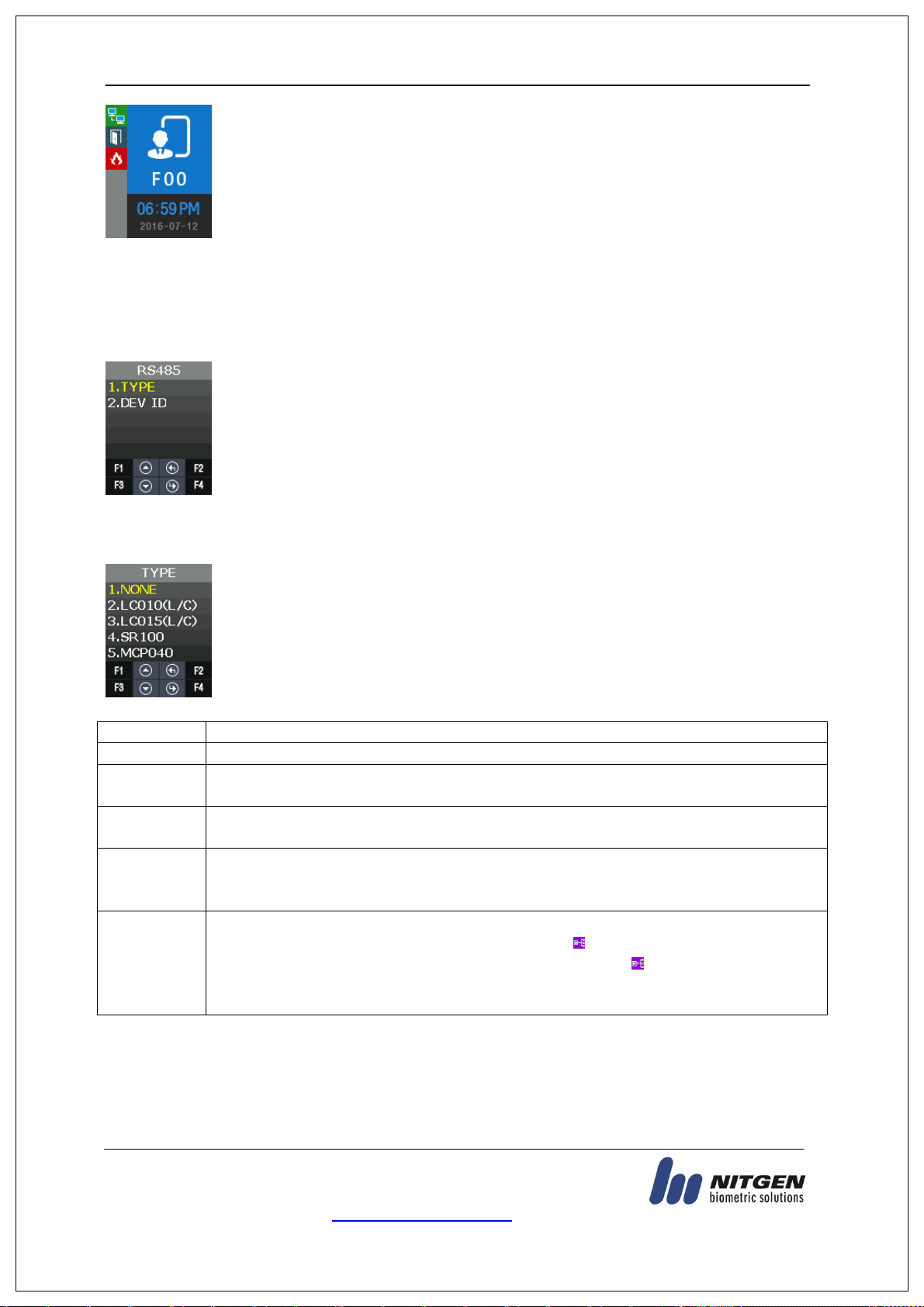

3.10.3. RS485....................................................................................................... 63

3.10.4. WIEGAND ................................................................................................. 64

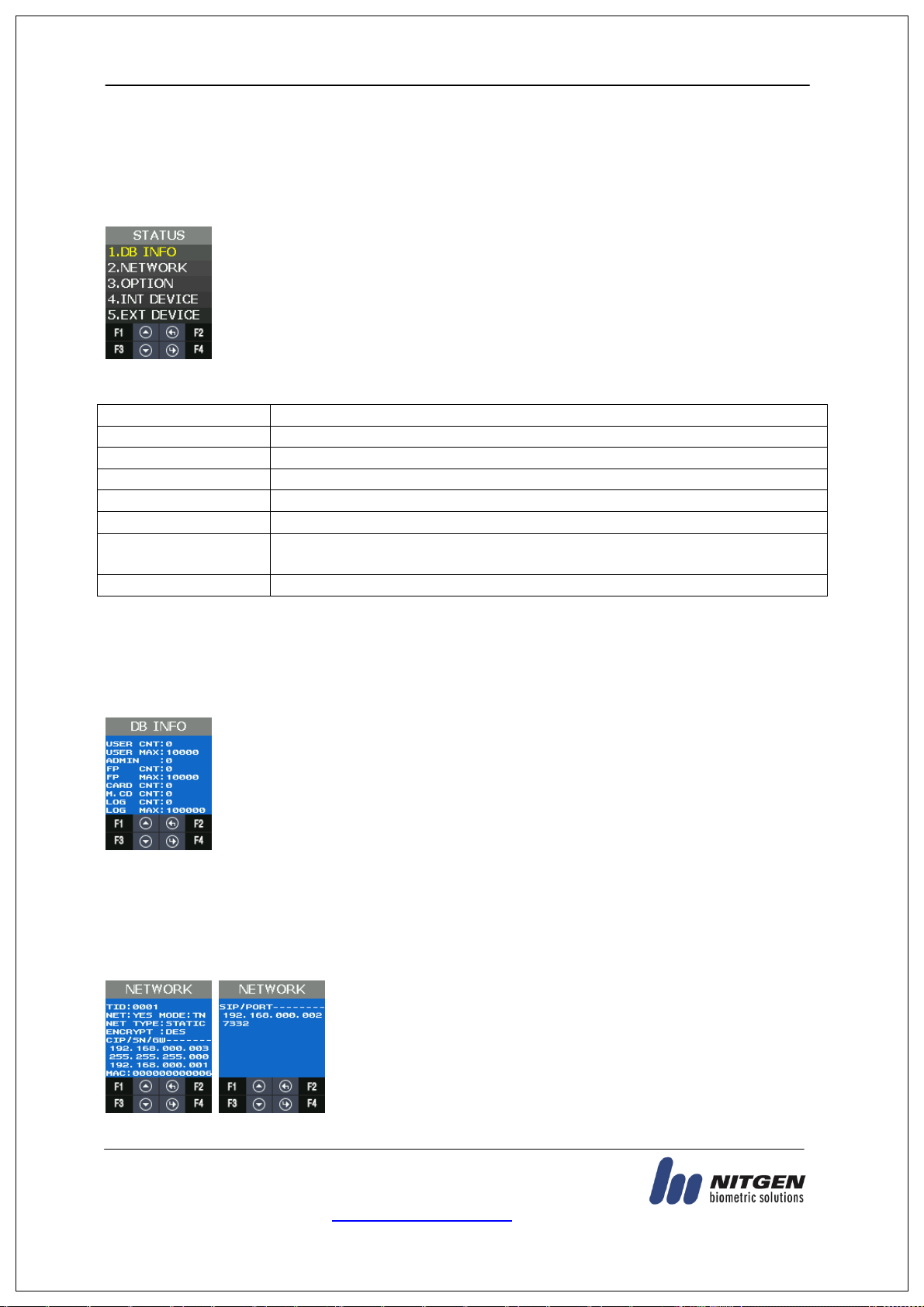

3.11. STATUS ............................................................................................................. 67

3.11.1. Menu Configuration .................................................................................. 67

3.11.2. DB INFO ................................................................................................ ... 67

3.11.3. NETWORK ................................................................................................ 67

3.11.4. OPTION .................................................................................................... 68

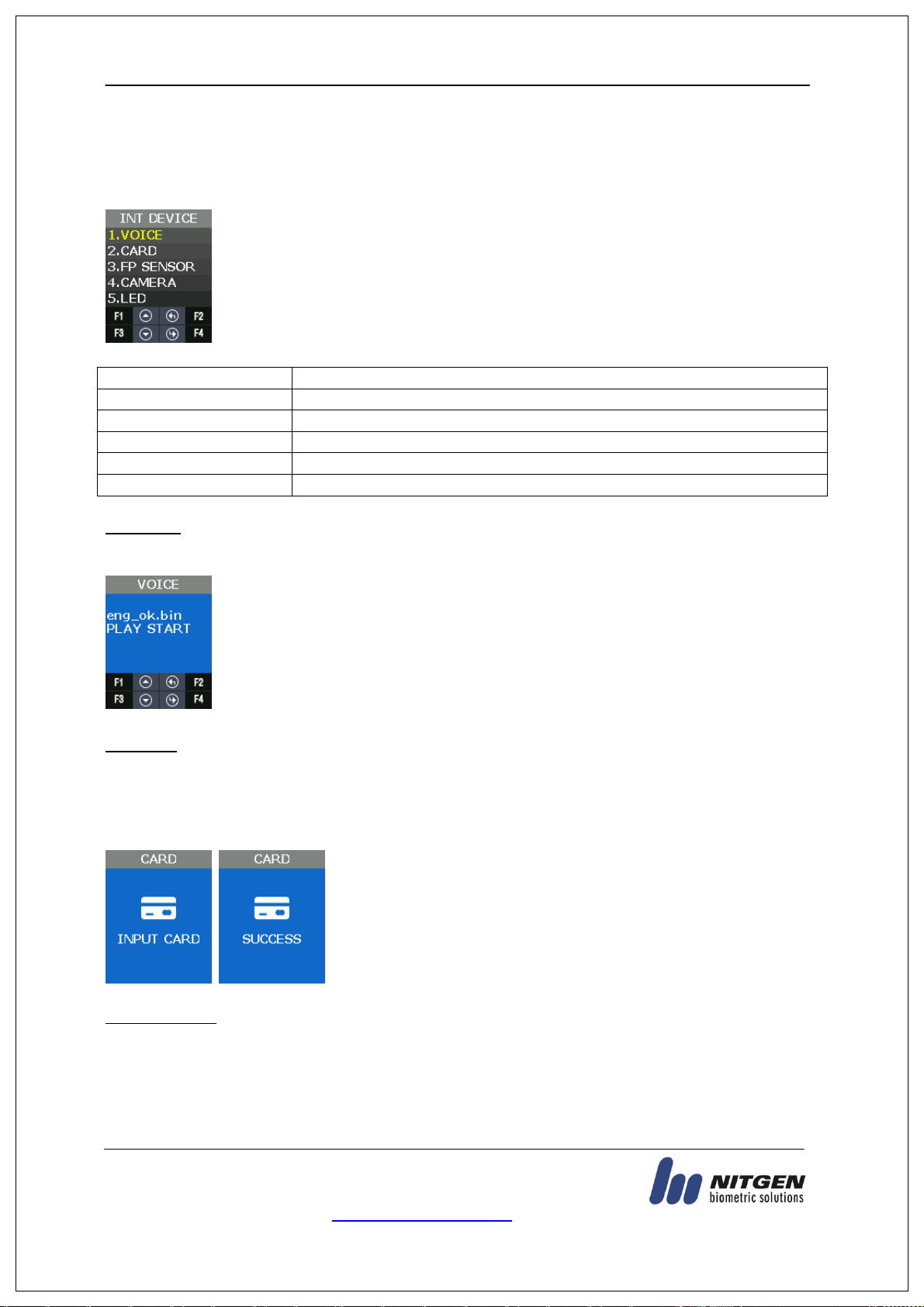

3.11.5. INT DEVICE .............................................................................................. 68

3.11.6. EXT DEVICE ............................................................................................. 68

3.11.7. I/O PORT .................................................................................................. 68

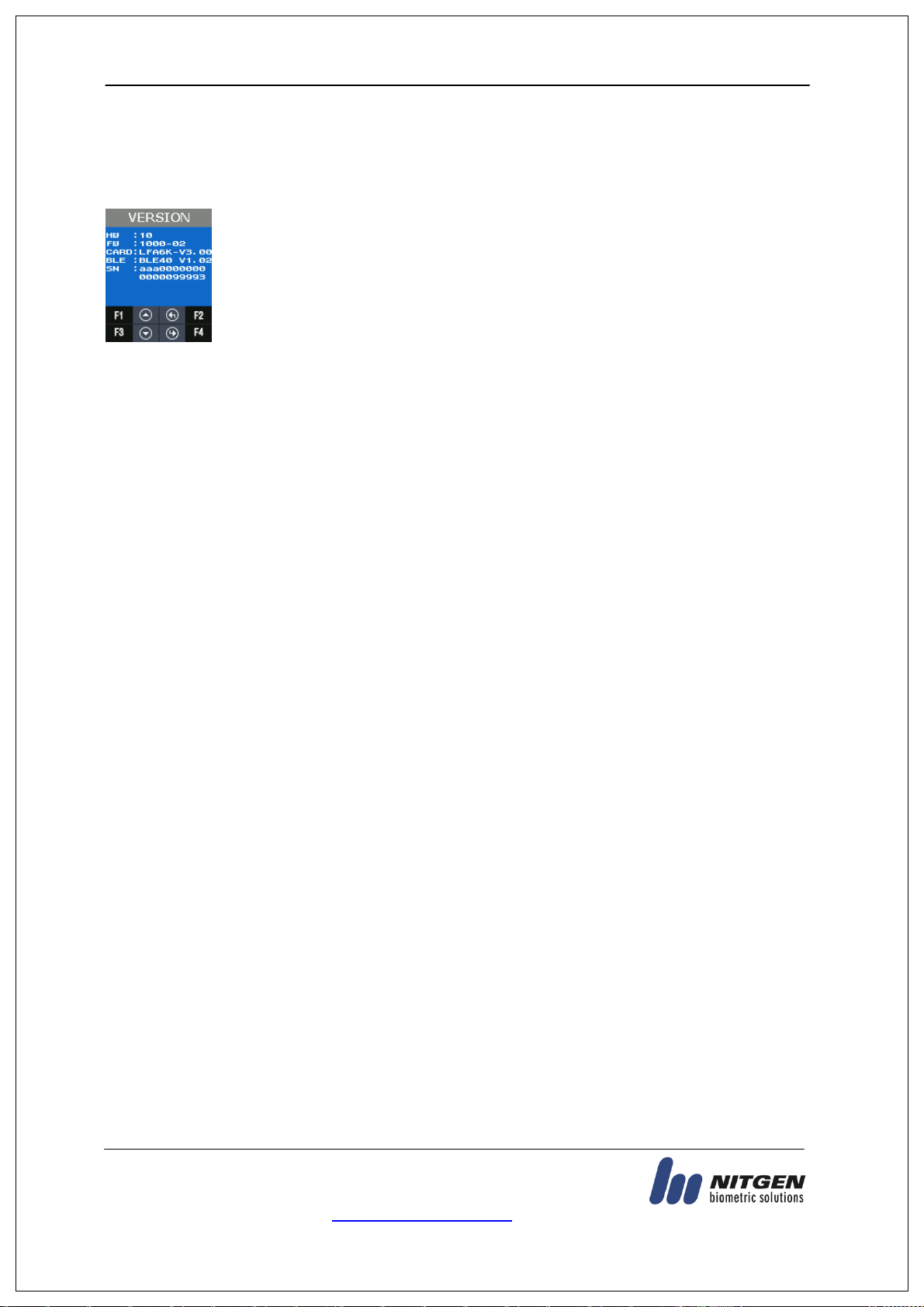

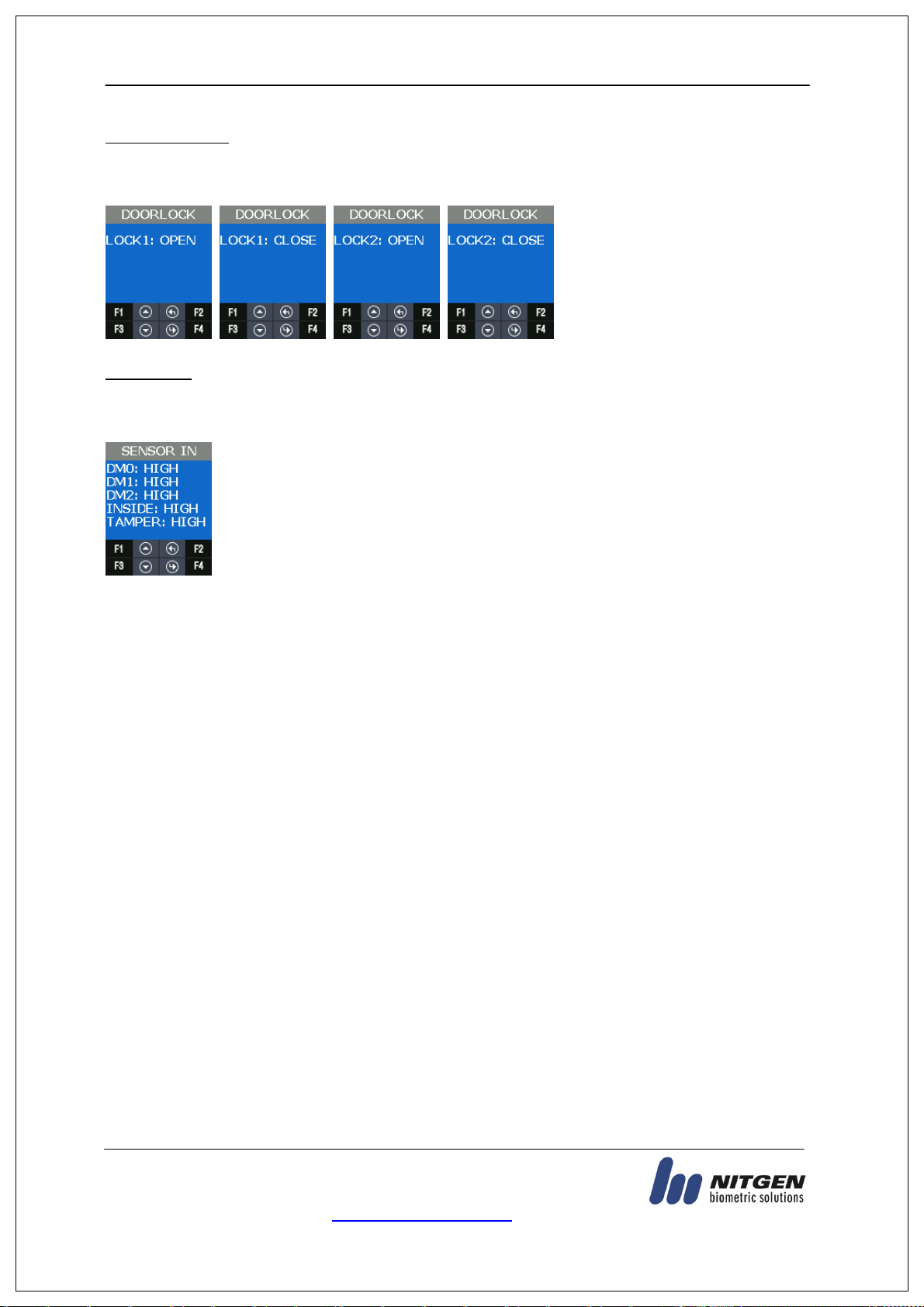

3.11.8. VERSION .................................................................................................. 69

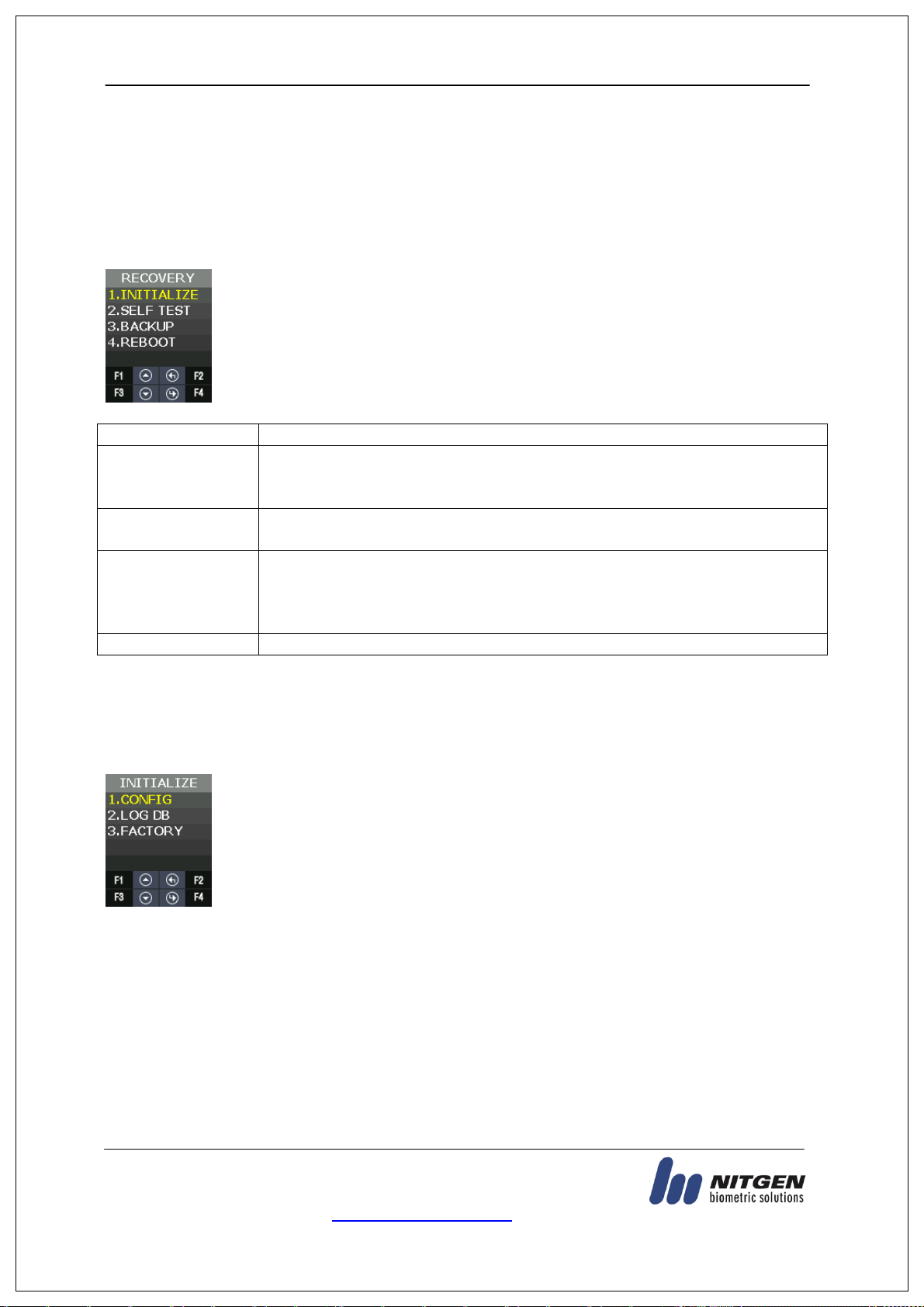

3.12. RECOVERY ....................................................................................................... 70

3.12.1. Menu Configuration .................................................................................. 70

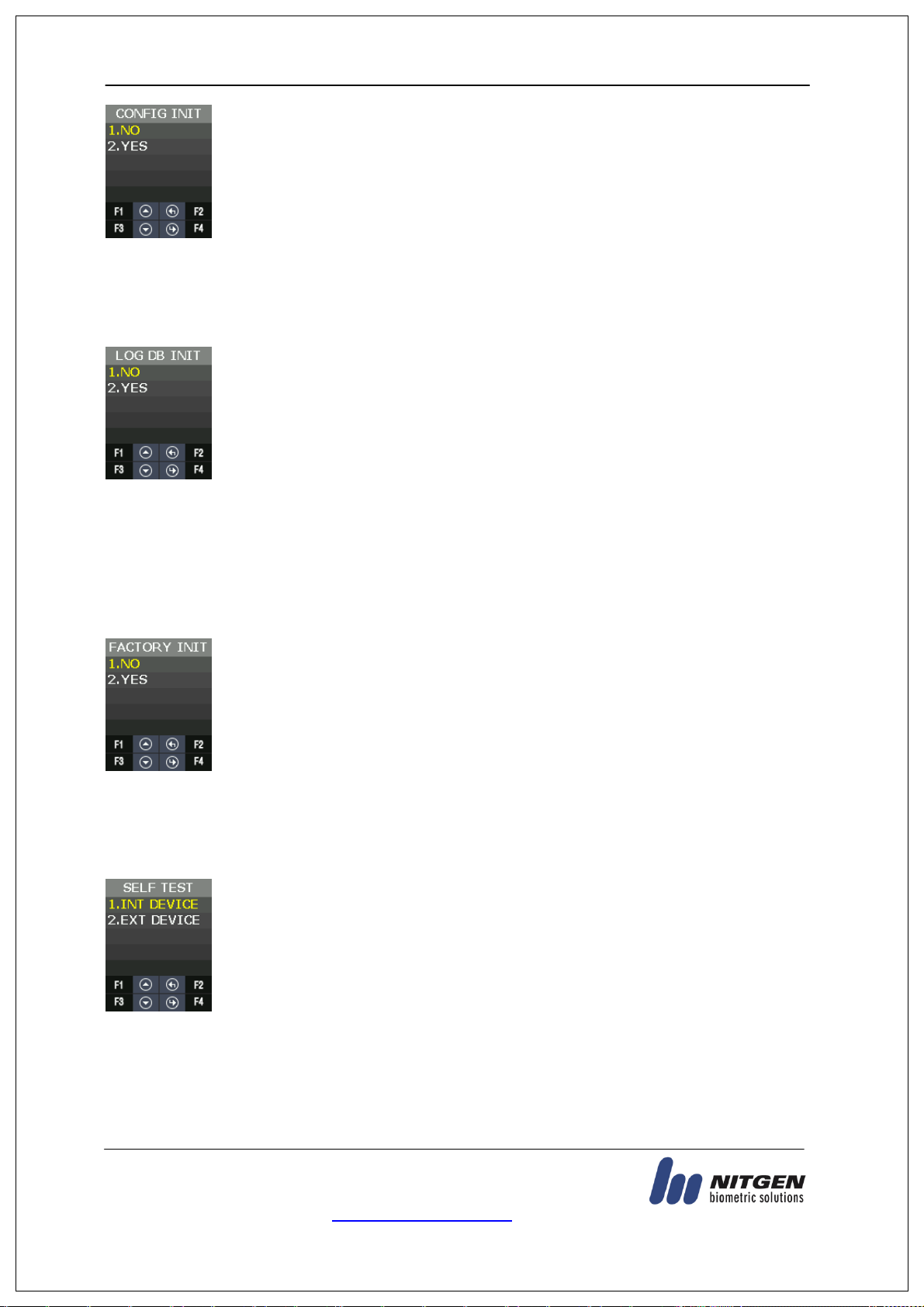

3.12.2. INITIALIZE ............................................................................................... 70

3.12.3. SELF TEST ................................................................................................ 71

3.12.4. BACKUP .................................................................................................... 75

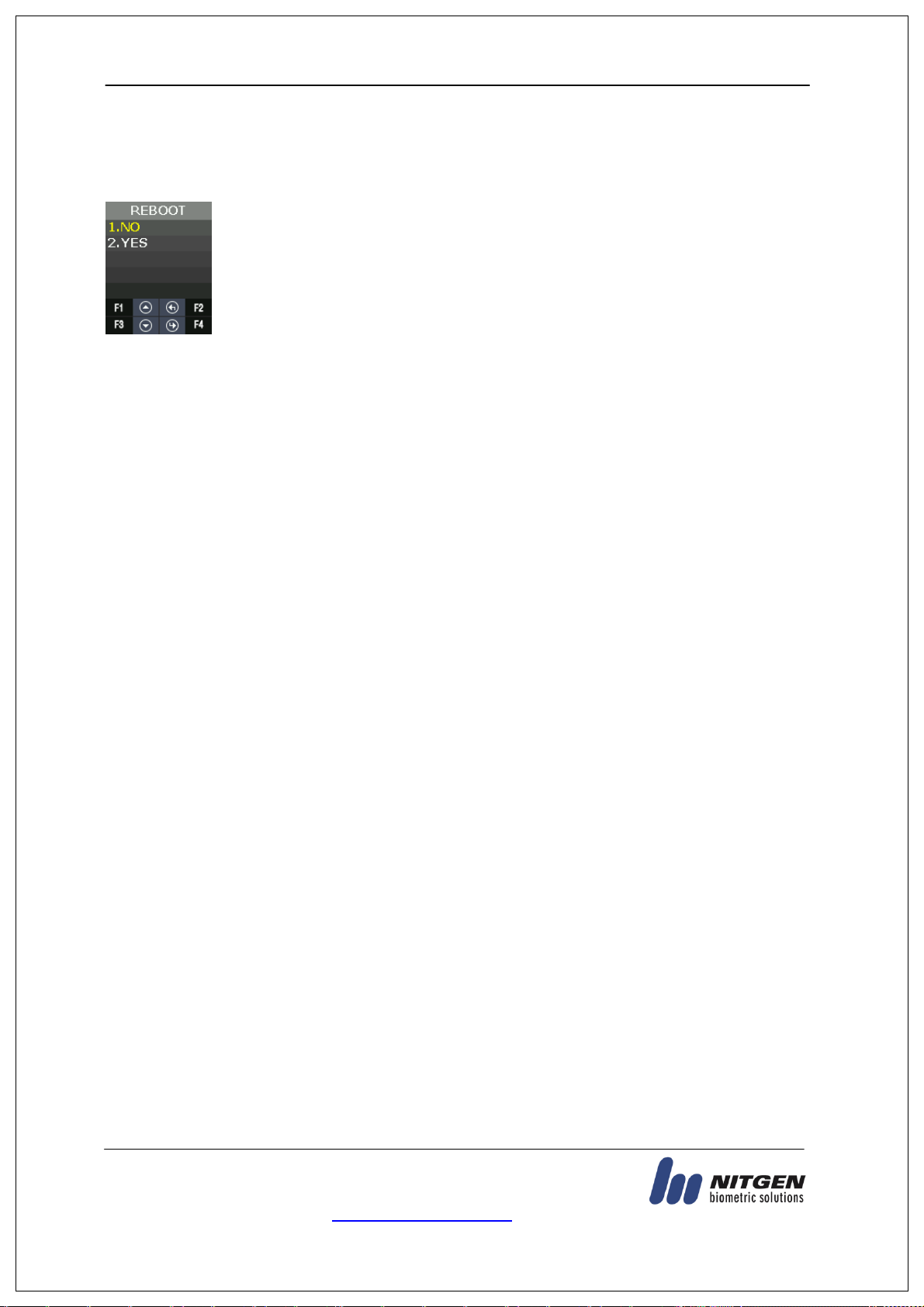

3.12.5. REBOOT ................................ ................................................................ ... 77

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 6

Do not operate the terminal with wet hands, and pay attention not to let any liquid such as water enter inside the terminal.

- > Otherwise, malfunction or electric shock may be caused.

Keep the terminal away from inflammables.

- > Otherwise, it may cause a fire.

Do not disassemble, repair or remodel the terminal at your disposal.

- > Otherwise, it may cause malfunction, electric shock, or a fire.

Do not allow children to touch the terminal carelessly.

- > Otherwise, it may cause safety accidents of children or malfunction.

Do not install the terminal in a place exposed to direct sunlight. → Otherwise, it may cause malfunction, deformation and discoloration.

Do not install the terminal in humid or dusty places. → Otherwise, it may cause malfunction.

Do not clean this terminal by sprinkling water, nor wipe it with benzene, thinner, and alcohol. → Otherwise, it may cause electric shock or a fire.

Keep the terminal away from magnets. → Otherwise, it may cause failure and malfunction.

Keep the fingerprint input section clean. → Otherwise, the fingerprint cannot be recognized correctly.

Do not spray insecticides or inflammables on the terminal. → Otherwise, it may cause deformation and discoloration.

Keep the terminal away from shock or sharp objects. → Otherwise, it may damage the terminal and result in malfunction.

Do not install the terminal in a place where there is a severe change in temperature. → Otherwise, it may cause malfunction.

1. Before Getting Started

1.1. Safety Notes

 Warning

- Non-compliance of safety notes may cause death or serious injury for users.

 Cautions

- Non-compliance of safety notes may cause personal injury or property damage for

users.

※ We are not responsible for any accidents and damage that may arise from non-

compliance of the information in this manual.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 7

Camera

LCD

Function KEY (F1~F4)

Speaker

Card Sensor (EM/SC/HID)

Fingerprint Sensor

State LED

BLE embedded

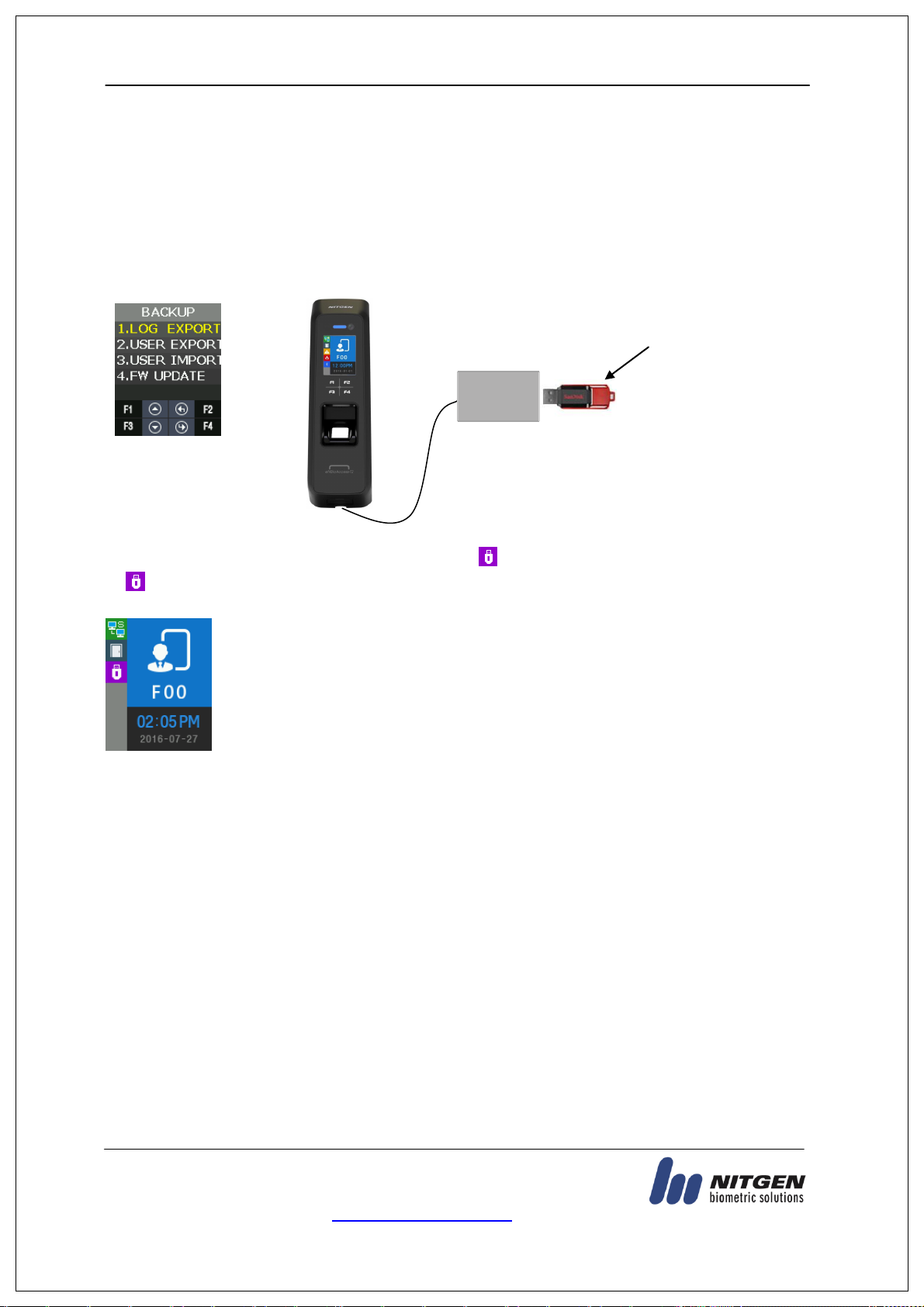

USB assist device (UDL10) connection

1.2. Product Details

1.2.1. FRONT

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 8

Fixed bracket

Cable harness

1.2.2. REAR

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 9

1.2.3. Input / Output

1.2.3.1. Cable & Connector

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 10

number

Line color

Label

(Line name)

Explanation

IN/OUT

Note

1

ORANGE

EXT

Inside open

IN

Connect to Exit button

2

YELLOW

DM0

DoorMonitor0

IN

Sense door state(DM0)

3

GREEN

DM1

DoorMonitor1

IN

Sense door state(DM1)

4

BLUE

DM2

DoorMonitor2

IN

Sense door state(DM2)

5

BLACK

GND

-

Ground connection(for door monitor)

6

RED

5V

DC5V

OUT

DC 5V output

7

BLACK

PGND

Power GND

-

Power supply ground connection

8

GREEN

R4A

RS485A

BI

RS-485 interface

9

BLUE

R4B

RS485B

BI

RS-485 interface

10

ORANGE

WO0

WIE_OUT0

OUT

Output WIGAND (WO0)

11

YELLOW

WO1

WIE_OUT1

OUT

Output WIGAND (WO1)

12

BROWN

WI0

WIE_IN0

IN

Input WIGAND (WI0)

13

PURPLE

WI1

WIE_IN1

IN

Input WIGAND (WI1)

14

BLACK

GND

-

Ground connection (WIGAND signal)

15

RED

-

N_TXN

OUT

LAN I/F (LAN cable)

16

BLACK

-

N_TXP

OUT

LAN I/F (LAN cable)

17

GREEN

-

N_RXN

IN

LAN I/F (LAN cable)

18

WHITE

-

N_RXP

IN

LAN I/F (LAN cable)

19

RED

12V

DC12V

IN

DC 12V power supply input

20

BLACK

GND

Power GND

-

Power supply ground connection (Adapter)

21

RED

12V

DC12V

OUT

DC 12V put out power

22

GRAY

L1C

LOCK1_COM

OUT

Lock1 COM terminal

23

BROWN

L1NC

LOCK1_NC

OUT

Lock1 NC terminal

24

WHITE

L1NO

LOCK1_NO

OUT

Lock1 NO terminal

25

PURPLE

L2

LOCK2

OUT

Lock2 terminal

26

BLACK

GND

-

Ground connection (Lock connecter)

27

BLACK

PGND

Power GND

-

Power supply ground connection (Lock power)

28

BLACK

PGND

Panel GND

-

Panel ground connection (Earth)

Category

T2 terminal (Line name)

MCP040

RS485A

R4A (green)

RDRA+

RS485B

R4B (blue)

RDRA-

ground connection

GND (black)

G

1.2.3.2. Pin Details

1.2.3.3. Terminal <- > MCP040 wiring

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 11

Category

T2 terminal (Line name)

LC015B

RS485A

R4A (green)

485A

RS485B

R4B (blue)

485B

ground connection

GND (black)

GND

DOOR MONITOR

IN1(If this pin is not used,

connect to GND Pin.)

INSIDE OPEN

IN0

DC12V (LC015B separate power

supply)

DC12V IN

ground connection (Power only

for LC015B)

GND

Category

T2 terminal (Line name)

EM Door Lock

Lock

L1NC (Green)

+

GND

GND (Black)

-

Door Monitor

DM0 (Black)

NC(Normal Close)

Category

T2 terminal (Line name)

WIEGAND Device

WIEGAND INPUT0

WI0(갈색)

Wiegand output0

WIEGAND INPUT1

WI1(보라)

Wiegand output1

WIEGAND OUTPUT0

WO0(주황)

Wiegand input0

WIEGAND OUTPUT1

WO1(노랑)

Wiegand input1

GND

GND (검정)

GND

1.2.3.4. Terminal <- > LC015B wiring

But, door open time can be set with DIP SWITCH of LC015B (Maximum open time is 5 sec.)

1.2.3.5. Terminal <- > EM Type Door Lock wiring

1.2.3.6. Terminal <- > WIEGAND Device wiring

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 12

Server connection State

NONE

: No use network

: LAN line is disconnected.

: LAN line is connected. (Only link is connected.)

: Connected with server

Gate State

: Gate is closed.

: Gate is opened.

: Gate is opened forcedly(unusual door open state)

: Gate communication problem

Warning signal State

NONE

: Normal

: Terminal Disassembly State

Fire detection State

NONE

: Normal

: Sensed by fire detector(Valid on DM2 fire set)

BLE connection State

NONE

: Disconnected with Admin App

: Connected with Admin App

MCP040 connection State

NONE

: MCP040 is not used.(Normal state)

: MCP040 Mode and bad communication state.

: MCP040 Mode and normal communication state.

UDL connection State

NONE

: UDL is not used (Normal state).

: UDL is connected.

State icon

Operation Mode TNA Mode

Date and Time

1.3. Screen information during operation

1.3.1. Initial Screen

When powering on at first, the screen is displayed as follow.

1.3.2. Icons

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 13

Icon

Meaning

Function Key

Explanation

UP

F1

Move cursor up.

DOWN

F3

Move cursor down.

LEFT

F2

Move cursor to left.

ESC

F2 long

Move to upper menu.

RIGHT

F4

Move cursor to right.

ENTER

F4 long or F4

Move to submenu.

ENABLE DISABLE

F2

Category choice (ENABLE or DISABLE).

Operating in Exclusive mode Initial Screen

Operating in Network mode Initial Screen

Operating in Dummy mode Initial Screen

Operating in lock mode (Reject all users authentication)

1.3.3. Function KEY

1.3.4. Main Screen

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 14

Menu of Initial Screen

Authentication succeess

Authentication failure

Waiting for Card Input

Waiting for Fingerprint Input

Waiting for Admin App registration

Upgrading firmware for eNBioAccess-T2

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 15

LED

Operating state

Remark

RED

Normal

OFF

Alarm

ON or Flash

Authentication Failure

ON (Maintain during authentication time)  OFF

GREEN

Normal

OFF

LOCK OPEN

ON

Authentication Success

ON (Maintain during authentication time)  OFF

BLUE

Terminal Normal(alive)

Flash at intervals of 5 seconds

Function Key LED

Enter menu

Always ON

Touch in initial screen.

ON(Maintain for 10 seconds)  OFF

Category

Voice information

Fingerprint Input

Please enter your fingerprint.

Authentication success

You are authorized.

Authentication failure

Please try again. Buzzer Sound

State

Explanation

Ppik

Key touch Card tag Fingerprint touch

-Pressing key or reading card

-When inputting fingerprint, input has been completed and hands can take off.

Ppibik

Failure

If authentication fails or the user's input is wrong

Ppiriririk

Waiting for input

It shows the state for waiting user’s input such as fingerprint or password.

Ppiririk

Succeess

Authentication success or setting completion

1.4. LED information during operation

1.5. Voice information during operation

1.6. Buzzer guide announced during operation

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 16

1.7. How to register and enter the correct fingerprint

 Correct fingerprint input method

Enter your fingerprint as if you take a thumbprint by using your forefinger if possible. The fingerprint cannot be correctly registered and entered only by your fingertips. The center of the fingerprint should be touched with the fingerprint input section.

 Enter the fingerprint of your forefinger if possible.

When using your forefinger, you can enter your fingerprint correctly and safely.

 Make sure that the fingerprint is unclear or wounded.

Too dry, wet, blurry or wounded fingerprints are difficult to recognize. In this case, the fingerprint of another finger should be registered.

 Precautions subject to your fingerprint state.

The availability of the fingerprint may vary subject to your fingerprint state.

 This product consists of a fingerprint recognition system and cannot recognize

the damaged or unclear fingerprints. The fingerprint should be registered using the RF card.

 If your hands are dry, you can blow your breath on the system to operate

it more smoothly.

 For children, too small or unclear fingerprints may be difficult or impossible to use.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

They need to register a new fingerprint every six months.

 For seniors, the fingerprint with too many lines may not be registered.

eNBioAccess-T2 User Guide 17

Fingerprint

Fingerprint registration Fingerprint authentication

Card

Card registration Card authentication

Card or Fingerprint

Card, Fingerprint registration Card or Fingerprint authentication

Card and Fingerprint

Card, Fingerprint registration Fingerprint authentication after Card authentication

Mobile card

Mobile Card registration (registration only via server and admin App) Mobile Card authentication

 It is recommended that you will register more than two fingerprints if possible.  In order to increase the fingerprint authentication rate, it is recommended to use

six of the ten fingers as illustrated below (both thumbs, forefingers, middle fingers).

2. Product Descriptions

2.1. Product Features

 BLE is equipped. Door Control with smartphone is possible at close range.  It is equipped with Color Camera, and it saves the visitor’s video when authentication

succeeds or fails.

 Optional, Available to use as RF(125kHz), Smart Card(13.56MHz), HID Reader  Easy to verify your ID via fingerprint

- The use of the fingerprint recognition technology (Biometrics) can prevent

forgetting your password, losing your card or key, or avoid the risk of their theft. The use of personal fingerprints enhances the security of authentication.

 Access control system using the local area network (LAN)

- The fingerprint reader communicates with the authentication server using a TCP/IP

protocol. Therefore, this terminal can be applied to the existing LAN and has easy expandability. It ensures a fast speed by 10/100 Mbps Auto Detect and facilitates management and monitoring via the network.

 Provide various registration and authentication method

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 18

Door Lock

Lock control

BLE 2.4G

Mobile App

T2

Close

Open

Lock Controller (LC010, LC015)

Mobile App RS485

BLE 2.4G

T2

Close

Open RS485

MCP040

Ethernet

Server T2

Lock/Open Lock/Open

Lock/Open

RS485ID #2

RS485ID #1

RS485ID #3

2.2. Diagram

2.2.1. Single Type (Door Lock)

2.2.2. Single Type (Lock Controller)

2.2.3. Dummy Type (MCP040)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 19

Lock Control

BLE 2.4G

Mobile App

Close

Ethernet

Open

T2

Door Lock

Ethernet Internet

Server Internet

RS485

Lock Controller (LC010, LC015)

BLE 2.4G

Mobile App

Ethernet

T2

Close

Open

Server

2.2.4. Network Type (Door Lock)

2.2.5. Network Type (Lock Controller)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 20

Category

Spec

CPU

32Bit RISC CPU(400MHz)

MEMORY

64M DDR RAM, 32M NOR,128M NAND

Camera

VGA, F2.8, View angle 61 degree

LCD

1.77’’ Color LCD

Fingerprint Sensor

Optical / 500 DPI

Authentication Method

Fingerprint, RF Card, Mobile Card

Authentication Speed

1:N < within1sec. (based on 1,000 fingerprints)

Fingerprint capacity

20,000 Fingerprints, 10,000 users (Two identical fingerprints registration per user)

Note) Similar fingerprint inspection is possible when the number of fingerprints is less than 200.

Log capacity

100,000 logs

Communication interface

TCP/IP, Wiegand In/Out (26/34bit),RS485

Lock

Deadbolt, EM Lock, Door Strike, Automatic Door

Temperature /

Humidity

-20~60 ℃ / < RH 90% Certification

KC, CE, FCC

Size

58mm(W) * 191mm(H) * 62mm(D)

2.3. Product Specification

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 21

▶ Administrator authentication Administrator authentication is progressed with

fingerprint and card. You can access each menu if the authentication succeeds.

Admin authentication is displayed only if there is a registered user. Admin authentication displays only if admin is enrolled already. The admin authentication is needed only in accessing menu mode. It enables to access every menu until you completely escape from main menu.

3. Environment Setting

3.1. Checkpoints before Environment Setting

3.1.1. Menu

Press F4 long until the menu screen is displayed.

It is available to enter the menu without authentication because the manager doesn’t register when shipping the product.

3.1.2. Administration authentication

When the administrator is registered, the admin authentication screen is displayed at first as follows.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 22

OFF

ON

ON 1 2

3.1.3. How to access the menu without administrator authentication

This is the method to enter the Menu in exceptional cases such as losing your administrator card that is registered in the terminal or inability to make a fingerprint authentication because of absence of administrator.

① Power terminal OFF. ② Disassemble device and make case open state. ③ While case opens, make DIP of rear side switch ON state as follows.

④ Power terminal ON. ⑤ After the terminal completely booted, Press F1 longer to enter the menu with buzzer

sound “Ppiririk”.

★ Caution: You should return DIP SWITCH OFF after modification.

3.1.4. Save Settings

▶ If there are some changes, the following screen appears.

▶ If you select “YES”, then save them with buzzer sound “Ppibibig” and reboot.

▶ If there are no changes, it returns to the previous menu screen.

▶ While changing the settings in the menu, if there is no input for 30 seconds, it returns to

the previous menu.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 23

Category

Default setting

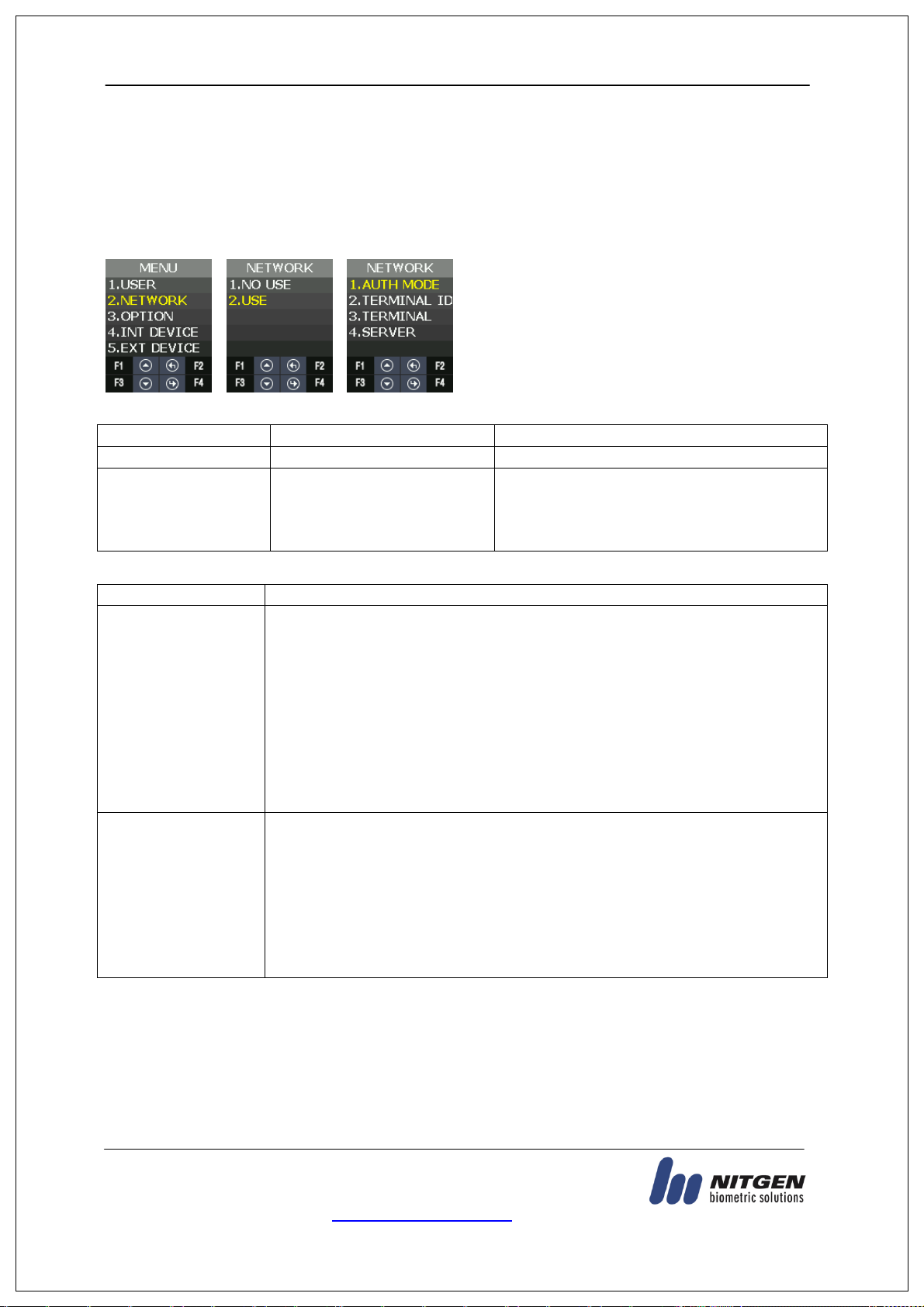

MENU > NETWORK

USE

MENU > NETWORK > USE > AUTH MODE

TN

MENU > NETWORK > USE > TEMINAL ID

1

MENU > NETWORK > USE > TEMINAL >

STATIC

MENU > NETWORK > USE > TEMINAL > STATIC >

IP:192.168.0.3 SN:255.255.255.0 GW:192.168.0.1

MENU > NETWORK > USE > SERVER

IP:192.168.0.2 PORT: 7332

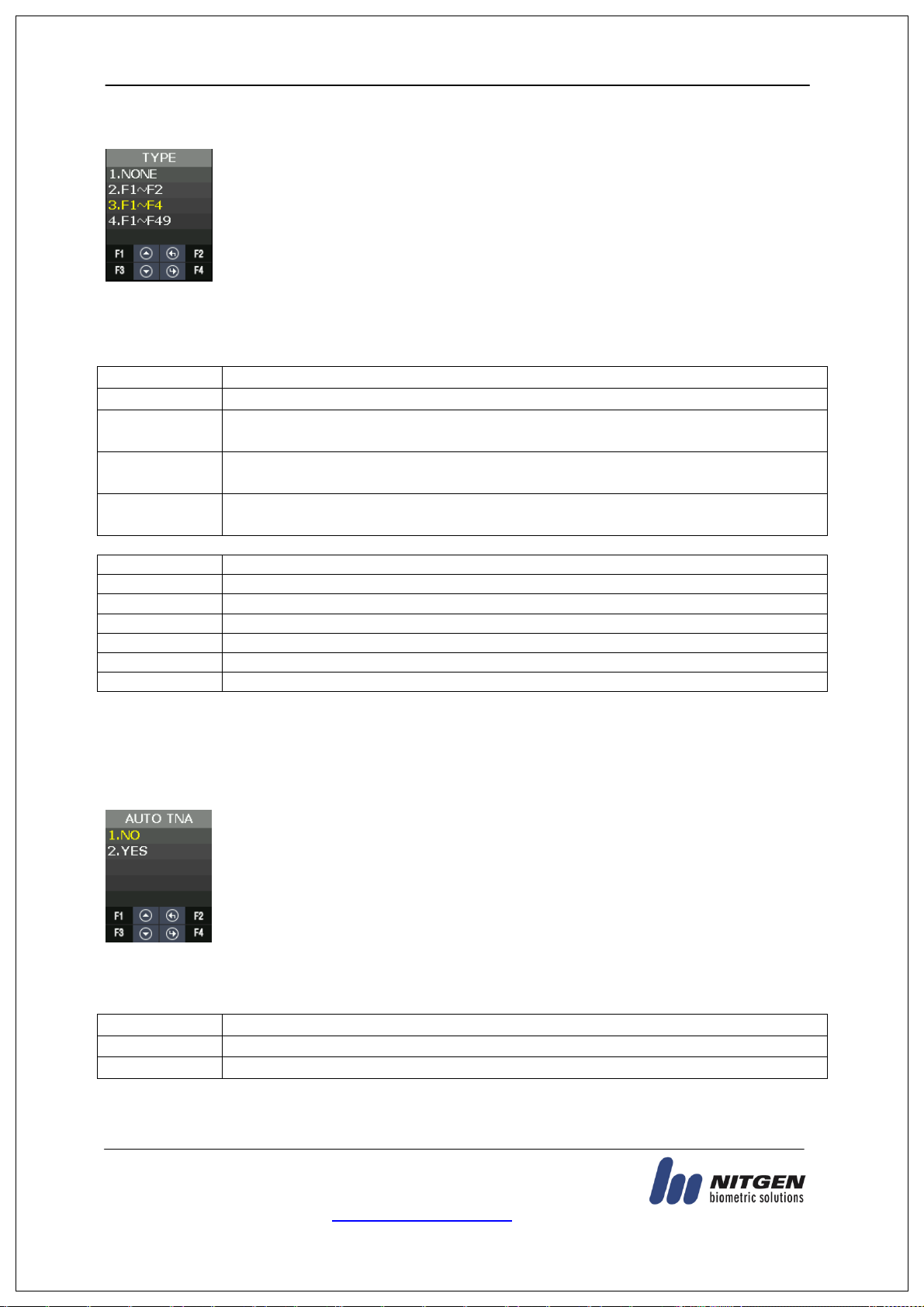

MENU > OPTION > ATTEND > TYPE

F1~F4

MENU > OPTION > ATTEND > AUTO TNA

NO

MENU > OPTION > SCREEN > LANGUAGE

English

MENU > OPTION > SCREEN > SHOW ID

YES

MENU > OPTION > SCREEN > USER LOGO

NO

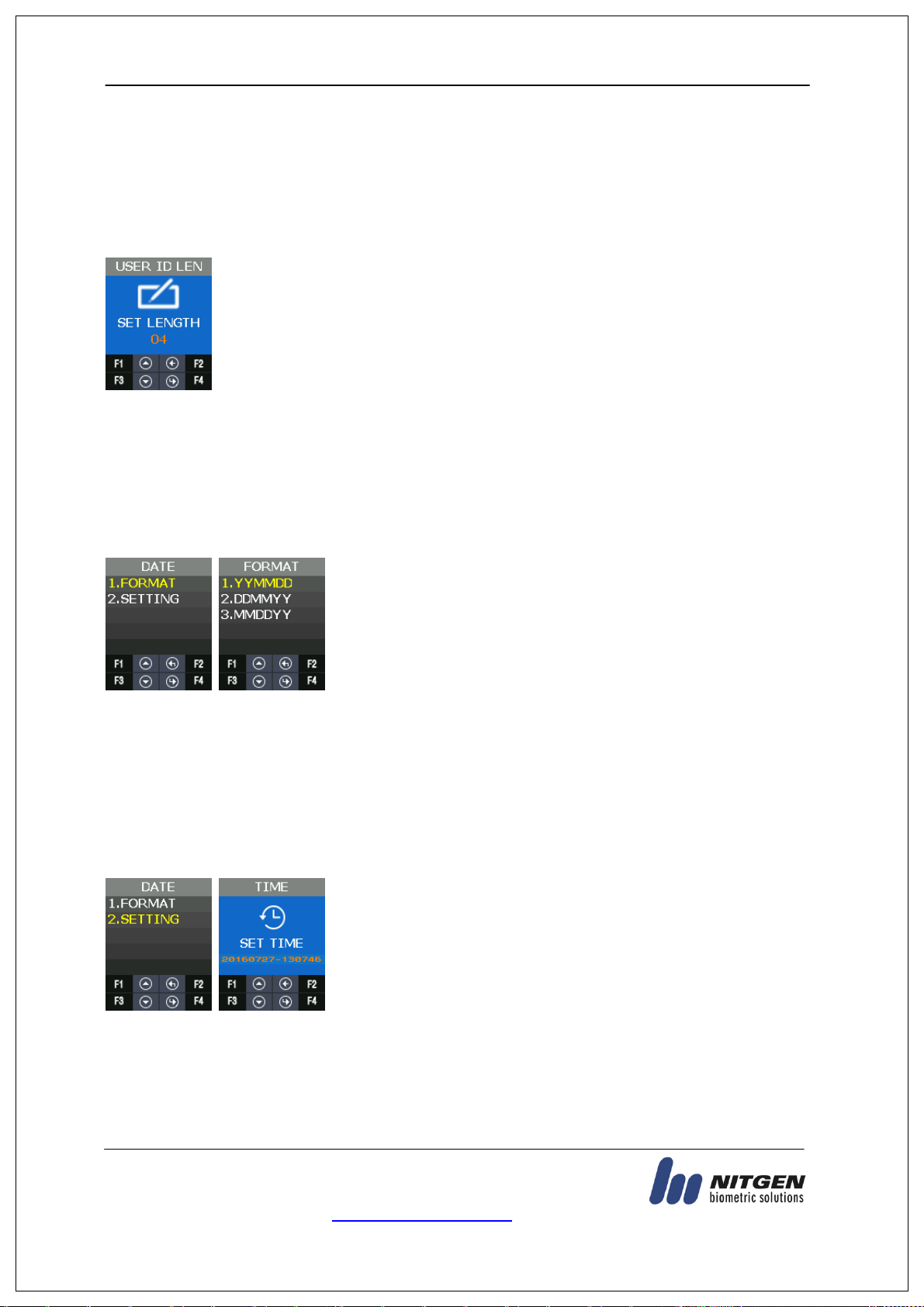

MENU > OPTION > SCREEN > USER ID LEN

4

MENU > OPTION > SCREEN > DATE > FORMAT

YYMMDD

MENU > OPTION > SAVE > LOG SAVE

Yes

MENU > OPTION > SAVE > IMAGE SAVE

No

MENU > OPTION > TIME OUT > RESULT

1sec

MENU > OPTION > TIME OUT > NET ERROR

30sec

MENU > OPTION > TIME OUT > PING

60sec

MENU > OPTION > LOCKING

NO USE

MENU > INT DEVICE > FP SENSOR > 1:1 LEVEL

5

MENU > INT DEVICE > FP SENSOR > 1:N LEVEL

8

MENU > INT DEVICE > FP SENSOR > LFD LEVEL

NONE

MENU > INT DEVICE > FP SENSOR > AUTH TIME

5sec

MENU > INT DEVICE > BEEP

3

MENU > INT DEVICE > VOICE

3

MENU > INT DEVICE > TAMPER

Alarm

MENU > EXT DEVICE > DOORLOCK > LOCK1 > TYPE

STRIKE/OK

MENU > EXT DEVICE > DOORLOCK > LOCK1 > OPEN TIME

3sec MENU > EXT DEVICE > DOORLOCK > LOCK2 > TYPE

None

MENU > EXT DEVICE > DOORLOCK > LOCK2 > OPEN TIME

3sec MENU > EXT DEVICE > DOORLOCK > OPEN ALARM

5sec

MENU > EXT DEVICE > DOORLOCK > DM0

NONE

MENU > EXT DEVICE > DOORLOCK > DM1

NONE

MENU > EXT DEVICE > DOORLOCK > DM2

NONE

MENU > EXT DEVICE > RS485 > TYPE

NONE

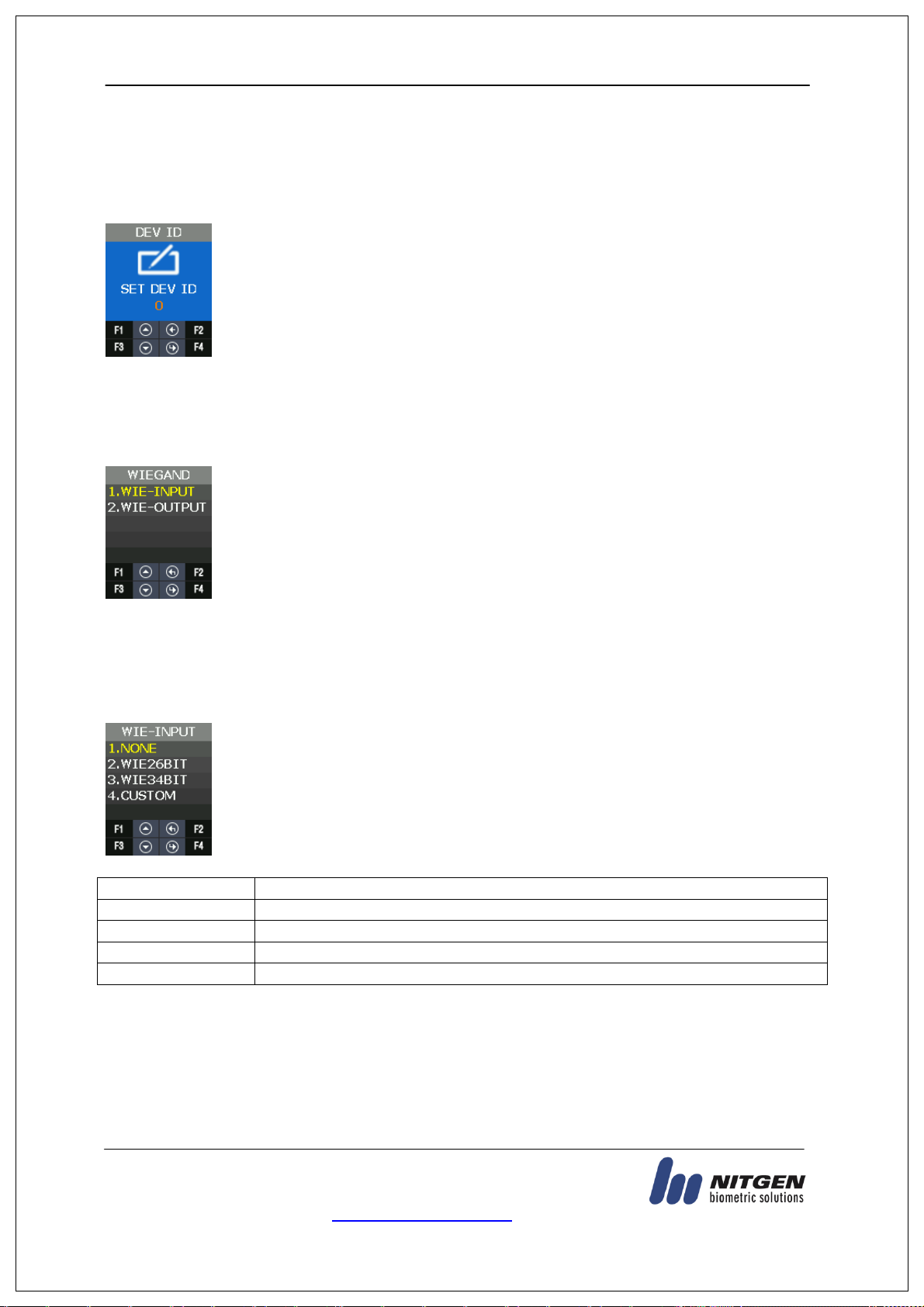

MENU > EXT DEVICE > RS485 > DEV ID

0

MENU > EXT DEVICE > WIEGAND > WIE-INPUT

NONE

MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT

NONE

MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT> 26 BIT or 34 BIT > SITE CODE

0 MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT> 26

UID

3.1.5. Default Setting

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 24

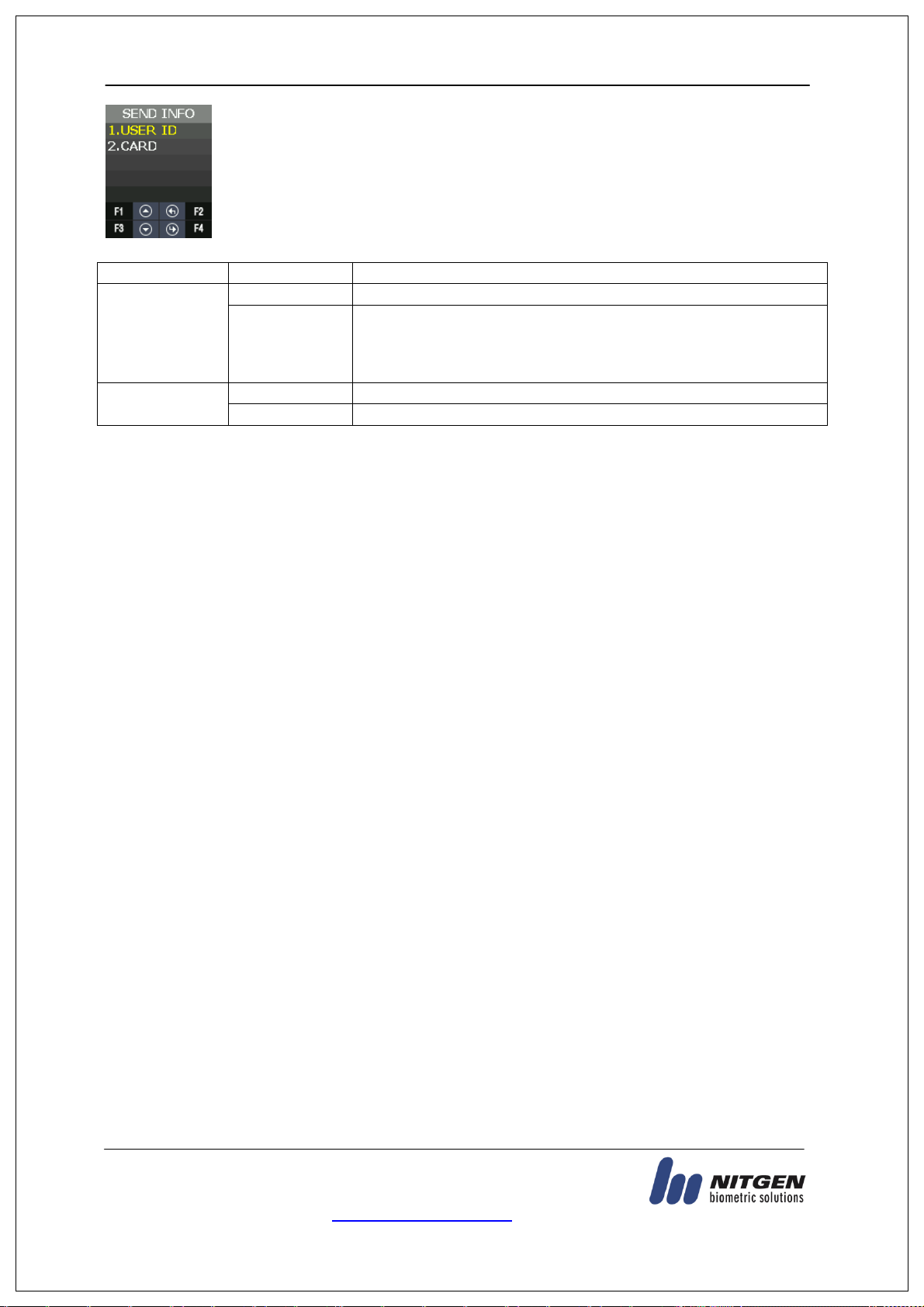

BIT or 34 BIT > SITE CODE > SEND INFO

Menu position

Possible setting

MENU>NETWORK>

NO USE

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

STRIKE/OK

MENU>EXT DEVICE>DOORLOCK>DM0

N/O or N/C

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

NONE

Menu position

Possible setting

MENU>NETWORK>

NO USE

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

MOTOR1

MENU>EXT DEVICE>DOORLOCK>DM0

N/O or N/C

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

MOTOR2

MENU>EXT DEVICE>DOORLOCK>DM1

N/O or N/C

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

NONE

Menu position

Possible setting

MENU>NETWORK>

NO USE

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM0

NONE

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

LC010

MENU>EXT DEVICE>RS485>DEV ID

0

Menu Position

Possible setting

MENU>NETWORK>

NO USE

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM0

NONE

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

3.1.6. Setting guide for Network Configuration

3.1.6.1. Single Type (Door Lock=STRIKE)

3.1.6.2. Single Type (Door Lock=MOTOR)

3.1.6.3. Single Type (Lock Controller=LC010)

3.1.6.4. Single Type (Lock Controller=LC015)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 25

MENU>EXT DEVICE>RS485>TYPE

LC015

MENU>EXT DEVICE>RS485>DEV ID

0

Menu Position

Possible setting

MENU>NETWORK>

N/A (Use : When only downloading DB)

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM0

NONE

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

MCP040

MENU>EXT DEVICE>RS485>DEV ID

Use in 1~7

Menu Position

Possible setting

MENU>NETWORK>

USE

MENU>NETWORK>USE>AUTH MODE

TN

MENU>NETWORK>USE>TERMINAL ID

0001

MENU>NETWORK>USE>TERMINAL>STATIC

IP:192.168.0.3 SN:255.255.255.0 GW:192.168.0.1

MENU>NETWORK>USE>SERVER

IP:192.168.0.2 PORT:7332

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

STRIKE/OK

MENU>EXT DEVICE>DOORLOCK>DM0

N/O or N/C

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

NONE

Menu Position

Possible setting

MENU>NETWORK>

USE

MENU>NETWORK>USE>AUTH MODE

TN

MENU>NETWORK>USE>TERMINAL ID

0001

MENU>NETWORK>USE>TERMINAL>STATIC

IP:192.168.0.3 SN:255.255.255.0 GW:192.168.0.1

MENU>NETWORK>USE>SERVER

IP:192.168.0.2 PORT:7332

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

MOTOR1

MENU>EXT DEVICE>DOORLOCK>DM0

N/O or N/C

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

MOTOR2

MENU>EXT DEVICE>DOORLOCK>DM1

N/O or N/C

3.1.6.5. Dummy Type (RS485=MCP040)

3.1.6.6. Network Type (Door Lock=STRIKE)

3.1.6.7. Network Type (Door Lock=MOTOR)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 26

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

NONE

Menu Position

Possible setting

MENU>NETWORK>

Use

MENU>NETWORK>USE>AUTH MODE

TN

MENU>NETWORK>USE>TERMINAL ID

0001

MENU>NETWORK>USE>TERMINAL>STATIC

IP:192.168.0.3 SN:255.255.255.0 GW:192.168.0.1

MENU>NETWORK>USE>SERVER

IP:192.168.0.2 PORT:7332

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM0

NONE

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

LC010

MENU>EXT DEVICE>RS485>DEV ID

0

Menu Position

Possible setting

MENU>NETWORK>

USE

MENU>NETWORK>USE>AUTH MODE

TN

MENU>NETWORK>USE>TERMINAL ID

0001

MENU>NETWORK>USE>TERMINAL>STATIC

IP:192.168.0.3 SN:255.255.255.0 GW:192.168.0.1

MENU>NETWORK>USE>SERVER

IP:192.168.0.2 PORT:7332

MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM0

NONE

MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE

NONE

MENU>EXT DEVICE>DOORLOCK>DM1

NONE

MENU>EXT DEVICE>DOORLOCK>DM2

NONE

MENU>EXT DEVICE>RS485>TYPE

LC015

MENU>EXT DEVICE>RS485>DEV ID

0

3.1.6.8. Network Type (Lock Controller=LC010)

3.1.6.9. Network Type (Lock Controller=LC015)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 27

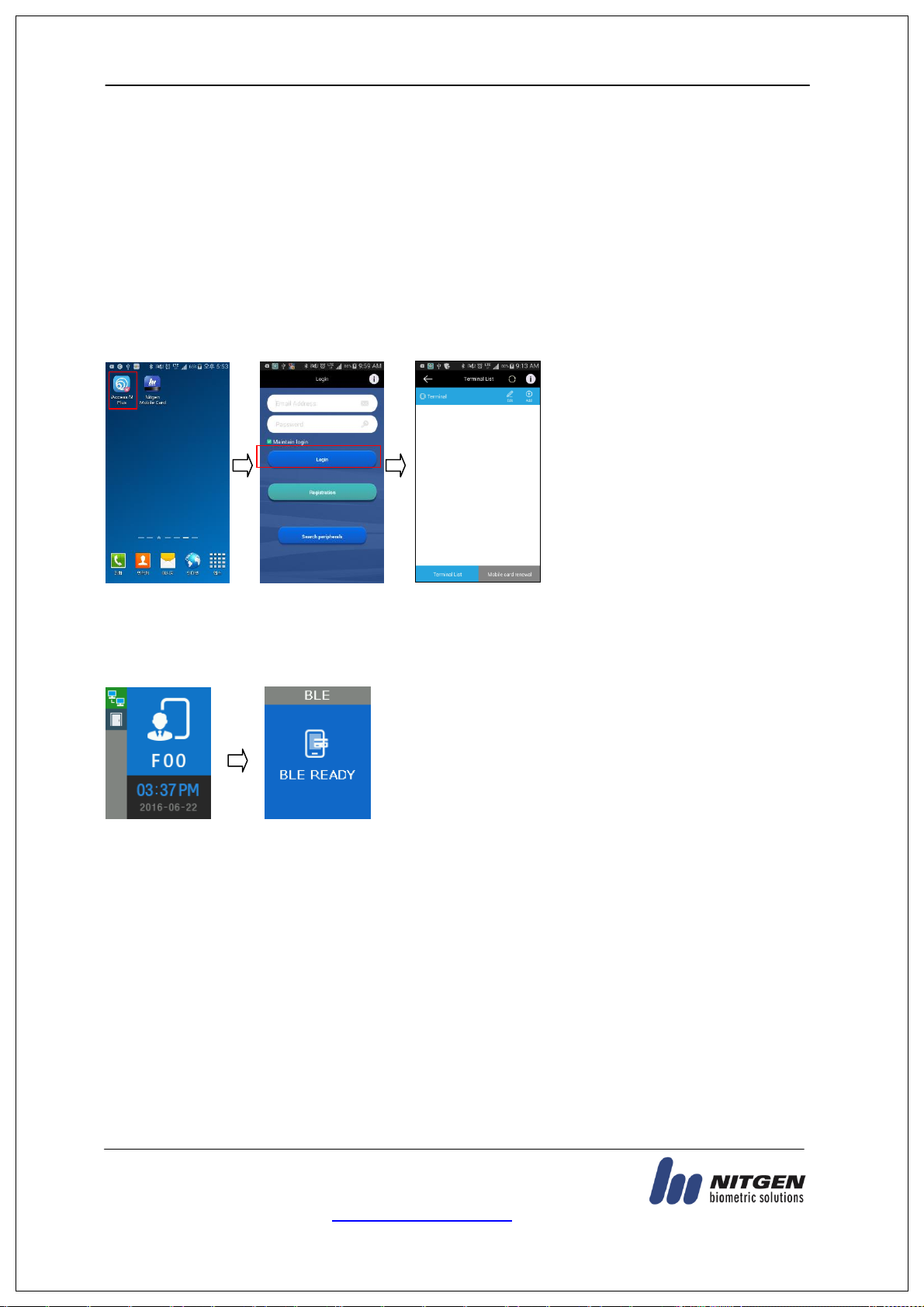

3.2. How to register the terminal in Admin App

3.2.1. Install iAccess M Plus

iAccess M Plus is the smartphone App for administrator controlling device via BLE. You can download and install it from Play Store. For more details, please refer iAccess M Plus installation guide.

3.2.2. Execute and Log in iAccess M Plus

3.2.3. Access to Terminal BLE REDAY

If you press F3 long on initial screen, the terminal turns to BLE READY.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 28

Input admin’s card

or fingerprint

“Ppiririk” Success & output Buzzer sound

3.2.4. Terminal login Admin App

When the terminal is BLE REDAY, press ADD on iAccess M Plus App and select the terminal. If you know the administrator's ID and password, then click OK to log in. If you do not know the administrator’s ID & password and click OK in empty state.

3.2.5. Administrator authentication of the terminal

If an administrator is registered in the terminal, it requires to input card or fingerprint for administrator authentication. If the administrator is not registered in the terminal, it requires no further authentication and authentication succeeds immediately.

3.2.6. Terminal registration

When admin authentication is successful, Device registration screen is displayed. Press Registration button and complete Device registration.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 29

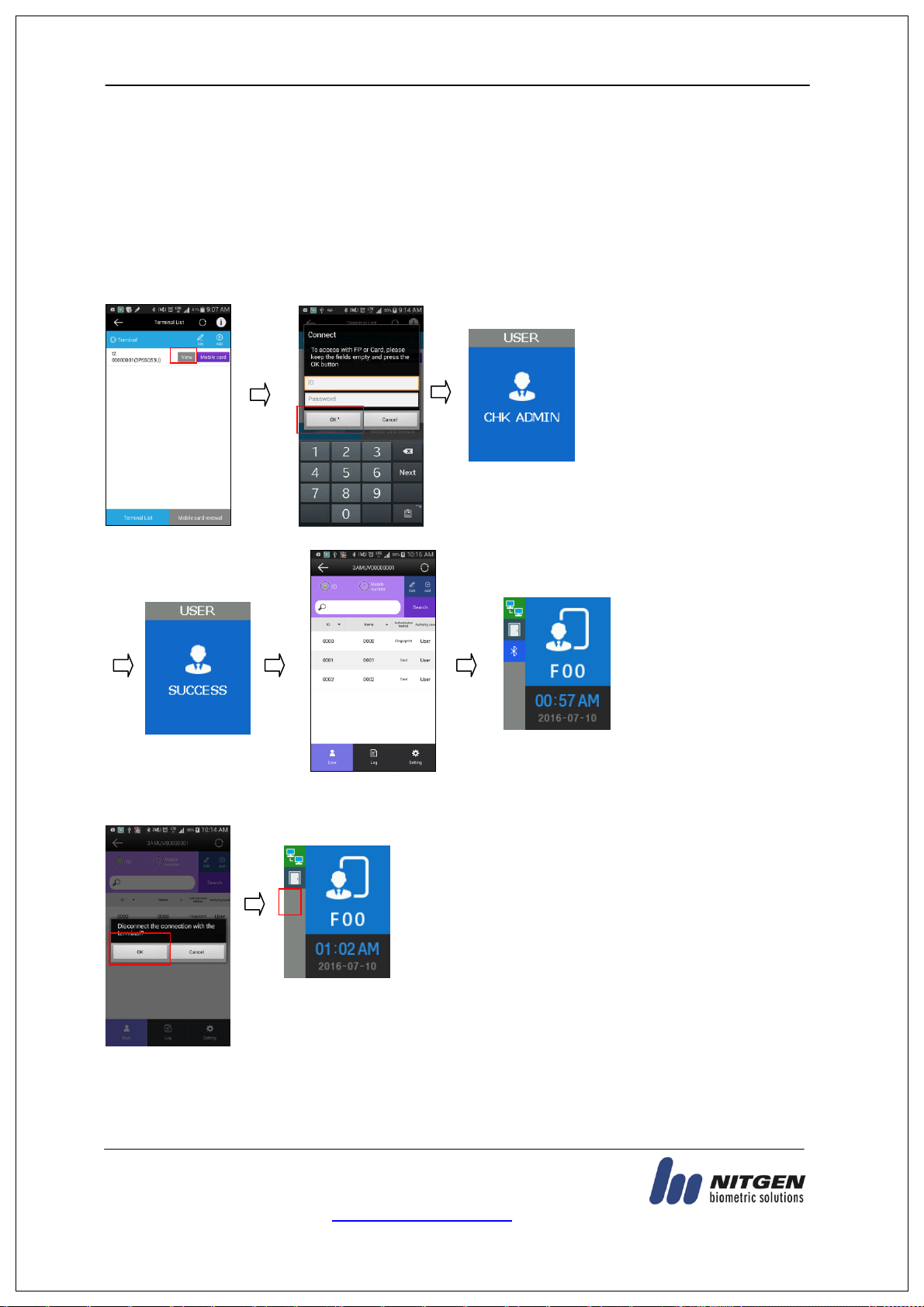

3.3. Access Device with Admin App

If the terminal registration on Admin App is successful, the list is displayed as follows. When pressing View, the pop-up window is displayed to connect the terminal. If the administrator is registered in the terminal, it requires the administrator authentication. If there is no administrator, the login succeeds immediately. If the login is successful, you receive the list of users registered with the Admin App screen. BLE icon is displayed on the terminal.

When you log out after finishing the setting from Admin App, BLE icon disappears from the initial screen of the terminal.

If it is successful to access, it is available to add / delete user, inquire log data, modify the setting and etc. For more details, please refer the document for Administrator App user guide.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 30

3.4. Access and Registration between ACM Pro and terminal

3.4.1. Install ACM Pro

When shipping the product, it installs ACM Pro Program in PC from the provided CD. For installation guide, please refer the relevant document.

3.4.2. Execute ACM Pro

If executing the program, login screen is displayed. Enter User ID that is previously registered and password and then press OK.

If login is successful, the screen is displayed as follows.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 31

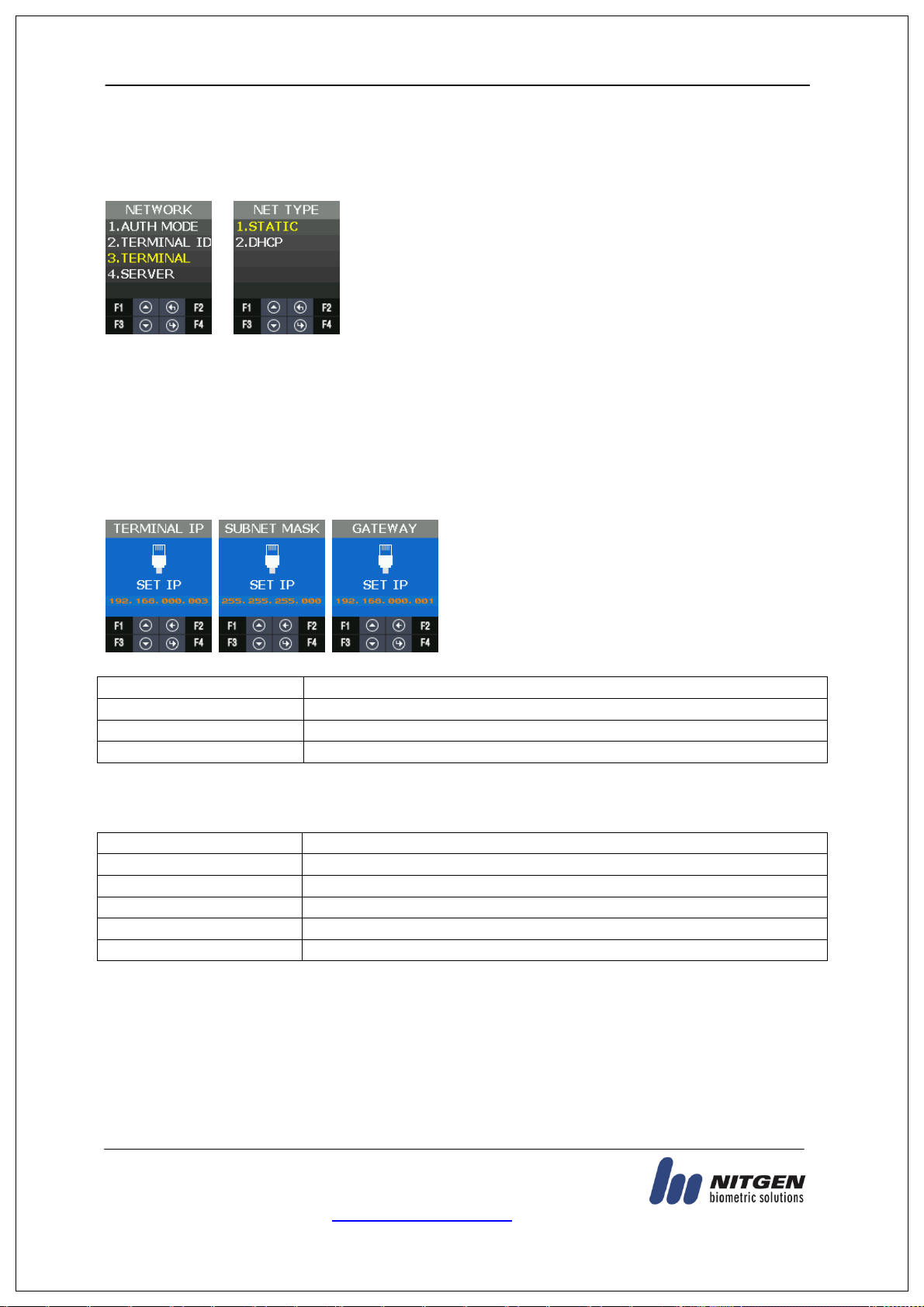

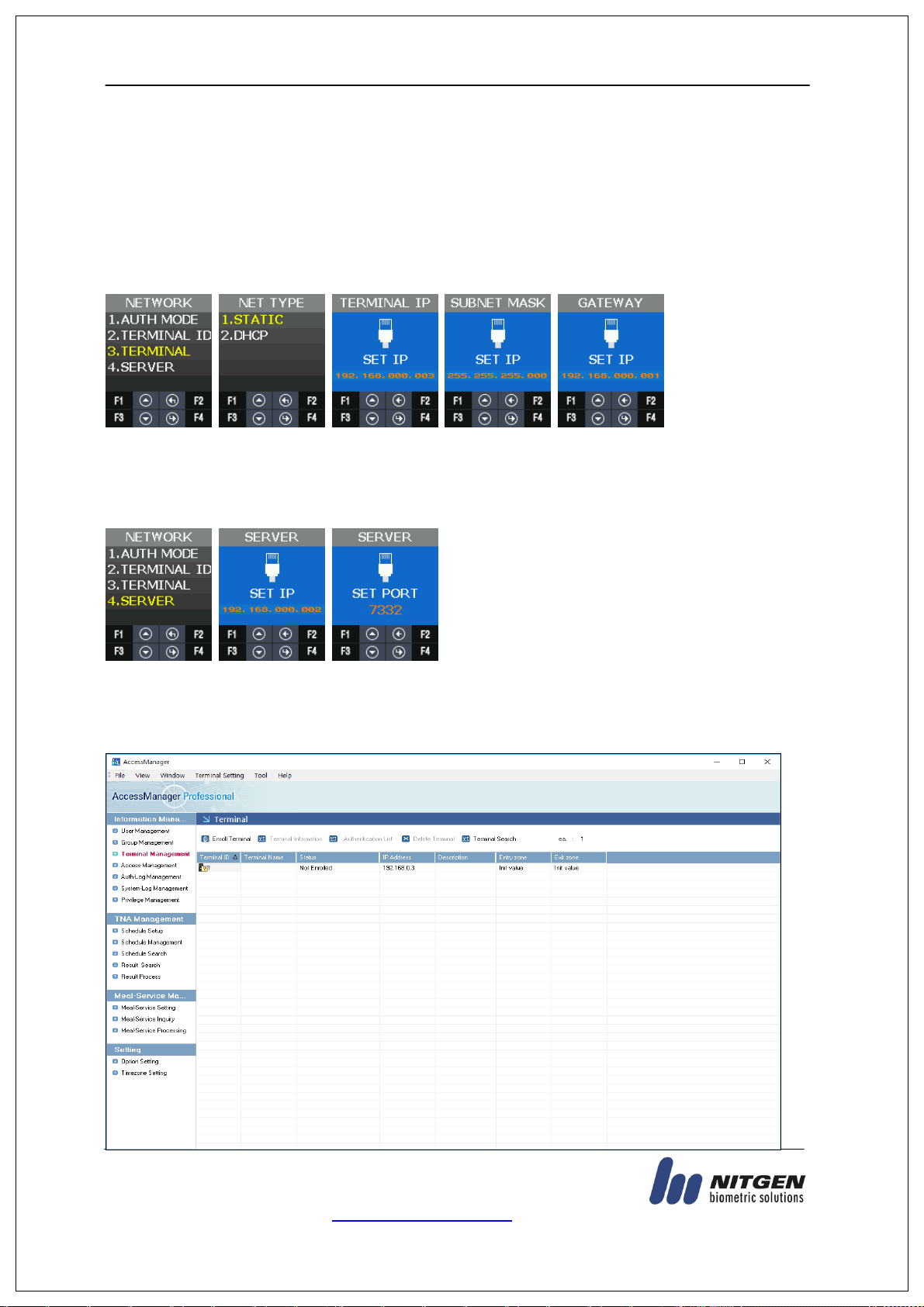

3.4.3. Set in terminal

In order to connect the terminal to the server, set to the network mode and set the information. Move to MENU > NETWORK > USE > TERMINAL and check whether lower information is correct or not. If you have not changed the device network information, it is displayed as follows.

In order to access the server Move to MENU > NETWORK > USE > SERVER and check the lower information correctly sets or not. If you do not change the server network information, it is displayed as follows.

3.4.4. LAN connection in terminal

At first, you can see the unregistered state because the terminal is not registered.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 32

3.4.5. Register the terminal in ACM Pro

Select the unregistered terminal and press Registration button to activate the screen below. Enter device name and explanation to press OK.

If the registration is successful, the screen is displayed as follow.

For more details about ACM pro operation, please refer ACM Pro guide document.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 33

Menu

Submenu1

Submenu2

Submenu3

USER

ADD

USER

USER ADMIN

INPUT ID

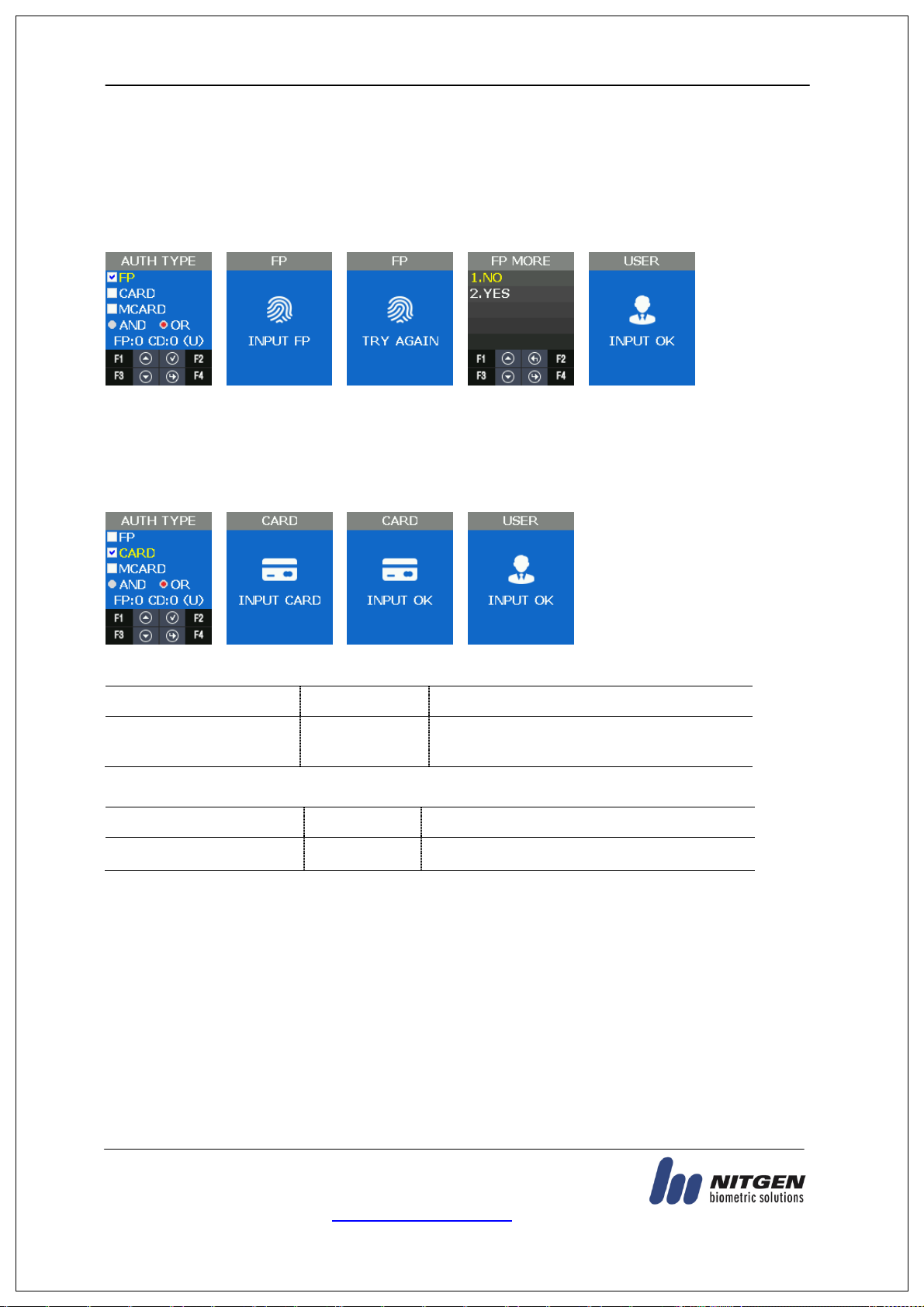

*Authentication Type Card FP MCARD *Authentication Condition OR AND

※ MCARD is OR condition only.

※ MCARD is not admitted to set up,

state check only.

Password

AUTO ADD FP

UID > FP1 > FP2 > OK

Card

UID > Card > OK

MODIFY

INPUT ID

*Authentication Type Card FP MCARD *Authentication Condition OR AND

※ MCARD is OR condition only.

※ MCARD is not admitted to set up,

state check only.

FP registration (When checking authentication mode)

Card registration (When checking authentication mode)

DELETE

Delete ID

DELETE ALL

3.5. Menu Configuration

The whole menu is composed of seven, and main characteristics are as follows.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 34

NETWORK

NO USE

Operate in single mode

USE

AUTH MODE

Server/Terminal Terminal/Server Server Terminal

TERMINAL ID

STATIC DHCP

STATIC

IP

Subnet mask

Gateway

DHCP

SERVER SERVER

Port No

OPTION

ATTEND

TYPE

NONE M1 F1~F2 M2 F1~F4 M3 F1~F49

AUTO TNA

NO YES

SCREEN

LANGUAGE ENGLISH(0) KOREAN(1) INDONESIAN(2) MULTILINGUAL(3) ARABIC(4) SPANISH(5) PORTUGUESE(6) FRENCH(7) RUSSIAN(8) FARSI(9) JAPANESE(10) CHINESE(11)

SHOW ID

NO YES

USER LOGO

NO USE USE

USER ID LEN

4~16

SAVE

LOG SAVE

NO YES

IMAGE SAVE

NO YES

TIMEOUT

RESULT

NET ERROR

PING

Date

FORM

YYMMDD DDMMYY MMDDYY

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 35

SETTING

YYYYMMDD-hhmmss

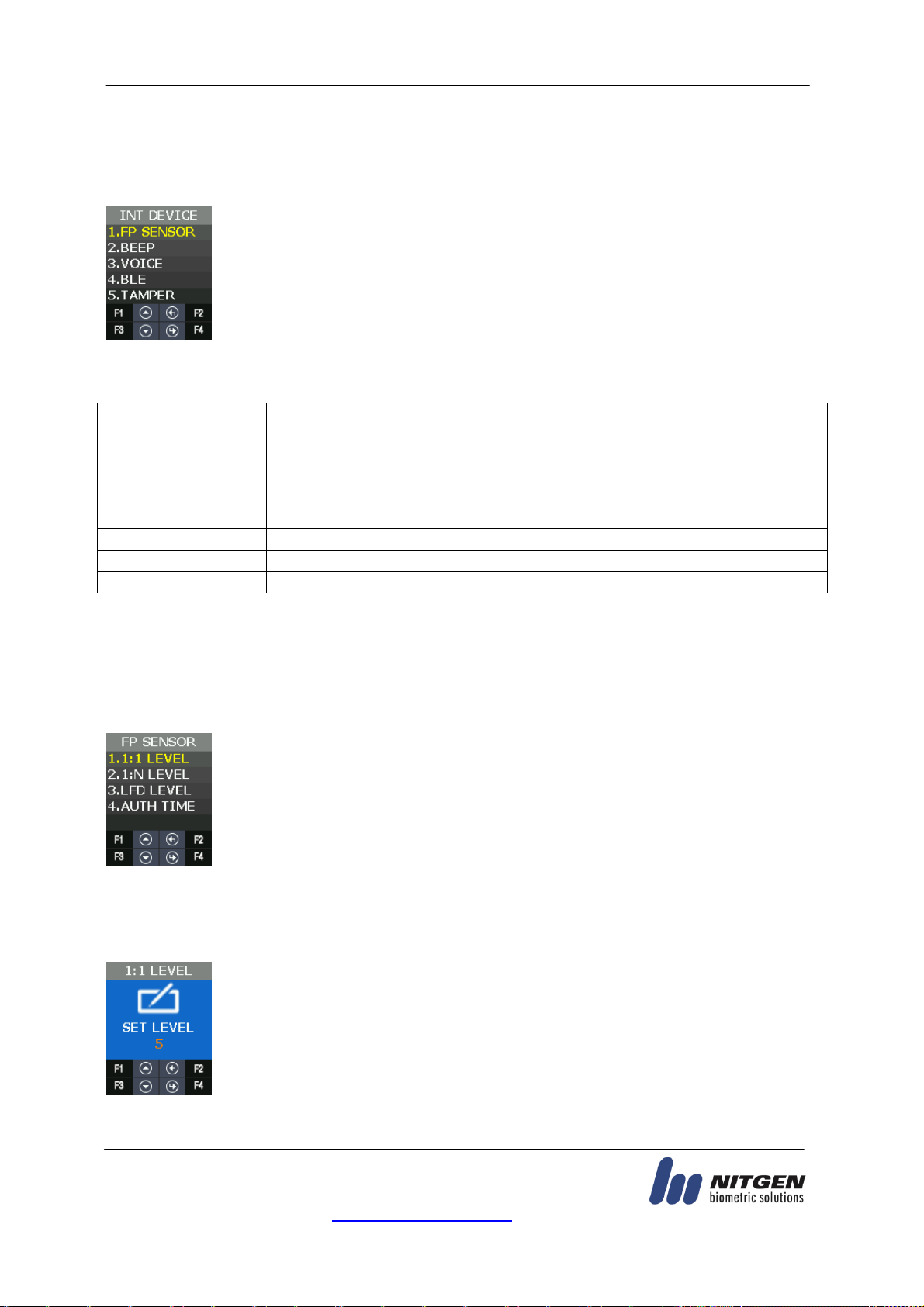

INT DEVICE

FP SENSOR

1:1 LEVEL (1~9)

1:N LEVEL (5~9)

LFD LEVEL

NONE LOW MIDDLE HIGH

AUTH TIME

BEEP

0~3

VOICE

0~5

BLE

BLE READY

TAMPER

NO ALARM ALARM

EXT DEVICE

DOOR LOCK

LOCK1

*TYPE Not Use Strike/OK Indication Motor1 Schedule alarm

*OPEN TIME 3[1~20sec]

LOCK2

* TYPE NONE Fail Indication Motor2 Schedule alarm

* OPEN TIME 3[1~20sec]

OPEN ALARM TIME

5[0~20sec] 0: No Alarm 1~20: Alarm

DM0

NONE Lock Normal Open Lock Normal Close

DM1

NONE Lock Normal Open Lock Normal Close

DM2

Not use Normal Open Normal Close Fire Normal Open Fire Normal Close Panic Normal Open Panic Normal Close Urgent Norm Open Urgent Normal Close

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 36

RS485 TYPE

NONE LC010 LC015 SR100 MCP040

DEV ID: 0~255

WIEGAND

WIE-INPUT

*TYPE NONE WIE26BIT WIE34BIT CUSTOM

WIE-OUTPUT

*TYPE NONE WIE26BIT WIE34BIT CUSTOM

*SiteCode

*More Information UID CARD

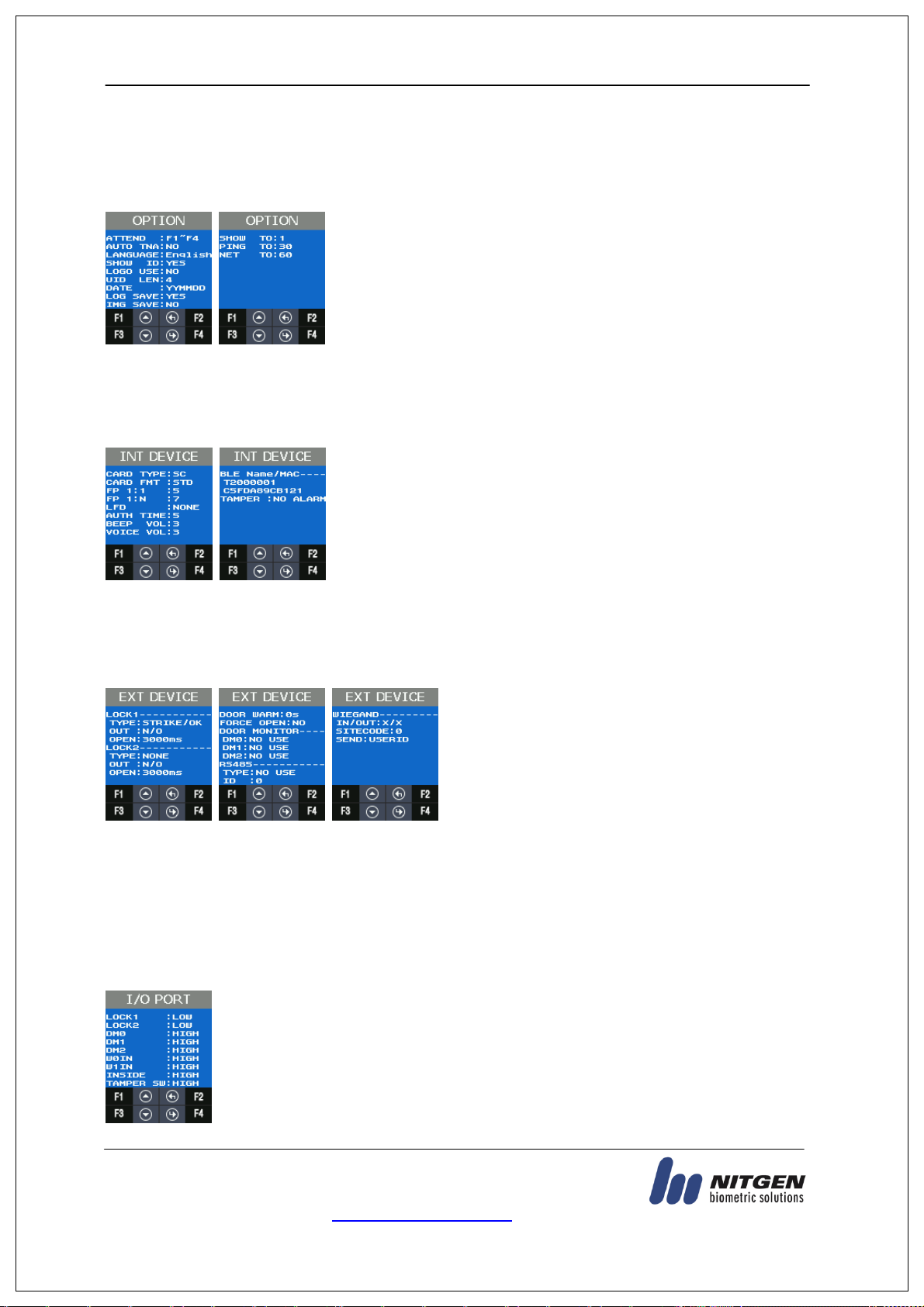

STATE

DB INFO

USER CNT: USER MAX: ADMIN: FP CNT: FP MAX: CARD CNT: CARD MAX: M.CD CNT: LOG CNT: LOG MAX:

NETWORK

TID: xxxx NET: YES, MODE:TN NET TYPE: STATIC ENCRYPT: DES CIP/SN/GW--------xxx.xxx.xxx.xxx xxx.xxx.xxx.xxx xxx.xxx.xxx.xxx MAC: xx: xx: xx: xx: xx: xx SIP/PORT--------- xxx.xxx.xxx.xxx xxxx

OPTION

ATTEND: M2(F1~F4) AUTO TNA: YES LANGUAGE: English SHOW ID: YES LOGO USE: NO UID LEN:4

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 37

DATE: YYMMDD LOG SAVE: YES IMG SAVE:NO SHOW TO: x PING TO: x NET TO: x:

INT DEVICE

CARD TYPE: RF/SC CARD FMT: STD FP1:1:x FP1: N:x LFD: xx AUTH TIME: BEEP VOL: VOICE VOL: BLE Name/MAC--- XXXXXXX (BLE Name) XXXXXXXXXXXXXXXXX TAMPER:ALARM

EXT DEVICE

LOCK1---------------------TYPE: STRIKE/OK OUT: N/O OPEN: 3000ms

LOCK2 ------------------TYPE: NONE OUT: N/O OPEN: 3000ms

DOOR WARN: 0sec FORCE OPEN:NO

RS485: LC010 RS485 ID: xxx WIEGAND---------------IN/OUT :34B/34B SITECODE: xxx SEND:USERID

I/O PORT

LOCK1: HIGH LOCK2: HIGH DM0: HIGH DM1: HIGH DM2: HIGH W0IN: HIGH W1IN: HIGH INSIDE: HIGH TAMPER SW:HIGH

VERSION

HW FW Card BLE

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 38

SN(Serial Number)

RECOVERY

INITIALIZE

CONFIG

LOG DB

FACTORY

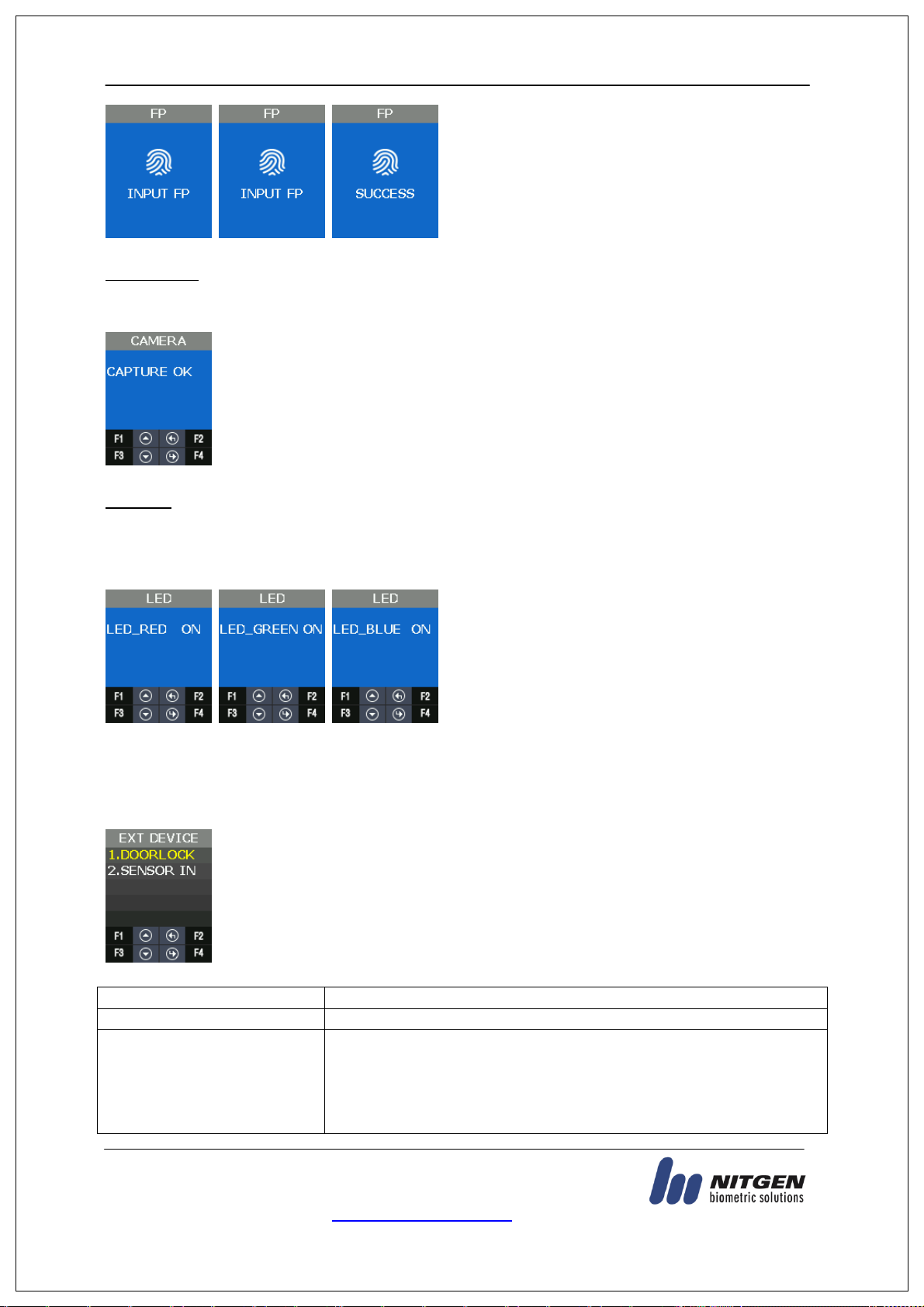

SELF TEST

INT DEVICE

VOICE CARD FP SENSOR CAMERA LED

EXT DEVICE

DOORLOCK SENSOR IN

BACKUP

LOG EXPORT

USER EXPORT

USER IMPORT

FW UPDATE

REBOOT

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 39

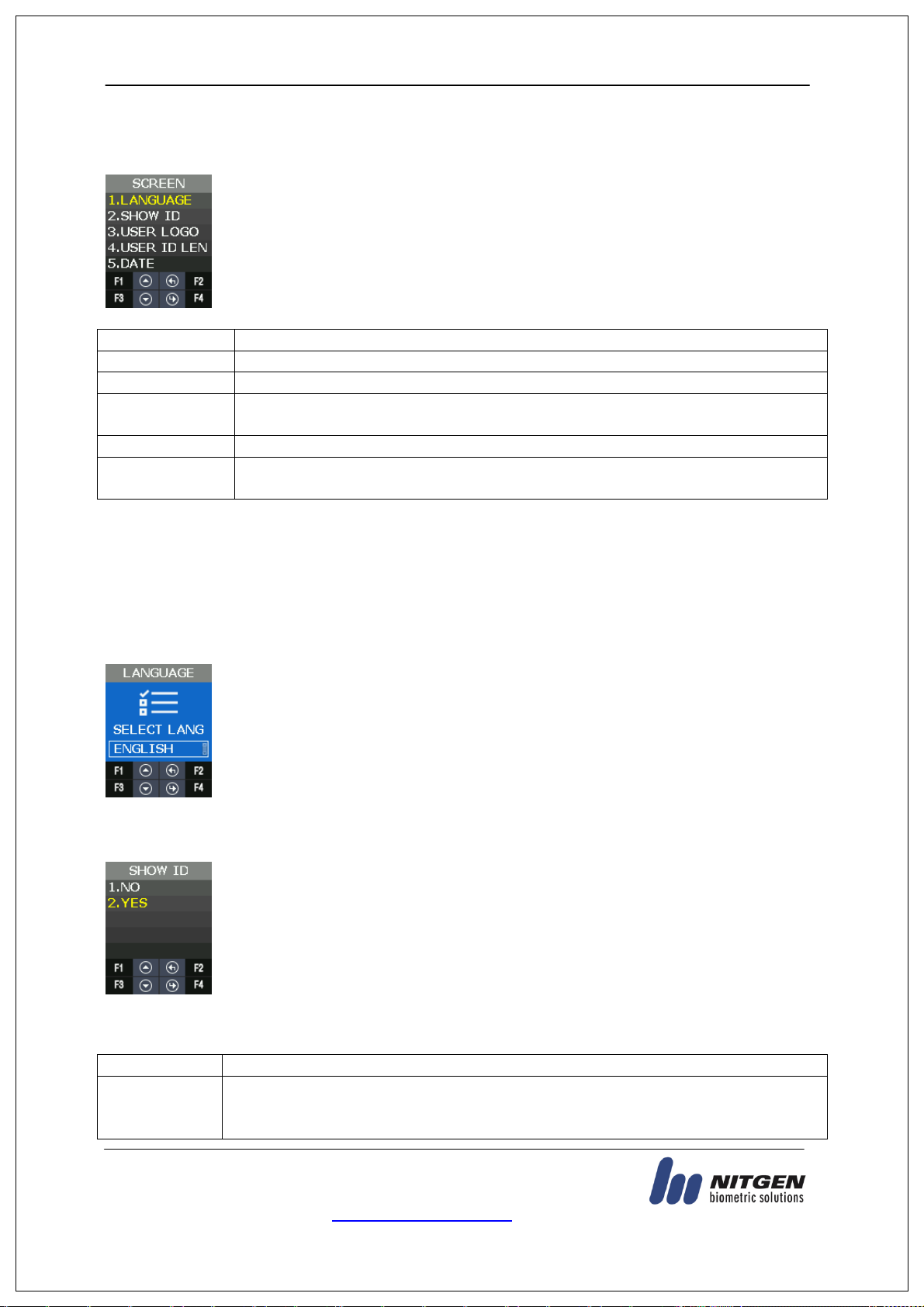

Category

Explanation

ADD

Use to add user and admin with various certification conditions.

AUTO ADD

Use to add Card or Fingerprint user automatically.

MODIFY

Use to add certification conditions, card or fingerprint of registered user.

DELETE

Use to delete a registered particular user.

DELETE ALL

Use to delete all registered users.

USER TYPE

Explanation

USER

Only available for authentication No Authorization to access menu When selecting user, the screen is displayed as follow.

3.6. USER

3.6.1. Menu Configuration

USER menu has the feature as follows.

3.6.2. ADD

3.6.2.1. USER TYPE

If you press ADD in the menu, the screen asking the user type is displayed as follow.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 40

ADMIN

Available to add and delete user. Available to access menu and modify it. When selecting the administrator, the screen is displayed as follows.

[FR Authentication]

[Card Authentication]

[FP or Card

Authentication]

[FP and Card

Authentication]

3.6.2.2. AUTH TYPE

There are FP(Fingerprint), Card, and MCARD (Mobile card) in the menu. But MCARD can only provide the check state, and do not provide checking or unchecking. For checking or unchecking with MCARD, it is only available via Server and Admin App. There are AND and OR in authentication conditions. In AND, all authentication conditions should be satisfactory and then authentication succeeds. In OR, one of authentication conditions should be satisfactory and authentication succeeds.

FP:0 ➔ FP is abbreviation of Finger Print.

0 means the registered FP number. (1FP means 2 fingerprints)

CD:0➔ CD is abbreviation of CARD.

0 means the registered CARD number.

Maximum card number is 1. (U) ➔ Means your Registration Authority is general user(USER). (A) ➔ Means your Registration Authority is administrator (ADMIN).

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 41

Card Format

Card No.

Display Method

Standard

02207638 (16001DD6)

(3+5)digits Decimal [022(16h)+07638(1DD6h)]

Card Format

Card No.

Display Method

Standard

529D06E3

8digits Hex

3.6.2.3. INPUT FP

Input the same fingerprint twice when you check the Fingerprint as authentication type. If you want to add only one fingerprint, select 1. NO. If you input the fingerprint second times and they are normal, INPUT OK is displayed. If you want to add more fingerprints, select 2. YES. One user can register 20 people for maximum.

3.6.2.4. INPUT CARD

When you check Card as AUTH TYPE, you will follow steps as below. If you input CARD on Waiting state, registration completes and INPUT OK screen is displayed.

EM CARD ex) Card No.(5byte): 08h 01h 16h 1Dh D6h

SC CARD ex) Card No.(4byte): 52h 9Dh 06h E3h

3.6.3. AUTO ADD

AUTO ADD is used when you want to register general users (not admin user) consecutively with card or fingerprint. If you select FP, it adds users by increasing ID consecutively only with fingerprint. If you select CARD, it adds users by increasing ID consecutively only with card.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 42

3.6.3.1. AUTO ADD – 1. FP

This is the menu when registering the users continuously only by fingerprint. Input fingerprint in twice and then the registration succeeded. If you want to add more users, select 2. YES, and continue the registration. User ID increases automatically.

3.6.3.2. AUTO ADD

This is the menu when registering the users continuously only by card. After inputting the card, INPUT OK is displayed on the screen. If you want to add the other user, select 2. YES, and register the user. User IDs increases automatically.

3.6.4. MODIFY

It is used when modifying the authentication type of the registered user. In authentication type, authentication type (fingerprint, card) and authentication condition (AND, OR) can be changed. If the modification type is modified, authentication information about the authentication type can be input.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 43

3.6.5. DELETE

It is used when deleting the registered users.

3.6.6. DELETE ALL

It is used when deleting all the registered users. It should be careful when trying to delete, because all the users (general user, administrator) are deleted.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 44

Category

Explanation

Remarks

NO USE

Network not used

Standalone

USE

AUTH MODE TERMINAL ID TERMINAL SERVER

Network mode

Operation Mode

Explanation

Standalone

This is the operation mode independently without server and communication. The administrator can control all the functions of the terminal. Authentication log is saved in the terminal but is not sent to server. After converting Standalone mode into Network mode and accessing in server, the authentication log saved internally is sent to sever. If you want to see the authentication log data in Standalone mode, move RECOVERY > BACKUP > LOG EXPORT from main menu, download it in USB through UDL module and check it by ACM Pro program.

Network Mode

This is the operation mode by communicating with the server and it can control the functions of the terminal by the remote-control. Depending on the authentication mode, the order of authentication can be different. (Authentication order about whether trying to authenticate in the terminal or the server first) Authentication log is sent to the server if the network is connected regardless of authentication mode.

3.7. Network Menu

3.7.1. Menu Configuration

Network menu has the following features.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 45

AUTH MODE

Explanation

Server/Terminal

Server  Terminal After trying to do server authentication at first, terminal authentication is processed.

Terminal/Server

Terminal  Server After trying to do terminal authentication at first, server authentication is processed.

Server

Server only Authentication is processed only in server.

Terminal

Terminal only Authentication is processed only in terminal. Even if it is “Terminal Only”, authentication log is sent to server.

3.7.2. AUTH Mode

Authentication mode means the authentication priority to determine whether authentication processing is done in the terminal or the server when user-authentication. It is a valid setting only when using the network. All authentication log is sent to server through the network.

★ In Server Only” mode, if the network is disconnected, all the authentication is processed in fail. If the mode is not “Server Only” (Server/Terminal, Terminal/Server, Terminal) and the network is disconnected, authentication is processed in the base of DB in the terminal.

3.7.3. Terminal ID

Terminal ID is a valid information only when using the network, and it can be set in the range of 1~200.

If a user registered in the terminal exist, you can’t change the Terminal ID.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 46

Category

Default Setting Value

Terminal IP

192.168.0.3

SUBNET MASK

255.255.255.0

GATEWAY

192.168.0.1

Function Key

Function Explanation

F1

Increase the setting value

F3

Decrease the setting value

F2

Move to left

F4

Move to right

F4 Long

Save the setting value

3.7.4. Terminal

It is used when setting the network information in the terminal.

Network setting in the terminal can be set in Static IP and DHCP.

STATIC: Set the value as a user wants. DHCP: Allocated flexibly. (It can be operated normally when using the router supporting

DHCP.)

If STATIC is used, it is used when setting IP, Subnet mark and Gateway address of the terminal. The following is the default setting value.

It can set the address value as follows.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 47

Category

Default Setting Value

Server IP

192.168.0.2

Port number

7332

3.7.5. Server

When the terminal accesses in server through the network, set the information.

Default setting value is as follows.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 48

Category

Explanation

ATTEND

TYPE AUTO TNA

SCREEN

LANGUAGE SHOW ID USER LOGO USER ID LEN DATE

SAVE

LOGO SAVE IMAGE SAVE

TIMEOUT

RESULT NET ERROR PING

LOCKING

NO USE / USE

Category

Explanation

TYPE

When Function Key is used in time and attendance option, it is used.

AUTO TNA

Use to determine whether to remain Function Key or not shown in the default screen.

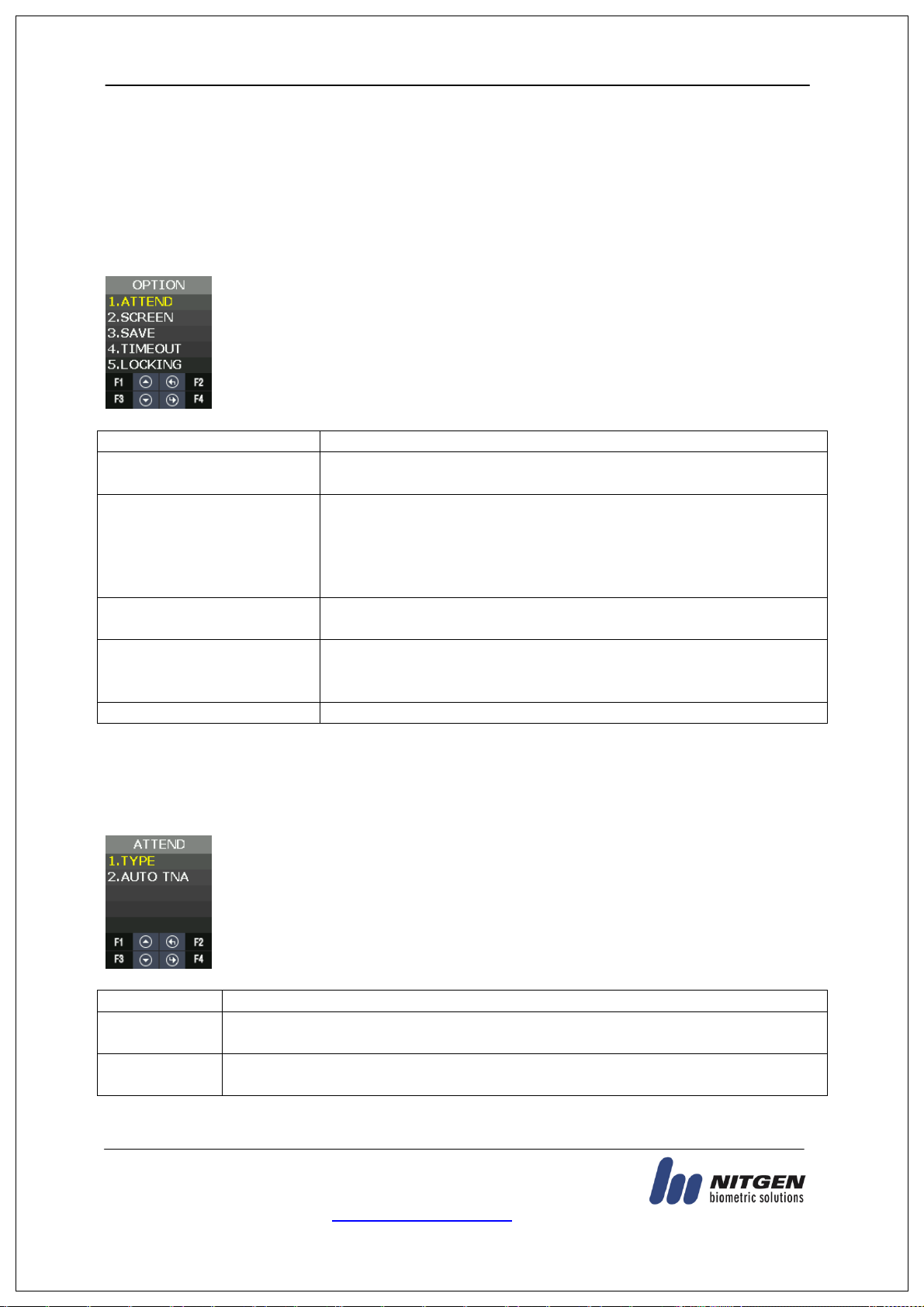

3.8. Option Menu

3.8.1. Menu configuration

User menu has the same function as follows.

3.8.2. ATTEND

TNA related menu are configured.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 49

Mode

Explanation

NONE

F00 is only displayed in default screen.

F1~F2

F1~F2 Function Key is recognized and F01, F02 are displayed in default screen.

F1~F4

F1~F4 Function Key is recognized and, F01, F02, F03, F04 are displayed in default screen.

F1~F49

F1~F4 Function Key is recognized and F01, F02, F03, F04, F11~F49 are displayed.

Function Key

Meaning

F00

ACCESS MODE

F01

CLOCK-IN MODE

F02

CLOCK-OUT MODE

F03

CHECK-OUT MODE

F04

CHECK-IN MODE

F11~F49

EXPANDED MODE

Category

Explanation

NO

The TNA mode is automatically returned into F00 after 10 seconds.

YES

The TNA mode is continuously displayed.

3.8.2.1. TYPE

It is used when setting ATTEND mode. If setting ATTEND mode, ATTEND mode is displayed in the screen when pressing Function Key shortly (F1~F4) in the default screen.

TNA mode (F00~F49) is converted into F00 after 10 seconds if you don’t use AUTO TNA.

3.8.2.2. AUTO TNA

AUTO TNA is the menu to determine whether to remain continually the setting TNA mode or not.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 50

Category

Explanation

LANGUAGE

Change the language which is displayed in the screen and is spoken.

SHOW ID

When authentication succeeds, you can set whether showing ID or not.

USER LOGO

You can set whether the logo image for customers is used or not in the default screen.

USER ID LEN

It is used when modifying the length of user’s ID.

DATE

It is used when modifying Year/ Month/ Day and time displayed in the default screen.

Category

Explanation

NO USE

Do not show your ID at the time of authentication success Screen Yes "****"

When authentication successes, it doesn’t show user’s ID on the screen. For example, “****”.

3.8.3. Screen

The screen display related menu is configured.

3.8.3.1. Language

It is used to change the voice language and menu text displayed on the screen. Voice guidance is available in English, Korean, Indonesian, Thai, Arabic, Spanish, Portuguese, French, Russian, Farsi, Japanese, and Chinese. Language support for all menu text is in English, Korean, Indonesian, Spanish, Portuguese, French, Japanese and Chinese. Language support for some text is in Farsi, Arabic, Thai and Russian.

3.8.3.2. SHOW ID

It is used to determine whether to show your ID at the time of authentication success window.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 51

USE

When authentication successes, it shows user’s ID on the screen. For example, “****”.

Category

Explanation

NO USE

Use basically the provided default image

USE

Use the customer’s logo image To use the customer’s logo image, you should update the customer’s image through the server f irst and then the customer’s image is displayed in the default screen. When editing the customer’s image, it should be edited in the

red box as the left picture. The full image size is 128 (W) x160 (H)

pixel, and the red box image size is 102 (W) x74 (H) pixel.

160

128

102

26

52

74

3.8.3.3. USER LOGO

It is used to determine whether the displayed image shows the customer’s logo or not in the

default screen.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 52

3.8.3.4. USER ID LEN

It is used to change the length of user’s ID. If changing the user’s ID, it should change in the

absence of a DB because it affects user’s DB that is internally registered. The setting range can be set from 4 to 16.

If a user registered in the terminal exist, you can’t change the length of User ID.

3.8.3.5. DATE

It is used to select the order of Year, Month and Day displayed in the default screen. YY: Year MM: Month DD: Day

Through SETTING, you can set current Year, Month, Day and Time.

3.8.4. SAVE

It is the menu including the function related to SAVE.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 53

3.8.4.1. LOG SAVE

It is used to set whether to save the authentication log in memory or not. The default setting is YES.

3.8.4.2. IMAGE SAVE

It is used to set whether to save the captured photo from camera when authentication successes or fails. The default setting is Fail.

3.8.5. TIMEOUT

It is the menu that has the setting related with timeout.

3.8.5.1. RESULT

It is used to set the authentication result display how long it keeps for a seconds.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 54

The setting range can be set from 0 to 5 seconds. If it set to 0, then don’t display the authentication result.

3.8.5.2. NET ERROR

If it does not communicate with the server over a period of time, it is used to set whether there is a network communication error. If PING doesn’t come for a setting time in the server, it retries to connect the terminal. The setting range is available for 60~600 seconds.

3.8.5.3. PING

It sets the cycle that terminal sets PING command to the server. The setting range is available for 30~255 seconds.

3.8.6. LOCKING

Locking mode is the function that it rejects the authentication of all users until the administrator enters the menu and releases the locking mode. The default setting is NO USE.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 55

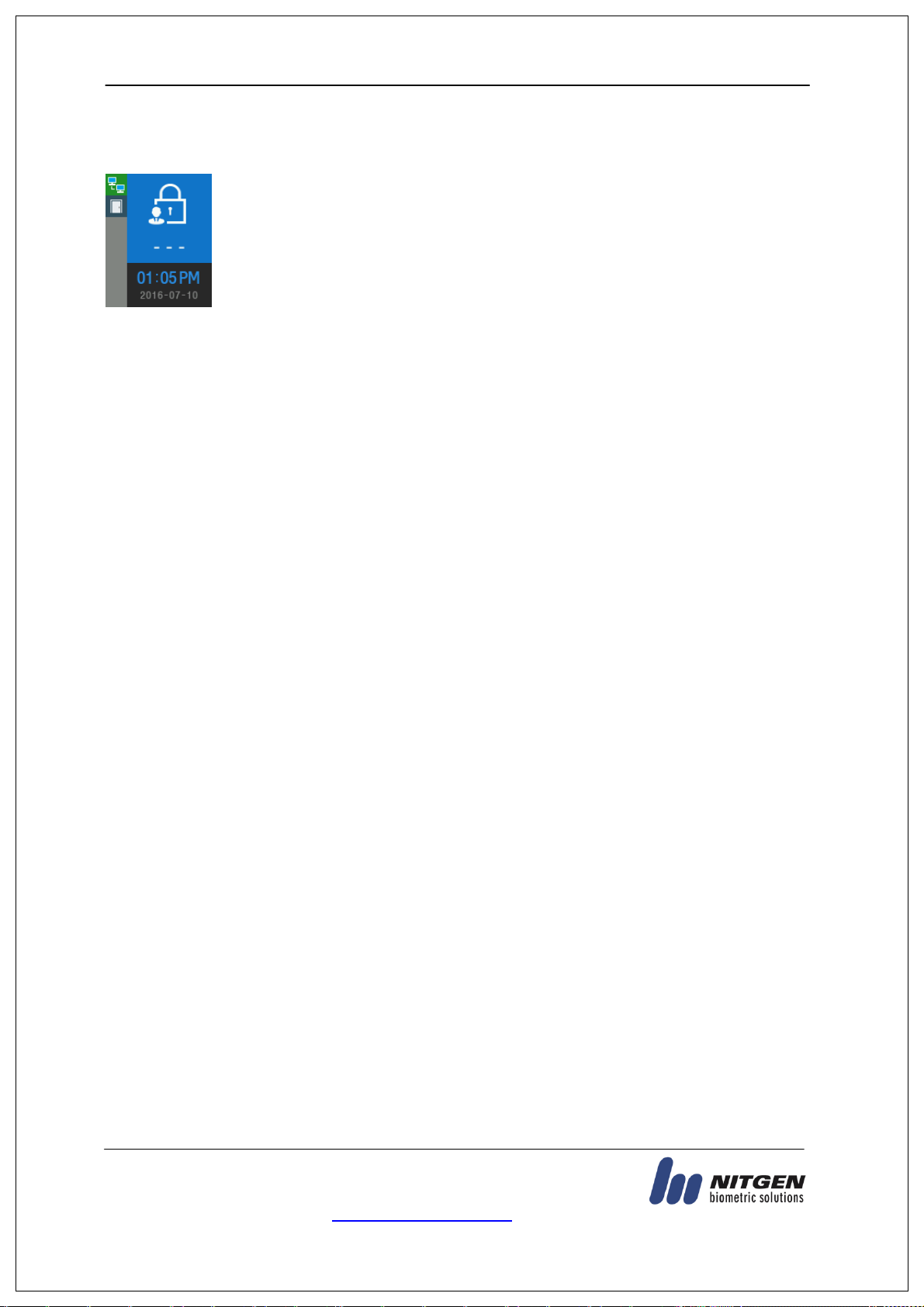

The default screen is displayed as follows when setting to use locking mode.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 56

Category

Explanation

FP SENSOR

1:1 LEVEL 1: N LEVEL LFD LEVEL AUTH TIME

BEEP

Set Beep Sound.

VOICE

Set Voice Sound

BLE

BLE registration mode

TAMPER

Set the alarm when opening terminal case.

3.9. INT DEVICE

3.9.1. Menu Configuration

INT DEVICE menu has the features as follows.

3.9.2. FP SENSOR

For the fingerprint recognition, it sets for the user registration and authentication about the module installed inside.

3.9.2.1. 1:1 LEVEL

It is the authentication level used when it tries 1:1 fingerprint authentication.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 57

3.9.2.2. 1: N LEVEL

It is the authentication level used when it tries 1: N fingerprint authentication.

3.9.2.3. LFD LEVEL

It sets LFD LEVEL to prevent the duress fingerprint. If setting LFD LEVEL higher and higher, the ability to prevent the input of duress fingerprint produced by rubber, paper, film, and silicon etc. reinforces but too dry fingerprint cannot be input well. Also the authentication speed can be slow.

3.9.2.4. AUTH TIME

It means the maximum time to process 1: N authentication. If the authentication time exceeds, authentication timeout occurs. The authentication time is 2 to 10 seconds, the default is 5

seconds.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 58

3.9.3. BEEP

It informs key touch, authentication success, and failure as beep and sets the beep level. The beep level is available from 0 to 3.

3.9.4. VOICE

It supports the notice such as authentication success/failure and authentication retrial. It sets the authentication level. The voice level is available from 0 to 5.

3.9.5. BLE

When registering the terminal in Administrator’s App, this menu is required.

By using this menu, it can make the terminal BLE READY. Only if the terminal is BLE READY, it can perform the registration procedure of the terminal after the administrator app accesses the terminal.

When pressing F3 long in the default screen of the terminal, it performs same operation with this menu.

Regarding the method to register the terminal in the administrator APP, please refer 3.2 How

to register the terminal in the administrator App.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 59

3.9.6. TAMPER

When disassembling the terminal randomly, it sets whether to sound the alarm.

If selecting 1. NO ALARM, even if disassembling the terminal, the alarm doesn’t sound but icon is displayed.

If selecting 2. ALARM, icon displays and the beep sounds in at regular intervals.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 60

Category

Explanation

DOORLOCK

It sets the control device to lock through the internal relay.

RS485

It sets the devices using RS485.

WIEGAND

It sets the device using WIEGAND.

Category

Explanation

NONE

No Use

Strike/OK

When connecting the light to mark authentication success/failure or 2. STRIKE/OK.

MOTOR1

When connecting Motor lock

3.10. EXT DEVICE

3.10.1. Menu Configuration

EXT DEVICE has the features as follows.

3.10.2. DOORLOCK

It is the menu to set lock device (Strike, Motor type door lock) by using LOCK1 and LOCK2 port.

3.10.2.1. LOCK1 type

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 61

NONE

When not using

FAIL IND

When connecting the light to mark authentication failure in Lock 2

MOTOR2

When connecting motor lock

Door open time

Open alarm time

DOOR OPEN state

alarm

3.10.2.2. LOCK1 OPEN TIME

It sets the time to give the signal when LOCK 1 sets 2. STRIKE/OK. Strike type means the time from opening to locking the door after authenticating. The default value is 3 seconds and

the input range is 1 to 20 seconds.

3.10.2.3. LOCK2 type

3.10.2.4. LOCK2 OPEN TIME

If Lock 2 sets FAIL IND, it sets the time to give the signal. The default value is 3 seconds and the

input range is 1 to 20 seconds.

3.10.2.5. OPEN ALARM

When the door open time expires and the door open alarm time is exceeded, the alarm sounds. The default value is 5seconds and the input range is 0 ~ 20 seconds. If it is set to 0, it will not beep. If it is set to 1 ~ 20 seconds, it will beep.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 62

3.10.2.6. DM0

DM0(Door Monitor 0) is the input port and it is used to detect the signal state of door open.

3.10.2.7. DM1

DM1(Door Monitor 1) is the input port and it is used to detect the signal state of lock.

3.10.2.8. DM2

DM2(Door Monitor 2) is the input port and it is used to detect a various of sensor and alarm.

For example, if connecting with fire sensor, it should set 4. FIRE N/O or 5. FIRE N/C and it may cause fire alarm and icon in case of fire. In case of fire, the door automatically opens for safety.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 63

TYPE

Explanation

NONE

It doesn’t use RS485.

LC010

Lock Controller It controls LOCK through the other external module.

LC015

Lock Controller It controls LOCK through the other external module.

SR100

FP Dummy Reader When it installs the other FP dummy reader device in external and then operates, it is used.

MCP040

Terminal operates as the dummy reader. If Terminal is connected with MCP040 device, icon is displayed in the defa ult screen. If Terminal is not connected with MCP040, icon is displayed. The authentication result is determines whether or not successful by MCP040. RS485ID uses 1~7.

3.10.3. RS485

It is the setting for the device with RS485 communication to interface with external.

3.10.3.1. TYPE

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 64

Category

Explanation

NONE

WIEGAND input port is not used.

WIE26BIT

EM, HID26 Card Module

WIE34BIT

Mifare Card Modules

CUSTOM

Use Access Manager program and set Wiegand format.

3.10.3.2. DEV ID

DEV ID is the ID that distinguishes devices and it can be set up 0-7 during RS484 communication.

3.10.4. WIEGAND

WIEGAND supports each one of Input port and Output port.

3.10.4.1. WIE-INPUT

It is used to set the input type when working with the device connected into WIEGAND input port.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 65

Category

Explanation

NONE

WIEGAND output port is not used.

WIE26BIT

EM, HID26 Card Module

WIE34BIT

Mifare Card Modules

CUSTOM

Use Access Manager program and set Wiegand format.

3.10.4.2. WIE-OUTPUT

3.10.4.3. CUSTOM BIT LENGTH

It can set BIT length as 1~128.

3.10.4.4. SITE CODE

It is used to set the value of Site Code that is sent to WIEGAND output port.

3.10.4.5. SEND INFO

It is used to select the transmitting data by the output port.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 66

SEND INFO

Type

None

USER ID

26 Bit

E.Parity(1)+ Site Code(8bit) + ID(16bit) + O.Parity(1)

34 Bit

E.Parity(1)+ Site Code(8bit) + ID(24bit) + O.Parity(1)

If the length of the User ID greater than 8, and sent in the following format without site code:

E.Parity(1)+ ID(32bit) + O.Parity(1)

Card 26 Bit

E.Parity(1) + 24bit Card Number+ O.Parity(1)

34 Bit

E.Parity(1) + 32bit Card Number + O.Parity(1)

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 67

STATE information

Explanation

DB INFO

User DB, Authentication log data

NETWORK

The setting information related to network

OPTION

TNA, Screen setting, Saving, Time out, Lock mode

INT DEVICE

Display the setting state related to the internal device.

EXT DEVICE

Display the setting state related to the external device.

I/O PORT

Display the current signal of Input / Output port that interfaces with outside.

VERSION

Display the version of the equipped device in the terminal.

3.11. STATUS

3.11.1. Menu Configuration

STATE menu has the following features.

3.11.2. DB INFO

It displays User’s DB information and the authentication log information.

3.11.3. NETWORK

It displays the network setting value.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 68

3.11.4. OPTION

It displays the option setting value.

3.11.5. INT DEVICE

It displays the setting value related to the internal device.

3.11.6. EXT DEVICE

It displays the setting information related to the external device.

3.11.7. I/O PORT

It reflects the current I/O Port state and displays it on the screen. Output Port: LOCK1, LOCK2 Input Port: DM0~DM2, W0IN, W1IN, INSIDE Open, Tamper When the input port shorts GND, the signal modifies from HIGH to LOW.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 69

3.11.8. VERSION

It displays the equipped module in the terminal and other version information.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 70

Category

Explanation

INITIALIZE

CONFIG LOG DB FACTORY

SELF TEST

INT DEVICE EXT DEVICE

BACKUP

LOG EXPORT USER EXPORT USER IMPORT FW UPDATE

REBOOT

3.12. RECOVERY

3.12.1. Menu Configuration

RECOVERY has the features as follows.

3.12.2. INITIALIZE

It is used to initialize CONFIG, LOG DB, and FACTORY in the terminal.

3.12.2.1. CONFIG

It is used to initialize the modified setting value in the menu as the default value when shipping from factory.

If a user registered in the terminal exist, you can’t initialize the configuration information.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 71

3.12.2.2. LOG DB INIT

It is used to delete the user authentication log saved in the terminal.

3.12.2.3. FACTORY INIT

If trying FACTORY INIT, setting data, authentication log data, and user registration information are initialized as setting state when shipping from factory.

★ It should be careful because the current data can be lost when you setting wrong.

3.12.3. SELF TEST

It is used when the terminal tests the operation state about internal & external device by itself.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 72

Category

Explanation

VOICE

Voice output test

CARD

Card recognition test

FP SENSOR

Fingerprint recognition test

CAMERA

Camera equipment test

LED

LED output test

3.12.3.1. INT DEVICE

It could test VOICE, CARD, FP SENSOR, CAMERA and LED equipped internally by itself.

Voice Test When authentication successes, it repeats and play voice guidance.

Card Test

As you see below, the screen displays “INPUT CARD” state at first. When recognizing the card, “Success” screen displays and it returns “INPUT CARD” state

again. If you want to stop testing, press F2.

FP Sensor Test FP Sensor Test is used to test the operation state of FP sensor from terminal.

Input your fingerprint twice, if they are same, it shows “Success” screen. Otherwise, if not, it shows “Failure” screen.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 73

Category

Explanation

DOORLOCK

Lock1, Lock2

SENSOR IN

DM0 DM1 DM2 INSIDE OPEN TAMPER

Camera Test It is used to check whether the camera state is normal in the terminal to capture photos.

LED Test It is used to check whether the state is normal about RED, GREEN and BLUE LED used to inform the operation state. At intervals of 2 seconds, RED, GREEN and BLUE LED changes from ON to OFF.

3.12.3.2. EXT DEVICE

It can test the features related to the external device by itself.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 74

DOORLOCK Test It is used to check the state of LOCK1, LOCK2 OPEN /CLOSE from the terminal. The procedure is as follows.

SENSOR IN It is used to check the signal state about the input port. When the port shorts GND, if signal changes LOW, it is normal.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 75

UDL

module

USB memory

3.12.4. BACKUP

When the saved data from the terminal sends to USB by using UDL device or brings the data from USB memory and then applies it, it is used. It is available only when the UDL module is. UDL is the option module, so it is not basically provided. If you want to get more information about UDL module, please contact NITGEN customer service. USB memory recommends using Sandisk.(NOTICE: UDL Device is not supported for all USB memory. UDL module may not work

depending on the USB memory size, manufacturer, and method.)

If Terminal detect UDL Device and USB memory, icon is displayed in the default screen. If icon isn’t displayed, all backup function doesn’t operate.

3.12.4.1. LOG EXPORT

The saved log data from terminal saves in USB memory through UDL (User Data Downloader module). Only the log data in the selected period sends to USB and saves it through UDL. The file name saved in USB memory is divided by period as follows.

1. 1Day: L1Day.NLG,

2. 1~30Day: L30Day.NLG

3. 1~90Day: L90Day.NLG

4. 1~180Day: L180Day.NLG

5. ALL: ALL.NLG

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 76

or

3.12.4.2. USER EXPORT

The saved User DB from the terminal saves in USB memory through UDL. It saves as USER.NDB file.

or

3.12.4.3. USER INPUT

It reads the user DB from USB memory through UDL and add it in terminal user DB. If inputting user DB in the terminal, all existing user DB are deleted. If you need the existing user DB saved in the terminal, back up first and try to input the user. It opens USER.NDB file in USB memory and brings into the terminal through UDL. The user registration data that you brought is reflected in the internal DB and added.

※ CAUTION: If you press F2 Key to stop in READ state, users loading will fail.

or

3.12.4.4. FW update

It is used when reading the firmware from USB memory through UDL and updating the terminal firmware. Firmware proceeds only when there is FW.NFW file name in USB memory.

. or

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 77

3.12.5. REBOOT

It is used when rebooting the terminal.

12F, Daemyung Valeon bldg., 127, Beobwon-ro, Songpa-gu, Seoul, Korea (05836) Tel : 02-6488-3232 , Fax : 02-6488-3099, E-Mail :customer@nitgen.com http://www.nitgen.com

eNBioAccess-T2 User Guide 78
