AC-5000, 5100 User Guide
Version eng-2.07
Copyright 2000 By Union Community Co., LTD.
AC-5000 / 5100 User Guide 2
Version
Date
Description
Firmware Version
2.00
2015-07-13
Initial Release
30.62.00-000.00
2.01
2015-10-19
1.2. Terminal Description
2.1. Features
2.3. Specification
3.2. Menu Configuration
30.62.00-000.01
2.02
2015-11-18
3.6.1. System Setting
3.6.4. Language
30.62.00-000.02
2.03
2016-01-07
3.6.2. Authentication
30.62.00-000.03
2.04
2016-03-28
2.1. Features Various register and changing Auth Type(13->12)
3.7.1. Terminal Option Big character use
3.6.5. Data Time
1.4. LED Signal Shown During Operation
3.3.1.1. Auth Type
3.3.1.5. FP Option
3.6.1. System Setting
3.7.6 Connection device setting
3.8.1 System Info
30.62.00-000.05
2.05
2016-04-14
3.4.3 Terminal ID
30.62.00-000.06
2.06
2016-04-22
3.3.1.1. Auth Type
3.1.5. Save Environment Settings
2.07
2016-06-02
1.3.1. Icons Shown During Operation
<Revison History>
AC-5000 / 5100 User Guide 3
<Glossary>
AC5000: Terminals not supported by Camera AC5100: Terminals supported by both Camera
Admin, Administrator
- A user who can enter the terminal menu mode. They are authorized to
register/modify/delete terminal users and alter the operating environment by changing the settings.
- If there is no administrator registered for a terminal, anyone can enter the terminal
menu and change the settings. Therefore, it is recommended to register at least
one administrator.
- Special care is required for registration and operation, as an administrator has the
rights to change important environmental settings of the fingerprint recognition unit.
1 to 1, Verification
- This is a method that authenticates fingerprints together with a user ID or card.
- This method is called 1:1 authentication as only the fingerprint registered for the user
ID or card is used for comparison.
1 to N, Identification
- This is a method that searches for a corresponding user only with fingerprint.
- This method is called 1:N authentication as it searches for the identical fingerprint,
from the registered fingerprints, without a user ID or card being entered 1:N.
Security Level
- This is the level used for fingerprint authentication, displayed from 1 to 9, depending
on how both fingerprints match against each other. Authentication is only successful when the similarity between both fingerprints is higher than the preset level.
- The higher the authentication level, the higher the security. Nevertheless, as it requires
a relatively high match rate, self-authentication is prone to failure.
- 1:1 Level: Authentication level used for 1:1 verification.
- 1:N Level: Authentication level used for 1:N identification.
Authentication Method
- This represents the various types of authentication, including FP (fingerprint)
authentication, RF (card) authentication or a combination of these methods. Example: Card or FP: Authentication with card or fingerprint.
Function Keys
- [F1], [F2], [F3], [F4], and [ENT] keys are available. These keys allow a user to enter the menus or change modes such as office start/leave times.
LFD (Live Finger Detection)
- This function allows the input of only real fingerprints and blocks the input of imitation
fingerprints produced using rubber, paper, film, and silicone.
AC-5000 / 5100 User Guide 4
Table of Contents
<Revison History> .................................................................................................... 2
1.2. Terminal Description ................................................................................... 2
2.1. Features ....................................................................................................... 2
2.3. Specification ................................................................................................ 2
3.2. Menu Configuration ..................................................................................... 2
3.6.1. System Setting ..................................................................................... 2
3.6.4. Language .............................................................................................. 2
3.6.2. Authentication ....................................................................................... 2
2.1. Features Various register and changing Auth Type(13->12) .................... 2
3.7.1. Terminal Option .................................................................................... 2
Big character use ............................................................................................ 2
3.6.5. Data Time ............................................................................................. 2
3.4.3 Terminal ID ............................................................................................ 2
3.1.5. Save Environment Settings .................................................................. 2
1.3.1. Icons Shown During Operation ............................................................. 2
Table of Contents .................................................................................................... 4
1. Before Use ............................................................................................................ 6
1.1. Safety Precautions ...................................................................................... 6
1.2. Terminal Description ................................................................................... 7
1.3. Screen Description (During Operation) ..................................................... 8
1.3.1. Icons Shown During Operation ............................................................. 8
1.4. LED Signal Shown During Operation ...................................................... 12
1.5. Keys Used During Operation .................................................................... 12
1.6. Used Voices During Operation ................................................................. 12
1.7. Buzzer Sounds Used During Operation .................................................. 13
1.8. How to Register and Input Fingerprint .................................................... 13
2. Product Introduction .......................................................................................... 15
2.1. Features ..................................................................................................... 15
2.2. Configuration ............................................................................................. 17
2.2.1. Standalone (Access) ........................................................................... 17
2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria) .. 17
2.3. Specification .............................................................................................. 18
3. Environment Settings ........................................................................................ 20
3.1. To be checked before environment settings. .......................................... 20
3.1.1. Enter the Menu. .................................................................................. 20
3.1.2. How to access the menu without the Admin verification. .................... 20
3.1.3. Modify Set Values ............................................................................... 21
3.1.4. Move to page ...................................................................................... 23
3.1.5. Save Environment Settings ................................................................ 24
Press the [F4 (←)] key in the main menu screen of <Figure 3-1> to save the
changed settings, and the following screen appears: ................................... 24
3.2. Menu Configuration ................................................................................... 25
3.3. User ............................................................................................................ 28

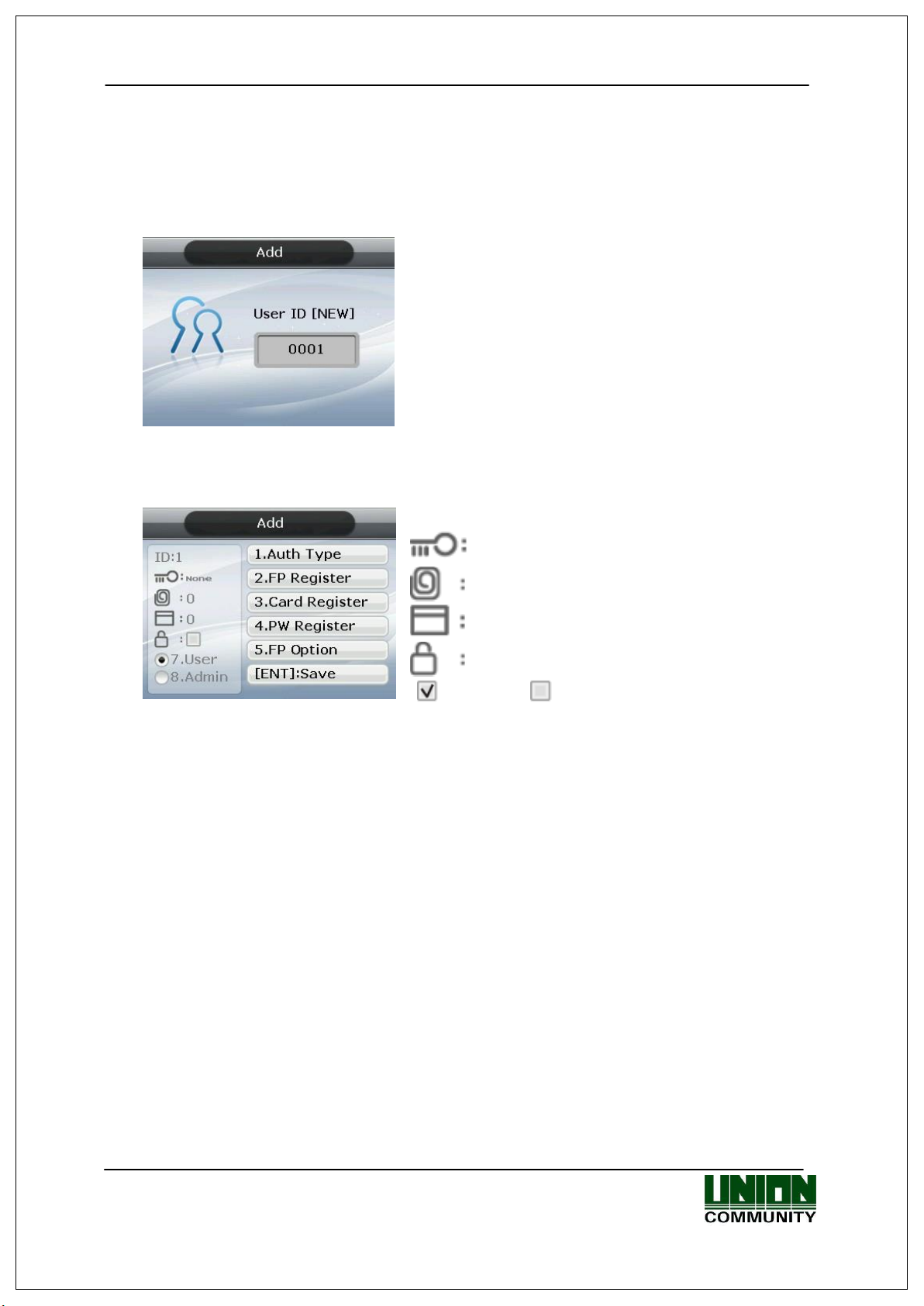

3.3. 1. Add .................................................................................................... 29
3.3.2. Delete ................................................................................................. 33
3.3.3. Modify ................................................................................................. 34
AC-5000 / 5100 User Guide 5
3.3.4. Delete All ............................................................................................ 35
3.4. Network ...................................................................................................... 35
3.4.1. IP ........................................................................................................ 36
3.4.2. Server IP ............................................................................................. 36
3.4.2.1. Server IP settings ............................................................................ 37
3.4.2.2. DDNS .............................................................................................. 37
3.4.3. Terminal ID ......................................................................................... 38
3.5. Application ................................................................................................. 39
3.5.1. Application .......................................................................................... 39
3.5.2. Time Schedule .................................................................................... 40
3.5.3. Function Key ....................................................................................... 41
3.5.4. Extended Key ..................................................................................... 41

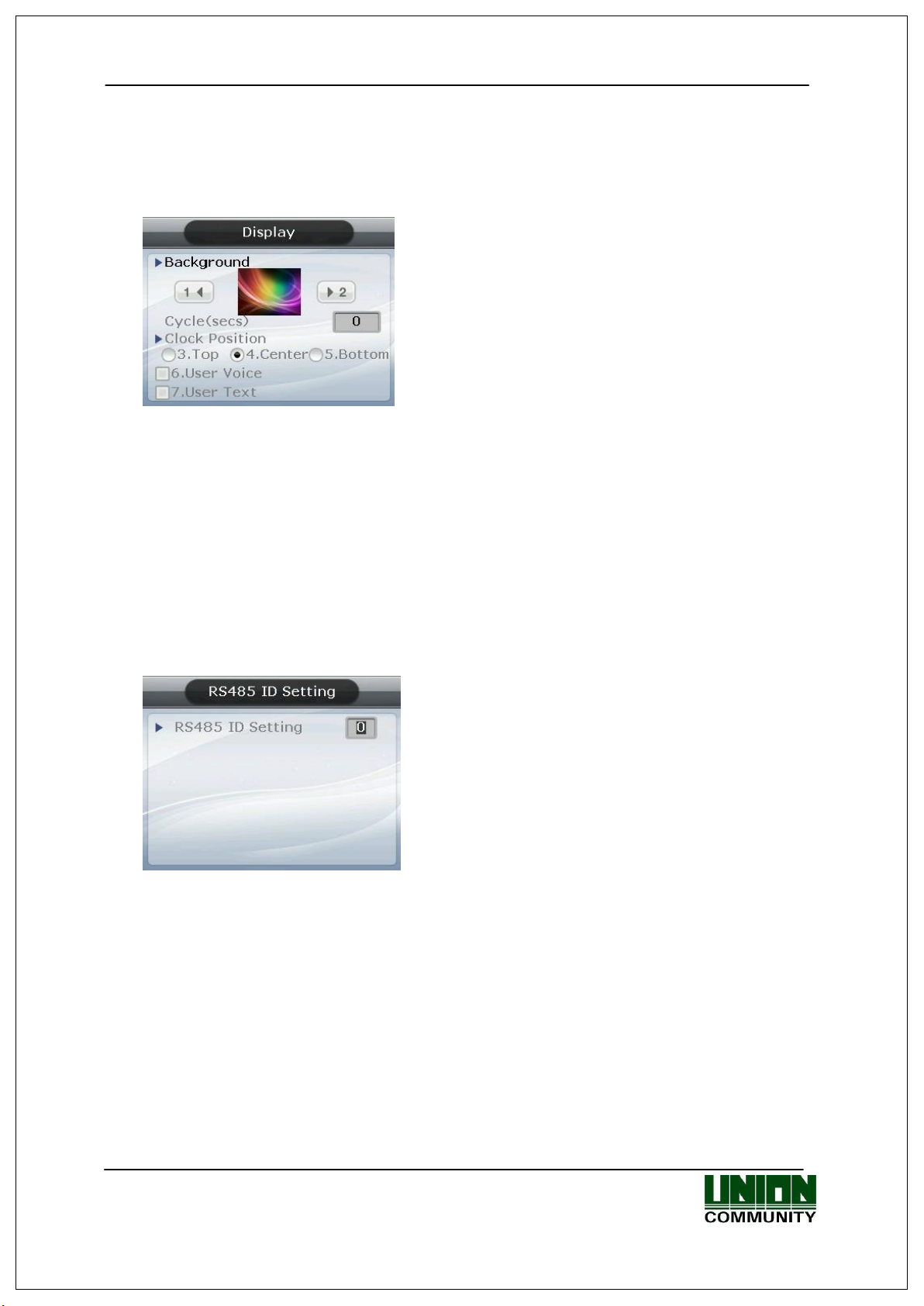

3.5.5. Display ................................................................................................ 43
3.5.6. RS485 ID settings ............................................................................... 43
3.6. System ........................................................................................................ 43
3.6.1. System Setting ................................................................................... 44
3.6.2. Authentication ..................................................................................... 45
3.6.3. Fingerprint .......................................................................................... 46
3.6.4. Language ............................................................................................ 47
3.6.5. Date Time ........................................................................................... 48
3.6.6. Database ............................................................................................ 48
3.7. Terminal ...................................................................................................... 51
3.7.1. Terminal Option .................................................................................. 51
3.7.2. Volume Control ................................................................................... 52
3.7.3. Door .................................................................................................... 53
3.7.4. Wiegand ............................................................................................. 54
3.7.5. Card Reader ....................................................................................... 55
3.7.6. External Device .................................................................................. 56
3.8. Information ................................................................................................. 58

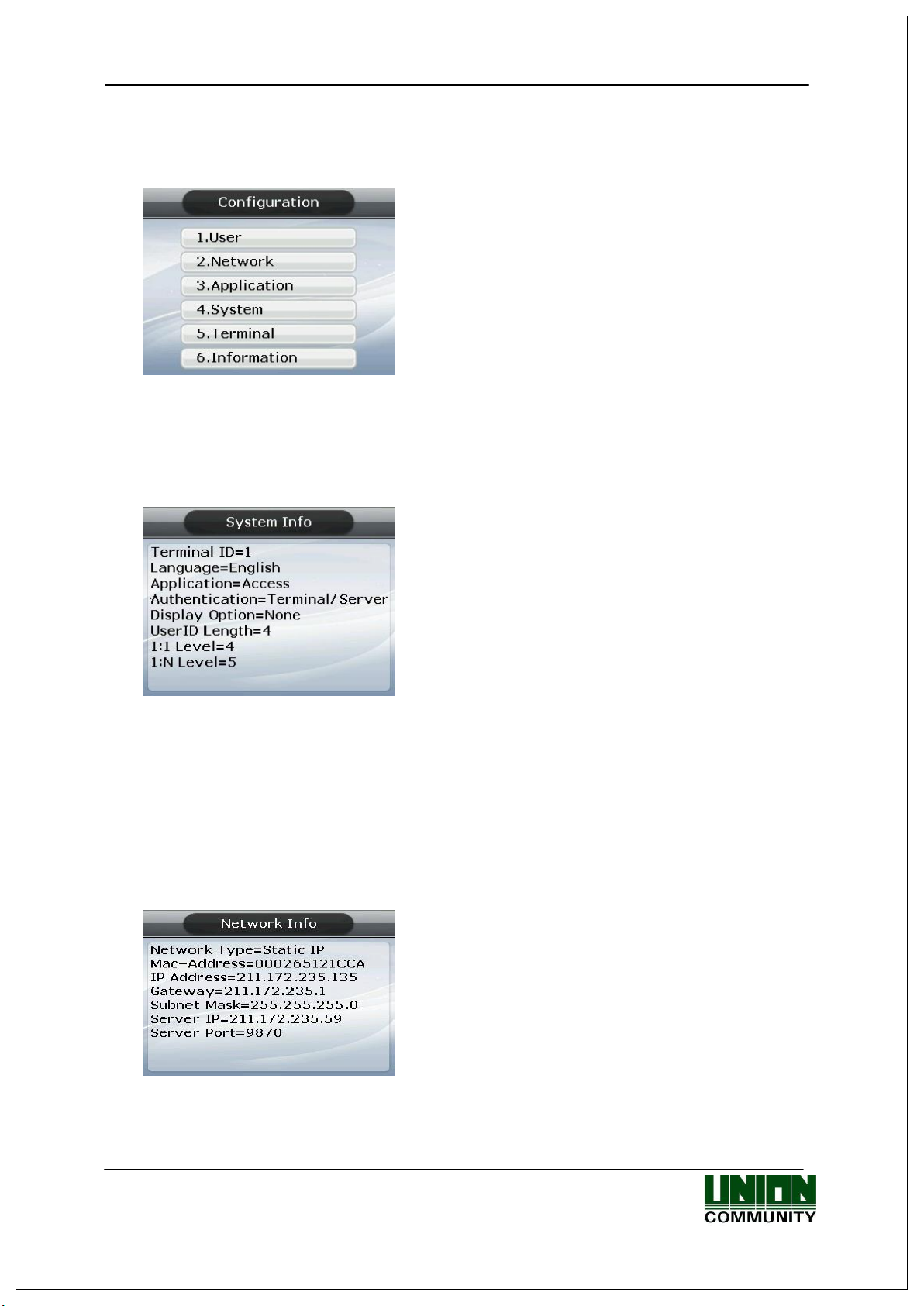

3.8.1. System Info ......................................................................................... 58
3.8.2. Network Info ....................................................................................... 58

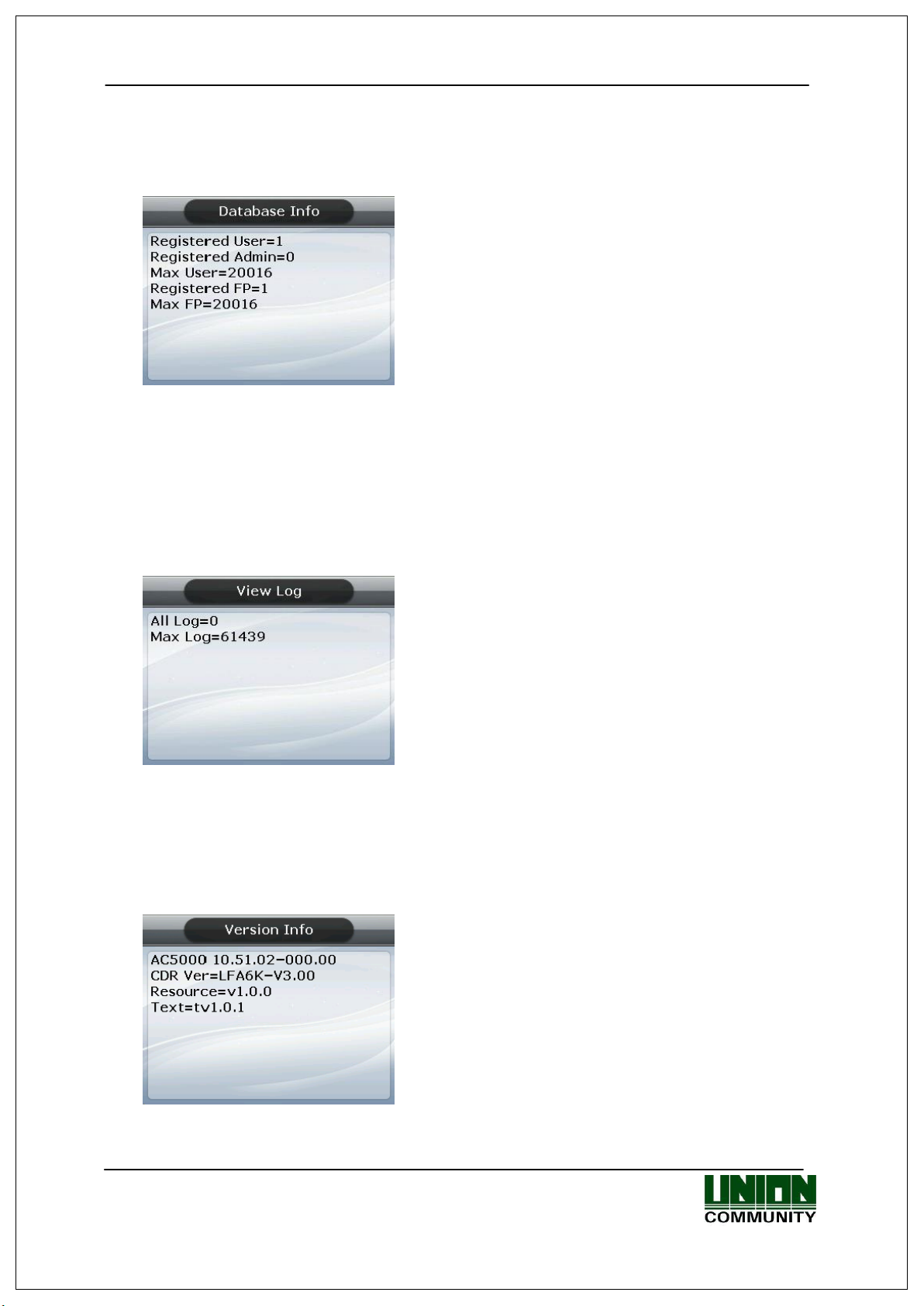

3.8.3. Database Info ..................................................................................... 59
3.8.4. View Log ............................................................................................. 59
3.8.5. Version Info ......................................................................................... 59
3.9. Downloading User’s File ........................................................................... 60
3.9.1. Change Background Image ................................................................ 60
3.9.2. Change Voice Message ...................................................................... 60
3.9.3. Change User Text ............................................................................... 61
4. How to use the Terminal .................................................................................... 62
4.1. Change of Authentication Mode ............................................................... 62

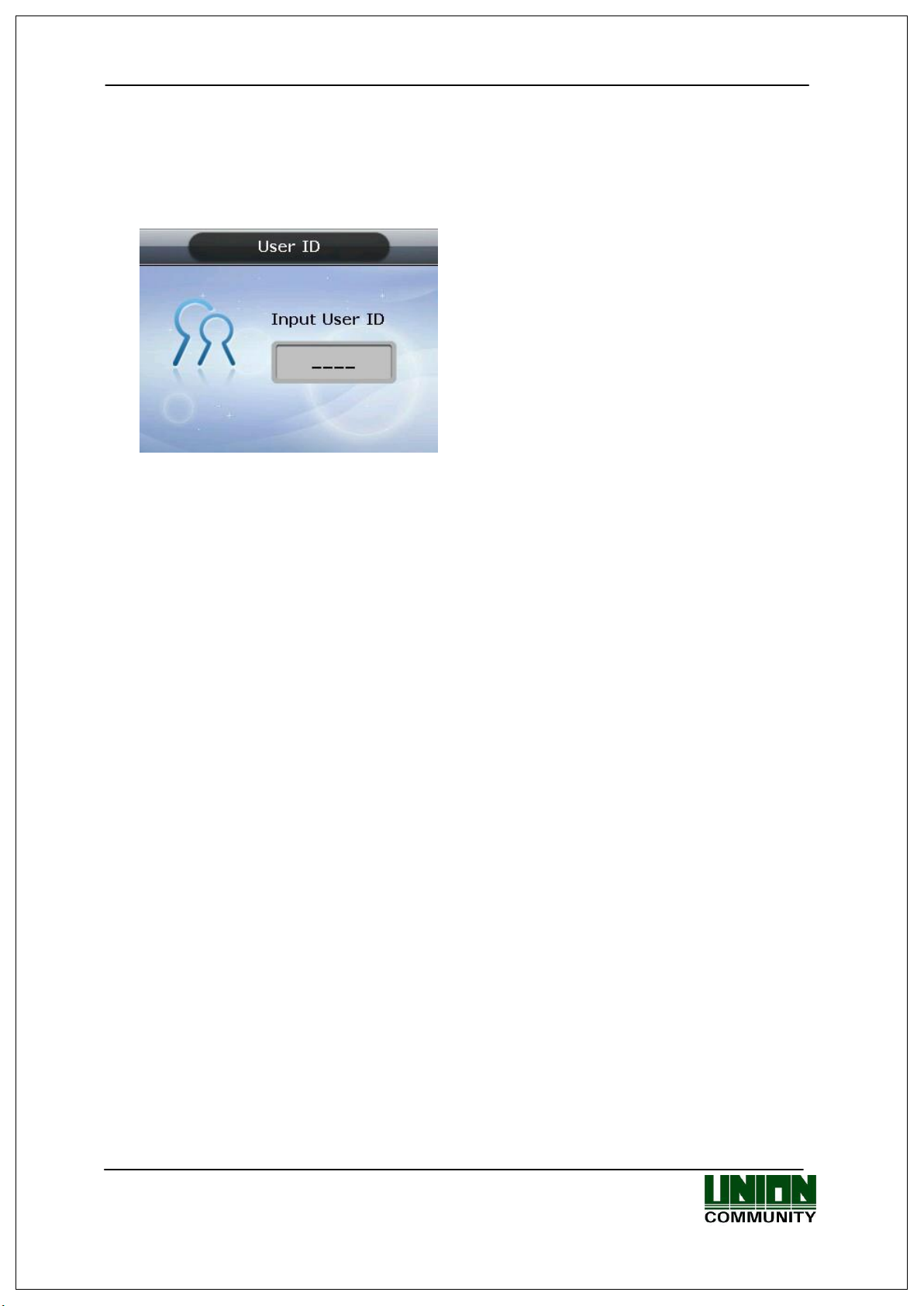

4.2. ID input ....................................................................................................... 63
4.3. Authentication ........................................................................................... 63
4.3.1. Fingerprint Authentication ................................................................... 63
4.3.2. Card Authentication ............................................................................ 63
4.3.3. Password Authentication .................................................................... 64
AC-5000 / 5100 User Guide 6
Do not handle the unit with wet hands and do not allow liquid to flow into, or on, it.
-> It may cause an
electric shock or damage.
Do not place a fire source near the unit.
-> It may cause a fire.
Do not disassemble, repair, or modify the unit.
-> It may cause an electric shock, fire or damage.
Keep out of children’s
reach.
-> It may cause an accident or damage.
Keep away from direct sunlight
-> It may cause mal­function, deformation or change the color of the unit.
Avoid using water, benzene, thinner, or alcohol for cleaning the unit.
-> It may cause an electric shock or fire.
Do not place a magnet near the unit.
-> The unit may break down or malfunction.
Avoid getting the fingerprint input area dirty.
->It may prevent the unit from recognizing the fingerprint.
Avoid using insecticides or flammable sprays near the unit.
-> It may result in the deformation or change the color of the unit.
Avoid impact or using sharp objects on the unit.
-> The unit may get damaged and broken.
Avoid installing the unit in a place where temperature changes severely.
-> It may cause the unit to malfunction.
1. Before Use
1.1. Safety Precautions
Warning
- If the above warnings are ignored, it may result in death or serious injury.
Cautions
Avoid high humidity or dust
->It may cause the unit to malfunction.
- If the above cautions are ignored, it may result in property damage or human injury.
※ Under no circumstances will Union Community be responsible for accidents or damages caused
by inappropriate use of the product and neglect of the precautions stated in the user guide.
AC-5000 / 5100 User Guide 7
LCD
Fingerprint Sensor
the user lightly touches this area
Camera (AC5100 only)
State Display LED
1.2. Terminal Description
Touch Key Normally, the figures are invisible as the LED is off. LED turns on and the figures illuminate when
Card Input Area
AC-5000 / 5100 User Guide 8
① Fire Detection None
② Warning None
③ Door Status
: Door status is unknown.
: Door is closed.
: Door is open.
: Forced door open / Door related error
④ Connection of Server
None
: LAN cable is not connected.
: LAN cable is connected, but not yet to the server.
: Connected with the server.
④Connection with Server
Access Mode
Current Time
③Door State
②Warning of Terminal Disassembly, etc.
① Fire Detection
1.3. Screen Description (During Operation)
1.3.1. Icons Shown During Operation
: Normal : State when fire is detected by a fire sensor (subject to the
appropriate fire sensor connection).
: Normal. : Abnormal state when terminal is disassembled or door has
encountered a problem.
AC-5000 / 5100 User Guide 9
- Initial screen of AC5000.
- When authentication is successful.
- When authentication has failed.
- When any unregistered card is input.
- When fingerprint input has failed.
- If the user removed their finger too quickly before the fingerprint was identified.
- When Anti-Pass Back is in error (if the anti-pass back function is being used).
1.3.2. Message Shown During Operation
- When any unregistered user ID is input.
- When fingerprint authentication is attempted where the server is not connected or there is no registered fingerprint in the terminal.
AC-5000 / 5100 User Guide 10
- If a user made two or more attempts at the same meal time zone (if being used for cafeteria operation).
- If there is no response from the server when attempting authentication to the server.
- When network is disconnected during an authentication attempt to the server.
- When the user is not authorized for authentication, even if they are registered, or the user attempted authentication when access is not allowed.
- When it’s not a meal time (if being used for Cafeteria operation).
- When the authentication cannot be processed due to too many server authentication requests from the terminal.
- Show the waiting status for a user’s ID input.
- When the terminal is set to Locked.
AC-5000 / 5100 User Guide 11
- Status waiting for password input from the user.
- Status waiting for fingerprint input from the user.
- Status waiting for card input from the user.
- When waiting for a response, after the user attempted authentication by the server.
- When upgrading the terminal program. (Make sure the terminal is not powered off while this message is being output.)
- During fingerprint card authentication, it shows the status when the card reads fingerprint data. The user must put the card for 1~2 seconds until the message disappears.
AC-5000 / 5100 User Guide 12
●
Pow er
Red
On: Normal Flickering: When the lid is open, or there is any communication error in the connection with the LC010.
●
Door
Green
On: Door Open Off: Door Closed
Stat us
Red+Green
Blinking: Display during BLE connection
[0]~[9]
- Keys used for number input.
[F1]~[F3]
- Keys used for changing the authentication mode.
[F4]
or [←]
- Used for changing the authentication mode.
- Used as the Delete key for correction when numbers are input.
- Used for cancelling input, and moving to a parent menu in menu
mode
[F4(←)~]
- It means to press the [F4 (←)] key for 2 seconds or longer.
- When input cursor is located in the input box, it cancels the input and
exits to the parent menu if pressed and held for 2 seconds or longer.
ENT
[or MENU]
- Used for modifying the mode.
- Used for saving the values set in menu mode, or moving to the screen
configuration.
[ENT~]
- It means to press the [ENT] key for 2 seconds or longer.
- Used for accessing the menu when pressing on the initial screen
- When input cursor is located in the input box, the user can exit to the
parent menu with the current input value saved by pressing the
button for 2 seconds or longer.
- Used to apply the configuration to the current screen in menu mode
and then exiting to the parent menu.
Type of Operation
Voice
For fingerprint input
Please enter your fingerprint
1.4. LED Signal Shown During Operation
1.5. Keys Used During Operation
1.6. Used Voices During Operation
AC-5000 / 5100 User Guide 13
When authentication is successful
When authentication has failed
Please try again
Beep
Sound that is generated when a key is pressed or a card is being manipulated
When the key is pressed or card is read; When fingerprint input is completed and the user may take their finger off. Be peep
Sound of failure
When authentication has failed or when the user’s
fingerprint is wrongly input.
Brrrrrrp
When standing by for input
When notifying the status of waiting for the user’s input
of fingerprint or password.
Beeeep
Success
When succeeding in authentication or completing the settings.
You are authorized.
1.7. Buzzer Sounds Used During Operation
1.8. How to Register and Input Fingerprint
How to Input Fingerprint
Please input your fingerprint as if you are sealing a document using your forefinger. Avoid inputting your fingerprint with the fingertip touched lightly at input or registration. Make sure the center of your fingerprint correctly touches the fingerprint input area.
If possible input the fingerprint of your forefinger. It facilitates accurate and stable fingerprint input. Check to see if the fingerprint is clear and without any scars.
Too dry or wet fingerprint, ambiguous fingerprint, fingerprint with a scar, etc. may not be recognized. In such cases, use/register the print from a different finger.
AC-5000 / 5100 User Guide 14
Precautions related to the user’s fingerprint status:
Depending on the fingerprint status, the user may not use fingerprint or suffer
inconvenience from its use.
This product is a fingerprint recognition system. Any fingerprint that is damaged
or thin may not be used. In such cases, the user should operate with a password.
If a finger is in a dry condition, we advise breathing lightly on the finger for a
smooth operation.
For children, due to their small size and the tender properties of their fingerprints,
it may be difficult or impossible to use their fingerprints. It is necessary to register their fingerprint at 6 monthly intervals.
In cases of old people, excessive tiny lines existing on their fingerprints may
prevent proper registration.
It is recommended, if possible, to register at least 2 fingerprints from every user.
AC-5000 / 5100 User Guide 15
2. Product Introduction
2.1. Features
IP65 Environmental standard is designed for Outdoor installation Slim and sophisticated design
- Easy to install as it is designed as a vertical type; Slim and elegant design using Color LCD and Touch Keys
Download Server Functions – Change the LCD background image and voice
- Provides a variety of information messages via the color LCD screen and voices.
You can download background images and voice messages from the server according to your preferences. Also, the built-in LCD Screen Backlight and Touch Key LED allow the screen to be read and keys to be operated in dark conditions
Convenient Auto Sensing Function
- Enables easy authentication operations to be performed by inputting a fingerprint
without separately entering a key.
Easy Fingerprint Self-Authentication
- Prevents risks associated with forgetting a password, loss/theft of a card or key by
using biometric fingerprint recognition technology; reinforces the security of self­authentication through the use of your own fingerprint.
Access Management System Using a Network (LAN)
- Communication is carried out between the fingerprint recognition device and
authentication server using TCP/IP protocol, and allows for easy expansion as it can be applied to the network as is. 10/100 Mbps Auto Detection ensures high-speed operation. It enables easy management and to monitor via the network.
Provides a Diverse and Flexible Access Management
- Provides a perfect control function by granting entrance/access rights by user group.
Applicable for Various Operations such as Access, Time & Attendance,
Cafeteria, etc.
- Enables a variety of operational methods depending on the settings in the terminal
menu.
Abundant Server Capacity
- The system allows an almost unlimited number of people to be managed by the
server.
Provides a Variety of Registration and Authentication Methods
There are 13 registration and authentication methods for general user. Therefore, it’s necessary to determine which registration and authentication method to use before registering a user or administrator.
AC-5000 / 5100 User Guide 16
FP
Fingerprint Registration Fingerprint Authentication
PW
Password Registration Password Authentication
FP or PW
Fingerprint and Password Registration Password Authentication when Fingerprint Authentication fails
FP & PW
Fingerprint and Password Registration Fingerprint Authentication and then Password Authentication
Card
Card Registration Card Authentication
Card or FP
Card and Fingerprint Registration Card or Fingerprint Authentication
Card & FP
Card and Fingerprint Registration Card Authentication and then Fingerprint Authentication
Card or PW
Card and PW
Card & PW & FP
Card, Password, and Fingerprint Registration Card Authentication and then Fingerprint & Password Authentication
Card and Password Registration Card or Password Authentication
Card and Password Registration Card Authentication and then Password Authentication
AC-5000 / 5100 User Guide 17
TCP/IP
Cafeteria Management Program
Time & Attendance Management Program
Internet / WAN / LAN
TCP/IP
TCP/IP
Remote Admin Program (User and terminal setting management)
TCP/IP
TCP/IP
TCP/IP
DC12V Adapter
Electromagnetic Lock (Lock+, Lock-, Monitor)
Fingerprint Authentication Server (Fixed IP) UDB Server Database (MDB or MSSQL)
2.2. Configuration
2.2.1. Standalone (Access)
2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria)
AC-5000 / 5100 User Guide 18
Category
SPEC
REMARK
CPU
32Bit RISC CPU(528MHz)
Environmental
IP65
LCD
2.8” TFT Color (320*240)
Touch Key
15key (0~9, F1~F4, Enter)
MEMORY
32M SDRAM
32M NOR FLASH
20,002 User
20,002 Finger
1:N 15000 User
1:1 5002 User
128M NAND FLASH
63,488 Log
About 17,000 Pics
Fingerprint Sensor
Authentication Speed
Scan Area / Resolution
FRR / FAR
Temperature /
Humidity
AC / DC Adapter
OUTPUT: DC 12V
(Option : DC 24V)
UL, CSA, CE Approved
Lock Control
EM, Strike, Motor Lock, Auto Door
I/O
3 In (1 Exit, 2 Monitor)
2 Out (Lock Control)
Communication Port
TCP/IP (10/100Mbps)
Authentication
Server
Communication
RS-232
Meal Ticket
Printer
RS-485
External Device Communication
Wiegand In/Out
Card Reader
or External device communication
2.3. Specification
Optical
Within 1 sec
15 * 17mm / 500 DPI
0.1% / 0.001%
-20 ~ 50 /
Lower than 90% RH
INPUT : Universal AC 100 ~ 250V
AC-5000 / 5100 User Guide 19
Card Reader
125KHz RF
or
13.56MHz Smart (1 Sam Socket) or
HID Card
Option
SIZE
88.0mm * 175.0mm * 43.4mm
AC-5000 / 5100 User Guide 20
3. Environment Settings
3.1. To be checked before environment settings.
3.1.1. Enter the Menu.
Press the [ENT] key and hold for two seconds or longer. The user can access to the screen for menu selection, as follows:
<Figure 3-1>
User can transfer to, and have access to, each sub menu by pressing the relevant number key. If the Admin User is already registered, [Verify Admin] screen appears as shown below:
<Figure 3-2>
In adherence with the registered authentication method, such as card, fingerprint or password, users can access each menu - subject to successful identification - after the admin verification has finished.
▶ Verify Admin appears only if there is a registered Admin User. When accessing menu
mode, after being identified, the user is allowed to access all the menus until they completely exit from the main menu.
3.1.2. How to access the menu without the Admin verification.
AC-5000 / 5100 User Guide 21
①Input Box (with highlight)
①Input Box (without highlight)
②Select Button
③Check Box
This is the way to access the menu if fingerprint authentication is impossible, or because the user forgot the admin password, or lost the card registered on the terminal, or there is no Admin.
① Remove the bracket on the rear of the terminal to open the lid.
② With the lid open, as shown in the figure below, connect pin 1 to pin 3, and pin 2 to pin 4 of connector J404.
<Figure 3-3>
③ Access the menu by pressing and holding the [F4(←)] key for 2 seconds or longer.
Enter Admin ID as ‘0’ on the Verify Admin screen <Figure 3-2>, and press the [ENT] key. The user can now access the menu selected and the buzzer sounds “Brrrrrrp”.
▶ After modifying the configuration, remember to remove the wires from the connected pins on the J404 connector.
3.1.3. Modify Set Values
The following are the names and input methods for setting items.
<Figure 3-4>
AC-5000 / 5100 User Guide 22
▶ ① Input Box
For items where the value is directly input, such as the ‘1:1 Level’, users must
delete the existing value using the [F4 (←)] key when the applicable item is highlighted. Then input the new value using the [0] ~ [9] keys.
▶ ② Select Button
For items such as ‘Fake Finger Detect’, the user should modify the selection (
pressing the relevant numeric key, provided the item is first highlighted. Move the highlighting in the input box by pressing the [ENT] key - if the highlight is located in the input box as shown in <Figure 3-5>.
<Figure 3-5> Move Highlight (using the [ENT] key)
As shown in the figure on the left, the number is displayed in reverse color when the highlight is in the input box. In the figure on the right, the applicable letters are displayed in black instead of grey when the highlight moves to ‘Fake Finger Detect’.
▶ ③ Check Box
The user must select whether or not to check ‘Check Same FP’. The user can either select ( ) or release it ( ) by pressing the relevant key [5]. It’s impossible to select this item, if it’s displayed as ( ).
▶ ④ Combo Box
<Fig. 3-6> Navigate to the combo box (use [ENT] key)
) by
As shown in the <Fig.3-6> above, press the [ENT] key to move the focus to the
combo box in order to change the settings. To reset the default, press [1] or [2] (shown
as ) to either decrease or increase the value.
AC-5000 / 5100 User Guide 23
Press the [F4 (←)] key to cancel, while setting, and move back to the parent menu. When the highlight is located at the input box the [F4 (←)] key functions as a [DEL] key,
which deletes figures one by one. Press the [F4 (←)] key for two seconds, or longer, to cancel input and exit to the parent menu. Press the [ENT] key for two seconds, or longer, to save the current configuration and move to the parent menu
3.1.4. Move to page
Below is the way to go to next page / previous page.
<Figure 3-5>
To move to the next menu, press the [F2] button on the keypad. The next menu will appear on the screen.
<Figure 3-6>
To return to the previous menu, press the [F1] button on the keypad. The previous menu will appear on the screen.
AC-5000 / 5100 User Guide 24
3.1.5. Save Environment Settings Press the [F4 (←)] key in the main menu screen of <Figure 3-1> to save the changed
settings, and the following screen appears:
<Figure 3-7>
Select [1. Yes] to save the new configuration or [2. No] to cancel it. Then press the
[ENT] key. In this instance, if, after a period of time there is no input the system returns to the initial screen.
If there is no new content, the system exits from the environment settings menu
without the aforementioned “Save” process.
When the settings are changed in the menu, and if there is no input after a certain
period of time, the system exits from the environment setting menu. In which case,
if there is any revised menu, it should pass through the “Save” process. Otherwise,
it transfers to the initial screen without saving the revised settings.
AC-5000 / 5100 User Guide 25
1. Add
2. Delete
3. Modify
4. Delete All
1. IP
1. Static IP / 2. DHCP
▶IP Address ▶Subnet Mask ▶Gateway
2. Server IP
1. Static IP
▶Server IP ▶Server Port
2. DDNS
▶DDNS ID ▶DDNS IP ▶Server port
3. Function Key
▶F1 Enabled ▶F2 Enabled ▶F3 Enabled ▶F4 Enabled ▶Ent Enabled ▶Auto Sensing
3.2. Menu Configuration
1. User
2. Network
3. Application
3. Terminal ID
1. Application
2. Time Schedule
▶Terminal ID ▶Authentication
▶Application
1. Access
2. Time & Attendance
3. Cafeteria
▶F1 Time ▶F2 Time ▶F3 Time ▶F4 Time ▶Access Time
□NO Limit (when setting to catering management)
AC-5000 / 5100 User Guide 26
4. Extended Key
▶ Extended Key ▶of Extended Key
5. Display
▶ Background ▶ Screensaver ▶ Clock position
6.RS485 ID Setting
▶RS485 ID Setting
AC-5000 / 5100 User Guide 27
1. System Setting
▶User ID Length ▶Display Option ▶Threat fingerprint alarm ▶Alarm time (sec)
5. Data Time
▶Time Sync ▶Display Time ▶Set Current Time ▶Calendar
6. Database
1. Init Config
2. Delete All Users
3. Clear Log Data
4. Initialize Terminal
1. Terminal Option
□Terminal Alarm □Lock Terminal □KeyLed ON □User Voice □User Text □Use Camera (AC5100 Only)
2. Volume Control
▶Voice Volume ▶Beeper Volume
4. System
2. Authentication
3. Fingerprint
4. Language
▶User Group IP ▶Enable 1:N ▶Card Only ▶Template On Card ▶Verify Multi-FP ▶Blocking Time (sec.) ▶NetErrTime(Sec)
▶1:1 Level [1~9] ▶1:N Level [3~9] ▶Fake Finger Detect ▶Template types ▶Check Same FP
5. Terminal
AC-5000 / 5100 User Guide 28
3. Door
▶Lock Type ▶DM1 ▶DM2 ▶Open Duration ▶Warn Door Open
4. Wiegand
□Bypass
▶Wiegand Out ▶Site Code
5. Card Reader
▶Card Format ▶Read Card NO. ▶Dummy Mode
1. System Info
2. Network Info
3. Database Info
4. View Log
5. Version Info
Press [1] key to register new user.
[2] key to delete user. [3] key to modify user. [4] key to delete all users.
6. External Device
▶Printer ▶Lock Controller ▶Connection Device Setting
□Mode
6. Information
3.3. User
Select “1. User” in the main menu, and the following screen appears:
AC-5000 / 5100 User Guide 29
Input the user ID to be registered and press the [ENT] key.
Automatically shows the ID to be registered on the
screen, so the user can easily perform registration. To modify the ID, press the [F4 (←)] key and delete the existing value and input the new value.
3.3. 1. Add
◆ Select [ENT~]  [1. User] [1. Add] ◆ in the basic screen, and the following screen appears:
If the user inputs an already registered ID, a failure message appears. The following screen appears if the ID is not yet registered.
The icon on the left mean, as shown below:
Authentication type.
Number of Fingerprints Registered (0~10).
Number of Cards Registered (0~10).
Whether or not Password is Registered.
( :Registered/ :Not Registered)
As shown on the screen, the user registers by pressing [2] for fingerprint, [3] for card, and [4] for password. Basically, it is registered in the name of the user. Using the keys [7] and [8], the user can modify as user or admin. Once the registration is complete, the user can press [ENT] to save it. The user must press the [F4 (←)] key to cancel the registration and exit from the menu.
※ Only a user registered as Admin can modify the operating environment of the terminal, and Add/Modify/Delete the information about all users saved in the terminal. Therefore,
special care is required when registering Admin.
3.3.1.1. Authentication method
AC-5000 / 5100 User Guide 30
③ When input is complete, the message at the left appears, together with the images accompanied by their quality rating from 0~100.
If the image is not adequate from a visual aspect, or any image shows 30 or less, the user is advised to register again.
To register again, start the process from step ① by pressing [F4 (←)] key until 3 seconds elapse without input or pressing another key. After completion, the system moves to the parent menu.
Press the [F4 (←)] key to delete the existing value, enter the authentication method you want to use among the authentication methods shown on the screen, and press the [ENT] key.
If you select [AND] mode, authentication will proceed normally with the authentication method. (Priority: Card -> Fingerprint -> Password) When selecting [OR] mode, only two authentication types can be selected.
※ If you do not set the authentication method after registering the card, it is necessary
to be careful when registering because it is not possible to search DB when registering existing card as a new user.
3.3.1.2. FP Register
① Place finger on the sensor - refer to ‘1.8. How to register and enter fingerprint ‘. Fingerprint must be input twice, as below, according to the screen guidance.
When the fingerprint sensor is lit and the message “Place Finger on sensor” is displayed, place a finger on the window for fingerprint input - for 2~3 seconds
- until the light goes off.
② When the message ‘Place same Finger on sensor is displayed, enter the fingerprint once again.
※When entering the fingerprint for the second time, make sure the user has taken their finger off the
fingerprint input window after the first read.
※ Fingerprint registration is available for up to 10 per ID. A failure message appears
when registration is attempted in excess of 10 times.
AC-5000 / 5100 User Guide 31
When registration screen appears, put the card on it. If you want to exit without registration, press the [F4 (←)] key.
If repeated failure is observed after 2~3 attempts when using the correct fingerprint registration method, the user is advised to use password or card.
3.3.1.3. Card Register
3.3.1.4. PW Register
Input the password in 1~8 digits on the password
input screen and press the [ENT] key. The ‘Confirm Password’ window appears. Input the same password
and press the [ENT] key.
Press the [F4 (←)] key for 2 seconds or longer to cancel and exit.
3.3.1.5. FP Option
This is the setting related to fingerprints, and is the option that can be changed after registering the fingerprint in advance. If the user selects it with the fingerprint already registered, it only results in the failure buzzer sound.
AC-5000 / 5100 User Guide 32
When registration failed after [6. Save] key pressed.
Means the user is not registered properly in accordance with the authentication method. For example, the user
didn’t register any fingerprint after setting it as the
authentication method, nor registered a card after setting it as the authentication method.
In the case of [2. FP Register]
When fingerprint image is not in a good condition or there is no fingerprint input within 10 seconds of the fingerprint sensor lamp being on.
At the time of fingerprint registration, when the user didn’t input the same finger, but input a different finger.
▶’1:1 Level’ (Initial setting: ‘0’)
Is the item that determines the authentication level for each registered user. By modifying this value, it is possible to determine the authentication level per registered user.
When set to ‘0’, it conducts authentication using
the 1:1 authentication level of the terminal.
▶Enable 1:N (Initial setting: ‘v’)
When this option is checked, it’s possible to
successfully authenticate using a fingerprint without any user ID or card.
3.3.1.6. Save
When the registration process is complete, press [Ent] key to save it. The user settings are not saved if the user doesn’t press [Ent] key and exits by pressing the [F4 (←)] key.
The following is the LCD guidance message indicating the user can exit from the
registration process.
When registered normally with [ENT] key pressed.
AC-5000 / 5100 User Guide 33
In case of [2. FP Register] or [3. Card Register]
When the user attempted registration in excess of the maximum number of allowed registrations (10 each).
In the case of [4. PW Register]
When the user inputs a different number during password confirmation.
In the case of [3. Card Register]
When the user tried to register a card that has already been registered.
In case of [2. FP Register], when the user tried to register a fingerprint that has already been registered.
※ If the user wants to register the same fingerprint
with another ID again, they must the release ‘4.
System 3. Fingerprint Check Same FP’ function. This is, however, not suitable for Time & Attendance as the same fingerprints could be authenticated with different ID’s.
3.3.2. Delete
Select ◆ [ENT~] [1. User] [2. Delete] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 34
Input the user ID to be deleted, and then press the [ENT] key.
When inputting an unregistered ID, a failure
message will appear. When inputting a registered ID, a success message will appear.
Deleting from the terminal doesn’t mean deletion from the server. Therefore, it is necessary to delete from the server to make the deletion complete.
Special care should be taken when deleting, since deletion is performed regardless of User/Admin. In particular, the user registered in the terminal may not be restored after deletion unless registered on the network server.
The following are the LCD information messages that appear during the deletion process:
When deleted normally.
When the user inputs an unregistered ID.
3.3.3. Modify
Select ◆ [ENT~] [1. User] [3. Modify] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 35
If the user is sure they want to delete all users,
press [1. Yes] and press [ENT] key. Select [2. No] to cancel.
※When the user selects [1.Yes], both user and
admin are deleted. Special care should be taken as the deleted user/admin may not be
restored after deletion.
Press the [ENT] key after inputting the user ID to
be changed.
When inputting an unregistered ID, a failure message will appear. When inputting a registered ID, the following screen appears:
The icons on the left are described with their respective meanings on the right.
Authentication type (FP)
Number of Registered Fingerprints (1)
Number of Registered Cards (0)
Whether or not the Password is Registered
( : Not registered)
For the method of changing, see ‘3.3.1. Add’ as it is the same as shown in the
registration method.
3.3.4. Delete All
Select ◆ [ENT~] [1. User] [4. Delete All] in the initial screen ◆, and the following
screen appears:
3.4. Network
Select “2. Network” in the main menu, and the following screen appears:
AC-5000 / 5100 User Guide 36
Press the applicable key that represents the item to be changed.
3.4.1. IP
Select ◆ [ENT~] [2. Network] [1. IP] in the initial screen ◆, and the following screen appears:
When changing IP, delete the existing values using [F4 (←)] and then input the new values. The ‘.’ in between the number sequence is created automatically. Example: input 192 168 010 50 sequentially to input ‘192.168.10.50’.
Select [1] when a fixed IP address is assigned to the connected network and select [2] in cases where there is a DHCP server in the connected network which is assigning the address. Set IP, Subnet Mask, and Gateway if it is a fixed IP. There’s no need to set the address if the user selected a flexible IP address.
The user can exit to the parent menu using the [ENT~] key to apply the changed values,
after finishing the settings, or use the [F4 (←)] key to cancel input during setting. In this case, the user can only exit by pressing the key for 2 seconds or longer if they are inputting value in the input box.
3.4.2. Server IP
Select ◆ [ENT~] [2. Network] [2. Server IP] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 37
Select server IP type for server IP setting.
1. Static IP: If you know the server IP and port number
2. DDNS: When connecting the server by DDNS
After selecting the type, press [ENT~] key to enter detailed information. To cancel input, press [F4 (←) ~] key to exit to upper menu.
3.4.2.1. Server IP settings
Select ◆ [ENT~] [2. Network] [2. Server IP] [1.StaticIP] in the initial screen ◆, and the following screen appears:
Set the Server IP and Port.
To change the port, move the input highlight to the server port by pressing the [ENT] key.
▶Initial Setting Server Port: ‘9870’
The default port value of the authentication server is '9870' for the UNIS server and '2201' for the Access server. Special care should be taken since if you change this value, you must change it to the same value in the server program.
After finishing the setting, press [ENT ~] key to apply the changed value, or press [F4 (←) ~] key to exit the parent menu.
3.4.2.2. DDNS
Select ◆ [ENT~] [2. Network] [2. Server IP] [2.DDNS] in the initial screen ◆, and the following screen appears.
AC-5000 / 5100 User Guide 38
1. Server/Terminal
Authentication is made by the server when it’s connected to the network, and by the terminal when it is disconnected from the server due to network disturbance, etc.
Set DDNS ID, DDNS IP and server port. DDNS ID can be input from 9 digits 1 to 999999999 can be input.
The default value of DDNS IP is 210.116.104.058, and enter the IP of DDNS server to be connected.
To change the port, press the [ENT] key to move the input focus to the server port and enter it.
▶Initial Setting
Server Port: ‘9870’
The default port value of the authentication server is '9870' for the UNIS server and '2201' for the Access server. Special care should be taken since if you change this value, you must change it to the same value in the server program.
After finishing the setting, press [ENT~] key to apply the changed value, or press [F4 (←) ~] key to exit the parent menu.
3.4.3. Terminal ID
Select ◆ [ENT~] [2. Network] [3. Terminal ID] on the initial screen ◆, and the following screen appears:
Set Terminal ID and Authentication.
▶Initial setting Terminal ID: ‘1’
Authentication: ‘2. terminal/server’
Terminal ID is the unique ID used by the authentication server for the purpose of
identifying the terminal having ‘1’ as its default value. It must correspond to the
entry/exit door ID set in the server program - which can be input as a maximum of 8 digits.
▶ Authentication
This determines the priority for authentication between terminal and the network server. Having ‘2. Terminal/Server’ as its default value, operation is as follows in each mode:
AC-5000 / 5100 User Guide 39
2. Terminal/Server
Authentication is made by the terminal, even if the server is connected, and authentication result transferred to the server on a real-time basis.
3. Server Only
However, authentication is made by the server when the input user ID or
card is not registered in the terminal (it doesn’t attempt server
authentication in case of 1:N fingerprint authentication).
4. Terminal Only
Although the user is registered in the terminal, authentication is made via the server. Therefore, authentication cannot be performed unless the server is connected.
Select the terminal operation type by pressing the
applicable numeric key.
Press the [ENT] key to apply the configuration and [F4 (←)] key to cancel it.
Flexible designation is allowed depending on the circumstance, such as the number of terminals connected to the server, the number of users authenticated, or network errors etc. It is recommended to use ‘2. Terminal/Server’ so concurrent authentications can be attempted if 10> terminals are connected to the server, or if frequent network errors occur.
※ In the server authentication mode, logs are stored in the server, not the terminal.
3.5. Application
Selecting ‘3. Application’ in the main menu causes the following screen to appear:
Press the applicable key representing the item to be changed.
3.5.1. Application
Select ◆ [ENT~] [3. Application] [1. Application] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 40
3.5.2. Time Schedule
3.5.2.1. Setting to Access Control / Time & Attendance
Select ◆ [ENT~] [3. Application] [2. Time Schedule] in the initial screen ◆, and the following screen appears:
▶ Initial setting: Identical with the screen on the left.
The user can set the time period for authentication mode; otherwise, set to ‘00:00-00:00’.
Input after deleting the existing value using [F4 (←)] to change the value. Input HHMM (Hour/Minute) in order - can be set from 00:00 to23:59
In a preset time period, it’s always shown in the preset mode unless the user presses another function key. Although the user pressed the other function key to authenticate with another mode the terminal display mode automatically changes to authentication mode, which is suitable for the management of time & attendance.
As shown in the example below, each time period must be set without overlapping; the mode is determined F1F2F3F4Access sequentially if they do overlap.
----------------------------------------------------------------------------------------------------------­(Example) Office start=06:00~09:59, Office leave=17:00~22:00
-----------------------------------------------------------------------------------------------------------
Exit to the parent menu to apply the changed value, after finishing the settings, by pressing the [ENT~] key. Press the [F4 (←) ~] key to cancel the input value.
AC-5000 / 5100 User Guide 41
▶ Initial setting: Identical with the screen on the left.
The user can set the time period by meal types; otherwise, set to ‘00:00-00:00’.
3.5.2.2. Setting to Cafeteria
▶ NO Limit
Clear the check box ( ), and each user is allowed one authentication by meal only. If you check the box ( ) they are allowed several authentications regardless of the
existing authentication.
3.5.3. Function Key
Select ◆ [ENT~] [3. Application] [3. Function Key] in the initial screen ◆, and the following screen appears:
▶ Initial setting: Identical with the screen on the left.
Function key refers to the keys [F1] ~[F4], [ENT] & [Auto Sensing] used to change the authentication mode, such as office start/office leave etc. If you press a function key the authentication mode changes to the applicable mode. When a box is not checked, authentication mode does not change even if the applicable key is pressed.
If the ‘6. Auto Sensing’ check box is cleared the fingerprint sensor doesn’t respond, even if the user inputs their fingerprint on the sensor. In this case, be sure to input the ID or card or fingerprint of the user.
3.5.4. Extended Key
Select ◆ [ENT~] [3. Application] [4. Extended Key] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 42
▶Initial setting: Identical with the screen on the left
To use the Extended Key, press the [1] key and then check ‘1. Extended Key’. The number of extended keys can be set within a range of 1~40.
Extended Key is a function which extends the number of additional authentication modes
(up to 40 as required) in addition to the basic function keys ([F1] ~ [F4], [ENT]). The screen for selecting the extended keys, when the user presses the F4 key, is shown below. Select the applicable mode with [0] ~ [9] keys. If the number of extended keys exceeds 10, select them by changing the page with the [F1] ~ [F4] keys.
-----------------------------------------------------------------------------------------------------------
Example: If the number of the extended keys is 16, press [F4] key in the initial screen, and the following screen appears
If you want to select ExtMode 12, move to the next page with the [F2] key and then
press the [2] key.
Press the [ENT] key to exit without selecting an ExtMode.
-----------------------------------------------------------------------------------------------------------
The user can exit to the parent menu using the [ENT~] key and apply the changed value. Use the [F4 (←)] key to cancel input during setting.
AC-5000 / 5100 User Guide 43
▶ Basic setting: Same with the left screen
▶RS485 ID setting
Click [0] ~ [7] key to set ID for RS485 communication. It can be set for the connection with the external device MCP040.
When the external device is not connected, it is not operated with any value.
3.5.5. Display
Select ◆ [ENT~] [3. Application] [5. Display] on the initial screen ◆, and the following screen appears:
▶Initial setting: Identical with the screen on the left
▶Background image
You can change the background image shown on the initial screen by pressing the [1] and [2] keys. Also, you can set the cycle to 5 seconds or longer to have the background images saved in the terminal displayed sequentially at every preset interval (seconds) But, it is not represented in the order of setting,
rather it is represented from the first
▶ Screen Saver (0,10~1800sec)
If there is no input for a time you set, LCD screen turns off automatically. However, if set to 0 LCD screen always turns on. 10 seconds to 1800 seconds can be set.
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.5.6. RS485 ID settings
3.6. System
Selecting ‘4. System’ in the main menu causes the following screen to appear:
AC-5000 / 5100 User Guide 44
Press the applicable key representing the item to be changed.
3.6.1. System Setting
Select ◆ [ENT~] [4. System] [1. System Setting] in the initial screen ◆, and the following screen appears:
▶ Initial setting: Identical with the screen on the left
▶ User ID Length
This field sets the length of user ID, which can be changed within the range of 1~9 digits. It must be identical to the length of ID registered in the server program. For
example, the user must set it to 6 if the ID registered in the server program is ‘000075’
- which is 6 digits long.
▶Display Option
When set to '1. None', only the authentication result message is displayed when the authentication is successful, but when set to '2', the user ID is displayed. If set to ‘3’, user name, ‘4’, UserKey, ‘5’, User’s statement will be displayed on LCD screen, if the terminal does not store the corresponding user information, the ID is displayed.
Once the registration is complete, the user can press [ENT] to apply it. Press the [F4 (←)] key to exit to the parent menu.
▶Duress FP Alarm
The default setting is '2. No'. If set to 1, Yes, 12V current is output to "L2" pin when the registered threat fingerprint is authenticated. This pin will operate when you connect equipment for emergency situation detection such as siren.
▶Alarm Duration (sec)
Set the time for 12V current output.
AC-5000 / 5100 User Guide 45
▶ Initial setting: Identical with the screen on the left
3.6.2. Authentication
Select ◆ [ENT~] ([4. System] [2. Authentication]) in the initial screen ◆, and the following screen appears:
▶ User Group ID
The method of authentication where the initial digit of an ID relates to a group. It completes 1:N authentication faster when more than 5,000 users are registered. When this method is checked, it authenticates the fingerprint from users whose ID starts with the same input letter. If this method is not checked, it considers the input figure as the user ID and attempts 1:1 authentication against the fingerprint of the user with the applicable ID
Example: Where the user inputs ‘12’ to attempt authentication when the user ID is a 4-
digit figure;
If checked (
),1:N authentication is attempted from users having ID
‘1200’~’1299’,
If unchecked ( ),1:1 authentication is attempted from fingerprints of users whose ID is ‘12’.
▶ Enable 1:N
If checked ( ), this option enables fingerprint only authentication without inputting user ID or card. Even if the user is registered with 1:N authentication, only 1:1 authentication is permitted in the terminal where this option is not checked.
▶ Card Only
If checked ( ), this option enables card only authentication without inputting fingerprint. Even if the user is registered with (Card & FP) or (Card & PW), only authentication with card is permitted in the terminal where this option is checked.
▶ Template On Card
If checked ( ), this option enables authentication with the user’s information and fingerprint recorded in the card without downloading the user in the terminal. In order for this option to be operated, SC card reader must be mounted and the server must set which terminal uses that fingerprint card.
AC-5000 / 5100 User Guide 46
▶Initial setting: Identical with the screen on the left.
▶ Verify Multi-FP
If checked ( ), this function has all the registered fingerprints to be authenticated after the user inputs ID (or Card). When this item is set to checked, the user must, without fail, input user ID or card. In this case, Enable 1:N is automatically changed to
unchecked ( ).
This function is used for strict access control to special zones. For example, if the
user with ID ‘0001’ is registered with 3 fingerprints they must input ID and complete the authentication for three fingerprints. In this case, the order of authentication for the 3 fingerprints is irrelevant, but the fingerprints should be repeatedly input until authentication is successful.
※ Authentication will fail on a single occurrence of authentication failure.
▶ Blocking Time (sec)
This function prevents duplicate authentication for the same user within the preset time period. When set to 0, it has no restriction. However, when set to a value larger than 0, the user can be successful in re-authentication if the preset time (sec) has elapsed after the success of the previous authentication.
▶ NetErrTime(Sec) – Network error time setting (Sec)
If it is the server authorization mode and the network error time is set, you can set the authorization waiting time. For example, if you set the network error time as 5 seconds, the error message occurs when there is no response of the server for 5 seconds (But, the user is considered to be failed to authorize)
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.6.3. Fingerprint
Select ◆ [ENT~] [4. System] [3. Fingerprint] in the initial screen ◆, and the following screen appears:
▶1:1 Level
Authentication level used for 1:1 Fingerprint Authentication. Provided that, 1:1
AC-5000 / 5100 User Guide 47
▶Initial setting: ‘1. English’
When changing the language settings, the default voice message and on-screen message are changed into that language set.
authentication level of the relevant user is applied for the user whose 1:1 authentication level is not set to ‘0’ (using the authentication level of the terminal).
▶1:N Level
Authentication level used for 1:N Fingerprint Authentication. In case of 1:N authentication, the authentication level by users is not set and therefore always based on the authentication level of the terminal.
▶ Fake Finger Detect
It presets LFD level to prevent imitation fingerprint input. Pre-setting the LFD level to a higher value tends to reinforce the function, preventing the input of imitation fingerprints produced with rubber, paper, film, silicone, etc. But when inputting a real fingerprint, it may not read well.
▶ Template type
It sets the type of the fingerprint template. In this setting, all the users are deleted, and the terminal is rebooted. It selects one of the UNION, ISO_ Standard, ISO_Extended (Default- UNION).
▶ Check Same FP
If checked ( ), is the function that, during registration, checks whether or not the fingerprint is already registered to prevent overlapped registration of the same fingerprint in another user ID.
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.6.4. Language
Select ◆ [ENT~] [4. System] [4. Language] in the initial screen ◆, and the following screen appears:
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
※ Danish / Arvia / Persian languages are restricted by fonts, languages are shown in
English, and voices are replaced by their respective languages. Also, due to the
AC-5000 / 5100 User Guide 48
▶Initial setting: Identical with the screen on the left.
nature of fonts, some screens may not be displayed as all the languages.
3.6.5. Date Time
Select ◆ [ENT~] [4. System] [5. Date Time] in the initial screen ◆, and the following screen appears:
▶ Time Sync
Sets the method which synchronizes the current time of the terminal with the server. To synchronize the terminal time with the server time, set to ‘1. Auto’ to perform it automatically, while ‘2. Manual’ is for manual setting.
▶ Display Time
The method of displaying the current time of the terminal set to ‘1’ for 24-hour clock and ‘2’ for AM/PM system.
▶ Set Current Time
Changes the current time of the terminal. No change is required if it’s synchronized and linked with the server time and with the aforementioned Time Sync set to ‘1. Auto’.
▶ Calendar To configure a way to display the current date on the terminal. ‘5. Gregorian
calendar’ is the default, but the user can manually select ‘6. Persian calendar’ if desired. [Image change required]
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.6.6. Database
Select ◆ [ENT~] [4. System] [6. Database] in the initial screen ◆, and the following screen appears:
AC-5000 / 5100 User Guide 49
Press the [1. Yes] key to delete all users, or select [2. No] and press the [ENT] key to cancel.
If no value is input for a certain period of time in this state, it returns to the initial screen instead of deleting.
Press the following keys: [1] key to initialize the configuration. [2] key to delete all users. [3] key to initialize the authentication record. and [4] key to initialize the terminal.
3.6.6.1. Init Config
Select ◆ [ENT~] [4. System] [6. Database] [1. Init Config] in the initial screen
◆, and the following screen appears:
Press [1. Yes] key to initialize all configurations and select [2. No] and press [ENT] key to cancel.
If no value is input for a certain period of time in this state, it returns to the initial screen instead of initialization
Initializes all the configurations of the terminal except MAC (physical) address but it doesn’t delete the user and authentication record. When the configuration is successfully initialized, it proceeds to the parent menu accompanied by the success buzzer sound.
3.6.6.2. Delete All Users
Select ◆ [ENT~] [4. System] [6. Database] [2. Delete All Users] in the initial screen ◆, and the following screen appears:
Both user and administrator are deleted, and the deleted users cannot be restored
after deletion.
AC-5000 / 5100 User Guide 50
Press the [1. Yes] key to initialize the terminal to the factory default state, or select [2. No] and press the [ENT] key to cancel.
When no value is input for a certain period of time in this state, it returns to the initial screen instead of initialization.
When deletion is successfully completed, it proceeds to the parent menu accompanied by the success buzzer sound.
3.6.6.3. Clear Log Data
Select ◆ [ENT~] [4. System] [6. Database] [3. Clear Log Data] in the initial screen ◆, and the following screen appears:
Press the [1. Yes] key to delete all the authentication records saved in the terminal, or select [2. No] and press the [ENT] key to cancel.
If no value is input for a certain period of time in this state, it returns to the initial screen instead of deleting.
Deletes all logs related to authentication, and the deleted logs cannot be restored
after deletion.
When deletion is successfully completed, it proceeds to the parent menu accompanied by the success buzzer sound.
3.6.6.4. Initialize Terminal
Select ◆ [ENT~] [4. System] [6. Database] [4. Initialize Terminal] in the initial screen ◆, and the following screen appears:
Deletes all the configurations, users, and log information, except MAC (physical) address saved in the terminal, restoring them to factory default state. Special care should be
taken as restoration is impossible after initialization.
When initialization to the factory default state is successfully completed, it proceeds to the parent menu accompanied by the success buzzer sound.
AC-5000 / 5100 User Guide 51
▶Initial setting: Identical with the screen on the left
▶Door open
Door opens when the ‘0’ key is pressed.
Appears only when the terminal is locked. This
option is not normally shown.
3.7. Terminal
Selecting ‘5. Terminal’ in the main menu causes the following screen to appear:
Press the key corresponding to the item you want to change
Press [F2] on the keypad to move to the next page.
Press [F1] on the keypad to go to the previous page.
3.7.1. Terminal Option
Select ◆ [ENT~] [5. Terminal] [1. Terminal Option] in the initial screen ◆, and the following screen appears:
▶ Tamper Alarm
If checked ( ), a warning sound is generated when the lid of the terminal is opened.
▶ Lock Terminal
This is the function the administrator can directly set or release the locking of the terminal via the terminal rather than server program. If checked ( ), it is locked so no
one can access until the administrator releases the setting.
AC-5000 / 5100 User Guide 52
▶Initial setting: Identical with the screen on the left
Sets Voice Volume and Beeper Volume.
When set to ‘0’, no voice or buzzer sound is
generated.
▶KeyLed ON
If checked ( ), Key LED is always turned ON so the Touch Keys are visible.
▶ Use of the user voices, Use of user-defined messages
Based on need/preference, you can download a voice from a Wav file (16bit/8KHz) to change the voice output when authentication is successful or has failed. Additionally, you can download the image text, in a modified form, such as office start or office leave, using the specially provided resource file (Excel file). In this case, the user can
apply the applicable modified contents only when the boxes of ‘6. User Voice’ and ‘7. User Text’ are checked. For the download method, see ‘3.9. Download customized file’
▶ Camera Use
If checked ( ), use camera. Camera images can be viewed via UNIS(server). (단
AC5100 only)
▶ User Text
If checked ( ), when you press [F1], [F2], [F3], [F4] key, each function message will appear on the screen. Displayed only when the language is set to Hangul. The clock is locked at the bottom.
▶ Door Open
This menu shows that the terminal administrator is allowed to temporarily open the door when the terminal is set to lock in the server.
After setting up the user can apply the changed values using the [ENT~] key. Use the [F4 (←)] key to cancel input during setting.
3.7.2. Volume Control
Select ◆ [ENT~] [5. Terminal] [2. Volume Control] in the initial screen ◆, and the following screen appears:
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
AC-5000 / 5100 User Guide 53
3.7.3. Door
Select ◆ [ENT~] [5. Terminal] [3. Door] in the initial screen ◆, and the following screen appears:
▶Initial setting: Identical with the screen on the left.
▶Lock Type
Set to ‘1’ when strike type or automatic door is connected to the terminal, or ‘2’ when
motorized lock is connected to the terminal. If no connection is made, it is set to ‘1’.
Set to ‘3’ when connecting a warning lamp to the lock port to indicate the success or
failure of authentication.
▶DM1: To connect an external contact to DM1 (Set 1 or 2 for motor locks)
- ‘0. Not in use’: none in connection
- ‘1. Door open NO’ or ‘2. Door open NC’: A door status monitoring pin in connection
- ‘3. Fire detection NO’ or ‘4. Fire detection NC’: A fire sensor in connection
- ‘5. Panic detection NO’ or ‘6. Panic detection NC’: A panic situation sensor in connection
- ‘7. Emergency detection NO’ or ‘8. Emergency detection NC’: An emergency situation sensor in connection
Configure NO/NC depending on the pin status upon detection
- ‘9. Controller authorization result’: It sends the authorization result to the external
controller.
(You should connect the RED led of the controller with DM1 or DM2 through the board toward TR, and the pin should be set 9. Controller result. You should set the Wiegand Out.)
▶DM2: To connect an external contact to DM2 (Set 1 or 2 for motor locks)
- ‘0. Not in use’: none in connection
- ‘1. Lock status NO’ or ‘2. Lock status NC’: A lock status monitoring pin in connection
- ‘3. Fire detection NO’ or ‘4. Fire detection NC’: A fire sensor in connection
- ‘5. Panic detection NO’ or ‘6. Panic detection NC’: A panic situation sensor in connection
- ‘7. Emergency detection NO’ or ‘8. Emergency detection NC’: An emergency situation sensor in connection
Configure NO/NC depending on the pin status upon detection
- ‘9. Controller authorization result’: It sends the authorization result to the external
controller.
(You should connect the RED led of the controller with DM1 or DM2 through the board toward TR, and the
pin should be set 9. Controller result. You should set the Wiegand Out.)
AC-5000 / 5100 User Guide 54
▶Initial setting: Identical with the screen on the left
2.None
This is the normal case. Wiegand Output is not used.
▶Open Duration (0.1 sec unit) Designates the time the door is opened and closed again when authentication is
successful. As it is set to 0.1 second per unit, a value of 30 is required to set it to 3 seconds. Strike type refers to the time the door is opened and closed again when authentication is complete.
▶Warn Door Open (Second Unit)
This function enables the terminal to check the time the door opens, and generate a warning sound once it exceeds the preset time (min. 5 sec~ max. 30 sec).
When set to ‘00’, warning doesn’t sound at all. If set between 01~04, it only starts
sounding after 5 seconds have elapsed.
The warning sound is also generated in cases where the door is unexpectedly not closed within the preset time; although the door should be closed. This warning allows proper action to be taken for the door to be closed.
To use this function, the lock must be the one that enables the monitoring of the door door status, and the monitoring pin of the lock should be connected to the terminal. In addition, such settings are enabled only when the aforementioned Door Monitor is set to ‘4. Normal Open’ or ‘5. Normal Close’.
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.7.4. Wiegand
Select [ENT~] [5. Terminal] [4. Wiegand] in the initial screen ◆, and the following screen appears:
This menu configures the Wiegand Output.
Used only when a separate controller, operating with Wiegand input, is mounted. Upon successful authentication, it transmits the data to the terminal’s Wiegand port in the following form:
AC-5000 / 5100 User Guide 55
3.26bit
Transmits “Site code[1byte] + user ID[2byte]”, so the user ID is set to 4 digits or less. Example: For SiteCode:045(2Dh), UID:6543(198Fh), is transmitted as ‘1 00101101 0001 1001 10001111 0’
4.34bit
Transmits “Site code[1byte] + user ID[3byte]” so the user ID is set to 7 digits or less. In case of an 8-digit user ID, “user ID[4byte]” is transmitted without Site code. Example: In the case of SiteCode:001(1h), UID:123456(1E240h), is transmitted as ‘0 00000001 00000001 11100010 01000000 0’
5. Custom
Can be set in the server as the settings under the user’s definition only.
The setting type can only be inquired at the terminal.
Card Format
Card number
Method of Expression
1. Default
02207638
(3+5) digit decimal number [022(16h)+07638(1DD6h)]
However, when Bypass is checked, regardless of Wiegand Out settings, it transmits the data received by Wiegand Import at the time when authentication was successful to the Wiegand Out as it is.
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.7.5. Card Reader
Select [ENT~] [5. Terminal] [5. Card Reader] in the initial screen ◆, and the following screen appears.
▶Initial setting: Identical with the screen on the left.
▶ Read Card No.
When the user puts the card on the screen, the card number is displayed on the LCD.
▶ Dummy mode If 6.RS232 is set, the authorization is not fulfilled by
card reading, rather it send the card data to the RS232(Debug) Port.
▶Card Format
This is the menu that sets the way the card number is displayed. As shown below, the
displayed card number varies depending on the configuration. Therefore, if changing it during operation is unavoidable, after it was set during initial installation, the card should be registered again.
RF card example) Card number (5byte): 08h 01h 16h 1Dh D6h
AC-5000 / 5100 User Guide 56
2. Hexadecimal number
0801161DD6
10-digit hexadecimal number
3. Decimal number
0018226646
Last 4byte to be expressed in a 10-digit decimal number (01161DD6h)
4. Decimal number 35
02207638
Same as ‘1. Default’
5. Hexa_1
161DD6
Displays last 3bytes as the 6-digit hexadecimal number.
Card Format
Card number
Method of Expression
1. Default
529D06E3
Expressed as an 8-digit hexadecimal number
2. Hexadecimal number
E3069D52
Expressed as an 8-digit hexadecimal number changing the order of byte
3. Decimal number
1386022627
4. Decimal number 35
3808861522
5. Hexa_1
069D52
▶ Initial setting: Identical with the screen on the left.
SC card example: Card Number (4byte): 52h 9Dh 06h E3h
Hexadecimal number 529D06E3 to be expressed as a 10-digit decimal number
Hexadecimal number E3069D52 to be expressed as a 10-digit decimal number
Only the first 3 bytes are placed upside down.
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
3.7.6. External Device
Select [ENT~] ([5. Terminal] [6. External Device]) in the initial screen ◆, and the following screen appears.
Connector Settings shown as below
AC-5000 / 5100 User Guide 57
▶Printer To connect a Slave Reader which uses a card or a fingerprint as a secondary
authentication device. If you would like a Wiegand card reader to be connected, set ‘7’
while SR100 should be ‘8’. If authentication occurred at the Slave Reader, ‘Dummy Reader’ would be displayed under ‘External Device’ on UNIS when the user looks up log history. [Mode] indicates an authentication mode of the external device. ‘0’ means that AC5000’s authentication mode (saved as ‘1’: F1, ‘2’: F2, ‘3’: Access, ‘4’: F3, ‘5’: F4).
▶Lock controller
It is set when the additional device is connected without using lock port of the terminal
for the entrance control. If the lock is directly connected to the terminal, select ‘4. None’. And if the LC010 is connected, select ‘5.LC’. And if MCP040 is connected, select ‘MCP’.
▶Connection device setting
It is set when connecting the slave reader using card or fingerprint to the terminal to
use as the supplementary authorization device. Set ‘7’ to connect the Wiegand card reader, and set ‘8’ to connect the SR100. When the authorization is fulfilled by slave reader, the ‘Dummy reader’ is represented on the ‘External device’ of UNIS program
when searching the authorization log. [Mode] represents the authorization mode which will be saved when the authorization
was fulfilled by the external device. If it is set ‘0’, it is authorized with the present authorization mode of AC5000, and if it is set ‘1’, it is always saved as the set authorization mode. (Saved as ‘1’: F1, ‘2’: F2, ’3’: Access, ‘4’: F3, and ‘5’: F4).
The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting.
AC-5000 / 5100 User Guide 58
Menu to view the terminal settings.
Press; [1] key to view various terminal configurations. [2] key to view network configuration, such as IP. [3] key to view the user registration status, etc. [4] key to view log data. [5] key to view firmware version.
3.8. Information
Select ‘6. Information’ in the main menu and the following screen appears:
3.8.1. System Info
Select ◆ [ENT~] [6. Information] [6. System Info] in the initial screen ◆
Press the [F4 (←)] key to exit to the parent menu.
3.8.2. Network Info
Select ◆ [ENT~] [6. Information] [2. Network Info] in the initial screen ◆
Press the [F4 (←)] key to exit to the parent menu.
AC-5000 / 5100 User Guide 59
- Registered User: Number of registered users (including administrator).
- Registered Admin: Number of registered administrators.
- Max User: Maximum number of users that can be registered.
- Registered FP: Number of whole fingerprints that are registered.
- Max FP: Maximum number of fingerprints that can be registered.
3.8.3. Database Info
Select ◆ [ENT~] [6. Information] [3. Database Info] in the initial screen ◆
Press the [F4 (←)] key to exit to the parent menu.
3.8.4. View Log
Select ◆ [ENT~] [6. Information] [4. View Log] in the initial screen ◆
- All Log: Number of logs saved in the terminal.
- Max Log: Maximum number of logs that can be saved.
Press the [F4 (←)] key to exit to the parent menu.
3.8.5. Version Info
Select ◆ [ENT~] [6. Information] [5. Version Info] in the initial screen ◆
Press the [F4 (←)] key to exit to the parent menu.
AC-5000 / 5100 User Guide 60
3.9. Downloading User’s File
This function allows the user to change background image or voice message. User files can be downloaded from UNIS server program.
3.9.1. Change Background Image
When selecting ‘Download customized file’ in the UNIS program, the following screen appears:
Designate the file as ‘Background image file (.jpg)’, select the image file (.jpg), and click the ‘Send’ button. The terminal select window will appear. Select the terminal on the terminal list window and click the ‘Send’ button again. The file will be transmitted with
the downloaded result displayed.
The file name can be up to 15 characters long, including the extension name, with a jpg file size of 320*240. If any data in a different format is downloaded, the transmission result will be displayed as a version error.
To change the background image, you can directly select it from ‘3.5.5 Display”.
3.9.2. Change Voice Message
When selecting ‘Download customized file’ in UNIS program, the following screen appears:
Designate the file as ‘Success voice file (.wav)’, select Wav file (.wav) and click the ‘Send’
button. The terminal select window will appear. Select the terminal from the terminal list window and click the ‘Send’ button again. The file is transmitted with the downloaded result displayed.
AC-5000 / 5100 User Guide 61
The file name can be up to 15 characters, including the extension name, with the Wav file in 8KHz 16-bit mono form only. If any data in a different format is downloaded, the transmission result will be displayed as a version error.
In the case of a voice failure, designate the file as ‘Fail voice file (.wav)’ and then change
it in the same way.
To change the user’s defined voice into the default voice, release the check mark in the ‘User Voice’ item in ‘3.5.5 Display’.
3.9.3. Change User Text
When selecting ‘Download customized file’ in UNIS program, the following screen appears:
Designate the file as ‘Defined Text File (.csv)’, select CSV file (.csv) and click the ‘Send’
button. The terminal select window will appear. Select the terminal from the terminal list
window and click the ‘Send’ button again. The file is transmitted with the downloaded
result displayed.
CSV file can be created and saved as a csv file type after changing the desired text in the
Excel (.xls) file provided with the terminal firmware. To change from the user’s defined text to the default text, release the check mark in the ‘User Text’ item in ‘3.5.5 Display’.
AC-5000 / 5100 User Guide 62
Touch by Hand
Press the Desired Mode Key
4. How to use the Terminal
4.1. Change of Authentication Mode
< Figure 4-1>
Normally it’s not visible, but when the user touches their hand on the card input area - as shown in the Figure at the left – the LED’s are powered ON and the keypad appears - as shown in the Figure at the right. When the keys are visible, press the desired function key to change the authentication mode, such as office start [F1], office leave [F2], going-out [F3], return [F4], access [ENT] etc.
AC-5000 / 5100 User Guide 63
4.2. ID input
Normally it’s not visible, but as shown in Figure <4-1>, when the user touches their hand
on the card input area, the LED’s are powered ON and the keypad appears. In this case,
ID input screen appears when the user inputs their ID.
Delete with the [F4 (←)] key if a figure is wrongly input during the input process. Pressing the [ENT] key, after inputting ID, causes the fingerprint input or password input screen to appear; depending on the method of user authentication. However, authentication will fail if a card user inputs ID first. Therefore, be sure to use the card.
4.3. Authentication
4.3.1. Fingerprint Authentication
When placing a fingerprint on the sensor, a buzzer sounds with the sensor lamp ON, and
the fingerprint is duly input. Be sure not to take your finger off the sensor until the sensor lamp is OFF and the buzzer sounds. In the case of 1:1 authentication, input ID and press the [ENT] key which causes the fingerprint sensor to flicker. Then input the fingerprint via the sensor.
4.3.2. Card Authentication
Touch the card on the figure of the card as shown in <Figure 4-1>.
AC-5000 / 5100 User Guide 63
4.3.3. Password Authentication
Press the [ENT] key after inputting ID, and the screen for password input appears. When a wrong number is input, delete it using the [F4 (←)] key. Input the password and press the [ENT] key.
IC Information
This device complies with Industry Canada’s licence-exempt RSSs "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
“This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body”
Cet équipement doit être installé et utilisé à une distance minimale de 20cm entre le
radiateur et votre corps.
AC-5000 / 5100 User Guide 64
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is
connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.
Contains FCC ID: 2AEEY-PBLN51822M Contains IC: 22852-PBLN51822M
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
