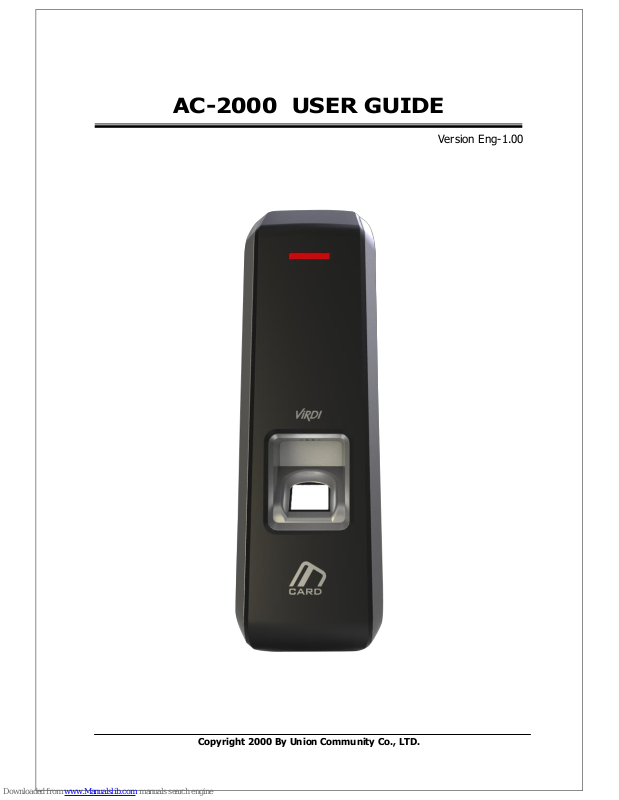

Union Community AC-2000 User Manual

Copyright 2000 By Union Community Co., LTD.

AC-2000 .USER GUIDE

Version Eng-1.00

AC-2000 User Guide 2

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

<Revison History>

Version

Date

Description

Firmware Version

1.00

2016-12-06

-Initial Release

10.61.00-000.02

AC-2000 User Guide 3

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

<Glossaries>

 Admin (Administrator)

- The administrator can access to the terminal menu mode. He/she has the authority to

add/modify/delete terminal users and to change the operating environment by
changing settings.

- If there is no registered administrator in the terminal, anybody can access to the

terminal menu and change settings. It is recommended that more than one
administrator will be necessarily registered in the terminal.

- The administrator has the authority to change critical environmental settings of the

fingerprint reader. So, special attention is required to its registration and operation.

 1:1 Authentication (1 to 1 Verification)

- The user fingerprint is verified after entering User ID or Card.

- Only User ID or the user fingerprint registered to the card is compared. This is called

1:1 Authentication.

 1:N Authentication (1 to N Identification)

- The user is identified only by the fingerprint.

- The same fingerprint as the input fingerprint is identified among the registered

fingerprints without User ID or Card entered. This is called One-to-N Identification.

 Authentication Level

- As a level used for fingerprint authentication, it is displayed in Step 1 to 9.

Authentication cannot be allowed before the degree of match between two
fingerprints is higher than the set authorization level.

- The higher authentication level may ensure the higher security. But it requires the

relatively high concordance rate. So it high likely to deny authentication when trying
to authenticate.

- 1:1 Level: Authentication level used for 1:1 authentication

- 1:N Level: Authentication level used for 1:N authentication

 Authentication Method

- This refers to various types of authentication methods composed of each combination

of FP(Fingerprint) and RF(Card) and so forth.
Ex) Card or FP: Authenticated by either card or fingerprint

AC-2000 User Guide 4

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

Table of Contents

<Revison History> .................................................................................................... 2

<Glossaries> ............................................................................................................. 3

Table of Contents .................................................................................................... 4

1. Before Getting Started ......................................................................................... 5

1.1. Safety Notes ................................................................................................. 5

1.2. Product Details ............................................................................................ 6

1.3. LED signals displayed during operation ................................................... 6

1.4. Buzzer guide announced during operation ............................................... 7

1.5. How to register and enter correct fingerprint ........................................... 7

2. Product Description ............................................................................................. 9

2.1. Product Features ......................................................................................... 9

2.2. Configuration Diagram.............................................................................. 11

2.2.1. Standalone Use (Access) ................................................................... 11

2.2.2. Connecting the PC server (Access, T&A, Food Service Control) ....... 11

2.3. Product Specification ................................................................................ 12

3. Environment Setting .......................................................................................... 13

3.1. Checkpoints before environment setting ................................................ 13

3.1.1. Run UNIS-B Plus (Mobile App) ........................................................... 13

3.1.2. Add Terminal ....................................................................................... 14

3.1.3. Administrator Menu Entry ................................................................... 15

3.2. User Management ..................................................................................... 16

3.2.1. Add User............................................................................................. 16

3.2.2. Delete User ........................................................................................ 16

3.2.3. Modify User ........................................................................................ 17

3.3. Terminal Configuration ................................ ............................................. 18

3.3.1. Settings via UNIS-B Plus .................................................................... 18

3.3.2. Terminal IP settings via Terminal Finder ............................................. 20

4. How to use the terminal ..................................................................................... 23

4.1. Authentication ........................................................................................... 23

4.1.1. Fingerprint authentication ................................................................... 23

4.1.2. Card authentication ............................................................................ 23

4.1.3. Multi authentication ............................................................................ 23

5. Problem solution ................................................................................................ 24

5.1. When Fingerprint Authentication has failed or pended ......................... 24

5.2. When fingerprint input fails ...................................................................... 24

5.3. When the network connection fails ......................................................... 24

5.4. Successful Authentication but access denied ........................................ 24

AC-2000 User Guide 5

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

1. Before Getting Started

1.1. Safety Notes

 Warning

Do not operate the terminal
with wet hands, and pay
attention not to let any
liquid such as water enter
inside the terminal.
→ Otherwise, malfunction
or electric shock may be
caused.

Keep the terminal away
from inflammables.
→ Otherwise, it may
cause a fire.

Do not disassemble, repair
or remodel the terminal at
your disposal.
→ Otherwise, it may cause
malfunction, electric shock,
or a fire.

Do not allow children to
touch the terminal
carelessly.
→ Otherwise, it may
cause safety accidents of
children or malfunction.

- Non-compliance of safety notes may cause death or serious injury for users.

 Cautions

Do not install the terminal
in a place exposed to direct
sunlight.
→ Otherwise, it may cause
malfunction, deformation
and discoloration.

Do not install the terminal
in humid or dusty places.
→ Otherwise, it may
cause malfunction.

Do not clean this terminal
by sprinkling water, nor
wipe it with benzene,
thinner, and alcohol.
→ Otherwise, it may cause
electric shock or a fire.

Keep the terminal away
from magnets.
→ Otherwise, it may
cause failure and
malfunction.

Keep the fingerprint input
section clean.
→ Otherwise, the
fingerprint cannot be
recognized correctly.

Do not spray insecticides
or inflammables on the
terminal.
→ Otherwise, it may
cause deformation and
discoloration.

Keep the terminal away
from shock or sharp
objects.
→ Otherwise, it may
damage the terminal and
result in malfunction.

Do not install the terminal
in a place where there is
a severe change in
temperature.
→ Otherwise, it may
cause malfunction.

- Non-compliance of safety notes may cause personal injury or property damage for users.

※ We are not responsible for any accidents and damage that may arise from non-

compliance of the information in this manual.

AC-2000 User Guide 6

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

1.2. Product Details

1.3. LED signals displayed during operation

Blue

Power

Blue

On: Normal
Flickering: Under Bluetooth communication

Green

Door

Green

On: Door Open
Off: Door Close

Red

Alarm

Red

Off: Normal
Flickering: Case Open or Pending register the Mobile
Admin App

※ The LED may light on simultaneously in some cases. (Ex. Red and Blue flicker)

Status LED

FP Sensor

Card Input

AC-2000 User Guide 7

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

1.4. Buzzer guide announced during operation

Ppik

When button
or card is
operated

- If the button is pressed or if the terminal reads the card

- If your finger may be released because your fingerprint
has been successfully entered

Ppibik

When failure

If authentication fails or the user’s input is wrong

Ppiririk

When success

If authentication is successful or if the current user finishes
settings

1.5. How to register and enter correct fingerprint

 Correct fingerprint input method

Enter your fingerprint as if you take a thumbprint by using your forefinger if
possible.
The fingerprint cannot be correctly registered and entered only by your fingertips.
The center of the fingerprint should be touched with the fingerprint input section.

 Enter the fingerprint of your forefinger if possible.

When using your forefinger, you can enter your fingerprint correctly and safely.

 Make sure that the fingerprint is unclear or wounded.

Too dry, wet, blurry or wounded fingerprints are difficult to recognize. In this case,
the fingerprint of another finger should be registered.

AC-2000 User Guide 8

UNIONCOMMUNITY Co., Ltd. / 12F, Daemyung Valeon, 127, Beobwon-ro,
Songpa-gu, Seoul, 05836, Republic of Korea

Tel : [phone] , Fax : [phone], E-Mail :[e-mail]
http://www.unioncomm.co.kr

 Precautions subject to your fingerprint status

The availability of the fingerprint may vary depending on your fingerprint status.

 This product consists of a f ingerprint recognition system and cannot recognize

the damaged or unclear fingerprints. They should be registered using a
password.

 If your hands are dry, you can blow your breath on the system to

operate it more smoothly.

 For children, too small or unclear fingerprints may be difficult or impossible to

use. They need to register a new fingerprint every six months.

 For seniors, the fingerprint with too many lines may not be registered.
 It is recommended that you will register more than two fingerprints if possible.
 In order to increase the fingerprint authentication rate, it is recommended to

use six of the ten fingers as illustrated above. (Both thumbs, forefingers, middle
fingers)
