UniGuard UT01 User Manual

UniGuard Technology Limited

GPS/GPRS/GSM Vehicle Tracker

User Manual

UT01

Fast to setup device online via SMS command

A000000,022,104.243.132.242,5500,1,APN

(Call your SIM provider to get correct APN)

UniGuard Technology Limited

- - www.uniguardgps.com

1

1 System Function Introduction

This vehicle tracker has combined GPS and GSM（GPRS）
functions. Location information will be send by SMS or GPRS. You can enquiry
where the vehicle is on Google map and its history. You can control the vehicle the
engine remotely by SMS or internet.

UniGuard Technology Limited

- - www.uniguardgps.com

2

2 Product Description

2.1 Specification

GSM module:

 Band:850/900/1800/1900MHz
 Max RF Output: 33.0dBm±2dBm
 Dynamic Input Range: -15 ~ -102dBm

GPS module:

 GPS chip set: SiRF Star III
 Frequency: L1, 1575.42 MHz
 Number of Channel: 20

Battery:

 Voltage:3.7V
 Charge:<4.2V

UniGuard Technology Limited

- - www.uniguardgps.com

3

 Li-ion: 450mAh

Input Voltage: DC 6~36V

Operating Temperature:-45~65 ℃

2.2 Features:

1. Use Google map, Global free

2. Real-time locating / inquiry

3. SOS button/Power-cut Alarm

4. Listen by telephone

5. E-fence/Over-speed Alarm

6. Compatible original anti-theft

7. Remote control engine

3 Installation Instructions

3.1 Interface

The One side:

1

109876

5432

GPS GSM

RES

UniGuard Technology Limited

- - www.uniguardgps.com

4

No.

Description

No.

Description

1

DC+ (6~36V)

6

GND

2

Extend port0

7

SOS button

3

GND

8

Extend port1

4

ACC

9

Extend port2

5

Engine cut_off control

10

Extend port3

The other side

SIM

MIC

PHONE

LED1 ResetLED2

1、SIM: Port for SIM card
2、PHONE: Connect to Microphone
3、MIC: Connect to earphone
4、LED1: Power light
5、LED2: Status light
6、Reset

UniGuard Technology Limited

- - www.uniguardgps.com

5

3.2 Installation Figure

GPS

GSM

1 2 3 4 5

6 7 8 9 10

ANT

blue

Oil Line

pOff

DC(12V)

Oil Line

blue

SOS

ACC

Extern

Port

GND

DC（12V）

3.3 Installation and Test:

Please test after installation. If you don’t need some functions, you can

disconnect corresponding interface. Please make sure ACC, DC, GND installed

correctly. Otherwise, the device cannot work. Please check the device status

through signal light after power on:

 LED1 is off which indicates there is no power.
 LED2 flashes for one second which indicates GSM registers successfully.
 LED2 flashes three seconds once which indicates GPS is obtaining

orientation

UniGuard Technology Limited

- - www.uniguardgps.com

6

 LED2 is on which indicates work successfully that GSM has registered and

GPS has obtained the orientation.

 If LED 2 is on 0.1 second then off 0.1 second for more than 3 minutes,

please make sure SIM card inserts well. Without SIM card, the device
cannot work.

4 SMS Operation Instruction

SMS Format: A******,cmd,param1,param2…

1. ******is the password, Initial Password is 000000

2. cmd is the command ID.

3. Param is the command parameter. Different cmd use different parameters.
All the parameters must use half-angle symbol. Wrong SMS format or wrong
password, it will not respond.

4.1 Location Inquiry (000/100)

Google Map reply Message format: A******,000

e.g. A000000,000
Reply: http://maps.google.com/maps?q=22.54079,113.93923 09-10-20 17:38:30
Speed:20 you can just open the link from your cell to view the map.

UniGuard Technology Limited

- - www.uniguardgps.com

7

4.2 Change Password (001)

Message format: A******,001,New Password
e.g. A000000,001,123456
Note:000000 is the old password ,123456 is the new password.
Reply: Set Password OK!

4.3 Real-time return setting (002)

Message format: A******,002,XXX
XXX=0 is for STOP, value of XXX is within [15~64800] seconds.
e.g. A000000,002,30
Message replied after successful setting: Set time interval (30) OK! Message
contains position information will be sent in every 30 seconds after successful
setting.

4.4 SOS/Listen Telephone Number setting

Message format: A******,003,P,TelNumber
P=1 is for SOS and listen
P=2 or 3 is the second\ the third listen number.
e.g. A000000,003,1,136xxxxxxxx
Message replied after successful setting: Set Telephone OK!
Keep pressing SOS button for 2 seconds. The device will send emergency SMS
and dial the number you set as SOS number.
Reply: SOS Pos: Longitude E114.04577 Latitude N22.32405 08-10-20

UniGuard Technology Limited

- - www.uniguardgps.com

8

17:38:30,
If you dial with your listen number, it can be connected automatically after the 7th
ring. Then you can listen the voice in the vehicle.

4.5 Over-speed Alarm Setting (005)

Message format: A******,005,XXX
XXX=[000,200] (unit: km/h)XXX=00 is close the function.
e.g. A000000,005,020
Message replied after successful setting: Set Over speed (20) KM OK!
If the vehicle is over speed you set, it will send alarm SMS to SOS mobile number.
20 KM/H Over speed!

4.6 e-Fence Setting(006)

Message format: A******,006,XX
XX =[00-50] (Unit:100m) .
When XX=0, e-Fence is OFF. And the maximum limited value of XX is
50*100=5000m. e.g. A000000,006,10
Reply: Set Distance (1000)M OK! When user is out of the bound region (e.g.
1020m), a prompt message will be sent to the user: 1020m is further than

1000m!

4.7 Cut-off the Vehicle Engine (007)

Message format: A******,007,X

UniGuard Technology Limited

- - www.uniguardgps.com

9

X=0 cut off engine, x=1 resume engine, For security, this command will
execute when the speed less than 20Km / h or the ACC is off.

e.g. A000000,007,0

5 GPRS Communication Settings

5.1 Set APN (APN(Access Point NAME))

Message format: A******,012,APN
Length of APN is limited within 100 characters, E.g:A000000,012,cmnet
“cmnet” is the APN of China Mobile

5.2 Set the IP and Port

Message format: A******,010,IP,PORT
e.g. A000000,010,104.243.132.242,5500

104.243.132.242 is the IP of GPRS_server, 5500 is the port

5.3 Open GPRS function

Message format: A******,011,X
(note: x=1 open GPRS, X=0 close GPRS)

e.g. A000000,011,1
GPRS function will be open, and Vehicle tracker will send data to internet, users
can turn off this function though send SMS: A000000,011,0

UniGuard Technology Limited

- - www.uniguardgps.com

10

5.4 Query the GPRS Setting

If the device can not be see on the internet, you will check the APN/IP/PORT
and the GPRS function of SIM card. You can send message to check the GPRS
setting.
Message format: A******,004
The device will send back GPRS setting parameters. You can check whether the
parameter sets correctly by it.

1. Device ID

2. APN (Please use correct local APN)

3. Server IP address

4. Server port

5.SIM card GPRS open status(0- off ,1- on）

6. Device GPRS connecting status (0- not connected,1- connected)

7. GSM signal value (1~31), if value<10 is too weak to work well

UniGuard Technology Limited

- - www.uniguardgps.com

11

6 GPS tracking system on website

6.1 User Login

Google Map can support many different languages. It can change language

for local language by itself.

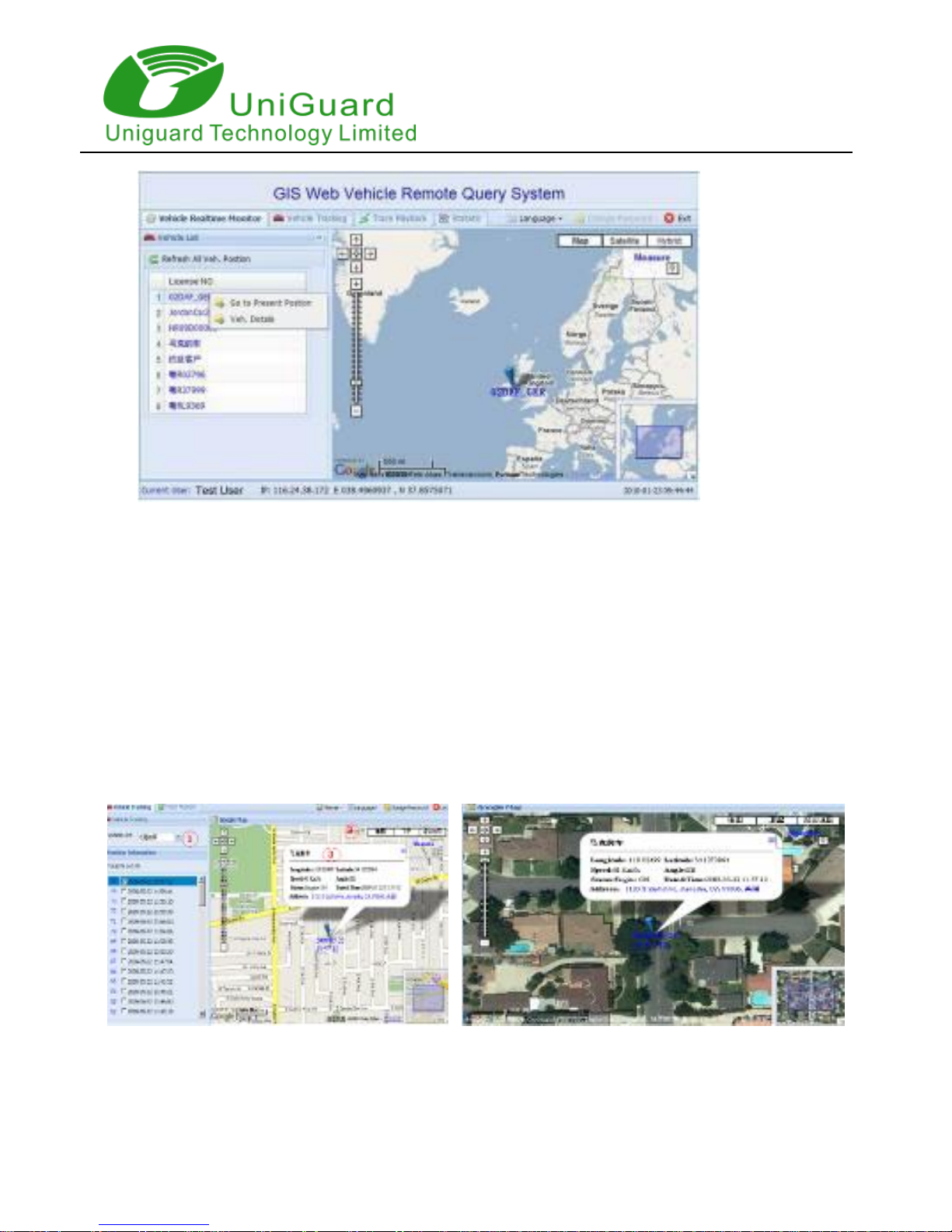

6.2 Vehicle monitoring

Choose vehicle in the vehicle list on the left. Then right-click, it will

show a menu. Choose the menu Go to Vehicle Current Location. If there
are location record of the choose vehicle, it could skip to the latest
vehicle location. If the location is not in the scope of map, the system will
set it in middle automatically and show the Remind message box.

UniGuard Technology Limited

- - www.uniguardgps.com

12

6.3 Vehicle real-time tracking

1 choose vehicle 2 map mode  3.vehicle state, Google map have 3

model: map mode, satellitic mode and Hybrid mode

Map mode satellites mode:

UniGuard Technology Limited

- - www.uniguardgps.com

13

6.4 Vehicle history record playback

Please point run history review page

1 choose vehicle 2 start time  3 inquire time  4.setup review speed
5 start review process you can know that time date , speed , way and distance
sum.
