OpenStage WL3 OpenStage WL3 Plus

User Manual

A31003-M2000-U101-2-7619

Page 2

Our Quality and Environmental Management Systems are implemented according to the requirements of the ISO9001 and ISO14001 standards and are certified by an external certification company.



Reference No.: A31003-M2000-U101-2-7619

The information provided in this document contains merely general descriptions or characteristics of perfo rmance which in case of actua l use do not always apply as described or which may change as a result of further development of the products. An obligation to provide the respective cha racteristics shall only exist if expressly agreed in the terms of contract.

Availability and technical specifications are subject to change without notice.

Unify, OpenScape, OpenStage and HiPath are registered trademarks of Unify Software and Solutions GmbH & Co. KG. All other company, brand, product and service names are trademarks or registered trademarks of their respective holders.



unify.com

Page 3

Contents 3

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Prerequisite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety and Regulatory Instructions . . . . . . . . . . . . . . . . . . . . . . 6

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Regulatory Compliance Statements (EU/EFTA only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Regulatory Compliance Statements 

(USA and Canada only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

WLAN Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Switch the Handset On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Log a Shared Phone On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Turn the Audible Signal On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Lock/Unlock the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Lock and Unlock the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Incoming Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Outgoing Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

In Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Loudspeaking Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Call Diversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Push-to-Talk Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Alarm Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Push-button Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Acoustic Location Signal (ALS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Test Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Man-down and No-movement Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Automatic Call after Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Alarm with Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Short Cuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Page 4

4 Contents

Advanced Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Advanced Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Receive a Message with Request for Answer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Message Queuing and Message Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Colored Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Interactive Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Mobile Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Operation Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Accessibility and Voice Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Maintenance of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Attach the Hinge-type Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Attach the Swivel-type Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Attach Cover for No Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Replacement of Handsets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Short cuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

In Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Customizing the Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Abbreviations and Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Page 5

Introduction 5

Introduction

This document describes features and settings of the WLAN Handset. The WLAN Handset is feature-rich with color display, telephony, and messaging. It is designed to be used in medium demanding environments such as hospital environments, but also in office environments.

The handset is aimed at users that need to be reachable and that need mobile voice and messaging features. This makes it ideal for applications where the user needs either one way messaging or to be able to interact with other users. The color display enhances and simplifies the use of the handset.

All procedures in this document are according to default programmed versions, but additional functions and factory settings are also included as an attempt to cover all functionality.

Some functions are dependent on the PBX and protocol (H.323/SIP) versions, and your system does not support all functions described in this document. For more information about your system, please contact the person (or department) responsible for the system in your organization, or contact your supplier.

There are two versions of the WLAN Handset:

• OpenStage WL3

• OpenStage WL3 Plus with messaging and alarm functions.

WL3 may be upgraded by license to use messaging.

Refer to the Data Sheet for a complete list of licenses. Read chapter "Safety and Regulatory Instructions" on page 6 before using the WLAN Handset.

Prerequisite

Before using the handset, the system administrator must register the handset in the PBX for voice, and in the applicable WSG modules for messaging and the optional central management.

Insert the Battery

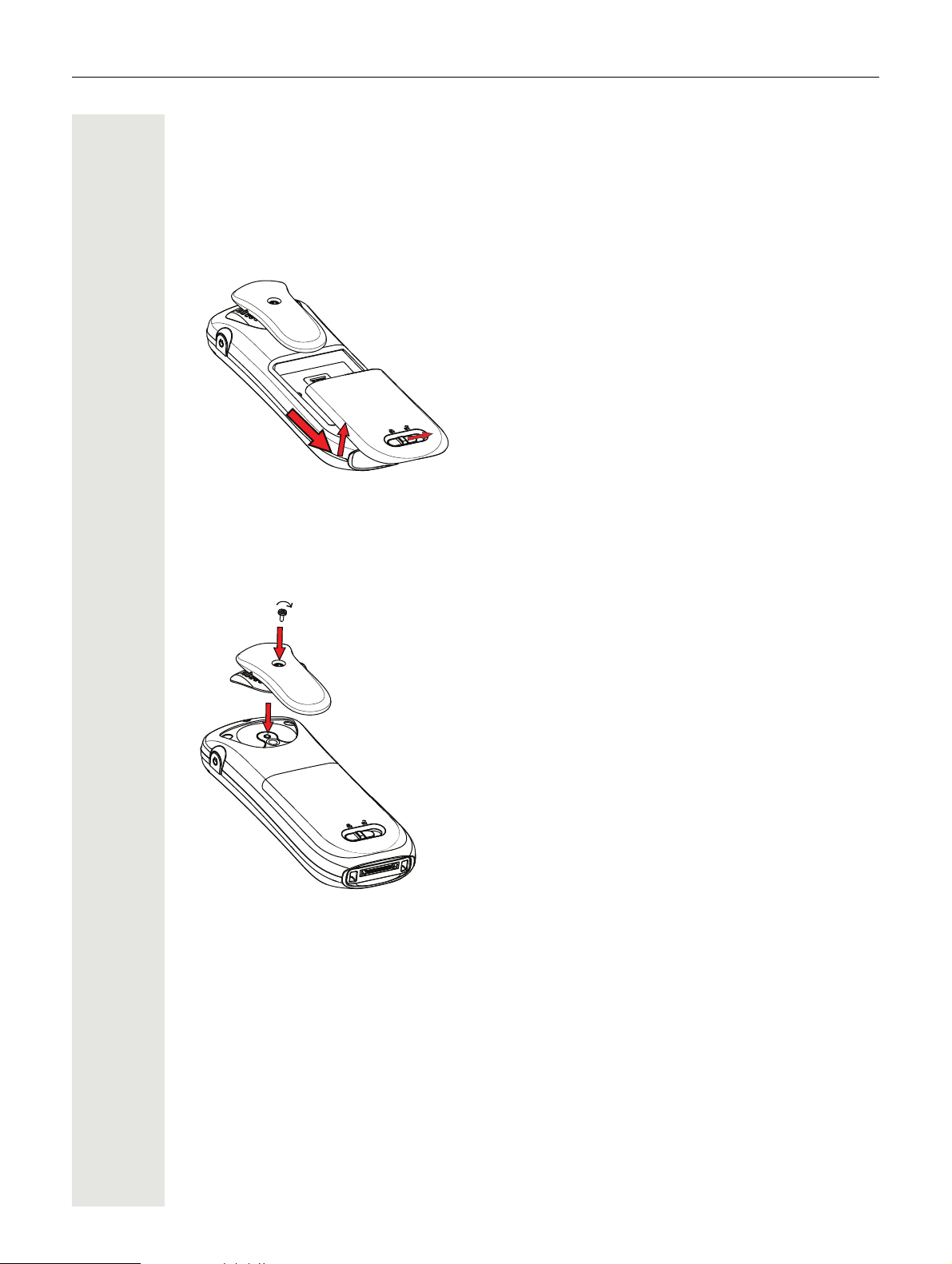

Attach the battery as described in the illustration below. The battery is easy to replace. It is attached inside the battery lid and is connected to the handset in such a way that no improper contact is possible.

Figure 1 Unlock the lid and remove the battery.

You find informationen fro further modification of the WLAN Handset in chapter "Maintenance" on page 63.

Page 6

6 Safety and Regulatory Instructions

Safety and Regulatory Instructions

Read this chapter before using the WLAN Handset.

For safe and efficient operation of the handset, observe the guidelines given in this manual and all necessary safety precautions when using the handset. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, the Quick Reference Guide and the User Manual.

Do not disassemble the handset. Disassembling the handset voids the warranty. The handset consists of no consumer serviceable components. Service should be performed by Authorized Service Center only.

Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This product shall only be used with the following batteries:

• Permitted rechargeable batteries: OpenStage WL3 Lithium-Ion 930 mAh Order number: S30122-X8008-X38

Single chargers shall only be connected with power adapters supplied by the manufacturer.

Available power adapters (Suppliers Designation) are:

• OpenStage WL3 desktop charging unit and power supply unit: European Union, Order number: S30122-X8008-X24

• OpenStage WL3 desktop charging unit and power supply unit: UK, USA, CAN, AUS, Order number: S30122-X8008-X26

• OpenStage WL3 desktop charging unit without power supply unit: Order number: S30122X8008-X27

The Charging Rack shall only be connected with the following power supply:

• 100–240 VAC/0.7A 50/60 Hz.

In Sweden, Norway and Finland a connection to protective earth (safety grounding) must be provided.

Precautions

• Save this manual. It includes important safety information and operating instructions. Save all instructions for future reference.

• Avoid volume levels that may be harmful to your hearing. Exposure to excessive sound pressure from a handset’s earpiece or headset may cause permanent hearing loss.

• The handset may retain small metal objects around the earpiece region.

• Connect AC (power supply) to the Desktop Charger only to designated power sources as marked on the product. Danger: Never change the AC cord or plug. If the plug does not fit into the outlet, have a proper outlet installed by a qualified electrician. Improper connection increases the risk of electric

shock.

• Position the electrical cord to the AC power supply where it is least likely to be subjected to damage or stress.

• Remove the electrical cord from an outlet by pulling gently on the AC adapter, not by pulling the cord.

• Unplug the Desktop Charger from a power source (or remove handset from charger) before cleaning the handset to reduce risk of electric shock.

Page 7

Safety and Regulatory Instructions 7

• Do not use auxiliary equipment with the handset which is not exclusively recommended by the manufacturer, see the User Manual. The use of any auxiliary equipment not recommended by the manufacturer may result in fire, electric shock, or injury, and will void the warranty.

• Do not expose the handset to open flame.

• Do not expose the handset and/or the charger to direct sunlight for long periods. Keep the handset and/or charger away from excessive heat and moisture.

• Do not allow heavy objects to fall on the handset.

• Do not allow children to play with the product packaging material. Product packaging material is often small and may present a choking hazard.

• Do not allow children to play with the handset. It is not a toy. Children could hurt themselves or others. Children could also damage the handset.

Frequency Range

The handset is a radio transmitter and receiver. When it is on, it receives and sends out radio frequency (RF) energy. The handset operates on different frequency ranges depending on market and employs commonly used modulation techniques:

EU (ETSI):

USA/ Canada (FCC):

b/g: 2400–2483.5 MHz (Ch 1–13) and a: 5150–5350 MHz (Ch 36, 40, 44, 48, 52, 56, 60, 64), 5470–5710 MHz (Ch 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140) b/g: 2400–2483.5 MHz (Ch 1-11) and a: 5150–5350 MHz (Ch 36, 40, 44, 48, 52, 56, 60, 64), 5470–5710 MHz (Ch 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140), 5725–5875 (Ch 149, 153, 157, 161, 165)

Page 8

8 Safety and Regulatory Instructions

Regulatory Compliance Statements (EU/EFTA only)

This equipment is intended to be used in the whole EU & EFTA. This equipment is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC and 2009/125/EC (Eco Design).

The Declaration of Conformity may be obtained from your installer.

The handset is marked with the label

Restrictions for Wireless LANs (EU/EFTA and USA/Canada)

Frequency Band (MHz) and Channel

2400–2483.5 Ch 1–13 100 X 5150–53501 Ch 36–64 5470–57251 Ch 100–140 1000 X

1 Dynamic Frequency Selection and Transmit Power Control are required in the 5250 to 5350 MHz and 5470 to

5725

MHz frequency range.

Max Power Level (EIRP)(mW)

200 X

Indoor ONLY Indoor and Out-

door

Additional National Restrictions

Always consult local authorities for the latest status of National Regulations for both 2400 and 5000 MHz wireless LANs.

Regulatory Compliance Statements  (USA and Canada only)

FCC ID: BXZWH1 IC: 3724B-WH1 US: 9FVIPNANWH1 HAC

FCC and IC Compliance Statements

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B conforme á la norme NMB-003 du Canada.

Privacy of communications may not be ensured when using this handset.

Page 9

Safety and Regulatory Instructions 9

Exposure to Radio Frequency Signals

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with FCC SAR limit of 1.6 W/kg. The maximum SAR value measured when used at the ear is 1.38 W/kg. The telephone has also been tested when worn on the body using belt clip. The maximum measured SAR value in this configuration is 1.16 W/kg. This device must not be co-located or operating in conjunction with any other antenna or transmitter.

Use of non-approved accessories may violate the FCC and IC guidelines for RF exposure and should be avoided.

Information to User

This device complies with Part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux règles FCC partie 15 et aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage, et

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Environmental Requirements

WLAN Handset

• Only use the handset in temperatures between

-5 °C and +45 °C (23 °F and 113 °F).

• Avoid exposing the handset for direct sunlight or close to other heat sources.

• Do not expose the handset to open flame.

• Keep the handset away from excessive heat and moisture.

• Avoid sudden temperature changes to prevent condensation in the handset. It is recommended to put the handset into an air tight plastic bag until the temperature is adjusted, for example, when entering or leaving a cold/heated building on a warm/cold day.

• Protect your handset from aggressive liquids and vapors.

• If the handset has been exposed for water or condense, remove the battery immediately and let it dry completely before re-inserting the battery.

• Keep the handset away from strong electromagnetic fields.

• Do not place a cold handset in a charger.

Chemical Resistance

The alpha and numeric characters printed on the exterior of the handset have been tested and found resistant to chipping, fading or wearing off when the handset is treated with common cleaners and disinfectants or perspiration. The following chemicals have shown no harmful effect:

•3 % Hydrochloric Acid

• M-alcohol (70 % Methylated Ethanol)

Page 10

10 Safety and Regulatory Instructions

•60 % Chlorhexidine 0.5 mg/ml

• Acetone can be damaging to the plastic casing of the handset and should not be used.

Battery

• Do not immerse the battery into water. This could short-circuit and damage the battery.

• Do not expose a battery to an open flame. This could cause the battery to explode.

• Do not allow the metal contacts on the battery to touch another metal object. This could shortcircuit and damage the battery.

• Do not leave a battery where it could be subjected to extremely high temperatures, such as inside a car on a hot day.

• Use the Desktop Charger or the wall-mounted Charging Rack for charging. Charge the battery for at least one hour the first time you use the battery. Note that the wall-mounted Battery Pack Charger has to be used if the battery alone is to be charged.

• Do not charge a battery when the ambient room temperature is above 40 °C or below 5 °C (above 104

• Do not attempt to take a battery apart.

• Do not disconnect the battery unless it needs to be replaced.

• Power off the handset before removing the battery.

Battery Disposal

°F or below 41 °F).

Defective batteries must be returned to a collection point for chemical waste disposal.

Page 11

Description 11

Description

WLAN Handset

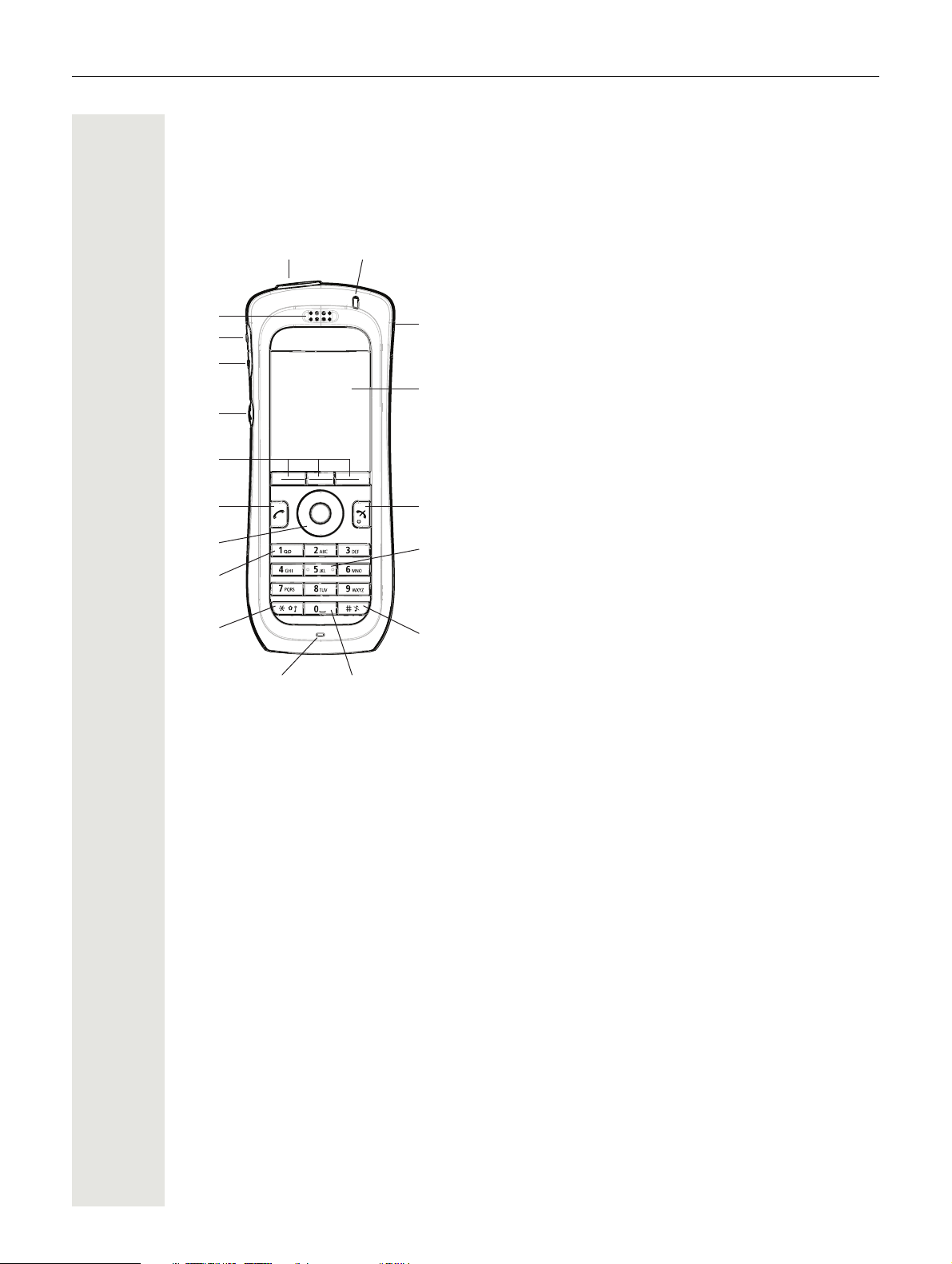

Figure 2 The WLAN Handset.

1 Multifunction1/Alarm button

This button can be used as a short cut to functions. The button has two modes, long mode or double press mode. In the WL3 Plus, the button is used as an alarm push button only. See

"Define Multifunction Button" on page 47 and "Push-button Alarm" on page 31. 2 Earpiece speaker 3 Volume button (up)

To increase the earpiece speaker, headset, and the loudspeaker volume.

4 Volume button (down)

To decrease the earpiece speaker, headset, and the loudspeaker volume.

5 Mute and PTT button

To turn on/off audible signals in standby mode, or silence the ring signal for an incoming call. During a call, a long press on the button changes between microphone on/off. This but ton has the same function as (13) Sound off key.

To open the microphone during a Push-to-Talk (PTT) group call. The microphone is open as long as the button is depressed.

6 Soft keys

The three Soft keys can be pre-programmed, see "Define Soft Keys" on page 45, or used with the GUI. The function of each Soft key is indicated by text in the display just above the keys.

7 Call key

To answer a call, to pre-dial a number, and used as a short cut to the Call list.

Page 12

12 Description

8 Five-way navigation key

Navigation key with Left, Right, Up, Down, and Confirmation (in the middle). It is also possible to program these keys for short cuts, except the middle key. The Up is by default a short cut to the Inbox, and Down is a short cut to Call contact. See also Key" on page 46.

9 Voice mail access

A quick access to the handset’s Voice mail by long press. See also "Voice Mail" on page 59.

10 Key lock and upper/lower case

Combined key lock to lock the keypad and upper/lower case. This key locks the keypad in combination with the soft key “Lock”. This key also switches between upper/lower case and

digits. 11 Microphone 12 Space

To add space between text. 13 Sound off key

To turn on/off audible signals in standby mode, or silence the ring signal for an incoming

call. During a call, a long press on the key/button changes between microphone on/off. This

button has the same function as (5) Mute button. 14 Tactile indicators

There are two tactile indicators to indicate the center of the key pad. 15 End key and On/Off

Combined button; to end a call, to return to standby mode, and to switch the handset on/off

by long press. 16 Color display

The full graphic type display is 176 pixels wide and 220 pixels high. The display has multiple

colors and backlighting. 17 Headset connector

The headset connector is used to connect a headset. It is protected against dust by using

the headset connector cover. 18 LED

Indicates incoming call, messaging, low battery, and charging.

1 This feature is system dependent.

"Define Navigation

Case

The plastic cover parts are made of durable PC/ABS material.

The WLAN Handset has the enclosure protection IP44, and fulfills IEC 60068-2-32, procedure 1, which makes it drop proof from 1 meter onto concrete. Ascom approves 12 drops from 1.5 meter.

Antenna

The antenna is integrated inside the handset.

Display

The display is an illuminated 28 x 35 mm, TFT display.

Keypad

While not in use, the keypad should be locked to prevent accidentally pressing a key.

Page 13

Description 13

Loudspeaker

The handset has a separate loudspeaker for the loudspeaking function. It is placed on the back side of the handset.

Microphone

The microphone is placed on the front bottom side of the handset.

Clip

There are two different belt clip options for the handset; a hinge-type clip (standard), and a swiveltype clip. See "Troubleshooting" on page 66 or "Attach the Swivel-type Clip" on page 65. Use the clip to attach the handset to a pocket, belt, or similar. It is also possible to use the handset without any clip on, see "Attach Cover for No Clip" on page 65.

Battery

The battery is a rechargeable Li-Ion battery, placed under a battery cover. See "Replace the Battery" on page 64.

The battery is fully charged within 2.5 hours. See "Charge the Battery" on page 63.

The battery can be charged separately with a special battery rack charger. See "Charge Spare Batteries" on page 63.

Page 14

14 Description

Alphanumeric Keys

Figure 3 Available characters.

. , ? ! - ‘ ” 1

g h i î ï 4

p q r s 7

a b c à â æ ç 2

Space + * 0

d e f é è ê ë 3

j k l 5

m n o ñ ô ö œ 6

w x y z 9

t u v û 8

Depending on the selected menu language, other characters are also available. This means that the character order can differ from the figure above.

In idle mode, and number input mode

• A short press on a key enters the digits “0”–“9” and the characters and #.

• A long press on 0 enters the character + (used, for example, to enter an international number), if the hot key function on key 0 is deactivated, see

"Define Hot Keys" on page 46.

• Enter a pause in number input mode by a long press on the *-key. A pause is indicated by a “P” in the display.

In text input mode

• A short press on a key 0–9, displays the first available character on that specific key. The marked character is selected after a timeout, or when another key is pressed.

• To change to upper/lower case, press the -key before entering the character.  A short press on the -key can also be used to display only the digits.

• To add space in the text, short press key 0.

• The first character entered in a message or when adding/editing a name in the Contacts menu, is an upper level character followed by lower level characters, unless the *-key is pressed be fore entering the character. To switch between “Abc”, “ABC”, “abc”, and “123”, press the -key.

• A long press on the #-key displays special characters.

• A long press on the -key changes the language used while entering text. It is possible to enter specific characters, like for example Å, Ä, Ö, during a Central Phonebook search, or when writing a message, if “Writing lang.” is changed to “Svenska”. Depending on the current writing language, other language characters can be chosen.

Hot Keys

Any key “0”, “2”–“9” can be set to a Hot Key. A long press on any of these numbers in idle mode is by default a short cut to the Call contact list. The list is in alphabetic order, and depending on which key that is pressed is dependent on where in the list the contact appears.

A Hot Key can be programmed to give access to frequently used functions such as dialing a specific number, a short cut on the menu, or sending a message. See "Define Hot Keys" on page 46.

Page 15

Description 15

Icons and Text in the Display

The icons and text in the display indicate functions and settings that the user has access to. The display shows the date and time, the Owner ID, and handset number. The Owner ID can be set by the user manually.

Figure 4 Example of a display configuration in idle mode.

11:00

05/17/2011

Marie Curie

1234

Status bar

Header bar

Active area

Scroll bar

Soft key bar

The top row (Status bar) is used for icons that provide the user information about signal strength, missed call, new message, phone lock, key lock, sound off, time and battery status. This row is always visible in all screens.

The next row (Header bar) displays the current date, headset connection, and profile. During a call, this row also displays microphone on and loudspeaker on.

The next rows (Active area) are used for user identity provided from the system and/or an Owner ID can also be displayed if configured in the Settings menu. This is also the area for dialog window text, for example “missed calls” or to confirm an action.

The bottom row (Soft key bar) is used for Soft keys that can be used as short cuts for functions in the handset.

The (Scroll bar) is placed to the right of the “Active area”. It becomes visible when a menu screen has more than six menus, or if the complete text in a message cannot be displayed on the screen simultaneously.

Icons

“Signal strength” icon is visible in the upper left corner. The staples shown in display depends on the signal strength.

“Full battery” icon is displayed in upper right corner.

“Low battery warning” icon is shown when the battery has 10% or lower of its capacity left.

“Empty battery warning” icon is flashing when the battery has 5% or lower of its capacity left.

“Microphone off” icon indicates a silenced microphone. It is displayed after a long press on the Sound off key or Mute button during a call.

“Loudspeaker on” icon is displayed in the soft key bar during an incoming call. Pressing this icon turns the loudspeaker on. The icon remains in the header bar during the call as long as the loudspeaker is on.

“Loudspeaker off” icon.

“Sound off” icon is displayed when the Sound off key or Mute button is pressed in idle mode.

“Silent volume” icon is displayed when the volume is set to “Silent”.

“Headset connected” icon indicates that a wired headset is connected to the handset.

Page 16

16 Description

“New message” icon or “Interactive message” icon indicates that a new text message (or messages) has arrived. The icon remains in the status bar until all new messages in the inbox are read.

“New message with request for answer” icon in front of a message indicates that the message must be acknowledged or rejected.

“New message, important” icon indicates high priority of a message.

“New message, alarm priority” icon indicates alarm priority of a message.

“Voice mail” icon is displayed in the status bar when there are voice mails. The icon remains until the voice mail is listened to.

“Read message” icon or “Read Interactive message” icon in front of a message shows that this message has been read once.

“Sent message” icon

“New colored message” icon indicates that a new colored text message(s) has arrived. The messages can be labeled with different colors.

“Read colored message” icon indicates that a colored text message(s) is read. The messages can be labeled with different colors.

“Man-down“ icon indicates that the Man-down alarm is enabled. “No-movement“ icon indicates that the No-movement alarm is enabled.

“Profile active” icon.

“Missed call” icon is added to all missed calls in the call list.

“Incoming call” icon is added to all answered calls in the call list.

“Outgoing call” icon is added to all outgoing calls in the call list.

“Call diverted internally” icon is added to all internally diverted calls in the call list.

“Call diverted externally” icon is added to all externally diverted calls in the call list.

“Missed call” icon indicates missed calls in the status bar.

“Connected call” icon indicates an ongoing call. “Call on hold” icon indicates a paused call. “Call diverted internally” icon indicates that all calls are diverted to another internal hand-

set. “Call diverted externally” icon indicates that all calls are diverted to another external

handset. “To contacts” icon indicates a soft key function that opens the contact list.

“Secure call” icon indicates a secure voice connection during a call

“Non-secure call” icon indicates a not secure voice connection during a call

“Locked keypad” icon indicates a locked keypad.

“Locked entry” icon indicates that the contact cannot be edited or deleted by the user, for example, an entry in the company phonebook.

“Locked handset” icon indicates a locked handset.

“Do not disturb” icon indicates a handset that does not want to be disturbed.

Page 17

Description 17

Handset with WL3 Plus license including Personal Alarm.

Handset with WL3 Messaging license.

Menu Icons

The “Contacts” menu contains all names/numbers in the local phonebook. In addition, a company phonebook with up to 1000 entries can be downloaded to the phone using the Device Manager. It is also possible to access a central phonebook1 from the “Contacts” menu.

The “Services” menu contains short cuts to services such as phone calls, data send, and PTT calls.

The “Messaging” menu contains messages handling functions, such as reading and writing messages.

The “Calls” menu contains Call list, Missed calls, Diverted Calls1 and Call Services, such as, Call waiting, Divert calls1, Do not disturb1, and Hide calling ID.

The “Connections” menu contains Headset selection, Network selection, and In charger selection.

The “Settings” menu contains personal handset settings such as ringer volume, language, etc.

The “Short cuts” menu contains shortcuts for the Soft keys (of the active profile), Hot keys, Navigation keys, and the Multifunction button (if applicable).

The “Profiles” menu contains the possibility to add/select up to four additional profiles with individual settings for incoming calls and their ring signals and volume, message alerts, vibrating alerts, key sound, answer behavior, diversion etc. This menu also con tains the complete list of added Soft keys. By default, the “Normal” profile is active.

1 This feature is system dependent.

Page 18

18 Description

Accessories

Desktop Charger

Figure 5 Desktop Charger for WLAN Handset

There is one desktop charger available, (DC3) which charges the handset. There is also a desktop programmer (DP1) used to download new software and to synchronize parameters. They look the same except that the DP1 has a USB connection. The handset is fully operational while placed in the charger.

The charger is delivered with a plug-in power supply, and is connected to an ordinary wall socket.

Only use the charger within the temperature range of +5° C – +40° C. Only use the power supply provided.

Rack Charger

The rack charger is used to charge up to six handsets at the same time.

For further information please have a look at the supplied documentation.

Battery Pack Charger

The battery pack charger (CR4) is used to charge up to six spare batteries.

For further information please have a look at the supplied documentation.

Clip

It is possible to use the handset without any attached clip, see "Attach Cover for No Clip" on page 65.

The belt clips cannot be used if the handset is placed in a case. See "Leather Casing" on page 19 for more information.

There are two belt clips available:

• Hinge-type clip To prevent the handset from slipping out of, for example, a pocket or belt, see "Troubleshooting" on page 66.

• Swivel-type clip To be able to rotate the handset without slipping out from, for example, a pocket or belt, see "Attach the Swivel-type Clip" on page 65.

Page 19

Description 19

Security Cord

The security cord is 800 mm long. It is attached directly to the handset.

Leather Casing

The leather casing is specially designed for the handset. The casing comes with a swivel type belt clip, and the handset is fully operational while it is placed in the casing.

Headset

A headset is recommended if the handset is frequently used and/or if the user wants to have both hands free. The headset comes in three versions; microphone integrated in the cable, or microphone on a boom, and hearing protection. It is also possible to use any headset with a 2.5 mm connector and configure parameters for the headset using the user’s headset profile.

To achieve optimal audio quality with the different headset types, it is recommended to select the corresponding headset profile. See "Headset" on page 56 for more information.

Page 20

20 Basic Operation

Basic Operation

For information on how to answer/end a call, see "Incoming Call" on page 23.

Switch the Handset On/Off

Switch the Handset On

1. Press and hold the End key . When pressing the End key, the display lights up.

Switch the Handset Off

The handset must be in idle mode. While in a menu, press the End key to return to idle mode.

1. Press and hold the End key .

2. A control question “Switch off?” is displayed. Confirm by pressing “Yes”.

Log a Shared Phone On/Off

The feature shared phone allows more than one user to use a handset. All parameters and settings that are set in the Device Manager are loaded to the handset upon logon. Parameters that are changed in the handset by a user that is logged in, are stored by the Device Manager. When the handset is logged out or switched off, the message list and call list in the handset disappears and is empty when a new user logs on to the handset.

The handsets are configured to be shared using the Device Manager. When a handset is configured to be a shared phone, it can be used by any shared phone user in the system. The user profile must have the phone mode “Personal” disabled in the WinPDM. If the user is configured as personal (that is not shared), the handset becomes a personal phone upon first log on.

Log On to the Handset

1. Switch the handset on.

2. Enter the Call ID.

3. If required, enter the password. Navigate by using Up and Down on the Navigation key.

4. Press “Login”.

If the handset does not find the WLAN upon start-up, a “No system” dialog window is shown together with a beep tone and/or vibrator, if enabled. When the dialog window is acknowledged, a “No Network” screen is shown. If the handset does not receive an IP address from the system, a “No Access” screen is shown.

Log Off from the Handset

The handset must be in idle mode. While in a menu, press the End key to return to idle mode.

1. Press and hold the End key .

2. A control question “Log off?” is displayed. Confirm by pressing “Yes”.

Page 21

Basic Operation 21

If a handset is shared and one of the users logs off the shared phone, the lock that prevents the handset from unauthorized use is deactivated. For additional information, see "Lock and Unlock the Handset" on page 22.

Turn the Audible Signal On/Off

The handset must be in idle mode. While in a menu, press the End key to return to idle mode.

A long press on the Sound off key or Mute button changes between ring signal on/off. The icon indicates a silent handset.

Page 22

22 Basic Operation

Lock/Unlock the Keypad

To prevent accidentally pressing keys and making a call, the keys can be locked.

Lock Keypad

1. Press .

2. Press “Lock”.

Unlock Keypad

1. Press .

2. Press “Yes”.

An incoming call can be answered and the alarm button can be pressed while the keypad is locked. If configured in the WinPDM/Device Manager, an emergency call can also be made while the keypad is locked. Please contact your administrator to get support.

Lock and Unlock the Handset

The handset can be locked to prevent unauthorized use. If this function is activated, a PIN code has to be entered, for example, to switch on the handset, to answer an incoming call etc. The default phone lock code (0000) can be changed to any 4–8 digit personalized code.

1. Press “Menu”.

2. Select “Settings” .

3. Select “Locks”.

4. Select “Phone lock”.

5. Select “Auto phone lock”.

6. Select “On”, “On in charger”, or “Off”.

7. Enter PIN code. If a user forgets the PIN code, it can be reset by the system administrator.

If configured in the WinPDM/Device Manager, an emergency call can be made while the handset is locked. Please contact your administrator to get support.

Page 23

Calling 23

Calling

Incoming Call

The flashing LED, accompanied by a ring signal and/or a vibrating handset signals a call. Ring signal and vibrator can be disabled, see "Sound and Alert Settings" on page 48. The calling party’s handset information or name is shown. The local phonebook name is displayed if the calling party’s handset number is stored in the local phonebook, else the calling name or calling number is shown.

When a headset is connected to the handset, the headset button can be used to answer the call. In addition, it is possible to configure the headset button with a specific function, such as dial last called number, or dial a predefined number. Please contact your administrator to get support.

Other answering keys and methods can also be set in the Settings menu. For example, it is possible to set the answering behavior to any key (with exceptions). The answering methods are; Automatically, Loudspeaking, and Quick answer.

When “Automatically” is enabled, all incoming calls are connected automatically. At “Quick answer”, the call is connected by lifting the handset out of the charger. See "Answering" on page 53.

Answer a Call

When the signal sounds, press , “Accept” on the left soft key, or press to answer the call in loudspeaking mode. The name/number of the calling party is displayed, if calling line information is available.

Secure voice transmission

The secure voice transmission must be activated by the administrator.

If you call a party or receive a call from a party over a secure connection, the “Secure call” icon

, appears up left in the display. A non-secure call transmission is indicated by the “Non-secure

call” icon .

End a Call

A press on the End key or the right Soft key “End” ends the call. The duration of the call is shown in the display.

Page 24

24 Calling

Outgoing Call

Pre-Dial

Enter the number and press or the soft key “Call” to get the line. The number is shown on the display while dialing. If needed, press “Clear” to erase the number. By using the Navigation key, it is possible to step and add/delete a digit in a number.

An international number can be dialed from the handset by entering a + character followed by the country code and local number. To enter the + character, long press the 0 key until the character is shown in the display.

The + character cannot be entered and international numbers cannot de dialed this way, if the 0 key has been configured as a hot key, see "Define Hot Keys" on page 46.

Dial Using a Pre-Programmed Key/Button

Some keys and buttons can be programmed with a number, as described in "Short Cuts" on page

45.

Press the pre-programmed key/button to dial the number. The call is automatically connected.

Dial a Number from the Call List

It is also possible to dial a number from the Call list by pressing the Call key , selecting a number from the list, and then pressing “Call” or the Call key .

1. Press “Menu”.

2. Select “Calls” .

3. Select “Call list”.

4. Select a number.

5. Press or the soft key “Call” to dial. The number can be edited before the call is dialed. Press “More” and select “Edit number”. The 25 last received, dialed, or missed calls are stored in a call list. See

Dial the Sender of a Message

It is possible to call the sender of a message stored in the message list.

1. Open the menu by pressing the “Menu” soft key.

2. Select “Messaging” .

3. Select “Inbox”.

4. Select message in the message list.

5. Press “View”.

6. Press “More”.

7. Select “Call sender”.

"Calls" on page 67.

Dial a Number from the Local Phonebook

1. Open the menu by pressing the “Menu” soft key.

2. Select “Contacts” .

1. Applicable to WL3 Messaging and WL3 Plus only.

Page 25

Calling 25

3. Select “Call contact”.

4. Select contact from the list, or search name/number by entering characters in the search field.

5. Press “Call” or to make the call. TIP: Use the Navigation key Down in the Idle mode to open the local phonebook.

Dial a Number from the Company Phonebook

1. Open the menu by pressing the “Menu” soft key.

2. Select “Contacts” .

3. Select “Call contact”.

4. The local and company phonebook appears in the same list but the company names are indicated by a “Locked entry” icon in front of the name. Select contact from list, or search name/ number by entering characters and select search.

5. Press the soft key “Call” or to make the call.

Dial a Name from the Central Phonebook

1. Open the menu by pressing the “Menu” soft key.

2. Select “Contacts” .

3. Select “Central phonebook”.

4. Select “Search by name”.

5. Enter the first name and/or last name. The whole name does not have to be entered. TIP: When searching for a contact, adding or editing a contact, it is possible to change the lan-

guage by a long press on the *-key. This can be used to access characters in a foreign language.

6. Press “Search”.

7. Select the name to call from the list.

8. Press “Call”, or to make the call.

In Call

Some of these functions are system-dependent. Additional In call functions can be added by the administrator. Please contact your administrator to get support.

Adjust Volume During Call

Press to increase the volume, and to decrease the volume. The handset now stores and maintains the new volume level.

Turn Microphone On/Off During Call

If configured in the Device Manager, it is possible to make an emergency call while the handset/keypad is locked. During the ongoing emergency call, the soft key “More” is disabled.

1. Press “More” during the call.

2. Select “Microphone off”.

3. Press “Select”.

1. This function is system dependent.

Page 26

26 Calling

The icon indicates a muted microphone. This means that the other party in an ongoing call cannot hear you. To turn the microphone back on, do as follows:

1. Press “More” during the call

2. Select “Microphone on”.

3. Press “Select”.

It also possible to turn the microphone off/on by a long press on or .

Start New Call During Conversation

If configured in the Device Manager, it is possible to make an emergency call while the handset/keypad is locked. During the ongoing emergency call, the soft key “More” is disabled.

1. Press “More” during the call.

2. Select “New Call”. The first call is automatically put on hold.

3. Press “Select”.

4. Enter the number or pr press to access the phonebook.

5. Press , or “Call”.

Switch Between Calls

To switch between two ongoing calls:

1. Select the call on hold using the Navigation key.

2. Press the left soft key “Retr.”. The retrieved call is indicated with . The call on hold is indicated with .

End Call

Prerequisite: A new call has been started during the conversation, see "Start New Call During Conversation" on page 26.

1. Select the call to end by using Up and Down on the Navigation key.

2. Press the right soft key “End”. The selected call ends.

3. If needed, press the left soft key “Retr.” to resume the remaining call.

Transfer Call

Prerequisite: There are two ongoing calls.

1. Select the call on hold using Up and Down on the Navigation key.

2. Press “More”.

3. Select “Transfer to”. The two calls are connected. “Transferred” is displayed and the handset enters idle mode.

Transfer to New Call

Prerequisite: There is one ongoing call.

1. Press “More” during the call.

2. Select “Transf. to new”.

3. Press “Select”.

Page 27

Calling 27

4. Enter the number to which the other party will be connected. It is also possible to make a phonebook lookup book.

5. Press “OK” or to transfer the call.

to select a contact in the local phonebook and the company phone-

Conference Call

Prerequisite: A new call has been started during the conversation, see "Start New Call During Conversation" on page 26. Invite a call to the conference as follows:

1. Step to the call on hold (indicated with ) with the five-way Navigation key. Press “More” during the call.

2. Select “Conference”. Now the two dialed persons are in a conference call with the person who initiated the call. (An ongoing call is indicated with

The person initiating the conference call is the conference leader, and the other persons are participant members of the conference call.

If desired, either of the persons in the ongoing conference call can be put on hold by the conference leader, by selecting the soft key “Hold”. The person on hold is invited to the conference call again, by selecting “More” and “Conference”. (“Retr.” toggels between the two calls.)

TIP: The conference leader can return to idle mode and let the other two parties continue the conversation by pressing the left soft key “Hold” for one call and then select the soft key “More” and “Transfer to name”.

If you already are involved in a secure connection with a party when you initiate a consultation call, the original party is placed on hold. The new consultation connection can either be secure or non-secure. The entire conference is non-secure if any connection is non-secure. The relevant icon appears on each of the handset displays, see "Answer a Call" on page 23.

Hold Call

1. Press the soft key “More” during the call.

2. Select “Hold” to put the call on hold.

To retrieve the held call:

1. Press the left soft key “Retr.”.

Call Back

When a call is made to a busy handset, it is possible to automatically call back when the busy handset is free. Do as follows:

1. When a busy tone sounds, “User busy. Order callback” and the soft keys “Yes” and “No” are displayed.

2. Select “Yes” if it is desired to call the person back automatically.

3. When the handset alerts, press and the call is automatically started.

Page 28

28 Calling

Call Waiting

During an ongoing conversation, when a short two-beep tone sounds and the Incoming call dialog window appears, do as follows:

1. Press “Accept” to answer the other call (the first call is put on hold), or press “Decline” to reject the call (which is indicated as missed call). The call on hold is indicated with , and the ongoing call is indicated with . Use the soft

key “Retr.” to switch between the calls.

Loudspeaking Function

There are two ways to activate loudspeaking:

• When receiving a call, press the middle soft key .

• During a call, press the left soft key .

To turn off loudspeaking, press the left soft key .

This function can also be activated by selecting the answering method “Loudspeaking”. See "Answering" on page 53.

Page 29

Calling 29

Call Diversion

All calls; internal calls, external calls, calls when busy, or calls at no answer can be diverted to another handset number. The diversion is made via the Divert calls menu. See "Call Diversion" on page 36 or edit the Profile, see "Edit Profile" on page 41.

It is also possible to program a Soft key, Hot key, or Multifunction “Call diversion” menu. Refer to "Short Cuts" on page 45, and"Divert All Calls" on page 36.

Depending on if the SIP or H323 protocol is used, the Call Diversion differs when the handset is out of range of the VoWiFi network. Using the SIP protocol, the Call Diversion function is managed by the handset and the Call Diversion does not work until the handset is within range again. Using the H323 protocol, the Call Diversion function is managed by the PBX and is available in the handset, even if it is out of range. The protocol used can be viewed in the Administration menu in the Device Manager.

button with a short cut to the

Push-to-Talk Group Call

Push-to-talk (PTT) provides instant voice connectivity to a group of persons. Push-to-talk is a oneway (half-duplex) communication. When a person wants to talk, he presses and holds down the button. Letting go of the button gives another person the opportunity to push-to-talk.

In order to participate in the conference, the group members must accept an invitation received as a text message, see "Accept a PTT Invitation" on page 29.

If a member declines an invitation, the member can re-join the group/conference later on, see "Rejoin a PTT Group" on page 30.

A user can also invite a group of members to participate in a conference call by calling a PTT group, see "Call a PTT Group" on page 30.

PTT group(s) must be defined in the Device Manager, and Messaging Group(s) in the Configuration tool (WSG), to be able to use this function. Please contact your administrator to get support.

TIP: Set the automatic key lock to “On”, if it is desired to have key lock during an ongoing call, see "Activate the Automatic Key Lock" on page 49.

Accept a PTT Invitation

A PTT invitation is viewed the same way as an ordinary message. The message can contain up to 255 characters.

Figure 6 Incoming PTT invitation

12:34

Fire alert in building A...

1. Press “Accept”. The handset can accept the invitation automatically, start in mute mode, and start in loudspeak-

ing mode, depending on the configuration of the received invitation.

1. Applicable to WL3 and WL3 Messaging only.

2. Applicable to WL3 and WL3 Messaging only.

Reject

Page 30

30 Calling

When the invitation is accepted, you can delete or close the invitation by clicking the soft key “Delete” or “Close”, respectively. The call is not disconnected when clicking these soft keys. The soft key “Re-join” is used for re-joining a group only.

2. Press and hold to open the microphone for transmitting. The microphone is muted again when is released.

Decline a PTT Invitation

Press “Reject” to decline the invitation. The handset returns to the previously shown screen. See also "Re-join a PTT Group" on page 30 for more information.

Re-join a PTT Group

If you received a PTT invitation but rejected it, you can dial the PTT group by selecting the message in the Message inbox, and then press the soft key “Call”. See figure 6 on page 29.

Call a PTT Group

To call a PTT group, you must first connect a service or a short cut to a PTT group, see "Services" on page 45 and "Short Cuts" on page 45. Then you call the PTT group by selecting that service or short cut.

Page 31

Alarm Operation 31

Alarm Operation

The following system dependent features are applicable to WL3 Plus WLAN Handset only.

If a shared phone is used, it must be logged in to the system to be able to send alarm. See "Log a Shared Phone On/Off" on page 20.

Push-button Alarm

Press the red alarm button twice within two seconds to activate the alarm. An information text is displayed, default “Personal alarm” is displayed. The alarm is sent to the alarm central that distributes it further. After that the handset returns to stand-by mode. Note that you can always trigger the alarm when you are speaking, editing your settings, or while the handset is locked.

Acoustic Location Signal (ALS)

An alarm can be followed by an Acoustic Location Signal (ALS). The ALS is a signal from the handset that sounds for a predefined period of time. Press to turn the ALS off.

Test Alarm

Press and hold the red alarm until the information text is displayed, default “Test alarm” is displayed.

Man-down and No-movement Alarm

Applicable to WL3 Plus only.

The Man-down alarm reacts if the handset is tilted (default 45°) from the vertical for a predefined period of time (default 7 seconds). The No-movement alarm will react if no movement is detected during a predefined period of time (default 30 seconds).

The handset alerts by beep, vibrator, and LED signals, depending on the settings, during a predefined period of time (default 7 seconds). At the same time, the handset displays the message “Man-down warning. Cancel?“ or “No-movement warning. Cancel?“.

The handset then sends the alarm, unless the alarm is cancelled. The handset confirms that the alarm has been sent by beep, vibrator, and LED signals. In addition, the handset displays the message “Man-down warning sent“ or “No-movement warning sent“.

The handset location is sent along with the alarm, see "Alarm with Additional Information" on page

32.

If configured in the Device Manager, an Acoustic Location Signal (ALS) is activated after the alarm has been sent, see "Automatic Call after Alarm" on page 32.

The handset can be programmed to automatically call a predefined telephone number after the alarm has been sent, see "Automatic Call after Alarm" on page 32.

The Man-down and No-movement alarm functions are inactive under the following conditions:

• While the handset is placed in a charger.

• During calls (depending on settings), to avoid false alarms if the user tilts the handset, or is motionless during a call.

Page 32

32 Alarm Operation

• For a predefined period of time (default 10 minutes) if the Mute button is pressed during the alert signal.

Activate/Deactivate the Man-down and/or No-movement Alarm

Enter “Settings” , and step to “Alarm”.

Then select the wanted alarm(s) and press Back repeatedly.

The corresponding icon(s) appear on the display.

Follow the same steps to deactivate the alarm(s).

Cancel Man-down and No-movement Alarm

Press the soft key “OK“ to confirm “Man-down warning. Cancel?“ or “No-movement warning. Cancel?“, which appears in the display during the alert signal or press any key.

Delay Man-down and No-movement Alarm Temporarily

Press the Mute button during the alert signal and then press “Yes“ to confirm the message “Delay MD/NM detection?“.

The corresponding display icon flashes until the alarm is active again (default 10 minutes).

Reset Alarm

To reset the alarm function after an alarm has been sent:

• Move the handset to an upright position (after Man-down).

• Move the handset (after No-movement).

• Press the Mute button if the ALS is sounds.

Automatic Call after Alarm

A handset can be set up to call a predefined number after an alarm has been sent, for example to “112” which is the common emergency call number inside the European Union.

Depending on the settings, the call can be established in the following modes;

• Loudspeaking mode, or

• Monitor mode, or

• Normal mode

Please contact your administrator to get support.

Alarm with Additional Information

Information about the approximate location of the handset is automatically sent along with an alarm, see "Associated Access Point (AP) Location" on page 32. It is also possible to add the location manually, see"Alarm with Data" on page 33.

Associated Access Point (AP) Location

This function is used together with an alarm. The AP communicates to the handset where the handset is located for the time being. This gives a fair indication of the location.

Page 33

Alarm Operation 33

An approximate location of the handset is added to alarms sent from the handset. The handset sends the current and previous AP location to indicate where the alarm was activated.

Alarm with Data

The data can be defined and stored manually by the user. To use the function, one Soft/Hot key/ Navigation key in the handset must be defined as a shortcut to the menu “Edit alarm data”, see "Short Cuts" on page 45. The stored data is added to all types of alarms at transmission.

Page 34

34 Menu Operation

Menu Operation

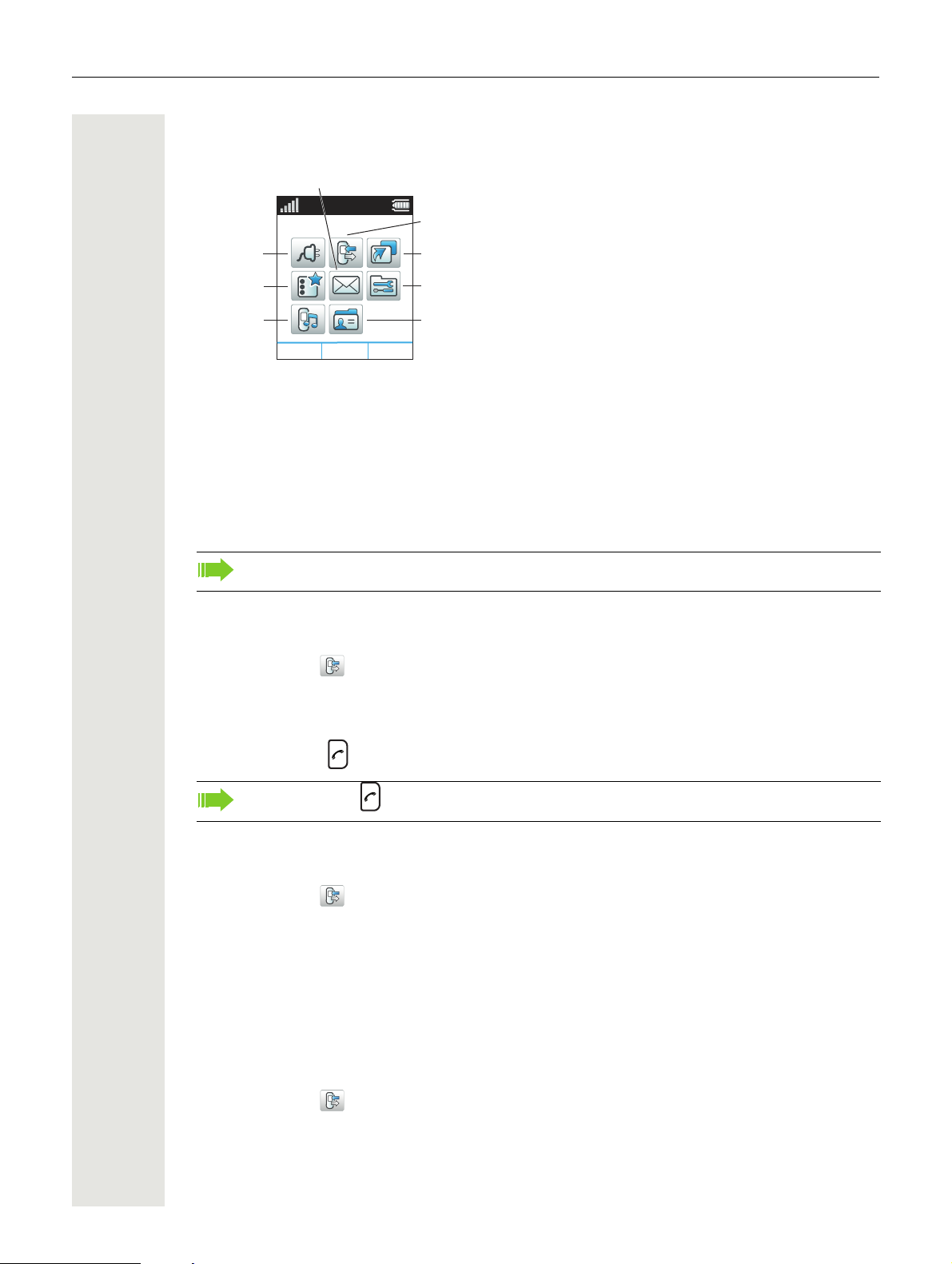

Figure 7 The Main menu.

Messaging

13:00

Calls

Connections

Services

Proﬁles

Select

Short cuts

Settings

Contacts

Back

Calls

Call List

The 25 last received, dialed, missed, or declined calls are stored in a call list. If a number appears more than once, the last time stamp, together with the total number of occurrences, is shown.

If supported by the system, the number’s contact name can be displayed in the call list.

Dial a Number from the Call List

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “Call” or to dial.

A short press on replaces steps 1–4.

View the Time of a Call

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “More”.

7. Select “Time of call”. The time and date is displayed.

Edit a Number from the Call List

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “More”.

Page 35

Menu Operation 35

7. Select “Edit number”.

Save Number

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “More”.

7. Select “Save number”.

8. Select “Work number”, “Mobile number”, or “Other number”.

9. Add name and press “OK”.

10.If desired, a specific ring signal can be chosen for this contact.

Send Message

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “More”.

7. Select “Send message”.

Delete Entry from the Call List

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Step with Up and Down to select number in the list.

6. Press “More”.

7. Select entry to delete.

8. Select “Delete”.

9. Select “Yes” to delete the entry from the list.

Delete all Entries from the Call List

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call list”.

5. Press “More”.

6. Select “Delete all”.

7. Select “Yes” to delete ALL entries from the Call list.

Missed Calls

Also declined calls are counted as missed calls.

1. This function is system dependent.

Page 36

36 Menu Operation

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Missed calls”.

5. Step with Up and Down to select number in the list.

6. Press “Call”, or to call back.

As in the Call list, there is a Soft Key “More” which can be used to view the time/date of the call, edit the received number, add to contacts, delete received numbers. See "Call List" on page 34 for information about the functionality in Soft Key “More”.

If supported by the system, the number’s contact name can be displayed in the list.

Call Diversion

This function is system-dependent. Please contact your administrator to get support.

Divert All Calls

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Select “Call services”.

4. Select “Divert calls” > “Internal” or “External”.

5. Select “All calls” > “Edit”.

6. Enter number (maximum 24 digits) to divert to.

7. Select “OK” or “Back” > “Yes”. The check box is marked.

8. Press “Back” until the screen turns to idle mode.

The handset sends a diversion reason code to the system when establishing a call. The call is automatically disconnected after a few seconds.

9. To stop the diversion select “All calls” and unmark the check box. Press the Soft Key “Back” until the screen turns to idle mode.

Divert Calls if No Reply

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Select “Call services”.

4. Select “Divert calls” > “Internal or External”.

5. Select “No reply” > “Edit”.

6. Enter number (maximum 24 digits) to divert to.

7. Select “OK” or “Back” > “Yes”. The check box is marked.

8. Press “Back” until the screen turns to idle mode. The handset sends a diversion reason code to the system by establishing a call. The call is

automatically disconnected after a few seconds.

9. To stop the diversion, select “All calls” and unmark the check box. Press the Soft Key “Back” until the screen turns to idle mode.

Divert Calls When Busy

1. Enter the menu by pressing the “Menu” soft key.

Page 37

Menu Operation 37

2. Select “Calls” in the menu.

3. Select “Call services”.

4. Select “Divert calls” > Internal or External.

5. Press “When busy” > “Edit”.

6. Enter number (maximum 24 digits) to divert to.

7. Select “OK” or “Back” > “Yes”. The check box is marked.

8. Press “Back” until the screen turns to idle mode.

The handset sends a diversion reason code to the system by establishing a call. The call is automatically disconnected after a few seconds.

9. To stop the diversion, select “All calls” and unmark the check box. Press the Soft Key “Back” until the screen turns to idle mode.

Call Services

Do Not Disturb

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Calls” in the menu.

3. Press “Select”.

4. Select “Call services”.

5. Press “Select”.

6. Select “Do not disturb”.

7. Press “Select”.

8. Select “On”.

9. Press “Back” repeatedly until the idle screen appears. The text “Do not disturb” remains on the idle screen as long as the function is active. Calls are

rejected and indicated as missed calls. The calling party gets the message “Temporarily un available”.

To deactivate the function, follow the same steps and select “Off”.

Page 38

38 Menu Operation

Contacts

The handset has a local phonebook with 250 entries, where names and numbers freely can be added, deleted, and edited by the user. The phonebook lists all names in alphabetical order (language dependent), where three numbers can be added for each contact; work number, mobile number, and other number.

In addition, a company phonebook with up to 1000 entries can be downloaded to the handset via the WinPDM/Device Manager. The company phonebook names and numbers can not be edited or deleted by the user. The phonebook lists all names in alphabetical order. The local and company phonebook appears in the same list, but the company contacts are indicated by a “Locked entry” icon , which means that they cannot be edited. The contacts only include the work number. The local phonebook and central phonebook together have up to 1250 entries. See "Dial a Number from the Company Phonebook" on page 25

It is also possible to access a central phonebook on page 25, or "Central Phonebook" on page 39.

Call Contact

1. Enter the menu by pressing “Menu”.

2. Select “Contacts” in the menu.

3. Select “Call contact”.

4. Select contact from the list, or enter name or number in the search field.

5. Press “Call”.

, see "Dial a Name from the Central Phonebook"

It is also possible to edit the contact and to send a message by selecting “View” > “More”.

It is not possible to edit a contact indicated by a “Locked entry” icon in front of the name.

Add Contact

Add New Contact

1. Enter the menu by pressing “Menu”.

2. Select “Contacts” in the menu.

3. Select “Add contact”.

4. Select “New”.

5. Select “Add”.

6. Enter a name, see "Alphanumeric Keys" on page 14.

7. Press “OK”.

8. Select “Work Number”, “Mobile number”, or “Other number”.

9. Press “Add”.

10.Enter number. It is possible to add a pause “P” in phone numbers by pressing the Space key 5 times.

11. Press “OK”.

12.If desired, a specific ring signal can be chosen for this contact by selecting “Ring signal”.

Add from Call List

1. Press “Menu”.

2. Select “Contacts” in the menu.

1. This function is system dependent.

Page 39

Menu Operation 39

3. Select “Add contact”.

4. Select “From call list”.

5. Select number in the list.

6. Press “Add”.

7. Select “Work Number”, “Mobile number”, or “Other number”.

8. Press “Add”.

9. Enter name, see "Alphanumeric Keys" on page 14.

10.Press “OK”.

11. Press “Save”.

It is also possible to save a contact by opening the call list:

1. Press “Menu” and select “Calls” and “Call list” or just press the Call key .

2. Select “More”.

3. Select “Save number”.

4. Perform step 7) to 11) above.

Edit Contact

It is not possible to edit a Company Phonebook contact. The contacts are indicated by a “Locked entry” icon in front of the name.

1. Press “Menu”.

2. Select “Contacts” in the menu.

3. Select “Edit contact”.

4. Select contact.

5. Press “Edit”.

6. Select “Name”, “Work number”, “Mobile number”, “Other number”, or “Ring signal”.

7. Press “Edit”.

8. Enter new name/number, and/or select new ring signal.

9. Press “OK”.

10.Press “Save”.

Delete Contact

It is not possible to delete a company phonebook contact. The contacts are indicated by a “Locked entry” icon in front of the name.

1. Press “Menu”.

2. Select “Contacts” in the menu.

3. Select “Delete contact”.

4. Select contact.

5. Press “Delete”.

6. Press “Yes” to confirm.

Central Phonebook

In the central phonebook, it is possible to search by name or number. One or more search results can be displayed.

1. This function is system dependent.

Page 40

40 Menu Operation

When the search result is displayed, it is possible to view contact information, add the number to new contact, and to send a message by pressing “More”. You can also call the number by pressing “Call”.

When the search result is displayed, it is possible to view contact information and add the number to new contact by pressing “More”. You can also call the number by pressing “Call”.

Search by Name

1. Press “Menu”.

2. Select “Contacts” in the menu.

3. Select “Central phonebook”.

4. Select “Search by name”.

5. Enter First name and/or Last name.

6. Press “Search”. The search result will be displayed.

Search by Number

1. Press “Menu”.

2. Select “Contacts” in the menu.

3. Select “Central phonebook”.

4. Select “Search by number”.

5. Enter number.

6. Press “Search”. The search result is displayed.

View Last Search Result

1. Press “Menu”.

2. Select “Contacts” in the menu.

3. Select “Central phonebook”.

4. Select “Last result”. Only the last result will be displayed.

Profiles

An own profile can be set up, for incoming calls and their ring signals and volume, message alerts, vibrating alerts, key sound, answer behavior, diversion etc. This can be useful when there are many users on the same handset, and they want different sound profiles. It can also be used for temporary settings. For example, while in a meeting, all incoming calls should be silent. It is easy to switch between the different profiles.

If no profile is selected, the “Normal” profile setting is used.

The Profile menu also contains the complete list of added Soft keys to choose from. (The active Soft key is also shown in the “Short cut” menu).

Add New Profile

1. Press “Menu”.

2. Select “Profiles” in the menu.

3. Select “Add new”.

4. Enter name of the profile.

5. Press “Save”.

6. Select profile from list and change profile as wanted.

Activate Profile

1. Press “Menu”.

Page 41

Menu Operation 41

2. Select “Profiles” in the menu.

3. Select profile from the list. When a profile is activated, the icon and the name of the profile is displayed in idle mode.

Delete Profile

1. Enter “Menu”.

2. Select “Profiles” in the menu.

3. Select profile from the list.

4. Press “More”.

5. Select “Delete” from menu.

6. Press “Select”.

7. Press “Yes” to confirm.

Edit Profile

1. Enter “Menu”.

2. Select “Profiles” in the menu.

3. Select profile from the list.

4. Press “More” and then select “Edit”.

5. The following options can be performed:

- Edit the required setting by marking it, and then press “Edit”.

- Add additional settings by pressing “More” and then select “Add setting” or “Import from”.

- Remove a setting by marking it and then select “More” > “Remove setting”.

6. If needed, mark the added settings, and press “Edit” to make the changes.

Messaging

The following features are applicable to WL3 Messaging and WL3 Plus.

When a text message is received, the LED starts flashing and the message alert signal sounds. The “New message” icon , and the content of the received message are automatically displayed. The icon is displayed until all new messages are opened. If the message is received during a call, a beep notifies the user.

The handset user can reply, forward the message, call the sender, and call number text. It is also possible to read the message later by pressing “Close”. A received message is stored in the Inbox. See"Read a Stored Message" on page 41.

The last thirty messages received are stored in the inbox. Time and date information is included in the message.

If the handset receives a message while the handset is locked (phone lock), a New message(s) dialog window is shown in the display. It shows the total number of received messages and asks if the user wants to view them. The message(s) can be read after entering the PIN code.

Inbox

Read a Stored Message

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

1. The number must consist of minimum 3 digits.

included in a

Page 42

42 Menu Operation

5. Press “View”.

Reply to Sender

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

5. Press “View”.

6. Press “Reply”.

7. Enter text. See "Alphanumeric Keys" on page 14.

8. Press “Send”.

Delete Message

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

5. Press “More”.

6. Select “Delete”.

7. Press “Yes” to delete the message.

Forward Message

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

5. Press “More”.

6. Select “Forward”.

7. Enter additional text if needed. See "Alphanumeric Keys" on page 14.

8. Press “Send”.

9. Enter number, or press to access contacts in the local phonebook and the company phonebook.

10.Press “Send” to forward the message.

Call Sender

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

5. Press “View”.

6. Press “More”.

7. Select “Call Sender”.

Call Number in Text

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

Page 43

Menu Operation 43

5. Press “View”.

6. Press “More”.

7. Select “Call no. in text”1.

8. Select number from the list.

9. Press “Call”

Save Number

1. Press “Menu”.

2. Select “Messaging” in the menu.

3. Select “Inbox” to view the message list.

4. Select a message by using Up and Down on the Navigation key.

5. Press “View”.

6. Press “More”.

7. Select “Save number”.

8. Select “Work Number”/“Mobile number”/“Other number”.

9. Press “Add”.

10.Enter name. See "Alphanumeric Keys" on page 14.

11. Press “OK”.

12.Press “Save”. The number is stored in the contact list.

Write New Messages

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Write new message”.

4. Enter text. See "Alphanumeric Keys" on page 14.

5. Press “Send”. A message can be saved and sent later by pressing the Soft Key “Back” and select “Yes”. The

message is stored under Unsent messages. See

6. Enter number, or press middle Soft Key to get the number from contact list.

7. Press “Send”.

"Unsent Messages" on page 43.

Unsent Messages

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Unsent” to view the list.

4. Select message to edit/send.

5. Select “Edit”, edit text and/or just select “Send”.

Delete/Delete All

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Unsent”

4. Select message in the list.

5. Select “More”.

6. Select “Delete” or “Delete all”.

7. Select “Yes” if the unsent message(s) should be deleted.

1. Visible if the number consists of minimum 3 digits.

Page 44

44 Menu Operation

Sent Messages

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Sent” to view the list.

4. Select message in the list.

5. Press “View”.

Forward message

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Sent” to view the list.

4. Select message in the list.

5. Press “View”.

6. Enter additional text, if needed.

7. Enter number.

8. Select “Send”.

Delete Message

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Sent” to view the list.

4. Select message in the list

5. Press “View”.

6. Select “Delete”.

7. Select “Yes” to delete the message.

Delete/Delete All

1. Press “Menu”.

2. Select “Messaging” to view the message list.

3. Select “Sent” to view the list.

4. Select “More”.

5. Select “Delete” or “Delete all”.

6. Select “Yes” if the unsent message is to be deleted.

Page 45

Menu Operation 45

Services

The following features are applicable to WL3 Plus only. Please contact your administrator to get support..

With this menu you can customize your own menu with services/functions that are used often. After adding a name for a new service, a list of predefined services/functions is available: Phone call, Send data, Send message, PTT, and Edit alarm data.

Add Services

1. Press “Menu”.

2. Select “Services” in the menu.

3. Select “Add new”.

4. Enter a name for the menu alternative.

5. Press “OK”.

6. Select a service/function.

7. Enter required data for the service/function.

8. Press “Save”.

Delete Services

1. Press “Menu”.

2. Select “Services” in the menu.

3. Mark a service/function usingUp and Down on the Navigation key.

4. Press “More”.

5. Select “Delete”.

6. Press “Yes”.

Short Cuts

Predefined functions can be set as short cuts for the Soft Keys, Hot keys, Navigation keys, and the Multifunction to send a message.

The active Soft key is shown in the “Short cut” menu. The complete list of added Soft keys to choose from is in the “Profiles” menu.

Define Soft Keys

1. Press “Menu”.

2. Select “Short cuts” in the menu.

3. Select “Soft Keys”.

4. Select “Middle” or “Right”.

5. Press “Select”.

6. Enter a name for the Soft Key. See "Alphanumeric Keys" on page 14.

7. Press “OK”.

8. Select “Function”, and press “Select”.

9. Select function from list, and press “Back”.

button. For example, a Soft Key can be defined to make a call, or as a short cut

1. Applicable to WL3 and WL3 Messaging only.

Page 46

46 Menu Operation

10.Select “Value” (only for some of the functions), and press “Select”. Enter a value, for example a number. Press “OK”.

11.Select “Control question”, and press “Select”. It is off by default. Press “Back”. If the control question is enabled, a dialog window “Proceed?” is displayed when pressing the

defined Soft key. Press “Yes” to proceed.

12.Press “Save”.

Define Hot Keys

1. Press “Menu”.

2. Select “Short cuts” in the menu.

3. Select “Hot keys”.

4. Select “0”, “2” to “9”.

5. Select “Function”, and press “Select”.

6. Select function from list, and press “Back”.

7. Select “Value” (only for some of the functions), and press “Select”. Enter a value, for example a number. Press “OK”.

8. Select “Control question”, and press “Select”. It is off by default. If the control question is enabled, a dialog window “Proceed?” is displayed when pressing the

defined Hot key. Press “Yes” to proceed.

9. Press “Save” TIP: Select Function: Not used to turn the hot key function off.

Define Navigation Key

1. Press “Menu”.

2. Select “Short cuts” in the menu.

3. Select “Navigation keys”.

4. Select “Up”, “Down”, “Left”, or “Right”.

5. Select “Function”, and press “Select”.

6. Select function from list, and press “Back”.

7. Select “Value” (only for some of the functions), and press “Select”. Enter a value, for example a number. Press “OK”.

8. Select “Control question”, and press “Select”. It is off by default. If the control question is enabled, a dialog window “Proceed?” is displayed when pressing the

defined key. Press “Yes” to proceed.

9. Press “Save”.

Page 47

Menu Operation 47

Define Multifunction Button

Applicable to WL3 and WL3 Messaging only.

The Multifunction button can be defined with two different functions, a long press activates one function, and a double press activates another function.

1. Press “Menu”.

2. Select “Short cuts” in the menu.

3. Select “Multifunction button”.

4. Select “Long press”, or “Multi press”.

5. Select “Function”.

6. Press “Select” to select function.

7. Select function from list.

8. Press “Select” and then press “Back”.

9. Select “Value” (only for some of the functions), and press “Select”. Enter a value for example a number. Press “Back”.

10.Select “Control question”, and press “Select”. It is off by default. If the control question is enabled, a dialog window “Proceed?” is displayed when pressing the

defined button. Press “Yes” to proceed.

11. Press “Save”.

Page 48

48 Menu Operation

Settings

Sound and Alert Settings

Adjust the Ringer Volume

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Volume”.

5. Use the Navigation key to adjust the volume. Press “OK” to save the setting.

It is also possible to adjust the ringer volume with the volume buttons in idle mode. If a handset restriction is enabled, it might not be possible to set the ring volume to “Silent”.

Set different Ring Signals for Internal Call, External Call and Call Back

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Ring signals”.

5. Different signals for internal calls, external calls, and call back can be set. Select “Internal call”, “External call”, or “Callback”. The handset has 15 different ring signals.

6. Select sound using “Select”. By pressing “Play”, you can listen to the different sounds. Use “Stop” to stop listening.

7. Press “Back”.

Set Alert for Messages

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Message alert”.

5. Select between 10 different message alerts from list. By pressing “Play”, you can listen to the different alerts.

The “Play” soft key is not available for Enhanced beeps. Instead, send a message to the handset to listen to the sound.

6. Press “Back”.

TIP: By default, the message volume follows the ring volume setting, but you can set a different message volume in the handset. Please contact your administrator to get support.

Turn the Vibrator on/off

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Vibrating alert”.

5. Select “On”, “On if silent” (that is, the vibrator is on when the handset is muted), or “Off”

6. Press “Back”.

Page 49

Menu Operation 49

Set the Key Sound

This means that every time a key is used, the handset produces a small sound.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Key sound”.

5. Select “Silent, “Click”, or “Tone”. You can listen to the key sound by pressing “Play”.

6. Press “Back”.

Set the Battery Warning Tone

If desired, a low battery can be indicated by a tone, a repeated sound, or set to be silent.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Battery warning”. The default battery warning is “Repeated sound”.

5. Select “Repeated sound, “Sound once”, or “Sound off”.

6. Press “Back”.

Configure Handset for Hearing Aid

The handset can be configured for use with hearing aid.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Sound & Alerts”.

4. Select “Hearing aid”.

5. Select “On“ or “Off”.

6. Press “Back” repeatedly until the idle screen appears.

Locks

Activate the Automatic Key Lock

You can answer/end an incoming call, read messages, and/or press the alarm button while the keypad is locked. Any one of five predefined emergency numbers can also be called while the keypad is locked. Please contact your administrator to get support.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Automatic key lock”.

5. Select “On” for activation of automatic key lock, also during an ongoing call.

TIP: You can change the time for activation of this lock (default 20 seconds). It is also possible to select wether the handset should not automatically be unlocked at incoming calls and messages (default), to avoid unintentional key presses, see "Automatic lock time" on page 51 and"Deactivate automatic key unlock" on page 51.

Deactivate the Automatic Key Lock

1. Press “Menu”.

Page 50

50 Menu Operation

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Automatic key lock”.

5. Select “Off” for deactivation of automatic key lock.

Activate the Phone Lock

The handset can be protected for unauthorized use. If this function is activated, a PIN code has to be entered at power on, or when the handset is placed in a charger. This behavior is activated when the handset is placed in the charger. The default phone lock code (0000) can be changed to any 4–8 digit personalized code.

You can change the time for activation of this lock (default 20 seconds), see "Automatic lock time" on page 51.

Any one of up to five emergency numbers can be called while the handset is locked, if configured in the WinPDM/Device Manager. See the Configuration Manual for the handset.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Phone lock”.

5. Select “Auto phone lock”.

6. Select “On”, or “On in charger”.

7. Enter PIN code

8. Press “OK”.

If a user forgets the PIN code, it can be reset by the distributor.

Deactivate the Phone Lock

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Auto phone lock”.

5. Select “Off”.

6. Enter PIN code

7. Press “OK”.

If a user forgets the PIN code, it can be reset by the distributor.

Change PIN Code

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Phone lock”.

5. Select “Change PIN code”.

6. Enter the old PIN code.

7. Press “OK”.

8. Enter the new PIN code.

9. Change field by using Down on the Navigation key and enter the new PIN code again.

10.Press “Save”.

Page 51

Menu Operation 51

Automatic lock time

You can change the lock time for the phone lock or key lock to suit personal choice, for example, to shorten it from 20 seconds (default) to 5 seconds, for example, to avoid accidental redialling when the handset is in a pocket. It can also be good to extend it

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Auto lock time”.

5. Select desired lock time of 5, 10, 20, 30 seconds or 1 or 3 minutes.

6. Press “Back”.

Deactivate automatic key unlock

You can turn off the automatic key unlock at incoming calls and messages, to avoid unintentional key presses.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Locks”.

4. Select “Auto key unlock”.

5. Select “Off”.

6. Press “Back”.

Display Settings

Brightness

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Display”.

4. Select “Brightness”.

5. Select “Normal” or “Power save”.

6. Press “Back”.

Screen Saver

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Display”.

4. Select “Screen saver”.

5. Select “Information”, “Black”, or “Black also in call”. Time, Owner ID and status information is displayed when “Information” is selected, and the display turns off when the handset is not used.



It is recommended to only use the screen saver setting “Black also in call”, when extended battery life is needed. Also use screen saver settings other than “Black also in call”, if the handset needs to be set to silent (muted). TIP: When using the screen saver “Information”, the Owner ID is also shown when the handset is in the charger (even if switched off). This simplifies identification when many handsets are charged together.

6. Press “Back”.



Page 52

52 Menu Operation

Rotate Display Text

The handset can be configured to show the contents of the display (except the soft key bar) upside-down at incoming calls or messages. This setting makes it possible to check the display while the handset remains clipped to a belt or pocket. The display reverts to normal when any key is pressed (except up/down on the Navigation key).

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Display”.

4. Select “Rotate display text”.

5. Select “Normal” or “Inverted”.

6. Press “Back” repeatedly until the idle screen appears.

Font style

The handset may be configured to show menu texts in bold font for increased readability.

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Display”.

4. Select “Font style”.

5. Select “Normal” or “Bold”.

Time & Date Settings

Time and date format changes in the handset appear directly, but changes in the system appear after a maximum of 24 hours after a change in the system or by turning the handset off and on again.

Set Time Format

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Time & Date”.

4. Press “Select”.

5. Select Time format. The actual time format is displayed. Selectable time format: 12:00 (am/pm)

24:00

6. Press “Select” to save the setting.

Set Date Format

1. Press “Menu”.

2. Select “Settings” in the menu.

3. Select “Time & Date”.

4. Press “Select”.

5. Select “Date format”, press “Select”. Selectable date format:

Date format Example Designation

DD MMM YY 10 Jan 09 MMM DD YYYY Jan 10 2009 YYYY-MM-DD 2009-01-10 (ISO 8601) MM/DD/YYYY 1/10/2009 (also called US) DD/MM/YYYY 10/01/2009 (also called Europe)

Page 53

Menu Operation 53

DD-MM-YYYY 10-01-2009 DD.MM.YYYY 10.01.2009

6. Press “Select” to save the setting.

Answering

The default setting for the handset is to use the Call key when answering a call. The answering behavior can be configured to answer the call automatically, that is, without pressing a key, or/and in loudspeaking mode. It is also possible to set the answering behavior to any key. If “Any key” is selected, any key except the End key , Sound off key and Mute button can be used to answer a call.

Answering Key

The answering key is by default set to the Call key.

1. Press “Menu”.

2. Enter “Settings” in the menu.

3. Select “Answering”.’

4. Select “Answering key”.

5. Select “Call key”, or “Any key”.

6. Press “Back” to save the settings.

Answering Behavior

1. Press “Menu”.

2. Enter “Settings” in the menu.

3. Select “Answering”.’

4. Select “Answer behavior”.

5. Select “Automatically”, “Loudspeaking”, or “Quick answer”. If Automatically is selected, all incoming calls are connected automatically. If Quick answer is selected, the call is connected by lifting the handset out of the charger.

6. Press “Change” to change the setting. The check box is marked.

7. Press “Back” to save the setting. To remove the setting, press “Change”. The check box is unmarked.

Change Text size for Messages

1. Press “Menu”.

2. Enter “Settings” in the menu.

3. Select “Messages”.

4. Select “Text size”. The default text size is “Normal”.

5. Select “Normal” or “Large” size.

6. Press “Back”.

Change the Menu Language

The language menu is easy to find by the *-icon in the “*Language” menu.

1. Press “Menu”.

1. Applicable to WL3 Messaging and WL3 Plus only.

Page 54

54 Menu Operation

2. Enter “Settings” in the menu.

3. Select “*Language”.

4. Select:  Czech (Ceština) Danish (Dansk) German (Deutsch) Greek ( ) English (English) Spanish (Español) French (Français) Italian (Italiano) Hungarian (Magyar) Dutch (Nederlands) Norwegian (Norsk) Polish (Polski) Portuguese, Brazilian (Português (Br)) Russian ( ) Slovak ( ) Finnish (Suomi) Swedish (Svenska) Turkish (Türkçe)

5. Press “Back”.

Change Owner ID

The Owner ID is set to identify the handset.

1. Press “Menu”.

2. Enter “Settings” in the menu.

3. Select “Owner ID”.

4. Enter name/identity. See "Alphanumeric Keys" on page 14.

5. Press “Save”.

Alarm Settings

TIP: It is recommended to configure a short cut to this menu if it is frequently used, see "Short Cuts" on page 45.

Activate Man-down and No-movement Alarms

Applicable to WL3 Plus only.

To activate the Man-down and No-movement alarms:

1. From the Settings menu, select Alarm.

2. Select the wanted alarm(s) and press Back repeatedly. The corresponding icon(s) appear on the display.

Follow the same steps to deactivate the alarm(s).

Page 55

Menu Operation 55

Edit Alarm Data

Information (for example a handset’s location) can be sent along with an alarm. It is recommended to create a shortcut for quick access to the “Edit alarm data“ menu, see "Short Cuts" on page 45.

1. Enter the menu by pressing “Menu“.

2. Select in the menu.

3. Select “Alarm“.

4. Select “Edit alarm data“.

5. Enter alarm data.

6. Press “Save“.

Page 56

56 Menu Operation

Connections

Headset

To achieve optimal audio quality with the different headset types, it is recommended to select the corresponding headset profile.

The default setting is microphone on a boom, that is, the audio is optimized for using a headset with microphone on a boom. The headset profile can be changed in the menu as follows:

1. Enter the menu by pressing the “Menu” soft key, or Confirmation on the Navigation key.

2. Select “Connections” .

3. Select “Headset” with the soft-key Select or Confirmation on the Navigation key.

4. Select the corresponding headset profile from list, that is, “Mic on boom”, “Mic on cable”, “Hearing protection”, or “Customized headset profile”1.

5. Press “Select”, or the confirmation button on the Navigation key.

If the preconfigured headset profiles do not match the headset in use, or the audio performance is bad, an own headset profile can be configured. If an own profile is configured in the Device Manager, the profile is selectable in the handset menu. Please contact your administrator to get support.

Network

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Connections” in the menu.

3. Select “Network”.

4. Select network in the list. The handset restarts if the network is changed.

In Charger Action

You can determine actions to be performed when a handset is placed in the charger.

Switch the handset off

The handset can be switched off automatically when it is placed in the charger. When it is removed from the charger, it switches on again. When the handset is switched off in the charger, the Owner ID of the handset is shown. This simplifies the identification of the handset when, for example, charging it together with other handsets.

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Connections” in the menu.

3. Select “In charger”.

4. Select “Switch off”.

Turn the sound off

When the handset is placed in the charger, it will be muted. When the handset is removed from the charger, the sound switches on again. When the handsets sound is off/muted in the charger, the Owner ID of the handset is shown. This simplifies the identification of the handset when, for example, charging it together with other handsets.

1. Available if the activated by Administrator.

Page 57

Menu Operation 57

If handset restrictions are enabled, the handset might not be switched off/muted when placed in the charger.

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Connections” in the menu.

3. Select “In charger”.

4. Select “Sound off”.

Change profile

The handset can change profile automatically when it is placed in the charger (WL3 Plus only). The profile is changed back when the handset is removed from the charger.

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Connections” in the menu.

3. Select “In charger”.

4. Select “Other actions”.

5. Select “Change profile”.

6. Press “Edit”.

7. Select a profile.

Deactivate the In charger action

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Connections” in the menu.

3. Select “In charger”.

4. Select “No action”.

Page 58

58 Advanced Functions

Advanced Functions

Device Information

In the Device Information menu, you can view information about the handset, which can be useful when contacting the system administrator to get support:

• Software version

• Hardware version

• Licenses

• WLAN information

• Network information

•User ID

To enter the Device Information menu, press “Menu”, select “Settings” in the menu, and then select “Device info”.

For quick access to the Device Information menu in idle mode, press the keys #DI# (that is #34#) (DI as in Device Information).

Page 59

Advanced Messaging 59

Advanced Messaging

The following features are applicable to WL3 Messaging and WL3 Plus only. Please contact your administrator to get support.

Voice Mail

This feature is only available, if configured in the system.

Receive a Voice Mail

When receiving a voice mail, this is indicated by the icon in the status bar.

One Key Voice Mail Access

A long press on digit key “1” in idle mode calls the voice mail. If the extension number is not available, a dialog window “Voice mail number not defined” is displayed.

Some systems require that the mailbox extension number is downloaded to the handset. Please contact your administrator to get support.

Receive a Message with Request for Answer

In the status bar, a message with request for answer is indicated the same way as an ordinary message, see "Messaging" on page 41.

In the message list, the message with request for answer is indicated by the icon .

Accept/Reject the message

Press the soft key “Accept” or “Reject”.

When an acknowledged message has been replied to, the icon is shown in the message list. The text “Accepted” or “Rejected”, and time and date is also added in the acknowledged message.

The option “Delete” is not available for a message with request for answer. An unacknowledged message can only be deleted from the message list.

Message Queuing and Message Priority

To notify about new incoming messages, all incoming messages are placed in a message queue. The sorting order for the message queue depends on the system settings. By default, the messages are sorted according to the message priority, and thereafter according to arrival time.

The messages in the message queue are automatically displayed for 20 seconds until all messages are displayed. You can extend the time to display a message by pressing any button. You can also close a message to immediately see the next message in the message queue.

The messages that you do not close are placed last in the message queue and remain in the message queue until you close them. They are shown as unread in the message list and are not shown as read until you have closed them.

Please contact your administrator to get support.

Page 60

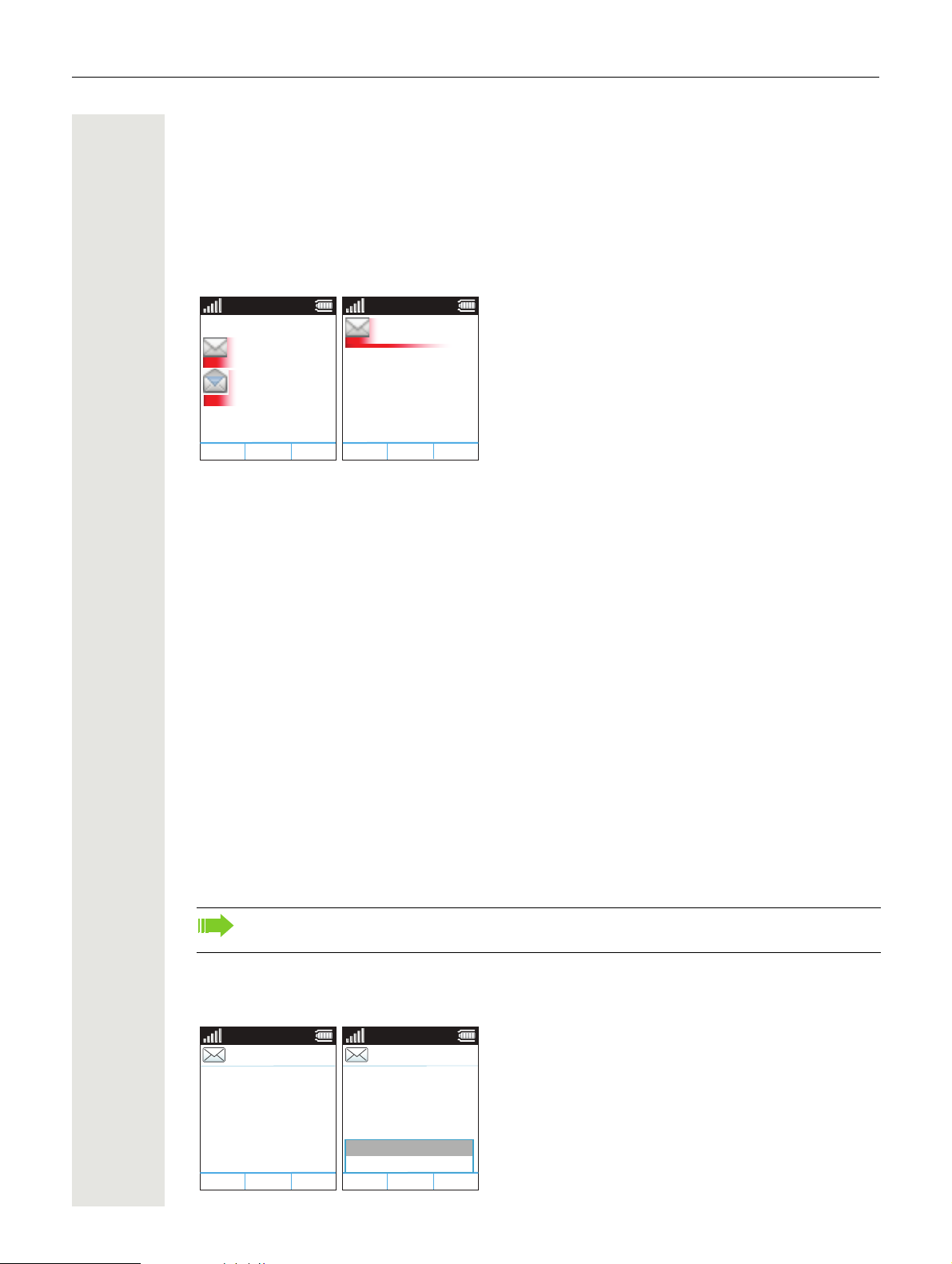

60 Advanced Messaging

Colored Messaging

You can receive colored messages in the handset. The application that sends the message determines the color. Colored messaging can be useful for categorizing messages. In the figure below, there are two colored messages (a new message, and a read message) in the Message inbox (left in the figure). The messages are indicated by a gradient, color bar behind the envelopes. In addition, a gradient color bar is shown below the envelop when reading a colored message (right in the figure).

Figure 8 Example of a colored message.

12:34

Inbox

Patient ready...

2011-05-17

Patient ready... 2011-05-17

Patient ready for transport. From: X-ray To: B/12/3

12:34

2011-05-17 12:00

View

Back

Call

Help

Reject

Interactive Messaging

Interactive Messaging (IM) is a function that extends basic messaging. It makes it possible for a handset user to access information from a client application in the system.

An example can be a customized application that can be accessed from the handset. A list of actions can be included in the message sent from the application to the handset.

An IM is indicated and viewed the same way as an ordinary message, see "Inbox" on page 41. It is saved along with other messages in the message list.

The indication of an IM can differ from an ordinary message depending on the settings in the IM. The application that sends the IM can determine the alert signal volume and LED indication.

When an IM has been read, the IM may display several options.

1. Mark the one required.

2. Press “Select”.

3. If the selected option requests input, enter the information needed and press “Ok”. A press on the middle Soft key will change to digit or text input mode depending on if it is digit or text format in the message.

A read message is indicated the same way as an ordinary message.

If a handset receives an IM update when the original message already has been deleted, the handset automatically sends a negative acknowledge (NAK) to the system, if requested.

A very simple interactive message can look like the one in figure 9. The options depends on the configuration in the client application.

Figure 9 Example of an interactive message.

2011-05-17 12:00

Ye s No

Select

12:34

Help

12:34

2011-05-17 12:00

Conference this evening! Will you be there? “Fred Smith” <Fred.Smith @company.com

Delete

Conference this evening! Will you be there? “Fred Smith” <Fred.Smith @company.com

Page 61

Advanced Messaging 61

Mobile data from the handset can initiate the application to send the interactive message, see "Mobile Data" on page 61. The user can then select one action from the list. The action can be sending a message back to the application and/or dialing a specific number etc.

Mobile Data

Send Mobile Data

You can send data entered by a user from the handset by selecting a service. Mobile data can be used to open a door, or to start or stop a machine. The data can either be predefined, or entered after the service is selected.

The data can be predefined when programming the service, see "Add Services" on page 45.

Send Mobile Data with a Prefix

Mobile data with a prefix is sent from the handset by entering data and then selecting a service. Mobile data with prefix can be used to send information to an application in the system.

The prefix is predefined by the user when programming the service, see "Add Services" on page

45.

Page 62

62 Operation Notice

Operation Notice

Accessibility and Voice Quality

The WLAN network is not always available. If you do not get in contact with your system, contact your system administrator. For best voice quality, avoid positioning near computer, radio or similar equipment.

Operating Area

You can only use the handset in the area that is covered by your system. Outside this area you lose contact with the system. The signal strength icon is low and the text “No network” appears in the display.

Out of Range

When you leave the system's coverage area, a short beep sounds and the text “No network” appears in the display.

The out of range beep is repeated every minute for 30 minutes. You can turn the sound off by using a long press on , or . The Volume button (down) can also be used.

When re-entering the coverage area, it can take a couple of minutes before the handset automatically has registered in the system.

Page 63

Maintenance 63

Maintenance

Maintenance of Batteries

Battery Warnings

The “Low battery” icon is displayed when the battery has 10% or lower of its capacity left. In addition; a warning signal sounds every minute, the LED flashes orange, and the dialog window “Battery low! Charge now!” appears.

The “Empty battery” icon flashes when the battery has 5% or lower of its capacity left. In addition; a warning signal sounds every second, the LED flashes red, and the dialog win dow “Battery empty! Shutting down!” appears.

The “Half battery” icon is displayed when the battery has 50% of its capacity left. The “Full battery” icon is displayed when the battery is fully charged and has 100% of its

capacity.

During a call, only the corresponding battery warning signal notifies the user. The battery warning signal cannot be silenced during a call. When not in call, the battery warning signal can be silenced by pressing or .

Charge the Battery

Place the handset in the desktop charger or in the rack charger. The battery charges when the LED on the handset is steady orange. When the battery is fully charged, the LED turns green.

An animated battery icon is also shown in the display indicating charging by starting with its current charge and ending with the full charge. A filled battery icon indicates a fully charged battery.

Only use the prescribed chargers for charging.

Charge Spare Batteries

Spare batteries can be charged with a separate battery pack charger. It can charge six batteries at the same time.

Page 64

64 Maintenance

Replace the Battery

If the standby time for the handset becomes too low, the battery should be replaced by a new one. Please contact your system administrator or your supplier, for information about new batteries. Attach the battery as described in the illustration below. The battery is easy to replace. It is attached inside the battery lid and is connected to the handset in such a way that no improper contact is possible.

Figure 10 Easy replaceable battery, unlock the lid and remove the battery.

Attach the Hinge-type Clip

Attach the hinge-type belt clip as described in the illustration below.

Figure 11 Screw the hinge-type clip into position.

Page 65

Maintenance 65

Attach the Swivel-type Clip

Attach the swivel-type belt clip as described in the illustration below.

Figure 12 Screw the swivel-type clip into position.

Attach Cover for No Clip

Attach the enclosed cover as described in the illustration below, when no clip is to be used.

Figure 13 Screw the cover into position.

Replacement of Handsets

A handset can be replaced with a new handset if it is broken. Please contact your administrator to get support.

Page 66

66 Troubleshooting

Troubleshooting

This section contains information on how to solve common operational problems and warnings.

Go through the following lists, if you encounter any problems. If this checklist does not solve the problem, contact your system administrator.

If others have similar problems, there may be a system error.

Operational Problems

Fault Probable cause Action or comment

No network The handset beeps once

a minute (for max 30 minutes) in a low tone, followed by a high tone (if enabled, the vibrator also follows the beeps).

No display The battery level is low, screen sav-

No ringing The sound off icon is on, or the ring-

Not possible to mute the handset by long press on the Sound off key/ mute button

No entries in Call list A handset restriction preventing

No change in time & date setting

The handset has lost connection and is in one of the following states:

- No network

- No access

- Voice only

- Messaging only

er is set to “Black also in call”, or the handset is defective.

er volume is set to silent, or the handset is defective.

A handset restriction preventing the user to silence the handset.

calls from being saved in the call list.

PBX dependent. Changes in the handset appear

Acknowledge the dialog window or press the mute button (the lat er keeps the dialog window visible).

You can configure the beep to Sound off or Sound once (for each new state), contact the sys tem administrator

Note: When leaving a bad state for another bad state, the dialog window reopens, and the beep sounds again (if enabled).

Charge the battery, change screen saver setting (Dis play>Screen saver) or contact the system administrator.

Long press the Sound off key or Mute button, or increase the vol ume, or contact system administrator.

Enable the parameter Prevent silent, see Configuration Manual for the handset.

Enable the parameter Enable call list, see Configuration Manu al for the handset.

after a maximum of 24 hours af ter a change in the system or by turning the handset off and on again.

Page 67

Menu Tree 67

Menu Tree

Calls

Call list > 1234 12:00 > Call

1235 14:00 More > Time of call

etc. Edit number

Save number > Work number

Mobile number

Other number

Send message >

Delete > Ye s

Delete all > Ye s

Back No

Missed calls > 2345 15:00 > Call

2346 23 Sep 03 More > (same as above)

etc. Back

Diverted calls

Call Services > Call waiting > On

Off

Divert calls

Do not disturb > On

Hide calling ID > On

1 Depends on the VoIP protocol used.

> Internal > All calls > Enter number:

No reply (same as above)

When busy (same as above)

External > All calls > Enter number:

No reply (same as above)

When busy (same as above)

Off

Contacts

Call contact > Search

From contact list

Add contact > New > Name >

Work number >

Mobile number >

Other number >

Ring signal >

From call list >

Edit contact > Search

From contact list > Name

Work number

Mobile number

Page 68

68 Menu Tree

Other number

Ring signal >

Delete contact > Search

From contact list >

Central Phonebook

1 This function is system dependent.

> Search by name > Call

(First name:) More > View contact

(Last name:) Add to cont.

Send message

Search by number > Call

(Phone number:) More > (same as above)

Last result > Call

More > (same as above)

Profiles

Normal/Profile X > Name

Volume >

Ring signals > Internal call > Play

Back

External call > (same as above)

Callback > (same as above)

Message alert > Play

Back

Vibrating alert > On

On if silent

Off

Key sound > Click

Tone

Silent

Answering > Answering key > Call key

Any key

> Answer behavior > Automatically

Loudspeaking

Divert calls

Activate alarm2 [Edit]

Soft keys > Left > Name

Add new > (same as Normal above)

1 Depends on the VoIP protocol used. 2 Applicable to WL3 Plus only.

> All calls > Enter number

Off

No reply > (same as above)

When busy > (same as above)

> Man-down

No-movement

Function

Val ue

Control question

Middle > (same as above)

Right > (same as above)

Page 69

Menu Tree 69

Messaging

Applicable to WL3 Messaging and WL3 Plus only.

Inbox > Message

list

Write new  message

Unsent > Message

Sent > Message

1 Visible if number consists of a minimum of 3 digits.

> Enter text > Send > Enter number > Send

list

> View > Reply > Enter text > Send

More > Delete

More > Delete > Ye s

Delete all > Ye s

Back

“Contacts access” > Send

Back

> Edit > Send > Enter number

> “Contacts access”

More > Delete > Ye s

Delete all > Ye s

Back

> View > Forw. > Send > Enter number > Send

Clear

More > Delete > Yes

More > Delete > Ye s

Delete all > Ye s

Back

Forward

Call sender

Call no. in text

Save number

Back

Call no. in text

Save number > Work No.

> Call

Back

“Contacts access” > Send

> Call

Mobile No.

Other No.

Page 70

70 Menu Tree

Services

Applicable to WL3 Messaging and WL3 Plus only.

This function is configured by the administrator.

Add new > Enter name > Phone call > Phone number > Enter number > Save

“Contacts access” > Save

Back

Send data > Enter prefix > Enter number > Save

Clear

Back

Send message > Phone number > Enter number > Save

“Contacts access” > Save

Back

PTT > PTT Groups

Edit alarm data > Alarm data 

Service 1  (example)

More > Edit

1 This function is configured by the administrator.

> Select > (Sending message)

Delete > Ye s

(example)

Short cuts

Soft Keys > Left > Name

Function > Not used

Phone call > Enter number

Phone call “Loudsp”

Call list

Contact list

Central Phonebook

Message inbox

Send message > Enter number

Change profile > Profile X (example)

Open a menu > Main menu

Services >

Calls

Connections

Contacts

Messaging

Services

Profiles

Settings

Call services

Page 71

Menu Tree 71

Logout

Divert calls

Show RSSI

Val ue

Control question > Off

Middle > (same as Left key)

Right > (same as Left key)

Hot Keys > 0, 2–9 > Function > (same as above)

Control question > Off

Navigation keys

Multifunction

button

1 This function is system dependent. 2 Dynamic, appears only for certain functions. 3 Applicable to WL3 and WL3 Messaging only.

> Up > Function > (same as above)

Control question > Off

Down > (same as Up key)

Left > (same as Up key)

Right > (same as Up key)

> Long press > Function > (same as above)

Val ue

Control question > Off

Multi press > (same as Long

press)

Connections

Headset > Mic on boom

Mic on cable

Hearing protection

Network > Select > Network A (example)

In charger > No action

Switch off

Sound off

Change profile > Edit

Back

Page 72

72 Menu Tree

Settings

Sound & Alerts > Volume > Silent, Volume: 1–8

Ring signals > Internal call > 15 different 

signals

External call > (same as above)

Callback > (same as above)

Message alert > Message alert 1

(example)

Vibrating alert > On

On if silent

Off

Key sound > Click > Play

Back

Tone > (same as above)

Silent

Battery warning > Repeated sound

Sound once

Sound off

Hearing aid > Off

Locks > Automatic key lock > On

Off

Phone lock > Auto phone lock > On

Change PIN code >

Auto lock time > 5sec (example) > Select

Auto key unlock > On

Off

Display > Brightness > Normal

Power save

Screen saver > Information

Black

Black also in call

Rotate display text > Normal

Inverted

Font style > Normal

Bold

Time & Date > Time format > 12:00am/pm

12:00

Date format > 01 Jul 10

Jul 01 2010

2010-07-01

07/01/2010

01/07/2010

01-07-2010

> Play

Back

On in charger

Off

Back

Page 73

Menu Tree 73

01.07.2010

Answering > Answering key > Call key

Any key

Answering behavior > Automatically > Change

Back

Loudspeaking > (same as above)

Quick answer > (same as above)

Messages > Text size > Normal

Large

Language > Czech (Ceština)

Danish (Dansk)

German (Deutsch)

Greek ( )

English (English)

Spanish (Español)

French (Français)

Italian (Italiano)

Hungarian (Magyar)

Dutch (Nederlands)

Norwegian (Norsk)

Polish (Polski)

Portuguese, Brazilian (Português (Br))

Russian ( )

Slovak ( )

Finnish (Suomi)

Swedish (Svenska)

Turkish (Türkçe)

Owner ID > Name:

Alarm

Device info > Software

1 Applicable to WL3 Plus only.

> Activate alarm > Man-down

No-movement

Edit alarm data

Hardware

License

WLAN info

Network info

User ID

In Call

The In call menu can be reached during an ongoing call by pressing the soft key “More“.

New call > Call

“Phonebook access”

Cancel

Transfer

Transf. to new

“Phonebook access”

> Call

Page 74

74 Menu Tree

> Cancel

Retrieve

Hold > Retr.

Conference

Contacts > Call contact > Call

Messaging > Inbox

Loudspeaker on > More > Loudspeaker off > Select

Microphone off > More > Microphone on > (same as above)

1 Dynamic, appears only for certain call situations. 2 Can appear on left soft key or in More menu depending on the current call status. 3 This function is system dependent.

End

View

Back

Add contact > New > Name >

Work number >

Mobile number >

> Other number >

> Ring signal >

From call list >

Edit contact >

Delete contact >

Central Phonebook

Write new message

Unsent

Sent

> Search by name > Search

Search by number > (same as above)

Last result > Call

Clear

Back

More >

Back

Customizing the Menu Tree

The menu tree can be customized by hiding some of the functions that are available but for example not in use. Please contact your administrator to get support.

Page 75

Abbreviations and Glossary 75

Abbreviations and Glossary

GUI Graphical User Interface. IP Internet Protocol:

Global standard that specifies the format of datagrams and the addressing scheme.

PDM Portable Device Manager:

Used for management of portables, editing of parameters and updating the portables

with new software. SNMP Simple Network Management Protocol VoIP Voice over Internet Protocol VoWiFi Voice over Wireless Fidelity:

A wireless version of VoIP. Refers to IEEE 802.11a, 802.11b, 802.11g, or 802.11n net-

work. WiFi Wireless Fidelity:

Used generically when referring of any type of 802.11 network. WSG Wireless Service Gateway:

Module that enables wireless services to and from the handsets in a WLAN system. It

also includes the Device Manager.

Page 76

76 Index

Index

Accessories .............................................................. 18

Acoustic Location Signal .......................................... 32

Alarm ??–.................................................................... 33

Acoustic Location Signal ....................................... 32

AP location ............................................................ 32

automatic call after ................................................ 32

data ....................................................................... 33

push-button alarm ................................................. 31

test alarm .............................................................. 31

Alarm button ............................................................. 11

Alphanumeric keys ................................................... 14

Answer ................................................................23, 53

Answering behaviour ................................................ 53

Answering key .......................................................... 53

Antenna .................................................................... 12

AP location ............................................................... 32

Automatic call after alarm ......................................... 32

Battery ...................................................................... 13

charge ................................................................... 63

disposal ................................................................. 10

environmental requirements .................................. 10

insert ....................................................................... 5

maintenance .......................................................... 63

replace .................................................................. 64

warning tone .......................................................... 49

warnings ................................................................ 63

Battery pack charger ................................................ 18

Belt clip ..................................................................... 18

Brightness ................................................................ 51

Buttons .......................................................11–??, 11–??

Call ...........................................................23–30, 34–37

answer ..............................................................23, 53

call back ................................................................ 27

call waiting ............................................................. 28

conference ............................................................ 27

dial ......................................................................... 24

divert .......................................................... 29, 36–37

duration ............................................................23, 34

end ........................................................................ 23

multiple calls .......................................................... 26

transfer .................................................................. 26

volume ................................................................... 25

Call key .................................................................... 11

Call list .......................................................... 24, 34–35

Case ......................................................................... 12

Central phonebook ........................................ 25, 38, 39

Charge battery ......................................................... 63

charging behaviour ............................................... 56

charging rack ........................................................ 18

Clip ......................................................................13, 18

attach ...............................................................64, 65

Coloured messages ................................................. 60

Company phonebook ..........................................25, 38

Conference call ........................................................ 27

Connections ........................................................ 56–57

Contacts ..............................................................38–40

Customized menu

settings .................................................................. 45

Date ......................................................................... 15

format .................................................................... 52

Desktop charger ....................................................... 18

Desktop programmer ............................................... 18

Device information ................................................... 58

Dial ........................................................................... 24

Dialling

International number ............................................. 24

Display ..................................................................... 12

brightness ............................................................. 51

icons ...................................................................... 15

screen saver ......................................................... 51

Divert call ...................................................... 29, 36–37

Duration of call ....................................................23, 34

Earpiece ................................................................... 11

volume .................................................................. 25

End call .................................................................... 23

End key .................................................................... 12

End second call ........................................................ 26

Environmental requirements ...................................... 9

Frequency range ........................................................ 7

Hardware version ..................................................... 58

Headset .................................................................... 19

connector .............................................................. 12

Hot keys ................................................................... 46

Page 77

Index 77

Icons

display ................................................................... 15

Inbox ........................................................................ 41

Interactive messages ............................................... 60

Keys ..................................................... 11–??, 11–??, 12

alphanumeric keys ................................................ 14

lock ...................................................................12, 22

lock automatically .................................................. 49

sound .................................................................... 49

Language ................................................................. 53

Licenses ................................................................... 58

Local phonebook ............................................ 24, 38–??

Location

AP location ............................................................ 32

Lock/unlock .............................................................. 22

Log on/off ................................................................. 20

Loudspeaker .......................................................13, 28

Lower case ..........................................................12, 14

Maintenance ........................................................63–65

Man-down alarm ...................................................... 31

Menu .........................................................34–57, ??–74

Calls .................................................................34–37

Connections .....................................................56–57

Contacts ...........................................................38–40

customize .............................................................. 45

language ............................................................... 53

Messaging ??–......................................................... 44

Profiles .................................................................. 40

Services ................................................................ 45

Settings ............................................................48–54

Short cuts ??–.......................................................... 47

Message ??– .................................................... 44, ??–61

alert ....................................................................... 48

coloured ................................................................ 60

delete .................................................................... 42

display time ........................................................... 59

forward .................................................................. 42

interactive .............................................................. 60

priority ................................................................... 59

queue .................................................................... 59

read ....................................................................... 41

receive .................................................................. 41

reply ...................................................................... 42

sent ....................................................................... 44

unsent ................................................................... 43

write ...................................................................... 43

Message list ............................................................. 24

Message volume ...................................................... 48

Microphone .........................................................12, 13

Missed calls .............................................................. 35

Mobile data .............................................................. 61

Multifunction button .............................................11, 47

Multiple calls ............................................................. 26

Mute button .............................................................. 11

Navigation key ....................................................12, 46

Network

information ............................................................ 58

select ..................................................................... 56

No-movement alarm ................................................. 31

Number input mode .................................................. 14

Operating area ......................................................... 62

Out of range ............................................................. 62

Owner ID .................................................................. 15

change .................................................................. 54

Pause in phone number ........................................... 14

Phone lock ............................................................... 50

Phonebook ...............................................24, 25, 38–40

PIN code .............................................................22, 50

Power on/off ........................................................12, 20

Power supply ............................................................. 6

Problems .................................................................. 66

Profiles ..................................................................... 40

Push-button alarm .................................................... 31

Push-to-Talk button .................................................. 11

Page 78

78 Index

Rack charger ............................................................ 18

Regulatory compliance ...........................................8–??

Replace handset ...................................................... 65

Ring signal

turn on/off .............................................................. 21

type ....................................................................... 48

volume ................................................................... 48

Safety precautions ..................................................... 6

Screen saver ............................................................ 51

Second call ............................................................... 26

Services ................................................................... 45

Settings ...............................................................48–54

Shared phone ........................................................... 20

Short cuts ??–............................................................. 47

Soft keys ....................................................... 11, 15, 45

Software

version ................................................................... 58

Sound off key ........................................................... 12

Sound, keys ............................................................. 49

Space ..................................................................12, 14

Special characters .................................................... 14

Switch between calls ................................................ 26

WLAN information .................................................... 58

WLAN restrictions ...................................................... 8

Write text/numbers ................................................... 14

Test alarm ................................................................ 31

Text input mode ....................................................... 14

Time ......................................................................... 15

format .................................................................... 52

Transfer call ............................................................. 26

Troubleshooting ....................................................... 66

Upper case ..........................................................12, 14

User ID ..................................................................... 58

Vibrator ..................................................................... 48

Voice mail access key .............................................. 12

Volume

earpiece ................................................................ 25

ring signal .............................................................. 48

Volume button .......................................................... 11
