OpenStage T
The Open Unified Communication Devices
OpenStage is a totally new generation of phones which sets the
benchmark for Open Unified Communications. These stylish
devices provide an intuitive and engaging communication
experience, incorporating innovative features.
OpenStage is the prelude to a new era of high value in people-centric communication solutions.
Communication for the open minded
Siemens Enterprise Communications
www.siemens.com/open
Page 2
Overview
The OpenStage family is intuitive in
functionality and interface, integrated
through interoperability with other devices,
and multimodal to allow access to various
services and applications.
The OpenStage family is designed to be
extremely user friendly and simplify feature
implementation. Sensorial interfaces based
on advanced technology solutions (touch
keys, embedded color LEDs, TouchSlider for
volume control and TouchGuide navigator)
as well as large, tiltable, backlit color
graphical displays in TFT technology
facilitate user interaction.
Soft-labeled (paperless phone) touch
sensor keys can be easily programmed for
specific phone functions, line/feature
access or speed dial by name. An ideal
solution for office applications where
mobility and flexibility are important
factors.
Fixed feature/function push keys (such as
Drop/Release, Redial, Call Forwarding,
Mute, Speaker) and dedicated touch sensor
application/function keys (such as
Telephony Call View, Phone Book, Call Log/
History, Message Waiting) enable easy
access to frequently needed phone
functions.
OpenStage incorporates the latest
developments in leading edge acoustics to
ensure delivery of the very best voice
quality on the handset and speakerphone
(thanks to the handset design, speaker
model, and housing dimensions). A high
quality speakerphone is built in as standard
in all models (exception OpenStage 10 T).
Today’s workstations frequently feature
many different device types (such as PCs,
mobile phones, PDAs, and headsets).
OpenStage has built-in interfaces (such as
USB and Bluetooth) to interwork with these
devices.
A range of innovative adapters enables
OpenStage to be aligned with specific
workplace requirements (such as
connection to add-ons, fax machines or
phones).
OpenStage design highlights include
variation of materials and colors (from
molded plastic in ice blue or lava to highend silver blue metallic lacquering and
brushed aluminum).
The OpenStage TDM phone family
comprises five distinct phone models:
● OpenStage 80 T
● OpenStage 60 T
● OpenStage 40 T
● OpenStage 20 T
● OpenStage 10 T
OpenStage 10 T is an integral part of the
OpenStage T Family and provides the most
important telephony functions. The
succeeding models have increased feature
capabilities and perceived value
culminating in the high-end OpenStage 80
T model targeted at top level managers and
executives.
Product Family
The OpenStage TDM phones give you fast
and convenient access to the wide range of
HiPath features via the tried and tested U
system interface with extended CorNet-TS
protocol. New software versions can be
downloaded to the phones via HiPath
Management (exception OpenStage 10 T).
All OpenStage phones can be softwarecustomized with the logo of the individual
customer or partner (exception OpenStage
10 T).
OpenStage 10 T
OpenStage 10 T is the device of choice
wherever only the most essential telephony
functions are required. The telephone is
suitable for use in reception areas and
warehouses, for example.
Keys
● Keypad
● 3 freely programmable keys with red
LEDs
● Speaker key with red LED
● Control keys +/-
Acoustics
● Open listening
Wall-mountable
P0E
OpenStage 10 T
ice blue
OpenStage 10 T
lava
OpenStage 20 T
This full-featured speakerphone with it’s
intuitive and interactive user interface is a
universal solution for efficient and
professional telephony.
Display
● Tiltable graphical display, 2 lines
monochrome
Keys
● Keypad
● 7 fixed function keys (partly equipped
with red LEDs)
● Control keys +/-
● 3-way navigator
Acoustics
● Hands free talking (full duplex)
Wall-mountable
OpenStage 20 T
ice blue
OpenStage 20 T
lava
Page 3

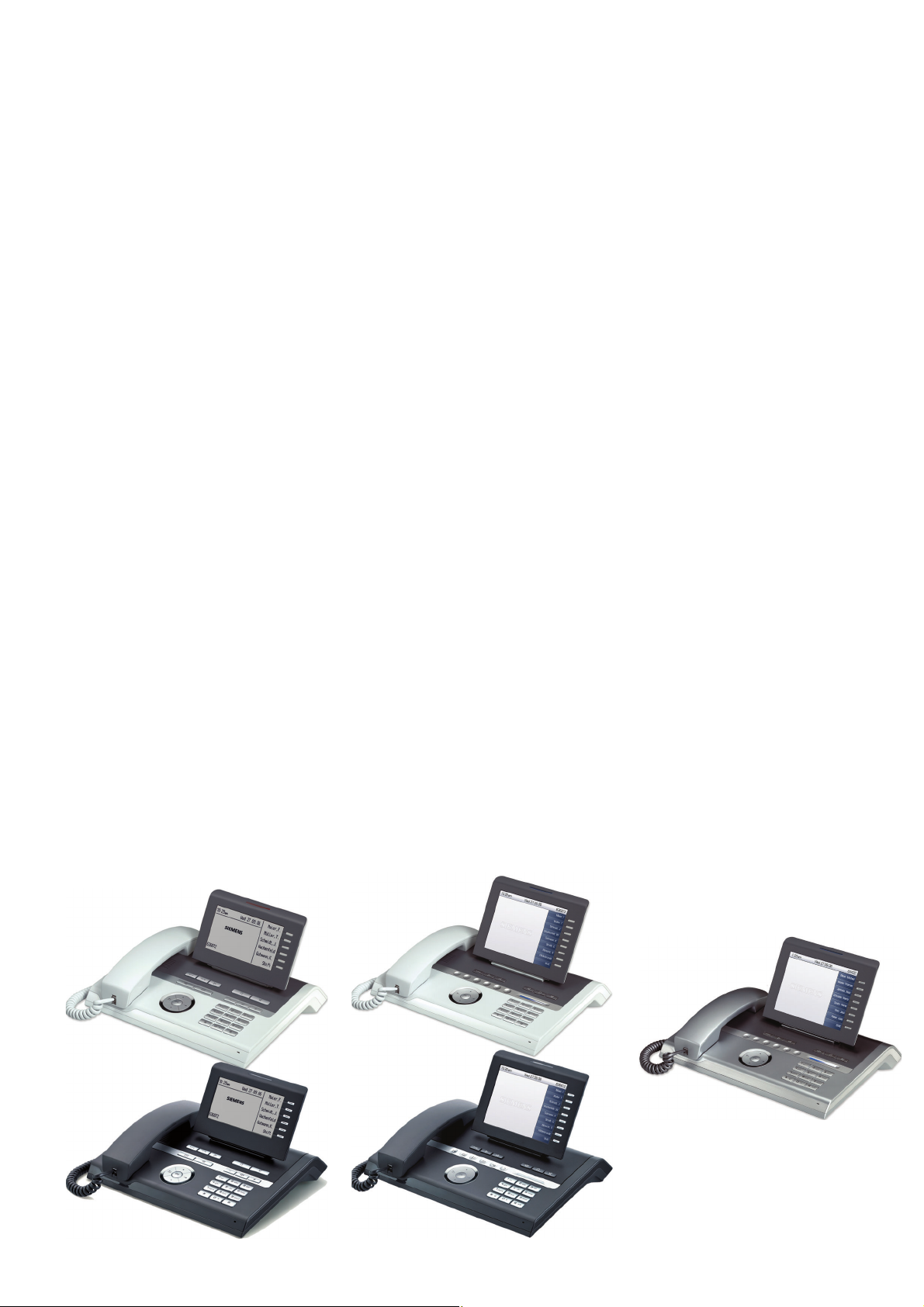

OpenStage 40 T
Customizable for various workplace
environments OpenStage 40 T is
recommended for use as an office phone,
e.g. for desk sharing, people working in
teams or call center staff.
Display
● Tiltable graphical display, 6 lines mono-
chrome, backlit
● Optical call alert
Keys
● Keypad
● 8 fixed function keys (partly equipped
with red LEDs)
● 6 freely programmable touch keys (illu-
minated) with red LEDs (function, speed
dial or line keys)
● Control keys +/-
● 5-way navigator
Acoustics
● Hands free talking (full duplex)
Interfaces
● Headset jack
● USB slave
OpenStage 60 T and 80 T
OpenStage 60 T
Offers top-notch functionality and
innovations, combining a maximum of
usability with a clear, intuitive and sleek
design. It’s functionality and
personalization options make this phone
the first choice for boss-/secretary
environments and people interacting with
other devices, like mobile phones or PDAs.
OpenStage 80 T
OpenStage 80 T has the same functional
scope as OpenStage 60 T. Premium colors,
materials and components turn this device
into an extraordinary user experience.
Interfaces for easy synchronization with
other devices, like PDA and mobile phone
are specially designed with the needs of the
top level manager and executive in mind.
Display
● Tiltable graphical color TFT display, 320 x
240 pixel (QVGA), backlit
● Optical call alert
Keys
● Keypad
● 6 fixed function keys (partly equipped
with blue LEDs)
● 8 freely programmable touch keys (illu-
minated) with blue LEDs (function,
speed dial or line keys)
● 6 mode keys (touch keys, illuminated)
with blue or blue/white LEDs (e.g. to
start applications)
● TouchSlider for volume adjustment with
blue/white LEDs
● TouchGuide for navigation
Acoustics
● Hands free talking (full duplex)
● High quality ringer tones
Interfaces
● Headset jack
● Bluetooth V2.0
● USB master & slave
● External power supply necessary
Wall-mountable
OpenStage 40 T
ice blue
OpenStage 60 T
ice blue
OpenStage 80 T
OpenStage 40 T
lava
OpenStage 60 T
lava
Page 4
OpenStage Manager
HiPath Support
Free OpenStage Manager software for
communication between PC and phone (via
USB) will be available with the release of
OpenStage 80 T and 60 T. It will allow users
to carry out the following functions:
● Administer the OpenStage Phone Book
–Synchronize contacts
– Edit the phone book
– Add pictures
– Assign polyphonic ring tones to
groups
● Load screen saver pictures
Personalization
OpenStage 80 T, 60 T provide users with
various options for customizing the phone
to their individual requirements:
● Load (mp3) ring tones from the PC and
assign to contacts
● Load pictures from the PC and assign to
contacts
● Change the phone appearance using dif-
ferent skins (2 skins will be provided)
● Create a personal screen saver
Accessories
For the respective OpenStage models a
comprehensive range of accessories will be
released separately. Here is a complete list
of accessories:

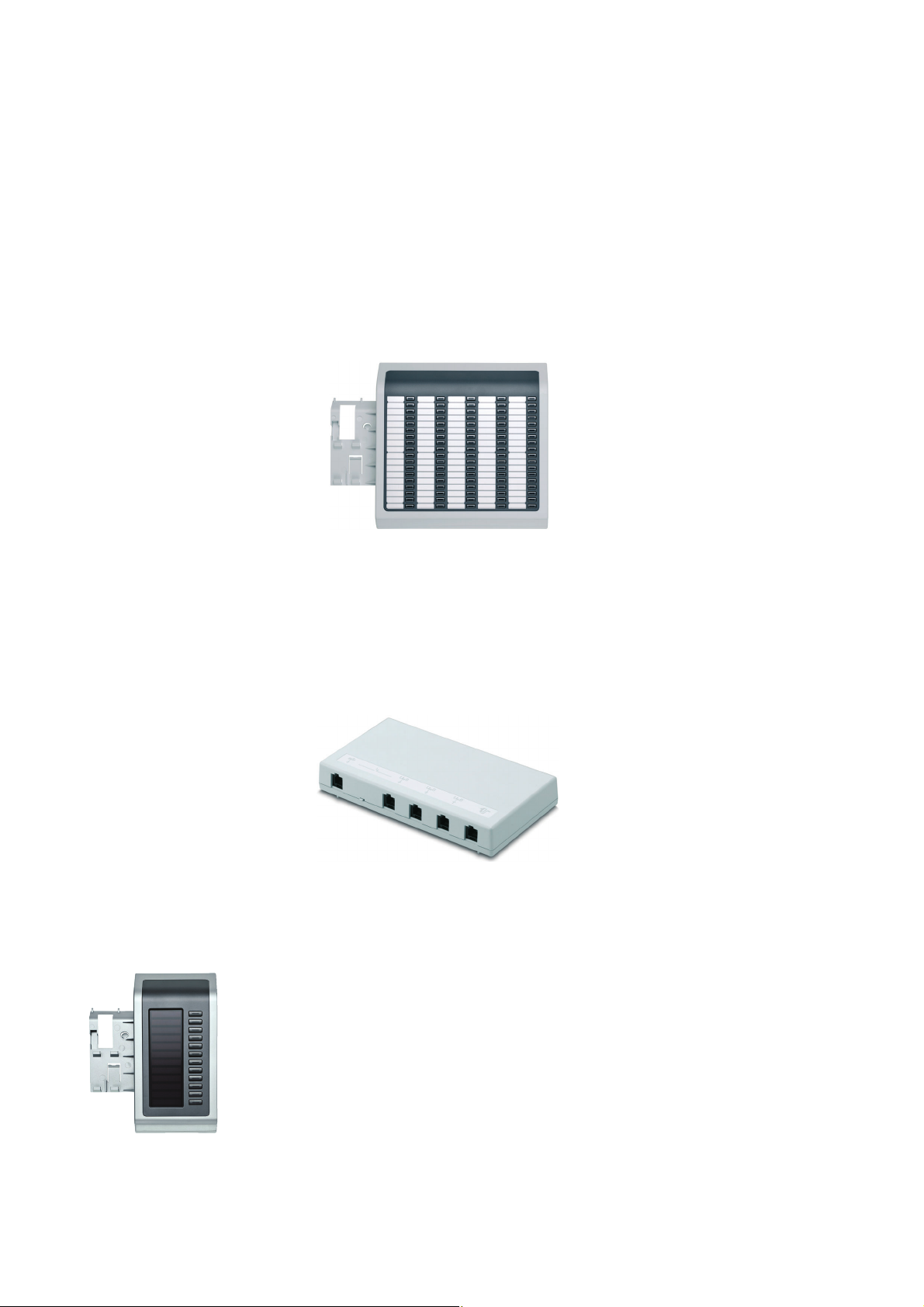

OpenStage Busy Lamp Field
40
● 90 additional freely programmable keys
with LEDs; function, speed dial or line
keys
● Key labelling with paper strips
● Only for HiPath 3000
● In ice blue or lava
● External power supply necessary
● For OpenStage 40 T (only 1 unit can be
connected)
OpenStage Phone Adapter
● Connection of:
– a second OpenStage phone with U
or
– an analog device (phone or fax)
● For OpenStage 10 T, 20 T, 40 T, 60 T, 80 T
P0E
OpenStage TDM phones can be used with
HiPath 3000 version 7 or later and HiPath
4000 version 4 or later.
Public Telephone Network Access/
acoustics/speech quality
● FCC Part 68/CS-03 (Technical Require-
ments for Connection of Terminal
Equipment to the Telephone Network)
● TIA/EIA-810A (Transmission Require-
ments for Narrowband VoIP and Voice
over PCM Digital Wireline Telephones)
● TBR8 (Telephony 3.1 kHz teleservices;
Attachment requirements for handset
terminals
● Hearing aid capability (HAC) according
to TIA/EIA-504A (Electronic industries association recommended standard RS504 magnetic field intensity criteria for
telephone compatibility with hearing
aids)
OpenStage Key Module
40, 60, 80
● 12 additional freely programmable keys
with LEDs; function, speed dial or line
keys (multiple layers)
● Large graphical display for key labeling
● In ice blue, lava or silver blue metallic
● For OpenStage 40 T, 60 T, 80 T (up to 2
units can be connected)
Wall mount kit
● In ice blue or lava
● For OpenStage 10 T, 20 T, 40 T
Page 5
Technical Data
OpenStage 10 T OpenStage 20 T OpenStage 40 T OpenStage 60 T OpenStage 80 T
Display
Tiltable display (pixels, type) – 205 x 41 pixels
2 lines, mono-
chrome
Backlit display – – Yes Yes Yes
Keys/LEDs
Fixed function keys (pushbuttons,
partly illuminated)
Freely programmable touch keys
(illuminated)
1
1 red LED
3 Keys
(pushbutton)
7
5 red LEDs
–6 Keys
with red LEDs
Mode keys (touch keys, illuminated) – – – 6 with blue or
Optical call alert – – red blue blue
Volume adjustment +/- key +/- key +/- key TouchSlider
Navigation element – 3-way 5-way TouchGuide TouchGuide
Audio
Open listening Yes Yes Yes Yes Yes
Full duplex hands-free – Yes Yes Yes Yes
Polyphonic ring tones – – – Yes Yes
Echo canceling for local echo (AEC)
– Ye s Yes Yes Yes
full duplex
Interfaces
Bluetooth V2.0
● Object Push Profile: Send and receive
–– –YesYes
business cards / vCards
● Headset Profile: Connect a Bluetooth
headset
Headset jack for corded/cordless
– – Yes Yes Yes
headsets (RJ45, 121TR9-5*)
USB Master – – – Yes Yes
USB Slave (1
st
Party CTI)
– – Yes Yes Yes
(future version)
Interface for add-ons
– – Yes Yes Yes
(up to 2, ext. power supply necessary)
Line interface
(CorNet-TS protocol, software download
via U
P0E
)
U
P0E
(no software
download
U
P0E
Expansions
OpenStage Key Module
– – Yes Yes Yes
(up to 2, ext. power supply necessary)
OpenStage Busy Lamp Field (only on
––Yes– –
HiPath 3000, ext. Power supply
necessary)
OpenStage Phone Adapter (via U
External power supply unit (EU, US or
) Yes Yes Yes Yes Yes
P0E
Yes Yes Yes Yes
UK)
240 x 128 pixels
6 lines, mono-
chrome
8
6 red LEDs
with red LEDs
U
P0E
320 x 240 pixels
(QVGA) color TFT
6
5 blue LEDs
8 Keys
with blue LEDs
blue/white LEDs
blue/white LED
U
P0E
(necessary in
all cases)
320 x 240 pixels
(QVGA) color TFT
6
5 blue LEDs
8 Keys
with blue LEDs
6 with blue or
blue/white LEDs
TouchS li der
blue/white LED
U
P0E
Yes
(necessary in
all cases)
Page 6
OpenStage 10 T OpenStage 20 T OpenStage 40 T OpenStage 60 T OpenStage 80 T
Wall mount kit Yes Yes Yes – –
Applications
Local personal phone book
● Up to 1,000 personal entries with
–– –YesYes
numbers
● Combination of contacts into groups
● Add a picture to favorite contacts
Local call list
● See the list of missed, forwarded, di-
–– –YesYes
aled and received calls
● Dial from the Call Log List
Save and restore personal data using a
–– –YesYes
PC or USB memory stick
OpenStage Manager support – – – Yes Yes
Certifications
CE marking:
EMC EN 55022 class B, EN 55024, EN 61000-4-11, EN 61000-3-2
Product safety EN 60950-1
USA / Canada:
EMC (FCC) Part 15 (CFR 47) class B
Product safety UL 60950-1 / CSA 22.2 No. 60950-1-03
Techn i c a l d a t a
Dimensions
70 x 210 x 220 70 x 240 x 220 70 x 270 x 220 70 x 300 x 220 70 x 300 x 220
(height x breadth x depth [mm])
Weight (kg) 0.63 0.864 1.120 1.235 1.428
Colors ice blue or lava ice blue or lava ice blue or lava ice blue or lava silver blue
Storage conditions -40 °C to +70 °C (ETSI EN300 019-2-2)
Operating conditions +5 °C to +40 °C
Communication for the open minded
Siemens Enterprise Communications
www.siemens.com/open
Copyright ©
Communications GmbH & Co. KG
Siemens Enterprise
Communications GmbH & Co. KG
is a Trademark Licensee of Siemens AG
Hofmannstr. 51, D-80200 Munich; 10/2008
Reference No.: A31002-S2000-D100-7-7629
The information provided in this brochure contains merely
general descriptions or characteristics of performance
which in case of actual use do not always apply as described
or which may change as a result of further development of
the products. An obligation to provide the respective characteristics shall only exist if expressly agreed in the terms of
contract. Availability and technical specifications are subject
to change without notice. OpenScape, OpenStage and
HiPath are registered trademarks of Siemens Enterprise
Communications GmbH & Co. KG.
All other company, brand, product and service names are
trademarks or registered trademarks of their respective
holders. Printed in Germany
Siemens Enterprise
Loading...
