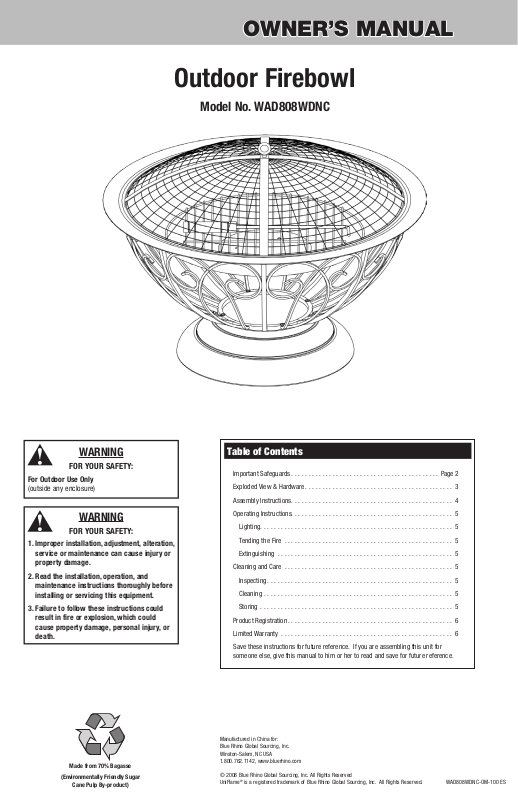

OWNER’S MANUAL
Outdoor Firebowl
Model No. WAD808WDNC
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1.Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
2.Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
3.Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
Made from 70% Bagasse
(Environmentally Friendly Sugar
Cane Pulp By-product)
Table of Contents |
|
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
Page 2 |
Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 3 |
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 4 |
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Tending the Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Extinguishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 6 |
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 6 |
Save these instructions for future reference. If you are assembling this unit for |
|
someone else, give this manual to him or her to read and save for future reference. |
Manufactured in China for:
Blue Rhino Global Sourcing, Inc. Winston-Salem, NC USA 1.800.762.1142, www.bluerhino.com
© 2008 Blue Rhino Global Sourcing, Inc. All Rights Reserved |
|
UniFlame® is a registered trademark of Blue Rhino Global Sourcing, Inc. All Rights Reserved. |
WAD808WDNC-OM-100 ES |
Outdoor Firebowl Model No. WAD808WDNC
DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNING:
This appliance is for outdoor use only, and shall NOT be used in a building, garage, or any other enclosed area.
Do NOT use this outdoor firebowl for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
This outdoor firebowl is NOT for commercial use.
This outdoor firebowl is NOT to be operated by children.
This outdoor firebowl is NOT to be used in or on boats or recreational vehicles.
Always use in accordance with all applicable local, state and national codes. Contact your local fire department for details on outdoor burning.
When using this outdoor firebowl, exercise the same precautions you would with any open fire.
The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate this outdoor firebowl.
Do NOT use this outdoor firebowl without reading the entire “Owner’s Manual”.
This outdoor firebowl is for use with dry, seasoned hardwood. It will burn hotter, more completely and create less smoke.
Do NOT burn charcoal briquets, lump charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated wood. Avoid using softwoods such as pine or cedar that can throw sparks.
Do NOT alter this outdoor firebowl in any manner.
Do NOT use this outdoor firebowl until it is COMPLETELY assembled and all parts are securely fastened and tightened.
Do NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
Do NOT store or use an LP gas cylinder within 10 feet (3.05 m) of this outdoor firebowl while it is in operation.
Do NOT use this outdoor firebowl near automobiles, trucks, vans or recreational vehicles.
Do NOT use in an explosive atmosphere. Keep outdoor firebowl area clear and free from combustible materials, gasoline and other flammable liquids.
Do NOT use this outdoor firebowl under any overhead or near any unprotected combustible constructions. Avoid using near or under overhanging trees and shrubs.
Always use this outdoor firebowl on a hard, level non-combustible surface such a concrete, rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. Do NOT use on wooden decks.
Always empty this outdoor firebowl before each use.
Do NOT wear flammable or loose clothing when operating this outdoor firebowl.
Do NOT use in windy conditions.
Do NOT use this outdoor firebowl unless spark guards are securely in place.
Do NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to light or relight fires.
Keep all electrical cords away from a hot firebowl.
All surfaces of this outdoor firebowl are hot when in operation. To avoid burns, do NOT touch firebowl until it has completely cooled unless you are wearing protective gear (Potholders, gloves, BBQ mittens, hot pads & etc.). Never touch ashes or coals to see if they
are hot.
Do NOT leave a lit outdoor firebowl unattended, especially around children and pets.
Do NOT attempt to move or store this outdoor firebowl until all ashes and coals are completely extinguished.
Do NOT remove ashes or coals until they are completely and fully extinguished.
Use heat-resistant gloves or hot pads when contacting handles.
Use long, sturdy firebowl tools when adding or moving logs.
Do NOT place wood directly into bottom of the outdoor firebowl. Place wood only on the wood grid.
Do NOT overload the firebowl. Do not add additional firewood until the fire burns down. NOTICE: If any portion of the bowl, lid or spark guards of this outdoor firebowl are glowing red it is overloaded.
Do NOT lean over this outdoor firebowl when lighting or when in use.
Do NOT place a hot spark guard or hot firebowl tools onto combustible surfaces such as grass, wooden deck or furniture.
Avoid breathing smoke from the fire and avoid getting it into your eyes.
This outdoor firebowl should be thoroughly inspected and cleaned on a regular basis.
After a period of storage and/or non-use, check for signs of damage and creosote build-up. Do NOT operate until necessary repairs and/or cleanup are executed.
Use only Blue Rhino Global Sourcing, Inc factory authorized parts. The use of any part that is NOT factory authorized can be dangerous and will void your warranty.
Contact 1.800.762.1142 for assistance. Do not return to place of purchase. |
page no. |
3 |
|
|
|
Parts List |
|
|
Exploded View |
|
1 |
Handle |
55-12-729 |
1 |
|
|
|
|||
|
|
|
|
|
2 |
Spark Guard |
55-12-735 |
|
|
|
|
|
|
|
3 |
Bottom Bowl |
55-12-727 |
|
|
|
|
|
2 |
|
4 |
Wood Grate |
55-12-736 |
||
|
|
|
|
|
5 |
Frame (4) |
55-12-728 |
|
|
|
|
|
|
|
6 |
Base |
55-12-726 |
|
|
|
|
|
|
|
7 |
Tool |
55-12-730 |
|
|
|
|
|
|
|
|
|
|
|
|
3
4
5 |
7
6
Hardware |
|
|
Tools Required for Assembly (Not Included) |
|
A |
Screw |
M4x8 Black Nickel Plated Phillips Truss Head |
8 pcs |
#2 Phillips Head Screwdriver |
|
||||
B |
|
|
|
|
Screw |
M5x20 Black Nickel Plated Phillips Truss Head |
4 pcs |
|
|
C |
Nut |
M6 Black Nickel Plated |
1 pc |
|
|
|
|
|
Outdoor Firebowl Model No. WAD808WDNC
Assembly Instructions
1 |
DO NOT RETURN PRODUCT TO STORE. |
2 |
Assemble Frame |
For assistance call 1.800.762.1142 toll free. Please have |
|
||
your owner’s manual and serial number available for |
|
reference.
For Easiest Assembly:
•To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.
•Clear an area large enough to layout all components and hardware.
•When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.
•Follow all steps in order to properly assemble your product.
Typical assembly: approximately 30 minutes.
A |
x 8 |
|
|
|
3 Attach Base |
4 Attach Handle |
B |
x 4 |
C |
x 1 |
|
|
|
