Step 1 Checking the Package Contents

Make sure you have received the following items in the package. If any of these items are missing or damaged, contact the Uniden Parts Department.

Base Unit - 1 Handset - [1 for DCT648] and [2 for DCT648-2] AC Adapter - [1 for DCT648] and [2 for DCT648-2] Rechargeable Battery Pack -

[1 for DCT648] and [2 for DCT648-2] Telephone Cord - 1 Beltclip - [1 for DCT648] and [2 for DCT648-2] Extra Charger - 1 for DCT648-2 only Owner's Manual - 1 Other Printed Material

Uniden Parts Department at (800) 554-3988 Hours: M-F 8:00 a.m. to 5:00 p.m. CST. We can also be reached on the web at

www.uniden.com

Step 2 Install and Charge the Handset Battery

TO INSTALL THE HANDSET BATTERY

Remove the cover.

Connect the battery pack connector with the correct polarity and listen for a click to insure connection.

Replace the cover.

Plug the AC adapter cord into the base unit and then into a 120V AC outlet. Place the handset in the base and charge continuously for 17 - 20 hours before using the phone.

QRG_battery_pack

QRG_AC_cord

Step 3 Connect to Phone Line

When the handset battery pack is fully charged, after 17-20 hours of charging, plug the telephone cord into the bas e un it and then into a telephone wall jack.

QRG_TEL_line

QUICK REFERENCE GUIDE

www.uniden.com

QUICK REFERENCE GUIDE [1]

Your phone is set for tone dialing. If your local network requires pulse dialing, please see D. Choose the dialing mode on page 13.

Step 4 Setting Caller ID & Language Display Options

TO SET CALLER ID ON CALL WAITING AND CALL WAITING DELUXE

Press menu/del in the standby mode.

Press ring/vol/∧ or ring/vol/∨ to sel ec t "

", and then select/.

Setup

Press ring/vol/∧ or ring/vol/∨ to select "

CIDCW

", and then select/.

Press ring/vol/∧ or ring/vol/∨ to select "

CWDX On

", "

CW On/CWDX Off

", and then select/.

CWDX Off

", or "

Global

CW On/

CW Off/

TO SET LANGUAGE

Press menu/del in the standby mode.

Press ring/vol/∧ or ring/vol/∨ to select "

Handset Setup

and then select/.

QRG_setup

Press ring/vol/∧ or ring/vol/∨ to select "

Language

then select/.

Press ring/vol/∧ to choose a Language, and then select/.

", and

Step 5 Setting Up the Answering System

TO TURN THE ANSWERING SYSTEM ON/OFF

Each time answer on/off is pressed, the answer mode is switched between On and Off.

TO SET GREETING MESSAGE

Press and hold greeting.

Start recording your message.

Position yourself as near to the base as possible.

When finished, press greeting or play/stop.

QRG_answering

[2] QUICK REFERENCE GUIDE

www.uniden.com

Contents

QUICK REFERENCE GUIDE 1 WELCOME/FEATURES 4 CONTROLS AND FUNCTIONS 6 DISPLAY AND ICONS 8 GETTING STARTED 9

Setting up the Phone 9 Mounting the Base Unit on a Wall 14 Main Menu Flow Chart 16 About the Menu Setup Options 18 Setting Up the Menu Setup Options 22

BASICS 30

Making and Receiving Calls 30 Placing a Call on Hold 31 Redialing a Call 32 Adjusting the Handset Ringer and Earpiece Volume 33 Do Not Disturb (DND) 33 Mute Microphone 34 Tone Dialing Switch-over 34 Traveling Out-of-Range 34 Clarity Booster 35 Privacy Mode 35 Intercom/Call Transfer Feature 35 3-Way Conferencing 36 Flash and Call Waiting 36

PHONEBOOK 37

Steps for Entering Names and Special Characters 39 Viewing the Phonebook 41 Making Calls Using the Phonebook 42 Speed Dialing 42 Editing or Erasing a Stored Name, Phone Number, Distinctive Ring, and Speed Dial 43 Chain Dialing 44

www.uniden.com

CALLER ID AND CIDCW 45

Viewing the Caller ID List 46 Deleting a Caller ID Message 47 Using the Caller ID Message List 48 Call Waiting Deluxe Features 49

THE INTEGRATED ANSWERING DEVICE 50

Turning the Answering System On/Off 51 Setting Up your Answering System 51 Using your Answering System 59 Remote Option 62

EXPANDING YOUR PHONE 65

Connecting the Charger 65 Register the Handset 66 Using the DirectLink Mode 67 4-Way Conferencing 68 Intercom/Call Transfer Feature 68 Replacing the Base 70

ADDITIONAL INFORMATION 71

Changing the Digital Security Code 71 Installing the Beltclip 71 Headset Installation 71 Note on Power Sources 72 Maintenance 72 General Information 73

TROUBLESHOOTING 74

Liquid Damage 77

PRECAUTIONS & WARRANTY 78 I.C. NOTICE 80 INDEX 81 MEMORY LIST 82

[3]

Welcome

Features

[4] WELCOME/FEATURES

Congratulations on your purchase of the Uniden Multi Handset Cordless System telephone. This unit is different from conventional cordless telephones. When the base unit is connected to AC power and a telephone line, it can support up to 4 handsets. Using extra handsets, you can establish a 3-way conference call (2 handsets and an outside line), while two other handsets are making an intercom call. You can now place a fully featured cordless handset anywhere in your home or office where AC power is available to connect the handset chargers.

Note: Some illustrations in this manual may differ from the actual unit for

explanation purposes.

Note: Energy Star

 2.4GHz Frequency Hopping Spread Spectrum  Integrated Answerring Device (Trilingual Announcement Option)  4 Multi-Handset Expandability  Hands Free Speakerphone in the Handset  Call Waiting Deluxe  Caller ID/Caller ID On Call Waiting  100 Dynamic Memory Location (Phonebook & Caller ID)  Trilingual Function Menus (English-French-Spanish)  Intercom/Call Transfer  20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)  Mute Feature  Flash and Pause  88 Channel Auto Scan  Handset to Handset Intercoming  DirectLinkTM Mode  Room Monitoring Feature  Battery Level Indicator  Clock Display

As an Energy Star models meets the Energy Star Energy Star



applies to DCT646 only.



Partner, Uniden has determined that this product or product



is a U.S. registered mark.



guidelines for energy efficiency.

www.uniden.com

WELCOME/FEATURES

This series features include AutoTalk and AutoStandby. AutoTalk allows you to answer a call by just removing the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to hang up by simply returning the handset to the cradle.

To pr ot ec t you aga in st mis-bi ll ed call s, whi ch might re su lt from you r ph one being act ivate d by oth er equi pm en t, this series has Random Code digital security, which automatically selects one of over approx. 130,000 digital security codes for the handset and base.

Frequency Hopping Spread Spectrum (FHSS) technology improves calling range and clarity, and eliminates cross talk. Because it rapidly changes transmission frequencies within the 2.4GHz bandwidth, this cordless phone helps reduce the possibility of eavesdropping.

DirectLink mode is used when you have 2 or more handsets. You can use your handsets as transceivers.

Be sure to visit our web site: www.uniden.com



is a registered trademark of Uniden America Corporation.

Uniden AutoTalk, AutoStandby, DirectLink, and Random Code are trademarks of Uniden America.

Standby Mode - The handset is not in use, The handset may be on or off the base, but talk/flash key has

Talk Mode - The handset is not in the cradle and talk/flash or speaker has been pressed enabl ing a dial tone .

been pressed.

Talk

" appears on the display.

WELCOME/FEATURES

www.uniden.com

WELCOME/FEATURES [5]

Controls & Functions

1. Handset Antenna

2. Headset Jack Cover

3. Beltclip Hole

4. Hands Free Speaker

5. Handset Battery Compartment

6. New Message LED

7. Handset Earpiece

8. LCD Display

9. Menu/del (delete) Key (P. 22 / P. 32, 47)

10. /vol and ∧/∨ ( P. 16-17, P. 33 / 37)

a. ringer and volume control b. scroll keys for display screen

11. |<<(repeat)/1 Key

12. ∅(delete)(for remote operation)/4 Key

13.

/tone/< Key (P. 30, 35 / P. 67-68)

14. redial/pause Key (P. 32/ P. 24)

15. speaker Key (P. 24, 30, 42)

16. Select/ (voice mail) Key (P. 22-29, 37-49)

17. Call id (Caller ID) key (P. 45-49)

18. Talk/flash Key (P. 30 / P. 36)

19. End Key (P. 30, 35-36)

20. (play)/2 Key

21. >>|(skip)/3 Key

22. (stop)/5 Key

23. #/> Key (P. 30 / P. 39)

24. (Phonebook) Key (P. 37-41)

25. Hold/transfer/int'com (Intercom) Key (P. 31 / P. 69 / P. 68)

26. Handset Microphone

27. Handset Charging Contacts

[6] CONTROLS & FUNCTIONS

www.uniden.com

CONTROLS &

FUNCTIONS

28. Base Speaker

29. ∅/delete Key (P. 52, 60)

30. Charge LED

31. Message Counter Display

32. In use LED

33. Play/stop Key (P. 53)

34. Base Antenna

35. |<<(repeat)/SELECT Key (P. 60)

36. Clock/MENU Key (P. 53)

37. Greeting Key (P. 51)

38. Answer on/off Key (P. 51)

39. /vol and ∧/∨ (P. 52)

40. Base Charging Contacts

41. >>|(skip)/SELECT Key

42. SET Key (P. 53)

43. Do not disturb Key (P. 33)

44. Memo record Key (P. 61)

45. Mute Key (P. 34)

46. Hold Key (P. 31)

47. Intercom/find handset Key (P. 35)

48. Speaker Key/speaker LED (P. 30)

49. Microphone

50. DC Power Input

51. Telephone Input

For DCT648-2 only

52. DC Power Input

53. Charging Contacts

54. Charge LED

CONTROLS &

FUNCTIONS

www.uniden.com

CONTROLS & FUNCTIONS [7]

Setting up the Phone

Do the following steps:

A. Choose the best location B. Install the battery pack into the handset C. Install the rechargeable battery pack into the handset D. Choose the dialing mode

A. Choose the best location

Before choosing a location for your new phone, read Installation Considerations on page

79. Here are some important guidelines you should consider:

note

If your home has specially wired alarm equipment connected to the telephone line, be sure that installing the system does not disable your alarm equipment.

If you have questions about what will disable alarm equipment, contact your telephone company or a qualified installer.

GETTING STARTED

www.uniden.com

GETTING STARTED [9]

B. Install the rechargeable battery pack into the handset

note



Use only the

Uniden (BT-446) rechargeable battery pack supplied with your cordless telephone.

Replacement battery

pack are also available through the Uniden Parts Department at (800) 554-3988, Monday thru Friday from 8:00 a.m. to 5:00 p.m. or online at www.uniden.com

[10] GETTING STARTED

The handset is powered by a rechargeable battery pack. The battery recharges automatically when the handset is placed in the base unit. Charge the handset battery pack for at least 17-20 hours before using your new cordless telephone for the first time! To maximize the charge capacity of your battery pack, DO NOT plug the telephone cord into the base unit and wall jack until the battery is fully charged.

1) Press down on the handset battery case cover (use the finger indention for a better grip) and slide the cover downward to remove.

2) Plug the battery pack connector (red & black wires) into the small, black jack inside the battery compartment. (The connector notches fit into the groove s of th e jack only one-way.) Match the wire c olors to the polarity label in the battery compartment, connect the battery, and listen for a click to insure connection.

3) Make sure you have a good connection by slightly pulling on the battery wires. If the connection is secure, the battery jack will remain in place.

4) Place the battery case cover back on the handset by sliding it upwards until it clicks into place.

5) Place the handset in the base unit for 17-20 hours without interruption. The base unit's LED light (labeled charge) illuminates once the handset is placed in the base. The LED light will illuminate whether the battery pack is connected or not.

If the base charge/in use LED light does not illuminate:  Check to see if the AC adapter is plugged into the base unit and the

electrical wall outlet properly. (Use only the supplied AC adapter. Do not use any other AC adapter.)

 Check to see if the handset is sitting correctly in the base and

making good contact with the base unit's charging contacts.

battery_pack

www.uniden.com

Low battery alert

When the battery pack is very low and need to be charged, the phone is programmed to eliminate functions in order to save power.

The battery pack needs to be charged when:

- The empty battery icon appears.

Low Battery

- " If the phone is in the standby mode, none of keys will operate. If you are on a call, complete your conversation as quickly as possible, and return the handset to the cradle.

Cleaning the battery charging contacts

To maintain a good charge, it is important to clean the charging contacts on both the handset and the base unit once a month. Using water only, dampen a cloth to clean the charging contacts. Then make sure to go back over the charging contacts with a dry cloth before returning the handset to the base to charge.

Caution: Do not use paint thinner, benzene, alcohol, or other chemical products. Doing so may discolor the surface of the telephone and damage the finish.

" appears in the display.

cleaning

note

Even when the battery

pack is not being used, it will gradually discharge over a long period of time. For optimum performance, be sure to return the handset to the bas e un it af ter a telephone call.



Standby Mode

The handset is not in use. The handset may be on or off the base, but been pressed.



Talk Mode

The handset is not in the cradle and

flash

been pressed enabling a dial tone. " appears on the display.

talk/flash

speaker

ke y ha s

talk/

Talk

has

GETTING STARTED

www.uniden.com

GETTING STARTED [11]

note

Use only the supplied

[AD-xxxx] AC adapter. Do not use any other AC adapter.

Place the power cord

so that it does not create a trip hazard or where it could become chafed and create a fire or electrical hazard.

C. Connect the base unit

1) Connect the AC adapter to the DC IN 9V jack and to a standard 120V AC wall outlet.

2) Set the base on a desk or tabletop, and place the handset in the base unit.

3) Raise the antenna to a vertical position.

4) Make sure that the charge/in use LED illuminates. If the LED does not illuminate, check to see that the AC adapter is plugged in and the handset makes good contact with the base charging contacts.

Connect the AC adapter to a continuous power supply.  Place t he b ase u nit clo se t o the AC o utl et s o that yo u

can unplug the AC adapter easily.

 After installing the battery pack in the handset, charge

your handset at least 17-20 hours before plugging into the phone line.

5) Once the handset battery pack is fully charged, connect the telephone line cord to the TEL LINE jack and to a telephone outlet.

If your telephone outlet isn't modular, contact your telephone company for assistance.

AC_cord

battery_charge

TEL_line

[12] GETTING STARTED

www.uniden.com

D. Choose the dialing mode

Most phone systems use tone dialing, which sends DTMF tones through the phone lines. However some phone systems still use pulse dialing such as in rural areas. The default setting is tone dialing. Depending on your dialing sys tem, s et the dial mode. T o set t he dial mode, see Setting the Dial Mode on page 26.

 If yo u ar e not s ure of you r dial ing syste m, s et the uni t t o to ne dia lin g. Mak e a t rial c all .

If the call connects, leave the setting as is, otherwise set the unit to pulse dialing.

 If your phone system requires pulse dialing and you need to send DTMF tones in certain

situations during a call, you may Switch Over to tone dialing. (Refer to Tone Dialing Switch-over on page 34.)

GETTING STARTED

www.uniden.com

GETTING STARTED [13]

DO NOT use an AC outlet controlled by a wall switch.

Mounting the Base Unit on a Wall

Standard wall plate mounting

This phone can be mounted on any standard wall plate.

1) Snap the wall mount adapter into the notches on the base top.

2) Plug the AC adapter into the

3) Wrap the AC adapter cord inside the molded wiring channel as shown.

4) Plug the AC adapter into a standard 120V AC wall outlet.

5) Plug the telephone line cord into the Wrap the cord inside the molded wiring channel as shown.

6) Plug the telephone line cord into the telephone outlet.

7) Raise the antenna to a vertical position.

8) Align the mounting slots on the base with the mounting posts on the wall. Then push in and down until the phone is firmly seated.

DC IN 9V

jack.

TEL LINE

jack.

wall_mount_adapter

wall_mount

GETTING STARTED

[14] GETTING STARTED

www.uniden.com

Direct wall mounting

If you don't have a standard wall plate, you can mount your phone directly to the wall. Before doing this, consider the following:

 Avoid electrical cables, pipes, or other items behind the mounting location that could

cause a hazard when inserting screws into the wall.  Try to mount your phone within 5 feet of a working phone jack to avoid excessive lengths.  Make sure the wall material is capable of supporting the weight of the base and handset.  Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable for the

wall material where the base unit will be placed.

1) Insert two mounting screws into the wall (with their

appropriate anchoring device), 3-15/16 inches apart. Allow about 1/8 of an inch between the wall and screw heads for mounting the phone.

2) Refer to steps 1 through 8 on page 14 to mount

the telephone.

Wall_screw

GETTING STARTED

www.uniden.com

GETTING STARTED [15]

Main Menu Flow Chart

•

From the standby mode:

Menu/del ring/vol/∧

select/



Access the voice mail dial (see page 36).

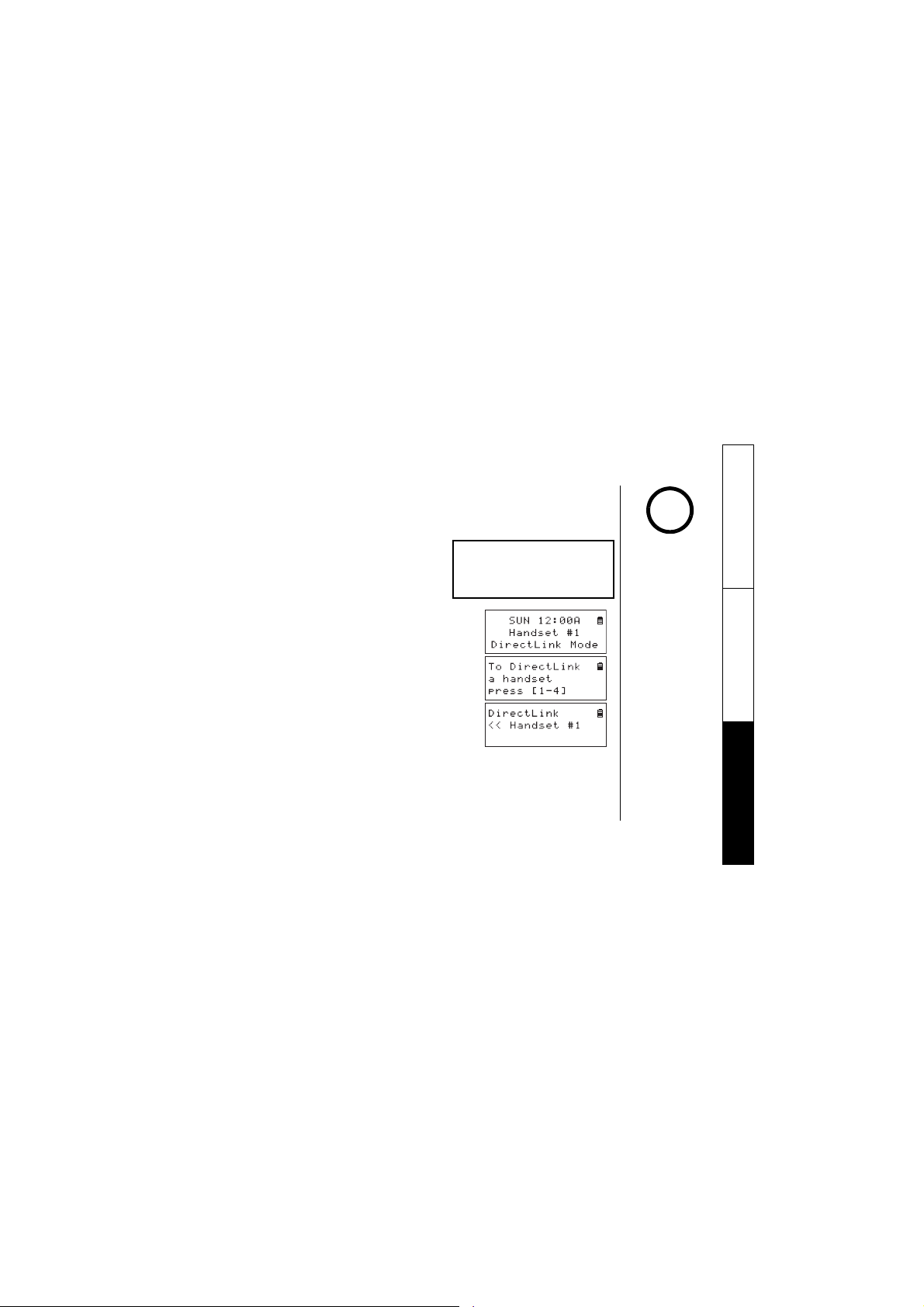

Go to DirectLink operation (see pages 22, 67).

Normal standby mode

ring/vol/∨

select/



ring/vol/∧

ring/vol/∨

select/



talk/flash

Press menu/del, and then select/

Monitor the room where the handset is installed. (see page 23).

Press end to finish the Room Monitor.



select/



This is example, if you have handset #1 and #2.

ring/vol/∧

ring/vol/∨

ring/vol/∧

ring/vol/∨

Setup the menu (see page 22).

select/

GETTING STARTED



[16] GETTING STARTED

www.uniden.com

ring/vol/∧

ring/vol/∨

ring/vol/∧

ring/vol/∨

Setup the menu (see page 27).

select/



ring/vol/∧

ring/vol/∨

ring/vol/∧

ring/vol/∨

Setup the menu (see page 29).

select/

GETTING STARTED

•

From the Talk mode:



Perform the operation.

menu/del

select/



The CWCX appears only when the caller ID setup is set to CW On / CWDX On.

www.uniden.com

GETTING STARTED [17]

note

For Global Setup, and System Reset menu setup option, make sure the line is not in use, and the handsets are within the range limits of the base.

About the Menu Setup Options

There are 6 main menu setup options, (DirectLink Mode, Room Monitor, Handset Setup, Answ. Setup, Global Setup, and System Reset) and 16 submenu setup options.

Summary of Main Menu Setup Options and Submenu Setup Option

DirectLink Mode

DirectLink Mode allows a pair of handsets to work without the base unit, allowing handsetto-handset communication. Use them at sporting events or while shopping to stay in contact with family members or friends. You must set the two handsets to DirectLink Mode to utilize this feature.

Room Monitor

This feature only works if you have two or more handsets, allowing you to monitor sounds in another room, (see page 23 for setup). One handset is placed in the desired room to monitor (acts as remote mic), and the other is placed near listener (remote speaker). This is useful for monitoring child activities.

GETTING STARTED

[18] GETTING STARTED

www.uniden.com

Handset Setup

The following submenu options must be set separately for each handset.

Submenu option Description

Ringer Tones Adjusting the ringer tone (see page 23).

Distinct. Ring

AutoTalk

Anykey Answer

Banner (True Banner)

Language

Key Touch Tone Set your phone's key touch-tone to On or Off (see page 25).

Set the distinctive ring (see page 24). "Distinctive Ringer" allows you to (Distinctive ring) preset memory locations with a designated ring tone. When an incoming call is received and the Caller ID information matches the information in one of the memory locations, the distinctive ring that has been stored for that particular Caller will sound. If you have set multiple memory locations with distinctive rings, switching the setting to "Distinctive Off" will result in no distinctive ringing. All incoming calls will have a normal ring tone. Switching to "Distinctive On" will activate all programmed distinctive ring memory locations.

Allows you to answer the phone without pressing When the AutoTalk is set to On, simply remove the handset from the cradle and the phone automatically answers the call (see page 24).

Allows you to answer the phone without pressing When the Anykey Answer i s On, yo u can ans wer a ca ll by pre ssing a ny numbe r key,

Customize the name of your handset, and display it in the LCD. While intercom, intercom hold, Room Monitor, and Copy Phonebook operation, your banner will be displayed on the receiving handset. (see page 24).

Language option can be used to choose the language of your display. You can select from English, French, or Spanish (see page 25).

/tone/<

, or

on the handset (see page 24).

talk/flash

speaker

GETTING STARTED

www.uniden.com

GETTING STARTED [19]

Answering Setup

This menu allows you to set up TAD settings from your handset. You can also set these setup menus from the base (see page 51).

Submenu option Description

Security Code

Ring Time

Record Time

Message Alert

Language

Call Screen Set the call-screening feature to On or Off (see page 26).

Select a two-digit Personal Identification Number (PIN) code. A PIN code is require d to play your me ssages f rom a rem ote loca tion, y ou will n eed to en ter a two-digit PIN code (see page 25).

Allows you to set the number of rings the caller hears before your answering system p lays the outgoi ng messa ge. You c an set th e ring t ime to an swer aft er two, four, or six rings. Setting "TS" (Toll Saver), the answering system picks up after two rings if you have new messages, and after four rings if there are none (see page 26).

Set the duration for recording the incoming messages. You have three record time options. The options "1 minute" or "4 minutes" set the duration for recording the incoming messages. "Announce only" answers the call with the preset greeting or your personal greeting but prevents the caller from leaving a message (see page 26).

Lets you know when you have a new incoming message by sounding a short alert tone (see page 26).

Select the Language of your answering system announcements from English, French, or Spanish (see page 26).

Language option can be used to choose the language of your display. You can select from English, French, or Spanish (see page 25).

GETTING STARTED

[20] GETTING STARTED

www.uniden.com

Global Setup

If you change one of the Global settings, you change the setting for all addititonal handsets. Only one handset can change Global settings at a time.

Submenu option Description

Day & time Set the day and time of your display (see page 27).

CIDCW

Area Code

Dial Mode Set the dial mode to tone or pulse (see page 28).

Copy Phonebook

Voice Mail Tone

Set the Caller ID on Call Waiting (CIDCW) setting. CIDCW performs the same as regular Caller ID on call waiting number (see page 25). Call Waiting Deluxe allows you to handle call waiting calls in seven different ways (see page 27).

Store or edit the area code. If you enter a 3-digit area code number in the"Area Code" option, your local area code does not appear in the Caller ID message. For calls received from outside your local area code, you will see a full 10-digit number (see page 28). Note: If your calling area requires 10-digit dialing, do not program this option.

Allow you to transfer the phonebook data stored in one handset to another handset (see page 28).

If your service does not support SDT message signal, it allows you to set your VMWI (Visual Message Waiting Inculcator) not to detect SDT message signal (see page 29).

System Reset

System Reset is used to clear the handset's ID from the main base unit, or the base ID from the handset.

Submenu option Description

Deregister HS

Replacing Base

Clear the handset ID from the base. Use this option, for example when you change the digital security code (see page 29).

Clear the base ID. Use this option, for example, if you wish to deregister the base to use the handset with another base of the DSS series (DCT646/ DCT6465/DCT648/DCT6485 series) (see page 29).

GETTING STARTED

www.uniden.com

GETTING STARTED [21]

Setting Up the Menu Setup Options

Entering Menu Setup Option

1) Press the

2) Use

ring/vol/

desired main menu setup option (DirectLink Mode, Room Monitor, Handset Setup, Answ. Setup, Global Setup, and System Reset).

3) Press

select/

4) Use

ring/vol/

 to enter.

select/

In the submenu setup option,

 to confirm your selection. For detailed instructions, see the following sections

select/

for the desired submenu.

5) To exit the menu, press

DirectLink Mode

Using the DirectLink Mode

1) Enter the "DirectLink Mode" menu option (see "Entering Menu Setup Option" on page 22). "

DirectLink mode press SELECT

2) Press

select/

hear a confirmation tone, and "

Complete

3) To return back to the normal mode, exit the DirectLink mode. To exit the DirectLink mode, press

key in the standby mode.

menu/del

∧ or

 to select the desired main menu setup option.

∧ or

 to enter the DirectLink mode. You will

" appears.

menu/del

∨ to move the pointer to a

ring/vol/

∨ to select a desired submenu setup option, and then press

ring/vol/

∧ or

ring/vol/

or place the handset to the cradle.

end

DirectLink Mode

, and then

select

ring/vol/

To enter

" appears.

, or return the handset to the cradle.

∨ is used to select an item. Press

GETTING STARTED

[22] GETTING STARTED

www.uniden.com

Room Monitor

1) Enter the "Room Monitor" menu option (see "Entering Menu Setup Option" on page 22). "

Monitor

2) Select the handset you want to monitor by using

3) Press

4) To finish the Room Monitor, press

" appears.

∧ or

vol/

select/

RoomMonitor

room where the handset is installed.

∨.

ring/vol/

.

" appears and you hear sounds in the

To Room

ring/

or return the handset to the cradle.

end

Handset Setup Selecting a Ringer Tone

1) Enter the "Handset Setup" menu option, and then the "Ringer Tones" submenu option (see "Entering Menu Setup Option" on page 22). There are 10 ringer tones or 10 melodies to choose from.

- Ringers [Flicker, Clatter, Soft Alert, Wake Up, Light Bug, Beep Boop, Tone Board, Chip Chop, Party Clap, Reminder]

- Melodies [Beethoven's Symphony #9 (Beethoven9), For Elise (Elise), We Wish You A Merry Christmas (Merry- Xmas), Home Sweet Home (Hm Swt Hm), Lorri Song #6 (Lorri Song), When the Irish Eyes Are Smiling (Irish Eyes), Aura Lee, Let Me Call You Sweet Heart (Sweetheart), Star Spangled Banner(Star Spangle), Old MacDonald(Old MacDld)]

2) Press you scroll through the options.

3) Press

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∨ to move the pointer. You will hear the ringer or melody as

ring/vol/

note

This is an example, if you have handset #1 and #2.

GETTING STARTED

www.uniden.com

GETTING STARTED [23]

Distinctive Ringer Setup

1) Enter the "Handset Setup" menu option, and then the "Distinct. Ring" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press

3) Press

Setting the AutoTalk

1) Enter the "Handset Setup" menu option, and then the "Auto Talk" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press "

3) Press

Setting the Anykey Answer

1) Enter the "Handset Setup" menu option, and then the "Anykey Answer" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press "

3) Press

Setting the True Banner

1) Enter the "Handset Setup" menu option, and then the "Banner" submenu option (see "Entering Menu Setup Option" on page 22).

2) Use the number keypad (0-9),

menu/del

3) Press

[24] GETTING STARTED

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

" or "

Off

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

" or "

Off

. You will hear a confirmation tone.

select/

to enter or edit the name.

. You will hear a confirmation tone.

select/

∨ to select "On" or "Off".

ring/vol/

∨ to change the selection,

ring/vol/

∨ to change the selection,

ring/vol/

/tone/<, #/>

GETTING STARTED

, or

www.uniden.com

Selecting a Language

1) Enter the "Handset Setup" menu option, and then the "Language" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press French (Français), or Spanish (Español).

3) Press

Setting the Key Touch Tone

1) Enter the "Handset Setup" menu option, and then the "Key Touch Tone" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press "

" or "

3) Press

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

Off

. You will hear a confirmation tone.

select/

∨ to choose English,

ring/vol/

∨ to change the selection,

ring/vol/

GETTING STARTED

Answering System Setup

Setting a PIN Code

1) Enter the "Answ. Setup" menu, and then the "Security Code" submenu (see "Entering Menu Setup Option" on page 22).

2) Enter a two-digit PIN code (01-99) using the number keypad (0-9).

3) Press

www.uniden.com

. You will hear a confirmation tone.

select/

note

For Answering Setup menu, you can also set them from the base (see page 51).

GETTING STARTED [25]

Setting the Ring Time

1) Enter the "Answ. Setup" menu option, and then the "Ring Time" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press (Toll Saver, 2 Times, 4 Times, or 6 Times).

3) Press

Setting the Record Time

1) Enter the "Answ. Setup" menu option, and then the "Record Time" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press (1 Minute, 4 Minutes, or Announce Only).

3) Press

Setting the Message Alert On or Off

1) Enter the "Answ. Setup" menu option, and then the "Message Alert" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press

3) Press

Setting the Language of your Answering System

1) Enter the "Answ. Setup" menu option, and then the "Language" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press (Français), or Spanish (Español).

3) Press

[26] GETTING STARTED

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∨ to select a Ring Time

ring/vol/

∨ to select Record Time

ring/vol/

∨ to choose "

ring/vol/

∨ to choose English, French

ring/vol/

" or "

Off

www.uniden.com

GETTING STARTED

Setting the Call Screen

1) Enter the "Answ. Setup" menu option, and then the "Call Screen" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press

3) Press

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

ring/vol/

∨ to choose "

" or "

Off

GETTING STARTED

Global Setup

Setting Day and Time

1) Enter the "Global Setup" menu option, and then the "Day & Time" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press week, and then press

3) Press

4) Press

5) Press You will hear a confirmation tone.

Setting CIDCW (Caller ID on Call Waiting)

1) Enter the "Global Setup" menu option, and then the "CIDCW" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press

", "

then press

www.uniden.com

∧ or

ring/vol/

ring/vol/ ring/vol/ ring/vol/

ring/vol/

CW On/CWDX Off

ring/vol/

∧ or

ring/vol/

∧ or

ring/vol/

∧ or

ring/vol/

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∨ to select the day of the

.

select/

∨ to set the time, and then press ∨ to set minute, and then press

∨ to choose "AM" or "PM", and then press

∨ to select "

", or "

CW Off/CWDX Off

CW On/CWDX

", and

select/

When a Global

setting is changed from one handset, this affects all

.

select/

GETTING STARTED [27]

registered handsets.

For setting the Day

and Time, the idle time-out is extended to 2 minutes.

note

Setting the Area Code

note

When the area code

has already been stored in memory, the stored area code will be displayed. To change it, use

and numb er

menu/del

keys to enter the new area code.

If you receive a call,

the transfer will be canceled.

If an error occurs, the

phonebook locations transferred before the error were stored in the receiving handset. "

Unavailable

appears on the display.

[28] GETTING STARTED

1) Enter the "Global Setup" menu option, and then the "Area Code" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press the number keypad (0-9) to enter a 3-digit area code.

3) Press

Setting the Dial Mode

1) Enter the "Global Setup" menu option, and then the "Dial Mode" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press "

Tone

3) Press

Copy Phonebook

1) Enter the "Global Setup" menu option, and then the "Copy Phonebook" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press

memory

If you choose "

3) Press

location you want to export, and then press

4) Press phonebook locations, and then press The phonebook locations will be transferred to the handset. On the receiving handset, "

Receiving Handset

the handset.

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

" or "

Pulse

. You will hear a confirmation tone.

select/

∧ or

ring/vol/

" or "

All Memory

∧ or

ring/vol/

∧ or

ring/vol/

∨ to change the selection,

ring/vol/

" (the initial setting is Tone).

∨ to choose "

ring/vol/

", and then press

", "

Are you sure?

∨, or the number keypad (0-9) to select the phonebook

ring/vol/

∨ to select the handset to which you want transfer the

ring/vol/

" appears. When the transfer complete, "

select/

One

.

select/

" appears on the handset. Go to step 4.

.

select/

.

Done!

" appears on

www.uniden.com

Voice Mail Tone (Block from SDT message signal)

1) Enter the "Global Setup" menu option, and then the "Voice Mail Tone" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press indication (SDT message signal) to "

3) Press

∧ or

ring/vol/

. You will hear a confirmation tone.

select/

∨ to set the voice message

ring/vol/

" or "

Off

System Reset

De-register the Handset

1) Enter the "System Reset" menu option, and then the "Deregister HS" submenu option (see "Entering Menu Setup Option" on page 22).

2) Press to be de-registered from the list, and then press . "

3) Press When de-registration is complete, "

Complete

4) After de-registering the handset, move to "Replacing the Base Setting" below.

Replacing the Base Setting

1) Enter the "System Reset" menu option, and then the "Replacing Base" submenu option (see "Entering Menu Setup Option" on page 22). "

2) Press The base information will be deleted. When replacing the base is complete, "

www.uniden.com

∧ or

ring/vol/

Deregister HS?

. You will hear a confirmation tone.

select/

" appears.

. You will hear a confirmation tone.

select/

" appears, register the handset(s) to the new base (see page 66).

∨ to select the handset ID

ring/vol/

" appears.

Replace Base?

Deregistration

" appears.

Place the handset on main base to

GETTING STARTED

select/

GETTING STARTED [29]

note

To set "Autotalk", see

page 24 or "Anykey Answer" see page 24.

The handset

microphone is located at the bottom of the handset (see "Controls and Functions" on page 6). Position yourself as near to the handset as possible and speak clearly.

If the line is in use by

another handset(s), "

Line In Use

appears in all registered handset's display, that are not in use.

Making and Receiving Calls

From the Handset

This handset has a built-in speakerphone that allows you to have a "hands-free conversation." This feature allows you to easily communicate while performing other tasks, such as cooking. (speaker icon) appears during hands-free conversations.

You can easily switch a call from normal conversation to "hands-free conversation". To switch a call, press speaker during the call.

From the Handset

Normal conversation Hands-free conversation

Handset On the Cradle

Pick up the handset (AutoTalk) or pick up

To answer a call

To make a call

To hang up Press

To enter a pause within the dialing sequence

the handset and press

Handset Off the Cradle

Press any number key, (Any Key Answer), or press

Handset Off the Cradle

1) Press

2) Listen for the dial tone.

3) Dial the number.

Dial the number, and then press

When you dial th e numbe r in the sta ndby mod e, pres s display, which represents a pause.

talk/flash

end

, or return the handset to the cradle (AutoStandby).

talk/flash



/tone/<

talk/flash

Handset Off the Cradle

#/>

, or

Press

Handset Off the Cradle

1) Press

2) Listen for the dial tone.

3) Dial the number.

talk/flash

Dial the number, and then press

speaker

redial/pause

" appears in the

. "

speaker

BASICS

[30] BASICS

www.uniden.com

From the Base (Receiving calls only)

1) Press speaker and begin speaking.

2) To hang up, press speaker.

Placing a Call on Hold

1) During a call, press hold/transfer/intcom. The call will be put on hold.

Once 10 seconds has passed or when you press the

2) To talk to the caller, press talk/flash or speaker on a handset. The phone will return back to the call.

Receiving_call

key, the call will be put on hold.

end

note

The base microphone

is located under the base (see "Controls and Functions" on page 7). Position yourself as near to the base as possible.

You can hold a call

for 5 minutes, when 5 minutes has passed, the call is disconnected and the phone returns to the standby mode.

While a call is on

hold, CIDCW can not be received.

BASICS

www.uniden.com

BASICS [31]

note

If the number exceeds

32 digits, only the first 32 digits are retained in redial memory.

If the redial memory

is em pty, you will hear a beep.

[32] BASICS

Redialing a Call

The last three phone numbers dialed can be quickly redialed.

Redialing from Standby Mode

1) Press redial/pause in the standby mode.

2) Press redial/pause again. Each press of redial/pause will display one of the last three number redialed.

3) Press talk/flash or speaker. The selected number is dialed.

4) To hang up, press end.

Redialing from Talk Mode

1) Press talk/flash or speaker.

2) Press redial/pause. The last number dialed will be displayed and redialed. To hang up, press end.

Deleting a Redial Record

1) Press redial/pause in the standby mode.

2) Press redial/pause repeatedly to display the number to be deleted.

3) Press menu/del.

4) Press ring/vol/∧ or ring/vol/∨ to choose "

5) Press select/. The redialed number is deleted.

Yes

Storing a Redial Record

1) Press redial/pause in the standby mode.

2) Press redial/pause repeatedly to display the number to be stored.

3) Press select/. "

4) To complete the setting, follow the steps 5-9 in "Storing Phone Numbers, Names, Distinctive Rings, and Speed dial" on page 37.

Store/Edit Name

" appears.

redial/pause

www.uniden.com

BASICS

Adjusting the Handset Ringer and Earpiece Volume

Handset ringer tone and volume

Press the volume up key or volume down key (labeled as ring/ vol/∧ or ring/vol/∨ in standby mode to select one of three

ringer volume (Off, Low, or High).

ring/vol/∨ring/vol/∧

Earpiece volume

Pressing the volume up key or volume down key (labeled as ring/vol/∧ or ring/vol/∨ key) during a call will change the earpiece volume of the handset. This setting will remain in effect after the telephone call has ended.

Do Not Disturb (DND)

DND allows you to mute the ringer of the handset and the base at once. Additionally, if you have more than one handset, ringer for all handsets will be muted. To do this, In the standby mode, press do not distur on the base. You will hear a confirmation tone and the DND LED right. To cancel ringer mute, Press do not distur again. You can also mute the ringer tone while the phone is ringing by pressing do not distur on the base.

To mute the ringer tone temporarily, when the phone is ringing:

- Press end on a handset, or

- Press pla /stop on the base. The ringer tone will return to the previous setting starting with the next incoming call.

www.uniden.com

note

Standby Mode - The

handset is not in use. The handset may be on or off the base, but

talk/flash

key has not

been pressed.

When you press volume

ring/vol/

up key ( the maximum volume level or volume down key

ring/vol/

( lowest volume level, an error tone sounds.

Setting the DND to On

while the answering system Off, turns the Answering system on automatically. The Answering system setting will return to the original setting when you cancel the DND.

If you press

on/off

and the answering system is On, both of the DND and the answering system will turn Off.

BASICS [33]

∧

) in the

∨

ans er

when the DND

) in

BASICS

note

The tone feature only

applies when the dial mode is set to pulse.

This special number

can be stored in a memory location. This is referred to as Chain Dialing (see page 44).

[34] BASICS

Mute Microphone

With the handset

You can temporarily turn Off the microphone so that the person you are talking with cannot hear you. During a telephone call press menu/del to turn Off the microphone. " and (mute icon) appear in the display. To cancel muting, repeat above step again when Mute is set to On, "

With the base

While using the base speakerphone, press mute on the base to turn Off the microphone. Press mute again or press speaker to cancel muting.

Mute Off

" appears.

Mute On

Tone Dialing Switch-over

Some telephone companies use equipment that requires pulse dialing (sometimes referred to as rotary dialing). If you need to enter tone dialing digits, you can switch-over to tone dialing during the call. For example, entering your bank account number after you have called your bank.

Initially make your call with the pulse dialing mode. Once your call connects, press These digits will be sent as tone dialing. Once the call ends, the tone mode is canceled and pulse dialing mode resumes.

/tone/<. Enter the desired number.

Tone_dial

Traveling Out-of-Range

During a call, as you begin to move your handset too far from your base unit, noise may increase. If you pass the range limits of the base unit, you will hear a beep and "

" appears, and then the handset returns to the standby mode. You may return back to

Range

the call if you move your handset within the range limits of the base, and press talk/flash or speaker within 30 seconds.

www.uniden.com

Out of

BASICS

Clarity Booster

If you encounter interference while using your phone, you can manually improve the sound quality by pressing the Clarity Booster. This works only when the phone is in use.

1) Press menu/del.

2) Select ring/vol/∧ or ring/vol/∨ to move the pointer to " and then select/. "

Booster On

To turn Off the Clarity Booster, repeat above step again when the Clarity Booster is On, "

Booster Off

" and "B" appear in the display.

" appears.

Clarity Booster

Privacy Mode

Privacy Mode allows you privacy, and guarantee of no interruption from other registered handsets.

1) Press menu/del.

2) Select ring/vol/∧ or ring/vol/∨ to move the pointer to "

Privacy Mode Privacy Mode On

" handset is set to Privacy Mode. To exit the Privacy Mode, repeat above step again when the Privacy Mode is On. "

Privacy Mode Off

", and then select/.

" and " " appear in the display. Other handsets will display which

" appears.

Intercom/Call Transfer Feature

Intercom and transfer features are available for your phone. See "Intercom/Call Transfer Feature" on page 68 for details.

BASICS

www.uniden.com

BASICS [35]

note

You must subscribe through your local telephone company to receive Call Waiting or Caller ID on call waiting service.

[36] BASICS

3-Way Conferencing

The phone permits 3-way conversations between the handset, base, and an outside line.

When speaking on the handset

1) Press speaker on the base to initiate the 3-way conversation.

2) To hang up, press speaker on the base. The handset will still be connected to the call.

Receiving_call

When speaking on the base

1) Press talk/flash or speaker on the handset to initiate the 3way conversation.

2) To hang up, return the handset to the cradle, or press end key on the handset. The base will still be connected to the call.

If you have more than one handset, the phone permits 4-way conversations, see "4-way Conferencing" on page 68 for details.

3_way_hand

Flash and Call Waiting

If you have Call Waiting service and a call waiting tone sounds while you are on a call, press talk/flash to accept the waiting call. There is a short pause, and then you will hear the new caller. To return to the original caller, press talk/flash again.

talk_flash

New Message LED

The new message LED on the handset is designed to work with your answering system. The LED flashes when you have new messages in your answering system. The LED stops flashing when all new messages are played back (see "Using your Answering System" on page 59)

www.uniden.com

BASICS

Phonebook

Phonebook allows you to dial a number using just a few key presses. Your phone stores names/numbers in the phonebook memory location, and you can search names in alphabetical order. You have a total of 100 locations that can be used for the phonebook (including the Speed dials) and Caller ID messages.

1) When the phone is in the standby mode, press phonebook. The handset displays the following items: (1st line) The number of the phonebook locations used (2nd line) How to search (press the number keypad, ring/vol/∧ or ring/vol/∨) (3rd line) How to enter the storing operation (press the select/ key)

2) Press select/, "

3) Enter the name (up to 16 characters) by using the number keypad (see the "Steps for Entering Names and Special Characters" on page 39). If a name is not required, go to step 5. <No Name> will be used as the name.

4) Press select/ to store the name, "

Store/Edit No.

5) Press the number keypad to enter the phone number (up to 20 digits), press select/ to store the number.

Distinctive Ring

6) " ring/vol/∨ to move the pointer to one of the Distinctive Ring options, and then press select/.

www.uniden.com

Store/Edit Name

" appears.

" appears. Press ring/vol/∧ or

note

You have a total of 100

locations. However, Caller ID messages and Phonebook share the memory locations.

Selecting a speed dial

location where a number is already stored, releases the old number's speed dial setting. The new number will be stored in the speed dial location.

When the memory is

full, you will hear a beep and "

Memory

" appears. You

Full

cannot store names and numbers.

The pause key counts

as one digit. Pressing

redial/pause

more than once increases the length of the pause between numbers. Each pause represents a 2 second delay.

PHONEBOOK [37]

PHONEBOOK

If you choose not to store a "Distinctive Ring", simply select the "No Selectn" option.

Speed Dial

7) " to move the pointer to select the Speed dial location (10 locations: SPD1-SPD0).

8) Press select/. You will hear a confirmation tone and "

Done!

" appears. Press ring/vol/∧ or ring/vol/∨

If you choose not to store the name/number as a Speed Dial, simply select the "No Selectn" option.

" appears in the display.

PHONEBOOK

[38] PHONEBOOK

www.uniden.com

Steps for Entering Names and Special Characters

Refer to the letters on the number keys to select the desired characters. With each press of a number key (0-9), the displayed character appears in the following order: Upper case letters first, lower case letters next and finally the number corresponding to the key.

Number of times key is pressed

PHONEBOOK

www.uniden.com

PHONEBOOK [39]

note

If the next character uses the same number key, you must press to move the cursor over. Otherwise the next time you press the number key, it changes the character that was previously set.

#/>

If you make a mistake while entering a name

/tone/< or #/> to move the cursor to the incorrect character.

Use

Press menu/del to erase the wrong character, and then enter the correct character. To delete all characters, press and hold menu/del.

For example, to enter Movies:

1) When the phone is in the standby mode, press phonebook.

2) Press select/, "

Store/Edit Name

" appears.

3) Press 6 once, and then press #/> to move the cursor to the right.

4) Press 6 six times.

5) Press 8 six times.

6) Press 4 six times.

7) Press 3 five times.

8) Press 7 eight times.

9) When finished, press select/.

To continue to store the telephone number, proceed to step 5 on page 37.

PHONEBOOK

[40] PHONEBOOK

www.uniden.com

Viewing the Phonebook

Your phone stores names/numbers in the phonebook memory locations, and you can search names in alphabetical order. You can view the phonebook even while the phone is in use.

1) Press phonebook. If you recall the phonebook during a call, "

[SELECT]

" will not appear.

2) Press ring/vol/∧ or ring/vol/∨ , or the number keypad to scroll through the phonebook locations. Phonebook locations appear in alphabetical order (from first to last when you press ring/vol/∨, from last to first when you ring/vol/∧.

Or, refer to the letters on the number keys to select the first letter of the desired name. Press a number key (2-9 an d 0) once for the fir st letter, pres s tw ice for the second l ett er, and so on. The first location that begins with the letter you entered appears.

For example, to search for "Movies", press 6 once. Press ring/vol/∧ or ring/vol/∨, until the phonebook location is displayed.

Store

3) To finish the viewing operation, press end (or phonebook during a call).

www.uniden.com

note

During a call, don't

end

press

or the call

will be disconnected.

PHONEBOOK [41]

PHONEBOOK

Making Calls Using the Phonebook

From Standby Mode

1) When the phone is in the standby mode, view the phonebook location to dial (see "Viewing the Phonebook" on page 41).

2) Press talk/flash or speaker. The displ ayed n umber is dialed.

3) To hang up press end.

From Talk Mode

1) Press talk/flash or speaker.

2) View the phonebook location to dial (see "Viewing the Phonebook" on page 41).

3) Press select/. The number in the displayed phonebook location is dialed.

4) To hang up press end.

Speed Dialing

If you store a phone number in a speed dial memory location (10 locations: SPD1 - SPD0), you can use the speed dialing feature. When the phone is in the standby mode, press and hold a number key (0-9) associated with the speed dial until the phone number appears, and then press talk/flash or speaker. The number stored in the speed di al (SPD1 - SPD0) is dialed.

PHONEBOOK

[42] PHONEBOOK

www.uniden.com

Editing or Erasing a Stored Name, Phone Number, Distinctive Ring, and Speed Dial

1) When the phone is in the standby mode, Press phonebook.

2) Press ring/vol/∧ or ring/vol/∨ , or the number keypad to view the phonebook locations (see "Viewing the Phonebook" on page 41).

a. Editing the Stored Data

1) When the phonebook location to be edited appears, press select/. "

2) Follow the steps 3 to 7 under "Storing Phone Numbers, Names, Distinctive Rings, and Speed Dial" on page 37 to complete the editing operation.

3) Press select/. You will hear a confirmation tone.

b. Deleting the Stored Data

1) When the phonebook location to be deleted appears, press menu/del. "

Delete Memory?

2) Press ring/vol/∧ or ring/vol/∨ to move the pointer to "

Yes

3) Press menu/del. You hear a confirmation tone. "

Deleted!

Store/Edit Name

" appears.

" appears in the display.

" appears.

PHONEBOOK

www.uniden.com

PHONEBOOK [43]

Chain Dialing

The memory locations in the handset are not limited to phone numbers. You can also store a group of numbers (up to 20 digits), that you need to enter once your call connects. This is referred to as Chain Dialing.

An example of this is a bank account number. Store the account or special number in one of the phonebook locations. (refer to "Storing Phone Numbers, Names, Distinctive Rings and Speed Dial" on page 37). When you call your bank, and you are prompted to enter the account number, scroll through your phonebook locations until you find your account or special number, then press select/.

PHONEBOOK

[44] PHONEBOOK

www.uniden.com

Caller ID and CIDCW (Call ID on Call Waiting)

You must subscribe to Caller ID services through your local telephone provider to use these features.

When the telephone rings, the Caller ID feature allows you to view the callers name, phone number, date and time of call. With CIDCW (Caller ID on call waiting), you will hear a call waiting tone while you are on a call, and the Caller ID data is displayed. To accept the waiting call, press talk/flash (see page 27). Additionally, you can dial a number stored in the Caller ID list or save data to your Phonebook locations.

Important:

Memory locations for Caller ID messages and Phonebook locations (including Speed Dials) are common, you can store up to 100 in total. A Caller ID message is not stored when you have stored 100 of the phonebook locations. The earliest Caller ID message is overwritten when you have stored 100 of the phonebook locations and Caller ID messages in total.

The date and time received

1) W he n th e c al l is vi a a priva te br anch e xc hange (P BX), t he calle r' s p hone n um ber an d n ame may not appear. 1) When the Caller ID message is received, the display shows the caller's phone number along with the date and time. The incoming call information is stored in the Caller ID record. If the Caller ID service includes the caller's name, the name will appear in the display (up to 15 characters).

You may receive any one of the following messages: When invalid data is received " When a private name is received " When a private number is received " When a unknown name is received " When a unknown number is received "

www.uniden.com

Caller's name

Caller's phone number

Incomplete Data Private Name Private Number Unknown Name Unknown Number

note

If you answer a call

before the Caller ID message is received (for example, before the second ring), the Caller ID message will not appear.

When the call is

received via a telephone company that does not offer Caller ID service, the callers phone number and name d oe s n o t a p p e ar . (This includes some international calls.)

CALLER ID [45]

CALLER ID

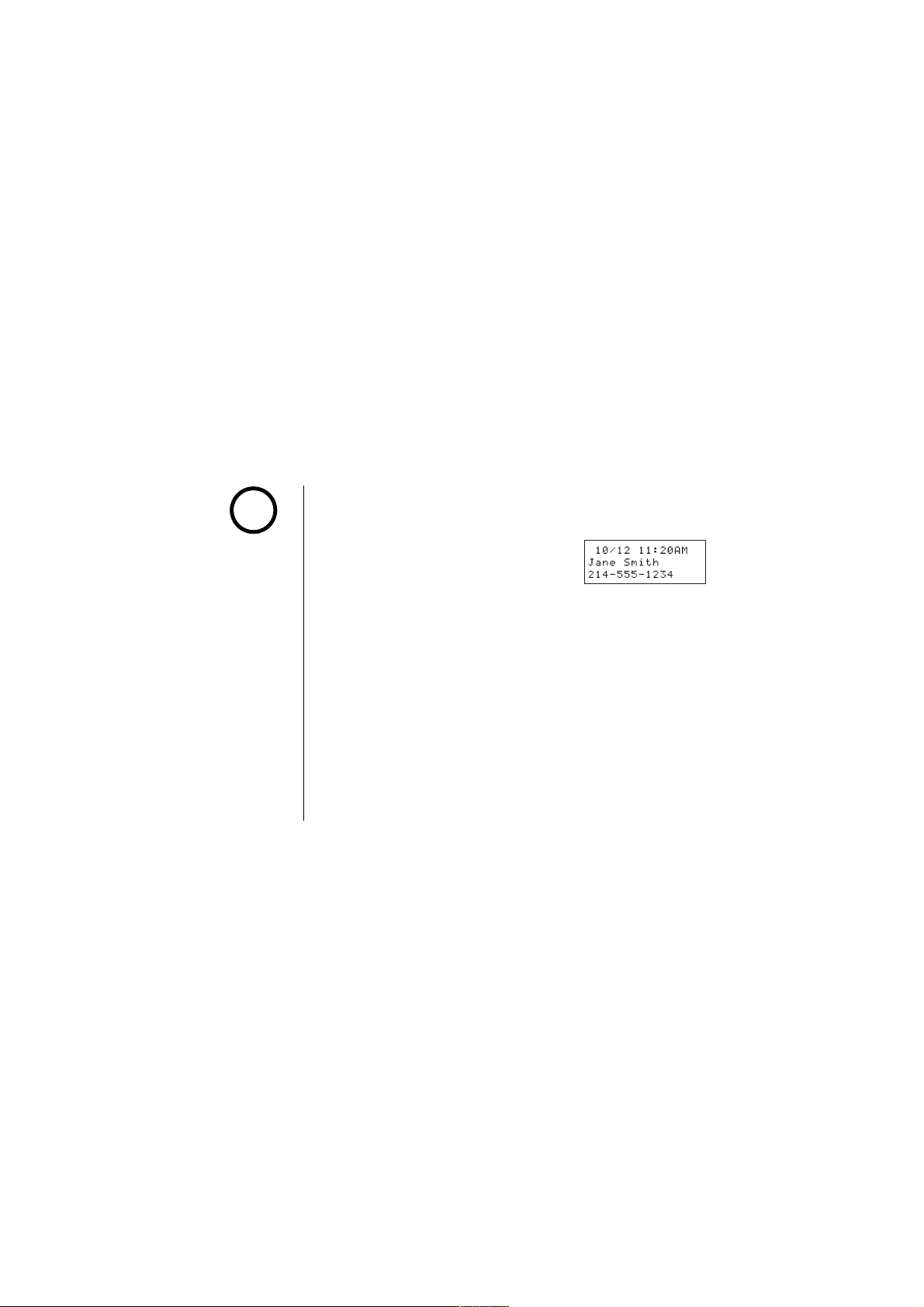

2) When you pick up the phone, the display changes to  (AutoTalk feature is set to on).

Data errors appear as "❚."

Talk

.

CALLER ID

note

The number of calls

from the same Caller ID appears next to the received time. Once you view the new message, the number will be cleared and disappear.

During a call, don't

end

press

or the call

will be disconnected.

[46] CALLER ID

Viewing the Caller ID List

The Caller ID list stores information for incoming calls - even unanswered calls. You can store 100 of the Caller ID messages and Phonebook locations (including SpeedDials) in total. You can view the Caller ID list during a call or when the phone is in the standby mode.

1) Press call id. The summary screen appears. The screen shows the number of new messages and total messages.

2) To view the Caller ID messages in historical order (from new to old or from old to new), repeatedly press ring/vol/∧ to scroll through the messages from the latest to the earliest, or ring/vol/∨ to scroll back through the messages. Or, to view the Caller ID messages with alphabetical search, press the number key pad (2-9 and 0) with the letter associated with the first letter of the desired message.

Once you view the Caller ID list with alphabetical search, you cannot switch back to historical order (from new to old or from old to new) unless you exit and re-enter the operation.

3) To finish the viewing operation, press call/id (or end during a call).

www.uniden.com

Deleting a Caller ID Message

Deleting Information from the Caller ID List

1) When the phone is in the standby mode, view the Caller ID information to be deleted (see "Viewing the Caller ID List" on page 46).

2) Press menu/del. "

3) Press ring/vol/∧ or ring/vol/∨ to choose "

4) Press select/. You will hear a confirmation tone.

Deleting all Caller ID names/numbers

1) When the phone is in the standby mode, press call id.

Caller ID

" The number of new and total records appears.

2) Press ring/vol/∧ or ring/vol/∨ to choose "

3) Press select/. You will hear a confirmation tone.

Delete Caller ID

" appears.

Yes

", and then press the OK soft key.

Yes

CALLER ID

note

Once the Caller ID data

has been deleted, the information cannot

be retrieved.



Standby Mode

The handset is not in use, The handset may be on or off the base, but been pressed.



Talk Mode

The handset is not in the cradle and

flash

been pressed enabling a dial tone. " appears on the display.

talk/flash

speaker

ke y ha s

talk/

Talk

has

www.uniden.com

CALLER ID [47]

note

You cannot make a call

from the Caller ID list if your phone is connected to a private branch exchange (PBX).

When a long distance call

has been set, " in the display.

If a call comes in via a

telephone system that does not offer Caller ID service, no information is stored.

If the Caller ID mes sage

was received as a private/ unknown number, or the message does not have the number, you cannot store the message in the Phonebook. Or it was received as private/ unknown name, the message will be stored as <No Name>.

Even if the 100 memory

locations are full, the message will be stored in the Phonebook. However, the message will be erased from the Caller ID list.

[48] CALLER ID

" appears

Using the Caller ID Message List

Calling a party from the Caller ID list

From Standby mode

1) When the phone is in the standby mode, view the Caller ID message (see "Viewing the Caller ID List" on page 46).

2) Press talk/flash or speaker. The displayed phone number dials automatically.

From Talk mode

1) Press talk/flash or speaker.

2) View the Caller ID message you want to dial (see "Viewing the Caller ID List" on page 46).

3) Press select/. The displayed phone number will be dialed.

Long Distance calls and Area Code Setting/Cancellation

While the present Caller ID information is displayed, pressing */tone/< will place or remove the prefix "1" in the display to set the call for a long distance call, or pressing #/> will set or cancel an area code (see page 28).

Storing Caller ID messages in the Phonebook

Messages shown in the Caller ID list can be stored in the phonebook. The phone number and name of the party on the Caller ID list can be stored in memory.

1) When the phone is in the standby mode, view the Caller ID message to be stored. Then press select/. "

2) To complete the setting, follow the steps 4-8 in "Storing Phone Numbers, Names, Distinctive Rings, and Speed dial" on page 37.

Store/Edit Name

" appears.

www.uniden.com

CALLER ID

Call Waiting Deluxe Features

Your phone gives you new options for call waiting. At the touch of a button, you can place the caller on hold, send them to your voice mail service, or conference them into your current call. You may be required to subscribe to Call Waiting and Call Waiting Deluxe to use these features. Not all features are available in all areas. Check with your local telephone company for details.

1) When you receive a Call Waiting call, press menu/del for a list of options.

2) Press ring/vol/∧ or ring/vol/∨ to select CW deluxe, and then press select/.

3) Press ring/vol/∧ or ring/vol/∨ or the number keypad (1-7) to select an option.

For example:

3) Press select/. A confirmation screen will appear, and returns back to the call.

Your phone is pre-programmed with seven call waiting options. You may select to ask the calling party to ho ld, s end them a busy message, forward them to yo ur vo ice m ail, or answer and drop the first caller. You may also select to conference them into the current call or, at any time, choose to drop the first or drop the last caller. Check with your local telephone company for a full list of options.

press ring/vol/∨ 4 times press ring/vol/∨ 2 times

note

To activate features,

select "CW On/CWDX On" in the CIDCW option. See page 27.

You can also answer a

waiting call immediately by

talk/flash

pressing the first caller will be placed on hold. To return to the original

talk/

caller, press

flash

again.

If you don't press a

key within 30 seconds while in the operation, the p hone back to a call.

CALLER ID

www.uniden.com

CALLER ID [49]

The Integrated Answering Device

The phone has a built-in answering system that answers and records incoming calls. You can also use your answe ring system to reco rd a conversation, leave a voic e memo message, or to announce a special outgoing message to callers when you're away from your phone.

Features

 Digital Tapeless Recording  Approx. 12 Minutes of Recording Time  Call Screening On/Off  Selectable Outgoing Messages  Voice Prompts for Menu Setup Guidance  Time and Day Announcement  Remote Message Retrieval  Toll Saver  Conversation Recording  Voice Memo  Trilingual Language Option Message Alert  Remote Operation from the Handset

Digital Tapeless Recording allows you to quickly review, save, or delete the messages you choose. You will never have to worry about a tape wearing out, jamming, or resetting improperly.

The Integrated Answering System is easy and convenient to use, but please read through all of the instructions carefully.

ANSWERING DEVICE

THE INTEGRATED

[50] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Turning the Answering System On/Off

1) To turn the answering system On, press answer on/off in the standby mode. After the announcement "Answering System is on", the current greeting message will be played and you will hear a confirmation tone. The message counter displays the number of messages stored in memory. If the display flashes, then there are new messages waiting for you.

2) To turn the answering system Off, press answer on/off. After the announcement "Answering System is off", the message counter display will no longer be illuminated. You can also turn the Answering System On or Off from the handset using the menu mode (see page 20).

Setting up your Answering System

Setting your outgoing message (Greeting)

When you receive a call, the answering system automatically plays either the pre-recorded message or your own greeting.

Pre-recorded message

The following message is pre-recorded: "Hello, no one is available to take your call. Please leave a message after the tone."

Recording a personal outgoing message (Greeting)

You can record a greeting up to 30 seconds long (must be more than 2 seconds long).

1) When the phone is in the standby mode, press and hold greeting.

2) Start your recording after the announcement "Record greeting". The message counter displays " - -", then begins to count down.

3) When you have finished recording your greeting, press greeting, or set. You will hear a confirmation tone and your recorded greeting plays back for you.

note

When the answering

system is full, "FL" appears on the base. You should delete some messages so that the system can record new messages.

Position yourself as

near to the base as possible and speak clearly when recording your outgoing message.

If you make an

outside call, or a call is r ecei ved o n the base during the operation, the oper ation is canceled.

ANSWERING DEVICE

THE INTEGRATED

www.uniden.com

THE INTEGRATED ANSWERING DEVICE [51]

Choosing between the two outgoing messages

When the phone is in the standby mode, press greeting. Press greeting again when the outgoing message is played. Each time greeting is pressed, the outgoing message is switched between the pre-recorded and the personal outgoing message.

Deleting an outgoing message

To delete the personal outgoing message, press delete while the message is playing. The system announces "Greeting has been deleted".

Setting the base ringer volume

You have four ringer volume options. One allows you to turn the base ringer off. The other three are volume levels.

1) When the phone is in the standby mode, press ring/vol/∧ or ring/vol/∨. You hear the ringer at the current volume level ("3" High, "2" Medium, "1" Low, or "0" Off) (if you set the base ringer volume to off "Ringer Off" is announced), and it appears on the base.

2) Press ring/vol/∧ or ring/vol/∨ repeatedly until the desired ringer volume appears. You will hear a ringer at the selected volume level. The system returns to the standby mode. You can also set the base ringer volume or while the phone is ringing, press ring/vol/∧ or ring/vol/∨ repeatedly to select the desired ringer volume.

Adjusting the speaker volume level

When the base speaker is in use, press ring/vol/∧ or ring/vol/∨ on the base to adjust the volume. Press ring/vol/∧ for louder or ring/vol/∨ for softern. The number 1-10 appears on the base indicating the volume levels. 1 being the softest and 10 being the loudest.

ANSWERING DEVICE

THE INTEGRATED

[52] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Using the menu mode

The Menu mode allows you to set the following Answering System functions.

 To scroll through the menu options, repeatedly press

clock/MENU on the base in the standby mode. The syst em r etu rns to st and by a fte r the last me nu o pti on. A confirmation tone sounds to indicate the standby mode.

 When you have completed the setting, press play/stop to

exit the menu mode, or clock/MENU to move to the next menu option.

 You can also set these menus from the handset. See

"Answering System Setup" on page 25 for instructions.

For your convenience, voice prompts will guide you through the menu setup mode.

Clock/MENU

"Time"

"Security Code"

"Ring Time"

"Record Time"

"Message Alert"

"Language"

"Call Screening"

Return to Standby

ANSWERING DEVICE

THE INTEGRATED

www.uniden.com

THE INTEGRATED ANSWERING DEVICE [53]

note

Time stamp will not be heard until you have set the time.

Setting the Time

Follow these steps to set the clock on the answering system to the correct time.

1) Press clock/MENU.

2) Press skip/SELECT or repeat/SELECT until the correct day is announced and the corresponding number (from "1 " Sunday to "7" Saturday) appears.

3) Press SET to select the day.

4) Press skip/SELECT or repeat/SELECT until you hear the correct hour setting. The numbers "1 " through "12" appear on the base as each hour is announced.

5) Press SET to select the hour.

6) Press skip/SELECT or repeat/SELECT until you hear the correct minute setting. The numbers "00" through "59 appears on the base as each minute is announced.

7) Press SET to select the minute.

8) Press skip/SELECT or repeat/SELECT until you hear the correct AM or PM setting. The message counter displays "A" or "P".

9) Press SET to select the AM/PM setting. A confirmation tone sounds, the day and time you set are announced for your review.

Setting a PIN code

To play your messages from a remote location, you will need to enter a two-digit Personal Identification Number (PIN) code ( - - ). To select a PIN code, perform the following steps:

1) Press clock/MENU twice. The current PIN code appears on the base and it is announced.

2) Press skip/SELECT or repeat/SELECT until the desired number appears. Press and hold skip/SELECT or repeat/SELECT to quickly scroll through the numbers on the display.

3) Press SET to select the PIN code. A confirmation tone sounds, the system announces the new PIN code.

ANSWERING DEVICE

THE INTEGRATED

[54] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Setting the ring time

The ring time setting allows you to set the number of rings the caller hears before your answering system plays the outgoing message. You can set the ring time to answer after two, four, or six rings. Setting "TS" (Toll Saver), the answering system picks up after two rings if you have new messages, and after four rings if there are none. This way, if you make a long distance call to check your messages, you can hang up after the second ring to avoid billing charges.

1) Press clock/MENU three times.

The current ring time setting ("2" 2, "4" 4, "6" 6, "tS" Toll saver) appears on the base and it is announced.

2) Press skip/SELECT or repeat/SELECT until the desired ring time appears.

3) Press SET to select the new ring time. A confirmation tone sounds, the system announces the new ring time.

Selecting the message record time

You have three record time options. The options "1 minute" or "4 minutes" set the duration for recording the incoming messages. "Announce only" answers the call with the preset greeting or your personal greeting but prevents the caller from leaving a message.

1) Press clock/MENU four times.

The current recording time ("1 " 1 minute, "4" 4 minutes, "A" Announce only) appears on the base and it is announced.

2) Press skip/SELECT or repeat/SELECT until the desired message record time appears.

3) Press SET to select the new recording time.

A confirmation tone sounds, the system announces the new record time.

ANSWERING DEVICE

THE INTEGRATED

www.uniden.com

THE INTEGRATED ANSWERING DEVICE [55]

Announce only feature

The Announce only feature plays a pre-recorded outgoing message or your own personal outgoing message, but it will not allow the caller to leave a message. To set "Announce only", follow the steps on page xx. To choose between the pre-recorded message or your own personal greeting, press greeting, when the outgoing message is played. Press greeting to select the greeting of your choice. If you want to use your own greeting, you may want to change your greeting to omit the prompt to leave a message. Refer to "Recording a Personal outgoing message (Greeting)" on page 51.

The following message is pre-recorded: "Hello, no one is available to take your call. Please call again."

Setting the message alert

Message Alert feature lets you know when you have a new incoming message by sounding a short alert tone. If you set the Message Alert On, and when a new message is received, the alert tone will sound every 15 seconds. Set the Message Alert to On or Off by using the clock/MENU key.

1) Press clock/MENU fiv e tim es. T he cu rren t set ti ng (O n or O ff) a ppea rs on th e bas e and it is announced.

2) Press skip/SELECT or repeat/SELECT to choose "

3) Press SET.

A confirmation tone sounds, the system announces the current setting you have selected. When the first new message is received, the alert tone will begin to sound.

" or "

Off

ANSWERING DEVICE

THE INTEGRATED

[56] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Turning the message alert tone Off by pressing any key

To quickly turn Message Alert tone to Off, press any key on the base unit and the tone will automatically deactivate.

Turning the message alert tone Off when you are away from your phone

When all new messages are played back using the remote playback feature (see pages xx-xx) the Message Alert tone will automatically deactivate. The tone will not deactivate until all new messages are played back.

Selecting the language

You can select the Language of your answering system announcements to English, French, or Spanish.

1) Press clock/MENU six times.

The current setting ("E" English, "F" French, or "S" Spanish) appears on the base, and it is announced ("English" English, "Français" French, or "Español" Spanish).

2) Press skip/SELECT or repeat/SELECT to select the language.

3) Press SET. A confirmation tone sounds, the system announces the new setting in the selected language.

Setting the call screen

You can screen calls when the Call Screen function is set to On.

1) Press clock/MENU seven times. The current Call Screen setting (On or Off) appears on the base.

2) Press skip/SELECT or repeat/SELECT to choose "

3) Press SET. A confirmation tone sounds, and the system announces the new setting.

www.uniden.com

" or "

Off

THE INTEGRATED ANSWERING DEVICE [57]

note

If you mute the ringer

for an incoming call, you can not screen the call.

If you press

talk/

flash

, call screen will be canceled and the handset is put in talk mode.

while

select/

another handset is screening a call, you will hear a beep and you can not screen a call.

ANSWERING DEVICE

THE INTEGRATED

Screening a call

From the base

To screen an incomming call, do the steps as follows:

1) After the answering system answers, the base speaker will let you hear the calls as the machine records the message. To adjust the volume, press ring/vol/∧ or ring/vol/∨. If you set the answering system to Off, you cannot screen a call.

2) To answer the call, press speaker (talk) or pick up the handset from the base (when AutoTalk is set to On). If the handset is away from the base, press talk/flash, speaker or any number key, will disconnect automatically.

From the handset

Press select/ when the system is answering. To answer the call, press talk/flash, otherwise press end to cancel the call screen and the system return to the standby mode.

/tone/<, or #/> (when AutoTalk is set to On). The answering system

Muting the Call Screen

You can mute the Call Screen. To do this, press DND on the base. To cancel the Call Screen, press ring/vol/∧ or ring/vol/∨ on the base. To mute the Call Screen again, press play/stop. The Call Screen function resumes when the system is no longer in answering mode.

ANSWERING DEVICE

THE INTEGRATED

[58] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Using your Answering System

The message counter displays the number of messages stored in memory. If the display flashes, then there are new messages waiting for you. The answering system is designed to play your new messages first. After you play all your new messages, you can then play your old messages.

Playing your messages

1) When the phone is in the standby mode, press play/stop. The system announces the number of new and old messages while the message counter displays only the number of new messages. The time and day that each message was received is announced after the message is played. The message counter will then display the number of current stored messages.

2) When all new messages have been played, you hear a confirmation tone and the system announces "End of message". The system returns to standby. After you have reviewed your new messages, you can play your old messages by again pressing. Once you have listened to a new message, it then becomes an old message. The old messages will be played in the order in which they were received.

Repeating a message

1) Press play/stop to review your messages. The number of stored messages is announced.

2) To repeat the current message, press repeat/SELECT after a few seco nds of beginning th e message. To quickly scroll backwards through a message, press and hold repeat/SELECT. To repeat the previous message, press repeat/SELECT within a few seconds (about 4 seconds during remote operation) after a message begins playing. If you have several messages, press repeat/SELECT repeatedly until you return to the message you want to replay. If the current message is the first new message, the system plays back from the beginning of the current message (it does not go back into the old message group).

3) Press play/stop at any time to stop reviewing messages and return to standby. The message counter shows the number of messages stored in memory.

note

Time stamp will not be

heard until you have set the time.

When the answering

system is full, "FL" appears on the base. You should delete some messages so that the system can record new messages. (Refer to "Deleting a message" on page 60.)

ANSWERING DEVICE

THE INTEGRATED

www.uniden.com

THE INTEGRATED ANSWERING DEVICE [59]

Skipping a message

1) Press to review your messages. The number of stored messages is announced.

2) Press skip/SELECT at anytime to skip to the next message. Each time skip/SELECT is pressed, the system scans forward one message. If you have several messages, press skip/SELECT repeatedly to find the message you want to play. To quickly scroll through a message, press and hold skip/SELECT. The system advances through the playback at double speed.

3) Press play/stop at anytime to stop reviewing your messages and return to standby. The message counter shows the number of messages stored in memory.

Deleting a message

To maintain maximum record time, delete the old messages.

1) Press to review your messages.

2) Press delete at anytime during the message to delete the message. You hear a confirmation tone and the message is deleted.

3) To delete all messages, press delete in the standby mode. Press delete again after the announcement "To delete all message, press delete again."

When you try to delete all messages without first listening to your new messages, you hear several short beeps followed by an announcement "Please playback all messages". This protects you from accidentally erasing messages you have not yet reviewed.

Important:

When you press del, you are permanently deleting the message. Once deleted, the message cannot be replayed or retrieved.

ANSWERING DEVICE

THE INTEGRATED

[60] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Voice memo

The voice memo function allows the user to record messages (more than 2 seconds and within 4 minutes).

1) Press and hold memo record. You hear a beep.

2) Start your recording after the announcement "Record Memo Message" and a confirmation tone. The message counter displays "- -".

3) When you have finished, press memo reccord, play/stop, or set to stop recording. The system returns to standby.

Recording a conversation

You can record a conversation from the handset or the base (more than 2 seconds and within 10 minutes).

From the handset

1) During a conversation, press menu/del on the handset.

2) Press ring/vol/∧ or ring/vol/∨ to select " mail key. "

Recording a Call

A confirmation tone, that can be heard by both parties, sounds during recording.

3) To stop recording, press menu/del and ring/vol/∧ or ring/vol/∨ to select "

From the base

1) During a conversation using the base speaker phone, press and hold memo record on

2) To stop recording, press play/stop or memo record. You hear a confirmation tone.

www.uniden.com

", and then press select/. You will hear a confirmation tone.

Record

the base until you hear a confirmation tone. The unit begins recording and "- -" flashes on the display. A confirmation tone, that can be heard by both parties, sounds during recording.

" appears on the handset, and "- -" flashes on the base.

Call Record

THE INTEGRATED ANSWERING DEVICE [61]

", and then press select/voice

Call

note

The voice memo messages

are recorded as an incoming messages.

When the answering system

is full, "FL" appears on the displ ay an d reco rdin g is terminated.

If an outside call is received

during the operation, the operation is canceled.

Every state has different

regulations governing the recording of conversations over the telephone. Make sure to check your local, state and federal laws before using this product to record any telephone conversation in order to determine that your use is in compliance with such laws or guidelines.

You cannot record 3-way or

intercom conversations.

When the answering system

becomes full, "FL" appears on the display and recording is terminated.

ANSWERING DEVICE

THE INTEGRATED

Remote Operation

note

Time stamp will not be

heard until you have set the time. See "Setting the Time" on page 54.

The system will only

playback messages for four minutes and then it returns to the command waiting mode. To continue playing your messages, press 0 then 2 again within 15 seconds.

f you enter an incorrect

PIN code three times, you will hear a beep and the system will return to standby.

During the remote

operation, "Lr" appears on the base.

If the answering system

is recording an incoming message, the recording operation is canceled when you start remote operation.

For your convenience

a remote operation card is prov ided for you to use while away from home (refer to page 82).

[62] THE INTEGRATED ANSWERING DEVICE

You can check, play, or delete messages, even record a new greeting message from a remote location (when you are away from home, or from another room using a handset). Additionally, you can turn On or Off your answering system remotely.

Remote access away from home

You can operate your answering system from a remote location using any touch-tone telephone .

1) Call your telephone number and wait for the system to answer. If the answering system is off, it will answer after about 10 rings and sounds a series of beeps.

2) During the greeting message (or a series of beeps when the answering system is off), press 0 and enter your PIN code within 2 seconds (see "Setting a PIN Code" on page 25 or

54).

3) The answering system announces the current time and the number of messages stored in memory. You hear "To play incoming messages, press zero-two. For help, press one-zero". You will hear a beep.

4) Enter a command within 15 seconds, each command there after must be entered within 2 seconds. You may select a command from the following chart:

Command Function Command Function

Repeat a Message*

then

Playing incoming Messages

then

Skipping a Message

then

Deleting a Message

then

Stop Operation

then

Answering System On

then

Memo Record/Stop**

then

Greeting Message Record/Stop**

then

Answer System Off

then

Help Guidance

then

www.uniden.com

ANSWERING DEVICE

THE INTEGRATED

* For Repeat a Message function, press 0 then 1 within about four seconds to repeat

the previous message, or press 0 then 1 after about four seconds to repeat the current message.

** For Memo Record and Greeting Message Record function, the first time you enter the

corresponding command, it starts the Recording function. If you want to stop the recording, press 0 then 7 or 8.

5) After the command has finished, you hear intermittent beeps indicating that the system is in the command waiting mode. You may enter another command at this time from the chart above.

6) When you are finished, hang up to exit the system. The answering system automatically returns to standby.

Remote access with the handset

You can operate your answering system from another room using a handset.

If you press  When the answering system does not answer within 6 seconds, you hear a beep and the

phone will return to standby.  The base's keypad is disabled during remote operation.  When you receive a call, the remote operation is canceled.  You can change the handset volume during a remote operation.  During the remote operation "Lr" appears on the base.  If you have new messages and old messages , only the new messages will be played.

After you have reviewed your new messages, you can play your old messages by again

pressing 2.

1) When the phone is in the standby mode, press select/voice mail on the handset.

Remote Answering Machine Operation

" The answering system announces the current time and the number of messages stored in the memory.

end

before the answering system answers, the phone will return to standby.

" appears on the handset display.

ANSWERING DEVICE

THE INTEGRATED

www.uniden.com

THE INTEGRATED ANSWERING DEVICE [63]

Messages will be played in the order in which they were received. The time and day that each message was received is announced after the message is played. To switch to the handset speaker phone, press speaker on the handset.

2) The answering system announces the current time and the number of messages stored in memory. You hear "To play incoming messages, press two. For help, press zero". You will hear a beep.

3) Enter a command within 15 seconds, each command there after must be entered within 2 seconds. You may select a command from the following chart:

Remote Key Function

|<</1 Repeat a Message* 6 Answering System On

/2 Playing incoming Messages 7 Memo Record/Stop**

>>|/3 Skipping a Message 8 Greeting Message Record/Stop**

∅/4 Deleting a Message 9 Answer System Off

/5 Stop Operation 0 Help Guidance

* For Repeat a Message function, press 1 within about four seconds to repeat the previous

message, or press 1 after about four seconds to repeat the current message.

** For Memo Record and Greeting Message Record function, the first time you enter the

corresponding command, it starts the Recording function. If you want to stop the recording, press 7 or 8.

5) After the command has finished, you hear intermittent beeps indicating that the system is in the command waiting mode. You may enter another command at this time from the chart above.

6) When you are finished, hang up or press end to exit the system. The answering system automatically returns to standby.

ANSWERING DEVICE

THE INTEGRATED

[64] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Expanding Your Phone

4 Multi-Handset Expandability

Your phone supports up to 4 handsets (including the handset(s) supplied with your phone). You can now place a fully featured cordless handset anywhere AC power is available to connect the handset charger.

Up to 2 handsets can be used for an outside and/or intercom call. For example, the phone permits 3-way conferencing (2 handsets and an outside line).

Multi_Handset

IMPORTANT:

 If you purchase a DCX640 extra handset, please register the handset to the original

base before use. The DCX640 will not operate until it is registered.

 If you change a Global setting in one handset, you change that particular setting for all

registered handsets. All other settings (not included under Global Setup), must be set separately through each handset.

Connecting the Charger

1) Connect the AC adapter to the 120V AC wall outlet.

2) Set the charger on a desk or ta bletop, and place the handset in the charger with the keypad facing forward. (See "B. Install the battery pack into the handset" on page 10).

DC IN 9V

jack and to a standard

Charger_AC_cord

note

To use the DCX640,

Save this manual for

detailed operation.

All of the handsets

ring when a call is received.

EXPANDING YOUR

PHONE

www.uniden.com

EXPANDING YOUR PHONE [65]

note

An extra handset can

be registered when the main base is in th e standby mode.



Standby Mode

The handset is not in use, The handset may be on or off the base, but been pressed.

talk/flash

ke y ha s

If you purchase an extra handset, you need to register the handset before use. Only one handset can be registered at a time.

The handset ID for the supplied handset(s) was assigned at the factory, which has #1 (#1 and #2 for 2 handsets bundled model) in the display. When you register additional handset to the base, the handset ID will be assigned.

1) Before registering the extra handset, charge the phone's battery for 10 minutes.

2) Place the extra handset in the main base unit to begin registration.

3) While the handset is registering, " When "

Registration Complete

Registration Failed

base. If "

4) Place the handset back in the charging cradle and fully charge the phone's battery.

Handset Registering

" is displayed, the handset has been registered to the " appears, please try these steps again.

" will appear in the LCD.

[66] EXPANDING YOUR PHONE

www.uniden.com

Using the DirectLink Mode

To use this feature, you must enter the two handsets into the DirectLink mode first.

To enter the DirectLink mode, see page 22

3waycall

DirectLink call

1) Wh en th e pho ne is in the Dire ctLink standby mode, pres s

2) Select the handset to which you wish to DirectLink with

3) On the receiving handset, press

(example of DirectLink from handset #1).

talk/flash

by pressing the number keys (1-4). Your handset will then page the other handset.

, or i f Any Key

Answer is On, press any number key,

talk/flash

/tone/<

, or

#/>

note

Two hand sets can b e in Direct Link mode while other handsets are in use.

EXPANDING YOUR

4) When you finish your conversation, press the cradle, or press (canceling DirectLink mode).

www.uniden.com

menu/del

, and then

on either handset. Return the handset to

end

 to return to normal standby mode

select/

EXPANDING YOUR PHONE [67]

PHONE

note

4-Way Conferencing

Fourth person, at either the handset or the base, may be added to the conference call. For example, to add a fourth party to an ongoing conference call at the base or another handset, press caller from your conversation, press The other parties will still be connected to the call

on the fourth party's handset (or

talk/flash

speaker

on the party's handset (or

end

on the base). To remove either

speaker

on the base).

If the party is busy or

out of range, the handset returns to the standby mode.

If any of the following

occurs while selecting the other handset, the operation will be canceled.

- Press

talk/flash

speaker

-Receive an outside/ intercom call or page.

When the party does

not answer within one minute, the operation is canceled.



Standby Mode

The handset is not in use, The handset may be on or off the base, but

talk/flash

been pressed.

[68] EXPANDING YOUR PHONE

Intercom/Call Transfer Feature

Intercom and Call Transfer features are available for your phone.

Intercom

From handset to handset or to the base

1) Press

hold/transfer/int'com

2) Select the base or the handset you want to talk with from the selection list within 30 seconds. To select the

ke y ha s

handset (or the base), press and then press handsets and the base will be paged. An intercom tone sounds.

3) On the receiving handset (or the base), to answer the call, press

talk/flash, hold/transfer/int'com

intercom/find handset

any number key, is On), or pick up the handset from the cradle (when AutoTalk is On).

4) To hang up the intercom call, press

. If you select "

select/

/tone/<

in the standby mode.

∧ or

ring/vol/

speaker

, or

All

on the base). Or press

(when Any Key An swer

#/>

on either handset (or intercom on the base).

end

ring/vol/

", all

(or

∨,

www.uniden.com

From the base to a handset

1) Press

intercom/find handset

2) All the handsets will be paged.

3) On the receiving handset, to answer the call, press Or press any number key, handset from the cradle (when AutoTalk is On).

4) To hang up the intercom call, press

on the base in the standby mode.

/tone/<

, or

end

#/>

talk/flash

(when Any Key Answer is On), or pick up the

intercom/find handset

hold/transfer/int'com

on the base.

Call Transfer Feature

From handset to handset or to the base

1) During a call, press

2) Select a handset or the base to transfer the call within 10 seconds. (Refer to step 2 in the intercom section on page 68). The call will automatically be placed on hold, and an intercom tone sounds. To cancel the transfer, press

3) On the receiving handset, to answer the page, press (or

speaker

(when Any Key Answer is On), or pick up the handset from the cradle (When Auto

#/>

Talk is On).

4) To speak to the caller, press receiving handset.

hold/transfer/int'com

intercom/find handset

talk/flash

on the handset.

on the base). Or press any number key,

on the initiating handset.

speaker

talk/flash

(or

speaker

hold/transfer/int'com

on the base) on the

/tone/<

EXPANDING YOUR

PHONE

www.uniden.com

EXPANDING YOUR PHONE [69]

From the base to a handset

1) During a call, press placed on hold, and an intercom tone sounds. All the handset(s) will be paged.

2) On the receiving handset, to answer the call, press The intercom mode is activated, but the caller is still on hold. Or press any number key,

/tone/<

(when AutoTalk is On).

3) To speak to the caller, press

intercom/find handset

, or

(when Any Key Answer is On), or pick up the handset from the cradle

#/>

talk/flash

on the base. The call will automatically be

talk/flash

on the receiving handset.

speaker

hold/transfer/int'com

note

For model number verification, contact Uniden Customer Service or visit our website

www.uniden.com

[70] EXPANDING YOUR PHONE

Replacing the Base

When you replace the base with a different base of the DCT6 series model (DCT646, DCT6465, DCT648, or DCT6485 series), you need to clear the handset(s) and base ID. To do this, perform the "System Reset" menu options ("De-register the Handset" and "Replacing the Base Setting") (see page 29), then register all the handsets you have (see page 66).

www.uniden.com

Changing the Digital Security Code

The digital security code is an identification code used to connect the handset and the base unit. Normally, setting the code is not necessary. In the rare situation that you suspect another cordless telephone is using the same security code, you can change the code. To change the digital security code:

1. Perform the "System Reset" menu options ("De-register the Handset" and "Replacing the Base Setting") for all the handsets you have (see page 29).

2. To register all the handsets do the following steps:

1) Place a handset, one at a time in the base.

2) Registration starts automatically. While registering "

3) When the registration is complete, "

4) Repeat steps 1 - 3 for another handsets.

If the registration fails, " above again.

Handset Registering

Registration Failed

Registration Complete

" appears in the display.

" appears in the display. Try the steps

" appears in the display.

Installing the Beltclip

To attach the beltclip

Insert the beltclip into the holes on each side of the handset. Press down until it clicks.

To remove the beltclip

Pull both sides of the beltclip to release the tabs from the holes.

beltclip

Headset Installation

Your phone may be used with an optional headset, the Uniden HS910. To use this feature, insert the headset plug into the headset jack. Your phone is ready for hands-free conversations (headset may be purchased by calling the Uniden Parts Department or visiting the web site. See page 1).

www.uniden.com

headset_jack

ADDITIONAL INFORMATION [71]

INFORMATION

ADDITIONAL

Note on Power Sources

Battery replacement and handling

When the operating time becomes short, even after a battery is recharged, please replace the battery. With normal usage, your battery should last about one year. Please contact your place of purchase or the Uniden Parts Department for a replacement battery.

Warning

To a voi d the r isk of per sonal inj ury or prope rty damag e fr om fir e or el ect rical sho ck, on ly u se the Uniden battery model and Uniden adapter model specifically designated for this product.

Power Failure

During the period that the power is off, you will not be able to make or receive calls with the telephone.

 Use only the specified Uniden battery pack (BT-446).  Do not remove the batteries from the handset to charge them.  Never throw the battery into a fire, disassemble them, or heat them.  Do not remove or damage the battery casing.

Maintenance

Do not use paint thinner, benzene, alcohol, or other chemical products. Doing so may discolor the surface of the telephone and damage the finish.

[72] ADDITIONAL INFORMATION

Caution

www.uniden.com

INFORMATION

ADDITIONAL

General Information

The phone complies with FCC Parts 15 and 68. Operating temperature: 0 °C to +50 °C (+32 °F to +122 °F)

AC Adapter Information

AC Adapter part number: AD-xxx for the base AD-xxx for the charger

Input Voltage: 120 AC 60Hz 120V AC 60Hz Output Voltage: 9V DC xxxmA 9V DC xxxmA

Battery Information

Battery part number: BT-446 Capacity: xxxxmAh, xxxV

To avoid damage to the phone use only Uniden AD-xxx and BT-446 with your phone. If the handset is left off of the base, the actual Talk mode duration will be reduced

respective to the amount of time the handset is off the base.

Recharge your phone on a regular basis by returning the handset to the base after each phone call. When the operating time becomes short, even after the battery is recharged, please replace the battery. With normal usage, the battery should last about one year.

A replacement Uniden adapter or battery may be purchased by contacting the Uniden Parts Department (800) 554-3988. Hours are from 8:00 a.m. to 5:00 p.m. Central Time, Monday through Friday. We can also be reached on the web at www.uniden.com.

Specifications, features, and availability of optional accessories are all subject to change without prior notice.

(2 handsets included model only)

INFORMATION

ADDITIONAL

www.uniden.com

ADDITIONAL INFORMATION [73]

Troubleshooting

If your phone is not performing to your expectations, please try these simple steps first.

Symptom Suggestion

The

charge/in use

LED won't illuminate when the handset is placed in the cradle.

The audio sounds weak.

Can't make or receive calls.

The handset doesn't ring or receive a page.

Unavailable

the display.

(or

" appears in

 Make sure the AC adapter is plugged into the base (or the charger (for DCX640 only)). and wall

)

charge

outlet.  Make sure the handset is properly seated in the cradle.  Make sure the charging contacts on the handset and the base (or the charger (for DCX640

only)) are clean.

 Move the handset and/or base to a different location away from and/or scratchy metal objects

or appliances and try again.  Make sure that you are not too far from the base.

 Check both ends of the base telephone line cord.  Make sure the AC adapter is plugged into the base and wall outlet.  Disconnect the AC adapter for a few minutes, and then reconnect it.  Remove the base ID (see "Rep lacing the Base Setting" on page 29) and register the handset

(see "Register the Handset" on page 66).  Make sure that you are not too far from the base.  If an outside call is already established, you may not be able to make another outside call.

 Charge the batteries in the handset for 17-20 hours by placing the handset on the base or

charging cradle.  The handset may be too far away from the base unit.  Place the base unit away from appliances or metal objects.  Remove the base ID (see "Rep lacing the Base Setting" on page 29) and register the handset

(see "Register the Handset" on page 66).

 Make sure that another handset(s) or the base is not in use, and try the phone again.  Make sure that you are not too far from the base.

TROUBLESHOOTING

[74] TROUBLESHOOTING

www.uniden.com

Symptom Suggestion

 Keep the handset away from microwave ovens, computers, remote control toys,

Severe noise interference.

The Caller ID does not display.

You cannot register the handset at the base.

The handset doesn't communicate with the other handsets.

An extra handset can't join the conversation.

The handset or the base can't join the conversation

The answering system does not work.

Messages are incomplete.

After a power failure, the outgoing message is deleted.

wir ele ss mi cropho nes, al arm sys tem s, in tercom s, room monito rs, flu ores cent li ghts,

and electrical appliances.  Move to another location or tu rn off the source of interference.

 The handset was picked up before the second ring.  The call was placed through a switchboard.  Call your local telephone company to verify your Caller ID service is current.

 Please make sure your batteries are charged at least 10 minutes (see "Register the Handset" on

page 66).  Remove the base ID (see "Rep lacing the Base Setting" on page 29) and register the handset

(see "Register the Handset" on page 50).

 Remove the base ID (see "Rep lacing the Base Setting" on page 29) and register the handset

(see "Register the Handset" on page 66).  Make sure that you have registered all handsets.

 Make sure there are not 2 handsets already using the 3-way conference feature.

 Make sure that more than 3 handsets (or 2 handsets when the base is used for the conference)

are not in use.  When recording a conversation, the 2nd handset (or the base) cannot join the conversation.

 Make sure the base unit is plugged in.  Make sure that the answering system is turned On.  Make sure that the message record time is not set to Announce only (see page 56).

 The incoming messages may be too l ong. Remind callers to leave a brief message.  The memory may be full. Delete some or all of the saved messages.

 Record your greeting again. The default message should remain.

TROUBLESHOOTING

www.uniden.com

TROUBLESHOOTING [75]

Symptom Suggestion

No sound on the base unit speaker during call monitoring or message playback.

Cannot access remote call-in features from another touchtone phone.

Time stamp cannot be heard.

 Adjust the speaker volume on the base unit.  Make sure the call screen feature is set to On.

 Make sure you are using the correct PIN number.  Make sure that the touch-tone phone you're using can transmit the tone for at least two

seconds. If it cannot, you may have to use another phone to access your phone.

 Mak e su re y ou h ave set the time (see "Setting Day a nd Time" on page 27 or "Set ting the Time "

on page 54).

If you still have a problem.  Call our customer hotline at 1-800-297-1023.

TROUBLESHOOTING

[76] TROUBLESHOOTING

www.uniden.com

Liquid Damage

Moisture and liquid can damage your cordless phone. In case of accidental submersion, please read the following steps.

If the handset or base is exposed to moisture or liquid, but the liquid only affects the exterior plastic housing.

If moisture or liquid has entered the plastic-housing (i.e. liquid can be heard in the phone or liquid has entered the handset battery compartment or vent openings on the base).

Case Action

Wipe off the liquid, and use as normal.

Handset:

1)Remove the battery cover and leave it off for ventilation.

2)Remove the battery pack by disconnecting.

3)Leave the battery cover off and the battery pack disconnected for at least 3 days.

4)Once the phone is completely dry, reconnect the battery pack and the battery cover.

5)Recharge the handset's battery pack for 20 hours in the base unit before using the phone.

Base:

1)Disconnect the AC adapter from the base unit, cutting off electrical power.

2)Disconnect the telephone cord from the base unit.

3)Let dry for at least 3 days. You must

IMPORTANT:

charge interruption.

CAUTION:

DO NOT use a microwave oven to speed up the drying process. This will cause permanent damage to the handset, base and the microwave oven. After following these steps, if your cordless telephone does not work, please send to:

unplug the telephone line while recharging the batteries

Uniden America Corporation Parts and Service Division 4700 Amon Carter Blvd. Ft. Worth TX 76155 1-800-554-3988. Monday through Friday 8 a.m. to 5 p.m. CST

TROUBLESHOOTING

to avoid

www.uniden.com

TROUBLESHOOTING [77]

Precautions!

Before you read anything else, please observe the following:

Warning!

Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.

Rechargeable Nickel-Metal-Hydride Battery Warning

 This equipment contains a rechargeable Nickel-Metal-Hydride battery.  Nickel is a chemical known to sta te of California to cause cancer.  The rechargeable Nickel-Metal -Hydride battery contained in this

equipment may explode if disposed of in a fire.  Do not short-circuit the batter y.  Do not charge the rechargeab le Nickel-Metal-Hydride battery used in

this equipment in any charger other than the one designed to charge

this battery as specified in t he owner's manua l. Using another c harger

may damage the battery or cause the battery to explode.

Rechargeable Nickel-Metal-Hydride Batteries Must Be Recycled or Disposed of Properly

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Uniden works to reduce lead content in our PVC coated cords in our products and accessories.

Warning!

The cords on this product and/or accessories contain lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Important Safety Instructions

When using your telephone equipment, these basic safetyprecautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Use a dry cloth for cleaning without liquid or aerosol cleaners.

4. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The telephone may fall, causing serious damage to the unit.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect th e product from overheating, these openings must not be blocked or covered. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should be operated only from the type of power source indicat ed on the m arking la bel. If you are not s ure of the t ype of power supply to your home, cons ult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be damage d by persons walking on it.

9. Do not overload wall outlets and extension c ords, as this can result in the risk of fire or electrical shock.

10.Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage poin ts or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

11.To reduce the risk of electric shock, do not disassemble this product. Take it to qualified service personnel when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

12.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power supply cord is damaged o r frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally when following the

operating instructions. (Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive repair work by a qualified technician. )

E. If th e product has been dropped or the cab inet has

been damaged.

F. If the product exhibits a distinct change in performance.

13. Do n ot us e the t elep hone t o rep ort a gas le ak in the v icini ty of the leak.

[78] PRECAUTIONS & WARRANTY

Additional Battery Safety Precautions

Caution! To reduce the risk of fire or injury to persons by the battery,

read and follow these instructions:

1. Use only the Uniden battery pack specified in the owner's manual.

2. Do not dispose of the battery pack in a fire. The cell may explode. Check the Nickel Metal Hydride battery disposal package insert for disposal instructions.

3. Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or sk in. It may be toxic if swallowed.

4. E xercise care in handling the battery in order not to short the battery with conducting materials such as rings, brace lets, and keys. The battery or conductor may overheat and cause burns.

5. C harge the battery pack provided with or identified for use with this product only in accordance with the instructions a nd limitations specified in the owners manual provided for this product.

6. Observe proper polarity orientation between the battery pack and battery charger.

SAVE THESE INSTRUCTIONS!

Important Electrical Considerations

Unplug all electrical appliances when you know an electrical storm is approaching. Lightning can pass through your household wiringand damage any device connected to it. This phone is no exception.

The FCC Wants You To Know

Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner's manual, could void your authority to operate this product. Your telephone complies with Part 68 of FCC Rules. You must, upon r equest, provide t he FCC registrat ion number and th e REN to your telephone company. Both numbers are on the base unit.

Note:

You must not connect your phone to:  coin-operated systems  most electronic key telephone systems

This device complies with part 15 of the FCC r ules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interf erence received, including interference that may cause undesired operation. Privacy of communications, may not be ensured when using this phone.

Range

Your new phone is designed to achieve the maximum possible range by transmitting and receiving according to the highe st specifications set forth by the FCC. We have rated this phone to operate at a maximum distance with the qualification that the range depends upon the environment in which the telephone is used. Many fact ors limit range, and it would be impossible to include all the variables in our rating. The Maximum Range rating of this phone is meant to be u sed as a means of comparison against other range claims.

www.uniden.com

PRECAUTIONS &

WARRANTY

Telephone Line Problems

The FCC has granted the telephone company t he right to disconnect service in the event that your phone causes prob lems on the telephone line. Also, the telephone company may mak e changes in facilities and services which may affect the operation of your unit. However, your telephone company must give adequate notice in writing prior to such actions to allow you time for making necessary arrangements to continue uninterrupted service. If you are having trouble with your telephone service, you must first disconnect your phone to determine if it is the cause of your problem. If you determine that it is the cause, you must leave it disconnected until the trouble has been corrected.

Radio Interference

Radio interference may occasionally cause buzzing and humming in your cordless handset, or clicking noises in the base. This interference is caused by external sources such as TV, refrigerator, vacuum cleaner, fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If these noises continue and are too distracting, please chec k around your home to see what appliances may be causing the problem. In addition, we recommend that the base not be plugged into a circuit that also powers a major appliance because of the p otential for interference. Be certain that the antenna on the unit is fully extended when needed. In the unlikely event that you consistently hear othe r voices or distracting transmissions on your phone, yo u may be receiving radio signals from another cordless telephone or o ther source of interference. If you cannot eliminate this type of interference, you need to change to a different channel. Finally, it should be noted that some c ordless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

More than One Cordless Telephone

If you want to use more than one co rdless telephone in your home, they must operate on different channels. Press the channel key to select a channel that provides the clearest communicatio n.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communic ations between the handset and base of your cordless telephone are accomplished by means of radio waves which are broadcast over the open airways. Because of the inherent physical properties o f radio waves, your communications can be received by radio receiv ing devices other than your own cordless telephone unit. Consequently, any communications using your cordless telephone may not be private.

www.uniden.com

Installation Considerations

Selecting a Location

Before choosing a location for your new phone, there are some important guidelines you should consider:  The location should be close to both a phone jack and continuous

power outlet. (A continuous power outlet is an AC outlet which does not have a switch to interrupt its power.)

 Keep the base and handset a way from sources of electrical noise such

as motors or fluorescent lighting.  Be sure there is sufficient sp ace to fully extend the base antenna.  The base can be placed on a desk or tabletop or mounted on a

standard telephone wall plate.  You should charge your new p hone for 17-20 hours before completing

the installation or using the handset.

Telephone Line Outlets

There are two types of phone outlets:

Modular Jack

Most phone equipment available now uses modular jacks. Phone cords are fitted with a molded plastic connector which plugs into this type of jack. If you do not have modular phone jacks, contact your local telephone company for information about their ins tallation.

Hardwired Jack

Some equipment is wired directly to a pho ne jack, and these types of installations require a modular jack converter. This type of installation is not difficul t; however, you sh ould contact you r Uniden telephon e dealer or a telephone supply store for advice about the proper adapter or converter for your particular situation.

Connecting the Telephone Cords

Consider these safety guidelines before connecting the telephone cords: Caution!

 Never install telephone wiring during a lightning storm.  Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected.  Use caution when installing or modifying telephone lines.

Applying Power to the Base

This phone requires an AC outlet, without a switch to interrupt power, and the included AC adapter. To relieve strain on the DC plug when the phone is placed on a desk or table, wrap the power cord around the strain relief notch on the bottom of the base.

NOTE: Place the power cord so that it does not create a trip hazard, or

where it could become chafed and create a fire or other electrical hazards.

PRECAUTIONS & WARRANTY [79]

One Year Limited Warranty

Important: Evidence of original purchase is required for warranty service. WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden") ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the ori ginal retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclu sions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 12 months after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified, a ltered, or used a s part of any conv ersion kits, sub assemblies, or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or p rogrammed by anyone other than as detailed by the owner's manual for this product.

STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replac e the defective unit and return it to you without charge for parts, service, or any other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the performance of this warranty. W arrantor, at its option, may replace the unit with a new or refurbished unit. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBU RSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation of inciden tal or consequential damages so the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is void outside the United States of America and Canada. PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after follo wing t he inst ructio ns in th e owner 's manu al you are cer tain th at the Product is defective, pack the Product carefully (preferably in its original packaging). The Product should include all parts and accessories originally packaged with the Product. Include evidence of original purchase and a note describin g the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:

Uniden America Corporation

Parts and Service Division

4700 Amon Carter Blvd.

Fort Worth, TX 76155

(800) 297-1023, 8 a.m. to 5 p.m. CST, Monday through Friday

PRECAUTIONS &

WARRANTY

I.C. Notice

TERMINAL EQUIPMENT

NOTICE:

This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

NOTICE:

The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment itself. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

RADIO EQUIPMENT

The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. "Privacy of communications may not be ensured when using this telephone".

I.C. NOTICE

[80] I.C. NOTICE

www.uniden.com

Index

0 - 9

3-way conferencing . . . . . . . . . 36

4-way conferencing . . . . . . . . . 68

16 ring options . . . . . . . . . . . . 23

Announce only feature . . . . . . . 56

Answering system

Deleting a message . . . . . . . . 60

Playing your messages . . . . . . 59

Recording a conversation . . . . 61

Remote access . . . . . . . . . . . 62

Repeating a message . . . . . . . 59

Skipping a message . . . . . . . . 60

Turning On/Off . . . . . . . . . . . 51

Anykey answer . . . . . . . . . . . . . 24

Area code . . . . . . . . . . . . . . . . 28

AutoTalk . . . . . . . . . . . . . . . . . 24

Banner . . . . . . . . . . . . . . . . . . 24

Battery

Preparing and charging . . . . . 10

Replacement and handling . . . 72

Beltclip . . . . . . . . . . . . . . . . . 71

Booster . . . . . . . . . . . . . . . . . 35

Caller ID

Caller ID service . . . . . . . . . . 45

Calling . . . . . . . . . . . . . . . . 48

Call Waiting . . . . . . . . . . . . . 36

Deleting . . . . . . . . . . . . . . . 47

Setting . . . . . . . . . . . . . . . . 48

www.uniden.com

Storing . . . . . . . . . . . . . . . . 48

Using . . . . . . . . . . . . . . . . . 48

Viewing . . . . . . . . . . . . . . . . 46

Call transfer feature . . . . . . . . . 69

Chain dialing . . . . . . . . . . . . . . 44

Clock . . . . . . . . . . . . . . . . . . . 27

Deluxe Call Waiting features . . . . 49

De-register the handset . . . . . . . 28

Dialing mode . . . . . . . . . . . . . . 13

Digital security code . . . . . . . . . 71

Distinctive ringer . . . . . . . . . . . 24

E, F, G, H

Earpiece volume . . . . . . . . . . . . 33

Expanding your phone . . . . . . . . 65

General information . . . . . . . . . 73

Hands-free conversation . . . . . . 30

Headset installation . . . . . . . . . 71

I, J, K, L

I.C. Notice. . . . . . . . . . . . . . . . 80

Important safety instructions . . . 78

Intercom . . . . . . . . . . . . . . . . . 68

Key touch tone. . . . . . . . . . . . . 25

Language

handset . . . . . . . . . . . . . . . . 25

base . . . . . . . . . . . . . . . . . . 57

Liquid damage . . . . . . . . . . . . . 77

M, N, O

Maintenance . . . . . . . . . . . . . . 72

Making a call . . . . . . . . . . . . . . 30

Mute . . . . . . . . . . . . . . . . . . . 34

New message LED . . . . . . . . . . . 36

Outgoing message . . . . . . . . . . 51

P, Q

Phonebook

Editing . . . . . . . . . . . . . . . . 43

Erasing . . . . . . . . . . . . . . . . 43

Making calls . . . . . . . . . . . . . 42

Storing . . . . . . . . . . . . . . . . 37

Viewing . . . . . . . . . . . . . . . . 41

Precautions . . . . . . . . . . . . . . . 78

Receiving a call . . . . . . . . . . . . 30

Redialing a call. . . . . . . . . . . . . 32

Remote access

away from home . . . . . . . . . . 62

from your handset . . . . . . . . . 63

Replacing the base . . . . . . . . . . 70

Ringer

Adjust, base . . . . . . . . . . . . . 52

Adjust, handset . . . . . . . . . . . 33

mute . . . . . . . . . . . . . . . . . . 33

DND . . . . . . . . . . . . . . . . . . . 33

Room Monitor. . . . . . . . . . . . . . 23

Setting up

base unit . . . . . . . . . . . . . . . 12

extra handset . . . . . . . . . . . . 66

handset . . . . . . . . . . . . . . . . 19

Speed dialing . . . . . . . . . . . . . . 42

T, U, V, W, X, Y, Z

Transferring a call . . . . . . . . . . . 69

Voice memo . . . . . . . . . . . . . . . 61

Warranty . . . . . . . . . . . . . . . . . 79

INDEX [81]

At Uniden, we'll take care of you!

If you need any assistance with this product, please call our Customer Hotline at

1-800-297-1023

PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.

Our Uniden representatives will be happy to help you with any matters regarding

the operation of this unit, available accessories, or any other related matters.

Thank you for purchasing a Uniden product.

Hours: M-F 8:00 AM to 5:00 PM CST.

For information on the accessibility features of this product, please call

1-800-874-9314 (V/TTY)

May be covered under one or more of the following U.S. patents:

4,523,058 4,595,795 4,797,916 5,381,460 5,426,690 5,434,905 5,491,745 5,493,605 5,533,010 5,574,727 5,581,598 5,650,790 5,660,269 5,661,780 5,663,981 5,671,248 5,696,471 5,717,312 5,732,355 5,754,407 5,758,289 5,768,345 5,787,356 5,794,152 5,801,466 5,825,161 5,864,619 5,893,034 5,912,968 5,915,227 5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082 6,125,277 6,253,088 6,314,278 6,418,209

www.uniden.com

Uniden America UP320 Users manual

Specifications and Main Features

Frequently Asked Questions

User Manual
