Description ...........................................................................................................1
Elimination of Licensing ......................................................................................1
Emergency Operation..........................................................................................1
Controls and Functions .......................................................................................2
Installation ............................................................................................................4
Mobile Station Installation ...............................................................................4
Mobile Station Antenna....................................................................................4
Marine Installation............................................................................................4
Connecting the Power Cords ..........................................................................5
Ground Information.........................................................................................5
Negative Ground System .............................................................................5
Positive Ground System ...............................................................................5
To Receive............................................................................................................6
To Transmit ..........................................................................................................7
Function Meter.....................................................................................................7
Weather Information............................................................................................8
Preventive Maintenance ......................................................................................9
Maintenance .........................................................................................................9
Troubleshooting .................................................................................................10
Servicing Your Transceiver................................................................................10
Specifications......................................................................................................11
Two-Year Extended Warranty ...........................................................................12
Radio Code Definitions .....................................................................................13
Contents
Carefully unpack your PC68 Elite and check the contents against this list:
■ PC68 Elite CB 2-way mobile radio
■ Microphone
■ Mounting Bracket Kit
■ DC Power Cord
■ Reference Guide
■ Part 95 Subpart D (FCC Rules)
■ Product Registration Card
If any items are missing or damaged, contact your place of purchase immediately.
Please be sure to complete and mail your
Product Registration Card.
Unpacking
UC344FH 10/29/03 4:48 PM Page ii
Your Uniden PC68 Elite represents the highest quality communications device
designed for use in the Citizens Band Radio Service. It will operate on any of the 40
AM frequencies authorized by the Federal Communications Commission (FCC).
1
Description
The Citizens Band Radio Service is under the jurisdiction of the
Federal Communications Commission (FCC). Any adjustments or
alterations which would alter the performance of the transceiver’s
original FCC certification, or which would change the frequency
determining method, are strictly prohibited. Replacement or
substitution of crystal, transistors, ICs, regulator diodes, or any
other part of a unique nature, with parts other than those
recommend by Uniden, may cause violations of the technical
regulations in Part 95 of the FCC Rules or in violation of
certification requirements in Part 2 of the rules.
The FCC has ruled that CB Radio Service operators are no longer required to
obtain an FCC License to operate their CB equipment. In doing so, the FCC
also decided to permit CB station operation without station identification.
Elimination of individual station licenses does not reduce the operating
privileges or responsibilities of CB users. An operator of a CB radio station is
still required to comply with the Communications Act and with the rules of
Citizens Band Radio Service.
Uniden is a registered trademark of Uniden America Corporation.
Elimination of Licensing
Emergency Operation
Features, Specifications, and availability of Optional
Accessories are subject to change without notice.
All channels, except Channel 9 may be used for normal
communication. Channel 9 is reserved by the FCC for emergency
communication involving the immediate safety of individuals or
protection of property. Channel 9 may also be used to render
assistance to a motorist.
This is an FCC rule and applies to all operators of CB radios.
1. Set the switch to CH9 or turn Channel Selector knob to Channel 9.
2. Press the microphone PTT switch and speak clearly.
3. If there is no response, select an active channel and ask that party to
relay your emergency broadcast on Channel 9.
UC344FH 10/29/03 4:48 PM Page 1
1. Microphone Jack
2. ON OFF - VOL (VOLUME): Turns radio on or off; adjusts
speaker volume.
3. SQ (SQUELCH) Knob: Reduces background noise when there is no
incoming signal.
4. RF GAIN: Improves reception in strong signal areas.
5. MIC GAIN: Adjusts microphone sensitivity.
6. Weather Channel Knob: Selects weather channel.
7. Channel Knob: Selects channel.
8. Channel Display: Displays current channel selection.
9. RX/TX Indicator: Red-transmitting; green-receiving.
10. CH 9 Indicator: Red-Channel 9 switch is on.
11. Dynamic Squelch Control (DSC): Automatically sets Squelch to
optimal level for stronger signals.
12. CH9/OFF: Turns Channel 9 on or off.
13. BRT/DIM:
Adjusts the brightness of Function Meter and Channel Display.
14. NB/ANL: Reduces external noise and interference from vehicle
ignition systems.
15. CB/WX/PA Switch: Selects PA (Public Address);
WX (Weather Radio) or CB.
2
Controls and Functions
FRONT VIEW - PC68 Elite BACKLIGHTED PANEL
Do not use PA function unless an external
speaker is connected.
16. Function Meter: Measures RF and S signal strength.
UC344FH 10/29/03 4:48 PM Page 2
17. POWER: Connects DC power to transceiver.
18. EXT. SP: Connects an 8-ohm 4-watt speaker to remotely monitor
the receiver.
3
REAR VIEW
When the external speaker is plugged in, the
internal speaker is off.
To prevent acoustic feedback, separate the
microphone from the speaker when operating
the PA at high output levels.
19. PA SP : Connects optional external 8-ohm, 4-watt speaker for use as a
public address system.
20. ANT: Connects antenna cable to transceiver.
UC344FH 10/29/03 4:48 PM Page 3
1. Select a location that is convenient for operating the radio, but does
not interfere with the driver or passenger.
2. Install bracket with self-tapping screws provided.
3. Connect wiring. (See instructions for Connecting the Power Cords.)
4. Attach the microphone bracket to the side of the radio.
5. Attach radio to bracket.
MOBILE STATION ANTENNA
Because the maximum power output of the transmitter is limited by the FCC,
the quality of your antenna is very important. To achieve the maximum
transmission distance, we strongly recommend that you install only a high
quality antenna. You have just purchased a superior transceiver - don’t
diminish its performance by installing an inferior antenna.
Only a properly matched antenna system will allow maximum power transfer
from the 50 ohm transmission line to the radiating element.Your Uniden
dealer is qualified to help you select the proper antenna for your
requirements. A whip style antenna may be used for
automobile installation.
A short ‘loaded’ whip antenna is easier to install on
an automobile. However, the efficiency of the short
whip antenna is less than that of a full quarter-wave
whip antenna.
MARINE INSTALLATION
Consult your dealer for information regarding marine installation. It is
important to adequately ground the system and to prevent electrolysis
between the fittings in the hull and the water.
4
Installation
Plan the location of the transceiver and
microphone bracket before beginning installation.
MOBILE STATION INSTALLATION
UC344FH 10/29/03 4:48 PM Page 4
CONNECTING THE POWER CORDS
We recommend connecting the power lead to the Ignition Switch Accessory
Terminal. This way, the transceiver is automatically turned off when the
ignition switch is turned off.
Or, the power cord may be connected to an available terminal on the fuse
block, or, to a point in the wiring harness. However, caution must be taken to
prevent a short circuit. If in doubt, contact your vehicle dealer for information.

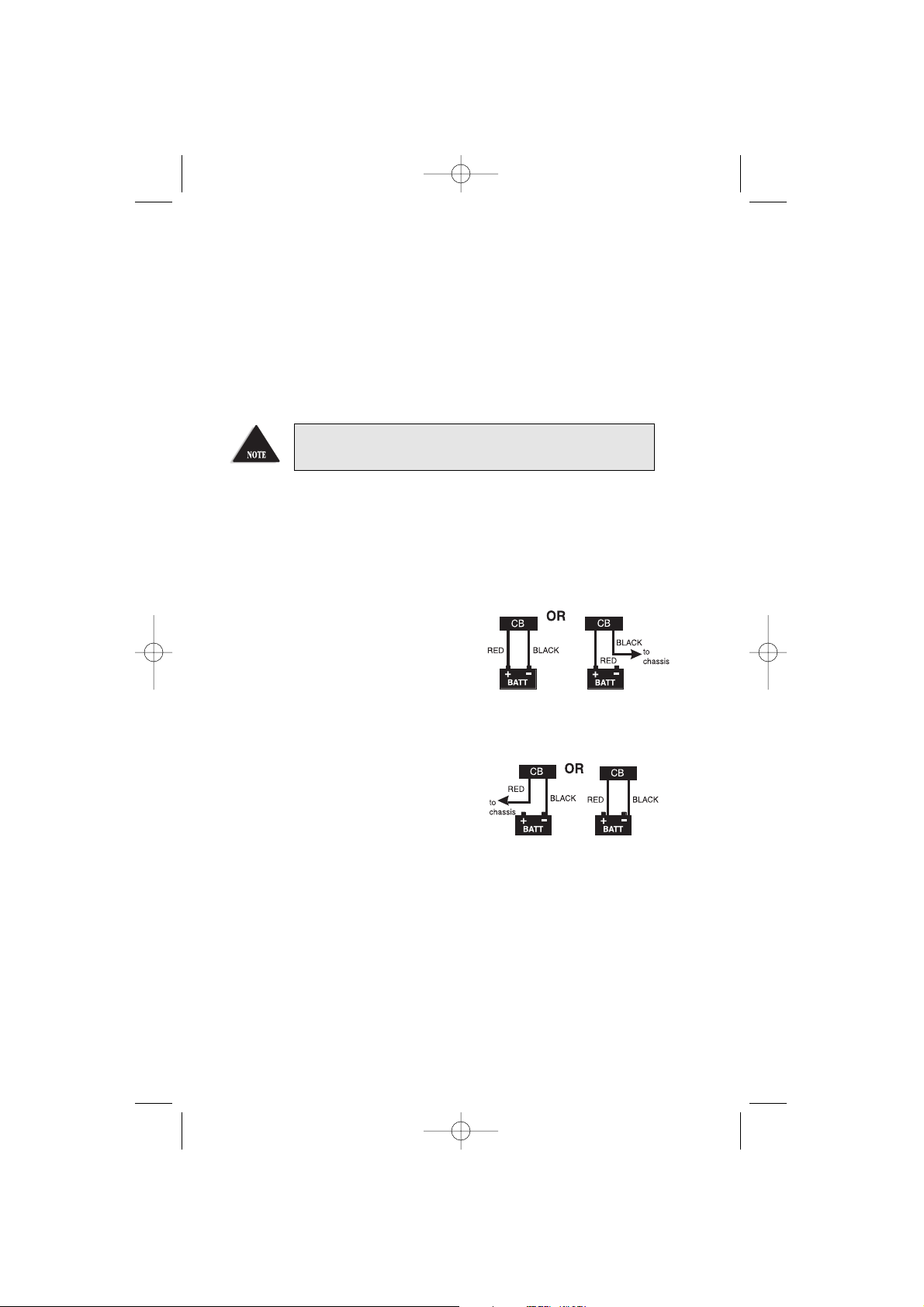

GROUND INFORMATION
5
This transceiver may be installed and used in any 12-volt DC
negative or positive ground system vehicle.
Most newer U.S. and foreign made cars, and small trucks, use a negative
ground system. Some older cars, and some new large trucks, use a positive
ground system.
With a negative ground system, the negative (-) battery terminal is usually
connected to the vehicle motor block. If you cannot determine the polarity
system of your vehicle, contact your vehicle dealer for information.
Negative Ground System
If you have a negative ground system,
connect the red DC power cord from
the transceiver to the positive (+) battery
terminal or other convenient point.
Then connect the black power cord to
the vehicle chassis or negative (-) battery
terminal.
Positive Ground System
If you have a positive ground
system,connect the black DC power
cord from the transceiver to the negative
(-) battery terminal or other convenient
point. Then, connect the red power
cord to the vehicle chassis or the
positive (+) battery terminal.
UC344FH 10/29/03 4:48 PM Page 5
Dynamic Squelch Control automatically sets Squelch to the optimal level for
stronger signals. To scan for weaker signals, turn off Dynamic Squelch
Control and perform the following steps:
4a. Turn SQ fully clockwise so only strong
signals can get through.
4b. Turn SQ fully counter-clockwise until
you hear a hiss. Everything gets
through - noise, weak signals, and
strong signals.
4c. Turn SQ back clockwise until the hiss
stops. Only clearer signals get through.
6
To Receive
Be sure that the power source, antenna, and microphone
are properly connected before proceeding.
Set SQ only when the
radio is not receiving a
strong signal.
1. Turn unit ON by turning the
VOL clockwise. VOL Control
to a comfortable level.
2. Select CHANNEL.
3. Set switch to NB/ANL.
UC344FH 10/29/03 4:48 PM Page 6
5. Adjust RF GAIN knob (small) to
optimize reception in strong
signal areas.
7
To Transmit
Perform a voltage Standing Wave Ratio (SWR) measurement
prior to using the transmitter. A
SWR ratio in excess of 2:1 may
damage the transmitter.
Be sure to read and understand Part 95, FCC Rules and
Regulations before operating your transmitter.
1. Select a channel.
2. Adjust MIC GAIN.
3. When the channel is clear, press the
microphone PTT switch and speak.
Function Meter
RF Meter: Measures RF Output
Power for transmitter. Press
microphone PTT switch to read
transmitting power.
S-Meter: Measures incoming signal
strength. The meter swings to indicate
signal strength. i.e. S 3, S 5, S 7 . . .
UC344FH 10/29/03 4:48 PM Page 7
To configure your CB radio to receive weather
alerts while using your CB radio:
1. Set the switch to WX.
2. Turn the Weather Channel knob to the
channel with best reception.
Left at this setting, you will hear only weather
broadcasts and Weather Alert Signals.
To use your CB radio normally while monitoring for
weather alerts, set the switch to CB.
When you hear a Weather Alert Signal, and desire to
hear weather information, return the switch to WX.
If you want to stop the weather alert signal while using your CB radio, or if
you don’t want to hear alerts, turn the Weather Channel knob to OFF.
8
Weather Information
Your PC68 Elite combines a CB Radio with a Weather Radio and a
Weather Alert System. The Weather Radio continually broadcasts weather
conditions. The Weather Alert System sounds a seven-second signal in the
event of severe weather.
UC344FH 10/29/03 4:48 PM Page 8
9
Preventive Maintenance
Maintenance
Use only the fuse specified for your PC68 Elite.
Failure to do so may void your warranty.
Every six months:
1. Check the Standing Wave Ratio (SWR).
2. Be sure all electrical connections are tight.
3. Inspect antenna coaxial cable for wear or breaks in shielding.
4. Be sure all screws and mounting hard ware are tight.
The PC68 Elite is designed to give you years of trouble-free service. There
are no user-serviceable parts inside. Except for the fuse in the DC power cord,
no maintenance is required.
To replace a blown fuse:
1. Press ends of the fuse holder
together. Twist to open.
Carefully separate the two pieces.
2. Remove the fuse and inspect.
If blown, replace with the same
type fuse.
UC344FH 10/29/03 4:48 PM Page 9
Problem Suggestion
Unit does not power up ❑ Check the ignition key position.
❑ Check power cord connections.
❑ Check fuse.
❑ Check vehicle electrical system.
No reception ❑ Check microphone connection.
❑ Set CB/WX/PA switch to CB.
❑ Check VOL and SQ.
❑ Check antenna.
❑ Check antenna connection.
❑ Set RF GAIN to MAX.
Poor Reception ❑ Check VOL and SQ.
❑ Be sure antenna SWR is normal.
❑ Set RF GAIN to MAX.
No Transmission ❑ Set CB/WX/PA switch to CB.
❑ Check microphone connection.
❑ Check MIC GAIN and adjust to MAX.
Low Transmission ❑ Check MIC GAIN and adjust to MAX.
10
Troubleshooting
Servicing Your Transceiver
If you do not get satisfactory results after performing the above checks,
call the Uniden Customer Service Center at 1-800-297-1023, 8:00 a.m. to
5:00 p.m. CST, Monday through Friday.
Technical information, diagrams, and charts are provided on request. It is the
user’s responsibility to see that this radio is operating at all times in accordance
with the FCC Citizens Radio Service regulations. We highly recommend that
you consult a qualified radio/telephone technician for servicing and aligning
this CB radio product. Please refer to the WARNING information on page 1 of
this Guide.
When ordering parts, be sure to specify the correct
model number and serial number of the unit.
In the event of system malfunction, perform the following procedures:
UC344FH 10/29/03 4:48 PM Page 10
11
GENERAL
Channel: 40
Frequency Range: 26.965 - 27.405 MHz
Weather Frequencies: 162.400 MHz (WX CH1)
162.425 MHz (WX CH2)
162.450 MHz (WX CH3)
162.475 MHz (WX CH4)
162.500 MHz (WX CH5)
162.525 MHz (WX CH6)
162.550 MHz (WX CH7)
Frequency Control: PLL Synthesizer
Antenna Impedance: 50 ohms
Power lnput: 13.8 VDC
Current Drain
TX: AM Full Modulation 2.2 A max)
RX: Squelch 0.4 A (NOMINAL)
Operating Temperature: -30˚C to 50˚C (CB)
-10˚C to 50˚C (WX)
-10˚C to +50˚C (DSC on)
Accessories: DC Power Cord
Microphone
Microphone Hanger
Mounting Bracket
Size (W x D x H): 160mm x 217mm x 55mm
Weight: 1.7 kg
TRANSMITTER
Output Power: 4 watts
Emission Type: 6A3
Hum and Noise: Better than 40 dB
Frequency Tolerance: ±0.002%
Modulation Percentage (Peak): 100%
Spurious Rejection: -70 dB
Output Impedance: 50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB S+N/N: 0.5 µV
Sensitivity at 500 mW Audio Output: 0.5 µV
Squelch Threshold: 0.5 µV
Antenna Impedance: 50 ohms
Squelch Tight: 1000 µV
Signal Meter S-9: 100 µV
Audio Output Power (max.): 5 watts
Audio Output (10% Dist.): 4 watts
Selectivity @ 6 dB Down: 7 kHz
Adjacent Channel Rejection: 70 dB
Image Rejection: 90 dB
Internal Speaker Impedance: 16 ohms
External Speaker Impedance: 8 ohms
PUBLIC ADDRESS
Output Power at 10% Distortion: 4 watts
Specifications shown are typical and subject to change without notice.
Specifications
UC344FH 10/29/03 4:48 PM Page 11
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for two years, to the original retail
owner, this Uniden Product to be free from defects in materials and craftsmanship
with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate and be
of no further effect two years after the date of original retail sale. The warranty is
invalid if the Product is (A) damaged or not maintained as reasonable or necessary,
(B) modified, altered, or used as part of any conversion kits, subassemblies, or any
configurations not sold by Uniden, (C) improperly installed, (D) serviced or
repaired by someone other than an authorized Uniden service center for a defect
or malfunction covered by this warranty, (E) used in any conjunction with
equipment or parts or as part of any system not manufactured by Uniden, or (F)
installed or programmed by anyone other than as detailed by the owner’s manual
for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to this
warranty at any time while this warranty is in effect, warrantor will either, at its
option, repair or replace the defective unit and return it to you without charge for
parts, service, or any other cost (except shipping and handling) incurred by
warrantor or its representatives in connection with the performance of this
warranty. Warrantor, at its option, may replace the unit with a new or refurbished
unit. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE
WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,
WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR
PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not
allow this exclusion or limitation of incidental or consequential damages so the
above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. This warranty is void outside the
United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner’s manual you are certain that the Product is
defective, pack the Product carefully (preferably in its original packaging). The
Product should include all parts and accessories originally packaged with the
Product. Include evidence of original purchase and a note describing the defect
that has caused you to return it. The Product should be shipped freight prepaid, by
traceable means, to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd
Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m., Central,
Monday through Friday
12
Two-Year Extended Warranty
Important: Evidence of original purchase is required for warranty service.
UC344FH 10/29/03 4:48 PM Page 12
13
The following list contains common “10-Codes” used by CB radio
operators for faster communication and better understanding.
Radio Code Definitions
Code Meaning
10-1 Received poorly
10-2 Receiving well
10-3 Stop transmitting
10-4 OK, message received
10-5 Relay message
10-6 Busy, stand by
10-7 Out of service, leaving air
10-8 In service, subject to call
10-9 Repeat message
10-10 Transmission completed,
standing by
10-11 Talking too rapidly
10-12 Visitors present
10-13 Advise Weather/
Road conditions
10-16 Make pickup at
10-17 Urgent business
10-18 Anything for us?
10-19 Nothing for you, return
to base
10-20 My location is
10-21 Call by telephone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last information
10-27 I am moving to channel
10-28 Identify your station
10-29 Time is up for contact
10-30 Does not conform to
FCC rules
10-32 I will give you a
radio check
10-33 EMERGENCY TRAFFIC
10-34 Trouble at this station
Code Meaning
10-35 Confidential information
10-36 Correct time is
10-37 Wrecker needed at
10-38 Ambulance needed at
10-39 Your message is delivered
10-41 Please turn to channel
10-42 Traffic accident at
10-43 Traffic tie up at
10-44 I have a message for you
10-45 All units within range
please report
10-50 Break channel
10-60 What is next
message number
10-62 Unable to copy, use phone
10-63 Net directed to
10-64 Net clear
10-65 Awaiting your next
message/assignment
10-67 All units comply
10-70 Fire at
10-71 Proceed with transmission
in sequence
10-77 Negative contact
10-81 Reserve hotel room for
10-82 Reserve room for
10-84 My telephone number is
10-85 My address is
10-91 Talk closer to microphone
10-93 Check my frequency on
this channel
10-94 Please give me a
long count
10-99 Mission completed, all
units secure
10-200 Police needed at
UC344FH 10/29/03 4:48 PM Page 13
Loading...
