Uniden EXS 9800 User Manual

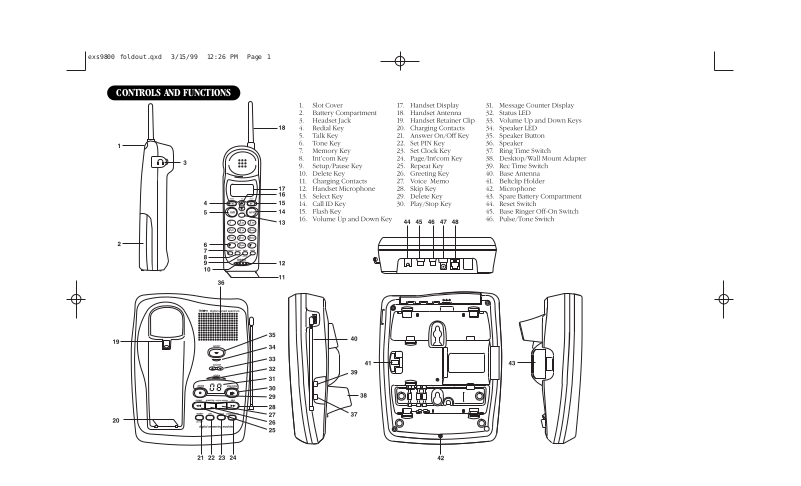

CONTROLS AND FUNCTIONS

At Uniden, we’ll take care of you!

If you need any assistance with this product, please call our Customer Hotline at

1-800-297-1023

PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.

Our Uniden representatives will be happy to help you with any matters regarding the operation of this unit,

available accessories, or any other related matters.

Controls And Functions . . . . . . . . . . . .inside front cover

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Included In Your Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Desk/Tabletop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Wall Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installing the Handset Battery Pack . . . . . . . . . . . . . . . . . . . .10

Charging the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Cleaning the Battery Contacts . . . . . . . . . . . . . . . . . . . . . . . . .12

Setting the Pulse/Tone Switch . . . . . . . . . . . . . . . . . . . . . . . . .12

Adjusting the Volume Controls . . . . . . . . . . . . . . . . . . . . . . . .13

Installing the Beltclip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Headset Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Automatic Digital Code Security . . . . . . . . . . . . . . . . . . . . . . .15

Using Your New Phone . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Making and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Answering a Call From the Base . . . . . . . . . . . . . . . . . . . . . . .17

Answering a Call From the Handset . . . . . . . . . . . . . . . . . . . .17

Making a Call From the Handset . . . . . . . . . . . . . . . . . . . . . . .17

Using the Tone Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Flash and Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Using Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Using the Page Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Using Your EXS 9800 Intercom . . . . . . . . . . . . . . . . . . . . . . . .19

Traveling Out-Of-Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Storing a Phone Number In Memory . . . . . . . . . . . . . . . . . . .20

Editing a Phone Number In Memory . . . . . . . . . . . . . . . . . . .22

Erasing a Number From Memory . . . . . . . . . . . . . . . . . . . . . .24

Using Memory Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Setting Up Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Using the Speaker Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Setting Up the Integrated Answering Device . . . . . . . . .33

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Turning the Answering System On and Off . . . . . . . . . . . . .34

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Recording Your Outgoing Message . . . . . . . . . . . . . . . . . . . .35

Selecting the Message Time . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Setting the Ring Time Switch . . . . . . . . . . . . . . . . . . . . . . . . . .36

Recording a Voice Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Selecting the PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Using the Integrated Answering Device . . . . . . . . . . . . .38

Playing Your Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Repeating a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Skipping a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Deleting a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Recording a Conversation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Using the Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Remote Access Away from Home . . . . . . . . . . . . . . . . . . . . . .41

Remote Room Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

CONTENTS

CONTENTS

OF YOUR OWNERS MANUAL

Using Your
New Phone

Setting Up

Answering Device

Using Answering

Device

Using Caller ID

Troubleshooting

Specifications

Fold out the front cover of
this owner’s manual to
use the handy CONTROLS
AND FUNCTIONS page
for reference.

Introduction

Installing and

Adjusting

2

INTRODUCTION

Congratulations on your purchase of the Uniden EXS 9800 cordless
telephone. This phone is designed for reliability, long life, and
outstanding performance utilizing the latest in 900 MHz Spread
Spectrum Technology.

l 900 MHz Spread Spectrum Technology
l Integrated Telephone Answering Device (ITAD)
l Call ID and Call Waiting Caller ID (CIDCW)
l 50 Number Caller ID Memory
l Speakerphone
l Back-up Power Supply with Optional Battery Pack
l 3-Line, 16 Character LCD Handset Display
l Headset Compatible
l Handset Earpiece and Ringer Volume Control
l 20 Channel AutoScan
l 10 Enhanced Memory Dial Locations
l 32 Digit Redial
l 2-way Page/Intercom
l Hearing Aid Compatible
l Redial, Flash, and Pause
l Pulse/Tone Dialing
l 7-Day Standby Battery Time
l 4-Hour Talk Time

Digital Spread Spectrum Technology utilizes a “wider
frequency band” vs. a “single narrow band” used in standard digital
transmissions. The result is a more secure conversation with the clarity of
digital sound, extended range, and minimal interference from other cordless
phones.

Random Code

TM

digital security automatically selects one of over
65,000 codes for the handset and base. This feature prevents unauthorized
calls as a result of your phone being activated by other equipment.

FEATURES

WELCOME

TO YOUR NEW PHONE

To get the most from
your phone, please read
this owner’s manual
thoroughly. Be sure to
complete and mail the
product registration form.

INCLUDED IN YOUR PACKAGE

Handset

Base

AC Adapter

If any of these items are
missing or damaged,
contact the Uniden Parts
Department at (800) 554-

3988. Hours are from
8:00 a.m. to 5:00 p.m.
Central Time, Monday
through Friday. We can
also be reached on the
web at www.uniden.com.

Rechargeable Battery

Short Telephone

Cord

Long Telephone

Cord

l This Owner’s Manual
l Precautions and Important Safety Instructions
l Registration Card

Desktop/Wall

Mount Adapter

Beltclip

Wall Mounting

Screws

3

4

INSTALLING

Before choosing a location for your new phone, read the
INSTALLATION CONSIDERATIONS included in the PRECAUTIONS AND
IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some
important guidelines you should consider:

l The location should be close to both

a phone jack and a continuous power
outlet. (A continuous power outlet is an
AC outlet which does not have a switch
to interrupt its power.)

l Keep the base and handset away from

sources of electrical noise such as
motors and fluorescent lighting.

l Be sure there is sufficient space to rotate the base antenna

fully vertical.

l The base can be placed on a desk, tabletop or mounted on a standard

wall plate.

l You should charge your handset for 15-20 hours before connecting the

phone line.

l If your second phone line has a separate jack, locate your phone so

you can access both jacks.

AND ADJUSTING YOUR PHONE

SELECTING A LOCATION

5

1. Snap the desktop/wall mount
adapter into the top of the base
as shown.

2. Plug the AC adapter cord into the 10
VDC input jack on the back of the base.

3. Wrap the AC adapter cord around the
strain relief notch.

4. Plug the AC adapter into a standard 120V AC wall outlet.

5. Charge the battery (See CHARGING THE BATTERY PACK,
page 11).

6. Plug one end of the long telephone cord into the

TEL LINE

jack on

the back of the base.

7. Plug the other end of the cord into the
telephone jack on the wall.

8. Set the base on a desk or tabletop with
the keypad facing either facing up or
down. Place the handset into
the base. Raise the antenna to a
vertical position.

DESK/TABLETOP INSTALLATION

Before using your phone,
fully charge the Nickel­Cadmium battery pack
for 15-20 hours.

Place the power cord so
that it does not create a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.

Use only the Uniden AC
adapter supplied with
this phone. DO NOT use
an outlet controlled by a
wall switch.

t Standard wall plate mounting

This phone can be mounted on any standard AT&T or GTE wall plate.

1. Snap the desktop/wall mount
adapter into the bottom of the base
as shown.

2. Plug the AC adapter into the base.

3. Place the AC adapter cord inside
the molded wiring channel.
Wrap the cord around the strain
relief notch.

4. Plug the AC adapter into a standard
120V AC wall outlet.

5. Plug one end of the short telephone
cord into the

TEL LINE

jack
on the back of the base. Plug the
other end into a standard
telephone jack.

WALL INSTALLATION

6

Use only the Uniden AC
adapter supplied with
this phone. DO NOT
use an outlet controlled
by a wall switch.

Place the power cord so
that it does not create a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.

6. Align the mounting slots on the
base with the mounting posts on the
wall. Push in and down until the
phone is firmly seated.

7. On the base, pull the handset retainer out
of the slot. Rotate clockwise 180°.

8. Flip the retainer from front to back.
Slide it back into the slot so that the lip of the
retainer is up and the oval is down. The
retainer holds the handset in place.

t Direct wall mounting

If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:

l Select a location away from electrical cables, pipes, or other items

behind the mounting location that could cause a hazard when
inserting the screws into the wall.

l Mount your phone near a working phone jack to avoid excessive

cord lengths

l Make sure the wall material is capable of supporting the weight of the

base and the handset.

7

Before you plug the other
end of the telephone cord
into the modular jack on
the wall, charge the
battery (See CHARGING
THE BATTERY PACK,
page 11).

1. Insert two mounting screws (with their
appropriate anchoring device) into the wall 3­15/16 inches apart. Allow about 3/16 of an inch
between the wall and screw heads for mounting
the phone.

2. Snap the desktop/wall mount
adapter into the bottom of the base
as shown.

3. Plug the AC adapter cord into the
10V DC input jack on the back of
the base.

4. Put the AC adapter cord inside the
molded wiring channel. Wrap it
around the strain relief notch. Plug
the AC adapter into a standard 120V
AC wall outlet.

5. Plug one end of the long telephone
cord into the

TEL LINE

jack
on the back of the base. Plug the
other end into a telephone jack.

8

Be careful not to insert
the mounting screws
into possible electrical
hazards such as cables,
wiring, or pipes.

9

6. Align the mounting slots on the
base with the mounting screws on
the wall. Push in and down until
the phone is firmly seated.

7. On the base, pull the handset retainer
out of the slot. Rotate clockwise 180°.

8. Flip the retainer from front to back.
Slide it back into the slot so that the lip
of the retainer is up and the oval is down.
The retainer holds the handset in place.

1. Press battery cover release.
Slide cover off.

2. Install the nickel-cadmium battery
with the label down.

3. Slide the battery cover forward
until it snaps into place

INSTALLING THE HANDSET BATTERY PACK

10

Use only Uniden Battery
(model BT-990) supplied
with your phone.

11

t Initial battery charging

Before connecting your the phone for the first time, fully charge the
rechargeable battery pack for 15-20 hours without interruption.

1. Place the handset on the base.

2. Make sure that

status

LED lights.
If the LED doesn’t light, be sure the AC
adapter is plugged in and the handset
makes good contact with the base
charging contacts.

t Charging optional battery packs

The base of your phone is equipped with a compartment for charging
an extra battery pack for use in your handset. You can obtain an

extra battery pack from your authorized Uniden dealer.

1. Position the battery pack so the contacts are face up.

2. Slide the battery pack into
the charging compartment until
it locks into place.

3. Charge the battery for 24 hours. When charging is complete, lift the
latch to remove the battery pack. To install the charged battery into the
handset, see INSTALLING THE HANDSET BATTERY PACK, page 10.

In the event of a power failure, your spare battery
pack temporarily provides power for the base so you
can still use your phone.

CHARGING THE BATTERY PACK

Please visit your
authorized Uniden dealer
to obtain an extra battery
pack or contact the
Uniden Parts Department
at [phone]. Hours
are from 8:00 a.m. to
5:00 p.m. Central
Standard Time, Monday
through Friday.

12

Most phone systems use
tone dialing. Check with
your local phone
company if you’re not
sure whether your
system is tone or pulse.

t Low battery indicator

When the battery pack is very low and needs
to be charged, the phone is programmed to
eliminate some functions to save power. If the
phone is not in use, Low Battery flashes.
If the phone is in use, Low Battery flashes and the handset beeps.

t To avoid Memory Effect

On a monthly basis, use the phone until the Low Battery
indicator flashes on the handset. Then charge the battery for
15-20 hours.

With normal usage, your battery should last about one year.

To maintain a good charge, clean all charging contacts on the handset
and base about once a month. Use a pencil eraser or other contact
cleaner. DO NOT use liquids or solvents; you may damage your phone.

Be sure the

PULSE/TONE

switch is the

TONE

position unless your

local phone system uses pulse dialing.

SETTING THE PULSE/TONE SWITCH

CLEANING THE BATTERY CONTACTS

All rechargeable nickel-cadmium batteries
develop a “memory effect”. The memory effect
gradually reduces your talk and standby time.

Low Battery

13

t Handset ringer volume

Press the

vol

s or t key on the handset

to set the handset ringer volume. There are
two ringer volume settings; high and low.

To select the high volume setting,
press

vol

s. The following screen

displays:

To select the low volume setting,
press

vol

t. The following

screen displays:

t Handset earpiece volume

There are three volume settings for the handset earpiece; high, normal
and low. The handset earpiece volume can be adjusted only during a call.

To lower the volume, press

vol

t. To raise the volume, press

vol

s.

The handset displays Volume High, Volume Normal or

Volume Low indicating the current volume setting.

t Base ringer volume

The ringer switch at the base of your
EXS 9800 allows you to turn the ringer

OFF

or ON.

t Base speaker volume

To control the speaker volume of the
base, press the s or t button.

Ringer Low

Ringer High

ADJUSTING THE VOLUME CONTROLS

t To attach the beltclip.

1. Remove the slot cover

2. Insert the beltclip into the empty slot
and press down until it clicks.

t To remove the beltclip

1. Pull back on the release tab and
lift the beltclip up.

2. Replace the slot cover. You
can store either the beltclip
or slot cover on the bottom
of the base.

INSTALLING THE BELTCLIP

14

Your phone may be used with an optional
headset, the Uniden HS910. To use this
feature, simply plug the headset plug into
the headset jack. Your phone is ready for
hands-free conversations.

To prevent other parties from making unauthorized calls on your
phone line, a digital code was added to the EXS 9800. Your phone’s
handset and base share this code. This code is randomly set each time
you place the handset in the base. If the phone experiences a power
failure, you must reset the digital security code by placing the handset
in the base.

t To reset the digital security code

1. Restore power to the base

2. Place the handset on the base.
The

status

LED flashes to indicate that

the digital security code is reset.

AUTOMATIC DIGITAL CODE SECURITY

If you are using an optional headset, you must still
use the handset keypad for phone operations.

HEADSET INSTALLATION

15

Use only the Uniden
HS910 headset
specifically designed for
Spread Spectrum phones.
You may hear a buzz or
hum on other headsets.

Keep headset wire away
from handset and
base antennas.

16

t Basic 2-line operation

USING

YOUR NEW PHONE

MAKING AND RECEIVING CALLS

1. Pick up the
handset.

2. Press

talk

.

3. Listen for the dial
tone.

4. Press

redial

.

Handset Off BaseHandset On Base

To answer

a call

1. Pick up the
handset.

2. Press

talk

.

To make

a call

1. Pick up the
handset.

2. Press

talk

.

3. Listen for the dial
tone

4. Dial the number.

1. Press

talk

.

2. Listen for the dial
tone.

3. Dial the number.

To redial

1. Press

talk

.

2. Listen for the dial
tone.

3. Press

redial

.

To hang up

Press

talk

, or return the handset to the

base (AutoStandby).

Press

talk

.

Fold out the front cover
of this owner’s manual
to use the CONTROLS
AND FUNCTIONS
diagram for reference.

Base Only

Press

speaker

.

Press

speaker

.

17

1. The base rings. The
LED on the base flashes.

2. Press the

speaker

to answer.

3. When you finish the call, press

speaker

to hang up.

1. The handset rings and the
following screen appears:

2. Press

talk

to answer

3. When you finish the call, press

talk

on
the handset, or return the handset
to the base.

t In Use Dialing (Off-Hook Dialing)

1. Pick up the handset.

2. Press

talk

to answer.

3. Dial the number on the keypad, or
use one of the memory features.
(See USING MEMORY DIALING, page 25).

4. When you finish the call, press

talk

, or return the handset to the base.

t Standby Dialing (On-Hook Dialing)

To call a number while the handset is on the base, dial the number on
the keypad, or use one of the memory features. Press

talk

. (See USING

MEMORY DIALING, page 25.)

MAKING A CALL FROM THE HANDSET

(Call)

ANSWERING A CALL FROM THE HANDSET

ANSWERING A CALL FROM THE BASE

AutoStandby automat­ically hangs up when
you place the handset
on the base.

18

If you are dialing in the pulse mode
and need to enter tone digits, press

tone

then enter the digits. Once the call has
ended, tone mode is canceled and pulse
dialing resumes.

If you have Call Waiting service and a
call waiting tone sounds, press

flash

to
accept the call. After a short pause you will
hear the new caller. To return to the
original caller, press

flash

again.

The

redial

key redials the last number dialed. The redialed number

can be up to 32 digits long.

To call the last number dialed
from the handset, press

redial

.

If any key is pressed before

redial/p

,

the the last number will not redial.

To locate the handset when it is off
the base, press

page/int’com

on the base.

USING THE PAGE FEATURE

USING REDIAL

FLASH AND CALL WAITING

USING THE TONE FEATURE

The tone feature applies
only when the base is set
to pulse.

19

The handset beeps for 60 seconds.
The following screen appears:

Press

int’com

on the handset to end

paging. Press

page/int’com

on the base

to return to Standby.

t Paging from the Base to the Handset

1. Press

page/int’com

on the base.

The handset beeps. (If no answer, press

page/int’com

again to disconnect.)

2. To answer a page, press

int’com

on
the handset. Speak within 12 inches of
the base microphone.

3. To turn off the intercom, press

page/int’com

on the base, or

int’com

on the handset.

t Paging from the Handset to the Base

1. Press

int’com

on the handset.

(If no answer, press

int’com

to disconnect.)

2. To answer a page at the base, press

page/int’com

. Speak within 12 inches

of the base microphone.

3. To turn off the intercom, press

page/int’com

at

the base or

int’com

on the handset.

USING YOUR EXS 9800 INTERCOM

Paging

20

As you begin to move too far from the base, you will first hear a
clicking sound. As you travel further, the noise increases. If you travel
out-of-range, your call terminates.

Your EXS 9800 stores up to 10 name/numbers in the handset.

1. Remove the handset from the base.

2. Press and hold

memory

for

two seconds.

The following screen appears:

3. Use the

s and t keys or number

keypad to choose a memory location to
store a name/number.

4. Press

select

.

The following screen appears:

5. Enter a name by using the s and t
keys to scroll through the character menu.

Stop scrolling and press

select

when you

see the desired character Use the

<

and >keys right or left, or to create a
blank space.

Store Number

z

Memory Store

1

>

2

STORING A PHONE NUMBER IN MEMORY

TRAVELING OUT-OF-RANGE

Whenever you are using a
menu screen, you must
press a key within 20
seconds or the phone will
return to Standby. You
may also press

memory

to quit a

memory

menu

at any time.

21

6. When you have finished entering a
name, press

select

.
The following screen appears.
The cursor flashes indicating

that the display is ready for a number.
to be entered.

7. Enter the phone number with the number keypad (direct entry) or the

s and t keys. Use the s and t keys to enter symbols, such as

dashes. Use the < and >keys to position the cursor.

8. When you have finished entering
a number, press

select

.

The handset beeps and and displays
a confirmation screen.

Memory 1 Stored

When entering name/numbers, you may press

pause

to enter a pause in the dialing sequence. The display
shows a P. The pause feature is useful for long
distance calling, credit card dialing, or any other
dialing sequence requiring a pause between digits.

Store Number

z

22

To edit a number you have stored in the handset:

1. Remove the handset from the base.

2. Press and hold

memory

for

two seconds.

The display shows the Memory Store
screen and any saved name/numbers.

3. Use the s and t keys or number
keypad to select the memory location you
would like to edit.

4. Press

select

.

The display shows the memory
location you have selected.

5. Press

select

again to enter the Edit

Memory mode.
The following screen appears.

A cursor flashes indicating that the
display is ready to edit the name/number.

6. Edit the name with the

s and t keys.

Use the s and t keys to enter symbols.
Use the

<

and >keys to move the

cursor left and right.

7. Press

select

.
The following screen appears.
A cursor flashes indicating that the

display is ready for the number to
be edited.

Store Number

8175551212

z

Store Name

JOHN SMITH

z

> Edit Memory 1

Delete Memory 1
Go Back

Memory Store
1>JOHN SMITH
2 UNIDEN

EDITING A PHONE NUMBER IN MEMORY

Whenever you are using a
menu screen, you must
press a key withing 20
seconds or the phone will
return to Standby. You
may also press

memory

to exit a

memory

menu

at any time.

If you select Go Back
at any time, no changes
are made and the handset
shows the Memory
Store screen.

23

8. Edit the phone number with the number keypad
(direct entry) or with the s and t keys.

Use the s and t keys to enter symbols.
Use the

<

and >keys to move the

cursor left and right.

9. Press

select

.

The handset beeps and displays the
confirmation screen.

10. The display then returns to the Memory
Store screen. You may select another
number to edit (return to step 3) or press

memory

to return to Standby.

Memory 1 Stored

24

After erasing a number, you may add a new address to memory.

1. Remove the handset from the base

2. Press and hold

memory

for

two seconds.

The handset shows the Memory
Store screen with saved name/numbers
displayed.

3. Use the s and t keys, or number
keypad, to select the memory location you

would like to delete. The < and >keys
toggle between the name display and the
number display.

4. Press

select

.

The following screen appears:

5. Use the t key to move the >cursor
to Delete Memory.

6. Press

select

.

7. Use the t key to move the

>

cursor to Yes.

8. Press

select

.

Delete Memory ?

> Yes

No

Delete Memory ?

Yes

> No

> Edit Memory 1

Delete Memory 1
Go Back

Memory Store
1>JOHN SMITH
2 UNIDEN

ERASING A NUMBER FROM MEMORY

25

There is confirmation tone.
The following screen appears:

9. The display then returns to the
Memory Store screen. You may select
another number to delete (return to
step 3) or you may press

memory

to return to Standby.

To dial a number using a programmed memory location:

1. Press

memory

.

The handset displays your programmed
memory locations.

2. Use the s and t keys to select the
memory location you would like to dial.

The following screen appears:

3. Press

talk

. The number dials.

Memory Store

1

>

JOHN SMITH

2 UNIDEN

Memory Store

1

>

JOHN SMITH

2 UNIDEN

USING MEMORY DIALING

Memory 1 Deleted

26

You may use the phone as a speaker phone to answer calls by pressing
the

talk

button on the base. To hang up, press

talk

again.

The base microphone is located
under the phone. Position yourself
approximately 12 inches away from
the base and speak clearly.

You must subscribe to Caller ID from your phone company
to use this feature.

t Setting up Caller ID options

There are three Caller ID options available; they are AutoTalk, CIDCW,
and Area Code.

AutoTalk allows you to answer the phone without pressing

talk

. If the
phone rings when AutoTalk is on, simply remove the handset from the
base and the phone automatically answers the call. If the phone rings
when AutoTalk is off, you must press

talk

to answer the call. This

option is useful for screening calls.

CIDCW (Caller ID with Call Waiting) performs the same as regular
Caller ID on a call waiting number. You must subscribe to CIDCW

from your phone company to use this feature.

The Area Code feature is used when storing or calling numbers from
Caller ID memory. All numbers with this area code are dialed directly
without the area code.

If you are programming numbers within your area code that
require all ten digits to be dialed, it is recommended that you do
not program this feature.

USING CALLER ID

USING THE SPEAKER PHONE

You may use the < and >
keys to toggle between
numbers when
programming the area
code.

27

To change your Caller ID options:

1. Press and hold

setup

for two

seconds.

The following screen appears .

2. Use the s and t keys to move the
cursor to the selection that you would
like to change.

To turn AutoTalk and CIDCW On or Off,
press the

select

key.

To change the area code, press

select.

Then, use the number

keypad to enter the area code. Press

select

again.

3. After you finish your selections, press

setup.

Return the handset to
the base. The status LED flashes, indicating that your setup changes
are now effective.

t Screening your calls

Caller ID allows you to review caller
information before answering your
phone. At the beginning of the second
ring, the display shows the date, time,
call count, name, and phone number of the caller. If your
Caller ID service is number only, the name does not appear
on the second line.

If a name or number is not available, the display shows a
message such as Incomplete Data, Private Number,
Private Name, etc.

12/21 12:30P 03
Schlitz Maren
817-555-1212

1>Auto Talk:Off
2 CIDCW :On
3 Area Code:

28

t Reviewing Caller ID name/numbers

To review your Caller ID name/numbers, follow the steps below:

1. Press

call id

.

The following screen appears:

2. Press t to scan through the
name/numbers.

The most recent name/number appears
first, with the date, time, call count,
name, and phone number. Press s to
scan backwards.

3. Once you have reviewed your oldest
name/number, the following
screen appears.

4. Press

memory

to return to Standby.

Once you have viewed all of your Caller ID name/
numbers and reach End, the message list does not
cycle back to the beginning. You must press s to
view your previous name/numbers.

End

12/21 12:30P 03
Schlitz Maren
817-555-1212

New : 01

Total : 15

29

t Calling a Caller ID name/number

1. Press

call id

.

The Caller ID summary screen shows
the number of new callers and total
number of calls.

2. Press t to scan forward. Press s
to scan backwards through the list.

3. Select the name/number that you
would like to dial.

4. Press

talk

. The number

automatically dials.

For long distance calling, insert “1” by
pressing 1on the keypad before pressing

talk

.

12/21 12:30P 03
Schlitz Maren
817-555-1212

New : 01

Total : 15

30

t Storing a Caller ID name/number in a memory location

1. Press

call id

.

The Caller ID summary screen shows
the number of new calls and total
number of callers.

3. Press s or t to find the name/
number that you would like to store.

4. Press

memory

to store the

selected name/number.

The following screen appears:

5. The Select Location screen appears. Use the s and t keys to select a
blank memory location to store the new name/number. (If you want
to replace an existing number with the Caller ID name/number, skip
to step 5.)

6. Press

select

. A confirmation tone
sounds. The number is programmed. (Do
not complete steps 5 and 6.)

7. If you choose to replace an existing
number with the new Caller ID name/
number, press

select

. The following

screen appears:

Replace Memory?
Yes
>No

Select Location
1>Schlitz Maren
2 UNIDEN

New : 01

Total : 15

USING

CALLER ID

31

8. Use the s key to move the cursor to Yes. Press

select

.

A confirmation tone sounds. The number is programmed.

t Deleting a Caller ID name/number

To delete a single Caller ID name/number, follow the steps below.

1. Press

call id

.

The Caller ID summary screen shows
the number of new callers and total
number of calls.

2. Select the number that you would like to
delete. Press t to scan forward through
the name/numbers and s to
scan backwards.

3. Press

delete.

The following screen appears:

If you select No, the Caller ID
screen returns.

4. Press

select

or

delete

. A confirmation tone sounds. The Caller ID

screen returns with the next name/number displayed.

5. Press

call id

to return to Standby.

Delete Message?

>Yes

No

12/21 12:30P 03
Schlitz Maren
817-555-1212

New : 01

Total : 15

32

t Deleting all Caller ID name/numbers

To delete all of your Caller ID locations, follow the steps below:

1. Press

call id

.

The Caller ID summary screen shows
the number of new callers and total
number of calls.

2. Press

delete

.

The following screen appears.

3. Use the s key to move the cursor to Yes.
A confirmation tone sounds.
The following screen appears.

4. All your caller ID locations are deleted.

5. Press

call id

to return to Standby.

t Using CIDCW (Caller ID with Call Waiting)

1. During a call, when you hear the
Caller ID tone, check the handset display
for the name and number of
incoming calls.

2. Press

flash

to accept the incoming
call. See FLASH AND CALL WAITING,
page 19, for additional information.

12/21 12:30P 03
Schlitz Maren
817-555-1212

Total : 00

Delete All?

Yes

>No

New : 01

Total : 15

33

The EXS9800 has a built-in answering system to answer and record your
incoming calls. You can use your answering system to record a
conversation, leave a memo message for others who use the phone, or to
answer the phone with your personalized message when you are away.

l Digital Tapeless Recording
l 15 minutes Recording Time
l Call Screening
l Selectable Outgoing Messages
l Time and Day Stamp
l Remote Access
l Toll Saver

Digital Tapeless Recording allows you to quickly review, save, or delete
messages. You’ll never worry about a tape wearing out, jamming, or
resetting improperly.

The Integrated Answering System is easy and convenient to use.,

However, please read all instructions carefully before using your

answering system.

FEATURES

THE INTEGRATED ANSWERING DEVICE

SETTING UP

THE INTEGRATED ANSWERING DEVICE

34

1. To turn the answering system on, press

answer on/off

. A tone sounds. An
outgoing message plays on the base
speaker. A second tone sounds after the
message plays. The message counter LED
turns on to indicate the unit is ready to
answer calls.

2. To turn the answering system off, press

answer on/off

again. A tone sounds
followed by the announcement “Answer
off”. The message counter LED turns off.

The clock on the EXS9800 Answering System starts when power
is applied to the base.

To set the correct time:

1. Press and hold

clock

until a tone sounds.

2. Press

skip

or

repeat

until the correct
day is announced. Numbers zero through
six display as each day is announced.

3. Press

clock

again to select the day.

The hour setting is announced.

4. Press

skip

or

repeat

until you hear the
current hour setting. Numbers 1 through 12
display as each hour is announced.

SETTING THE CLOCK

TURNING THE ANSWERING SYSTEM ON/OFF

35

5. Press

clock

again to select the correct hour.

6. Press

skip

or

repeat

until you hear the
current minute setting.
The numbers 0 through 59 display as each
minute is announced.

7. Press

clock

again to select the correct minute.

The AM/PM setting is announced.

8. The LED displays an A or P. Press

skip

or

repeat

until you hear the correct AM/PM setting.

9. Press

clock

again to complete your settings.

The EXS9800 announces the correct time.

When you receive a call, the answering system automatically plays
either a preset greeting, or your own personal greeting.

t Preset message

The following message is prerecorded:

“Hello, no one is available to take your call.
Please leave a message after the tone.”

t Recording your personal Greeting

1. Press and hold

greeting

until you hear
a long tone. After the message counter LED
blinks, release

greeting

. Record your
message by speaking within 12 inches of
the base microphone

2. When you finish recording your message,
press

greeting

again. A tone sounds. Your

message plays back for your review.

To choose between the pre-recorded greeting and
your personal greeting, press

greeting

during

outgoing message playback.

RECORDING YOUR OUTGOING MESSAGE

36

t Announce Only feature

The Announce Only feature repeats a prerecorded greeting - “No one is
available to take your call”, or your own personal greeting. It will not
allow the caller to leave a message.

For Announce Only, move the

REC TIME

switch to the

ANN

position.

The message counter LED displays A when
the system is on Standby

You can set your answering system to record
messages up to four minutes long.

To record up to one minute, move the

REC TIME

switch to 1.

To record up to four minutes, move the

REC TIME

switch to 4.

SELECTING THE MESSAGE TIME

The Voice Memo function allows the user to record a message
on the base for others who use your phone.

1. Press and hold

voice memo

. A tone
sounds and the message counter LED
begins to blink.

2. Release

voice memo

. To record your

message, speak within 12 inches of the

base microphone.

3. When you have finished your message, press

voice memo

to stop recording. The system returns to Standby.

To listen to your messages from a remote location, you will need to
enter a two-digit Personal Identification Number (PIN) code (00-99).
To select a PIN:

1. Press and hold the

pin

button. A tone

sounds, and the LED displays 00.

2. To set the first number, press

skip

or

repeat

to scroll from 0 to 9. When the
desired number appears in the display,
press

pin

again. This selects the first

number.

3. To set the second number, press

skip

or

repeat

to scroll from

0 to 9. When the desired number appears in the display, press

pin

.

This selects the second numbe.r Your PIN is announced.

SELECTING A PIN CODE

RECORDING A VOICE MEMO

37

The Voice Memo function
is completely independent
of the outgoing message.
It’s handy for leaving
other family members
quick messages when you
are unavailable.

A Voice Memo is treated
as a incoming recorded
message. It will be added
to your stored messages.

38

The ring time/toll saver switch sets your
answering system to answer after two or
four rings.

In the TS(Toll Saver) position, if you have
new messages, the answering system
answers after two rings. If there are no new messages, the system
answers after four rings. This way, when you call long distance to
check
your messages, and have no messages, you can hang up after the
second ring to save a charge.

The

RESET

button is used to initialize the

base computer.

The reset button can be used if an AC power
line disturbance causes the answering
system to malfunction and become
inoperative. Pressing

RESET

does not erase

any data stored in your system memory.

The base LED displays the total number of messages. If the display is
blinking, you have new messages. When the message center is full,
the LED displays FL. The EXS9800 plays your new messages first.
After listening to your new messages, you may listen to your
old messages.

1. Press

play/stop.

The system announces the number of
new and old messages. After the each
message is played, the time and day the
message was received is announced. The
message counter LED displays the
number of current messages.

PLAYING YOUR MESSAGES

USING THE RESET BUTTON

SETTING THE TOLL SAVER SWITCH

USING

THE INTEGRATED ANSWERING DEVICE

To stop playing your
message at any time,
press

play/stop

again.

39

2. When all new messages have played, a long tone is heard. The
message counter LED stops flashing. To indicate all new messages have
been reviewed.

3. After reviewing your new messages, you can review your old messages.
Press

play/stop

and follow the instructions above.

1. Press

play/stop

to review your messages.

The number of old messages is announced.

2. After a message plays for a few seconds,
press

repeat

to replay the message.

3. You may press

play/stop

at any time to
stop reviewing and return to Standby. The
counter LED shows the total number
of messages still on the system.

1. Press

play/stop

to review your messages.

The number of messages is announced.

2. Press

skip

at anytime to skip to the

next message.

3. Press

play/stop

at any time to stop
reviewing your messages and return
to Standby.

The message counter LED shows the total
number of messages still on the system.

SKIPPING A MESSAGE

REPEATING A MESSAGE

The system automatically
returns to Standby when
all messages have played.

Pressing

repeat

before
1-1/2 seconds of the
name/number is
displayed, causes
the system to scan back
one message.

If you have several
name/numberss, press

repeat

until you return
to the name/number you
want replayed.

Each time

skip

is
pressed, the system scans
forward one name
/number. If you have
several messages, press

skip

to find the name/
number you
want display.

40

1. Press

play/stop

to review your messages .

2. If you decide to delete a message, while
listening to a message, press

delete

until
you hear a tone. The system beeps and
goes to the next message.

3. After you have played all of your messages,
a long tone sounds.

To delete all your messages, press and hold

delete

after
reviewing messages. When all message are deleted,
a tone sounds.

You can record up to a 15 minute conversation while using
your phone.

1. During a conversation, press

voice memo

.
The unit begins recording. The display
shows two dashes. A tone can be heard
by both parties every 15 seconds.

2. To stop recording, press

voice

memo

again.

RECORDING A CONVERSATION

DELETING A MESSAGE

A recorded conversation
is handled as an incom­ing message. It is added
to your stored messages.

When you press

delete,

you are permanently
deleting the message.
Once deleted, the
message cannot
be replayed.

41

You can access your answering system from a remote location with a
touch-tone telephone to check recorded messages, play or delete
messages, or record a new outgoing message.

1. Call your telephone number.

2. While the outgoing message is playing, press #followed by your PIN
number. (For instructions to set your PIN code see page 37).

3. The answering system announces the time and day followed by the
number of messages in memory. Message playback automatically
begins.

4. You may listen to your messages, or you may select a command from
the following chart:

5. After all of your messages have played, intermittent beeps indicate that
your system is in Command Waiting mode. At this time, you may enter
another command from the chart above.

6. When you are finished, hang up to exit the system. The answering
system automatically returns to Standby.

FUNCTION PRESS

Repeat #, 1
Play #, 2
Skip #, 3
Delete #, 4
Stop #, 5
Answer On #, 6
Voice Memo Record/Stop #, 7
Greeting Record/Stop #, 8
Answer Off #, 9

Monitor #,

*

REMOTE ACCESS AWAY FROM HOME

You must enter a
command within 15
seconds of entering
Command Waiting mode
or the answering system
automatically hangs up
and returns to Standby.

The system will only
playback messages for
four minutes and then it
returns to Command
Waiting mode. To
continue playing your
messages, press

# 2

again within 15 seconds

You may call your answering system from any touch tone phone to
monitor sounds in the room where the base is installed.

1. Call your telephone number.

2. During the outgoing message playback, press

#

followed by your PIN

code. (See SELECTING A PIN CODE, page 37.)

3. Press # then*while the system announces the time and date.

You will hear sounds in the room where your base unit is installed.
After 15 seconds, the answering system returns to the Command
Waiting mode.

4. Press # then*to monitor the room for another 15 seconds. Or, select
another remote function. Hang up to exit the system. The answering

system automatically returns to Standby.

REMOTE ROOM MONITOR

42

43

If your phone is not performing to your expectations, please try these
simple steps before calling Uniden customer service at [phone].

QUICK REFERENCE CHART

TROUBLESHOOTING

YOUR NEW PHONE

The charge light
won’t come on
when the
handset is
placed in
the base.

l’ Make sure the AC adapter is plugged into the base

and wall outlet.

l Make sure the handset is properly seated

in base.

l Make sure the charging contacts on the handset

and base are clean.

PROBLEM

The audio
sounds weak
and/or scratchy

l Make sure that the base antenna is in a vertical

position.

l’ Move the handset and/or base to a different

location away from metal objects or appliances and
try again.

Can’t make or
receive calls.

The handset
doesn’t ring or
receive a page.

l Check both ends of the base telephone

line cord.

l Make sure the AC adapter is plugged into the base

and wall outlet.

l Disconnect the AC adapter for a few minutes, then

reconnect it.

l Place the handset back on the charging cradle for a

few seconds. The

status

LED blinks indicating

that the phone has been reset.

l The Nickel-Cadmium battery pack may be weak.

Charge the battery on the base for 15-20 hours.

l Be sure the antenna is in a vertical position.
l The handset may be too far away from the

base.Place the base away from appliances or metal
objects.

l Place the handset back on the charging cradle for a

few seconds.

l The

status

LED blinks indicating that the phone

has been reset.

SUGGESTION

44

The EXS 9660 complies with FCC Parts 15 and 68.
Frequency control: PLL
Modulation: Direct Sequence Spread Spectrum; DBPSK
Operating temperature: 0º to +50º C (+32º F to +122º F)

Frequency: 904.2 to 925.8 MHz (20 channels)
Power requirements: 10V 500 mA (from AC adapter)
Size: 7-3/8 in.(W) x 3-1/2 in. (D) x 8-3/4 in. (H)
Weight: Approx. 110.9 oz. (including optional battery)

Frequency: 904.2 to 925.8 MHz (20 channels)
Power requirements: Rechargeable Nickel-Cadmium battery pack
Size (without antenna): 2-1/4 in. (W) x 1-3/4 in. (D) x 7-1/4 in. (H)
Weight: Approx. 9.3 oz. (including battery)
Battery: BT-990

Capacity 600 mAH, 3.6V
Talk mode 4 hours
Standby mode 7 days

Specifications, features, and availability of optional

accessories are all subject to change without prior notice.

HANDSET

BASE UNIT

GENERAL

SPECIFICATIONS

YOUR NEW PHONE
