Uniden EXS9600 User Manual

Color profile: Disabled
Composite Default screen

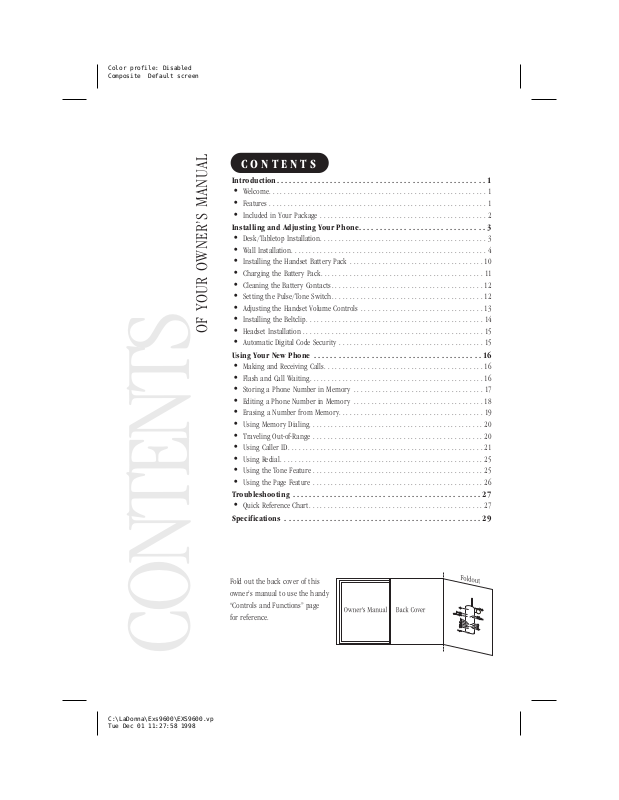

CONTENTS

Introduction...................................................1

Welcome............................................................1



Features............................................................1



IncludedinYourPackage..............................................2



Installing and Adjusting Your Phone...............................3

Desk/TabletopInstallation..............................................3



WallInstallation......................................................4



Installing the Handset Battery Pack .....................................10



ChargingtheBatteryPack.............................................11



Cleaning the Battery Contacts ..........................................12



Setting the Pulse/Tone Switch..........................................12



Adjusting the Handset Volume Controls ..................................13



Installing the Beltclip.................................................14



OF YOUR OWNERS MANUAL

HeadsetInstallation..................................................15



Automatic Digital Code Security ........................................15



Using Your New Phone .........................................16

Making and Receiving Calls............................................16



Flash and Call Waiting................................................16



StoringaPhoneNumberinMemory ....................................17

Editing a Phone Number in Memory ....................................18

ErasingaNumberfromMemory........................................19

UsingMemoryDialing................................................20



Traveling Out-of-Range ...............................................20



UsingCallerID......................................................21



UsingRedial........................................................25



UsingtheToneFeature...............................................25



UsingthePageFeature ...............................................26

Troubleshooting ..............................................27



QuickReferenceChart................................................27

Specifications ................................................29

CONTENTS

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:27:58 1998

Fold out the back cover of this

owners manual to use the handy

Controls and Functions page

for reference.

Color profile: Disabled
Composite Default screen

Introduction

WELCOME

Congratulations on your purchase of the Uniden EXS9600 cordless

telephone. This phone is designed for reliability, long life, and

outstanding performance utilizing the latest in 900 MHz Spread

Spectrum technology.

FEATURES

• 900 MHz Spread Spectrum Technology

TO YOUR NEW PHONE

• Caller ID and Call Waiting Caller ID

• 50 Number Caller ID Memory

• 3-Line, 16 Character Backlit LCD Handset Display

• 10 Enhanced Memory Dial Locations

• 32 Digit Redial

• 2nd Battery Capability

• Back-up Power Supply with Optional Battery Pack

• Redial, Flash, and Pause

• Pulse/Tone Dialing

• Page

• 7 Day Standby Battery Time

• 4 Hour Talk Time

• Handset Earpiece and Ringer Volume Control

• Hearing Aid Compatible

INTRODUCTION

INTRODUCTION

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:00 1998

Digital Spread Spectrum Technology utilizes a wider frequency

band vs. a single narrow band used in standard digital trans-

missions. The result is a more secure conversation with the clarity of

digital sound, extended range, and minimal interference from other

cordless phones.

TM

Random Code

65,000 codes for the handset and base.

These features enhance your phone's security and also prevent

unauthorized calls as a result of your phone being activated by

other equipment.

digital security automatically selects one of over

1

Color profile: Disabled
Composite Default screen

TIP

To get the most from your

phone, please read this

owners manual thoroughly.

Also be sure to complete

and mail the product

registration form.

INCLUDED IN YOUR PACKAGE

NOTE

If any of these items are

missing or damaged,

contact the Uniden Parts

Department at [phone].

Hours are from 8:00 a.m. to

5:00 p.m. Central Time,

Monday through Friday. We

can also be reached on the

web at www.uniden.com

.

Handset

Rechargeable Battery

Long Telephone Cord

Base

Short Telephone Cord

Desktop/ Wall Mount

Adapter

AC Adapter

Beltclip

Wall Mounting

Screws

2

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:08 1998

• This Owners Manual

• Precautions and Important Safety Instructions

• Registration Card

Color profile: Disabled
Composite Default screen

TIP

Before choosing a location

for your phone, read the

Installation Considerations

included in the Precautions

and Important Safety

Instructions brochure.

Installingand Adjusting YourPhone

DESK/TABLETOP INSTALLATION

INSTALLING AND ADJUSTING

1) Plug the AC adapter cord into the 9 VDC input jack on the back of

the base.

2) Wrap the AC adapter cord around the strain relief notch.

Place the power cord so that it does not create a trip

hazard or where it could become chafed and create a fire

!

or electrical hazard.

3) Plug the AC adapter into a standard 120 VAC wall outlet.

Use only the Uniden AC adapter supplied with this phone

and DO NOT use an outlet controlled by a wall switch.

AND ADJUSTING YOUR PHONE

!

4) Charge the battery (refer to Charging the Battery Pack, page 11).

5) Plug one end of the long telephone cord into the

the back of the base.

6) Plug the other end of the cord into your telephone jack on the wall.

INSTALLING

TEL LINE jack on

3

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:11 1998

Color profile: Disabled
Composite Default screen

HINT

Before using your phone,

fully charge the Nickel-

Cadmium battery pack

for 15-20 hours.

7) Attach the desktop stand to the base.

8) Set the base on a desk or tabletop and

place the handset into the base. Then,

raise the antenna to a vertical position.

!

Place the power cord so

that it does not create a

trip hazard or where it

could become chafed

and create a fire or

electrical hazard.

WALL INSTALLATION

▼ Standard wall plate mounting

This phone can be mounted on any standard AT&T or GTE wall plate.

1) Remove the mounting adapter

from the notches at the top of

the base.

2) Rotate the mounting adapter

180° and snap it into place

at the bottom of the base.

4

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:16 1998

Color profile: Disabled
Composite Default screen

3) Plug the AC adapter cord into the 9 VDC input jack on the back of

the base.

!

DO NOT use an outlet

controlled by a wall switch.

!

Before you plug the other

end of the telephone cord

into the modular jack on

the wall, charge the battery

(refer to Charging the

Battery Pack, page 11).

4) Put the AC adapter cord inside the

molded wiring channel, then wrap it

around the strain relief notch. Plug

the AC adapter into a standard

120 VAC wall outlet.

5) Plug one end of the short telephone

cord into the

the back of the base, then plug the

other end into a standard

telephone jack.

6) Line up the mounting slots on the base

with the mounting posts on the wall,

then push in and down until the

phone is firmly seated.

TEL LINE jack on

INSTALLING AND ADJUSTING

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:20 1998

5

Color profile: Disabled
Composite Default screen

7) On the base unit, pull the handset

retainer out of the slot and rotate

it clockwise 180°.

8) Flip the retainer from front to back,

then slide it back into the slot so

that the lip of the retainer faces up

andtheovalisatthebottomofthe

retainer. This will hold the handset

in place.

6

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:23 1998

Color profile: Disabled
Composite Default screen

Direct wall mounting

▼

If you don't have a standard wall plate, you can mount your phone

directly to the wall. Before doing this, consider the following:

• Select a location away from electrical cables, pipes, or other items

behind the mounting location. Inserting screws into areas such as

this can be hazardous.

• Try to mount your phone within 10 - 15 feet of a working phone

jack in order to avoid excessive cord lengths. Remember, you are not

mounting to a wall plate with a built in phone jack.

• If the selected mounting area has no wooden support beams directly

behind it, you will need the appropriate anchoring devices in order

for the wall to properly support your phone.

1) Insert two mounting screws into

the wall, with their appropriate

anchoring device, 3-15/16 inches

apart. Allow about 3/16 of an inch

between the wall and screw heads

for mounting the phone.

INSTALLING AND ADJUSTING

!

Be careful not to insert the

mounting screws into

possible electrical hazards

such as cables, wiring,

or pipes.

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:26 1998

2) Remove the mounting adapter

from the notches at the top of

the base.

7

Color profile: Disabled
Composite Default screen

3) Rotate the mounting adapter

180° and snap it into place

at the bottom of the base.

4) Plug the AC adapter cord into the 9 VDC input jack on the back of the

base.

5) Put the AC adapter cord inside the

molded wiring channel, then wrap it

around the strain relief notch. Plug

the AC adapter into a standard

120 VAC wall outlet.

8

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:30 1998

6) Plug one end of the long telephone

cord into the

TEL LINE jack on the

back of the base, then plug the

other end into a standard

telephone jack.

Color profile: Disabled
Composite Default screen

7) Line up the mounting slots on the base

with the mounting screws on the wall,

then push in and down until the

phone is firmly seated.

8) On the base unit, pull the handset

retainer out of the slot and rotate

it clockwise 180°.

INSTALLING AND ADJUSTING

9) Flip the retainer from front to back,

then slide it into the slot so that the

lip of the retainer faces up and the

oval is at the bottom of the retainer.

This will hold the handset in place.

9

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:32 1998

Color profile: Disabled
Composite Default screen

INSTALLING THE HANDSET BATTERY PACK

1) Press in on the battery cover release

and slide the cover down until it

comes off.

!

Use only Uniden battery

model (BT-990) supplied

with your phone.

2) Install the nickel-cadmium battery

with the label facing down.

3) Slide the battery cover on until it snaps into place.

10

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:36 1998

Color profile: Disabled
Composite Default screen

CHARGING THE BATTERY PACK

Initial battery charging

▼

Before plugging the phone line into your new phone for the first time,

fully charge the battery pack for 15-20 hours without interruption.

1) Place the handset on the base.

NOTE

Please visit your

authorized Uniden dealer

to obtain an extra battery

pack or contact the Uniden

parts department at

[phone]. Hours are

from 8:00 a.m. to 5:00 p.m.

Central Time, Monday

through Friday.

2) Make sure that

status

LED lights. If the LED doesnt light, check to see

that the AC adapter is plugged in and that the handset makes good

contact with the base charging contacts.

Charging optional battery packs

▼

The base unit of your phone is equipped with a compartment for

charging an extra battery pack for use in your handset. You can

obtain an extra battery pack from your authorized Uniden dealer.

1) Position the battery pack so the inner side with contacts is facing up.

2) Slide the battery pack into the

charging compartment until it

clicks into place.

3) Charge the battery for 24 hours. When charging is complete, pull up

on the latch to remove the battery pack. To install the charged battery

into the handset, refer to "Installing the Handset Battery Pack,"

page 10.

INSTALLING AND ADJUSTING

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:38 1998

In the event of a power failure, your spare battery pack

!

can be used as a back-up power supply for the base unit.

11

Color profile: Disabled
Composite Default screen

Low battery indicator

▼

TIP

Most phone systems use

tone dialing. Check with

your local phone company if

youre not sure whether

your system is tone or pulse.

When the battery pack is very low and

needs to be charged, the phone is

Low Battery

programmed to eliminate functions in

order to save power. If the phone is not in

use, Low Battery flashes. If the phone is in use, Low Battery

flashes and the handset beeps. Complete your conversation as quickly

as possible and return the handset to the base for charging.

CLEANING THE BATTERY CONTACTS

To maintain a good charge, clean all charging contacts on the handset

and base about once a month with a pencil eraser or other contact

cleaner. DO NOT use liquids or solvents; you may damage your phone.

SETTING THE PULSE/TONE SWITCH

Be sure the

the

phone system uses pulse dialing.

PULSE/TONE

TONE

position unless your local

switch is in

12

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:41 1998

Color profile: Disabled
Composite Default screen

ADJUSTING THE HANDSET VOLUME CONTROLS

Handset ringer volume

▼

When the phone is in standby mode, pressing the

vol

▲ or ▼ key on

the handset selects the handset ringer volume. There are two ringer

volume settings; high and low.

To select the high volume setting, press

vol

▲. The handset displays

Ringer High.

Ringer High

To select the low volume setting, press

vol

▼. The handset displays

Ringer Low.

Handset earpiece volume

▼

Ringer Low

There are three volume settings for the handset earpiece; high, normal,

and low. The handset earpiece volume can only be adjusted during a call.

To lower the volume, press

▼, and to raise the volume, press

vol

vol

▲. The handset will display Volume High, Volume Normal,or

Volume Low, indicating the current volume setting.

INSTALLING AND ADJUSTING

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:44 1998

13

Color profile: Disabled
Composite Default screen

IMPORTANT

Use only the Uniden HS910

headset specifically

designed for Spread

Spectrum phones. You will

hear a buzz or hum on

other headsets.

IMPORTANT

INSTALLING THE BELTCLIP

To attach the beltclip

▼

1) Remove the slot cover.

2) Insert the beltclip into the empty slot

and press down until it clicks.

Keep headset wire away

from base antenna.

NOTE

If you are using an

optional headset, you must

still use the handset

keypad for phone

operations.

▼

To remove the beltclip

1) Pull back on the release tab and

pull the beltclip up.

2) Replace the slot cover. You can

store either the beltclip

or slot cover on the

bottom of the base.

14

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:49 1998

headset

jack

Color profile: Disabled
Composite Default screen

HEADSET INSTALLATION

Your phone may be used with an

optional headset, the Uniden HS910.

To use this feature, simply insert the

headset plug into the headset jack.

Your headset is ready for

hands-free conversations.

AUTOMATIC DIGITAL CODE SECURITY

To prevent other parties from making unauthorized calls on your

phone line, a digital code was added to the EXS9600. Your phones

handset and base share this code, which is randomly set each time you

place the handset in the charging cradle. If the phone experiences a

power failure, you must reset the digital security code.

▼ To reset the digital security code

1) Restore power to the base

2) Place the handset on the base. The

the digital security code is reset.

status

LED blinks to indicate that

USING YOUR PHONE

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:50 1998

15

Color profile: Disabled
Composite Default screen

UsingYourNew Phone

MAKING AND RECEIVING CALLS

YOUR NEW PHONE

To answer

acall

To make

acall

To hang up

To redial

Handset

On Base

1) Pick up the handset.

2) If not in Autotalk Mode,

press

talk

.

1) Pick up the handset.

2) Press

3) Listen for the dial tone.

4) Dial the number.

Dial the number, then

press talk.

Press

base (AutoStandby).

1) Pick up the handset.

2) Press

3) Listen for the dial tone.

4) Press

talk

.

OR

talk

, or return the handset to the

talk

.

redial

.

Handset

Off Base

1) Press any key.

2) If not in Autotalk Mode,

press

talk

.

1) Press

2) Listen for the dial tone.

3) Dial the number.

Dial the number, then

press talk.

1) Press

2) Listen for the dial tone.

3) Press

talk

OR

talk

redial

.

.

.

USING

16

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:55 1998

FLASH AND CALL WAITING

If you have call waiting service

and a call waiting tone sounds

while you are on a call, press

flash

to accept the waiting call.

There is a short pause, then you

will hear the new caller. To

return to the original caller,

flash

press

again.

Color profile: Disabled
Composite Default screen

NOTE

Whenever you are using a

menu screen, you must press

a key within 20 seconds or

the phone will return to

standby. You may also press

memory

memory menu at any time.

to exit a

STORING A PHONE NUMBER IN MEMORY

1) Remove the handset from the base.

2) Press and hold

The following screen appears.

3) Use the : and ; keys or number keypad to choose the memory

location where you would like to enter a number.

4) Press

select

and a cursor flashes indicating that the

display is ready for the name to be entered.

5) Use the : and ; keys to scroll through the character menu. Use the

< and > keys to move the cursor to the desired location, and enter the name.

memory

for two seconds.

. The following screen appears,

Memory Store

1>

2

Store Name

❚

HINT

The character menu

consists of letters, symbols,

and numbers.

HINT

The  does nothing to

the dialing sequence. It

simply allows you to

display a dash.

NOTE

The pause button counts

as one digit. Pressing

pause

more than once

increases the length of

pause between numbers.

select

6) Press

. The following screen

appears, and a cursor flashes indicating

Store Number

❚

that the display is ready for the number.

7) Enter the phone number with the number keypad (direct entry) or the

: and ; keys. Use the : and ; keys to enter symbols, such as

dashes. Use the < and > keys to move the cursor to the desired

location, and enter the number.

When entering numbers, press

pause

to enter a

pause in the dialing sequence. The display shows

a P. The pause feature is useful for long distance

NOTE

calling, credit card dialing, or sequences requiring

a pause between digits.

8) Press

select.

displays a confirmation screen. For

The handset beeps and

Memory 1 Stored

example, if you store a name and number

into memory location number one, the

display shows

Memory 1 Stored.

9) Press memory or return the handset to the charging cradle to exit store

mode. Or, wait 20 seconds for the phone to return to standby.

USING YOUR PHONE

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:28:58 1998

17

Color profile: Disabled
Composite Default screen

NOTE

EDITING A PHONE NUMBER IN MEMORY

Follow these steps to edit a phone number that you have already

programmed into memory.

Whenever you are using a

menu screen, you must

press a key within 20

seconds or the phone will

return to standby. You may

memory

also press

amemorymenuatany

time.

to exit

NOTE

If you select Go Back

at any time, no changes

are made and the handset

shows the Memory

Store screen.

1) Remove the handset from the base.

2) Press and hold

memory

The display shows the Memory Store

screen and any saved numbers.

for two seconds.

Memory Store

1> KAYSIE SCHLITZ

2 UNIDEN

3) Use the : and ; keys or number keypad to select the memory

location you would like to edit. The < and > keys toggle between the

names display and the numbers display.

select

4) Press

with the memory location number that

you have selected in the display.

. The following screen appears

> Edit Memory 1

Delete Memory 1

Go Back

You may move the > cursor down to Go Back and

press

select

NOTE

5) With > cursor next to

press

select

. The following screen appears,

Edit Memory,

if you would like to exit this menu.

Store Name

KAYSIE SCHLITZ

and a cursor flashes indicating that the

display is ready for the name to be edited.

6) Use the : and ; keys to scroll through the character menu. Use the

< and > keys to move the cursor to the desired location, and enter the name.

HINT

The  does nothing to

the dialing sequence. It

simply allows you to

display a dash.

18

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:00 1998

select

7) Press

appears, and a cursor flashes indicating

. The following screen

Store Number

8175551212

that the display is ready for the number

to be edited.

8) Enter the phone number with the number keypad (direct entry) or the

: and ; keys. Use the : and ; keys to enter symbols, such as

dashes. Use the < and > keys to move the cursor to the desired

location, and enter the number.

Color profile: Disabled
Composite Default screen

NOTE

8) Press

select.

The handset beeps and

displays a confirmation screen. For

Memory 1 Stored

example, if you store a name and number

into memory location number one, then

the handset shows Memory 1 Stored.

9) The display then returns to the Memory Store screen. You may select

another number to edit (return to step 3) or you may press

memory

to return to standby.

ERASING A NUMBER FROM MEMORY

Use these steps to erase a programmed number from memory. Once a

number is erased, that memory location may be programmed with a

new number.

1) Remove the handset from the base.

2) Press and hold

memory

The handset shows the Memory Store

screen with any saved numbers displayed.

3) Use the : and ; keys or number keypad to select the memory

location you would like to delete. The < and > keys toggle between the

names display and the numbers display.

for two seconds.

Memory Store

1> KAYSIE SCHLITZ

2 UNIDEN

If you select Go Back

at any time, no changes are

made and the handset

shows the Memory

Store screen.

NOTE

If you select No ,no

changes are made and the

handset shows the Memory

Store screen.

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:03 1998

select

4) Press

appears with the memory location

number that you have selected in

. The following screen

> Edit Memory 1

Delete Memory 1

Go Back

the display.

5) Use the ; keytomovethe>cursor

down to the

6) Press

Delete Memory command.

select

. The following confirmation

screen appears.

Edit Memory 1

> Delete Memory 1

Go Back

Delete Memory?

Yes

> No

7) Use the : keytomovethe>cursor to the Yes command.

USING YOUR PHONE

19

Color profile: Disabled
Composite Default screen

HINT

Use the < and > keys to

toggle between the names

and the numbers displayed

in memory.

8) Press

select

. There is a confirmation

tone, and the handset displays Memory

1 Deleted.

Memory 1 Deleted

9) The display then returns to the Memory Store screen. You may select

another number to delete (return to step 3) or you may press

memory

to return to standby.

USING MEMORY DIALING

Follow the steps below to dial a number using a programmed

memory location.

1) Press

memory

your programmed memory locations.

2) Use the : and ; keys or the number

keypad to select the memory location

you would like to dial.

3) Press

talk

NOTE

. The handset displays

1

> KAYSIE SCHLITZ

2 Uniden

3 Grandma

1 KAYSIE SCHLITZ

2 > Uniden

3 Grandma

and the number dials.

When the handset is removed from the base,

press

talk

then

memory

on the handset keypad

before selecting the memory location.

20

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:05 1998

TRAVELING OUT-OF-RANGE

As you begin to move too far from your base unit, you will first hear

a clicking sound. As you travel further out-of-range, the voice

transmission will begin to break up. If you pass the range limits of the

base unit, your call will terminate.

Color profile: Disabled
Composite Default screen

USING CALLER ID

You must subscribe to Caller ID from your phone company in

order to use this feature.

Setting up Caller ID options

▼

There are three Caller ID setup options available; they are Autotalk,

CIDCW, and Area Code.

NOTE

You must subscribe to

CIDCW from your phone

company in order to use

this feature.

HINT

You may use the < and >

keys to toggle between

numbers when

programming the area code.

AutoTalk allows you to answer the phone without pressing the

talk

button. If the phone rings when Autotalk is on, simply remove the

handset from the cradle and the phone automatically answers the call.

talk

If the phone rings when Autotalk is off, you must press

to answer

the call. This option is useful to help you screen your calls

more effectively.

CIDCW performs the same as regular Caller ID on a call waiting number.

You must subscribe to CIDCW from your phone company in order

to use this feature.

The Area Code feature is used when storing or directly calling

numbers from Caller ID memory. All numbers with this area code are

dialed directly without the area code. If you will be programming

numbers within your area code that require all ten digits to be dialed,

it is recommended that you do not program this feature.

To change your Caller ID options:

setup

1) Press

screen appears.

. The following

1>Auto Talk:Off

2 CIDCW :On

3 Area Code:

2) Use the : and ; keys to move the cursor to the selection that you

select

would like to change. Press the

Off for Autotalk and CIDCW. Press

keypad to enter or change the area code, then press

key to toggle between On and

select

and use the number

select

again.

USING YOUR PHONE

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:07 1998

3) After you have made your selections, press

setup

and return the

handset to the charging cradle. The statues LED flashes, indicating that

your setup changes are now effective.

21

Color profile: Disabled
Composite Default screen

Screening your calls

▼

NOTE

If you have no New Caller

ID Messages, then the

New display is blank.

Only the Total

display appears.

NOTE

Once a Caller ID message

has been viewed, it is no

longer considered a

new message.

Caller ID allows you to review caller

information before you answer your

phone. After the first ring, the display

12/21 12:30PM 01

Schlitz Kaysie

817-555-1212

shows the date, time, call count, name,

and phone number of the caller. If your Caller ID service is number

only, then the name does not appear on the second line.

If a name or number is not available, the display will show a message

Line Error, Private Number, Private Name,etc.

such as

Reviewing Caller ID messages

▼

To review your Caller ID messages, follow the steps below.

1) Press

call id

, and the Caller ID summary

screen appears. The screen shows the

number of new messages and

New:01

Total : 02

total messages.

2) Press ; to scan through the messages.

The most recent message appears first,

with the date, time, call count, name, and

12/21 12:30PM 03

Schlitz Kaysie

8175551212

phone number. Press : to scan

backwards through the list.

3) Once you have reviewed your oldest

message, the following screen appears.

call id

Press

to return to standby.

End

NOTE

If you have no Caller ID

messages, then the total is

shown as 00.

22

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:09 1998

NOTE

Once you have viewed all of your Caller ID

messages and reach the End display, the message

list does not cycle back to the beginning. You must

press : to view your previous messages.

Color profile: Disabled
Composite Default screen

Calling a Caller ID number

▼

1) Press

call id

, and the Caller ID summary

screen appears. The screen shows the

number of new messages and

New:01

Total : 02

total messages.

2) Select the number that you would like to

dial. Press ; to scan forward through

the messages and : to scan backwards

12/21 12:30PM 03

Schlitz Kaysie

8175551212

through the list.

talk

3) Press

▼

1) Press

screen appears. The screen shows the

number of new messages and

and the number automatically dials.

Storing a Caller ID number into a memory location

call id

, and the Caller ID summary

New:01

Total : 02

total messages.

2) Press ; or : to find the message that

youwouldliketostore,thenpress

memory

to store the selected message.

3) The select location screen appears. Use

the : and ; keys to select a blank

memory location where you would like to

12/21 12:30PM 03

Schlitz Kaysie

8175551212

Select Location

1> KAYSIE SCHLITZ

2 UNIDEN

store the number. (If you want to replace

an existing number with the Caller ID number, skip to step 5.)

NOTE

If you select No, then the

Caller ID screen returns.

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:11 1998

select

4) Press

. A confirmation tone sounds, and the number is

programmed. (Do not complete steps 5 and 6.)

5) If you choose to replace an existing

number with the Caller ID number, press

select,

and the following screen appears.

6) Use the : keytomovethecursorto

Yes and press

Replace Memory?

Yes

> No

confirmation tone sounds, and the number is programmed.

select

USING YOUR PHONE

.A

23

Color profile: Disabled
Composite Default screen

Deleting a Caller ID message

▼

To delete a single Caller ID message, follow the steps below.

call id

1) Press

, and the Caller ID summary

screen appears. The screen shows the

number of new messages and

Total : 02

total messages.

New:01

NOTE

If you select No, then the

Caller ID screen returns.

2) Select the number that you would like to

delete. Press ; to scan forward through

the messages and : to scan backwards

12/21 12:30PM 03

Schlitz Kaysie

8175551212

through the list.

delete

3) Press

screen appears.

4) Press

, and the following

selectordelete

Delete Message?

>Yes

No

. A confirmation tone sounds and the Caller ID

screen returns with the next message displayed.

5) After you have deleted the oldest Caller ID

messages, the display shows End. Press

call id

to return to standby.

▼

Deleting all Caller ID messages

To delete all of your Caller ID messages, follow the steps below.

1) Press

call id

, and the Caller ID summary

screen appears. The screen shows the

number of new messages and

New:01

Total : 02

total messages.

2) Press

3) Use the : keytomovethecursorto

delete

, and the following

screen appears.

or

delete

.

Delete All?

Yes

> No

Yes, then press

End

select

24

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:13 1998

Color profile: Disabled
Composite Default screen

4) A confirmation tone sounds, and the

following screen appears.

call id

5) Press

to return to standby.

USING REDIAL

The

redial

key redials the last number

dialed. The redialed number can be up

to 32 digits long.

Total:00

USING THE TONE FEATURE

If you are dialing in the pulse mode

and need to enter tone digits, press

tone

to enter the digits. Once the call

has ended, the tone mode is canceled

and pulse dialing resumes.

The tone feature applies only when the base unit is

NOTE

set to pulse.

USING YOUR PHONE

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:17 1998

25

Color profile: Disabled
Composite Default screen

USING THE PAGE FEATURE

To locate the handset (while its

off the base), press

base.

The handset beeps for 60 seconds

and displays

talk

Press

on the handset to end paging. Press

to standby.

page

Paging.

on the

Paging

talk

again to return

26

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:19 1998

Color profile: Disabled
Composite Default screen

Troubleshooting

QUICK REFERENCE CHART

If your phone is not performing to your expectations, please try these

simple steps before calling Uniden customer service. If you are still

unable to resolve the problem, contact your place of purchase or call

customer service at [phone].

YOUR NEW PHONE

The charge light wont come

on when the handset is placed

in the base.

The audio sounds weak

and/or scratchy.

Cant make or receive calls.

PROBLEM SUGGESTION

• Make sure the AC adapter is

plugged into the base and

wall outlet.

• Make sure the handset is properly

seated in base.

• Make sure the charging contacts on

the handset and base are clean.

• Make sure that the base antenna is

in a vertical position.

• Move the handset and/or base to a

different location away from metal

objects or appliances and try again.

• Check both ends of the base

telephone line cord.

• Make sure the AC adapter is

plugged into the base and

wall outlet.

• Disconnect the AC adapter for a few

minutes, then reconnect it.

• Place the handset back on the

charging cradle for a few seconds.

status

The

indicating that the phone has

been reset.

LED will blink

TROUBLESHOOTING

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:21 1998

27

Color profile: Disabled
Composite Default screen

TROUBLESHOOTING

PROBLEM SUGGESTION

The handset doesnt ring or

receive a page.

• The Nickel-Cadmium battery pack

may be weak. Charge the battery

on the base unit for 15-20 hours.

• The handset may be too far away

from the base unit.

• Place the base unit away from

appliances or metal objects.

• Place the handset back on the

charging cradle for a few seconds.

status

The

LED will blink

indicating that the phone has

been reset.

28

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:22 1998

Color profile: Disabled
Composite Default screen

Specifications

GENERAL

The EXS9600 complies with FCC Parts 15 and 68.

Frequency control: PLL

Modulation: Direct Sequence Spread Spectrum; DBPSK

Operating temperature: 0º to 50º C (+32º F to +122º F)

OF YOUR NEW PHONE

BASE

Frequency: 904.2 to 925.8 MHz (20 channels)

Power requirements: 9V 350 mA (from AC adapter)

Size: 5-1/2in.(W) x 3-3/4in. (D) x 10in. (H)

Weight: Approx. 17.8oz. (including optional battery)

SPECIFICATIONS

C:\LaDonna\Exs9600\EXS9600.vp
Tue Dec 01 11:29:23 1998

HANDSET

Frequency: 904.2 to 925.8 MHz (20 channels)

Power requirements: Rechargeable Nickel Cadmium battery pack

Size (without antenna): 2-1/4in. (W) x 1-3/4in. (D) x 7-1/4in. (H)

Weight: Approx. 9.3oz. (including battery)

Battery: BT-990

Capacity 600 mAH, 3.6V

Talk mode 4 hours

Standby mode 7 days

Specifications, features, and availability of optional accessories are

all subject to change without prior notice.

29

CONTROLS

AND FUNCTIONS
