Introduction

The Uniden® EXP 7900 Series 900 MHz cordless phones are

designed and engineered to exacting standards for reliability, long

life, and outstanding performance.

▼Features

• 900 MHz Extended Range Technology

• 40 Channel Autoscan

• 10-Number Memory Dialing

• 3 One-Touch Priority Keys

• Desk or Wall Mountable

• Tone/Pulse Dialing

• Handset Volume Control

• 32 Digit Redial

• Page/Find

• AutoTalk

• AutoStandby

• 7 Hours Talk Time

• Hearing Aid Compatible

• Charging Cradle (EXP 7903/7904 only)

• Voice Scramble (EXP 7902/7904 only)

The EXP 7900 Series features include AutoTalk and AutoStandby.

AutoTalk allows you to answer a call by just removing the

handset from the base so you dont have to waste time pushing

buttons or flipping switches. AutoStandby allows you to hang up

by simply returning the handset to the base.

The EXP 7902/7904s Voice Scramble protects your privacy by

scrambling any call you make or receive. The RF signal between

the handset and the base are changed, making it difficult for

someone to clearly intercept your phone calls.

The UltraClear Plus true compander circuitry virtually eliminates

background noise. This innovative technology, together with 40

different channels, provides you with the best possible reception

during all your conversations.

To protect you against misbilled calls which might result from

your phone being activated by other equipment, the EXP 7900

Series has Random Code digital security which automatically

selects one of over 65,000 digital security codes for the handset

and base. Also, the AutoSecure feature electronically locks your

phone when the handset is in the base.

To get the most from your phone, please read this owners manual

thoroughly. Also, be sure to complete the product registration form

and mail it in.

Be sure to visit our web site at: www.uniden.com.

2

900 MHz

Included with Your EXP 7900 Series Phone

battlo

talk

talk flash

page/find

status

1

ghi

4

pqus

7

redial pause

mem

abc

def

2

3

jkl

mno

5

6

tuv

wxyz

8

9

tone

oper

8

chan volume

m3m2m1

Base

AC Adapter Telephone CordAC Adapter

Also included:

• This Owners Manual

• Other Printed Material

• Precautions and Important Safety Instructions

Handset Rechargeable Battery

EXP7903/7904 Only:

Charging Cradle and Power

Supply

If any of these items are missing or damaged, contact the Uniden Parts Department at (800) 554-3988,

8:00 a.m. To 5:00 p.m. Central, Monday through Friday, or contact us on the web at www.uniden.com.

3

Controls and Functions

1.

talk

- answers or places calls

*/tone

2.

3.

4.

5.

6.

7.

8.

9.

batt

talk

talk flash

1

ghi

4

pqrs

7

tone

redial pause

mem

abc

2

jkl

5

tuv

8

oper

0

chan volume

def

3

mno

6

wxyz

9

m3m2m1

1

2

3

4

5

6

7

8

9

10.

11.

12.

13.

10

- switches to tone dialing in pulse dial mode

redial

- redials the last number

pause

- adds a timed pause in a memory dialing sequence

talk/batt

- LED indicates when phone is in use or the

battery is low

flash

- accesses call waiting (if available)

mem

- enters or recalls numbers in memory

volume

- sets both the ringer and earpiece volumes

chan

- selects another channel for clearer reception

m1, m2, m3

- accesses stored numbers in memory locations

1, 2, and 3 for one-touch dialing

handset retainer

- holds handset in base for

wall mounting.

status

LED - indicates the phone is in use or the handset

is charging

page/find

- locates the handset

11

900 MHz

status

page/find

12

13

4

Installation

Charging the Battery Pack

The rechargeable Nickel-Cadmium battery pack must be fully

charged before using your phone for the first time. Before

plugging the phone line into your new phone, you must

charge the battery for approximately 15-20 hours

without interruption.

1. Remove the handset battery cover.

2. Plug the batterys

cable into the handset

and place the battery

pack inside the

battery compartment.

The plastic connectors will fit together only one

way. Make sure the batterys connector is

NOTE

3. Replace the battery cover.

properly aligned. Use only the Uniden battery

pack (model BT-905).

▼Charging the Handset

Place the handset on the

base to charge. (The

handset can charge in

either the face-up or

face-down position.)

1

3

2

▼Low Battery Indicator

When the battery pack in the handset

is low and needs to be charged, the

batt LED flashes every 3 seconds.

If this occurs while you are on the

phone, you will hear an alert tone.

Complete your call as quickly as

possible, and return the handset to

the base for charging.

batt

talk

talk flash

mem

▼Cleaning the Battery Contacts

To maintain a good

charge, it is important

to clean all battery

contacts on the handset

and base about once a

month. Use a pencil eraser

or other contact cleaner.

Do not use any liquids

or solvents.

Contacts

Selecting a Location

Before choosing a location for your new phone, read the

Installation Considerations included in the Precautions and

Important Safety Instructions brochure.

Important: Do not place the power cord in an

area where it may create a trip hazard or

become chafed and create a fire or

!

electrical hazard.

Setting the Dial Mode Switch

Place the switch in the

T

position for tone dialing, or

P

position for

the

pulse dialing.

5

Desk or Tabletop Installation

1. Plug the AC adapter cord into the 9V DC input jack on

the base.

2. Wrap the AC adapter cord inside the molded strain-relief.

1

3

2. Flip the retainer over so

the tab is facing up.

3. Slide the retainer back

onto the base.

2

5

4

6

3. Plug one end of the long telephone cord into the

jack on the base.

4. Place the telephone cord into the right molded channel

cord holder.

5. Plug the other end of the telephone cord into the telephone

wall jack. (Remember, the phone must be fully charged

before you can use it.)

6. Plug the AC adapter into a standard 120V AC wall outlet that is

not controlled by a wall switch.

Use only the AC adapter that came with

the phone.

!

TEL LINE

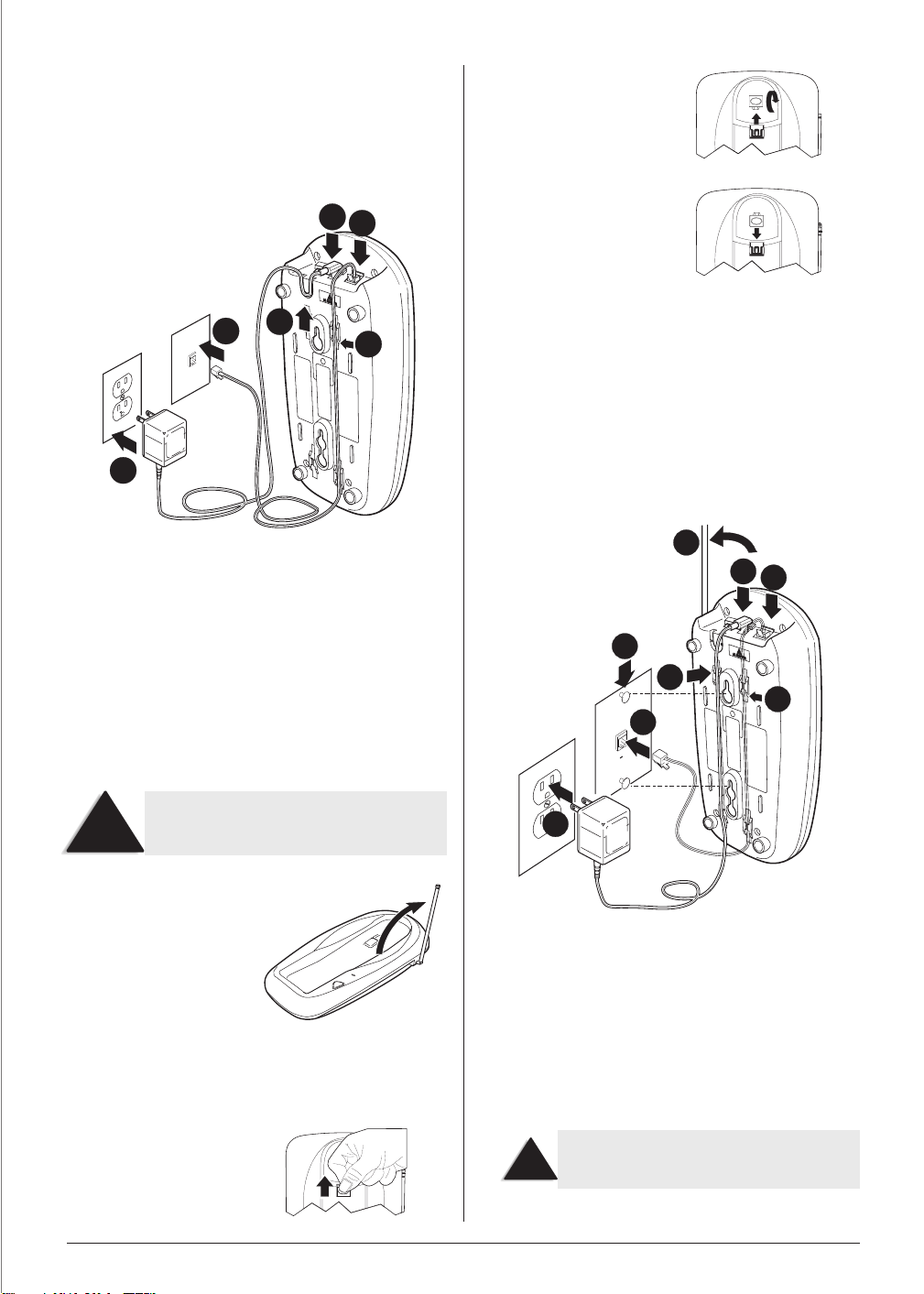

▼Mounting on a Standard Wall Plate

The phone is designed to be mounted on a standard AT&T or GTE

wall plate.

1. Plug the AC adapter into the base.

2. Place the AC adapter cord inside the left molded channel

cord holder.

3. Plug a short telephone cord into the

the base.

TEL LINE

jack on

7

1

3

5

2

4

6

7. Raise the antenna on

the base.

Wall Installation

▼Setting the Handset Retainer for Wall Mounting

1. Remove the handset

retainer on the base by

sliding it upward.

4. Place the telephone cord into the right molded channel

cord holder and plug the other end of the cord into the wall

jack. (Remember, the phone must be fully charged before

you can use it.)

5. Place the base on the two posts of the wall plate and slide

downward to secure.

6. Plug the AC adapter into a standard 120V AC wall outlet that is

not controlled by a wall switch.

Use only the AC adapter that came with

!

the phone.

7. Raise the antenna on the base.

6

▼Mounting Directly on a Wall

If you do not have a standard wall plate, you can mount the

phone directly on a wall. Before mounting your cordless

telephone, consider the following:

Select a location away from electrical cables, pipes, or other items

behind the mounting location that could cause a hazard when

inserting screws into the wall.

Make sure the wall material is capable of supporting the weight of

the base and handset; otherwise, damage to the unit could result.

Use #10 screws with anchoring devices suitable for the wall

material where the base will be placed.

1. Insert the screws, with their appropriate

anchoring devices, 3 5/16inches apart.

Allow 3/16of an inch between the wall

and screw heads for mounting the phone.

3/16 in.

3. Place the AC adapter cord inside the left molded channel

cord holder.

4. Plug one end of the long telephone cord into the

jack on the base.

5. Place the telephone cord into the right molded channel

cord holder.

6. Place the base on the screws and push down until its

firmly seated.

7. Plug the other end of the telephone line into the telephone

wall jack. (Remember, the phone must be fully charged

before you can use it.)

8. Plug the AC adapter into a standard 120V AC wall outlet that is

not controlled by a wall switch.

TEL LINE

2. Plug the AC adapter into the base.

6

3 15/16 in.

Use only the AC adapter that came with

the phone.

!

9. Raise the antenna on the base.

9

2

8

4

3

5

7

Setting Up Your Phone

Raising the Antenna

Before using your phone, be sure to raise its antenna to the

vertical position.

Adjusting Ringer/Volume Controls

▼Ringer Tone and Volume

1. While the phone is not in use, press

The extra charging cradle is not a replacement for the base. Put it

in a different room than the base so you can conveniently

recharge the phone in the second location.

Example: You want to use your cordless phone in the kitchen (an

area of high interference). Connect the base in a room with low

interference (without appliances, televisions or computers) then

put the charging cradle in the kitchen.

1. Plug the charging cradle

AC adapter connector

into the DC input jack

on the back of the

charging cradle.

volume

.

volume

.

EXP 7903/7904 Charging Cradle

2. The phone has two ringer tones, each with two volume levels.

Press

volume

again until you hear the ringer tone and

volume

again until you hear the ringer tone and

volume level you want.

▼Setting the Handset Earpiece Volume

1. While you are on a call, press

2. The phone has two receiver volume levels, one soft and one

loud. Press

you want.

3. Plug the AC adapter into a standard 120V AC wall outlet that is

not controlled by a wall switch.

4. Place the handset upright in

the charging cradle. (The

handset can be placed in the

charger with the keypad

facing either the front or back

of the charging cradle.)

The charge LED lights while

the unit is charging.

volume

.

volume

.

again until you hear the volume level

2. Wrap the AC adapter cord

around the strain relief.

Set the cradle on a

flat surface.

Use only the AC adapter that came with the

charging cradle.

!

charge LED

The charging cradle does not reset the digital

NOTE

8

security code (refer to page 2.)

Making and Receiving Calls

Handset on Base Handset off Base

Answer call

Make call

Hang up

Redial

When the phone rings, remove the handset from the base.

(AutoTalk)

1. Remove the handset from the base and press

2. The

talk

LED lights.

3. Listen for the dial tone.

4. Dial the number.

Return handset to the base. (AutoStandby)

1. Remove the handset from the base and press

2. Listen for the dial tone.

3. Press

redial

to dial the number.

Using Your Phone

Press any key.

talk

1. Pick up the handset and press

.

2. The

3. Listen for the dial tone.

4. Dial the number.

Press

talk

1. Pick up the handset and press

.

2. Listen for the dial tone.

3. Press

talk

LED lights.

.

redial

to dial the number.

talk

.

Storing a Number in Memory

Your EXP 7900 Series phone has 10 memory locations for storing

important telephone numbers.

1. Remove the handset from the base and press

LED flashes and you hear a beep.

2. Enter the phone number you want to store (up to 16 digits).

You have 20 seconds after pressing

NOTE

mem

3. Press

the memory location you want to use.

You hear a long beep and the

number has been stored successfully.

If you select any keys other than 0-9, the handset will beep

rapidly and no number will be stored.

NOTE

to enter the number you wish to store.

Otherwise, an error tone will sound.

and enter a number (0-9) on the keypad for

talk

LED goes out indicating the

You cannot store numbers inm1,m2,or

m3

. Refer to One-Touch Dialing.

mem

.The

mem

talk

Entering a Pause in Memory Dialing

If you would like to use a phone number stored in memory to

access voice mail, for example, you can store a pause in the phone

number sequence.

To use this function, follow steps 1 and 2 in Storing a Number

in Memory, then press the

a pause in the phone number sequence.

NOTE

Follow the remaining steps in the Storing a Number in Memory

section to complete the operation.

pause

button on the handset to place

Remember, the phone number you wish to

store cannot have more than 16 digits,

including the pause. (The

counts as one digit.)

pause

button

Storing Mixed Tone/Pulse Numbers

If your phone is set up for pulse dialing, you can store a mixed

mode number (up to 16 digits) to easily access long

distance services.

1. Remove the handset from the base and press

LED flashes and you hear a beep.

2. Enter the number to be dialed in pulse mode.

*/tone

3. Press the

counts as one digit and enters a pause.

4. Enter the number(s) to be dialed in tone mode.

5. Press

mem

memory location you wish to use. You hear a long beep and

the

talk

button on the handset. The

and a number (0-9) on the keypad for the

LED goes out.

mem

*/tone

. The

button

talk

9

Dialing a Stored Number

To dial a phone number stored in memory, press

mem

and the memory location (0-9). Your phone will dial the

stored number.

If you select a memory location that does

NOTE

not have a stored number, the handset will

beep rapidly and the phone will not dial.

One-Touch Dialing

talk

, then press

3. Press the memory location number (0-9) you want to clear.

You hear a long beep confirming that you have erased

the number.

Replacing a Stored Number

Remember, your EXP 7900 Series phone has 10 memory

locations, represented by the numbers 0-9 on the keypad. If you

store a phone number in one of these locations, then attempt to

store a different number in the same location later, the new

number will replace the previous one.

Your phone is equipped with three One-Touch Priority keys for

m1,m2

instant dialing (

numbers directly into

to dial phone numbers stored into memory locations 1, 2, and 3

on the keypad.

1. To instantly dial phone numbers stored in memory locations

1, 2, or 3, simply press

press

talk

, the phone will automatically dial.)

2. If no phone number was stored in memory locations 1, 2, or 3

on the keypad, pressingm1,m2,orm3will do nothing.

, andm3). You cannot store phone

m1,m2

,andm3. They are only used

m1,m2

,orm3. (There is no need to

Chain Dialing

After dialing a number you may be requested to enter a special

access code, for example, when performing a banking transaction.

1. Store the access code into one of the memory locations (0-9).

2. Dial the main number.

mem

3. Press

appropriate time.

and the memory location of the access code at the

Erasing a Stored Number

1. Remove the handset from the base.

mem

2. Press

twice.

Selecting a Different Channel

If you encounter interference while using your phone, you can

manually change the phones channel for clear operation.

Interference can come from appliances or other phones in your

home. This function works only when the phone is in use.

The

chan

button on the handset allows you to choose between 40

factory set channels. During the course of a conversation, if you

hear static or noise which makes it difficult to hear, press

talk

LED flashes, indicating the phone is changing to

The

another channel.

chan

.

Using the Flash Button

Use

flash

for accessing services such as call waiting. If you receive

flash

a call during your conversation, press the

flash

handset. Press

again to return to the previous call.

buttononthe

Using the Page/Find Feature

The Page/Find feature sends a signal from the base to the handset

causing it to beep. This is useful for locating the handset when it

is away from the base. To use this feature, press

base. The handset beeps for 60 seconds. (Press and hold the

page/find button to get a continuous beep.)

The paging feature does not work when

NOTE

the phone is in use.

page/find

on the

On the handset press

do not wish to make a call.

10

talk

to end the page. Press

talk

again if you

Troubleshooting

If your EXP 7900 Series cordless telephone is not performing to your expectations, please try these simple steps. If you are still unable to

resolve the problems, contact your place of purchase or call customer service at (800) 297-1023.

Caution: Do not attempt to service this unit yourself. Servicing must be performed by qualified personnel.

Problem Suggestion

Make sure the AC adapter is plugged into the base and wall outlet.

Charge light wont come on when

handset is placed in base.

The audio sounds weak and/or scratchy.

Cant make or receive calls.

Handset doesnt ring or receive a page.



Make sure the handset is properly seated in the base.



Make sure the rechargeable battery pack is properly connected in the handset.



Make sure that the charging contacts on the handset and on the base are clean.



Make sure that the base antenna is in the vertical position.



Move the handset and/or base to a different location away from metal objects or



appliances and try again.

Check both ends of the telephone line cord.



Make sure the AC adapter is plugged into the base and a wall outlet.



Disconnect the AC adapter for a few minutes, then reconnect it.



Place the handset back on the base for a few seconds.



The

status

LED will blink indicating that the phone has been reset.

The Nickel-Cadmium battery pack may be weak.



Charge the battery for 15-20 hours.

 The handset may be too far away from the base.

 Place the base away from appliances or metal objects.

 Place the handset back on the charging cradle for a few seconds.

The

status

LED will blink indicating that the phone has been reset.

Specifications

General

Frequency Control Phase Locked Loop

Modulation FM

Operating Temperature -10° to 50° C, 14° to 122° F

Base

Transmit Frequency 925.997 ~ 927.947 MHz (40 Channels)

Power Requirements 9V 210mA (from AC adapter)

Size 4.53 in. W X 2.17 in. D X 8.82 in. H

Weight Approximately 12 oz.

Handset

Transmit Frequency 902.052 ~ 904.002 MHz (40 Channels)

Size 2.28 in. W X 1.73 in. D X 7.09 in. H

Weight Approximately 8.9 oz.

Battery

Capacity 600 mAH, 3.6V

Talk Mode 7 hours

Standby Mode 14 days

Specifications shown are typical and subject to change without notice.

11

Back Cover

Uniden EXP7901, EXP7900, EXP7902 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
