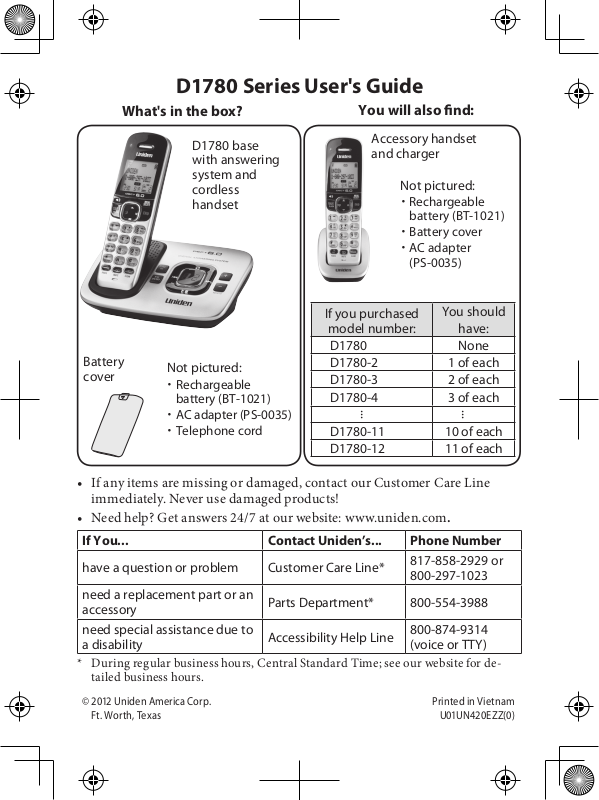

D1780 Series User's Guide

What's in the box?

D1780 base
with answering
system and
cordless
handset

You will also nd:

Accessory handset
and charger

Not pictured:

x Rechargeable

battery (BT-1021)

x Battery cover
x AC adapter

(PS-0035)

You should

have:

...

Battery
cover

Not pictured:

x Rechargeable

battery (BT-1021)

x AC adapter (PS-0035)
x Telephone cord

If you purchased

model number:

D1780 None
D1780-2 1 of each
D1780-3 2 of each
D1780-4 3 of each

...

D1780-11 10 of each
D1780-12 11 of each

• If any items are missing or damaged, contact our Customer Care Line
immediately. Never use damaged products!

• Need help? Get answers 24/7 at our website: www.uniden.com.

If You... Contact Uniden’s... Phone Number

have a question or problem Customer Care Line*

need a replacement part or an
accessory

need special assistance due to
a disability

* During regular business hours, Central Standard Time; see our website for de-

tailed business hours.

© 2012 Uniden America Corp. Printed in Vietnam

Ft. Worth, Texas U01UN420EZZ(0)

Parts Department* 800-554-3988

Accessibility Help Line

817-858-2929 or
800-297-1023

800-874-9314
(voice or TTY)

What’s in the manual?

Getting Started ................................ 3

Installing Your Phone .................................3

Getting to Know Your Phone ...................4

Using the Handset Menu ..........................7

Using Your Phone ............................. 8

Using the Phonebook .............................. 10

Using Special Features .................. 11

Silent Mode ..................................................11

Multihandset Features .............................12

Chain Dialing ...............................................13

Voice Message Notication ....................13

Using the Answering System ....... 14

Answering System Options

Answering Setup

(

) .................................14

Personalizing the Greeting.....................15

Accessing the Answering System ....... 16

Getting Your Messages ........................... 16

Using the System While

You're Away from Home ......................17

Important Information .................. 18

Solving Problems .......................................18

Resetting Handsets .................................. 20

Registering Handsets .............................. 20

Adapter and Battery Information .......20

Compliance Information ........................21

1-Year Limited Warranty ......................... 23

Important Safety Instructions!

When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:

• This unit is NOT waterproof. DO NOT expose it to rain or moisture.

• Do not use this product near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.

• Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not
dispose of batteries in a fire. They may explode. Check with local codes
for possible special disposal instructions.

• Do not place the handset in any charging cradle without the battery
installed and the battery cover securely in place.

SAVE THESE INSTRUCTIONS!

CAUTION! Risk of explosion if battery is replaced by an incorrect type!
Dispose of used batteries according to the instructions. Do not open or
mutilate the battery. Disconnect the battery before shipping this product.

For more details, see the Important Information section.

2 -English

GETTING STARTED

Installing Your Phone

Charge the Battery

1. Unpack all handsets,
battery
packs, and
battery
covers. If
you need to
remove a
cover, press in on the notch and
slide the cover down and off.

2. Line up the battery connector
with the jack inside the handset;
the connector only fits one way.

3. Push the connector in until
it clicks into place; tug gently
on the wires to make sure the
battery is securely connected.

4. Replace the battery cover and
slide it into place.

5. Use an AC adapter to connect
the power jack on the base to a
regular indoor (120V AC) power
outlet. Connect any chargers the
same way.

6. Place a handset in the base with
the display facing forward. If
the display doesn’t light up,
reseat the handset or connect
the base to a different outlet. For
2 or more handsets, place each
handset in a charger.

# Charge all handsets

completely (about 15 hours)
before using.

Connect the Telephone Cord

Use the telephone cord to connect
the

TEL LINE

standard telephone wall jack.

Test the Connection

1. Pick up the handset and press

Talk

tone, and the display shows

– If you don't hear a dial tone or

2. Make a quick test call. (Press
to hang up.)

– If you keep hearing a dial tone,

– If there’s a lot of noise, check

3. Test all handsets the same way.
If you can't get a dial tone, move
the handset closer to the base.

Changing to Pulse Dialing

Your phone uses tone dialing by
default. If your phone company uses
pulse dialing, you need to change
your phone’s dial mode.

1. On a handset, press
and choose

2. Select
You’ll hear a confirmation tone.

To send DTMF tones during a call
(e.g., for an automated response
system), press
switch to tone dialing. When you
hang up, the phone automatically
returns to pulse dialing.

jack on the base to a

. The handset sounds a dial

the display says
check the connection between
the base and the phone jack.

change to pulse dialing.

for interference (see p. 17).

Dial Mode

Check Tel Line,

Global Setup

then

to temporarily

*

MEnu/sElEcT

.

Pulse

.

English - 3

Talk

End

.

Getting to Know Your Phone

Parts of the Handset

Status

PHONEBOOK

SPEAKER

TALK/FLASH

DOWN

REDIAL/PAUSE

Microphone

Charging

contacts

Key (icon) What it does

PhonEbook

( )

sPEakEr

Talk/flash

x In standby or during a call: open the phonebook.
x In the menu: go back to the previous screen.
x When entering text: move the cursor to the left.

x Switch a normal call to the speakerphone (and back).

( )

x In standby: start a telephone call (get a dial tone).
x During a call: switch to a waiting call.

x In standby: decrease the ringer volume.

down

( )

x During a call: decrease the audio volume.
x In any menu or list: move the cursor down one line.

rEdial/PausE

x In standby: open the redial list.
x When entering a phone number: insert a 2-second pause.

x In standby: increase the ringer volume.

uP

( )

x During a call: increase the audio volume.
x In any menu or list: move the cursor up one line.

MEnu/sElEcT

x In standby: open the menu.
x In the menu or any list: select the highlighted item.

Earpiece

Display

UP

MENU/SELECT

END

CID

Twelve-key
dial pad

INTERCOM/CLEAR

MESSAGE/MUTE

4 -English

Key (icon) What it does

End

cid

( )

inTErcoM/
clEar

MEssagE/
MuTE

( )

x During a call: hang up.
x In the menu or any list: exit and go to standby.

x In standby: or during a call: open the Caller ID list.
x When entering text: move the cursor to the right.

x In standby: start an intercom call.
x During a call: put the call on hold and start a call transfer.
x When entering text or numbers: erase the character at the

cursor (press & hold to erase all characters).

x In standby: access your answering system.
x During a call: mute the microphone.
x While the phone is ringing: ignore this call (mute the ringer).

LED What it means

sTaTus

x On: the battery is charging.
x Blinking: there are new messages.

Reading the Display

The table shows the possible
status icons & what they
mean. Since the icons appear
based on what the phone is
doing, you won't see all the
icons at the same time.

Icon What it means

The signal from the base is 1) strong or 2) weak.

The ringer is turned off and will not ring for new calls.

Status

icons

Current
call info

Time &

date

Answering
system
status

The speakerphone is on.

Indicates you have a new voice mail.

Privacy Mode is on: no other handset can join the call.

T-coil mode is on (see p. 7).

The battery is 1) full, 2) half charged, 3) getting low or 4) empty.

English - 5

Icon What it means

DELETE

The handset is using ECO (power save) mode.

[Aa] [aA]

Enter 1) capital or 2) lower case letters (see p. 7).

Parts of the Base

FIND HS

Charging

contacts

Key (icon) What it does

find hs

rEV

( )

dElETE

fwd

( )

uP

(+)

down

ans on/off

Play/sToP

( )

MEssagE
counTEr

x In standby: page all handsets.
x While playing a message: restart the message.

x In the first 2 seconds of a message: play the previous message.
x While playing a message: delete this message.

( )

x In standby: delete all messages.

x While playing a message: skip to the next message.

x In standby: increase the ringer volume.
x While playing a message: increase the speaker volume.

x In standby: decrease the ringer volume.

(–)

x While playing a message: decrease the speaker volume.
x In standby: turn the answering system on or off.
x In standby: start playing messages.

x While playing a message: stop playing messages.
x When the phone is ringing: ignore this call (mute the ringer).

x Displays the number of messages you have.

REV

ANS ON/OFF

PLAY/STOP

FWD

Message

Counter

UP

DOWN

6 -English

Handset Setup

Personal Ring

Handset Setup

Ringer Tones

Handset Setup

T-coil

Handset Setup
Answering Setup

Use UP and

DOWN

to

rotate through the

options.

Press

MENU/SELECT

to

open the menu.

Press

MENU/SELECT

to choose

the current option.

Press

PHONEBOOK

to

go back a screen

OR

press

END

to exit

the menu.

Using the Handset Menu

Handset Setup

Menu

You can change these settings separately for each handset.

T-coil

Ringer Tones

Personal Ring

AutoTalk

Any Key Answer

Banner
Handset Language
Key Touch Tone

Answering Setup

Menu

Refer to p. 13 for details on setting up your answering system.

Date & Time

Menu

Use this menu to set the clock Enter the date and time (MM/DD/YY);
select AM or PM. Use
it. If you have CID service, you can set it to provide the time (

Time Adjustment

).

If you don't press any keys for about 30

seconds, the handset

exits the menu.

During a call, use

PhonEbook

to back
out of the menu
without hanging
up.

Turn on T-coil mode to reduce noise on hearing aids
equipped with a telecoil (T-coil) feature. T-coil mode
shortens talk time, so keep your battery fully charged.

Choose this handset's ring tone. As you highlight each
ring tone, the phone plays a sample. When you hear
the tone you want, press

MEnu/sElEcT

.

Turn on personal ring so you can assign a special ring
tone to people in your phonebook. With Caller ID, this
handset uses the assigned tone when the person calls.

Have this handset answer a call when you pick it up
from the cradle (without pressing any buttons).

Have this handset answer a call when you press any
key on the 12-key dialpad.

Change the name used on the handset's display.
Change the display language.
Have the keypad sound a tone when you press a key.

cid

to move the cursor past a digit without changing

Global Setup/

English - 7

Global Setup

Menu

The settings on this menu affect all handsets. Only one handset at a time
can change these menu options.

Dial Mode

Set Line Mode

Voice Mail Tone
VMWI Reset

CID Time Setting

Choose tone or pulse dialing (see p. 3).
Do not change this setting unless instructed to by

customer service.
Turn the tone indicating a new voice mail on or off.
Reset the Voice Message Waiting Indicator (see p. 12)
Select

Set by Caller ID

automatically set cordless phone system time.

to allow phone network to

Entering Text on Your Phone

• Use the 12-key dial pad anytime you want to enter text into your phone
(a name in the phonebook, the handset banner, etc.).

• If two letters in a row use the same key, enter the first letter; wait for the
cursor to move to the next space and enter the second letter.

To... Press...

move the cursor left
move the cursor right
erase the character at the cursor
erase the entire entry and hold
enter a blank space
switch between upper and lower case letters
rotate through the punctuation and symbols

PhonEbook

cid

inTErcoM/clEar

#

*

0

.

.
.
.

.

.

inTErcoM/clEar

.

USING YOUR PHONE

This section explains the most common functions on the phone.

To...

make a call, dial the number & press
answer a call press
hang up press

ignore a call/mute the ringer

switch to the speaker & back press

Using the
earpiece

press
ringing.

Talk/flash

Talk/flash

End

or put the handset in the cradle.

MEssagE/MuTE

sPEakEr

Using the
speakerphone

. press
. press

while the phone is

.

sPEakEr

sPEakEr

.
.

8 -English

To...

mute the microphone during
a call

Using the
earpiece

press

microphone back on).
put a call on hold press
return to a call on hold press

MEssagE/MuTE

inTErcoM/clEar*

Talk/flash

Using the
speakerphone

(press again to turn the

.

. press

sPEakEr

.

press and hold the speed dial number

for 1.5 seconds. After you verify that the
make a speed dial call

* Aer 5 minutes on hold, the call will be disconnected.

system is displaying the correct phonebook

data for that speed dial number, press

flash

or

sPEakEr

on the handset.

Talk/

Assigning a Speed Dial Number

You can assign a speed dial number to a phonebook entry when you create
that entry for the first time or when you edit it. Press

Create New

. As you enter the phonebook number, one of the options you

PhonEbook

and select

will see is to assign a speed dial number to that phonebook entry. You can
assign up to 10 speed dials, 0 - 9.

Finding a Lost Handset

With the phone in standby, press
1 minute; to cancel, press

find hs

on the base. All handsets beep for

find hs

again or press any handset key.

Changing the Volume

To change the... When... Press...

earpiece or speaker
volume for each handset

base speaker volume
ringer volume for each

handset or the base*

* If you turn the ringer all the way down, that particular ringer turns o.

you are listening to that
earpiece or speaker (playing
messages, etc.)

the phone is in standby

uP

to increase

the volume.

down

to

decrease it.

Using the Caller ID and Redial Lists

Caller ID (CID) is a service available from your telephone provider that
shows the phone number (and sometimes the caller’s name) of incoming
calls. Contact your telephone provider for more information.

English - 9

Caller ID list Redial list

x The phone saves the information for the last 50

received calls to the CID list. The
calls received since the last time you checked the list.

x All handsets share the same CID list so only one

handset can access the list at a time.

x In standby, handsets show how many calls came in

since the last time you checked the CID list.

NEW

icon marks any

x Each handset

remembers the
last 5 numbers
you dialed on it.

x Only one handset

can access its
redial list at a time.

To… Press...

cid

open the CID list

open the redial list

scroll through the
lists

dial the
highlighted
number

close the lists

.

rEdial/PausE

down

uP

to scroll from oldest to newest.

Talk/flash

.

to scroll from newest to oldest.

or

sPEakEr.

(If the number is a toll call but there is no 1 at the
beginning, press * to add 1 before dialing.)

PhonEbook

.

For individual record options, highlight a number and press

Delete Entry

Store Into Pb

Delete All

Erase the number from the list.
Add the number to the phonebook. The handset prompts

you to edit the name and number and select a personal ring.
(CID list only) Erase all numbers from the list.

MEnu/sElEcT

:

Using Call Waiting

• Call Waiting, a service available from your telephone provider, lets you
receive calls while you are on another call. Caller ID on Call Waiting
(CIDCW) service displays Caller ID information for a waiting call.

• If you get a Call Waiting call, the phone sounds a tone and displays
any CID information received from the waiting call. Press

Talk/flas h

to switch between the current call and the waiting call; each time you
switch, there is a short pause before you're connected to the other call.

Using the Phonebook

The phone can store up to 100 entries in its phonebook. All handsets share
the same phonebook, so only one handset can access it at a time.

10 -English

To... Press...

open/close the phonebook

scroll through the entries

jump to entries that start
with a certain letter

dial the current entry
edit the current entry

delete the current entry

make a speed dial call

PhonEbook

down
uP

the number key corresponding to the letter
you want.

Talk/flash

MEnu/sElEcT

MEnu/sElEcT

phone prompts you to confirm, select
Press and hold the speed dial number (0 - 9)

for 1.5 seconds. The speed dial entry displays.
Press

.

to scroll through the entries from A to Z.

to scroll from Z to A.

or

sPEakEr

.

Talk

or

, then select
, then select

sPEakEr

Edit

.

Delete

. When the

to dial the number.

Yes

.

Adding Phonebook Entries

With the phone in standby, open the phonebook. Press
select

Create New.

Enter a name, number, and then assign a speed dial

MEnu/sElEcT

and

number and a personal ring if desired.

• Enter the phone number (up to 20 digits) exactly as you would dial it.

• If you need the phone to wait before sending the next set of digits, press

rEdial/ PausE

to insert a 2-second pause. You can insert multiple pauses,

but each one counts as a digit (you’ll see P in the display).

Deleting All the Phonebook Entries

With the phone in standby, open the phonebook. Press
select

Delete All

. When the phone prompts you to confirm, select

MEnu/sElEcT

Yes

and

.

USING SPECIAL FEATURES

Silent Mode

You can silence the ringers on the base and all handsets for a specific
period of time; the answering system answers any incoming calls without
playing anything through the speaker.

#

1. With the phone in standby, press and hold
prompts you to select the number of hours (1 - 9 or
want it to stay in silent mode.

2. To confirm, press
answering system and displays

#

or just wait about 5 seconds. The phone turns on the

Silent Mode On

on any handset. The phone

Always On

) that you

on each handset.

English - 11

3. After the selected number of hours, the phone automatically exits silent
mode. To exit silent mode manually, press and hold # again.

# If the phone is in silent mode and you turn off the answering

system, the phone exits silent mode.

Multihandset Features

# To use the features in this section, you need at least 2 handsets.

• Your base supports a total of 12 cordless handsets: the one that came

with the base and up to 11 DCX170 accessory handsets. Your base also
supports a total of 2 DRX100 range extenders, including any that came
with your phone. If you have any DWX handsets, the D1780 is limited to
a total of 6 accessory handsets

• You must register accessory handsets to the base before using them.

(Handsets that came packaged with the base are already registered.)

• Handsets that aren’t registered display a Not Registered message. For

registration instructions, see p. 18, or see the accessory handset manual.

• If a handset was ever registered to a base, you must reset it before it can

register to a new base; see p. 18, or see the accessory handset manual.

Conference Calling

• When an outside call comes in, two handsets can join in a conference

call with the outside caller.

• To join a call that’s already in progress, just press

• To leave the conference call, hang up normally; the other handset

remains connected to the call.

Call Transfer

To... Press...

transfer a call

cancel a transfer
accept a

transferred call

inTErcoM/clEar

prompts you to select the handset you want to page.
When the other handset accepts the call, you'll be
disconnected (press

Talk/flash

inTErcoM/clEar

handset. Then, press

. The phone puts the call on hold and

Talk/flash

to return to the call.

to answer the page and speak to the other

Talk/flash

Talk/flas h

to rejoin the call).

to speak to the caller.

or

sPEakEr

.

Privacy Mode

To activate privacy mode on a call in progress, press

MEnu/sElEcT

twice.

As long as privacy mode is on, you'll see a in the display, and no other

12 -English

handsets can join your call. Privacy mode turns off automatically when
you hang up; you can also turn it off by pressing

MEnu/sElEcT

twice.

Handset to Handset Intercom

• Whenever the phone is in standby, you can make an intercom call
between handsets without using the phone line.

• You can make an intercom call from any handset, but only two handsets
can be in an intercom call at any time.

• If an outside call comes in during an intercom page, the phone cancels
the page so you can answer the incoming call.

• If an outside call comes in during an intercom call, press

Talk/flas h

to

hang up the intercom call and answer the outside call.

To... Press...

make an intercom
page

cancel a page
answer a page
end an intercom call

inTErcoM/clEar.

with, or

End

.

inTErcoM/clEar

End

. Both handsets return to standby.

Select the handset you want to talk

All

to page all handsets at the same time.

or

Talk/flash

.

Chain Dialing

If you often have to enter a series of digits or a code number during a
call, you can save that code number to a phonebook entry and use the
phonebook to send the code number.

1. Enter the code number (up to 20 digits) into the phonebook just like

a regular phonebook entry. Be sure to enter the code number into the
phonebook exactly as you would enter it during a call.

2. When you hear the prompt that tells you to enter the number, open the

phonebook and find the entry that contains your code number.

3. Press

MEnu/sElEcT

the phonebook.

to send the code. If you change your mind, just close

Voice Message Notication

If you subscribe to a voice mail service, your phone displays the voice
mail icon (
Frequency-Shift Keying (FSK) notification, which you can turn on and off
through

) when you have a new message. This feature supports

Global Setup/Voice Mail Tone

.

English - 13

After you listen to your messages, the message icon turns off. If it doesn’t,
you can reset it: With the phone in standby, open the menu and select

Global Setup

; select

VMWI Reset

, then select

Yes.

USING THE ANSWERING SYSTEM

Answering System Options (

You can set or change the answering system options from any handset. Just
open the menu and select

Security Code

Ring Time

Record Time

Message Alert

Ans. Language

Call Screen

Ans. On/off
Record Greeting
Greeting Options

Answering Setup

Enter a 2-digit PIN so you can access your answering
system from any touch-tone phone (see p. 15).

Set the number of rings (2, 4, or 6) before the system
answers.
if you have new messages or after 4 rings if you don't.

Set the amount of time (
leave a message. Choose
want the system to let callers to leave a message.

Have the system beep every 15 seconds when you have
a new message. The alert stops after you listen to all
your new messages or if you press any key on the base.

Change the language of the system's voice prompts.
Turn on the call screen feature so you can hear callers as

they leave messages on the base speaker (see p. 15).
Turn your answering system on or off.
Record an outgoing message or greeting (see below).
Switch greetings or delete your greeting (see below).

Toll Saver

Personalizing the Greeting

Your personal outgoing message or greeting can be from 2 to 30 seconds
long. If you don’t record a greeting, the system uses a pre-recorded
greeting: Hello, no one is available to take your call. Please leave a message

after the tone.

Answering Setup

. Select one of the following:

makes the system answer after 2 rings

1 or 4

minutes) callers have to

Announce Only

)

if you don't

14 -English

To... Follow these steps:

Press

MESSAGE/MUTE

to start

-

choose an operation

1. Open the menu with the phone in standby. Select

Record a
personal
greeting

Switch
between
greetings

Delete your
greeting

Answering Setup

2. Press

MEnu/sElEcT

says "Record greeting" before speaking.

3. Press

MEnu/sElEcT

your new greeting.

4. To keep the greeting, press

MEnu/sElEcT

1. Open the menu with the phone in standby. Select

Answering Setup

2. The system plays back the current greeting. Press

sElEcT

to switch greetings.

Switch to your personal greeting, then press

, then

Record Greeting

to start recording. Wait until the system

to stop recording. The system plays back

.

, then

End

Greeting Options

.

. To re-record it, press

.

inTErcoM/clEar

MEnu/

Accessing the Answering System

When the phone’s in
standby, you can
access the system
from any handset:

• Only 1 handset
can access the
system at a time.

• If you do nothing
for 30 seconds,
the phone returns
to standby.

• During remote
access, the phone
beeps so you
know it's waiting
for the next command.

• You can press the number key shown next to each command instead of
scrolling through the screens.

remote operation mode.

1:Repeat 3:Skip
4:Delete 5:Stop

Press a correspond
ing number key to

OR

END

to exit remote

operation mode.

.

English - 15

Getting Your Messages

To... From the base From a handset

Press

Play/sToP.

play new
messages

The system announces the number of new & old
messages, then plays each new message (followed by the
day and time) in the order it was received.

restart this
message

replay an
earlier message

skip a message Press
delete a

message

delete all
messages

play old
messages

stop playback Press

Wait at least 5 seconds after the message starts playing,

rEV.

press

Within 2 seconds after a message starts playing,

press

rEV.

fwd

. Select

While a message is playing, press

dElETE

.

With the phone in standby,
press

dElETE

; press

dElETE

again to

confirm.

After the system plays all new messages,

Play/sToP

press

again. select

Play/sToP

. Select

Screening Your Calls

You can use the answering system for call screening. While the system
takes a message, you can listen on the base speaker (if you turn on

Screen)

or from a handset. Only one handset can screen calls at a time. If

another handset tries to screen calls, it beeps and returns to standby.

To... From the base From a handset

hear the caller leaving a
message

answer the call NA Press
mute the call screen

without answering*

* If you mute the call screen, the system continues taking the message: it just

stops playing through the speaker.

Listen to the caller over
the speaker.

Play/sToP

Press

.

Press

MEssagE/MuTE

select

1:Repeat

select

1:Repeat

3:Skip

.

While a message is
playing, select

Not available.

2:Play

.

5:Stop

.

MEssagE/MuTE

Press

Talk/flash

End

Press
handset to the cradle.

.

.

or return the

.

.

4:Delete

Call

.

.

Using the System While You're Away from Home

You can dial in to your answering system from any touch-tone phone.
Before you can use this feature, you must program a security code.

16 -English

Programming a Security Code

With the phone in standby, open the menu; select

Security Code

(

01

to 99). Press

. Use the number keypad to enter a two-digit security code

MEnu/sElEcT

when you’re finished.

Ans. Setup

, then select

# Remember to make a note of your new security code!

Dialing In to Your System

1. Call your phone number & wait until the system answers. (If the system

is turned off, it answers after 10 rings & sounds a series of beeps.)

2. During the greeting or beeps, press

security code. If you enter it incorrectly 3 times, the system hangs up
and returns to standby.

3. The system announces the time, the number

of messages in memory, and a help prompt. It beeps to let you know it's
waiting for a command.

4. When you hear beeping, enter a 2-digit command from the chart.

01 Repeat message 05 Stop playback

02 Play message 06 Turn the system on

03 Skip message 09 Turn the system off

04 Delete message 10 Hear help prompts

0

and immediately enter your

# If you don't press any keys for 15 seconds, the system hangs up

and return to standby.

IMPORTANT INFORMATION

Solving Problems

If you have any trouble with your phone, check this section first. If you
need help, call our Customer Care Line listed on the front cover.

General problems Possible solutions

No handsets can make or
receive calls.

x Check the telephone cord connection.
x Disconnect the base AC adapter for a few

minutes; then reconnect it.

English - 17

A handset can’t make or
receive calls.

A handset can make calls,
but it won’t ring.

A handset is not working.

The phone keeps ringing
when I answer on an
extension.

x Move the handset closer to the base.

x Make sure the ringer is turned on.
x Make sure Silent Mode is turned off (see p. 10).

x Charge the battery for 15-20 hours.
x Check the battery connection.

x You may have to change the line mode.

Contact Customer Service for instructions.

Caller ID problems Possible solutions

No handsets display
Caller ID information.

Caller ID displays briefly
and then clears.

x Let calls ring twice before answering.
x Make sure your Caller ID service is active.

x You may have to change the line mode.

Contact Customer Service for instructions.

Multi-handset problems Possible solutions

I can’t transfer calls.
Two handsets can’t talk to a caller.

A handset says

Unavailable

.

I can’t register a new handset.

x Reset the handset (see p. 18).

x See if any handset is in Privacy Mode.

x Move the handset closer to the base.
x See if any handset is in Privacy Mode.

x Reset the handset (see p. 18).
x See if you have 12 registered handsets.

Answering system problems Possible solutions

The answering system does
not work.

The system won't record
messages.

A handset can't access the
answering system.

My outgoing message is gone.

I can’t hear the base speaker.

Messages are incomplete.

x Make sure the answering system is on.
x Make sure the base is plugged in.

x See if

Record Time

x Delete messages (memory may be full).

x See if another handset is using the system.
x Make sure the phone is in standby.

x If there was a power failure, re-record

your personal outgoing message.

x Make sure call screening is turned on.
x Change the base speaker volume.

x Increase the
x Delete messages (memory may be full).

is set to

Record Time

Announce Only

.

.

18 -English

Answering system problems Possible solutions

The system keeps recording
when I answer on an
extension.

x You may have to change the line

mode. Contact Customer Service for
instructions.

Installing a Line Filter or DSL Filter

A telephone line lter or DSL lter prevents services that use the phone line from
causing interference on your phone. To get a line lter, contact your service pro­vider or look in an electronics store.

Plug the lter into the telephone wall jack and plug the base into the lter. Make a
test call to make sure the noise is gone.

Liquid Damage

CAUTION: If the base is covered in liquid, disconnect the adapter & phone
cord from the wall before touching it.

If the liquid is only on t he exterior housing of the base or handset, wipe it o and
use as normal. If you can hear liquid inside the housing:

1. Remove all compartment covers, and disconnect all cables and cords.

2. If liquid is leaking from any vent or hole, turn the phone so that vent faces
down. If not, place the largest vent face down.

3. Let dry for at least 3 days. Check for liquid inside the phone before replacing
compartment covers & reconnecting cords.

Resetting Handsets

If you have trouble with a handset or if you want to replace one, clear the registra­tion information from the base and the handset:

End

1. Press & hold

2. If you still have the base the handset is registered to, select
select the handset you want to reset. If you don’t have that base anymore, select

Base Unavailable

3. To conrm, select

and # at the same time until you see the

.

Yes

. e handset displays

Handset not regi stered

System Reset

Deregister HS

.

menu.

, then

Registering Handsets

If you see a “not registered ” message on a handset, you must register it to a base
before using it.

1. Place the handset in the base; the display should say

2. Wait until the display says
up the handset and press

3. If you don’t hear a dial tone or the display says
battery completely, then try again.

Registration Complete

Talk/fla sh

.

(about 30 seconds), then pick

Registration Failed

Handset Registering

.

, charge the

English - 19

Adapter and Battery
Information

AC adapter

Part number PS-0035
Input voltage 120V AC, 60 Hz
Output voltage 8V AC @ 300mA
x Use only the supplied AC adapters.

x Use the proper adapter for the base &

any chargers.

x Do not place the unit in direct sunlight

or subject it to high temperatures.

Battery pack (with normal use)

Part number BT-1021
Capacity 300mAh, 2.4V DC
Talk time about 7 hours
Standby time about 7 days
Battery life about 1 year

x Replace the battery when the talk or

standby time becomes noticeably re­duced. For replacements, call the Parts
Department (see the front cover).

x When the battery gets low, the handset

beeps and shows a low batter y alert;
put the handset in the cradle for
recharging.

Rechargeable Battery Warning

x is equipment contains a recharge-

able Nickel-Metal-Hydride (Ni-MH)
battery.

x Nickel is a chemical known to the state

of California to cause cancer.

x Do not short-circuit the battery.
x e batteries in this equipment may

explode if disposed of in a re.

x Do not charge the batteries in any

charger other than the one specied
in the owner's manual. Using another
charger may damage the batter y or
cause it to explode.

20 -English

x As part of our commitment to

protecting our environ­ment and conserving
natural resources,
Uniden voluntarily
participates in an
RBRC® industry
program to collect and
recycle used Ni-MH batteries within
the United States. Please call
1-800-8-BATTERY for information on
Ni-MH battery recycling in your area.
(RBRC® is a registered trademark of the
Rechargeable Battery Recycling
Corporation.)

Rechargeable batteries must be
recycled or disposed of properly.

Warning! The cords on this
product and/or accessories
contain lead, a chemical known
to the state of California to
cause birth defects or other
reproductive harm. Wash hands
after handling.

Uniden works to reduce lead
content in our products &
accessories.

Compliance Information

FCC Part 68 Information

is equipment complies with Part
68 of the FCC rules and the require­ments adopted by the ACTA. On the
bottom of this equipment is a label that
contains, among other information,
a product identier in the format US:
AAAEQ##TXXXX. If requested, this
number must be provided to the phone
company.

An applicable Universal Serv ice
Order Codes (USOC) certication for
the jacks used in this equipment is
provided (i.e., RJ11C) in the packaging
with each piece of approved terminal
equipment. A plug and jack used to

connect this equipment to the premis­es wiring and telephone network must
comply with the applicable FCC Part
68 rules and requirements adopted by
the ACTA. A compliant telephone cord
and modular plug is provided with
this product. It is designed to be con­nected to a compatible modular jack
that is also compliant. See installation
instructions for details.

e REN is used to determine the
number of devices that may be con­nected to a phone line. Excessive RENs
on a phone line may result in devices
not ringing in response to an incom­ing call. In most but not all areas, the
sum of RENs should not exceed ve
(5.0). To be certain of the number of
devices that may be connected to a
line, as determined by the total RENs,
contact the telephone provider. e
REN for this product is part of the
product identier that has the format
US:AAAEQ##TXX XX. e digits rep­resented by ## are the REN without a
decimal point (e.g., 03 is a R EN of 0.3).

If this equipment causes harm to the
telephone network, the telephone com­pany will notify you in advance that
temporary discontinuance of service
may be required. But if advance notice
isn't practical, the telephone company
will notify the customer as soon as
possible. Also, you will be advised of
your right to le a complaint with the
FCC if you believe it is necessary. e
telephone company may make changes
in its facilities, equipment, operations
or procedures that could aect the
operation of the equipment. If this
happens the telephone company will
provide advance notice in order for
you to make necessary modications
to maintain uninterrupted service.

Please follow instructions for repair­ing, if any (e.g. battery replacement
section); otherwise do not substitute or
repair any parts of the dev ice except as

specied in this manual. Connection
to party line service is subject to state
taris. Contact the state public utility
commission, public service commis­sion or corporation commission for
information. is equipment is hear­ing aid compatible.

If you experience trouble with this
equipment, contact the manufac­turer (see the cover of this manual for
contact information) or an authorized
agent. If the equipment is causing
harm to the telephone net work, the
telephone company may request that
you disconnect the equipment until
the problem is resolved.

If your home has wired alarm equip­ment connected to a phone line, be sure
that installing the system does not dis­able your alarm equipment. If you have
questions about what will disable alarm
equipment, contact your telephone
company or a qualied installer.

Any changes or modications to this
product not expressly approved by the
manufacturer or other party respon­sible for compliance could void your
authority to operate this product.

NOTICE: According to telephone
company reports, AC electrical surges,
typically resulting from lightning
strikes, are very destructive to tele­phone equipment connected to AC
power sources. To minimize damage
from these types of surges, a surge ar­restor is recommended.

FCC Part 15 Information

is dev ice complies with part 15 of
the FCC rules. Operation is subject to
the following two conditions: (1) is
device may not cause harmful interfer­ence, and (2) is device must accept
any interference received, including
interference that may cause undesired
operation. Privacy of communications
may not be ensured when using this
phone.

English - 21

FCC PART 15.105(b): Note: is
equipment has been tested and found
to comply with the limits for a Class
B digital device, pursuant to part 15
of the FCC Rules. ese limits are
designed to provide reasonable protec­tion against harmful interference in a
residential installation. is equip­ment generates, uses and can radiate
radio frequency energy and, if not
insta lled and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particu­lar installation. If this equipment does
cause harmful interference to radio
or television reception, which can be
determined by turning the equipment
o and on, the user is encouraged to
try to correct the interference by one or
more of the following measures:

x Reorient or relocate the receiving

antenna.

x Increase the separation between the

equipment and receiver.

x Connect the equipment into an outlet

on a circuit dierent from that to which
the receiver is connected.

x Consult the dealer or an experienced

radio/TV technician for help.

FCC RF Exposure Information

is product complies with FCC radia­tion exposure limits under the follow­ing conditions:

x e base must be placed to allow a

minimum of 20 cm (8 inches) between
the antenna and all persons during
normal operation.

x e base must not be collocated or

operated in conjunction with any other
antenna or transmitter.

x e handset is designed for body-worn

operation and meets FCC RF exposure
guidelines when used with any belt clip,
carr ying case, or other accessory sup­plied with this product. (All necessary

22 -English

accessories are included in the package;
any additional or optional accessories
are not required for compliance with
the guidelines.) ird party accessories
(unless approved by the manufacturer)
should be avoided as these might
not comply with FCC RF exposure
guidelines.

Industry Canada (I.C.) Notice

Terminal equipment

NOTICE: is equipment meets the
applicable Industry Canada Terminal
Equipment Technical Specications.
is is conrmed by t he registration
number. e abbreviation IC before
the registration number signies t hat
registration was performed based on a
Declaration of Conformity indicat­ing that Industr y Canada technical
specications were met. It does not
imply that Industr y Canada approved
the equipment.

NOTICE: e Ringer Equivalence
Number (REN) for this terminal equip­ment is marked on the equipment itself.
e REN assigned to each terminal
equipment provides an indication of
the maximum number of terminals
allowed to be connected to a telephone
interface. e termination on an inter­face may consist of any combination of
devices subject only to the requirement
that the sum of the Ringer Equivalence
Numbers of all the devices does not
exceed 5.

Radio equipment

e term IC before the radio certi­cation number only signies that
Industry Canada technical specica­tions were met. Operation is subject
to the following two conditions: (1)
this device may not cause interference,
and (2) this device must accept any
interference, including interference
that may cause undesired operation of
the device. "Privacy of communications

may not be ensured when using this
telephone".

1-Year Limited Warranty

Evidence of original purchase is
required for warranty service.

WARRANTOR: UNIDEN AMERICA
CORPORATION ("Uniden")

ELEMENTS OF WARRANTY: Uniden
warrants, for one year, to the original
retail owner, this Uniden Product to
be free from defects in materials and
crasmanship with only the limitations
or exclusions set out below.

WARRANTY DURATION: is
warranty to the original user shall
terminate and be of no further eect
12 months aer the date of original
retail sale. e warranty is invalid if
the Product is (A) damaged or not
maintained as reasonable or necessary,
(B) modied, altered, or used as part of
any conversion k its, subassemblies, or
any congurations not sold by Uniden,
(C) improperly installed, (D) serviced
or repaired by someone other than an
authorized Uniden service center for a
defect or ma lfunction covered by this
warranty, (E) used in any conjunction
with equipment or parts or as part of
any system not manufactured by Un­iden, or (F) installed or programmed
by anyone other than as detailed by the
owner's manual for this product.

STATEMENT OF REMEDY: In
the event that the product does not
conform to this warranty at any time
while this warranty is in eect, warran­tor will either, at its option, repair or
replace the defective unit and return it
to you without charge for parts, service,
or any other cost (except shipping and
handling) incurred by warrantor or its
representatives in connection with the
performance of this warranty. Warran­tor, at its option, may replace the unit
with a new or refurbished unit. THE

LIMITED WARRANTY SET FORTH
ABOVE IS THE SOLE AND ENTIR E
WARRANTY PERTAINING TO THE
PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRAN­TIES OF ANY NATURE WHATSO­EVER, WHETHER EXPRESS, IM­PLIED OR ARISING BY OPER ATION
OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WAR­RANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE. THIS WARRANTY DOES
NOT COVER OR PROVIDE FOR THE
REIMBURSEMENT OR PAYMENT
OF INCIDENTAL OR CONSEQUEN­TIAL DAMAGES. Some states do not
allow this exclusion or limitation of
incidental or consequential damages so
the above limitation or exclusion may
not apply to you.

LEGAL R EMEDIES: is warranty
gives you specic legal rights, and
you may also have other rights which
vary from state to state. is warranty
is void outside the United States of
America and Canada.

PROCEDURE FOR OBTAINING
PERFORMANCE OF WARRANTY: If,
aer following the instructions in the
owner's manual you are certain that the
Product is defective, pack the Product
carefully (preferably in its original
packaging). Disconnect the battery
from the Product and separately
secure the battery in its own separate
packaging within the shipping carton.
e Product should include all parts
and accessories originally packaged
with the Product. Include evidence of
original purchase and a note describing
the defect that has caused you to return
it. e Product should be shipped
freight prepaid, by traceable means, to
warrantor at:
Uniden America Service
4700 Amon Carter Blvd.
Fort Worth, TX 76155

English - 23

As an Energy Star® Partner,
Uniden has determined that
this product meets the
Energy Star
energy eciency. Energ y
Star
mark.

x Uniden® is a registered trademark of

Uniden America Corporation.

x e pictures in this manual are for

example only. Your phone may not look
exactly like the pictures.

®

guidelines for

®

is a U.S. registered

24 -English
