BTS200 HIGH-DEFINITION SPEAKER
Uniden’s BTS200 high denition Bluetooth speaker provides clear stereo sound in a
compact, portable package. With Bluetooth V2.1 compatibility, the BTS200 pairs with your
cell phone to become a speakerphone for hands free conversations. You can also connect
your music player (wired or wireless) for crisp, clear audio.
• Bluetooth V2.1 + EDR.
English - 3
• Up to 2 Bluetooth devices can be paired with your speaker.
• Supporting A2DP/AVRCP/HFP proles.
- A2DP: Advanced Audio Distribution Prole
- AVRCP: Audio/Video Remote Control Prole
- HFP: Hands Free Prole
• Rechargeable Lithium-Ion polymer battery.
• Portable
• Up to 7 hours of play from a fully-charged battery.
• Call Waiting feature
• Mute feature
• SRS WOW HD™
The BTS200 speaker is not a data storage device; do not attempt to copy files to it.
What’s Included
• BTS200 Speaker
• AC Adapter (PS-0043)
• Lithium-Ion polymer battery (BT-1026)
4 - English
SET UP YOUR BTS200 SPEAKER
Install the Battery
1. Remove the battery from any protective packaging and discard the packaging
accordingly.
2. Align the battery pack with the guides along the inside of the battery area. Be sure the
contact slots are in the correct position to close on the contacts.
3. Slide the battery in until you hear the latch click.
Charge the Battery
1. Insert the adapter’s DC jack into the DC connection.
2. Plug the adapter into a 120 VAC power supply (standard wall outlet).
3. The middle LED lights to indicate the battery is charging and goes o when complete.
Your battery must be fully charged (more than 7.5 hours) before you can use your speaker.
Turn on Your Speaker
When you turn on your speaker for the rst time, it automatically goes into pairing mode.
The Bluetooth LED (
turn on your speaker, it searches for already paired devices and then moves into a standby
state.
) ashes rapidly and is ready to pair (see page 6). The next time you
English - 5
1. Press and hold for at least 3 seconds.
2. All LEDs light and a power on tone sounds.
3.
and LEDs go out.
ashes slowly while looking for Bluetooth devices. It remains steady on when
4.
Bluetooth devices are discovered; otherwise, it goes out.
To turn o the speaker: Press and hold
for at least 3 seconds.
Pair Bluetooth Devices to Your Speaker
Pair First Bluetooth Device
Pair your rst Bluetooth device to your speaker when you turn your speaker on for the rst
time. Be sure your speaker is in pairing mode when you pair your second Bluetooth device
(see step 1-2 of “Pair Second Bluetooth Device” on page 7).
1. Select a Bluetooth V2.1 or above device (mobile phone or music player) to pair.
2. Select the Searching mode on your Bluetooth device (refer to your Bluetooth device’s
owner’s manual for details if necessary).
3. Your Bluetooth device should nd BTS200; select it and use 0000 for a pairing code if
necessary.
4. Verify that you are connected to your speaker. The Bluetooth LED (
steady ON state when pairing is complete.
) moves to a
6 - English
Pair Second Bluetooth Device
1. Turn on your speaker, and continue to press and hold until the speaker beeps twice.
2. Release
. The BTS200 is ready to pair.
3. Follow the same procedures for pairing your rst Bluetooth device (see page 6).
GETTING TO KNOW THE BTS200 SPEAKER
BTS200 Top/Front
Key name Icon Press to ...
Mute
talk
Power
Battery
Release
Down
uP
Play/Pause
Mute the microphone on your
speaker during a call.
Handle phone calls.
Turn on your BTS200 speaker.
Decrease the volume.
Increase the volume.
Start, pause, and stop music.
English - 7
POWER
MUTE
DOWN
Power LED
Microphone
Bluetooth link LED
TALK
UP
PLAY/PAUSE
BTS200 Side
Battery release
latch
indicator
button
Battery
indicator
LEDs
USB portBattery
Use this... To...
Battery indicator button Display the level of power left in the battery through the
LEDs.
Battery Indicator LEDs Display the remaining power level when you press the
battery indicator button (see page 18).
USB port Use the BTS200 battery to charge your cell phone (see
page 14).
Battery release latch Unlock the battery for removal.
8 - English
BTS200 Back
3.5mm Audio In
jack
Bass
output
Power
adapter
input
Use this... To...
Audio In Insert the audio cable’s plug.
Bass output Hear the bass sound.
DC 5.4V Insert the power adapter.
English - 9
LEDs
Icon Status Meaning
Power On (green) BTS200 is turned on and operating.
O BTS200 is turned o.
Bluetooth
Slow blink BTS200 is looking for paired Bluetooth devices.
Fast blink BTS200 is ready to pair to a Bluetooth device.
Steady on BTS200 is connected to a Bluetooth device.
O BTS200 is not connected to a Bluetooth device.
BTS200 SPEAKER OPERATION
Press and hold for at least 3 seconds to turn on your speaker.
The
and keys control the speaker’s volume level during cellphone operation and
music playback. Press and release the keys to increase or decrease the volume level one
step at a time. Press and hold and to quickly raise and lower the volume levels.
Your speaker sounds an alert tone when it reaches the maximum upper and lower volume
levels.
10 - English
Basic Cell Phone Operations
The green LED ashes when your cellphone has an incoming call. Both the speaker and
your cellphone may ring, depending on your cellphone settings.
To... Do this...
Answer an incoming call
Reject an incoming call
End a call
Mute the microphone
Unmute the microphone
Redial the last incoming
number
Redial the last number dialed
Press
Press and hold
Press
Press
Press
From standby, press
From standby, press and hold
steady green.
.
and .
.
. The LED turns red.
again. The LED turns o.
and at the same time. The
LED is steady green.
. The LED is
English - 11
Call Waiting
You can receive call waiting notication when your cellphone is paired to your speaker. The
LED ashes and your speaker sounds an alert tone.
Your cellphone must subscribe to Call Waiting service to use these features;
contact your telephone provider for more information.
To... Do this...
Answer a call waiting call
and put rst call on hold
Answer a call waiting call
and hang up rst call
Reject a call waiting call
End a call waiting call
12 - English
Press and release
existing call is put on hold and the second call is now
active.
Press
active.
Press and hold
Press
; the rst call is ended and the call waiting is now
; if the rst call was on hold, it is now active.
and at the same time. The
and at the same time.

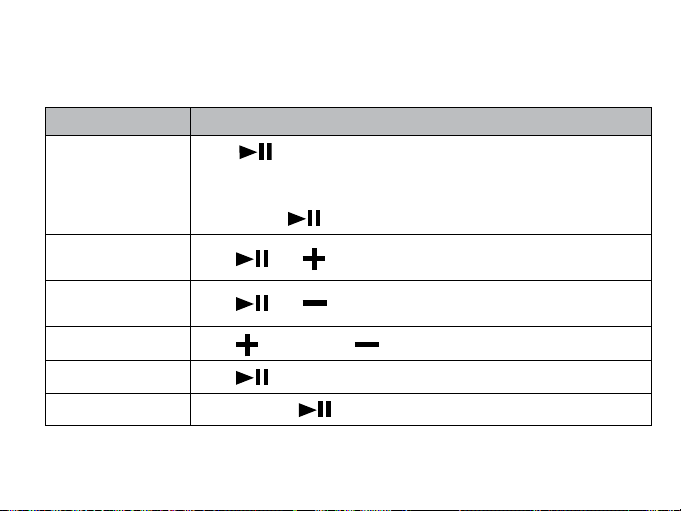

Basic Music Operation
When you pair a Bluetooth music player to your speaker, you can control operation through
your speaker.
To... Do this...
.
.
and at the same time.
and at the same time.
to increase or to decrease the volume.
when the music is playing
while the music is playing.
Play music
Skip to the next
track
Skip to the
previous track
Control the volume
Pause music
Stop playing music
Press
NOTE: When you stop or pause the music playback, your speaker starts
streaming music into a buffer. The music resumes at the same volume level
after you press
Press
Press
Press
Press
Press and hold
English - 13
SPECIAL FEATURES
Charge Cellphone using a USB Cable
If you have the proper tting USB cable (not included), you can charge your cellphone
through your speaker. Be sure you have a USB cable that will t both USB connections - the
one on your speaker and the one on your cellphone.
1. Connect the USB cable to your cellphone and to your speaker.
2. There are no specic charging LEDs on your speaker; however, any charging LEDs on
your cellphone may blink accordingly.
After you charge your cellphone using your speaker’s battery, be sure you recharge your speaker.
Play Music through a Wired Connection
You can still play music through your BTS200 speaker even if your music device is not
paired to your speaker. You can physically connect your music device to your speaker with a
cable having a 3.5 mm minijack at one end (not included).
1. Plug one end of the cable into your music device, just like you would a pair of
headphones.
2. Plug the other end of the cable into your speaker’s 3.5 mm jack labeled
3. Use your music device to start and control music playback through your speaker.
auDio in
14 - English
.
The following restrictions apply when you are playing music through a wired connection:
• If both a Bluetooth device and a wired device are connected to your speaker, the
Bluetooth device will take priority over the wired device.
• The BTS200 does not control the wired device; it only plays music through a wired
connection. It cannot operate
• If you are listening to music from the wired device and you press
start playing music from the Bluetooth device if available.
or skip . You must use the wired device to do that.
, your speaker will
Manage SRS WOW HD™ On/O
The BTS200 speaker utilizes SRS WOW HD™ technology. WOW HD™ signicantly improves
the playback quality of audio, delivering a dynamic 3D entertainment experience with
deep, rich bass and high frequency clarity for crisp detail.
You can turn SRS on or o (default = on). Your speaker retains the SRS setting during power
o.
To fully utilize SRS, turn the EQ setting on your music device to OFF.
1. Press and at the same time when the music is playing.
2. If you hear a single acknowledgement tone, you have turned SRS o. If you hear a
double acknowledgement tone, you have turned SRS back on.
English - 15
TROUBLESHOOTING
If this happens... Try this...
Bluetooth device disconnects
Bluetooth device disconnects
due to Out of Range
Sound is not clear or there is
no sound at all
Music won’t play on the
BTS200
The BTS200 volume controls
are not working.
LED No Power
16 - English
Press
After moving back into connection range, press
key for reconnection.
Check BTS200 or your Bluetooth device volume level.
– Make sure your Bluetooth device has A2DP.
– Check if both devices are connected.
– Turn your BTS200 o and then back on to auto-
connect with your Bluetooth device.
– Change the volume from your Bluetooth device.
– Check the battery level.
– Make sure BTS200 is turned on.
– Make sure BTS200 is charged.
to reconnect.
If this happens... Try this...
Sound is too small / too much
distortion
Phone call not answer by
BTS200
Music doesn’t play after
hanging up a call
BTS200 doesn’t control the
music
Adjust the volume level of BTS200 or Bluetooth device.
– Make sure your cellphone has HFP.
– Check if both devices are connected.
– Restart BTS200 for auto-connecting with your
Press
Make sure your Bluetooth device has AVRCP.
Reset your BTS200 Speaker
1. Turn o the BTS200.
,
2. Press
3. The
4. Release
down.
, and keys at the same time. Hold for several seconds.
and LEDs ash and then go dark.
,
, and keys. Your speaker has reset after it has completely shut
Bluetooth device.
to resume music.
English - 17
Battery Features
Your BTS200 comes equipped with a rechargeable Lithium-Ion polymer battery. You can
recharge the battery by connecting it to 120 VAC power through the AC adapter.
Install and Charge the Battery
See page 5 for details on installing and charging the battery (the same procedures as for
initial turnup).
Remove the Battery
1. Press down on the battery latch to release the battery.
2. With the battery latch pressed down, press down and push out the opposite end of the
battery to slide it out of the battery compartment.
Check the Battery Level
Press the battery indicator button while the AC adapter is not connected to your speaker
(see page 8). The battery LEDs light according to how much power remains in the battery:
• 3 LEDs = 100 - 70% remaining
• 2 LEDs = 70 - 35% remaining
• 1 LED = 35 - 15% remaining
18 - English
• 0 LEDs = Less than 15% power remaining. When the battery level falls below 15% (0 LED)
status, the speaker sounds alert tones (four-beep pattern).
SPECIFICATIONS
• Total 4W output (2W / Channel)
• Full-range (50mm) driver / Channel + Passive Radiator
• Li-Ion polymer Batt: 2950mAh
• Playtime: up to 7 hours in 80% Volume
• Recharging Time: 7.5 hours
• Range: Class 2
Bluetooth Compatibility
Bluetooth V2.1 or above device with A2DP/AVRCP/ HFP
Safety and Handling Information
For maximum product life, do not drop, throw, or crush the speaker. Do not expose it to humidity, dust, or temperatures above 125°F
(51.6°C).
English - 19
FCC Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
operation. Privacy of communications may not be ensured when using this product.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this device.
To insure the safety of users, the FCC has established criteria for the amount of radio frequency energy various products may produce
depending on their intended usage. This product has been tested and found to comply with the FCC’s exposure criteria. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided.
20 - English
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the
specic operating instructions for satisfying RF exposure compliance. To maintain compliance with IC RF exposure compliance
requirements, please follow operation instruction as documented in this manual.
Lithium-Ion polymer battery information
This device contains a lithium-ion polymer battery. The battery must be recycled or disposed of properly. Contact your local waste
management oce for information on battery recycling or disposal.
One-Year Limited Warranty
Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in
materials and craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate and be of no further eect 12 months after the date of
original retail sale. The warranty is invalid if the Product is a) damaged or not maintained as reasonable or necessary, b) modied,
English - 21
altered, or used as part of any conversion kits, subassemblies, or any congurations not sold by Uniden, c) improperly installed,
d) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this
warranty, e) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or f) installed or
programmed by anyone other than as detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in eect,
warrantor will either, at its option, repair or replace the defective unit and return it to you without charge for parts, service, or any
other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the performance of this
warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit.
THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion
may not apply to you.
LEGAL REMEDIES: This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. This
warranty is void outside the United States of America and Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner’s manual you are certain
that the Product is defective, pack the Product carefully (preferably in its original packaging). The Product should include all parts
and accessories originally packaged with the Product. Include evidence of original purchase and a note describing the defect that has
caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:
Uniden America Service
4700 Amon Carter Blvd.
Fort Worth, TX 76155
22 - English
Loading...
