Uniden BR330T User Manual

Download

BR330T

OWNER’S

MANUAL

OWNER’S MANUAL

Precautions

Before you use this scanner, please read and observe

Precautions

the following.

IMPORTANT!

This scanning radio has been manufactured so that it will not tune to the radio frequencies assigned by the FCC for cellular telephone usage. The Electronic Communications Privacy Act of 1986, as amended, makes it a federal crime to intentionally intercept cellular or cordless telephone transmissions or to market this radio when altered to receive them. The installation, possession, or use of this scanning radio in a motor vehicle may be prohibited, regulated, or require a permit in certain states, cities, and/or local jurisdictions. Your local law enforcement officials should be able to provide you with information regarding the laws in your community.

Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product.

EARPHONE WARNING!

Be sure to use only a monaural earphone with this scanner. You can also use an optional 32 Ω stereo headset. Use of an incorrect earphone or stereo headset might be potentially hazardous to your hearing. The output of the phone jack is monaural, but you will hear it in both headphones of a stereo headset.

Set the volume to a comfortable audio level coming from the speaker before plugging in the monaural earphone or a stereo headset of the proper impedance (32 Ω). Otherwise, you might experience some discomfort or possible hearing damage if the volume suddenly becomes too loud because of the volume control or squelch control setting. This might be particularly true of the type of earphone that is placed in the ear canal.

WARNING!

Uniden does not represent this unit to be waterproof. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.

Motorola SMARTNET

trademarks of Motorola, Inc.

LTR

EDACS Private Radio Systems Inc.

Uniden Uniden America Corporation.

TrunkTracker are proprietary trademarks of Uniden America Corporation.

Other trademarks used throughout this manual are the property of their respective holders.

Important: If you use the supplied AC adapter to power the scanner but have not installed batteries in the scanner, never turn the scanner off by disconnecting the AC adapter or unplugging it from the AC outlet. This might corrupt the scanner’s memory.

Always use to turn the scanner off before disconnecting AC power.

, PL®, PRIVACY PLUS®, Private Line®,

,and SMARTZONE® are registered

is a registered trademark of E.F. Johnson Co.

is a registered trademark of M/A-COM

and Bearcat® are registered trademarks of

™

, Trunk Tracking™, and Close Call™

Precautions

Contents

The FCC Wants You to Know ..................................................................... 8

Contents

Scanning Legally ................................................... ..................................... 8

Introduction ............................................................................................... 10

Feature Highlights ..................................................................................... 11

About This Manual ....... ................................ ............................... .............. 16

Using the Multifunction Scroll Control ....... ............................... .............. 16

Entering Text ............................................ ............................... .............. 16

How the Scann er’s Controls Are Re presented in This Ma nual .............. 17

Understa ndin g Sc anni ng .................. ........................................................ 19

Understanding the Scanner’s Memory ....................................... .............. 19

What is Scanning? ....... ................................ ............................... .............. 19

What is Searching? ................................................................................... 20

What is CTCSS/DCS? .............................................................................. 20

Conventional Scanning ............................................................................. 22

Simplex Operation ................................................................................. 23

Repeater Operation ............................................................................... 23

What is Trunk Tracking? ......... ............................... ................................ ... 24

Trunked Scanning ..................................................................................... 24

Types of Trunking Systems ...................................................................... 26

Motorola Trunking .................................................................................. 26

EDACS Trunking ..................................................................... .............. 27

LTR Trunking ......................................................................................... 28

I-Call (Motorola/EDACS) ........................................................................... 29

Where To Get More Information ............................................................... 29

Information On The Internet ................................................................... 29

Included Wit h Your Sc anner ..................................................................... 31

Setting Up Your Scanner .......................................................................... 32

Using Internal Batteries ......................................................................... ... 32

Using Rechargeable Batteries .................................................................. 33

Removing the Display Sticker ................................................................... 34

Using AC Power ....................................................................................... 34

Connecting the Antenna ........................................................................... 35

Connecting an Optional Antenna ............................................. .............. 35

Connecting an Earphone/Headphone ................................................... ... 35

Connecting an Extension Speaker .............. ............................... .............. 35

Attaching the Belt Clip .............................................................................. 36

Attaching the Wrist Strap .......................................................................... 36

A Look At The Keypad . ................................ ............................... .............. 36

A Look At The Display ...................................................... ........................ 39

Using Menu ............................................................................................ ... 41

Using Func ................................................................................................ 41

Basic Operation ......................................................................................... 42

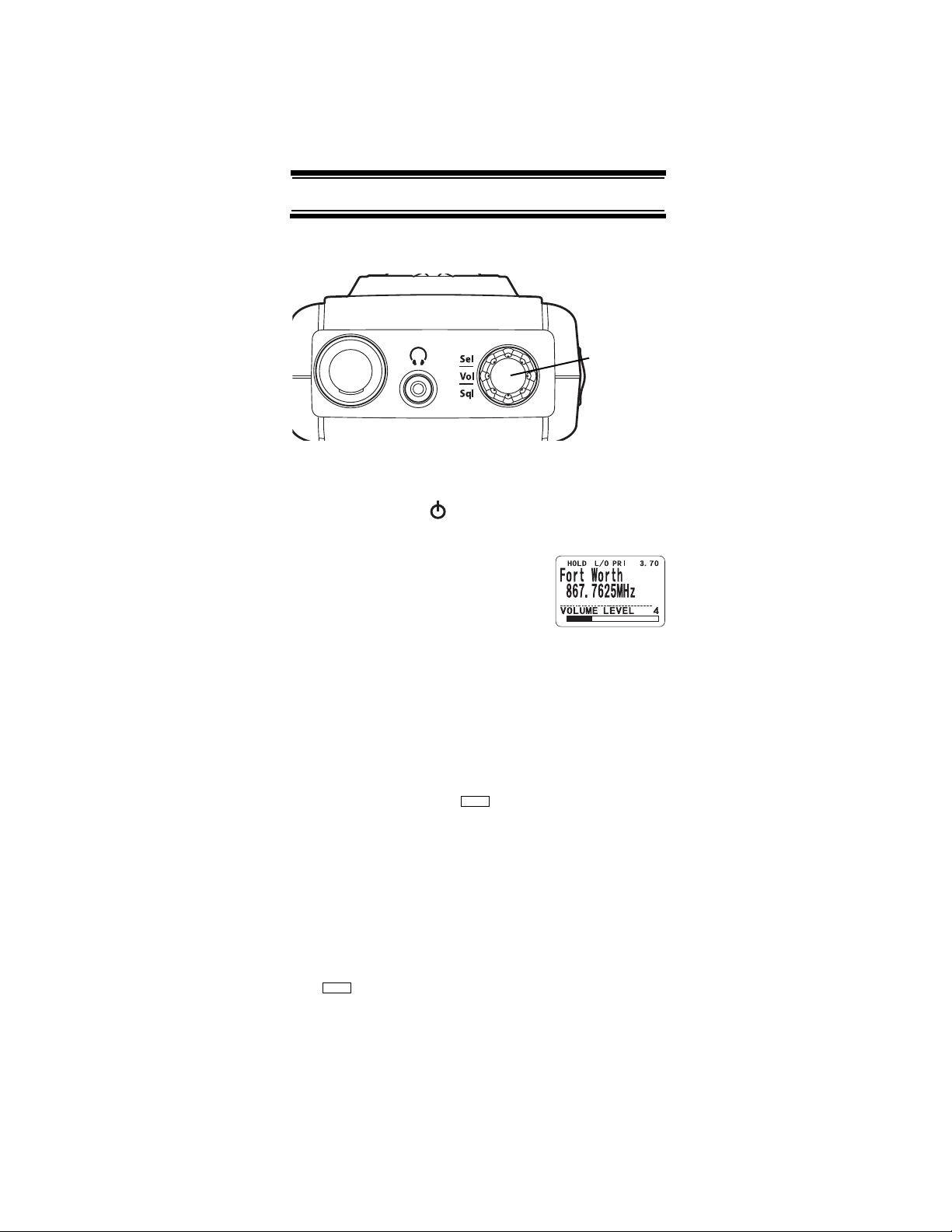

Turning On the Scanner and Setting the Squelch .................................... 42

Scanning Systems .................. ............................... ................................ ... 43

Preprogrammed System Tips ................................................................ 43

Selecting Systems to Scan ....................................................................... 44

Selecting System Channel Groups .............. ............................... .............. 45

Locking/Unlocking Systems ......................... ............................... .............. 45

Locking/Unlocking Channels ....................... ............................... .............. 45

ID Scan/ID Search Mode .......................................................................... 46

Temporarily Holding On a System ............... ............................... .............. 46

Holding On a Channel ...................................................... ........................ 46

Quickly Storing an ID During ID Search ................ ................................ ... 47

Quick-Storing Cha nnels or Talk Group I D’s .............................................. 47

Quickly Recalling Channels ...................................................................... 48

Monitoring Trunking Activity ...................................................................... 48

Toggling Channe l Alpha Tags ............................... ................................ .. 48

Using the Menu .......................................................................................... 49

Programming Systems Menu ..................................................... .............. 51

Other Settings ............................................................................................ 53

Displaying System Information ..................................................... ............ 53

Viewing Memory Used ..................................................... ....................... 53

Viewing the Firmware V ersion ................................................................53

Adjusting the Key Beep ............................................................................ 53

Locking/Unlocking the Keypad and Scroll ................................................ 53

Turning Power Save On or Off ........................................... ...................... 54

Priority Scan ............................. ............................... ................................ . 54

Using the Backlight ................................................................................... 54

Setting the Audio AGC ... ................................ ........................................... 55

Selecting the Bar Antenna ........................................................................ 55

Tuning the Bar Antenn a ............ ............................... ................................ 55

Adjusting the Display Con trast ....................... ............................... ............ 56

Initializing the Scanner’s Memory ............................................................ . 56

Connecting Your Scanner to a Personal Computer .................................. 56

Using the Cloning Options ........................................................................ 57

Wired Cloning ........................................................................................ 57

On-Air Cloning ............................................ ............................... ............ 58

Programming Radio Systems ............................................. .......................60

Quickly Programming Racing Systems .....................................................61

Manually Programming Racing Systems ......................................................63

Editing the Car ........................................................................................64

Entering/Editing a Car Number ...............................................................64

Editing a Driver .......................................................................................65

Setting a Car’s Quick Key .............................................................................65

Editing a Car’s Chann el ............................................................. .............66

Deleting a Car ........................ ............................... ................................ ..66

Setting Lockout On a Car ..................................................................... ..66

Programming Conventional Systems ...................... ................................ ..67

Entering/Editing Conventional Channel Groups .....................................67

Entering/Editing Conventional Channels ................................................68

Programming Motorola Systems ........................................ ...................... 69

Setting System Frequencies .. ............................... ................................ ..70

Setting Modulation ........................................................... .......................71

Setting Attenuation ............................................... ................................ ..71

Entering/Editing Mo torola Channel Groups ............................................72

Entering/Editing Mo torola Channels ..................................................... ..72

Programming EDACS Systems ................................................................ 73

Setting System Frequencies .. ............................... ................................ . 74

Entering/Editing EDACS Channel Groups ............................................ . 75

Entering/Editing EDACS Channels ....................................................... . 75

Programming LTR Systems ...................................................................... 76

Setting System Frequencies .. ............................... ................................ . 77

Entering/Editing LTR Channel Groups .................................................. 77

Entering/Editing LTR Channels/Talkgroups ........................................... 78

Programming/Editing Optional Settings ................................................. 80

System-Level Settings ........................ ................................ ...................... 80

Editing the System Na me .......................................................... .............80

Editing the System Quick Key ................................................................81

Setting System Lockout ..........................................................................81

Setting the System Hold Time .............................................................. ..82

Setting the Channel Delay Time .............................................................82

Setting ID Scan/Search (Trunked Systems Only) ...................................83

Editing the Fleet Map (Motorola Systems Only) .....................................83

Setting the Motorola Status Bit (Motorola Systems Only) .......................84

Setting the End Code Operation (Motorola Systems Only) ....................85

Setting I-Call (Motorola and EDACS Systems Only) ..............................85

Setting Emergency Alert (Motorola and EDACS Systems Only) ...........86

Setting Control-Channel Only (Motorola Systems Only) ........................86

Reviewing Locked Out Frequencies .......................................................87

Contents

Clearing All Locked-Out IDs .................................................................. 87

Setting the EDACS ID Format (EDACS Systems Only) ........................ 87

Setting System Attenuation (Trunked Systems Only) ............................ 88

Deleting Systems ...... ................................ ............................... .............. 88

Copying Systems ...... ................................ ............................... .............. 89

Group-Level Settings ................................................................................ 89

Entering/Editing the Group Name ............. ............................... .............. 89

Setting the Group Quick Key ................................................... .............. 90

Setting Group Lockout ........................................................................... 90

Deleting Groups ................... ............................... ................................ ... 91

Channel-Level Settings ............................................................................. 91

Editing the Channel Name ........................ ............................... .............. 91

Editing Frequencies (Conventional Channels Only) .............................. 92

Setting Channel Priority (Conventional Channels Only) ........................ 92

Setting Channel Alert ........... ............................... ................................ ... 93

Editing the Talk Group ID (Trunked Channels Only) ............................. 94

Setting CTCSS/DCS (Conventional Channels Only) ............................. 94

Setting the System Frequency Modulation ............................................ 95

Setting Channel Attenuation (Conventional Channels Only) ................. 96

Setting Channel Lockout ........................................................................ 96

Deleting Channels ................................................................................. 97

Copying/Pasting Channels ....................... ............................... .............. 97

Searching and Storing .............................................................................. 99

Service Search ........................................................................... .............. 99

Quick Search ...........................................................................................100

CTCSS/DCS Search ............................................................................... 100

Custom Search ........................................................................................101

Editing a Custom Search Range ........................ ................................. 102

Editing a Service Search ......................................................... .............103

Auto Search and Store ............................................................................104

Selecting a System ............................................................................. ..105

Storing a Conventional System ................ ............................... .............105

Storing a Trun ked System ............................................. .......................106

Using the Close Call Feature .................................................................. 107

Setting Close Call Options ........................... ............................... ............ 108

Close Call Hits .................................. ................................ ...................... 110

Search and Close Call Options ................... ............................... ............ 111

Managing Locked-Out Frequencies ........................................................ 111

Unlocking All Frequencies ...................................................................111

Reviewing Locked Out Frequencies .................................................... 111

Searching for Subaudible Tones ................. ............................... ............ 111

Screening Out Broadcast Sources ......................................................... 112

Finding Repeater Output Frequencies .................................................... 113

Setting the Maximum Auto Store Value ....... ........................................... 114

Setting the Modulation Type ....................................................... ............ 114

Setting Attenuation ...................................... ............................... ............ 114

Setting Data Skip .................................................................................... 115

Setting the Delay Time .......................................... ................................ . 115

Setting the Search Frequency Step ............. ........................................... 116

Using Weather Al ert (SAME) ............................................. ...................... 117

Searching For a Weather Broadcast ...................................................... 117

Turning Weather Alert On/Off ................................................................ . 117

Programming a SAME Group ................................................................. 118

Setting WX Alert Priority ................... ................................ ...................... 119

Using Tone-Out ....................................................... ................................ . 120

Fire Tone-Out Introduction ...................................................................... 120

Setting Tone-Out Standby ............................................. ...................... 120

Setting Up Tone-Out . ................................ ............................... ............ 120

Care and Maintenance ............................................................................. 123

General Use ............................................................................................ 123

Location .................................................................................................. 123

Cleaning ............................................. ................................ .................... 123

Repairs ..................................... ............................... ............................... 124

Birdies ..................................................................................................... 124

Troubleshooting ...................................................................................... 125

Speci fications .......................................................................................... 129

Optional Accessories ..................................... ............................... .......... 132

Appendix .................................................................................................. 133

Preset Fleet Maps ................................................................................... 133

User Defined Fleet Maps ........................................................................ 135

Type I Programming Information ......................................................... 135

Size Code Restrictions ........................................................................ 136

Planning .......................................................................................... .......... 137

Collecting Information ......................................................... .................... 137

Filling Out The Conventional System Worksheet ................................... 139

System Name and Quick Key .............................................................. 139

Group Name and Quick Key .. ............................... ............................... 139

Frequency-Alpha Tag-Priority-CTCSS/DCS .................... .................... 139

Filling Out The Motorola Worksheet ....................................................... 139

System Name and Quick Key .............................................................. 139

System Type .......................... .............................................................. 140

System Frequencies ............................................................................ 140

Fleet Map (Type I or Type I/Type II Hybrid Only) ................................ 140

Band Plan (VHF or UHF Only) .............................. ............................... 141

Group Name and Quick Key .. ............................... ............................... 141

Talk Group ID-Alpha Tag-Alert ............................................................ 141

Filling Out the LTR and EDACS Worksheet ................................. .......... 141

System Name and Quick Key .............................................................. 141

System Frequencies and LCN ......... ................................ .................... 142

Group Name and Quick Key .. ............................... ............................... 142

Talk Group ID-Alpha Tag-Alert ............................................................ 142

Conventional System W orksheet ............................................................ 143

Motorola System Worksheet .......................... ............................... .......... 144

LTR/EDACS System Worksheet .................................................. .......... 146

Preprogrammed Sys tems ....................................................................... 148

One-Year Limited W arranty .................................................................... 151

Contents

The FCC Wants You to Know

This scanner has been tested and found to comply

The FCC Wants You to Know

with the limits for a scanning receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This scanner generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

There is no guarantee that interference will not occur in a particular installation. If this scanner does cause harmful interference to radio or television reception, which can be determined by turning the scanner on and off, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the scanner and the receiver

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

Scanning Legally

Your scanner covers frequencies used by many different groups, including police and fire departments, ambulance services, government agencies, private companies, amateur radio services, military operations, pager services, and wireline (telephone and telegraph) service providers. It is legal to listen to almost every transmission your scanner can receive. However, there are some transmissions that you should never intentionally listen to. These include:

• Telephone conversations (cellular, cordless, or other private means of telephone signal transmission)

• Pager transmissions

• Any scrambled or encrypted transmissions

According to the Electronic Communications Privacy Act (ECPA), you are subject to fines and possible imprisonment for intentionally listening to, using, or divulging the contents of such a conversation unless you have the consent of a party to the conversation (unless such activity is otherwise illegal). This scanner has been designed to prevent the reception of cellular telephone transmissions and the decoding of scrambled transmissions. This is done to comply with the legal requirement that scanners be manufactured so they are not easy to modify to pick up these transmissions. Do not open your scanner’s case to make any modifications that could allow it to pick up transmissions that are illegal to monitor. Modifying or tampering with your scanner’s internal components or using it in a way other than as described in this manual could invalidate your warranty and void your FCC authorization to operate it.

In some areas, mobile and/or portable use of this scanner is unlawful or requires a permit. Check the laws in your area. It is also illegal in many areas (and a bad idea everywhere) to interfere with the duties of public safety officials by traveling to the scene of an incident without authorization.

A license is required to use this product in Canada.

The FCC Wants You to Know

Introduction

Your Bearcat BR330T scanning receiver is a state-of-the-art

Introduction

scanner radio with TrunkTracker III and racetrack operation. You can store frequencies such as police, fire/emergency, marine, air, amateur, and other communications into the scanner. You can carry it with you wherever you go. You can use the scanner’s scroll control to quickly select channels and frequencies, and you can automatically program channels in a system using the AutoStore feature. Use your scanner to monitor:

• Analog trunked public safety systems *

• Police and fire departments (including rescue and paramedics)

• NOAA weather transmissions

• Business/Industrial radio and utilities

• Marine and amateur (ham radio) bands

• Air band

• Railroad

Your scanner can monitor the following bands.

Frequency (MHz)

Lower Edge Upper Edge Modu latio n Step (kHz) Type

0.1000 0.5250 AM 5.0

0.5300 1.700 AM 10.0

1.705 24.995 AM 5.0

25.0000 26.9600 AM 5.0

26.9650 27.4050 AM 5.0

27.4100 27.9950 AM 5.0

28.0000 29.6800 NFM 20.0

29.7000 49.9900 NFM 10.0

50.0000 53.9800 NFM 20.0

54.0000 71.9500 WFM 50.0

72.0000 75.9950 FM 5.0

76.0000 87.9500 WFM 50.0

88.0000 107.9000 WFM 100.0

108.0000 136.9750 AM 25.0

137.0000 143.9875 NFM 12.5

144.0000 147.9950 NFM 5.0

148.0000 150.7875 NFM 12.5

150.8000 161.9950 NFM 5.0

162.0000 173.9875 NFM 12.5

174.0000 215.9500 WFM 50.0

216.0000 224.9800 NFM 20.0

225.0000 399.9500 AM 50.0

400.0000 405.9875 NFM 12.5

406.0000 419.9875 NFM 12.5

420.0000 449.9875 NFM 12.5

450.0000 469.9875 NFM 12.5

470.0000 511.9875 NFM 12.5

512.0000 763.9500 WFM 50.0

764.0000 775.9875 NFM 12.5

776.0000 793.9500 WFM 50.0

794.0000 805.9875 NFM 12.5

806.0000 823.9875 NFM 12.5

849.0125 868.9875 NFM 12.5

894.0125 956.0000 NFM 12.5

956.0250 1300.0000 NFM 25.0

* Motorola®, SMARTNET®,SMARTZONE M/A-COM Private Radio Systems Inc. EDACS® Wide, Narrow, and SCAT, and

E.F. Johnson Co. LTR systems.

™, extended frequency,

Longwave AM Broadcast Shortwave Radio Petro Pr od/Bcst Pi ckup CB Class D Business/Forest Prod 10 Meter Amateur VHF Low 6 Meter Amateur VHF TV Bcst 2-4 Intersystem/Astronomy VHF TV Bcst 5-6 FM Broadcast Aircraft Military Land Mobile 2 Meter Amateur Military Land Mobile VHF High Federal Government VHF TV Bcst 7-13

1.25 Meter Amateur UHF Aircraft Miscellaneous Fed Gov Land Mobile 70 cm Amateur UHF Standard UHF TV UHF TV Public Service UHF TV Public Service Public Service Public Service Public Service 25 cm Amateur Band

®,

and PRIVACY PLUS®,

Feature Highlights

General

Feature Highlights

2500 Dynamic Channels - Your scanner stores

channels more efficiently than conventional scanners, letting you store and quickly tune greater numbers of interesting frequencies.

Close Call

the scanner so it detects and provides information about nearby radio transmissions. See “Using the Close Call Feature” on Page 107 for more information.

Dynamically Allocated Channel Memory - Your scanner’s memory is organized so that it more closely matches how radio systems actually work, making it easier to program and use your scanner and determine how much memory you have used and how much you have left.

Preprogrammed Systems - Your scanner is preprogrammed with over 1000 channels covering police, fire, and ambulance operations in the 25 most populated counties in the US as well as many major races. A complete list of the scanner’s preprogrammed systems is in “Preprogrammed Systems” on Page 148.

RF Capture Technology - You can set

99 Quick Keys – You can set the scanner so you can

quickly select systems and groups by using the keypad. This makes it easy to listen to or quickly lock out those systems or groups you don’t want to scan.

Race Track Operation – You can set the scanner to scan races using a frequency list or preprogrammed into the scanner. You can scan by car number and driver name, assign the car to a quick key, and set the scanner so it sounds an alert when the car you are scanning transmits.

13 Service Searches - frequencies are preset in separate Public Safety, News, HAM Radio, Marine, Railroad, Air, CB Radio, FRS/GMRS, Racing, Special, AM Broadcast, FM Broadcast, and TV Broadcast searches, to make it easy to search and scan for specific transmissions.

Lockout – You can lock out any system, group, frequency, or channel while scanning or searching.

Feature Highlights

If you lock out a system or group, any channels belonging to that system or group are also locked out.

You can lock out up to 200 frequencies and review all locked-out frequencies. The scanner skips locked-out frequencies while using the Close Call feature or while searching.

CTCSS and DCS Squelch Modes – prevent interference from stations not using the mode you select.

Fire Tone-Out Standby – Lets you set the scanner to alert you if a two-tone sequential page is transmitted. You can set up to 10 settings (transmit frequency, tone frequencies) then select one for standby monitoring.

Broadcast Screen – Sets the scanner so it ignores

Close Call

or search hits on known broadcast

frequencies including pager frequencies.

Custom Screen – Lets you input up to 10 frequency ranges that the scanner will ignore during Close Call

or search operation.

Dropout Delay – You can set whether the scanner pauses at the end of a transmission to wait for a reply. You can set the delay time for each system you scan, and while

searching and using the Close Call

feature.

Built-In Bar Antenna – Lets you clearly listen to AM radio broadcasts.

Attenuator – You can set the scanner’s attenuator to reduce the input strength of strong signals by about 18 dB.

Repeater Reverse – You can set the scanner so it switches to the input frequency on a conventional repeater system.

Channel Alert – You can set the scanner so it alerts you when there is activity on any channel you specify.

Memory Check – Lets you see at a glance how much total memory is left.

Scan and Search Operation – Lets you include selected service searches or custom search ranges during normal scan operation.

Custom Alerts – For each alert in the scanner (such as channel alert, Close Call alert, emergency alert), you can select from 9 different tone patterns and also set the alert volume level independently from the main volume level.

Automatic Channel Step – Accepts frequencies on any valid channel step, even if it does not fall within the band plan’s default step.

Frequency Step – Lets you select a frequency step (5, 6.25, 7.5, 8.33, 9, 10, 12.5,15, 20, 25, 50 or 100 kHz) for manual mode and chain search mode. The scanner ’s auto step feature lets you set the scanner so it automatically chooses the correct step.

Quick Recall – Lets you quickly select a specific channel by choosing the system, group, and channel.

Scan/Search Delay – You can set the scanner so it remains on a frequency up to 5 seconds after the last transmission to wait for a possible reply.

Text Tag g i ng – You can name each system, group, channel, talk group ID, custom search range, and SAME group, using up to 16 characters per name.

Unique Data Skip – Allows your scanner to skip unwanted data transmissions and reduces birdies.

Duplicate Frequency Alert – Alerts you if you try to enter a duplicate name or frequency already stored in a system.

Memory Backup – If power is lost or disconnected, the scanner retains the frequencies you programmed in its memory.

Note: The scanner’s frequency coverage is not continuous and does not include the cellular telephone bands.

Trunk Tracking

Trunk Tracker III™ Operation – Follows unencrypted

conversations on analog Motorola, EDACS, EDACS SCAT, and LTR trunked radio systems, including systems in VHF, UHF, 800 MHz, and 900 MHz bands.

Feature Highlights

The scanner can scan both conventional and trunked systems at the same time.

Control Channel Only Scanning – If the scanner is set to scan Motorola trunking frequencies, you can set it so it scans using only control channel data. You do not have to program voice channel frequencies into memory in this mode as long as all possible control channels are programmed.

Weather

Weather Search – Lets your scanner receive your

local NOAA weather transmission.

SAME Weather Alert – Lets your scanner alert you when a SAME weather alert is transmitted on a NOAA weather channel. The scanner also displays the transmitted alert type. This helps you quickly find out about severe weather in your area and lets you avoid false alarms.

WX Priority – Lets your scanner alert you when a SAME weather priority alert is transmitted on a NOAA weather channel.

Service Search – Lets you quickly select and search

the scanner’s preprogrammed frequencies.

Custom Search – Lets you program up to 10 custom search ranges. You can search any of these ranges simultaneously.

CTCSS/DCS Search – Lets the scanner search for CTCSS or DCS tones. You can identify up to 50 CTCSS tones and 104 DCS tones.

Quick Search – Lets you search from the currently-tuned frequency if you are searching a conventional system.

Auto Store

Frequency AutoStore – Automatically stores all active

frequencies into the selected conventional system.

Talk Group ID AutoStore – Automatically stores all new talk group ID’s into a channel group you select.

Priority

Priority Scan – Priority channels let you keep track of

activity on your most important channel(s) while monitoring other channels for transmissions.

Priority Plus – You can set the scanner so it scans only the priority channels

Backlight and Power

Display and Keypad Backlight – Makes the display and

keypad easy to see in dim light. You can adjust the back light so it turns on when you press a key, when squelch breaks during a transmission, or manually.

Low Battery Alert – The scanner alerts you if the batteries need to be recharged or replaced.

Battery Save – You can set the scanner so it reduces the amount of power it needs if there are no transmissions.

Key Controls

Key Lock – You can deactivate the scanner’s keys to

help prevent accidentally changing the scanner’s programming.

PC Control and Cloning

PC Control – You can transfer programming data to and

from your scanner and your personal computer, and control the scanner using a computer. This helps you find frequencies listed on the Internet and load them into the scanner. Free PC control and programming software will be available at http://www.uniden.com.

Clone Mode – You can clone all programmed data, including the contents of the scanner’s memory, menu settings, and other parameters from one BR330T scanner to another BR330T scanner.

On-Air Cloning – You can clone all programmed data over the air from a PC to one or more BR330T scanners.

Feature Highlights

About This Manual

The screen displays used in this manual are representations of what might appear when you use your scanner. Since what you see depends on the frequencies and user IDs for your area and the settings you select, you might notice some differences between what is in this manual and what appears on your scanner.

Using the Multifunction Scroll Control

The scroll control on top of the BR330T lets you easily control channel selection, volume, and squelch, and how information appears on the display.

To adjust menu settings, change channels in Hold mode, and resume scanning: Simply rotate the

scroll control.

To change the scanner’s volume: Briefly press the scroll control once, then rotate it. VOLUME LEVEL and the current volume level appear on the display.

To adjust the squelch: While holding down on the left side of the scanner, briefly press the scroll control once then rotate it. SQUELCH LEVEL and the current squelch level appear on the display.

Func

Entering Text

To enter a letter, turn the scroll control until the character you want appears, To enter a number, press a number key. To enter a decimal point, press .

To move the cursor to the left, press /4. To move the

cursor to the right, press 6/ .

To clear a character, press twice. To clear all characters, press three times.

To accept an entry, press down on the scroll control or press E.

How the Scanner’s Controls Are Represented in This Manual

To help navigate the scanner’s menus, the steps shown in this manual show the displays you see and the keys you press or control you operate to get a desired result.

This example shows you how to use the scanner’s menu to edit an existing system name. It shows you the key to press ( ) to select a menu option and the option you see (Program System) when you

press . It also instructs you to turn the scroll control (shown as

press the scroll control (shown as (Edit Name).

 Program System  

Select the system 

 

Edit Name 

Follow these steps to enter/edit the system name.

1. The first character of the system name is covered by a cursor. Rotate the scroll control to select the character you want.

) to view a series of choices then

) to select a choice

2. Press 6/ on the keypad to select the next character. The cursor moves to the next character. To move the cursor to a previous character, press

/4.

3. Repeat Steps 1 and 2 until you have entered the system name. Then press down on the scroll control or press E to accept the setting.

Hints:

• Each system name can be up to 16 characters. Abbreviate as necessary to fit.

Feature Highlights

• The default system names include the following letter in the 16th position to indicate the system type:

R = Racing M = Motorola E = EDACS L = LTR C = Conventional

• Press twice to delete the current character.

• Press three times to clear the entire alpha tag.

To get the most from this manual, review the contents to become familiar with the basic functions available. If you are new to scanning or trunk tracking, be sure to read “Understanding Scanning” on Page 19 for a quick background on the technology. The first thing you’ll need to do is install batteries in the scanner. Then you need to connect the included antenna to the scanner. See “Setting Up Your Scanner” on Page 32 if you need any help doing this.

Understanding Scanning

This section provides you with background on how

Understanding Scanning

scanning works. You don’t really need to know all of this to use your scanner, but some background knowledge will help you get the most from your BR330T.

Understanding the Scanner’s Memory

Your scanner’s memory is organized in an architecture called Dynamic Allocated Channel memory. This type of memory is organized differently and more efficiently than the bank/channel architecture used by traditional scanners. Dynamic Allocated design matches how radio systems actually work much more closely, making it easier to program and use your scanner and determine how much memory you have used and how much you have left.

Instead of being organized into separate banks and channels, your scanner’s memory is contained in a pool. You simply use as much memory as you need in the pool to store as many frequencies, talk group ID’s, and alpha tags as you need. No memory space is wasted, and you can tell at a glance how much memory you have used and how much remains.

With a traditional scanner, when you program it to track a trunked system, you must first program the frequencies. Since you can only program one trunking system per bank in a traditional scanner, if there were (for example) 30 frequencies, the remaining channels in the bank are not used and therefore wasted. Also, since some trunked systems might have hundreds of talk groups, you would have had to enter those types of systems into multiple banks in order to monitor and track all the ID’s.

What is Scanning?

Unlike standard AM or FM radio stations, most twoway communications do not transmit continuously. Your BR330T scans programmed channels until it

Understanding Scanning

finds an active frequency, then stops on that frequency and remains on that channel as long as the transmission continues. When the transmission ends, the scanning cycle resumes until the scanner receives another transmission.

What is Searching?

The BR330T can search each of its bands and up to 10 bands together to find active frequencies. This is different from scanning because you are searching for frequencies that have not been programmed into the scanner. When you select frequency bands to search, the scanner searches for any active frequency within the lower and upper limits you specify. When the scanner finds an active frequency, it stops on that frequency as long as the transmission lasts. If you think the frequency is interesting, you can program it into the scanner’s memory. If not, you can continue to search.

What is CTCSS/DCS?

Your scanner can monitor systems using a Continuous Tone Coded Squelch System (CTCSS) and Digital Coded Squelch (DCS) system, which allow squelch to open only when the tone you have programmed with a specific frequency is received along with a transmission.

CTCSS and DCS are subaudible tone signaling systems sometimes referred to as PL or DPL (Motorola’s trademarked terms for Private Line and Digital Private Line respectively). CTCSS and DCS are used only for FM signals and are usually associated with both amateur and commercial twoway frequencies. These systems make use of a special subaudible tone that accompanies a transmitted signal.

CTCSS and DCS are used for many purposes. In many cases, CTCSS and DCS are used to restrict access to a commercial repeater, so that only those

units which transmit the correct tone along with their signal can “talk” to the repeater.

CTCSS and DCS are also used in areas that receive interference where there are several stations with output frequencies close to each other. When this occurs, you might hear multiple communications on the same frequency. The stations might even interfere with each other to the point where it is impossible to clearly receive any of the stations. A scanner equipped with CTCSS and DCS (like your scanner) can code each received frequency with a specific CTCSS or DCS frequency. Then, when you receive multiple signals, you only hear the transmission with the CTCSS or DCS tone you programmed. If you do not receive the correct tone with a signal, the scanner’s squelch remains closed and you hear nothing.

You can search for the following CTCSS frequencies and DCS codes.

CTCSS Frequencies (Hz)

67.0 69.3 71.9 74.4 77.0 79.7

82.5 85.4 88.5 91.5 94.8 97.4

100.0 103.5 107.2 110.9 114.8 118.8

123.0 127.3 131.8 136.5 141.3 146.2

151.4 156.7 159.8 162.2 165.5 167.9

171.3 173.8 177.3 179.9 183.5 186.2

189.9 192.8 196.6 199.5 203.5 206.5

210.7 218.1 225.7 229.1 233.6 241.8

250.3 254.1

DCS Codes (Octal)

023 025 026 031 032 036 043 047

051 053 054 065 071 072 073 074

114 115 116 122 125 131 132 134

143 145 152 155 156 162 165 172

Understanding Scanning

174 205 212 223 225 226 243 244

245 246 251 252 255 261 263 265

266 271 274 306 311 315 325 331

332 343 346 351 356 364 365 371

411 412 413 423 431 432 445 446

452 454 455 462 464 465 466 503

506 516 523 526 532 546 565 606

612 624 627 631 632 654 662 664

703 712 723 731 732 734 743 754

Conventional Scanning

Conventional scanning is a relatively simple concept. Each group of users in a conventional system is assigned a single frequency (for simplex systems) or two frequencies (for repeater systems). Any time one of them transmits, their transmission always goes out on the same frequency. Up until the late 1980s, this was the primary way that radio systems operated.

Even today, there are many 2-way radio users who operate using a conventional system:

•Aircraft

• Amateur radio

• FRS/GMRS users

• Broadcast AM/FM/TV stations

• Many business radio users

When you want to store a conventional system, all you need to know is the frequencies they operate on. When you are scanning a conventional system, the scanner stops very briefly on each channel to see if there is activity. If there isn’t, the scanner quickly moves to the next channel. If there is, then the scanner pauses on the transmission until it is over.

Simplex Operation

Simplex systems use a single frequency for both transmit and receive. Most radios using this type of operation are limited to line-of-sight operation. This type of radio is frequently used at construction job sites, and with inexpensive consumer radios such as GMRS/FRS radios. The range is typically 1-8 miles, depending upon the terrain and many other factors.

Repeater Operation

Repeater systems use two frequencies: one transmits from the radio to a central repeater; the other transmits from the repeater to other radios in the system. With a repeater-based system, the repeater is located on top of a tall building or on a radio tower that provides great visibility to the area of operation. When a user transmits (on an input frequency), the signal is picked up by the repeater and retransmitted (on an output frequency). The user’s radios always listen for activity on the output frequency and transmit on the input frequency. Since the repeater is located very high, there is a very large line of sight.

Typical repeater systems provide coverage out to about a 25-mile radius from the repeater location.

Understanding Scanning

What is Trunk Tracking?

Your BR330T is designed to track the following types of trunking systems.

• Motorola Type I, Type II, Type IIi hybrid, SMARTNET, and PRIVACYPLUS analog trunking systems, which are extensively used in 800 MHz communication systems.

• LTR trunking systems

• EDACS SCAT trunking systems

• EDACS trunking systems

When tracking these types of systems, you might want to remember that your scanner can track more than one trunking system at a time and scan conventional and trunked systems at the same time.

Conventional scanning is a simple concept. You enter a frequency used by someone you want to monitor into your scanner’s memory. For example, the police in your area might transmit on 460.500 MHz, the fire department on 154.445 MHz, the highway department on 37.900 MHz, etc. So when your scanner stops on a frequency, you usually know who it is, and more importantly, you can stop on a channel and listen to an entire conversation. This type of scanning is easy and fun.

However, as the demand for public communications has increased, many public radio users do not have enough frequencies to meet their needs, creating a serious problem. Trunking radio systems help solve this problem.

Trunked Scanning

While conventional scanning worked great while there were only a few groups wanting to use the frequencies, with the advent of smaller, lower-cost radios more and more agencies and businesses wanted to take advantage of the utility of 2-way radio. As a result, the bands that were used most became

full, so new users were not able to take advantage of the technology as quickly as they wanted.

Trunking solved this frequency shortage by allowing multiple groups to use the same set of frequencies in a very efficient way. While each type of trunking system operates a little differently (see the next few sections), they all work on the same basic premise: even in a system with a lot of users, only a few users are ever transmitting at any one time.

Instead of being assigned a frequency, as with conventional systems, each group is assigned a talk group ID. A central computer controls the frequency each group operates on...and this frequency selection is made each time a user transmits. So, while on a conventional system queries, replies, and follow-ups are all on a single frequency, they could each be on completely different frequencies on a trunked system. This semi-random frequency assignment made monitoring such a system impossible prior to Uniden’s invention of the TrunkTracker scanner.

Not only does your BR330T scan channels like a conventional scanner, it actually follows the users of a trunked radio system. Once you know a talk group’s ID, you won’t miss any of the action.

If you are a new scanner enthusiast, you might want to read the first part of this manual and use your scanner in conventional mode before you begin trunk tracking. Understanding scanning fundamentals and terminology will make trunk tracking much easier. If you are already an experienced scanner operator, you might want to go to “Programming Motorola Systems” on Page 69, “Programming EDACS Systems” on Page 73, or “Programming LTR Systems” on Page 76 now.

Understanding Scanning

Types of Trunking Systems

Trunking systems divide a few frequencies among many different users, but the way that each system does this is slightly different. This section describes some of the technical data behind Motorola, EDACS, and LTR trunked radio systems.

Motorola Trunking

While there are different types of Motorola trunking systems, they all use the same basic trunking method. The system consists of one control channel (or as many as 4 per system but only one is active at any one time), plus one or more voice channels (typically 10, 20, or 28 total channels). When a user presses Push To Talk (PTT) to transmit, their radio first sends their talk group information to the control channel. The computer then assigns that talk group to a specific voice channel and transmits that data over the control channel. All radios in that talk group switch over to the assigned voice channel and the user can begin speaking. This all typically takes place in about a second...the person transmitting hears a beep from their radio when the channel is assigned and then it is OK to start talking.

The systems in use are:

Motorola Type I – the radios send the radio ID, the fleet and subfleet talk group ID to the control channel each time they transmit. To program a Type I system, you need to know the system’s fleet map. The most common fleet maps are included in “Preset Map 1 Preset Map 2” on Page 133. You can also find fleet map resources on the web.

Motorola Type II – the radios only send the radio ID and radio channel code to the control channel. The central computer keeps a database of radio ID’s and which talk group is assigned to which channel code for each radio, so with this system the user’s radio sends only about transmission. Type II systems do not use Fleet-

/3 the data as a Type I system with each

subfleet talk groups; instead they use a 5-digit ID for each talk group.

Type IIi Hybrid — these systems support a mix of both Type I and Type II users. Like Type I systems, you must know the system’s fleet map to ensure proper tracking.

EDACS Trunking

EDACS trunking works in much the same way as Motorola trunking with a couple of major differences. In an EDACS system, each frequency used by the system is assigned a Logical Channel Number (LCN) so that less data needs to be transmitted by the control channel. Also, talk groups are assigned in an Agency-Fleet-Subfleet (AFS) hierarchy. Also, there is one variation of EDACS called SCAT that your BR330T can monitor.

Logical Channel Numbers – each frequency used by the system is assigned an LCN. This information is programmed into each user radio. When a user presses PTT, their radio sends their AFS information to the control channel. The computer then assigns that talk group to a channel and sends the LCN so that all other radios in that talk group will switch to the correct channel. To program an EDACS system in your scanner, you will need to know both the frequencies used by the system and the LCN for each frequency.

Agency-Fleet-Subfleet – talk group ID’s for EDACS systems are assigned in a way that makes it easy to see at a glance the affiliation of the user. Each radio is assigned a 2-digit agency identifier from 00 – 15. For example, 01 might be used by the police, 02 by the ambulance service, 03 by the fire department, and so on. Each agency is then subdivided up to 16 times to provide fleet identification, and then 8 more times to identify subfleets.

For example, the complete AFS for the Police Department West District’s dispatch channel might be

Understanding Scanning

01-062. 01 identifies the agency as the police department, 06 identifies the fleet as the West district, and 2 identifies the subfleet as the dispatch channel. While these assignments are somewhat arbitrary and vary from system to system, there are many resources on the web for finding the assignments for most systems. Because of the logical hierarchy of the AFS system, your BR330T lets you assign wildcard ID’s that let you, for example, use only one ID memory to identify all units in either an agency or a fleet.

EDACS SCAT – EDACS SCAT (Single Channel Autonomous Trunking) systems operate on a single channel and alternate control data with analog voice traffic. While your BR330T cannot track ID’s in this system, it can eliminate the control data so that all you hear is the voice transmissions when you monitor this type of system.

LTR Trunking

LTR (Logic Trunked Radio) systems are trunking systems used primarily by business or private communications service providers, such as taxicabs, delivery trucks, and repair services. These systems encode all control information as digital subaudible data that accompanies each transmission, so there is no separate control channel. Users on an LTR system are assigned to specific talk groups, which are identified by the radio as six digit numbers.

These numbers are in the form AHHUUU, where:

A = Area code (0 or 1) H = Home repeater (01 through 20) U = User ID (000 through 254)

When the scanner receives a transmission on a channel set to the LTR mode, it first decodes the LTR data included with the transmission. In the ID search mode, the scanner stops on the transmission and displays the talk group ID on the display. In the ID scan mode, the scanner only stops on the transmission if

the LTR data matches a talk group ID that you have stored in the talk group ID list and have not locked out. LTR systems are frequently programmed so that each radio has a unique user ID.

I-Call (Motorola/EDACS)

I-calls are direct unit-to-unit transmissions that are not heard by other system users. Your BR330T can receive I-call transmissions. See “Setting I-Call (Motorola and EDACS Systems Only)” on Page 85 for more information about monitoring I-call transmissions.

Where To Get More Information

By itself, this manual really only provides part of what you need to know to have fun scanning – how to program and use the scanner.

Information On The Internet

The Internet is a great source for current frequencies and information about scanning. Many web sites have lists of frequencies for your area. You can use a search engine to find and use them.

Make a list of the agencies you want to listen to, then look up the frequencies and systems used by those agencies. Here are a few useful sites:

• http://www.scannermaster.com * - frequency resources and home of Police Call.

You can also call them at 1 800 SCANNER (hours are from 10:00 a.m. to 5:00 p.m. Eastern Time Monday through Friday).

• http://www.radioreference.com premier source for user-supported radio system information.

• http://www.bearcat1.com - frequency information from National Communications.

- the Internet's

Understanding Scanning

• http://svartifoss2.fcc.gov/reports/index.cfm

conventional frequency information on file with the US Government

• http://groups.yahoo.com/group/BR330T

- a group for people interested in discussing the BR330T.

* - These web sites are not affiliated with Uniden Corporation.

Included With Your Scanner

Connection

Cable

Wrist Strap

AC Adapter

Batteries

Scanner

(with antenna

attached)

OWNER’S MANUAL

BR330T

OWNER’S

MANUAL

Belt Clip

BNC/SMA Adapter

Owners Manual

and other

printed

material

If any of these items are missing or damaged, immediately contact your place of purchase or Uniden Customer Service at: (800) 297-1023, 8:00 a.m. to 5:00 p.m., Central, Monday through Friday.

Included With Your Scanner

Setting Up Your Scanner

These guidelines will help you install and set up your

Setting Up Your Scanner

new scanner:

• If your scanner receives interference or electrical noise, move the scanner or its antenna away from the source.

• To improve the scanner’s reception, use an optional external antenna designed for multi-band coverage. (You can purchase this type of antenna at a local electronics store). If the optional antenna has no cable, use 50-75 Ω coaxial cable for lead-in. A mating plug might be necessary for the optional antennas.

• Use an optional mono earphone or mono headset with proper impedance (32 Ω) for private listening. Read the precautions on the inside front cover of this Owners Manual.

• Do not use the scanner in high-moisture environments such as the kitchen or bathroom.

• Avoid placing the scanner in direct sunlight or near heating elements or vents.

Using Internal Batteries

You can power your scanner using three alkaline or rechargeable AA batteries.

Before installing batteries, set the switch in the battery compartment to match the type of batteries you will use. Select ALKALINE for non-rechargeable battery types and Ni-MH for rechargeable battery types. See also “Using Rechargeable Batteries” on Page 33 when

you use rechargeable batteries.

1. Remove the battery cover and set the battery switch.

2. Install 3 AA batteries, matching the polarity symbols (+ -).

WARNING!

Set ALKALINE/Ni-MH to Ni-MH for use only with rechargeable batteries. Never attempt to recharge non-rechargeable batteries. Non-rechargeable batteries can get hot and can even burst if you try to recharge them.

3. Replace the cover.

When flashes and the scanner beeps every 15 seconds, replace the batteries.

Using Rechargeable Batteries

You can also use three rechargeable batteries to power your scanner. Before you use rechargeable batteries, you must charge them. The scanner has a built-in circuit that lets you recharge batteries while they are in the scanner. To charge the batteries, set ALKALINE/ Ni-MH inside the battery compartment to NI-MH, install the batteries in the scanner, and connect the supplied AC adapter to the scanner's DC 6V jack (see “Using AC Power” on Page 34).

WARNING!

Do not connect the AC adapter to the scanner if non-rechargeable batteries (such as alkaline batteries) are installed in the scanner and ALKALINE/Ni-MH is set to NI-MH, or if you are unsure of the switch's position. Non-rechargeable batteries can get hot and can even burst if you try to recharge them. Before you use rechargeable batteries for the first time, charge them for 14 hours to bring them to a full charge. Discharged batteries take about 14 hours to fully recharge.

Setting Up Your Scanner

If an AC adapter is connected to the scanner, the scanner checks the condition of the installed batteries. If the scanner is turned off and the batteries require a full charge, Normal Charging appears as the batteries are recharged. When the batteries are fully charged, Charge Complete appears.

If no batteries are installed in the scanner, No Battery appears. If there is a problem with the installed batteries, Battery Error appears. If the installed batteries are Ni-MH batteries but ALKALINE/Ni-MH is set to ALKALINE, Charge Off appears and the scanner does not charge the batteries.

Removing the Display Sticker

Before you use the scanner, remove the protective plastic sticker over the display.

Using AC Power

You can power the scanner using the supplied 6V, 800 mA AC adapter.

To use the scanner on AC power, plug the adapter into 6V 800 mA on the right side of the scanner, then plug the AC adapter into a standard AC outlet.

If rechargeable batteries are installed and ALKALINE/ Ni-MH is set to NI-MH, the adapter powers the scanner and recharges the installed batteries at the same time.

WARNING!

To prevent damage to Ni-MH batteries, never charge

them in an area where the temperature is above 113°F (45°C) or below 32°F (0°C).

Connecting the Antenna

To attach the supplied flexible antenna to the connector on the top of your scanner, simply screw it onto the scanner's SMA connector.

Connecting an Optional Antenna

The scanner's SMA connector makes it easy to connect a variety of optional antennas, including an external mobile antenna or outdoor base station antenna.

Note: Always use 50- or 75-ohm, RG-58, or RG-8, coaxial cable and the supplied BNC/SMA adapter to connect an outdoor antenna. If the antenna is over 50 feet from the scanner, use RG-8 low-loss dielectric coaxial cable. Cable loss increases with higher frequency.

Connecting an Earphone/Headphone

For private listening, you can plug a 1/8-inch (3.5 mm) mini-plug earphone or headphones (not supplied) into the headphone jack on top of your scanner. This automatically disconnects the internal speaker. See “Earphone Warning” at the front of the manual for important information about using an earphone/ headphone.

Connecting an Extension Speaker

In a noisy area, an optional amplified extension speaker, positioned in the right place, might provide more comfortable listening. Plug the speaker cable's

/8-inch (3.5-mm) mini-plug into your scanner's jack.

WARNING!

Never connect anything other than an earphone or the recommended amplified extension speaker to the scanner’s headphone jack. This might damage the scanner.

Setting Up Your Scanner

WARNING!

Never connect any part of the headphone jack to the antenna jack or connect the radio to an installation where the antenna and audio connection are grounded. This might damage the scanner.

Attaching the Belt Clip

To make your scanner easier to carry when you are on the go, use the supplied belt clip. Rotate the scanner upside down to remove it from the clip.

Attaching the Wrist Strap

To keep your scanner safely close at hand, use the supplied wrist strap. Push the small loop on one end of the wrist strap through the lug on the right side of the scanner, then thread the other end of the wrist strap back through the small loop to secure it.

A Look At The Keypad

car

Your scanner's keys have various functions labeled on the key tops and below the keys.

To select the function labeled on a key, simply press the key. To select the function labeled below a key, hold down on the left side of the scanner then press the key. appears on the display.

Func

If your scanner's keys seem confusing at first, the following information should help you understand each key's function.

Key Name Description

Hold/

Hold – Holds the scan or the

frequency search when pressed. Resumes the scan or the frequency search when pressed again.

Func

+ – Quickly turns the

Close Call feature on or off (see “Setting Close Call Options” on Page 108).

Scan/srch Scan – Scans the stored channels.

Func

+ srch – Starts quick search or quickly accesses the search menu.

L/O

L/O –

Lets you lock out a selected

channel or skip a specified frequency.

Press and hold for more than 2 sec-

onds to unlock all channels in a system

or all frequencies in a Search mode

and Close Call mode. Also use to exit a

menu.

Func

+ L/O – Press quickly to lock

and unlock a selected system in Scan

or Scan Hold mode and review search

lockout frequencies in Search or

Search Hold mode.

Setting Up Your Scanner

Key Name Description

– Turns the display

backlight on or off.

Press and hold for more than 2 seconds to turn the scanner on or off.

Func

+ – Locks and unlocks

the keypad.

1-91-9 – Enters a frequency, enters

quick key numbers, and selects a custom search range in Custom Search mode.

Selects systems by quick key in scan mode.

Func

+ 1-9 – Selects groups by

quick key in scan mode.

1/pri 1 – Enters a 1.

Func

+ pri – Selects the priority

mode in scan hold mode.

2/wx 2 – Enters a 2.

Func

+ wx – Selects the weather function in the menu in the Hold mode.

4 – Enters a 4.

Func

+ – Moves the active

character to the left while editing data.

6 – Enters a 6.

Func

+ – Moves the active

character to the right while editing data.

Key Name Description

7/rcl 7 – Enters a 7.

Func

+ rcl – Displays a series of prompts to quickly select a specific channel in the scan hold mode.

/rev

– Enters a decimal point or dash in a frequency or talk group ID, enters or selects an extended 2digit Quick Key, enters an “i” for I-Call input.

At a prompt, answers “No.”

Func

+ rev – Monitors the currently-tuned frequency’s reverse frequency.

E/yes/att E – Press to select input and menu

items, to quickly edit a channel in Scan Hold Mode, and store a frequency into memory in Scan Hold mode.

At a prompt, answers “Yes.”

Func

+ att – Turns the scanner’s attenuator on or off for the current channel (for conventional systems) or system (for trunked systems).

0 race/car 0 – Enters a frequency and enters

quick key numbers.

race/car – Enters a race number and car number.

A Look At The Display

The display has indicators that show the scanner's current operating status. The display information helps you understand how your scanner operates.

Setting Up Your Scanner

Sn: - appears with a number to show the currentlyselected System Quick Key number. n appears to show the first digit of the Quick Key number. For example, if System Quick Key 75 is selected, S7: appears. The currently active system indicator flashes.

ATT - appears when the attenuation feature is turned on. See “Setting Attenuation” on Page 71, “Setting System Attenuation (Trunked Systems Only)” on Page 88, and “Setting Channel Attenuation (Conventional Channels Only)” on Page 96.

PRI - appears when the priority feature is turned on (see “Priority Scan” on Page 54).

- appears when you lock the keypad (see “Locking/Unlocking the Keypad and Scroll” on Page 53).

- alerts you when the battery power gets low.

GRP - shows the currently activated group or selected group Quick Key number, appears with numbers (0-9). The currently active group indicator flashes.

AM/FM/NFM/WFM - appears to show the type of reception mode.

L/O - appears when you manually select a channel you locked out or a skip frequency.

- appears when you hold down to select a

Func

function.

- appears when the scanner is set to a Close Call feature mode (see “Using the Close Call Feature” on Page 107).

SCAN - scrolls while the scanner is scanning.

DSKP - appears when data skip is turned on.

HOLD - appears while the scanner is set to scan or

search hold mode.

- appears if priority is turned on

SCR - appears when one or more broadcast screen bands are turned on.

- appears to show signal strength (0 to 5).

REP - appears when repeater find is turned on.

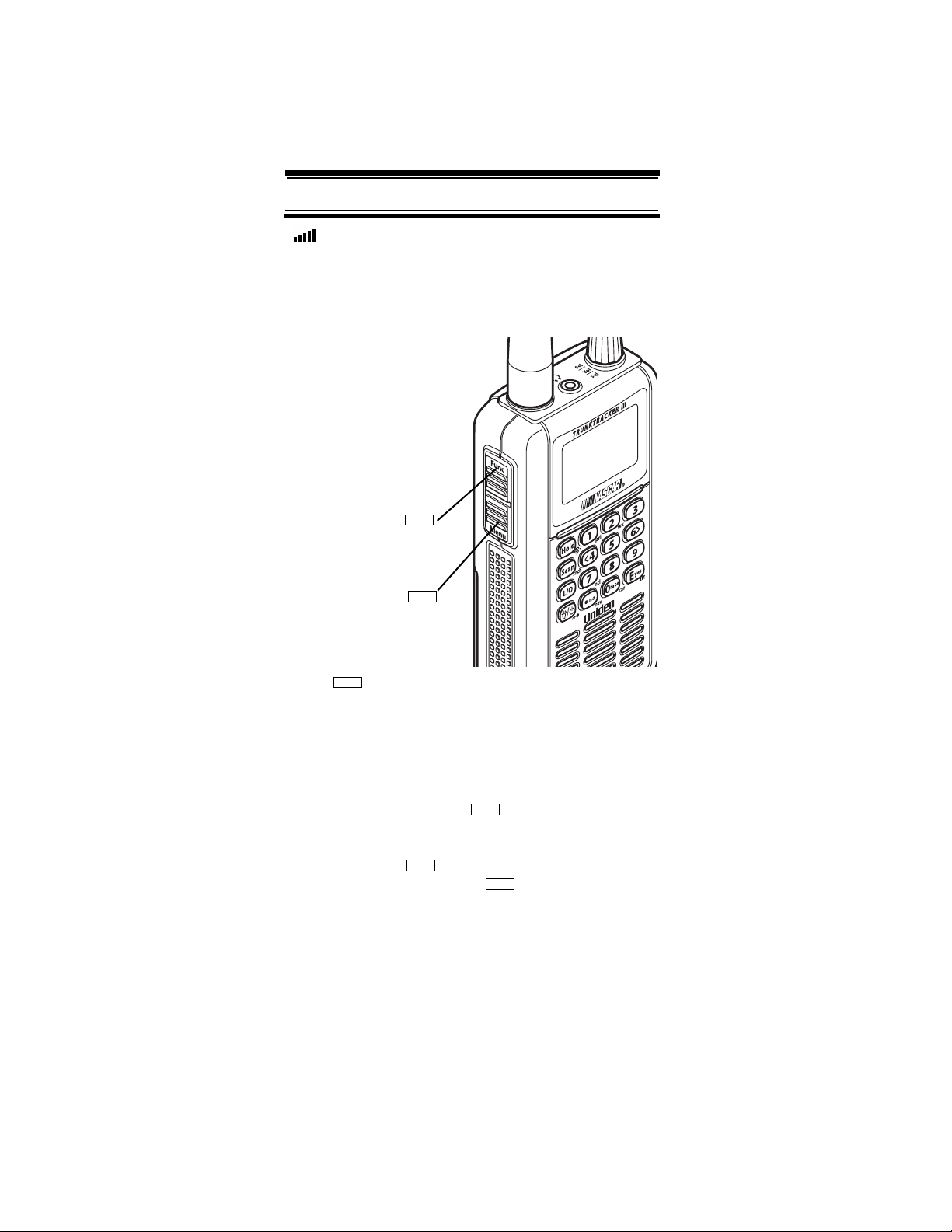

Using Menu

Func

Press on the left side of the scanner to enter the

menu. See “Using the Menu” on Page 49 for more information about the scanner’s menu options.

Using Func

To select the function labeled below a key on the front of the scanner, hold down on the left side of the scanner, then press that key. To hold on a system while scanning or temporarily stop on a channel while searching, press . To select a system in Scan or

Func

Scan Hold mode, hold down and rotate the scroll control.

Func

Setting Up Your Scanner

Basic Operation

Turning On the Scanner and Setting the Squelch

Scroll

Control

Note: Make sure the scanner's antenna is connected

before you turn it on.

1. Press and hold for about 2 seconds to turn on the scanner.

2. Briefly press the scroll control once. VOLUME LEVEL and a number appear on the display.

3. While VOLUME LEVEL appears, rotate the scroll control to set the volume to a comfortable listening level.

Note: If you do not press any key or turn the scroll control within about 10 seconds, VOLUME LEVEL disappears. If this happens, simply press the scroll control again.

4. While holding down on the left side of the scanner, briefly press the scroll control once. SQUELCH LEVEL and a number appear on the display.

5. While SQUELCH LEVEL appears, rotate the scroll control to set the squelch to the level you want.

Note: If you do not press any key or turn the scroll control within about 10 seconds, SQUELCH LEVEL disappears. If this happens, hold down

Func

and the scroll control again.

Func

Scanning Systems

To begin scanning programmed systems, press Scan. The BR330T scans all unlocked systems in all activated quick-key groups and any searches unlocked for search and scan.

Notes:

• If no systems are programmed, or all systems are locked out, an error message appears. Program a system or select a system to scan.

• When scanning multiple systems, the BR330T scans systems according to the assigned quick key. Systems assigned to quick key 1 are scanned first, then 2, 3, 4, etc. Systems not assigned to a quick key are scanned last, then unlocked searches. Within a quick key, systems are scanned in the order they were assigned.

• Within a system, channels are scanned according to the assigned channel group, with the same priority as described above for systems.

• The BR330T scans a system for the duration you set using the System Hold Time option (see “Setting the System Hold Time” on Page 82). For trunked systems, the scanner moves to the next system after the hold time expires, the current transmission ends, and the channel delay expires. Conventional systems operate similarly, but all unlocked channels are scanned at least one time regardless of the hold time setting.

• Each search range is searched for the amount of time you set using the “Set Hold Time” option. See “Setting the System Hold Time” on Page 82 for more information.

Preprogrammed System Tips

All systems preprogrammed into the scanner are assigned to a Quick Key. See “Preprogrammed Systems” on Page 148 for a list of preprogrammed systems and their Quick Key assignments.

Basic Operation

Notes:

• The systems preprogrammed into the scanner are located primarily in major metropolitan areas.

• You might hear transmissions on frequencies assigned to very distant stations. This will happen if a local system also uses the same frequency.

You can scan the preprogrammed systems more efficiently by preventing the BR330T from trying to scan systems that are not in your area. To do this, refer to the quick key assignments listed in “Preprogrammed Systems” on Page 148, and enter the quick key for each distant system to turn them off.

To stop scanning a local preprogrammed system, you can:

• Lock out the system (see “Locking/Unlocking Systems” on Page 45)

• Reassign the system to another quick key so you can easily enable/disable it independently of other systems (see “Editing the System Quick Key” on Page 81)

• Delete the system (see “Deleting Systems” on Page 88)

Important! You cannot restore preprogrammed systems if you delete them.

Selecting Systems to Scan

To select systems to scan, press Scan then press the quick key assigned to the system or systems you want to scan. For quick keys 0-9, press the quick key’s number. For quick keys 10-99, press then press the quick key’s 2-digit number. To stop scanning the system(s), press (if the quick key is a 2-digit quick key) then the number button or buttons again.

The Sx: (system) indicators on the display show the systems that are currently selected.

To select or lock out a system that is not assigned to a key, press and hold while you rotate the scroll

Func

control until the desired system is selected. Then, continue to hold and press L/O to either lock out

Func

or unlock the system.

Selecting System Channel Groups

Within a system, you can assign groups of channels to a group quick key (see “Setting the Group Quick Key” on Page 90).

Follow these steps to activate or deactivate a channel group within a system while scanning.

1. Press to hold on the system (or hold down

Func

then rotate the scroll control to select the

system).

2. Continue to hold and press the number key

Func

corresponding to the channel group you want to activate or deactivate.

Locking/Unlocking Systems

Follow these steps to lock out a system so that it does not scan even if its quick key is selected.

1. While holding down , rotate the scroll control

Func

to select the system.

2. Continue to hold down and press L/O to lock

Func

out the system. System Locked appears.

3. Repeat Steps 1 and 2 to unlock a system you have previously locked. System Unlocked appears.

Locking/Unlocking Channels

Follow these steps to lock out a channel so that it does not scan even if its system and channel group are selected.

1. While holding down , rotate the scroll control

Func

to select the system where the channel is stored.

Basic Operation

2. Release then press Hold within 2 seconds

Func

to hold on the system.

3. Rotate the scroll control to select the channel you want to lock or unlock.

4. Press L/O to lock or unlock the channel.

You can also lock out an active channel by pressing

L/O while the scanner is stopped on the channel.

ID Scan/ID Search Mode

While you are scanning a trunked system, the scanner can be in either ID Scan or ID Search mode:

• ID Scan – the scanner only stops on talk group ID’s that you have programmed into the system

• ID Search – the scanner stops on any unlocked talk group that becomes active.

To toggle between ID Scan and ID Search, press then press Scan within 2 seconds while the scanner is scanning the system.

If the scanner does not scan the system long enough for you to easily do this, press while the scanner is scanning the system (or press then rotate the

Func

scroll control to select the system). Then, release

Func

and press Scan within 2 seconds.

Func

Temporarily Holding On a System

To temporarily hold on a system, press and hold . To hold on a different system, continue to hold and rotate the scroll control to select the system. Normal scanning resumes 2 seconds after you release

Func

Holding On a Channel

To hold on a channel, press Hold while the channel is active. To select a different channel, rotate the scroll control. If you scroll past the beginning or end of the current system, the scanner selects channels in the

previous or next system. To resume scanning, press

Scan.

Quickly Storing an ID During ID Search

To quickly store an active talk group ID during ID search, press E. You see:

Quick TGID Save?

To save the ID into a channel, press E. Otherwise, press . If you press E, the scanner stores the ID into a channel group called Qck Save Grp in the current system.

Quick-Storing Channels or Talk Group ID’s

1. Hold on an existing channel in any system.

2. Enter the frequency or talk group ID you want to store (press twice to enter hyphens in talk group ID’s).

3. To quick-store the channel or talk group ID, press E. Otherwise, press .

If you enter a frequency then press E, the scanner stores it in the Qck Save Grp group in a system called Qck Save Cnv Sys. These are created if they do not exist. Then, the scanner prompts you to save other channel settings.

If you enter a talk group ID then press E, the scanner stores it into a channel group named Qck Save Grp in the current system. If the talk group ID’s format is not the type used by the current system, the scanner displays an error message and does not save the talk group ID.

If you pressed No in Step 3, the scanner prompts you to select the system and the group where you want to store the frequency or talk group ID.

Basic Operation

Quickly Recalling Channels

1. Press Hold to hold on any channel.

2. Press + rcl. The scanner prompts you to select the system where the channel is stored.

3. Rotate the scroll control to select the system, then press E. The scanner prompts you to select the channel group where the channel is stored.

4. Rotate the scroll control to select the group, then press E. The scanner prompts you to select a channel.

5. Rotate the scroll control to select the channel, then press E to hold on that channel.

Func

Monitoring Trunking Activity

To monitor trunking activity, press Hold then turn the scroll control to select the control channel frequency (for a Motorola or EDACS system) or any system frequency (for an LTR system). Active talk group ID’s appear on the second line of the display. For Motorola systems, the scanner will show the System ID on the top line of the display. For EDACS systems, the scanner will show the site ID on the top line of the display. Trunking indicators appear on the display.

Toggling Channel Alpha Tags

To change the display so the channel and frequency or Talk Group ID appear instead of the alpha tag, press

Func

+ 5.

Using the Menu

The scanner’s menu lets you select options that let you

Using the Menu

set up and use the scanner.

To use the menu, press on the left side of the scanner. To select a menu item, rotate the scroll control clockwise or counterclockwise. The currently-selected menu item is highlighted with a bar on the display. When the menu item you want to select is highlighted, briefly press the scroll control to select it. To back up a level,

Menu Menu

press . To exit the menu mode, press again or the L/O key.

This table shows the scanner’s menu structure. To find information about a particular menu setting in this manual, go to the page number shown in parentheses next to the setting.

Note: Not all of the options shown in this table may appear at the same time. To view all available options on

any screen, rotate the scroll control.

Menu Item Submenu

-- M E N U --

Program System

Srch/CloCall Opt Search for ...

Select System

Alameda Conv

Alameda MOT Arlington MOT

(51)

-- M E N U --

Program System

Srch/CloCall Opt

Search for ...

-- M E N U -Program System Srch/CloCall Opt

Search for ...

Srch/CloCall Opt

Freq Lockouts

Broadcast Screen CTCSS/DCS Search

Srch/CloCall Opt

Repeater Find Max Auto Store Set Delay Time Set Modulation Set Attenuator Set Data Skip Set Step

Search for ...

Service Search

Edit Service Custom Search

Srch/CloCall Opt

Edit Custom Search and Store

(111) (112) (100) (113) (114) (115) (95) (114) (114) (115) (116)

(99) (103) (101)

(102) (105)

Using the Menu

Menu Item Submenu

-- M E N U -Srch/CloCall Opt Search for ...

Close Call

Close Call Only

CC Auto Store Set CC Mode Set CC Override Set CC Alert

Set CC Bands

(108) (108) (108) (108) (108) (108)

-- M E N U -Search for ... Close Call

Set Priority

-- M E N U -Close Call Set Priority

WX Operation

-- M E N U -Set Priority WX Operation

Tone-Out for ...

-- M E N U -WX Operation Tone-Out for ...

Xfer Information

-- M E N U -Tone-Out for ... Xfer Information

Settings

Set Priority

Off (54)

On Plus On

Srch/CloCall Opt

WX Operation

Weather Scan

Weather Alert Program SAME

Srch/CloCall Opt

Set Delay Time

Set Attenuator WX Alt Priority

Tone-Out for ...

Tone-Out Standby

Tone-Out Setup

Xfer Information

Wired Clone

On-Air Clone

Settings

Set Backlight

Adjust Key Beep Set Battery Save

Srch/CloCall Opt

Set Audio AGC Adjust Contrast Set Bar Antenna PC Control See Scanner Info

(54)

(54) (54)

(117) (117) (118) (115) (114) (119)

(120)

(57) (58)

(54) (53) (54) (55) (56) (55) (56) (53)

Programming Systems Menu

This table shows the scanner’s systems menu structure. This menu lets you program new systems or change existing systems. To find information about a particular menu setting in this manual, go to the page number shown under or next to the setting.

To use the systems menu, press then briefly press the scroll control. To back up a level, press

Menu Menu

. To exit the menu mode, press again.

Note: Not all of the options shown in this table may appear at the same time. To view all available options

on any screen, rotate the scroll control

Menu/Submenu Option Menu

Select Sys Type

Racing

Conventional

MOT

Srch/CloCall O

EDCS LT

“Manually Pro gramming Racing Systems” on Page 63

Select Sys Type

Racing

Conventional

MOT

Srch/CloCall O

EDCS LT

“Progra mming Convent ional System s” on Page 67

Select Sys Type

Conventional

MOT

EDCS

Srch/CloCall Op

“Programm ing Motorola S ystems” on Page 69

System 1

800MHz Standard

800MHz Splinter

Srch/CloCall Op

900MHz band VHF Band UHF Band

System 1 R

Edit Name

Edit Sys Option Edit Car

Srch/CloCall Op

Delete System Copy System

System 1 C

Edit Name

Edit Sys Option Edit Group

Srch/CloCall Op

Delete System Copy System

System 1 M

Edit Name

Edit Sys Option Set Frequencies

Srch/CloCall Op

Set Modulation Set Attenuator Edit Group Delete System Copy System

(64) (81) (64) (88) (89)

(80) (81) (67) (88) (89)

(80) (81) (77) (71) (88) (72) (88) (88)

Using the Menu

Menu/Submenu Option Menu

Select Sys Type

Conventional MOT

EDCS

“Progr amming EDACS Sy stems” on Page 73

EDCS

WIDE

NARROW SCAT

Srch/CloCall Op

System 1 E

Edit Name

Edit Sys Option Set Frequencies

Srch/CloCall Opt

Set Attenuator Edit Group Delete System Copy System

(80) (81)

(77) (88) (72) (88) (88)

Select Sys Type

Conventional MOT

EDCS

Srch/CloCall O

“Program ming LTR Systems” on Page 76

System 1 L

Edit Name

Edit Sys Option Set Frequencies

Srch/CloCall Opt

Set Modulation

Set Attenuator Edit Group Delete System Copy System

(80) (81) (77) (71) (88) (78) (88) (88)

Other Settings

Displaying System Information

Viewing Memory Used

  Settings  

See Scanner Info  



% Memory Used 

A bar showing the percent of memory used appears. Press any key to return to the previous menu, then press Scan or Hold.

Viewing the Firmware Version

  Settings  



See Scanner Info  

Firmware Version 

Press any key to return to the previous menu, then press Scan or Hold.

Adjusting the Key Beep

  Settings  



Adjust Key Beep  

Auto - the scanner automatically sets the key beep to

match the master volume setting level you select.

Level 1 - 15 the scanner lets you select a key beep level. You can choose any of 15 different key beep levels.

Off - the scanner turns the key beep off.

Locking/Unlocking the Keypad and Scroll

Press and hold down then press / / to lock or unlock the keypad. Keypad Lock and On

(if the keypad is locked) or Off (if the keypad is unlocked) appears. This does not affect the volume setting. The scroll control still controls the volume when you lock the controls.

Func

Other Settings

Turning Power Save On or Off

  Settings  

Set Battery Save  



• On The scanner goes into low-power mode when you monitor a conventional channel that has no activity.

• Off Power save is off.

Priority Scan

  Set Priority  

Or, while holding on any channel, press + 1/pri to select one of these priority modes:

• Off Normal scanning

• On While scanning a conventional system, the scanner interrupts every 2 seconds and checks the priority channels in each unlocked conventional system. Priority channels in lower priority key numbered systems (starting from 1) have highest priority. PRI appears when you select this mode.

• Plus On The scanner only scans priority channels in unlocked conventional systems. PRI flashes when you select this mode.

Func

Other Settings

Using the Backlight

  Settings  



Set Backlight  

• 10 sec The backlight stays on for 10 seconds

after you press .

• 30 sec The backlight stays on for 30 seconds

after you press .

• Squelch The backlight turns on when the squelch opens then stays on for 5 seconds.

• Keypress The backlight turns on when any key is pressed then stays on for 10 seconds.

• Infinite The backlight turns on when you

press then stays on until you press again.

Pressing any key while the backlight is on extends the backlight period. Pressing while the backlight is on

turns off the backlight.

Setting the Audio AGC

  Settings    Set Audio AGC 

This setting helps balance the audio level you hear as you listen to different radio sources so you can hear them at a similar volume. Use this setting if you listen to an audio source that has natural changes in audio level for which you want to compensate.

• On Press the scroll control to select. Audio AGC is turned on.

• Off Press the scroll control to select. Audio AGC is turned off.

Selecting the Bar Antenna

  Settings    Set Bar Antenna 

This setting lets you switch between the internal bar antenna and the antenna connected to the SMA connector.

Note: The bar antenna receives signals between 0.1 and 1.7 MHz. It cannot receive signals out of this range even if you select it.

• On Press the scroll control to select. The bar antenna is selected.

• Off Press the scroll control to select. The antenna attached to the SMA connector is selected.

Tuning The Bar Antenna

Follow the steps under “Selecting the Bar Antenna” for best reception of AM radio signals.

1. Make sure to select the Bar Antenna

2. Tune to a frequency between 0.1 and 1.7 MHz.

3. Hold down and tap the scroll control twice.

Func

Other Settings

4. Using the scroll control, select a number between

-8 and 7 seen in the lower right corner of the display. Adjust the setting for the best reception.

5. When set, tap scroll once to exit.

Adjusting the Display Contrast

  Settings  



Adjust Contrast 

Contrast 1 - 15 the scanner adjusts the display to

the contrast level you select.

This setting controls the display’s contrast (how light or dark it appears). Use this setting to change the contrast for different viewing conditions. There are 15 contrast settings. You see the change in contrast as you scroll through the settings.

Initializing the Scanner’s Memory

1. Turn off the scanner.

2. Press 2, 9, and Hold while turning on the scanner.

Restore Preprogram List? Yes="E"/ No="." appears.

3. Press ''E'' or ''.''

Connecting Your Scanner to a Personal Computer

To connect your scanner to a personal computer, you must first set the scanner’s baud rate (the rate at which data is transferred between the scanner and the computer, in bits per second (bps).

Important! Before you start transferring data between your scanner and your computer, make sure the batteries are fresh or fully charged. If the scanner loses power while you are transferring data, its memory might be corrupted and all information programmed in the scanner might be erased.

Hint: If you have trouble transferring data between your scanner and your computer, try setting the baud rate to a slower setting.

Use the included connection cable to connect your scanner to another BR330T scanner or your personal computer.

  Settings  

PC Control 



PC Control Lets you set the baud rate your scanner uses to communicate with a personal computer.

• Off The baud rate is not set.

• 9600 bps The baud rate is set to 9600 bps.

• 19200 bps The baud rate is set to 19,200 bps.

• 38400 bps The baud rate is set to 38,400 bps.

• 57600 bps The baud rate is set to 57,600 bps.

• 115200 bps The baud rate is set to 115,200 bps.

Using the Cloning Options

Lets you set your scanner as a master (source) or slave (recipient), letting you transfer programming to or from another BR330T scanner. See “Wired Cloning” on Page 57 and “On-Air Cloning” on Page 58.

Wired Cloning

  Xfer Information  

Wired Clone 



• Master Sets the scanner to be the source scanner.

• Slave Sets the scanner to be the recipient scanner.

To clone (copy) data directly from one BR330T scanner to another BR330T scanner, you must first connect the scanners to each other using the included connection cables and a DB9 null modem adapter and DB9 gender changer (neither included), available at most computer stores. Then you must set one scanner as the source and the other as the destination.

Plug the smaller end of each of the included connection cables into Remote on the right side of each scanner.

Other Settings

Then connect the other end of the cables together using the null modem connector and gender changer.

Then set the scanner containing the programming you want to transfer as the master scanner, then set the other scanner as the slave scanner.

(Master scanner) Clone Master Press SCAN Key

Scan



(Slave scanner) Clone Slave Press SCAN Key

Scan



When you are ready to clone the scanner, press on the slave scanner first, then on the master scanner. The master scanner checks the connection between the two scanners, then transfers its data to the slave scanner.

When the transfer is complete, Complete appears on both scanners. If the transfer did not work, Error appears on the master scanner.

Scan

On-Air Cloning

You can clone (copy) data from a PC to a BR330T scanner. This is useful if you want to quickly program 20 or more BR330T scanners at the same time.

Note: On-air cloning is practical if you are programming more than 10 scanners at the same time. Otherwise, we recommend you use wired programming.

  Xfer Information  



On-Air Clone 

• Start Cloning Start on-air cloning.

• Set Frequency Lets you set the frequency where your scanner receives the cloning broadcast.

• Set Modulation Lets you set the cloning broadcast’s modulation type.

To clone (copy) data from a PC to the scanner, you need a transceiver, a PC that has an audio input, and a cable to connect your PC’s sound card to the

transceiver. Follow the directions supplied with the Uniden Advanced Scanner Director Software (available online at http://www.uniden.com) to construct a cable and use on-air cloning.

When you are receiving the cloning broadcast and are ready to clone the scanner, select Start Cloning on the scanner. The scanner receives the data from the transmission

When the transfer is complete, Complete appears. If the transfer did not work, Error appears.

Other Settings

Programming Radio Systems

Your BR330T comes preprogrammed with 76 analog

Programming Radio Systems

systems from the most populous areas in the US. However, to get the most enjoyment from your scanner (especially if you do not live near one of these counties), you must customize the programming for your area.

To edit an existing system, use the menu to navigate to the system setting you want to change. This section assumes you are programming a new system.

Programming radio systems is completed in two major steps. Don't skip either step!

1. Plan the system.

2. Program the system into your scanner according to the plan you prepared in Step 1.

To make planning easier, planning worksheets are included in the back of this manual for each system type. Copy the worksheets (or download this manual from the Uniden America Corporation website and print extra sheets), then use them to plan out how you will program the scanner.

Important! Before you start programming your scanner, make sure the batteries are fresh or fully charged. If the scanner loses power while you program it, its memory might be corrupted which will require you to reinitialize it (see “Initializing the Scanner’s Memory” on Page 56). All information programmed in the scanner, including preprogrammed systems, might be lost.

General Notes

• You can store up to 400 systems.

• Trunking systems can have up to 200 channels each. The number of conventional system channels you can have is limited only by the amount of scanner memory remaining.

• You can store up to 20 channel groups per system.

• Total channels are limited to 2,500.

Quickly Programming Racing Systems

You can use the menu system to program a racing system (see “Manually Programming Racing Systems” on Page 63). Or you can follow the onscreen prompts as described in this section to quickly program your scanner. These prompts are designed to help you quickly enter a new race from a frequency list purchased at the track (if the system is not already preprogrammed into your scanner). When you complete Steps 5 and 6, almost all cars will use the default settings for the other steps.

1. While scanning, press 0. Then rotate the scroll control to select New race, then press E.

2. Enter the name of the race, then press E.

3. Enter the first car number (up to 3 digits), then press E.

4. Enter the first driver name (up to 12 characters), then press E.

5. Enter the driver’s frequency, then press E.

Select race

New race

Name the race _

Enter Car No _

Enter Driver _

Enter Frequency _

Programming Radio Systems

6. Set the CTCSS/ DCS code, then press E

Set CTCSS/DCS

Off

7. Press E to enter advanced options (Steps 8-11) or press to skip to Step 12.

8. Set the modulation type (Auto is almost always the correct choice), then press E

9. Set the attenuator (turn it on to eliminate interference from other sources), then press E

10. Set the channel priority (turn it on if you want the scanner to interrupt operation every few seconds to check for transmissions by this driver), then press E

Advanced Options

Yes=“E”/ No=“.”

Set Modulation

Auto

Set Attenuator

Off

Set Priority

Off

11. Set alert (turn it on if you want the scanner to sound a special alert when this car transmits), then press E

Set Alert

Off

12. If you have another frequency to enter for this driver, press E then repeat from Step 5. Otherwise, press No

Another Freq for

This Driver?

Yes=“E”/ No=“.”

13. To enter another car in this race, press E then repeat from Step 3. Otherwise, press No

14. When you finish, press Scan to begin scanning the race

Another Car For

This race?

Yes=“E”/ No=“.”

Complete

Press SCAN Key

Manually Programming Racing Systems

 Program System  



New System  Racing 

Confirm?

The scanner creates an empty conventional system, with a default name of System NN R. NN increments as you add new systems. R indicates that this is a racing system.

Refer to the appropriate section to set system-wide options:

• See “Editing the System Name” on Page 80

• See “Setting System Lockout” on Page 81

• See “Setting the System Hold Time” on Page 82

• See “Setting the Channel Delay Time” on Page 82

• See “Setting Data Skip” on Page 115

• See “Deleting Systems” on Page 88

• See “Copying Systems” on Page 89

 E

Programming Radio Systems

Editing the Car

 Program System  

Select the system 

  Edit Car 

Select the car

Follow these steps to enter the car options.

1. Press 0-9 to enter the car’s number (up to 3 digits), then press the scroll control.

2. Rotate the scroll control to select one of the following options. Then refer to the appropriate section to set or change a car setting.

• See “Entering/Editing a Car Number” on Page 64.

• See “Editing a Driver” on Page 65.

• See “Setting a Car’s Quick Key” on Page 65.

• See “Editing a Car’s Channel” on Page 66.

• See “Deleting a Car” on Page 66.

• See “Setting Lockout On A Car” on Page 66.



Entering/Editing a Car Number

 Program System  



Select the system 

 Edit Car 

Select the car

Edit Car No 



1. Rotate the scroll control to select the first digit, then press 0-9 to enter the correct digit.

2. Repeat Step 1 to enter or correct the second and third digits if necessary, Then press E or press down on the scroll control to accept the setting.

Hints:

• Each car number can be up to three digits.

• Press to delete the entire car number.

Editing a Driver

 Program System  

Select the system 

  Edit Car 

Select the car

Edit Driver 

1. Rotate the scroll control to select the first letter.



2. Press and hold down then rotate the scroll control once to select the next letter.

3. Repeat Steps 1 and 2 until you have entered the driver’s name. Then press E or press down on the scroll control to accept the setting.

Hints:

• Each driver’s name can be up to 12 characters. Abbreviate as necessary to fit.

• Press twice to delete the current character.

• Press three times to clear the entire driver name.

Func

Setting a Car’s Quick Key

 Program System  

Select the system 

  Edit Car 

Select the car

Set Quick Key 

After selecting this option, press 0-9 or rotate the scroll control to assign the car to a quick key or press No to assign the car to no quick key, then press E.

Hints:

• You can assign as many cars to the same quick key as you want.

• Preprogrammed conventional systems are set to quick key 9.

• To be scanned, a car’s quick key must be activated and the system must be unlocked.



Programming Radio Systems

Editing a Car’s Channel

 Program System  

Select the system 

  Edit Car 

Select the car

Edit Channel 



Deleting a Car

 Program System  



Select the system 

 Edit Car 

Select the car

Delete Car 

The scanner prompts you to confirm deletion. To confirm, press E. To cancel, press No.

Note: Deleted cars cannot be restored. You must re-enter them.



Setting Lockout On A Car

 Program System  

Select the system 

  Edit Car 

Select the car

Set Lockout 



This setting determines whether the scanner will scan this car when it is enabled. Select your setting, then press E.

Lockout - the car is not scanned. Unlocked - the car is scanned.

Note: The default setting is Unlocked.

Programming Conventional Systems

 Program System  



New System  Conventional 



Confirm? Yes=“E”/ No=“.”

The scanner creates an empty conventional system, with a default name of System n C. n is a number that increments as you add new systems. C indicates that this is a conventional system.

Refer to the appropriate section to set system-wide options:

• See “Editing the System Name” on Page 80

• See “Editing the System Quick Key” on Page 81

• See “Setting System Lockout” on Page 81

• See “Setting the System Hold Time” on Page 82

• See “Setting the Channel Delay Time” on Page 82

• See “Deleting Systems” on Page 88

• See “Copying Systems” on Page 89

• See “Entering/Editing Conventional Channel Groups” on Page 67

Entering/Editing Conventional Channel Groups

To enter channels in a conventional system, first set up a channel group (or groups) to hold the channels. Then, enter the channel and channel parameters in the group(s).

Setting Up a Channel Group

 Program System  

Select the system  

 

Edit Group  New Group 



Programming Radio Systems

The scanner creates a group with a default name of Group n. n increments by one for each new group you create within a system. Refer to the appropriate section to set group-wide options:

• See “Entering/Editing the Group Name” on Page 89

• See “Setting the Group Quick Key” on Page 90

• See “Deleting Groups” on Page 91

• See “Setting System Lockout” on Page 81

• See “Entering/Editing Conventional Channels” on Page 68

Entering/Editing Conventional Channels

 Program System  



Select the system  

Edit Group 

 

Select the group  

 Edit Channel   

New Channel 

Refer to the appropriate section to change a channel setting:

• See “Editing the Channel Name” on Page 91

• See “Editing Frequencies (Conventional Channels Only)” on Page 92

• See “Setting Channel Priority (Conventional Channels Only)” on Page 92

• See “Deleting Channels” on Page 97

• See “Copying/Pasting Channels” on Page 97

Note: The scanner automatically sets the step to match the input frequency.

Programming Motorola Systems

 Program System  

New System 

 

MOT 

Next, rotate the scroll control to select the type of Motorola system you want to program, then briefly press the scroll control to select it.

• 800MHz Standard - Use for 800 MHz systems that use the standard band plan

• 800MHz Splinter - Use for 800 MHz systems that use the splinter band plan (typically near international borders)

Note: Splinter systems have frequencies below 866 MHz that end in 0. For example, 851.0250 would be the frequency of a splinter system.

• 900MHz Band - Use for 900 MHz systems

• VHF band - Use for VHF systems

• UHF band - Use for UHF systems

Confirm? Yes=“E”/ No=“.”

Next, refer to the appropriate section to set systemwide options. For most settings, you can accept the default. However, for the items in bold, you must enter information in order for your scanner to scan the system.

• See “Editing the System Name” on Page 80

• See “Editing the System Quick Key” on Page 81

• See “Setting System Lockout” on Page 81

• See “Setting the System Hold Time” on Page 82

• See “Setting the Channel Delay Time” on Page 82

• See “Setting ID Scan/Search (Trunked Systems Only)” on Page 83

• See “Editing the Fleet Map (Motorola Systems Only)” on Page 83 (must be set up for Type I and Type II Hybrid systems)

• See“Setting the Motorola Status Bit (Motorola Systems Only)” on Page 84

Programming Radio Systems

• See “Setting the End Code Operation (Motorola Systems Only)” on Page 85

• See “Setting I-Call (Motorola and EDACS Systems Only)” on Page 85

• See “Setting Emergency Alert (Motorola and EDACS Systems Only)” on Page 86

• See “Setting Control-Channel Only (Motorola Systems Only)” on Page 86

• See “Setting System Lockout” on Page 81

• See “Reviewing Locked Out Frequencies” on Page 111

• See “Setting System Attenuation (Trunked Systems Only)” on Page 88

• See “Deleting Systems” on Page 88

• See “Copying Systems” on Page 89

• See “Setting System Frequencies” on Page 70

• See “Entering/Editing Motorola Channel Groups” on Page 72

Setting System Frequencies

 Program System  



Select the system  

Set Frequencies 



Input a system frequency, then press the scroll control.

To enter additional frequencies, press , use the scroll control to select New Frequency, then repeat the above.

Note: If you select Control Channel Only mode (see “Setting Control-Channel Only (Motorola Systems Only)” on Page 86), you only need to enter the frequency(s) that can be assigned as the control channel. Most frequency lists usually indicate which of the frequencies are the control channel frequencies. Otherwise, you must enter all of the frequencies.

Setting Modulation

 Program System  

Select the system  



Set Modulation 



Auto - the scanner uses the default modulation for the frequency band.

FM - the scanner uses FM (frequency modulation) for the frequency band.

NFM - the scanner uses narrowband FM for the frequency band.

Note: The default setting is Auto.

This setting controls the modulation method used for the frequency band. In most cases, if you leave this set to Auto, the scanner automatically selects the correct modulation type for the system you are programming.

Setting Attenuation

 Program System  



Select the system  

Set Attenuator 



This setting controls whether the attenuator will be on or off for the current system. Select your setting then press the scroll control.

Off - the attenuator is off.

On - system frequencies are attenuated by about 18

dB.

Notes:

• Even if ATT appears, attenuation might not work if the bar antenna is turned on and the tuned frequency is from 0.1 to 1.7 MHz.

• Turn on this setting if you are near strong signal sources. Attenuation can help reduce interference and desensitization that strong signals create.

Programming Radio Systems

• You can also turn this setting on or off by holding on a trunked system, then pressing + E.

Func

Entering/Editing Motorola Channel Groups

To enter channels in a system, first set up a channel group (or groups) to hold the channels. Then, enter the channel and channel parameters in the group(s).

Setting Up a Channel Group

 Program System  



Select the system  

Edit Group 



The scanner creates a group with a default name of Group nn. nn increments by one for each new group you create within a system.

Next, refer to the appropriate section to set group-wide options:

• See “Entering/Editing the Group Name” on Page 89

• See “Setting the Group Quick Key” on Page 90

• See “Deleting Groups” on Page 91

• See “Copying Systems” on Page 89

• See “Entering/Editing Motorola Channels” on Page 72

• See “Setting I-Call (Motorola and EDACS Systems Only)” on Page 85

Entering/Editing Motorola Channels

 Program System  

Select the system  

 

Edit Group 

Select the group  

  Edit Channel  

New Channel 



Enter a talk group ID  

Note: You can enter I-Calls by pressing then the I-Call number. You can enter the I-Call wild card by pressing then 0.

Refer to the appropriate section to change a channel setting:

• See “Editing the Channel Name” on Page 91

• See “Editing the Talk Group ID (Trunked Channels Only)” on Page 94

• See “Setting Channel Lockout” on Page 96

• See “Deleting Channels” on Page 97

• See “Copying/Pasting Channels” on Page 97

To program another channel within the same group,

press , then repeat the above. To create another channel group and enter more channels, press three times, then proceed from “Entering/Editing Motorola Channel Groups” on Page 72.

Programming EDACS Systems

 Program System  

New System 

 

EDCS 

Confirm? Yes=“E”/ No=“.”

Next, rotate the scroll control to select the type of EDACS system you want to program, then briefly press the scroll control to select it.

• WIDE - Use for wideband EDACS systems

• NARROW - Use for narrowband EDACS systems

• SCAT - Use for EDACS SCAT (Single Channel Autonomous Trunking)

Confirm? Yes=“E”/ No=“.”

Programming Radio Systems

The scanner creates an empty EDACS system, with a default name of System n E. n is a number that increments as you add new systems. E indicates that this is an EDACS system.

• See “Editing the System Name” on Page 80

• See “Editing the System Quick Key” on Page 81

• See “Setting System Lockout” on Page 81

• See “Setting the System Hold Time” on Page 82

• See “Setting the Channel Delay Time” on Page 82

• See “Setting ID Scan/Search (Trunked Systems Only)” on Page 83

• See “Setting I-Call (Motorola and EDACS Systems Only)” on Page 85

• See “Setting the EDACS ID Format (EDACS Systems Only)” on Page 87

• See “Reviewing Locked Out Frequencies” on Page 111

• See “Setting Channel Attenuation (Conventional Channels Only)” on Page 96

• See “Deleting Systems” on Page 88

• See “Copying Systems” on Page 89

• See “Setting System Frequencies” on Page 74

• See “Entering/Editing EDACS Channel Groups” on Page 75

Setting System Frequencies

 Program System  



Select the system  

Set Frequencies 



New Frequency 



Input a system frequency, then press the scroll control. The scanner then prompts you to enter the LCN for the entered frequency. Enter the LCN, then press the scroll control.

To enter additional frequencies, press , use the scroll control to select New Frequency, then repeat the above.

Note: The scanner only accepts a single frequency and no LCN for SCAT systems.

Entering/Editing EDACS Channel Groups

To enter channels in a system, first set up a channel group (or groups) to hold the channels. Then, enter the channel and channel parameters in the group(s).

Setting Up a Channel Group

 Program System  

Select the system  

 

Edit Group 

The scanner creates a group with a default name of Group nn. nn increments by one for each new group you create within a system.

Next, refer to the appropriate section to set group-wide options:

• See “Entering/Editing the Group Name” on Page 89

• See “Setting the Group Quick Key” on Page 90

• See “Deleting Groups” on Page 91

• See “Editing the Channel Name” on Page 91

• See “Setting Group Lockout” on Page 90

Entering/Editing EDACS Channels

 Program System  



Select the system  

Edit Group 



Programming Radio Systems

 Select the group    Edit Channel  

New Channel 



Enter a talk group ID  

Note: You can enter I-Calls by pressing then the I-Call number. You can enter the I-Call wild card by pressing then 0.

Refer to the appropriate section to change a channel setting:

• See “Editing the Channel Name” on Page 91

• See “Setting Channel Lockout” on Page 96

• See “Editing the Talk Group ID (Trunked Channels Only)” on Page 94

• See “Deleting Channels” on Page 97

• See “Copying/Pasting Channels” on Page 97

To program another channel within the same group,

press , then repeat the above. To create another channel group and enter more channels, press three times, then proceed from “Entering/Editing EDACS Channel Groups” on Page 75.

Programming LTR Systems

 Program System  

New System 

 

LT 

Confirm? Yes=“E”/ No=“.”

The scanner creates an empty LTR system, with a default name of System n L. n is a number that increments as you add new systems. L indicates that this is an LTR system.

• See “Editing the System Name” on Page 80

• See “Setting the System Hold Time” on Page 82

• See “Editing the System Quick Key” on Page 81

• See “Setting the Channel Delay Time” on Page 82

• See “Setting ID Scan/Search (Trunked Systems Only)” on Page 83

• See “Reviewing Locked Out Frequencies” on Page 111

• See “Setting Channel Attenuation (Conventional Channels Only)” on Page 96

• See “Deleting Systems” on Page 88

• See “Copying Systems” on Page 89

• See “Setting System Frequencies” on Page 77

• See “Entering/Editing LTR Channel Groups” on Page 77

Setting System Frequencies

 Program System  

Select the system  

 

Set Frequencies 

New Frequency 



Input a system frequency, then press the scroll control. The scanner then prompts you to enter the LCN for the entered frequency. Enter the LCN, then press the scroll control.

To enter additional frequencies, press , use the scroll control to select New Frequency, then repeat the above.

Entering/Editing LTR Channel Groups

To enter channels in a system, first set up a channel group (or groups) to hold the channels. Then, enter the channel and channel parameters in the group(s).

Programming Radio Systems

 Program System  



Select the system  

Edit Group 



The scanner creates a group with a default name of Group nn. nn increments by one for each new group you create within a system.

Next, refer to the appropriate section to set group-wide options:

• See “Entering/Editing the Group Name” on Page 89

• See “Setting the Group Quick Key” on Page 90

• See “Setting Group Lockout” on Page 90

• See “Deleting Groups” on Page 91

• See “Entering/Editing LTR Channels/ Talkgroups” on Page 78

Entering/Editing LTR Channels/ Talkgroups

 Program System  

Select the system  

 

Edit Group 

Select the group  

  Edit Channel  

New Channel 



Enter a talk group ID  

Refer to the appropriate section to change a channel setting:

• See “Editing the Channel Name” on Page 91

• See “Setting Channel Lockout” on Page 96

• See “Editing the Talk Group ID (Trunked Channels Only)” on Page 94

• See “Deleting Channels” on Page 97

• See “Copying/Pasting Channels” on Page 97

To program another channel within the same group,

press , then repeat the above.

To create another channel group and enter more channels, press four times, then proceed from “g

Program System g i Q Select the system g i Q Edit Group i” on Page 78.

To direct-enter LTR talkgroups, follow the steps under “Quick-Storing Channels or Talk Group ID’s” on Page 47.

Programming Radio Systems

Programming/Editing Optional Settings

This section details the instructions for each of the

Programming/Editing Optional Set-tings

optional programming steps referred to in “Programming Radio Systems” on Page 60. Use the instructions in the appropriate section to enter or edit a setting.

System-Level Settings

These settings apply to the entire system.

Editing the System Name

 Program System  

Select the system  



Edit Name 



To enter a letter, turn the scroll control until the character you want appears. To enter a decimal point,

press . To move the cursor to the left, press /4 or

Func

hold and rotate the scroll control to the left.

To move the cursor to the right, press 6/ or hold and rotate the scroll control to the right.

To clear a character, press twice. To clear all characters, press 3 times.

Func

To accept an entry, press E or press down on the scroll control.

Hints:

• Each system name can be up to 16 characters. Abbreviate as necessary to fit.

• The default system names include the following letter in the 16th position to indicate the system type:

M = Motorola E = EDACS L = LTR C = Conventional

Editing the System Quick Key

 Program System  

Select the system  



Edit Sys Option 



Set Quick Key 

After selecting this option, select any number from 1-99 to assign the system to a quick key or press to assign the system to no quick key, then press E.

Hints:

• Access single-digit system Quick Keys by pressing the single digit on the keypad during scanning. Access two-digit system Quick Keys by pressing then both digits.

• You can assign as many systems to the same quick key as you want.

• To be scanned, a system’s quick key must be activated and the system must be unlocked.

Setting System Lockout

 Program System  



Select the system  

Edit Sys Option 

 

Set Lockout 

This setting controls whether the system is scanned when its quick key is enabled. Rotate the scroll control to select your setting, then press E.

Locked - the system is not scanned

Unlocked - the system is scanned

Note: You can also lock or unlock a system by holding

Func

and rotating the scroll control to select the

system, then pressing + L/O.

Func

Programming/Editing Optional Settings

Setting the System Hold Time

 Program System  

Select the system  



Edit Sys Option 



Set Hold Time 



This setting controls how many seconds the scanner scans a system before moving to the next unlocked system. Enter a value from 0-255, then press E to save the setting.

Notes:

• This setting is available only when a control channel exists in a trunked system.

• If you select 0, the scanner stays on the system for a minimal time (only long enough to check current system activity).

• The default setting is 2 seconds for each system.

• For conventional systems, all unlocked channels will be scanned at least once regardless of this setting.

• The scanner moves to the next system after the hold time expires, any current transmission ends, and the channel delay time expires.

• Due to the control method for these system types, the scanner always scans LTR and EDACS SCAT systems for at least 1 second.

Setting the Channel Delay Time

 Program System  



Select the system  

Edit Sys Option 

 

Set Delay Time 

This setting controls how many seconds the scanner waits after a transmission ends before resuming

scanning. Enter a value from 1-5 or Off, then press E or the scroll control.

Notes:

• The default setting is 2 seconds for each system.

• This setting applies to all channels within the system.

Setting ID Scan/Search (Trunked Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

ID Scan/Search 

This setting controls how the system will be scanned. Select your setting, then press E.

ID Scan - the scanner only stops on channels you have programmed into the system.

ID Search - the scanner stops on any transmission for unlocked talk group ID's.

Note: You can also change this setting by pressing Scan while scanning the system.

Editing the Fleet Map (Motorola Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

Edit Fleet Map 

For Motorola Type I and Type II Hybrid systems, you must enter a system fleet map in order for the scanner to properly track and display talk group ID's. The fleet map is usually included in the same resource that provided system frequencies and talk group ID lists.

Programming/Editing Optional Settings

Rotate the scroll control to select the fleet map:

Preset - select from the 16 most common fleet maps (see “Preset Map 1 Preset Map 2” on Page 133). Press E to select.

Custom - allows you to enter a custom fleet map. Enter the size code for each block. Press E to select.

Notes:

• If you don't know the fleet map for your Motorola Type I system, check the Internet. This information is commonly posted on sites such as those we reference in “Where To Get More Information” on Page 29.

• The default setting of no fleet map is the correct setting for Motorola Type II systems.

Setting the Motorola Status Bit (Motorola Systems Only)

 Program System  

Select the system  

 

Edit Sys Option  Set Status Bit 



Motorola analog systems use talk group ID's in multiples of 16. ID numbers that fall between these ID's indicate special status flags for the system. This setting determines how the scanner will handle ID's that are not multiples of 16. Select your setting then press E.

Ignore - the scanner rounds all received ID's down to the next interval of 16.

Yes - the scanner treats all received ID's as unique ID's.

Note: The default setting is Ignore.

Setting the End Code Operation (Motorola Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

Set End Code 

This setting determines how the scanner handles the transmission end code sent by most Motorola systems. Select your setting then press E.

Yes - the scanner immediately returns to the control channel when it detects the end code.

Ignore - the scanner does not return to the control channel until the carrier drops.

Note: The default setting is Yes.

Setting I-Call (Motorola and EDACS Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

Set I-Call 

This setting determines how your scanner treats I-calls while ID Searching.

On - the scanner tracks I-calls. Press E to select.

Off - the scanner ignores I-calls. Press E to select.

Only - the scanner only tracks I-calls and ignores

other radio traffic on the system. Press E to select.

Note: The default setting is Off.

Programming/Editing Optional Settings

Setting Emergency Alert (Motorola and EDACS Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

Emergency Alert 

Off - the scanner does not alert you to emergency

transmissions.

Alert 1 - 9 the scanner sounds an alert beep to notify you of the emergency transmission. You can choose any of 9 different beep types.

 Set Level

Auto - the scanner automatically sets the emergency

alert beep to the master volume level.

Level 1 - 15 - the scanner adjusts the volume you hear to the level you select.

Setting Control-Channel Only (Motorola Systems Only)

 Program System  



Select the system  

Edit Sys Option 

 

Set C-Ch Only 

This setting determines the frequencies you need to enter for Motorola systems. Select your setting, then press E.

Off - you must enter all voice and control channel frequencies.

On - you only need to enter control channel frequencies.

Note: The scanner defaults to On.

Reviewing Locked Out Frequencies

 Program System  

Select the system  



Edit Sys Option 



Rvw ID: Srch L/O 



The scanner displays the first locked-out frequency and prompts you to unlock the frequency. Press E to unlock the frequency. Or, rotate the scroll control or press to select a different frequency. To exit the review, press .

Clearing All Locked-Out IDs

 Program System  

Select the system  

 

Edit Sys Option  Clr All L/O IDs 



The scanner prompts you to confirm deletion. To confirm and delete all locked-out IDs in the selected system, press E. Otherwise, to cancel, press .

Setting the EDACS ID Format (EDACS Systems Only)

 Program System 



Select the system 

Edit Sys Option 

 

EDCS ID Format 

EDACS talk group ID's are commonly provided in one of two formats: AFS and Decimal. This setting determines how you enter EDACS ID's and how the scanner displays them.

AFS Format - the scanner uses AFS format for talk group ID's

Decimal Format - the scanner uses decimal format for talkgroup ID's

Programming/Editing Optional Settings

Notes:

• The scanner defaults to AFS (agency, fleet, subfleet) format - the format used in most EDACS systems.

• See “EDACS Trunking” on Page 27 for more information about the AFS format.

Setting System Attenuation (Trunked Systems Only)

 Program System 

Select the system 



Set Attenuator 



This setting controls whether the attenuator will be on or off for the current system. Select your setting then press E.

Off - the attenuator is off.

On - system frequencies are attenuated by about 18 dB.

Notes:

•Even if ATT appears, attenuation might not work if the bar antenna is turned on and the tuned frequency is from 0.1 to 1.7 MHz.

• Turn on this setting if you are near strong signal sources. Attenuation can help reduce interference and desensitization that strong signals create.

• You can also turn this setting on or off by holding on a trunked system, then pressing + E.

Func

Deleting Systems

 Program System 



Select the system 

Delete System 



The scanner prompts you to confirm deletion. To confirm, press E. To cancel, press .

Notes:

• Deleted systems cannot be restored. You must re-enter them.

• You cannot restore preloaded systems.

Copying Systems

To copy a system including all settings, groups, and channels:

 Program System 

Select the system 

 

Copy System 

New Sys Name?

Enter a name for the copied system, then press E.

Group-Level Settings

The settings in this section apply to all of the channels stored in the current group.

Entering/Editing the Group Name

 Program System 



Select the system 

Edit Group 



Select the group  

Edit Name

 

Follow these steps to enter/edit the group name.

1. Rotate the scroll control to select the first letter.

2. Press and hold down then rotate the scroll control once to select the next letter.

3. Repeat Steps 1 and 2 until you have entered the system name. Then press E or press down on the scroll control to accept the setting.

Hints:

Func

Programming/Editing Optional Settings

• Each group name can be up to 16 characters. Abbreviate as necessary to fit.

• The group and system name alternate in the top line of the display when the scanner stops on a channel.

• Press twice to delete the current character.

• Press three times to clear the entire alpha tag.

Setting the Group Quick Key

 Program System 

Select the system 

 

Edit Group 

Select the group  

 Set Quick Key  

After selecting this option, press 0-9 to assign the group to a quick key or press to assign the system to no quick key, then press E.

Hints:

• You can assign as many groups to the same quick key as you want.

• A group’s quick key must be activated to be scanned.

Setting Group Lockout

 Program System 



Select the system 

Edit Group 



Select the group  

 Set Lockout  

This setting determines whether the scanner scans this group when it is enabled. Select your setting, then press E.

Lockout - the group is not scanned.

Unlocked - the group is scanned.

Note: The default setting is Unlocked.

Deleting Groups

 Program System 

Select the system 

 

Edit Group 

Select the group  

 Delete Group  

The scanner prompts you to confirm deletion. To confirm, press E. To cancel, press .

Note: Deleted groups cannot be restored. You must re-enter them.

Channel-Level Settings

These settings affect only the channel you are programming.

Editing the Channel Name

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the channel  

 Edit Name 

Follow these steps to enter/edit the channel name.

1. Rotate the scroll control to select the first letter.

2. Press and hold down then rotate the scroll control once to select the next letter.

3. Repeat Steps 1 and 2 until you have entered the channel name. Then press E or press down on the scroll control to accept the setting.

Hints:

Func

Programming/Editing Optional Settings

• Each channel name can be up to 16 characters. Abbreviate as necessary to fit.

• The channel name appears on the second line of the display when the scanner stops on a channel.

• If you do not enter a channel name, the scanner displays the frequency (for conventional systems) or the talk group ID (for trunked systems) when it stops on a channel.

• Press twice to delete the current character.

• Press three times to clear the entire alpha tag.

• Channel names take up extra memory. To maximize channels, use channel names only where necessary.

Editing Frequencies (Conventional Channels Only)

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the channel  

Input Frequency

Input the frequency, then press the scroll control. To change the frequency you entered, turn the scroll control to select Edit Frequency, then press the scroll control.

Setting Channel Priority (Conventional Channels Only)

 Program System 

Select the system 

 

Edit Group 

Select the group  

 Edit Channel  

Select the channel  

 Set Priority 

This setting controls whether the scanner treats the channel as a priority channel while scanning. Select your setting, then press E.

On - when you turn on the Priority feature, the channel will be scanned every 2 seconds. appears.

Off - the channel will not be treated with priority.

Note: The default setting is Off.

Setting Channel Alert

 Program System 

Select the system 

 

Edit Group 

Select the group  

 Edit Channel  

Select the channel  

 Set Alert 

Off - the scanner does not alert you to emergency transmissions.

Alert 1 - 9 - the scanner sounds an alert beep to notify you of the emergency transmission. You can choose any of 9 different beep types.

 Set Level

Auto - the scanner automatically sets the emergency

alert beep to the master volume level.

Level 1 - 15 - the scanner adjusts the volume you hear to the level you select.

Programming/Editing Optional Settings

Editing the Talk Group ID (Trunked Channels Only)

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the talk group ID  

 Edit TGID  

To edit the talk group ID, enter the talk group ID you want using the number keys on the keypad. Then press down on the scroll control to accept it.

Setting CTCSS/DCS (Conventional Channels Only)

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the channel  

 Set CTCSS/DCS 

This setting controls how a subaudible CTCSS or DCS is used for the channel. Select your setting, then press E.

Off - any signal opens squelch.

Search - the scanner searches for and displays any

CTCSS or DCS tone that accompanies the transmission.

CTCSS - the scanner only opens squelch if the CTCSS tone you select is also present with the signal. The

scanner then prompts you to enter or scroll to the desired tone.

DCS - the scanner only opens squelch if the DCS tone you select is also present with the signal. The scanner then prompts you to enter or scroll to the desired tone.

Set Lockout - the scanner does not stop on the channel if the tone you select is present. The scanner prompts you to select a CTCSS or DCS tone.

Notes:

• The default setting is Off.

• See “What is CTCSS/DCS?” on Page 20 for a complete list of CTCSS and DCS tones.

Setting the System Frequency Modulation

  Srch/CloCall Opt  

Set Modulation 



Auto - the scanner uses the default modulation for the frequency band.

AM - the scanner uses AM (amplitude modulation) for the frequency band.

FM - the scanner uses FM (frequency modulation) for the frequency band.

NFM - the scanner uses narrowband FM for the frequency band.

WFM - the scanner uses wideband FM for the frequency band.

Note: The default setting is Auto.

This setting controls the modulation method used for the frequency band. In most cases, if you leave this set to Auto, the scanner automatically selects the

Programming/Editing Optional Settings

correct modulation type for the system you are programming.

Setting Channel Attenuation (Conventional Channels Only)

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the channel  

 Set Attenuator 

This setting controls whether the scanner attenuates signals on this channel. Select your setting, then press E.

On - the channel is attenuated by about 18 dB.

Off - the channel is not attenuated.

Notes:

• The default setting is Off.

• For trunked systems, the attenuation is a systemlevel setting.

• You can also toggle this setting by holding on the channel and pressing and E.

Func

Setting Channel Lockout

 Program System  E 

Select the system  E 

Edit Group  E 

Select the group  E 



Edit Channel  

Select the channel  

 Set Lockout 

This setting determines whether the scanner will scan this channel when its system and group are enabled. Select your setting, then press E.

Lockout - the channel is not scanned.

Unlocked - the channel is scanned.

Notes:

• The default setting is Unlocked.

• You can also lock or unlock a channel by selecting it while scanning or holding, then pressing L/O. See “Basic Operation” on Page 42.

Deleting Channels

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Select the channel  

 Delete Channel 

The scanner prompts you to confirm deletion. To confirm, press E. To cancel, press .

Note: Deleted channels cannot be restored. You must re-enter them.

Copying/Pasting Channels

To copy a channel including all settings:

 Program System 



Select the system 

Edit Group 



Select the group  

 Edit Channel  

Programming/Editing Optional Settings

Select the channel

 

 Copy Channel 

The scanner copies the channel into a copy buffer. To paste the channel into the same or another system:

 Program System 

Select the system 

 

Edit Group 

Select the group  

 Edit Channel  

Select the channel  

 Paste Channel 

Then, if necessary, edit the channel you copied to give it a unique name and other settings.

Note: The paste option appears only if you have previously copied a channel from a system of the same type you are currently editing.

Searching and Storing

Service Search

Service Search lets you quickly select and search the scanner’s preprogrammed search ranges. During service search, the scanner searches starting with the lowest frequency in the search range you select to the highest frequency in the range.

  Search for ...  

Service Search 



Select the service search type  

The following search bands appear.

• Public Safety

• News

• HAM Radio

• Marine

• Railroad

• Air

• CB Radio

• FRS/GMRS

• Racing

• TV Broadcast

• AM Broadcast

• FM Broadcast

• Special

The scanner searches the service you selected, stopping on any transmission it finds and displaying the frequency. Turn the scroll control to change the search direction. An arrow appears, showing the current search direction.

To hold searching, press Hold. To resume searching, press then press Scan/srch. Or, press Hold.

To lock out a frequency found while searching, press L/O. Locked Out appears and the scanner resumes service search.

Func

Searching and Storing

Notes:

• If all frequencies in the search band you selected

are locked out, All Locked! appears and the scanner does not search the band.

• If the service you select uses channels (such as CB Radio or Marine), the scanner displays the service channel number.

Quick Search

Quick Search lets you search from the currently-tuned frequency if you are scanning a conventional system or sets the system to ID search if you are scanning a trunked system.

If you are on a conventional system or channel, press

Func

and Scan/srch to start quick search. Quick Search? Yes = “E” / No = “.” appears. Qck Search Hold appears if you press Hold.

Press E to start quick search or no to go to the search menu.

CTCSS/DCS Search

CTCSS/DCS Search lets you search for CTCSS or DCS tones when it finds an active frequency in search and Close Call modes. You can identify up to 50 CTCSS tones and 104 DCS codes.

  Srch/CloCall Opt 



CTCSS/DCS Search  

Turning this option on lets the scanner search for CTCSS/DCS tones. If the scanner detects the tone, it displays the tone’s frequency and DCS code. Select your setting, then press the scroll control.

On - CTCSS/DCS search is turned on.

Off - CTCSS/DCS search is turned off.

100
