WIP-5000 User Guide

Safety Information

1. Safety Information

These safety warnings apply to the Wireless IP Phone WIP-5000. Please read the following sections
before Installing or using your WIP-5000.

1.1 Emergency Services Warning

This phone will not be able to access emergency services during a power outage because of reliance on
utility power for normal operation. Alternative arrangements should be made for accessing emergency
services.

1.2 Explosive Gas Warning

The use of the WIP-5000 in hazardous environments where high level of explosive gasmay be present
is not recommended. Check with the site safety engineer before using any type of wireless device in
such an environment.

1.3 Battery Disposal Warning

Do not dispose of the battery pack in fire or water. The batterymay explode if placed in the fire.

1.4 Battery Safety Notices

These Battery safety notices apply to the batteries that are approved by the WIP-5000 manufacturer.

v Do not disassemble, crush, puncture, or incinerate the battery pack.
v To avoid risk of fire, burns, or damage to your battery pack, donot allow a metal object to touch

the battery contacts.

v Handle a damaged or leaking battery with extreme care. If you come in contact with the

electrolyte, wash the exposed area with soap and water. If the electrolyte has come in contact
with your eye, flush the eye with water for 15 minutes and seek medical attention

v Do not charge the battery pack if the ambient temperature exceeds 40 degrees Celsius.
v Do not keep the battery pack in temperatures above 60 degrees Celsius.
v When discarding a battery pack, contact your local waste disposal provider regarding local

restrictions on the disposal or recycling of batteries.

v To obtain a replacement battery, contact your local dealer. Use the batteries that are provided

by WIP-5000 manufacturer only.

v Use the power supply that is provided by WIP-5000 manufacturer only.

1.5 Regulatory Compliance Standards

WIP-5000 does not comply with any standards. Use only as a MarketingSample.

Page 1

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

2. Package Contents

The following items are included in your phone package

•One phone body

•One extended battery

•One DC 5V 750mA Adapter

•One USB Cable

•One Desktop Charger

•One Quick Installation Guide

•One CD Manual

Package Contents

Phone Body

Adapter

Desktop Charger

Extended Battery

USB Cable

Quick Installation Guide and CD Manual

Page 2

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

3. Overview

The side and front views of the WIP-5000 are depicted in Figure 1 below

Overview

Figure 1. WIP-5000 side view andfront view

1. HEADSET JACK

2. VOLUME UP

3. VOLUME DOWN

4. LOCK

5. LEFT SOFT

7. MULTI FUNCTION KEY

8. CLEAR

9. SEND

10. END

11. DIAL PAD

6. RIGHT SOFT

Page 3

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

How the Key works

4. How the Key works

VOLUME UP Pressing the VOLUME UP key will increases volume of handset,

headset or ringer

VOLUME DOWN Pressing the VOLUME DOWN key will decreases volume of handset,

headset or ringer

LOCK Pressing the LOCK key will lock your phone or to unlock

LEFT SOFT Use it for entering menu, editing something, saving phone number,

and changing character input

RIGHT SOFT Use it for searching, going back to previous screen, shortcut to

Presence menu, and muting

MULTI FUNCTION KEY Multiple Function Key have multiple functions.

1. Menu browsing

1)Pressing the key to LEFT direction changes the display to the
previous screen.

2)Pressing the key to RIGHT direction changes the display to the
next screen for the item you selected in either menu or setup

3) Pressing the key to UP or DOWN direction allows you to scroll

up or down the menu or setup screen.

2. Editing

1) Pressing the key to LEFT direction moves the cursor to left.

2) Pressing the key to RIGHT direction moves the cursor to the right.
In text input menu such as write message that allow space input.

CLEAR In text editing, deletes one character (backspace).While browsing menu,

goes back to the previous menu.

SEND Places and answers calls.
.

END During a call, it disconnects the call.While browsing menu, it exits menu.

Power ON: holding it down till 'Loading…' message shows up.
Power OFF: holding it down for a second or longer.

DIAL PAD It is for dialing just like the normal telephone and entering alphanumeric

characters when text editing for names and numbers.
Also, it can be used for quick menu browsing

Page 4

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

5. Accessory

5.1 Guidelines for Use of Accessory

Follow these guidelines in using accessories with your Wireless IP Phone WIP-5000.

•When disconnecting the power cord of any accessory, grasp by the plug, not the cord and pull.

•Keep the accessories away from children.

•Use only charger, batteries, accessories that are approved by the Wireless IP Phone
WIP-5000 manufacturer. Using unapproved charger, batteries, and accessories
may be dangerous, and may invalidate the warranty on your phone.

5.2 Available Accessory

•Extended Battery

•AC Adapter

Accessory

•Desktop Charger

•USB Cable .

5.3 AC Power Adapter

The AC Adapter as shown in Figure 1 enables you to charge your phone battery quickly.
To use the adapter, plug it into a wall outlet, and insert the connector into the base of
your WIP-5000 or the back of the desktop charger. You can use the phone while battery charging.

Figure 1. AC Adapter

Page 5

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

5.4 USB Cable

The USB Cable as shown in Figure 2, connects your phone to the PC, enables you to
either configure or to charge the phone. When configuring the phone, make sure that your
PC and the phone are connected directly to each other by the USBcable.

Figure 2. USB Cable

5.5 Inserting Battery

Place the battery into the battery bay on the back side of the phone and push up towards
the release button until it clicks.

Accessory

5.6 Releasing Battery

Take the battery off from the phone by pressing the release button and pull out the battery
towards the bottom of the phone.

Note : For more information about releasing battery, refer to page 8.

5.7 Charging Battery with Desktop Charger

Figure 3. Charging with AC Adapter

Page 6

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Accessory

Figure 3. Charging USB Cable

Step 1. Plug the AC adapter into a wall outlet, and insert the connector into back of the

battery charger.
Step 2. Insert the phone into the upper compartment of the charger as shown in Figure 3.

Note : It is also possible to charge the phone by using the USB cableinstead of the

AC adapter as shown in Figure 4.

5.8 Charging Battery without Desktop Charger

Step 1. Plug the AC adapter into a wall outlet
Step 2. Remove the protective connector cover of the phone.
Step 3. Insert the AC adapter connector into base of the phone.

Note : It is also possible to charge a phone by using the USB cable instead of the

AC adapter.

Page 7

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

6. Tips for using battery

6.1 Releasing battery

1. Push the button right
above the battery.

Tips for using battery

2. After pushing the button,
release the battery pack
from the phone body

3. Now you can lift up from the
phone body.

Note : Before separating a battery from the phone, check if the phoneis powered off.

Page 8

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

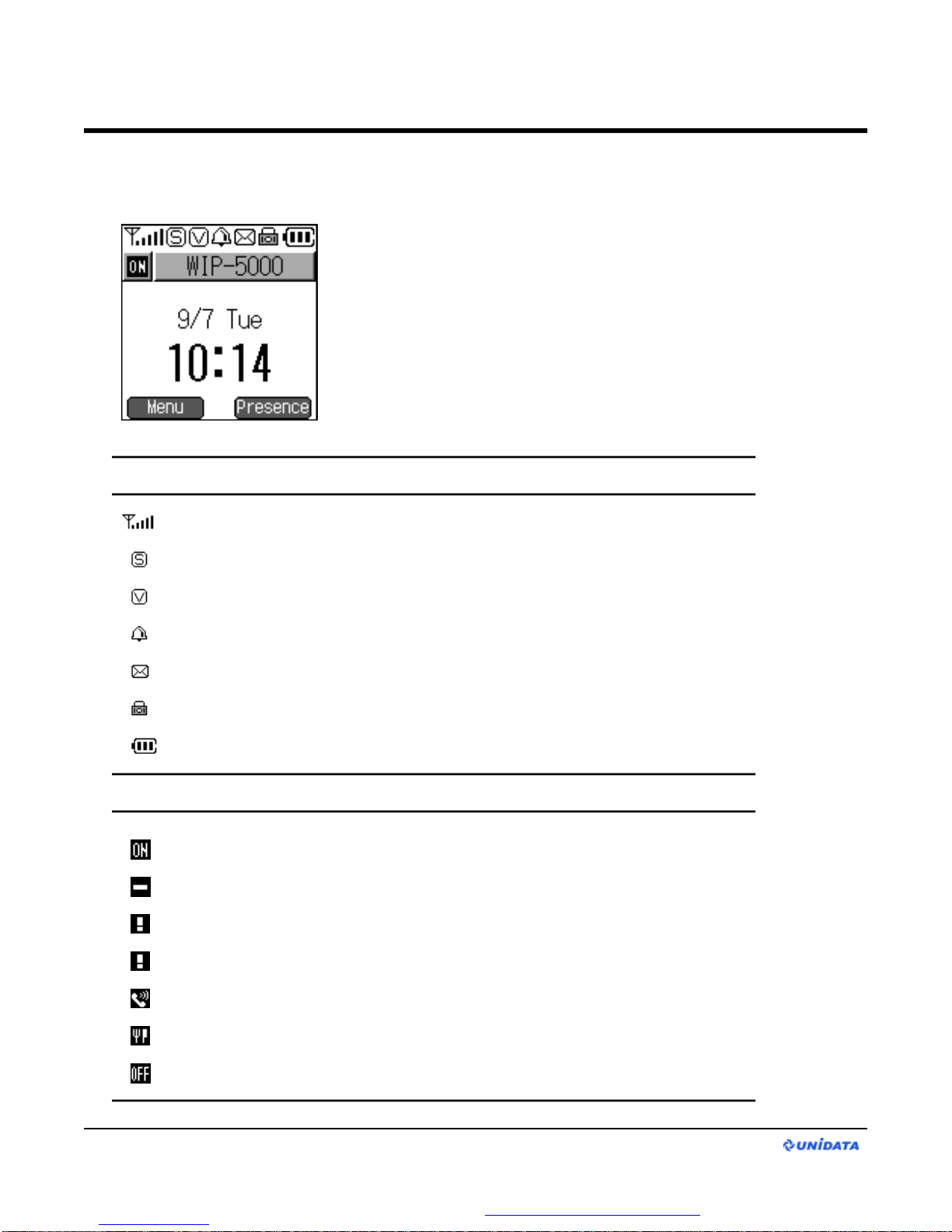

7. Icons on Display

Standard feature icons

Indicate Signal Strength.
Indicate lamp mode is on. LED blinks when there is an incoming call.

Icons on Display

Indicate vibration mode is on. It gets displayed when ring modeis set to vibration.
Indicate alarm is on. It gets displayed when alarm clock setup is on.
Indicate that there is/are new message(s) that has not been read.
Indicate key lock. While this mode is on, pressing keys will donothing.

Indicate Battery Life.

Status message of idle mode display

Indicates user is online.
Indicates user is busy.
Indicates user is going to be right back.
Indicates user is away for a while.
Indicates user is on the phone.
Indicates user is out to lunch.
Indicates user is offline.

Page 9

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Inputting Characters

8. Inputting Characters ( Dial Pad )

Dial pad is formed with integer 0~9, *, and # and used for inputting 3 or 4 alphabet letters and
some symbols. Once a Dial key has been pressed, pressing it again while the rectangular cursor
keeps blinking will change the current input to the next letter assigned for that specific key. See the
table below for the Dial key assignment. Note that after the rectangular cursor blinks couple of
times, it will change into a vertical bar cursor. Alphabet letters are lowercase by default.

Let’s try entering “Hello 2004”

Dial Pad

#

*

0

9

8

7

6

5

4

3

2

Key

1

:

.

0

9

8

7

6

5

4

3

2

1

#!@wtpmjgda/

F

O
N

T

;?spacexuqnkheb,
$[-yvrolifc

%]z8s65432

&^9T7MJGDA

’_WUPNKHEB
(’XVQOLIFC
){YR

+|Z S
<}

=~
>

Step. 1 For “H”: Press ‘4’seven times.
Step. 2 For “e”: Press ‘3’three times.
Step. 3 For “l”: Press ‘5’four times.
Step. 4 For “l”: Press ‘5’four times.
Step. 5 For “o”: Press ‘6’four times.
Step. 6 For “space”: Press ‘0’three times + Multi Function Key rightdirection.
Step. 7 For “2”: 2
Step. 8 For “0”: 0
Step. 9 For “0”: 0
Step. 10 For “4”: 4

Note : This dial pad system is for bootrom menu only.

Page 10

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9. Application

9.1 Outbound Call

Step.1

Once registered, you can make calls to
others that are registered to the same SIP Server.

Step.2

Application

Dial number & press Send Key. If your call reach the
other party, you will hear ring back tone and it says
“Sending”on the top of the screen as shown in the
picture on the right.

Note : If fails to reach, there is no indication.

Step.3

If Callee receive your call, timer start activating on the
top of the screen as shown in the picture on the right.

Page 11

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.2 Inbound Call

Step.1

Once registered, you can also receive calls.

Step.2

If someone calls you, it says "Incoming call" on the top of
the screen and displays caller ID.
(caller's phone number and name).

Application

To answer a call press Send Key.
To decline a call press End Key.

Note : The name will be displayed if that number is

saved in phone book with the name.

Step.3

If you receive a call, timer start activating on the top of
the screen as shown in the picture on the right.

Page 12

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.3 Phone Book Menu

Step.1

Use Left Soft Key to enter the menu from idle screen.

Then you will see the screen just like the 2nd picture.
Select “Phone Book”by pressing the linked number (1) or

press Enter Key to enter.

Application

9.3.1 Add New Entry

You can store info such as phone number of your family, friends and others. It must have
at least one stored number in the phone book to search.

Step.1

From Phone Book menu, press the linked
number (2) or move to “New Number”and press

Enter Key to enter.

Step.2

Input information: Name →Read Name
Phone Number →Group →Index. After done
inputting information you need, press Enter Keyto
save. It is not required to fill everything out but
the Phone number is essential.

Note : For the Name input box, user can change the

Input to upper/lower case letter, digit, and
special character by using Left Soft Key.

→

Page 13

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

▷▷▷

If you press Enter Key to save without entering any datum,
<Warning> message pops up.

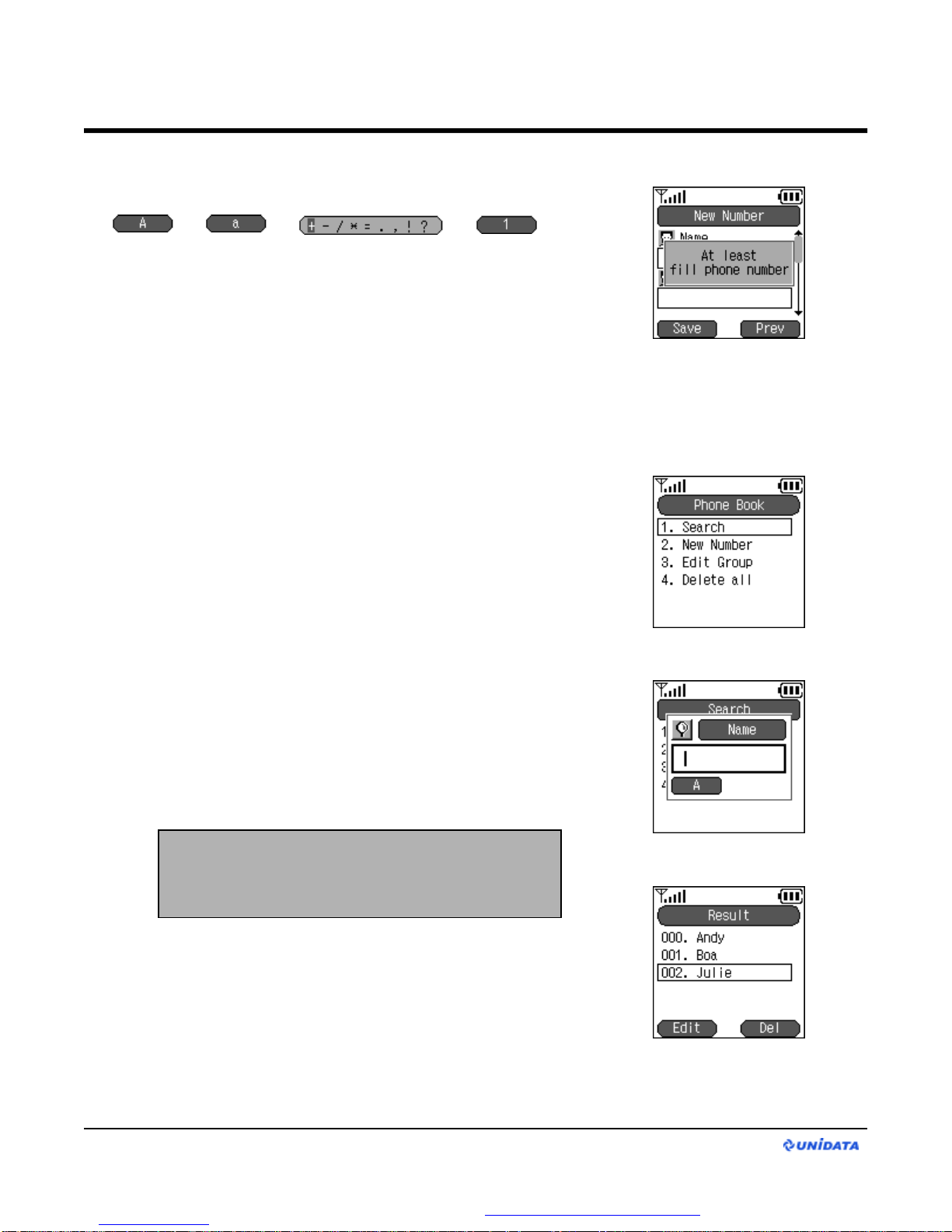

9.3.2 Call From Phone Book

Calling from the Phone Book is another way to make a call instead of dialing from idle screen.
So as to do, you need to search phone number stored in Phone Book by following the steps below.

Step.1

From Phone Book menu, press the linked number (1)
or move to “Search”and press Enter Key to enter.

Application

Step.2

There are 4 ways to search the number.

①

By Index

②

By Name

③

By Phone Number

④

By Group

Result will look like the second picture on the right.

Note : If you didn’t input the exact information

whichever way among the above, phone will
search the name or number that contains the
input character that you entered.

For example, let’s say that one person is Kim, and second
person is Kimberly. They both have ‘K’in their name. So
if you don’t want to enter whole name to search one
person by Name, you can just input one letter ‘K’then
press Enter Key. Result will show Kim and Kimberly.

Page 14

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.3

Select Julie and press Enter Key then it will show Julie’s
information: Read Name, Phone Number, Group and
Index.

Step.4

Press Send Key or Enter Key wherever the focus at can
make a call to the person.

Application

9.3.3 Edit Group

This section explains you how to add, delete or edit group.

Step.1

From Phone Book menu, press the linked number (3) or
move to “Edit Group”and press Enter Key to enter.

Step.2

Undefined is default group, which cannot be edited or
deleted. you can add a group by using Left Soft Key;
delete a group by using Right Soft Key; and edit a group
by pressing Enter Key.

Note : Maximum 10 groups can be made.

Page 15

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.3

The picture on the right shows adding a group named as
“WIP”. Press Enter Key to save a new group and it goes
back to Phone Book menu.

* User can change the inputs by using Left Soft Key.

Step.4

Select a group you want to remove and press Right Soft Key.
* Removed dialog will disappear in a second; it goes back to

Phone Book menu.

Application

▷▷▷

Step.5

Select a group you want to edit and press Enter Key.
Change the name of group as refer to step 3.
Press Enter Key again to save and it goes back to Phone
Book menu.

Page 16

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.3.4 Delete all

This function deletes all the phone numbers that are stored in Phone Book but the groups that
have created don’t get deleted.

Step.1

From Phone Book menu, press the linked number (4) or
move to “Delete all”and press Enter Keyto enter.

Step.2

Application

Phone will ask you to make confirmation. Use
choose “Yes”or “No”.

Step.3

Selecting “Yes”will show the process of deleting the entire
Phone Book datum.

In a second, “Removed”dialog shows and it goes back to
Phone Book menu.

◁▷

key to

Page 17

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

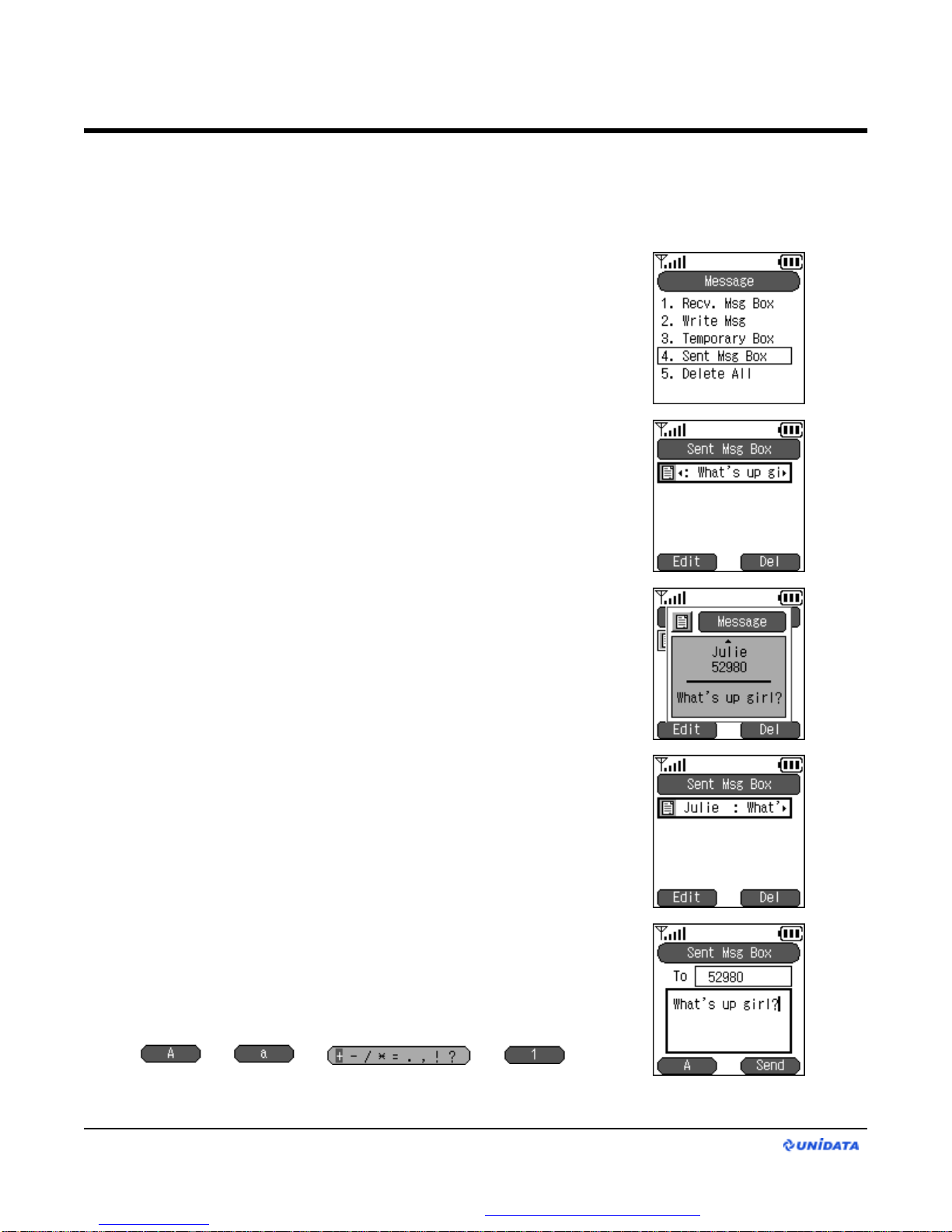

9.4 Message Menu

Message is used for short communication by transmitting words toeach others.

Step.1

Use Left Soft Key to select the menu from the idle screen.

Then screen like the second picture on the right will shows up.
Press the linked number (2) or move to “Message”and press

Enter Key to enter.

Application

9.4.1 Received Message Box

All the messages you received gets stored in here. If you want to see old/new messages check
the “Received Message Box”.

Step.1

From Message menu, press the linked number (1) or move to
“Recv. Msg Box”and press Enter Key to enter.

When the message comes, screen will look like the second
picture on the right.

Page 18

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.2

If there are unread messages, it will show the dialog how many
unread messages are left.

Right after that dialog disappears, it will show the list of unread
messages.

Ø If you don’t press Enter Key and stay still, message
automatically moves left and right to show entire messages in one
line. When you press △or ▽key to move the focus to next
message, next message will do the same action.

Application

Ø You can see the entire message manually by using

◁▷

key.

Step.3

From Step 2, select the message you want to read in larger
window and press Enter Key then screen will look like picture on
the right.

Ø If you do nothing but stay still, a message will automatically
moves up and down.

Ø You can see the entire message manually by using

△▽

key.

* Message contains the date, time, phone number, and contents.

Step.4

If you wish to edit the Received Message, press Left Soft Key.

Then your screen will be look like the second picture on the right.

△▽

Use

key to change the input field. After done editing, press

Right Soft Key if you wish to re-send edited message.

▷▷▷

Page 19

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.5

If you wish to delete the Temporary message, press Right Soft key.

Then your screen will be look like the second picture on the right,
which ask you to delete it or not. Select “Yes”by using
and press Enter Key to delete.

◁▷

Application

key

9.4.2 Write Message

You can write and send a message in here.

Step.1

From Message menu, press the linked number (2) or move
to “Write Msg”and press Enter Key to enter.

Step.2

Enter the number that you want to send a message to.

Step.3

Use dial pad and Left Soft Key to write a message.
* Hold down a Clear button clears the whole text.

▷▷▷

Page 20

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.4

Press Right Soft Keyto send a message.
It shows the process of sending a message. .

In a second, “Message has been sent.”dialog shows.

Note : If you input wrong number, the warning

message “failed”would pops up.

Application

Step.5

After “Message has been sent.”message shows, it asks
you to save.

If you wish to save the message. Select “Yes”by using

◁▷

key and press Enter Key to save.

Page 21

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.4.3 Temporary Box

Step.1

When you don’t want to send message at that moment and save
the message for the later use, press End Key.

Then your screen will be look like the second picture on the right,
which ask you to save it or not.Select “Yes”by using
and press Enter Key to save.

◁▷

Application

key

Step.2

From Message menu, press the linked number (3) or move to
“Temporary Box”and press Enter Key to enter.

Ø If you don’t press Enter Key and stay still, message
automatically moves left and right to show entire messages in
one line. If you press △or ▽key to move the focus to next
message, Next message will do the same action.

Ø You can see the entire message manually by using

Step.3

From Step 2, select the message you want to read in larger
window and press Enter Key then screen like picture on the right
shows up.

Ø If you do nothing but stay still, a message will automatically
moves up and down.

Ø You can see the entire message manually by using

△▽

△▽

key.

key.

* Message contains the date, time, phone number, and contents

Page 22

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.4

If you wish to edit the Temporary Message, press

Left Soft key.

Then your screen will be look like the second picture on the
right. Use
editing, press Right Soft Key if you wish to re-send edited
message.

△▽

key to change the input field. After done

▷▷▷

Application

Step.6

If you wish to delete the Temporary message, press

Right Soft key.

Then your screen will be look like the second picture on the
right, which ask you to delete it or not. Select “Yes”by using

◁▷

key and press Enter Key to delete.

Page 23

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.4.4 Sent Message Box

All the sent messages you saved gets stored in here.

Step.1

From Message menu, press the linked number (4) or move
to “Sent Message Box”and press Enter Key to enter.

Step.2

Ø If you don’t press Enter Key and stay still, message
automatically moves left and right to show entire messages in
one line. If you press △or ▽key to move the focus to next
message, Next message will do the same action.

Application

ØYou can see the entire message manually by using

Step.3

From Step 2, select the message you want to read in larger
window and press Enter Key then screen like picture on the right
shows up.

Ø If you do nothing but stay still, a message will automatically
moves up and down.

Ø You can see the entire message manually by using
* Message contains the date, time, phone number, and contents

Step.4

If you wish to edit the Sent Message, press Left Soft Key

Then your screen will be look like the second picture on the
right. Use
editing, press Right Soft Key if you wish to re-send a
message just edited.

△▽

key to change the input field. After done

◁▷

◁▷

.

key.

key.

▷▷▷

Page 24

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.5

If you wish to delete the Sent Message, press Right Soft Key. .

Then your screen will be look like the second picture on the
right, which ask you to delete it or not. Select “Yes”by using

◁▷

key and press Enter Key to delete.

Application

9.4.5 Delete All

Step.1

From Message menu, press the linked number (5) or move to
“Delete All”and press Enter Key to enter.

Page 25

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.2

1. Press the linked number (1) or move to “Recv. Msg Box”
and press Enter Key to delete everything inside of Recv. Msg
Box

2. Press the linked number (2) or move to “Temporary Box”
and press Enter Key to delete everything inside of Temporary
Box.

Application

3. Press the linked number (3) or move to “Sent Msg Box”
and press Enter Key to delete everything inside of Sent Msg
Box. .

Step.3

When user selects one of three menus, your screen will be
look like the first picture on the right, which ask you to delete it
or not. Select “Yes”by using

◁▷

key and press Enter Key

to delete.

Selecting “Yes”will show the process of deleting the entire
messages.

Page 26

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

In a second, “Deleted.”dialog shows.

9.5 Call Log Menu

This menu keeps the history of Inbound and Outbound calls.

Step.1

Using Left Soft Key to select the menu from the idle screen.

Application

Then your screen will be look like the second picture on the right.
Press the linked number (3) or move to “Call logs”and press

Enter Key to enter.

Note : You can also enter Call logs menu by using

MultiFunction Key left or right at Idle mode.

Step.2

There are Inbound and Outbound menu under Call logs menu.
Press the linked number (1) or move to “Inbound”and press

Enter Key to enter.

Then you can see the inbound calls. If the Name is given to that
number, it will display the Name. If not, it will display just number.

* Above the name/number, it has date and the time of inbound
call.

Page 27

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.3

Press the linked number (2) or move to “Outbound”and press

Enter Key to enter.

Just like the Inbound call, it displays name / number user has
called.

* Above the name / number, it has date and the time of inbound
call.

: Missed Call
: Outbound Call
: Received Call

9.5.1 Show More Information

Application

Step.1

Press Enter Key on the name / number that you want to get more
information then Information pop-up window will show up like the
picture on the right. You can see all the information by pressing

△▽

key or it automatically moves up and down if you stay still.

Information contains: Name, Number, and Duration how long
you were on the phone.

9.5.2 Call from Call Log

Step.1

From the Call logs screen, press Send Key on the name / number
that you want to call again then it will automatically dial the
number.

If the name is given to that number, name gets displayed above
the number. .

Page 28

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.6 Presence Menu

Step.1

Use Left Soft Key to select the menu from the idle screen.

Then screen like the second picture on the right will shows up.
Press the linked number (4) or move to “Presence”and press

Enter Key to enter.

Note : You can reach “Presence”menu directly by using

Right Soft Key from idle screen.

Application

9.6.1 User regist

Step.1

To add a friend, press the linked number (2) or move to “User
regist”and press Enter Key to enter.

Step.2

Use dial pad and Left Soft Key to enter your friend’s Alias.

▷▷▷

Page 29

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

If user entered the same Alias. Message that says, “Already
registered”shows up and goes back to input field.

9.6.2 User List

Step.1

To see the list of friends, Press the linked number (1) or move to
“User list”and press Enter Key to enter.

Application

Step.2

It shows list of all friends and you can see the their status.
To delete a User list, press Right Soft Key.
Pressing Enter Key makes a call.

9.6.3 Block regist

Step.1

To block a friend, press the linked number (4) or move to “Block
regist”and press Enter Key to enter.

If you block friends, the status of your friends wouldn’t appear at
user list anymore.

Step.2

Use dial pad and Left Soft Key to enter your friend’s Alias.

▷▷▷

Page 30

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.6.4 Block List

Step.1

To see the list of blocked friends, press the linked number
(3) or move to “Block list”and press Enter Key to enter.

Step.2

It shows list of all blocked friends.
To delete a Block list, press Right Soft Key.
Pressing Enter Key shows you detail information of blocked
friend.

Application

9.6.5 Status

Step.1

To see the current status, press the linked number (5) or move
to “Status”and press Enter Key to enter.

Step.2

User can set the status by using

Enter Key to apply.

Note : For description of status message, Refer to page 9.

◁▷

key and then press

Page 31

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.7 Setup Menu

Step.1

Use Left Soft Key to select the menu from the idle screen.

Then your screen will be look like the second picture on the
right. Press the linked number (5) or move to “Setup”and press

Enter Key to enter.

Application

9.7.1 Bell / Vibration

Step.1

From Setup menu, press the linked number (1) or move to
“Bell / Vibration”and press Enter Keyto enter.

Step.2

User can set the Bell / Vibration for Call and Message.
Press the linked number (1) or move to “Call”and press

Enter Key to enter.

Press the linked number (2) or move to “Message”and press

Enter Key to enter. There is no division between Ext. and Int.

like Call has.

Page 32

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.7.1.1 Ring Type

You can change the ring type of your phone for incoming call in here.

Step.1

There are two modes for each Ring Type.
If you want to change external telephone ring type, press the

linked number (1) or move to “Ring Type (Ext.)”and press

Enter Key to enter.

If you want to change internal telephone ring type, press the
linked number (3) or move to “Ring Type (Int.)”and press

Enter Key to enter.

Application

Step.2

User can set the Ring Type by using

Enter Key to apply.

* There are total 16 types of Ring.

◁▷

key and then press

Page 33

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.7.1.2 Mode

Step.1

From Call menu, press the linked number (5) or move to
“Mode”and press Enter Key to enter.

Step.2

Application

User can set the Mode by using

Enter Key to apply.

There are 4 types of modes
Ringing : phone rings when it gets phone call.

Vibration : phone vibrates when it gets phone call.
Ring + Vibration : combination of Ringing and Vibration.
Lamp : phone blinks the LED.

◁▷

key and then press

9.7.1.3 Volume

Step.1

From Call menu, press the linked number (6) or move to
“Volume”and press Enter Key to enter.

Step.2

User can set the Volume by using

Enter Key to apply.

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

◁▷

key and then press

Page 34

WIP-5000 User Guide

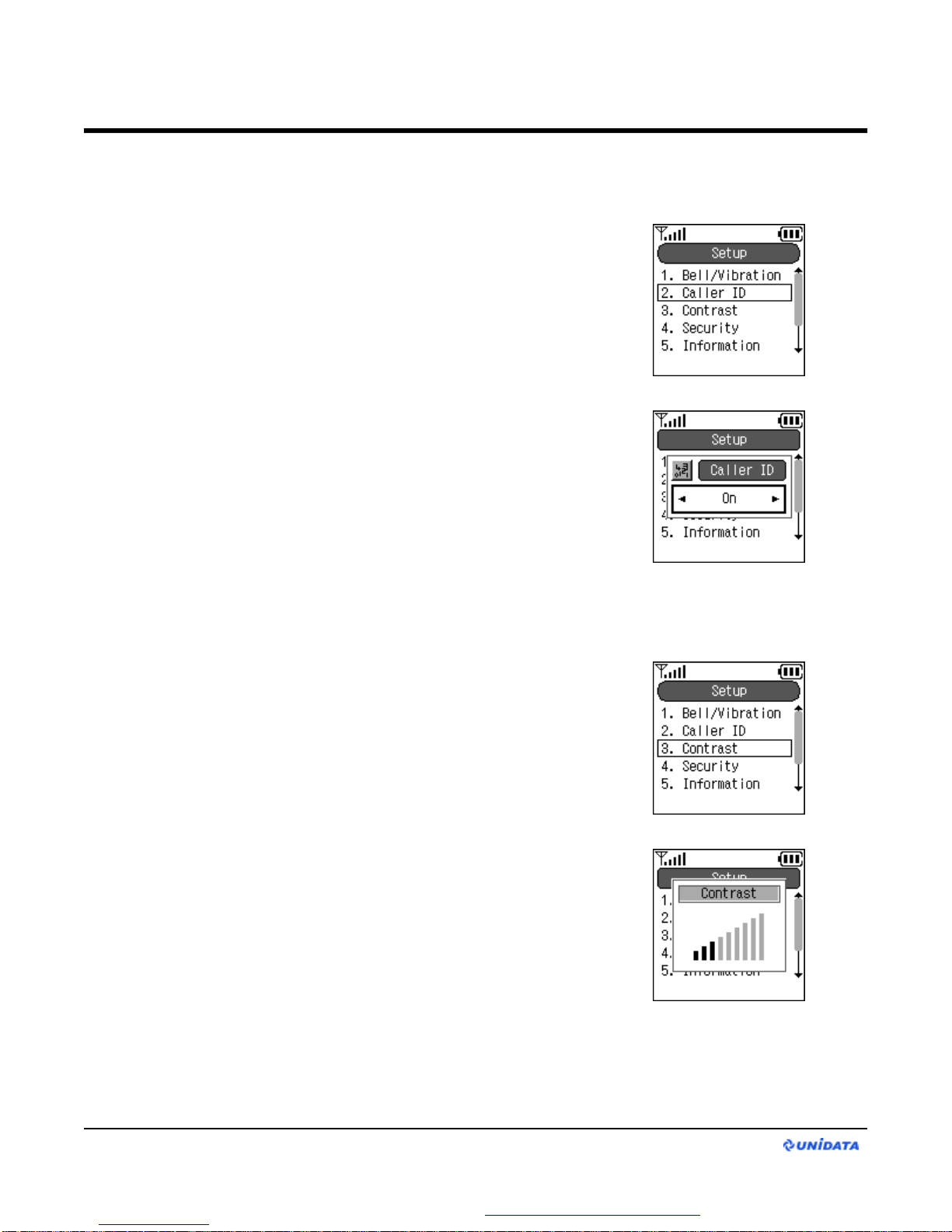

9.7.2 Caller ID

Step.1

From Setup menu, press the linked number (2) or move to
“Caller ID”and press Enter Key to enter.

Step.2

◁▷

Use

Enter Key to apply.

On : Other person can see your Display name / Alias
Off : Other person cannot see your Display name / Alias

Application

key to change the Caller ID On / Off and press

9.7.3 Contrast

Step.1

From Setup menu, press the linked number (3) or move to
“Contrast”and press Enter Key to enter.

Step.2

◁▷

Use
apply.

key to change the Contrast and press Enter Key to

Page 35

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

9.7.4 Security

You can change an admin and user password under this menu.

Step.1

From Setup menu, press the linked number (4) or move to
“Security”and press Enter Key to enter.

Step.2

1. Press the linked number (1 or 2) or move to (“Admin Pwd”
or ”User Pwd”) and press Enter Key to enter. User Pwd has
same procedure as Admin Pwd.

Application

2. After step 1, it asks to enter Old Password.
(Default password is ‘0000’).

3. If user entered wrong password, screen will look like the third
picture on the right.

4. If user entered correct password, it will ask user to enter New
Password.

Page 36

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

5. User needs to enter password one more time to confirm the
new password.

6. Press Enter Key to apply new password then “Changed”
dialog pops up and disappears after few seconds.

9.7.5 Information

Application

This menu is where you can see information about phone’s SIP, Network, MAC address, and
Bootrom / software version.

Step.1

Press the linked number (5) or move to “Information”and press

Enter Key to enter.

Step.2

From Information menu, press the linked number (1) or move to
“TCP/IP”and press Enter Key to enter.

It shows information of DHCP mode, IP address, Netmask,
Gateway, and DNS.

Page 37

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.3

From Information menu, press the linked number (2) or move to
“URL & Proxy”and press Enter Key to enter.

It shows Server Information : Display Name, User Info, SIP URL,
Registra and Outbound proxy.

Application

Step.4

From Information menu, press the linked number (3) or move to
“MAC address”and press Enter Key to enter.

It shows the MAC Address.

Page 38

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.5

From Information menu, press the linked number (4) or move to
“Version”and press Enter Key to enter.

Application

It shows the Bootrom / Software Version

.

9.7.6 Time

Step.1

From Setup menu, press the linked number (6) or move to “Time”
and press Enter Key to enter.

Step.2

From Time menu, press the linked number (1) or move to
“Current Time”and press Enter Key to enter.

It shows Current Date and Time.

Page 39

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.3

From Time menu, press the linked number (2) or move to “NTP”
and press Enter Key to enter.

◁▷

Use
apply.

NTP ON : WIP-5000 gets the date and time from the NTP server.
NTP OFF : WIP-5000 displays the date and time which has set in
Current Time.

User can change the time server and On/Off the NTP mode
through the web browser but Web Server function must be on.

Application

key to change the NTP On/Off and press Enter Keyto

Step.4

Press the linked number (3 or 4) or move to “NTP Server 1 or 2”
and press Enter Key to enter. Procedure of setting NTP Server2 is
same as NTP Server1.

Use Dial Pad to enter Time Server IP address.

Step.5

From Setup menu, press the linked number (5) or move to “Time
Offset”and press Enter Key to enter.

Page 40

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Step.6

◁▷

Use
apply.

Step.7

From Time menu, press the linked number (5) or move to
“Alarm”and press Enter Key to enter.

Application

key to change the Time Offsetand press Enter Keyto

Press the linked number (1 / 2 / 3) or move to “Alarm Clock
1 / 2 / 3”and press Enter Keyto enter.

Use the Multi Function key to change each fields (Time, Ring,
Repeat, Setup)
After user change setup to “On”and save the setting by
pressing Enter Key, icon will appear on the top middle.

Information : Admin menu is for network administrator only. For the details please refer to

WIP-5000 administrator-guide

Page 41

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

10. FAQ

Q. Does WIP-5000 support Layer 2 roaming while on the phone?
A. Yes, WIP-5000 can roam between access points with same ssid while user ison the phone.

Q. Does WIP-5000 support Layer 3 roaming while on the phone?
A. Yes, WIP-5000 can roam to different network while user is on the phone but another different network

configuration must be set before in the Admin > Network > Config menu.

Q. Which codecs does the WIP-5000 support?
A. WIP-5000 supports G.711 and G.729 codecs.

Q. What does the warning message: “Manual Config selection can’t move to other Config. Will

you continue?”mean?

A. When user selects aconfig other than Auto from Admin > Network > Manual Restart menu, WIP-5000

keeps connection with thatconfig only. To make WIP-5000 able to roam, please select Auto.

Q. How do you change the SIP port?
A. There are two types of SIP port you can change.

Destination Port

① Go to Admin > SIP > Primary Server.
② Press “Edit”Soft Key and then enter SIP server address with ':' and port.

ex) xxx.xxx.xxx.xxx:5061 You just need to add colon with port number.

Source Port

① Enter your WIP-5000's ip address with 8080 port on the web browser.

ex) http://xxx.xxx.xxx.xxx:8080

② Click “Configuration”and then “Open Sip”.
③ Change the Sip Port number.
④ Click the “CHANGE VALUE”button.

FAQ

Q. Where can I purchase a new battery?
A. Please contact WIP-5000 manufacturer.

Q. Why antenna signal is unstable and voice sound is not clear?
A. This could happen if user is far away from access point or user is at basement, tunnel,

mountains, place surrounded. These factors could effect antenna signal.

Q. Does WIP-5000 supports out-of-band DTMF?
A. Yes. You can set up SIP INFO method by setting DTMF type entry to 1, and also you can set up

RFC 2833 by setting DTMF type entry to 2.

Page 42

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

11. Glossary

802.1x

As the IEEE standard for access control for wireless and wired LANs, 802.1x provides a means of
authenticating and authorizing devices to attach to a LAN port. This standard defines the Extensible
Authentication Protocol (EAP), which uses a central authentication server to authenticate each user on
the network.

AP (Access Point)

A transceiver that makes a connection between wired network and one or more wireless devices.

DHCP (Dynamic Host Configuration Protocol)

Automatically gets an IP address assigned to a device when it logs onto the network.

SIP

SIP is the real-time communication protocol for Voice over IP (VoIP), and it supports multimedia
communications. SIP performs basic call-control tasks, such as session set up and tear down and
signaling for features such as hold, caller ID and call transferring. With SIP, most of the intelligence for
call setup and features resides on the SIP device or user agent,such as an IP phone or a PC with voice
or instant-messaging software.

Glossary

MD5 (Message Digest 5)

A secure hashing function that converts an arbitrarily long datastream into a digest of fixed size (128 bit).

NAT (Network Address Translation)

Sharing one incoming IP address by creating new multiple IP address to each devices.

Roaming

Movement from one AP coverage area to another with a wireless device without disconnection.

SSID

It’s an identifier when wireless device tries to connect to the WLAN through AP. It’s like a name that
differentiate WLAN environments. Therefore both AP and wirelessdevice must have the same SSID in
order to connect to a certain WLAN.

TCP/IP

A protocol that makes smooth communication between LANs and WANsthrough computers. TCP/IP is
made up with TCP plus IP protocol. TCP (Transmission Control Protocol) guarantees data transmission
between server and client. IP (Internet Protocol) is the computer address.

TFTP

A protocol, which allows files to be transferred from a host to a client.

TLS (Transport Layer Security)

An IETF standardized protocol that provides data integrity and privacy between two communications. It
allows client-server applications to communicate and is designed to prevent eavesdropping.

Page 43

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

UAM(Universal Access Method)

It is a login process using HTTP or HTTPS protocol (http over SSL, which tunnels the http packet to ssl
channel) through web browser for user ID and password input fromhtml page, so that users can access
the service.

uPnP (Universal Plug and Play)

uPnP is an architecture for peer-to-peer network connectivity of PCs and intelligent devices or appliances,
particularly within the home. uPnP builds on Internet standards and technologies, such as TCP/IP, HTTP,
and XML, to enable these devices to automatically connect with one another and work together to make
networking particularly home networking possible for more people.

USB (Universal Serial Bus)

It is a connection between a PC and a peripheral that transmit data. USB 1.1 provides data rate of
12Mbps and new USB 2.0 is 40 times faster, which makes 480Mbps data rate. It supports Plug & Play
and supply power.

VoIP (Voice over IP)

A term used in IP Telephony for a set of facilities for managingthe delivery of voice information
using the Internet Protocol(IP), which means sending voice information in digital packets.

WEP (Wired Equivalent Privacy)

Data encryption method used to protect the transmission between 802.11 wireless clients and APs.
However, it used the same key among all communicating devices. WEP's problems are well­known, including an insufficient key length and no automated method for distributing the keys.

Glossary

Page 44

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

12. Menu Construction

Menu Construction

1.Phone Book

2. Message

3. Call logs

4. Presence

1. Search By Index
By Name

By PhoneNum
By Group

2. New Number

3. Edit Group

4. Delete All

1. Recv. Msg Box

2. Write Msg

3. Temporary Box

4. Sent Msg Box

5. Delete All Recv. Msg Box
Temporary Box
Sent Msg Box

1. Inbound

2. Outbound

1. User list

2. User regist

3. Block list

4. Block regist

5. Status

5. Setup

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

1. Bell / Vibration Call Ring Type ( Ext.1 )
Ring Type ( Ext.2 )

Ring Type ( Int.1 )
Ring Type ( Int.2 )
Mode
Volume

Message Ring Type

Mode
Volume

2. Caller ID

3. Contrast

4. Security Admin Pwd

User Pwd

Page 45

WIP-5000 User Guide

Menu Construction

5. Information TCP / IP
URL & Proxy
MAC address
Version

6. Time Current Time

NTP
NTP Server1
NTP Server2
Alarm Alarm Clock 1

Alarm Clock2
Alarm Clock3

7. Language

6. Admin

1. Network Current Conf Basic Info

WLAN
WEP
Authentication
TCP / IP
SIP Outb Proxy
NAT Traversal

IP Diffserv
Coder

Jitter BufSize
Current Site
Site Scan
Config Config1 Basic Info

WLAN
WEP
Authentication
TCP / IP
SIP Outb Proxy
NAT Traversal
IP Diffserv
Coder
Jitter Buf Size

Manual Restart
Ping

2. SIP Alias
Primary Server
Secondary Server
Authorization
Expires

3. Upgrade Program

Configuration

Page 46

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

Menu Construction

4. Factory Default

8. Web Server

9. Syslog

10. Certs Manager View RootCA
View PrivateCA
Down RootCA
Down PrivateCA

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions; (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

CAUTION:

for compliance could void the user’s authority to operate the equipment.

Changes or modifications not expressly approved by the party responsible

Page 47

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

WIP-5000 User Guide

13. Contact Us

Contact Us

Please contact the below addresses for any questions
you have about UniData Communication Systems, Inc.

[e-mail]
[e-mail]
[e-mail]
[e-mail]

UniData Communication Systems, Inc.
2F, OhSung-Bldg, 82-15, NonHyun-Dong,
GangNam-Gu, Seoul, 135-010, Korea

Tel : [phone]
Fax : [phone]

http://www.udcsystems.com

Page 48

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
